Ranch House Plan 5633-00105

Sq Ft1,826
Beds3
Baths2
1/2 Baths0
Stories1
Cars2
Width59' 0"
Depth43' 0"
Images copyrighted by the designer. Photographs may reflect a homeowner modification.

Floorplan Drawings

 REVERSE  PRINT  DOWNLOAD Images copyrighted by the designer.

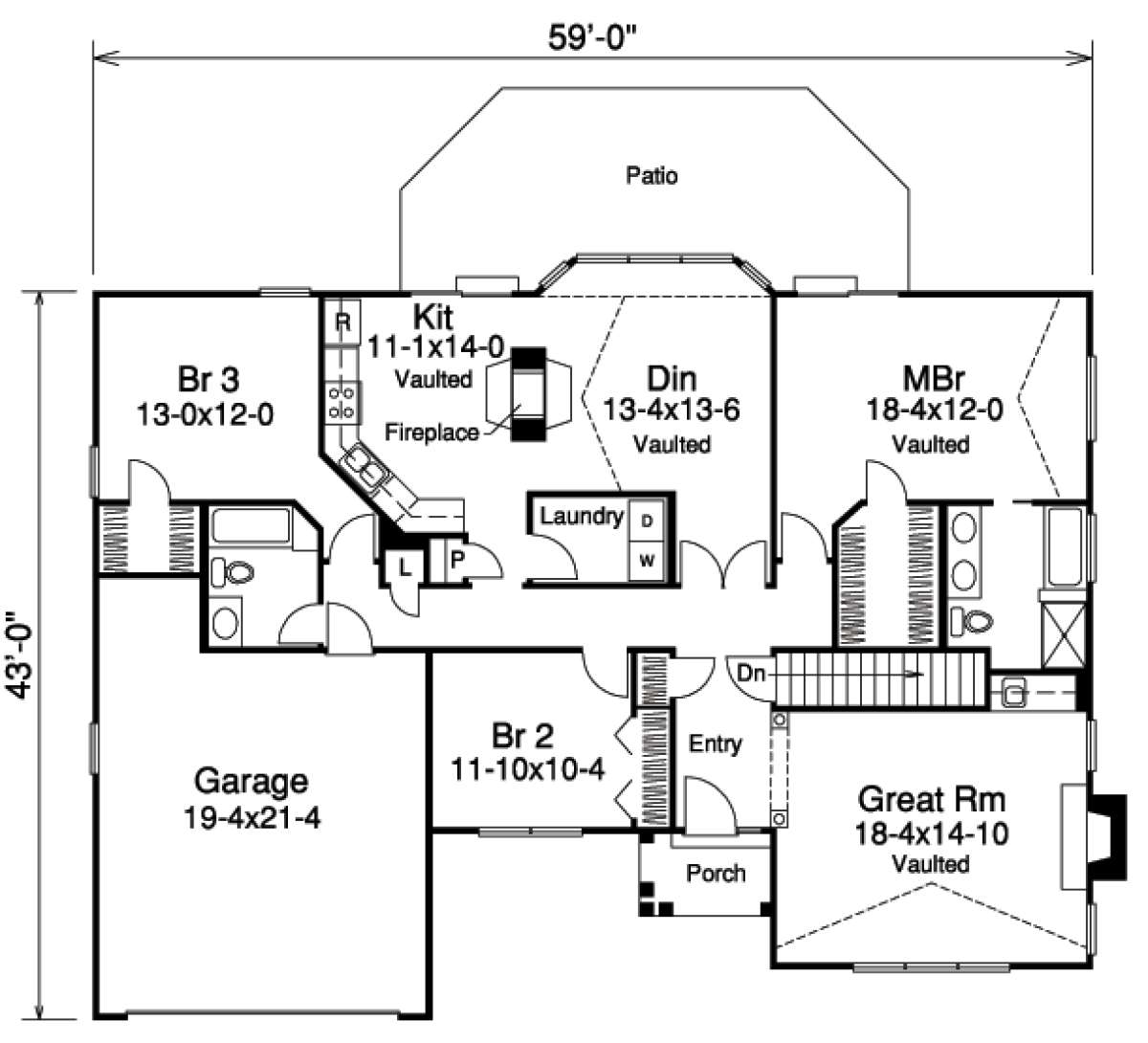

Floorplan 1 for House Plan #5633-00105
Floorplan 1
Floorplan 1 for House Plan #5633-00105


Frequently Asked Questions

COST TO BUILD REPORT

What's Included in these plans?

  • Heated and Cooled Square Footage calculations are made from outside the exterior frame wall and do not include decks, porches, garages, unfinished basements, bonus or attic space.
  • Artist Rendering
  • Foundation & Floor Plans (1/4"=1')
  • Front Elevations (1/4"=1'), Sides & Rear Elevation (1/8" or 1/4" = 1")
  • Kitchen and Bath Elevations (1/4"=1') **
  • Miscellaneous Details (1/4" to 3/4"=1')
  • Stair Section (1/4" to 3/8" = 1')
  • Roof Overview Plan (scale varies) **
    ** Some plans in this series do not provide cabinet elevations or roof overview.  Please call to verify.
  • FLOOR PLANS
    This home plan includes the floor plan showing the dimensioned locations of walls, doors, and windows as well as suggested locations for light fixtures, outlets and switches.
  • SET OF ELEVATIONS
    This plan includes the exterior elevations (front, rear, right and left) that show and describe the finished materials of the house.
    KITCHEN AND BATH ELEVATIONS
    The kitchen and bath elevations show the arrangement of each cabinet and other fixtures in the room. These drawings give basic information that can be used to create customized layouts with a cabinet manufacturer.
  • MISCELLANEOUS DETAILS
    Some details are included for interior and exterior conditions that require more specific information for their construction.
  • ROOF OVERVIEW PLAN
    This is a "bird's eye" view showing the roof slopes, ridges, valleys and any saddles.

ASK US A QUESTION

Name:
E-mail Address:
Password: (for robots)
Your Question:

To request a modification quote, please use the Modification Request Form.

About This Plan

This beautifully designed Ranch house plan has a striking exterior façade with an abundance of architectural and visually pleasing design features. Multiple gables, a double window dormer, front covered porch and decorative accents in the gables highlight the exterior and give the home character and charm. The interior floor plan features an abundance of space in approximately 1,826 square feet of living space including three bedrooms and two bathrooms. There is a basement foundation, as well, which offers an additional 1,802 square feet of space ideal for future expansion. The two car, front loading garage contains 436 square feet of space; plenty of room for vehicles and other storage items. A spacious foyer houses a coat closet and the arched opening with columns lures you into the great room. The vaulted great room is large with a handsome fireplace, a wet bar and fabulous window views surrounding the fireplace and overlooking the yard. There is French door access into the richly decorated dining room that features soaring ceiling heights, a two-sided fireplace and a panoramic bayed window overlooking the rear patio. The gourmet kitchen is highlighted by another vaulted space, a separate pantry, rear patio access and an abundance of counter and cabinet space. There is a laundry room off the kitchen before accessing the hallway containing the bedrooms and bathrooms.
Bedroom two is spacious with plentiful closet space and great window views while the third bedroom features a walk-in closet. There is a shared hall bath with vanity space, a toilet area and a tub/shower combination along with a hall linen closet. The master suite is situated on the opposite side of the home for privacy and features a large vaulted bedroom with private patio access and an oversized walk-in master closet. The luxuriously designed master bath is highlighted dual vanities, a separate shower, toilet area and a large soaking tub. This home is a gorgeous design both on the exterior and interior with limitless expansion options available on the lower level.
