Traditional House Plan 5633-00104

Sq Ft3,041
1/2 Baths1
Width74' 8"
Depth49' 4"
Images copyrighted by the designer. Photographs may reflect a homeowner modification.

Floorplan Drawings

 REVERSE  PRINT  DOWNLOAD Images copyrighted by the designer.

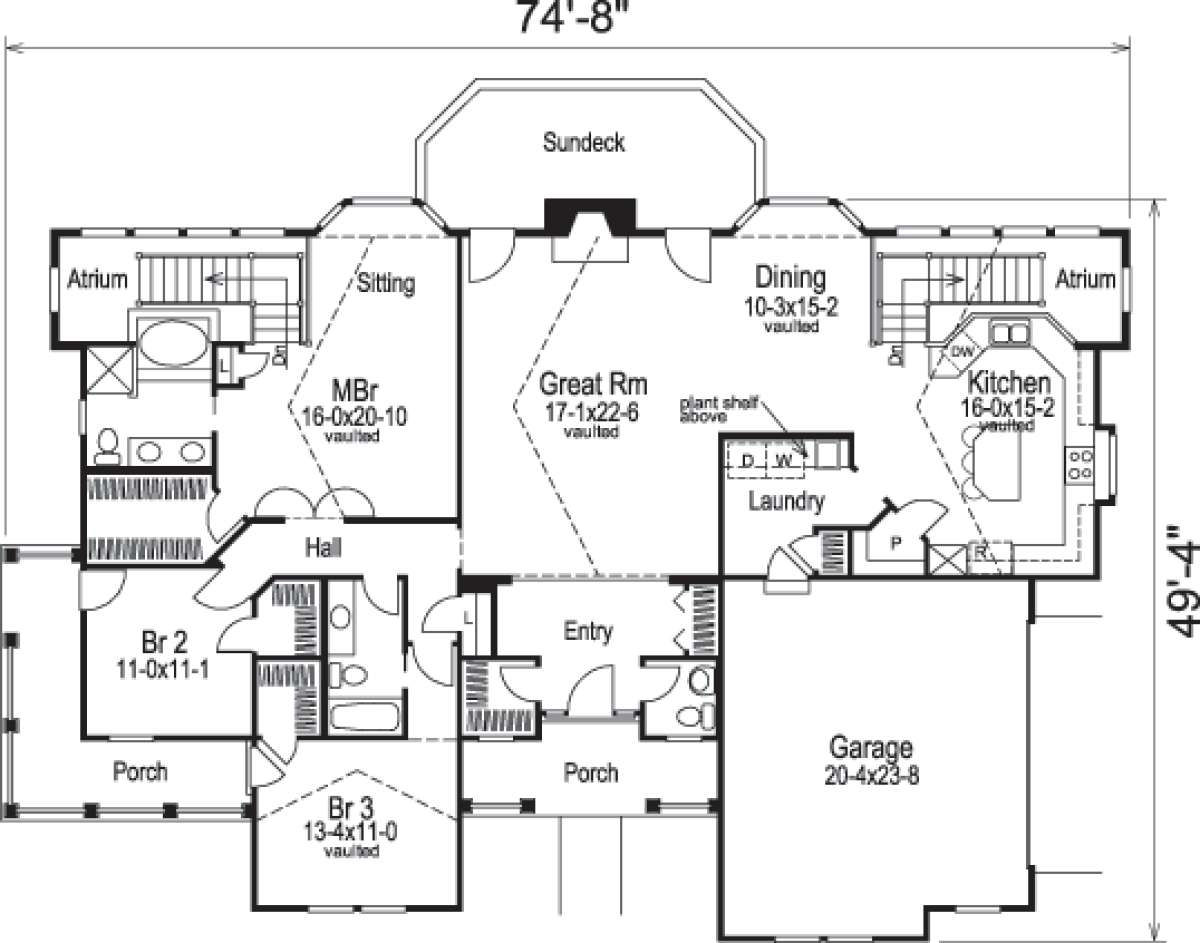

Floorplan 1 for House Plan #5633-00104

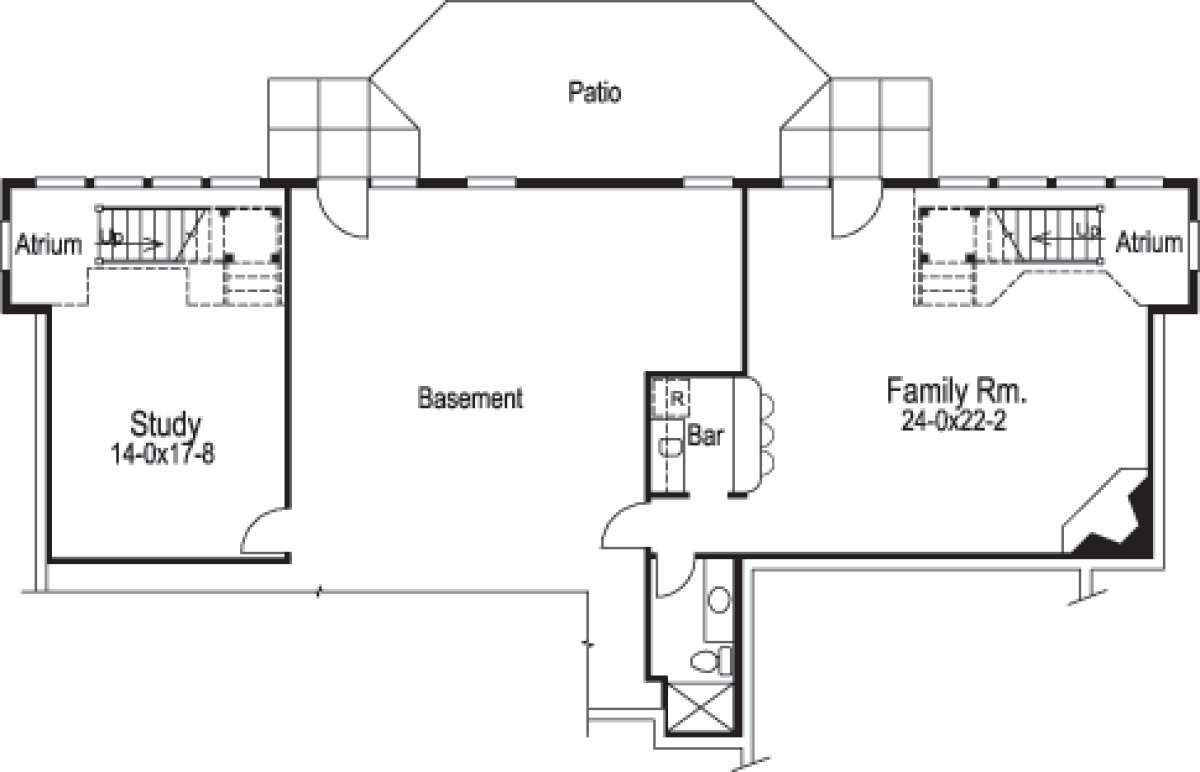

Floorplan 2 for House Plan #5633-00104
Floorplan 1
Floorplan 1 for House Plan #5633-00104
Floorplan 2
Floorplan 2 for House Plan #5633-00104

Frequently Asked Questions


What's Included in these plans?

  • Heated and Cooled Square Footage calculations are made from outside the exterior frame wall and do not include decks, porches, garages, unfinished basements, bonus or attic space.
  • Artist Rendering
  • Foundation & Floor Plans (1/4"=1')
  • Front Elevations (1/4"=1'), Sides & Rear Elevation (1/8" or 1/4" = 1")
  • Kitchen and Bath Elevations (1/4"=1') **
  • Miscellaneous Details (1/4" to 3/4"=1')
  • Stair Section (1/4" to 3/8" = 1')
  • Roof Overview Plan (scale varies) **
    ** Some plans in this series do not provide cabinet elevations or roof overview.  Please call to verify.
    This home plan includes the floor plan showing the dimensioned locations of walls, doors, and windows as well as suggested locations for light fixtures, outlets and switches.

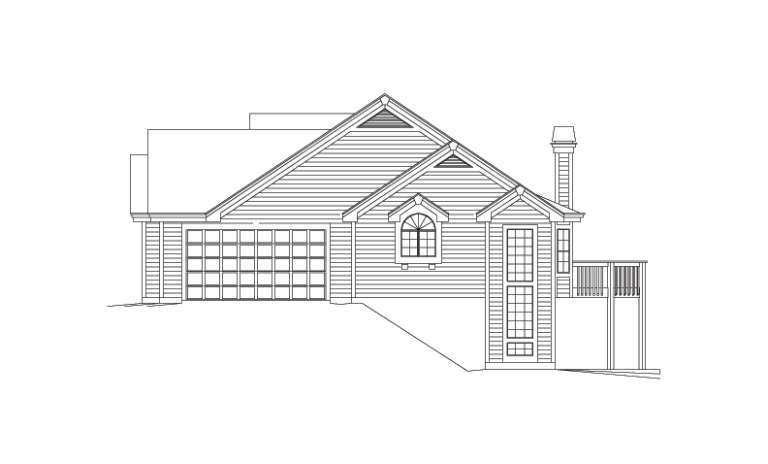

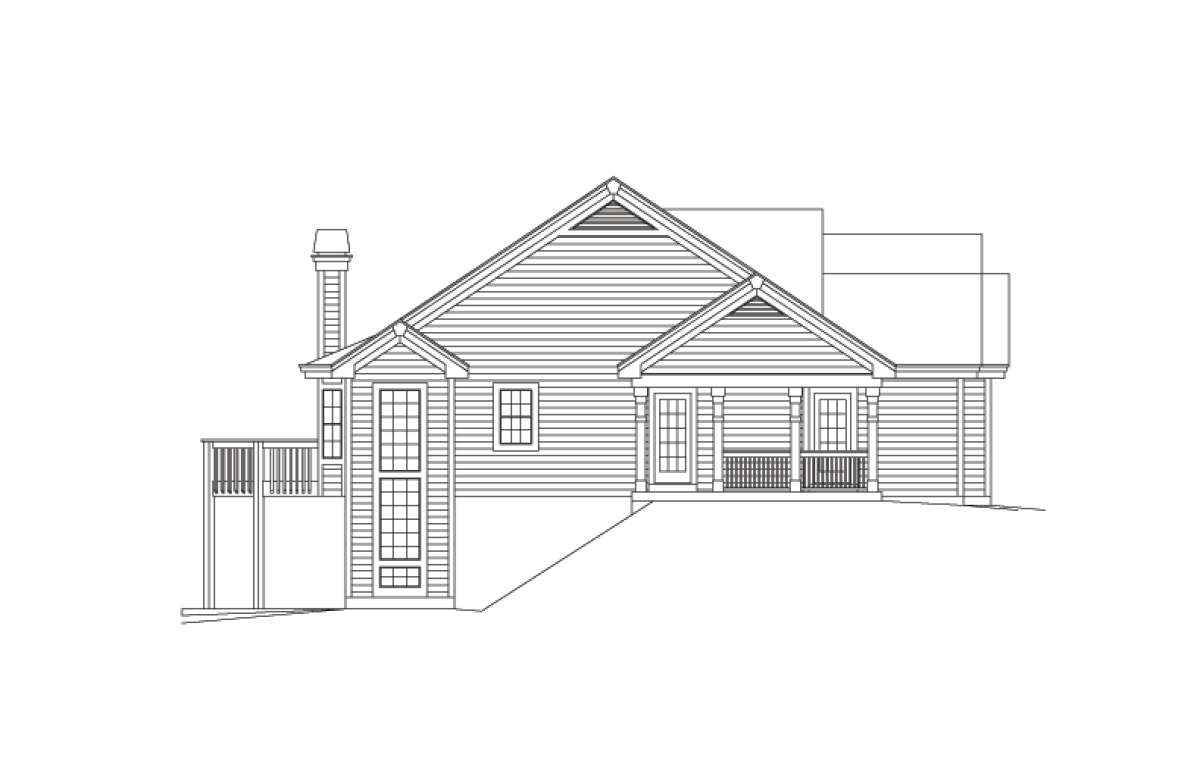

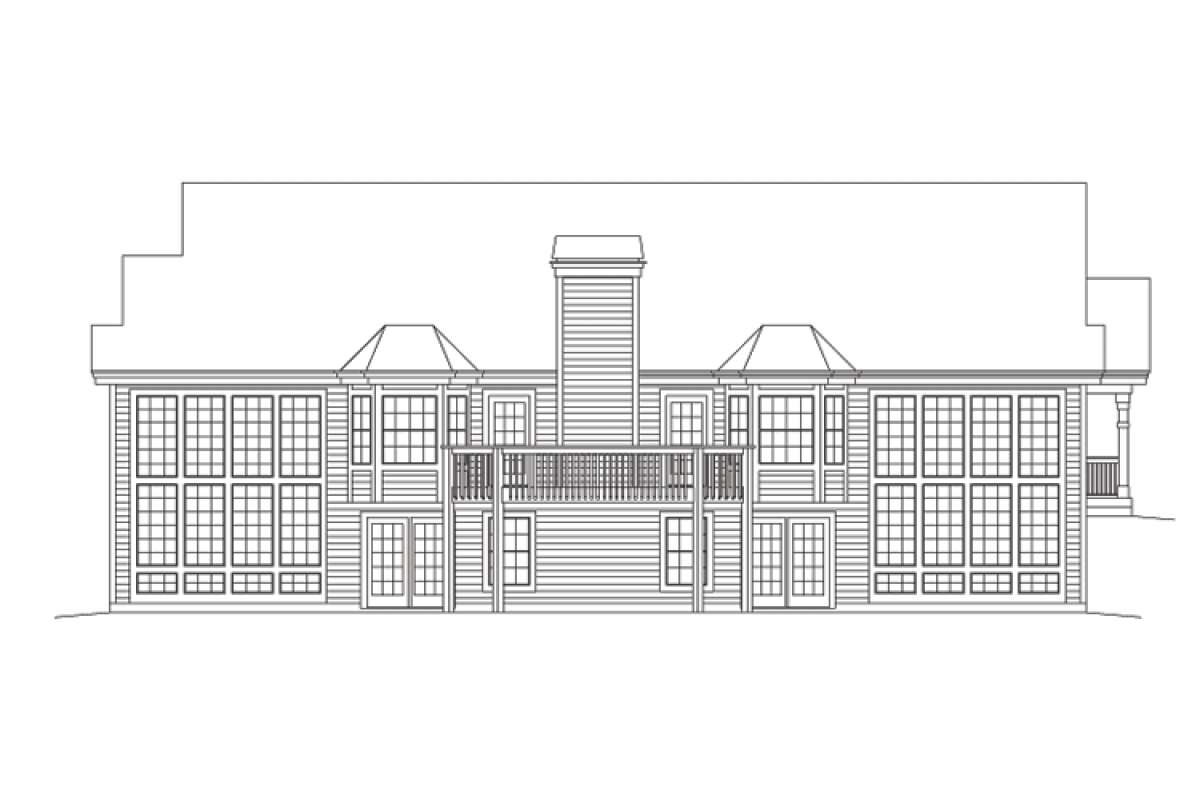

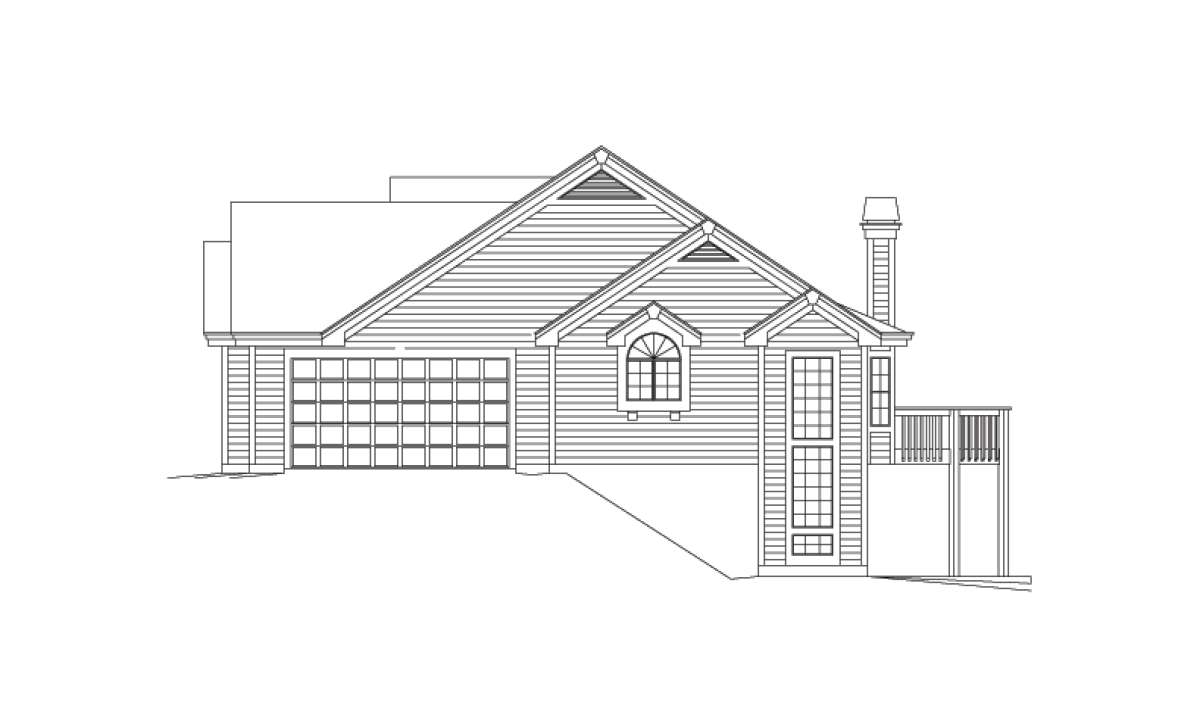

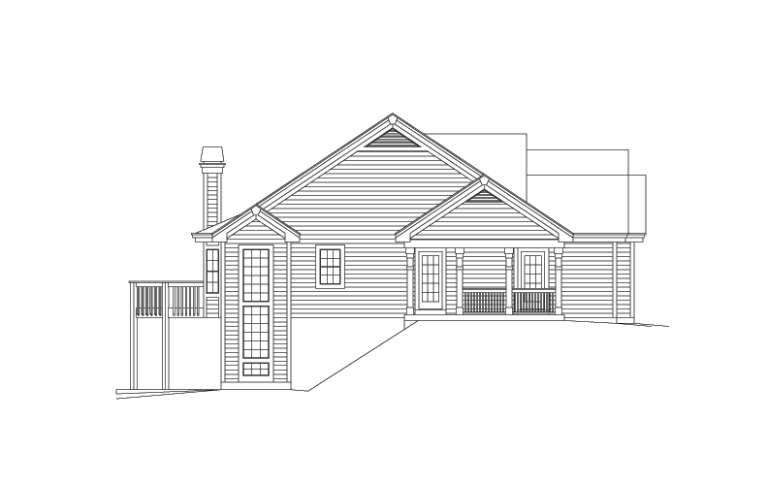

    This plan includes the exterior elevations (front, rear, right and left) that show and describe the finished materials of the house.
    The kitchen and bath elevations show the arrangement of each cabinet and other fixtures in the room. These drawings give basic information that can be used to create customized layouts with a cabinet manufacturer.
    Some details are included for interior and exterior conditions that require more specific information for their construction.
    This is a "bird's eye" view showing the roof slopes, ridges, valleys and any saddles.


E-mail Address:
Please leave blank:
Your Question:

To request a modification quote, please use the Modification Request Form.

About This Plan

Warmth and character define this traditional home both on the exterior façade and the accompanying interior floor plan. A multi-gabled roof line, double window dormers and double front covered porches beautifully accentuate this traditional house plan with desired architectural design features. A walk-out basement and main level living features generous proportions of family living and entertaining space which incorporates three bedrooms and two plus baths in approximately 3,041 square feet of space. Double atriums punctuate the end caps of the main living spaces and master retreat creating a sun drenched living environment. The cozy front porch leads to a spacious foyer with multiple storage areas and half bath before spilling into the vaulted great room which is highlighted by a rear wall fireplace and double access points onto the rear deck. The vaulted dining space is nestled into a bay window and the large well appointed kitchen offers spectacular views from its cantilevered sink cabinets through a two-story atrium window wall. Additionally, there is a large center eating bar, an oversized walk-in pantry and access to the spacious laundry room with sink area. The two car, side entry garage provides access into the laundry room as well for a tidy and efficient environment.
The master retreat is a truly luxurious oasis and is situated at the rear of the home for privacy. The suite includes an oversized, vaulted master bedroom with adjoining sitting room encased in a light filled bay window. There is an enormous master walk-in closet and an elegantly designed master bath which features dual vanities, a separate shower and a garden tub overhanging a brightly lit atrium. Bedrooms two and three offer generous floor space along with walk-in closets and both have private access to the covered porch. There is a shared hall bath and hall linen closet as well. The lower level features a large study and family room with a walk-in bar along with a half bath. This large home has a fully functional and comfortable floor plan along with a striking exterior façade.
