Lake Front House Plan 5633-00102

Sq Ft1,332
Beds3
Baths2
1/2 Baths0
Stories2
Cars4
Width30' 6"
Depth40' 0"
Images copyrighted by the designer. Photographs may reflect a homeowner modification.

Floorplan Drawings

 REVERSE  PRINT  DOWNLOAD Images copyrighted by the designer.

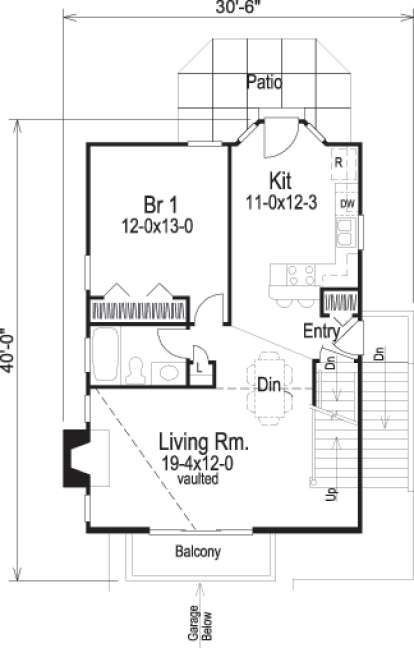

Floorplan 1 for House Plan #5633-00102

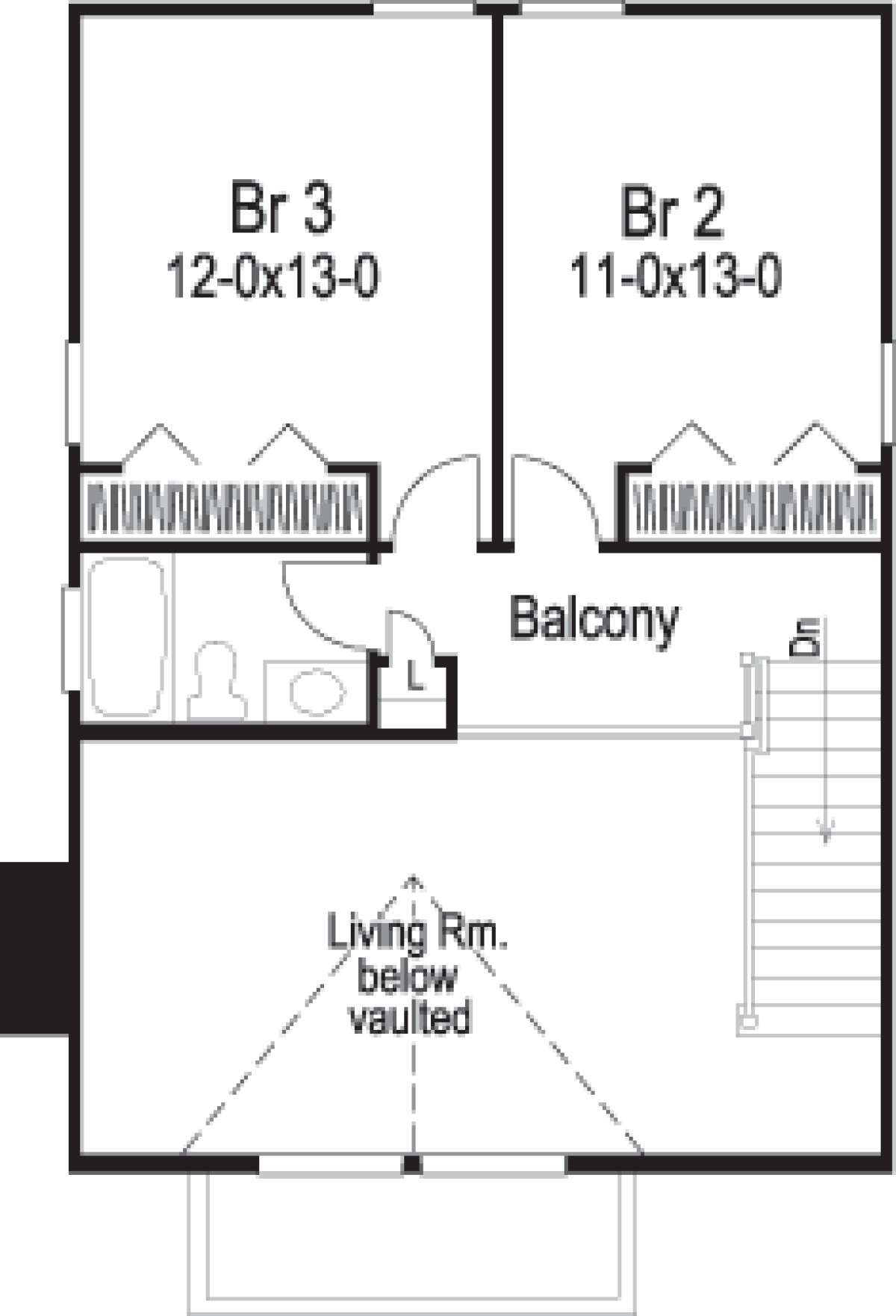

Floorplan 2 for House Plan #5633-00102
Floorplan 1
Floorplan 1 for House Plan #5633-00102
Floorplan 2
Floorplan 2 for House Plan #5633-00102


Frequently Asked Questions

COST TO BUILD REPORT

What's Included in these plans?

  • Heated and Cooled Square Footage calculations are made from outside the exterior frame wall and do not include decks, porches, garages, unfinished basements, bonus or attic space.
  • Artist Rendering
  • Foundation & Floor Plans (1/4"=1')
  • Front Elevations (1/4"=1'), Sides & Rear Elevation (1/8" or 1/4" = 1")
  • Kitchen and Bath Elevations (1/4"=1') **
  • Miscellaneous Details (1/4" to 3/4"=1')
  • Stair Section (1/4" to 3/8" = 1')
  • Roof Overview Plan (scale varies) **
    ** Some plans in this series do not provide cabinet elevations or roof overview.  Please call to verify.
  • FLOOR PLANS
    This home plan includes the floor plan showing the dimensioned locations of walls, doors, and windows as well as suggested locations for light fixtures, outlets and switches.
  • SET OF ELEVATIONS

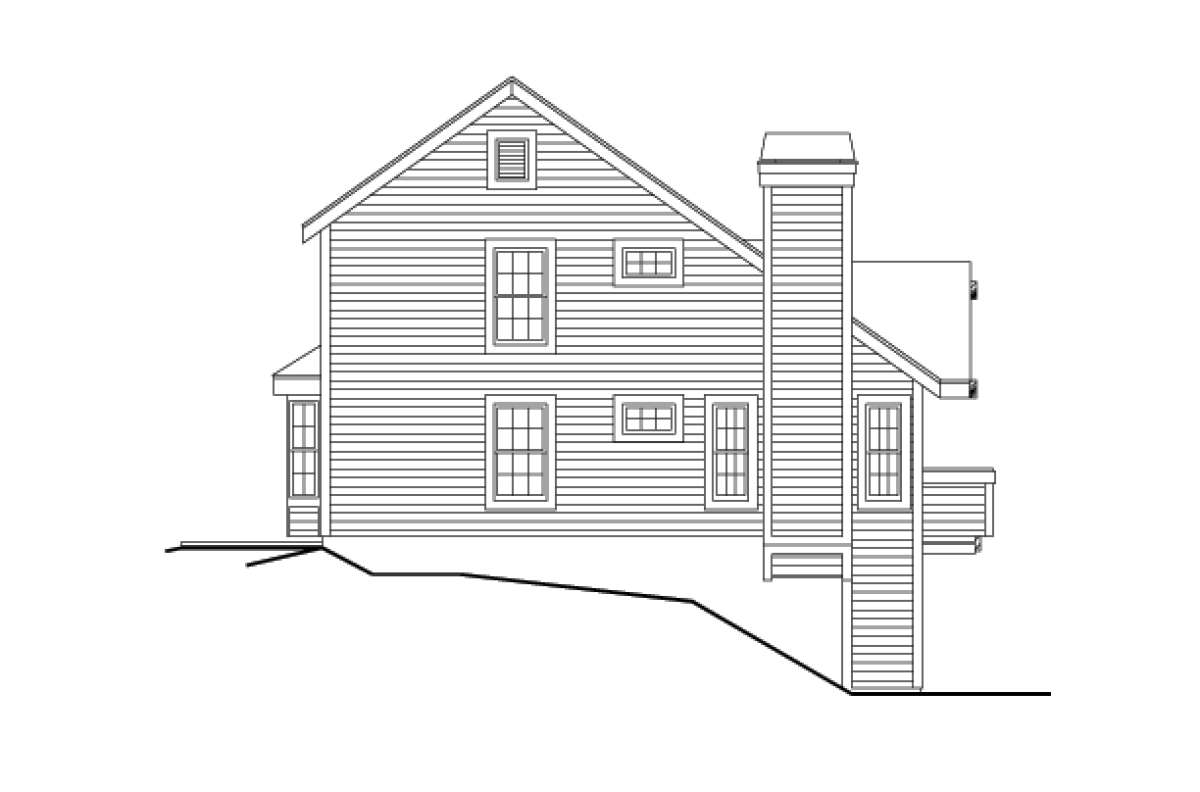

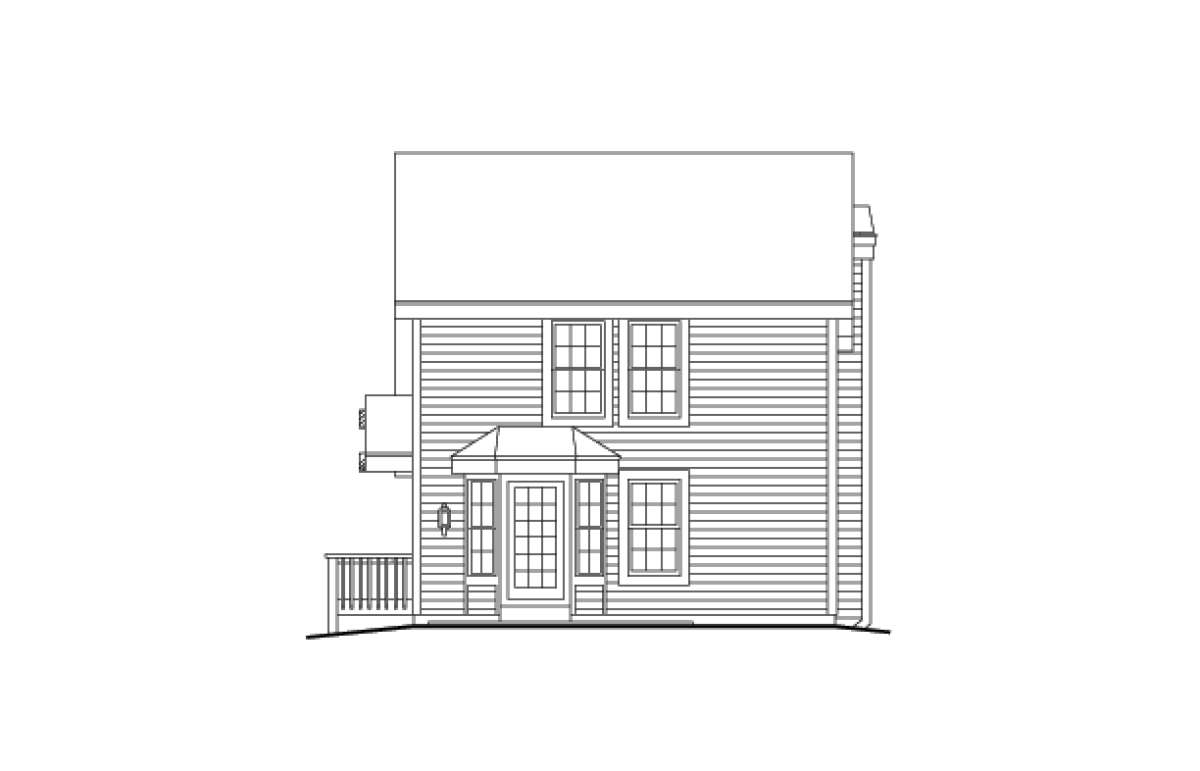

    This plan includes the exterior elevations (front, rear, right and left) that show and describe the finished materials of the house.
    KITCHEN AND BATH ELEVATIONS
    The kitchen and bath elevations show the arrangement of each cabinet and other fixtures in the room. These drawings give basic information that can be used to create customized layouts with a cabinet manufacturer.
  • MISCELLANEOUS DETAILS
    Some details are included for interior and exterior conditions that require more specific information for their construction.
  • ROOF OVERVIEW PLAN
    This is a "bird's eye" view showing the roof slopes, ridges, valleys and any saddles.

ASK US A QUESTION

Name:
E-mail Address:
Please leave blank:
Your Question:

To request a modification quote, please use the Modification Request Form.

About This Plan

This is a great home for a narrow lot with its 30’ plus width and the home also fits the criteria for a sloping lot. The foundation is a walk-out basement where the expansive four car tandem garage is located and adds an additional 633 square feet of space. The exterior façade of the home features siding, wide eaves and an abundance of window views which are ideal for a lakefront or mountain lot. There are approximately 1,332 square feet of living space on the interior which contains three bedrooms and two baths in the two storied home. The entry foyer features a coat closet and lower level staircase before opening onto the open concept floor plan. The vaulted living room is enormous, measuring in excess of 19’x12’ and houses a handsome fireplace flanked by picturesque window views. There is an exterior balcony off the living room and the dining space anchors the living room and kitchen. The family friendly kitchen is highlighted by a breakfast bar, loads of counter and cabinet space and a triple bay window breakfast nook which provides outdoor patio access. A spacious bedroom is situated on the first floor and is highlighted by great window views and plentiful closet space. There is an adjacent full bath which features a large vanity space, a toilet area and a shower/tub combination along with a hall linen closet. The second story rear staircase and balcony overlook the lower level living space and there are two bedrooms and a bath situated on this floor. The family styled bedrooms feature generous floor space, great window views and an abundance of closet space. There is a hall linen closet and the shared bath features a vanity space, a toilet area and a tub/shower combination. This home offers a functional and comfortable floor plan and three levels of living and entertaining space.
