Lake Front House Plan 5633-00098

Sq Ft3,510
1/2 Baths0
Width68' 2"
Depth41' 9"
Images copyrighted by the designer. Photographs may reflect a homeowner modification.

Floorplan Drawings

 REVERSE  PRINT  DOWNLOAD Images copyrighted by the designer.

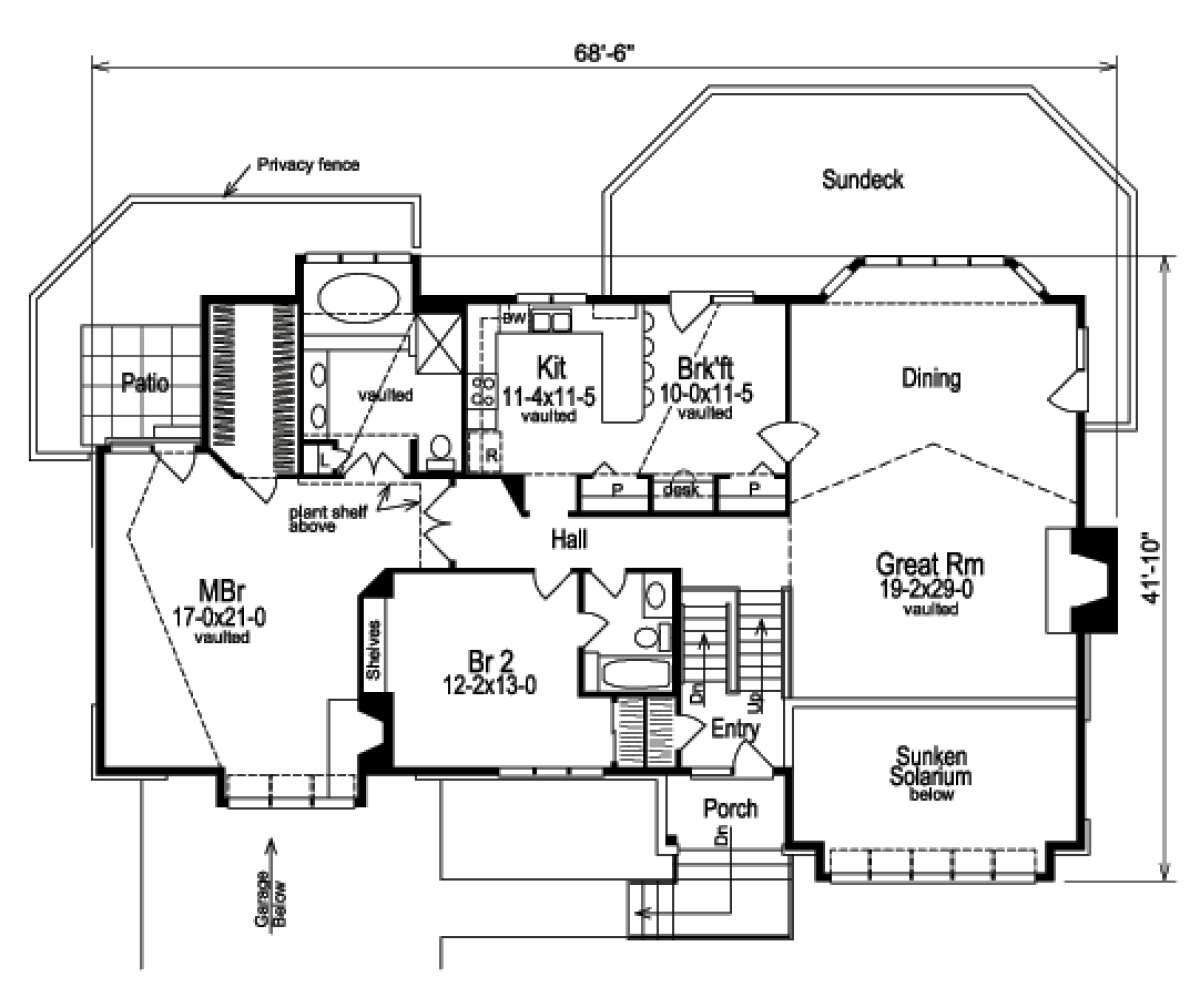

Floorplan 1 for House Plan #5633-00098

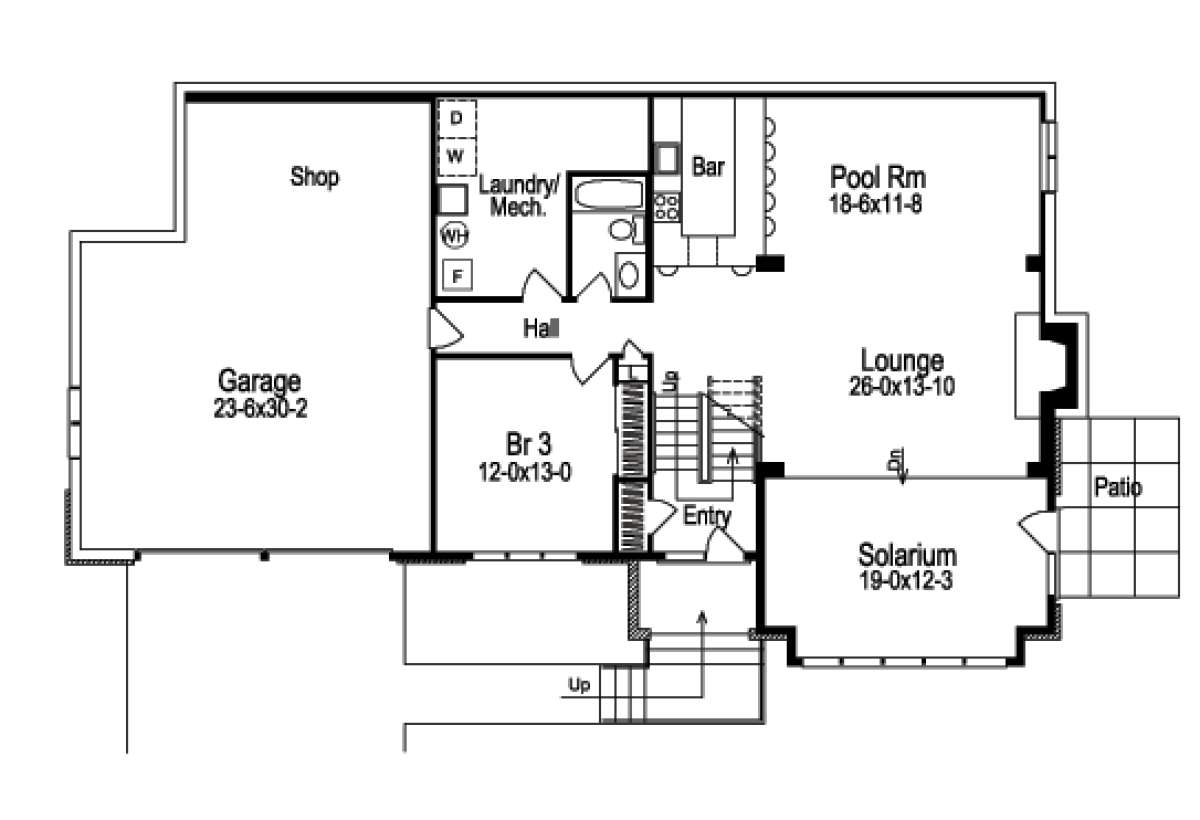

Floorplan 2 for House Plan #5633-00098
Floorplan 1
Floorplan 1 for House Plan #5633-00098
Floorplan 2
Floorplan 2 for House Plan #5633-00098

Frequently Asked Questions


What's Included in these plans?

  • Heated and Cooled Square Footage calculations are made from outside the exterior frame wall and do not include decks, porches, garages, unfinished basements, bonus or attic space.
  • Artist Rendering
  • Foundation & Floor Plans (1/4"=1')
  • Front Elevations (1/4"=1'), Sides & Rear Elevation (1/8" or 1/4" = 1")
  • Kitchen and Bath Elevations (1/4"=1') **
  • Miscellaneous Details (1/4" to 3/4"=1')
  • Stair Section (1/4" to 3/8" = 1')
  • Roof Overview Plan (scale varies) **
    ** Some plans in this series do not provide cabinet elevations or roof overview.  Please call to verify.
    This home plan includes the floor plan showing the dimensioned locations of walls, doors, and windows as well as suggested locations for light fixtures, outlets and switches.
    This plan includes the exterior elevations (front, rear, right and left) that show and describe the finished materials of the house.
    The kitchen and bath elevations show the arrangement of each cabinet and other fixtures in the room. These drawings give basic information that can be used to create customized layouts with a cabinet manufacturer.
    Some details are included for interior and exterior conditions that require more specific information for their construction.
    This is a "bird's eye" view showing the roof slopes, ridges, valleys and any saddles.


E-mail Address:
Please leave blank:
Your Question:

To request a modification quote, please use the Modification Request Form.

About This Plan

This extraordinary house design embraces the sun in all its glorious window detailing; it is perfect for a lakefront lot and offers superior architectural detailing and an interior floor plan that is both comfortable and fully functional. There are three bedrooms and three baths in the approximate 3,500 square foot home which includes a walk-out basement and loads of private family space and superior entertaining space. Double staircases dominate the foyer which offers access into the commanding sunken solarium, great room and dining room. The great room features soaring ceiling heights and a warming fireplace before adjoining the dining space which sits in an oversized bayed window and offers access to the enormous sundeck. The family friendly kitchen features casual dining space with its breakfast bar and there are double pantries and a menu desk. A second casual dining space encompasses the breakfast room where there is a second point of access onto the rear deck. Two bedrooms are offered on the main floor for convenience and privacy; the second bedroom suite features generous floor space, built-in cabinetry, ample closet space and private access to the hall bath. The master retreat is a private oasis and features an oversized master bedroom with vaulted ceilings, a handsome fireplace and private sitting area. There is a private courtyard for enjoying morning coffee and/or relaxing and reading. An oversized walk-in master closet is available along with a luxurious master bath. The bath features vaulted ceilings, dual vanities, a separate shower and a gorgeous garden tub ensconced in window views overlooking the private courtyard.
The lower level features an abundance of entertaining space along with a third bedroom. Bedroom three is spacious with generous closet space and there is an adjacent full bath and linen closet. A huge built-in bar area is situated in the main living spaces which include a pool room and lounge before accessing the sunken solarium with patio access. The drive under garage features additional storage space and there is a large interior laundry room. This home has a striking exterior façade punctuated with an abundance of light filled window views along with an outstanding interior floor plan.
