Cottage House Plan #5633-00096 Elevation Photo

Cottage House Plan #5633-00096 Additional Photo

IMPORTANT NOTICE

To purchase a reversed plan, please select Right Reading Reverse under Additional Options.

Images copyrighted by the designer. Photographs may reflect a homeowner modification.

Sq Ft 1,278

Beds 3

Bath 1

1/2 Baths 0

Car 2

Stories 1

Width 65' 8"

Depth 35'

See What's Included

Select Package

PDF (Single Build)

$949.00

ELECTRONIC FORMAT Recommended
One Complete set of working drawings emailed to you in PDF format. Most plans can be emailed same business day or the business day after your purchase. This package comes with a license to construct one home and a copyright release which allows for making copies locally and minor changes to the plan.

PDF (Unlimited Build)

$1,299.00

ELECTRONIC FORMAT
One Complete set of working drawings emailed to you in PDF format. Most plans can be emailed same business day or the business day after your purchase. Comes with a copyright release which allows for making copies locally and minor changes to the plan. This package comes with a multi-use license that allows for the home to be built more than once.

5 Sets (Single Build)

$949.00

PHYSICAL FORMAT
Five printed sets of working drawings mailed to you. This package comes with a license to construct one home.

5 Sets Plus PDF (Single Build)

$1,049.00

One Complete set of working drawings emailed to you in PDF format along with 5 physical sets printed and mailed to you. Most plans can be emailed same business day or the business day after your purchase. Comes with a copyright release which allows for making copies locally and minor changes to the plan. This package comes with a license to construct one home.

Select Foundation

Walkout Basement Foundation $0.00

Need a different foundation?

Get a free modification quote

Additional Options

Additional Sets $50.00

Dont see the right plan package for you? Add additional sets to create the perfect plan package for your needs.

Mirrored Reverse $15.00

Reverses the plan, however, the text and dimensions will not read correctly.

Material List $125.00

A complete material list for this plan. House plan must be purchased in order to obtain material list.
Important Notice: Please note that the material list is created with the standard foundation only and will not include any alternate foundations or additional options.

Return Policy, Building Code & Copyright Info

Floorplan Drawings

REVERSE PRINT DOWNLOAD

Floorplan 1

Floorplan 2

Images copyrighted by the designer.

What's Included in these plans?

Heated and Cooled Square Footage calculations are made from outside the exterior frame wall and do not include decks, porches, garages, unfinished basements, bonus or attic space.
Artist Rendering
Foundation & Floor Plans (1/4"=1')

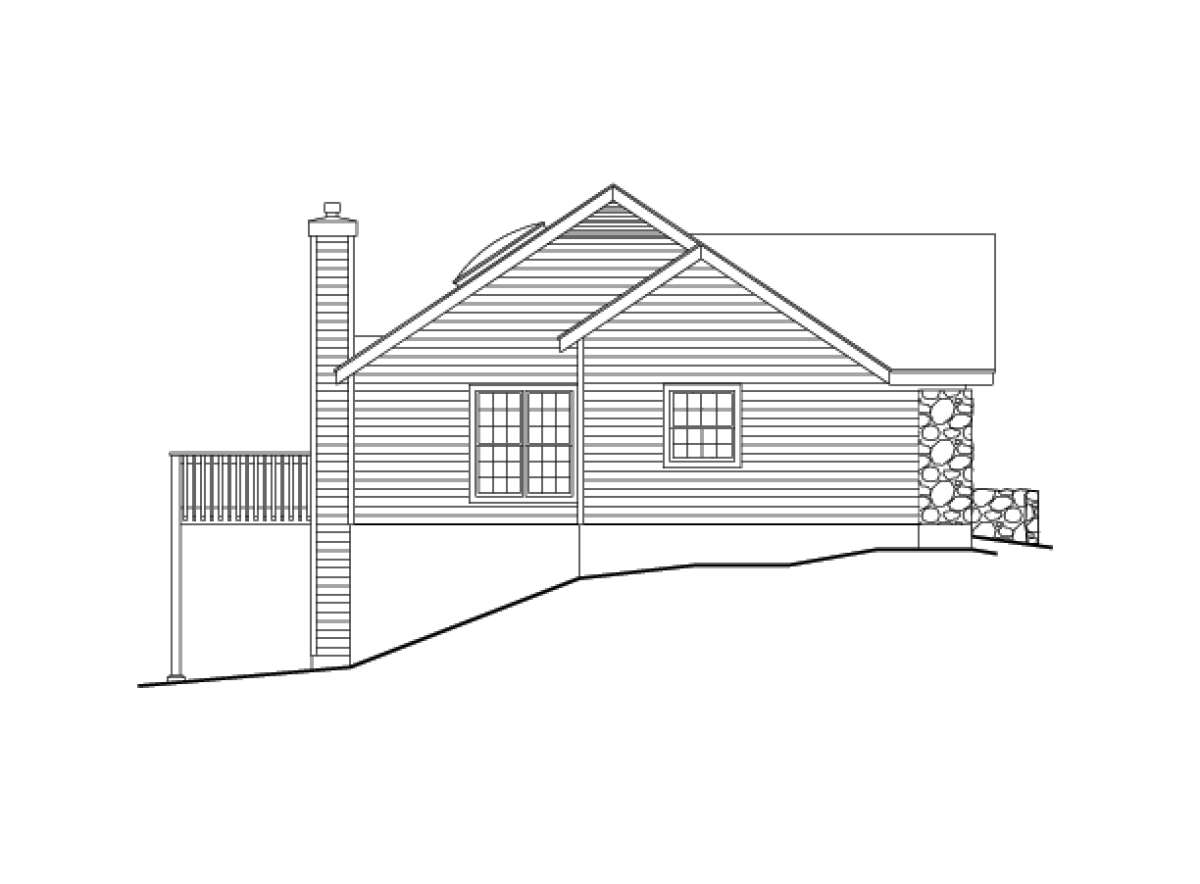

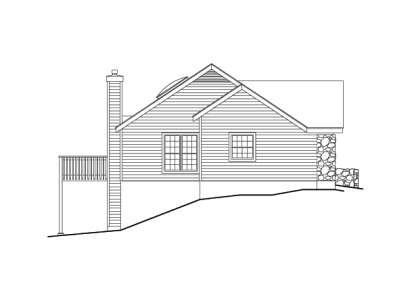

Front Elevations (1/4"=1'), Sides & Rear Elevation (1/8" or 1/4" = 1")
Kitchen and Bath Elevations (1/4"=1') **
Miscellaneous Details (1/4" to 3/4"=1')
Stair Section (1/4" to 3/8" = 1')
Roof Overview Plan (scale varies) **
** Some plans in this series do not provide cabinet elevations or roof overview. Please call to verify.
FLOOR PLANS

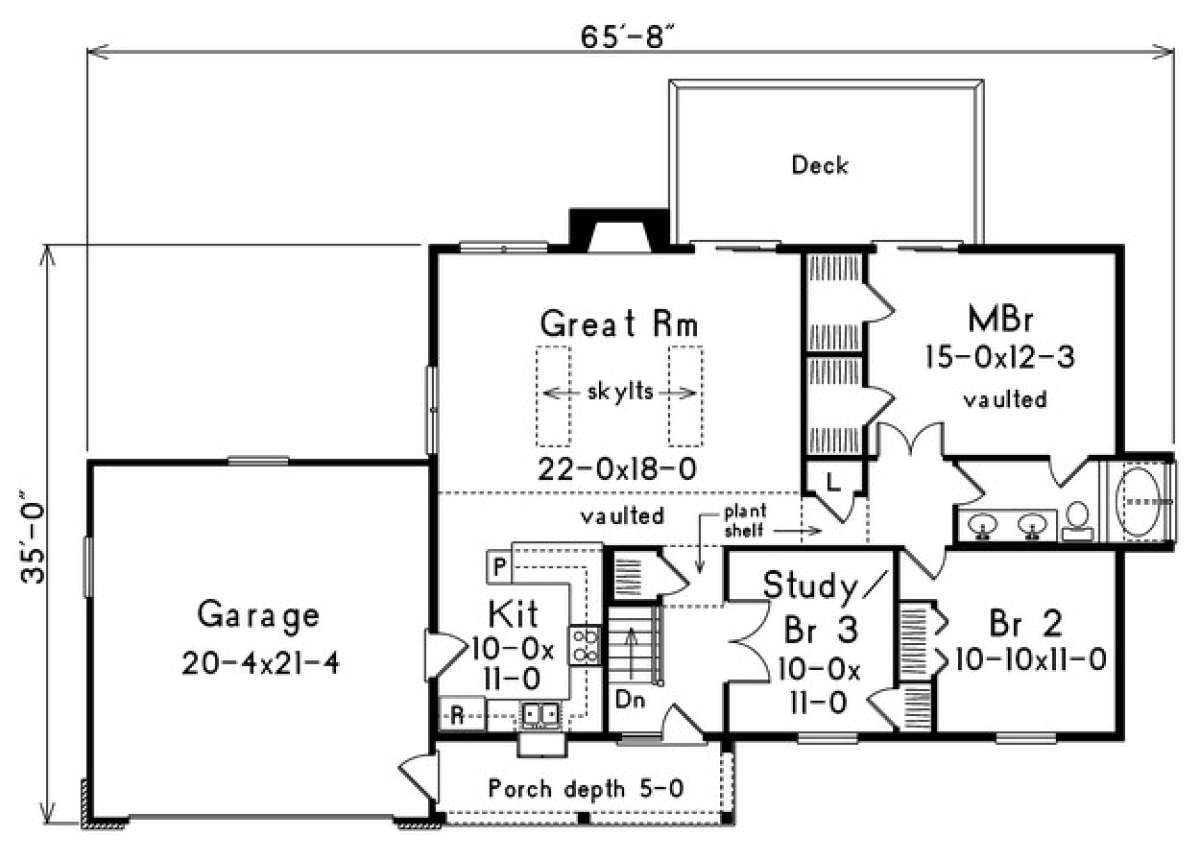

This home plan includes the floor plan showing the dimensioned locations of walls, doors, and windows as well as suggested locations for light fixtures, outlets and switches.
SET OF ELEVATIONS

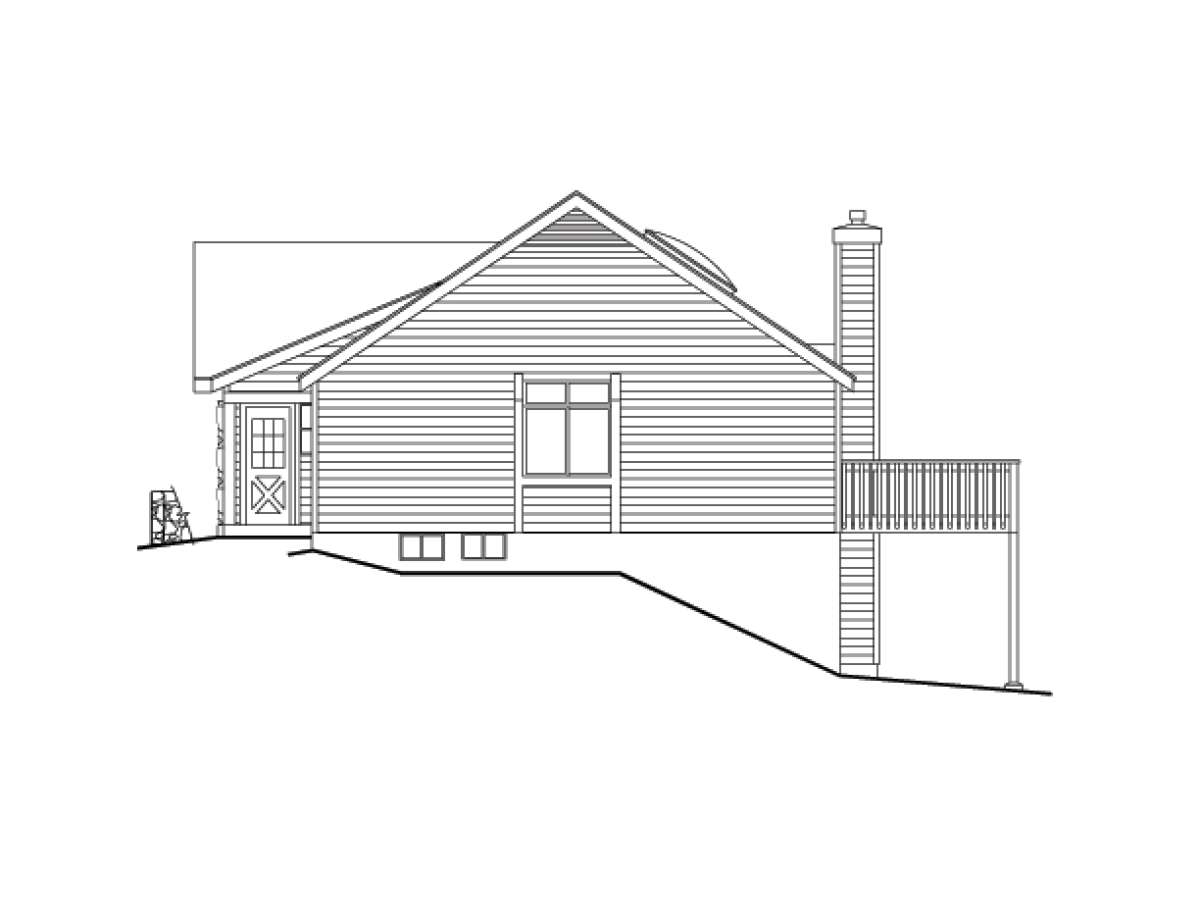

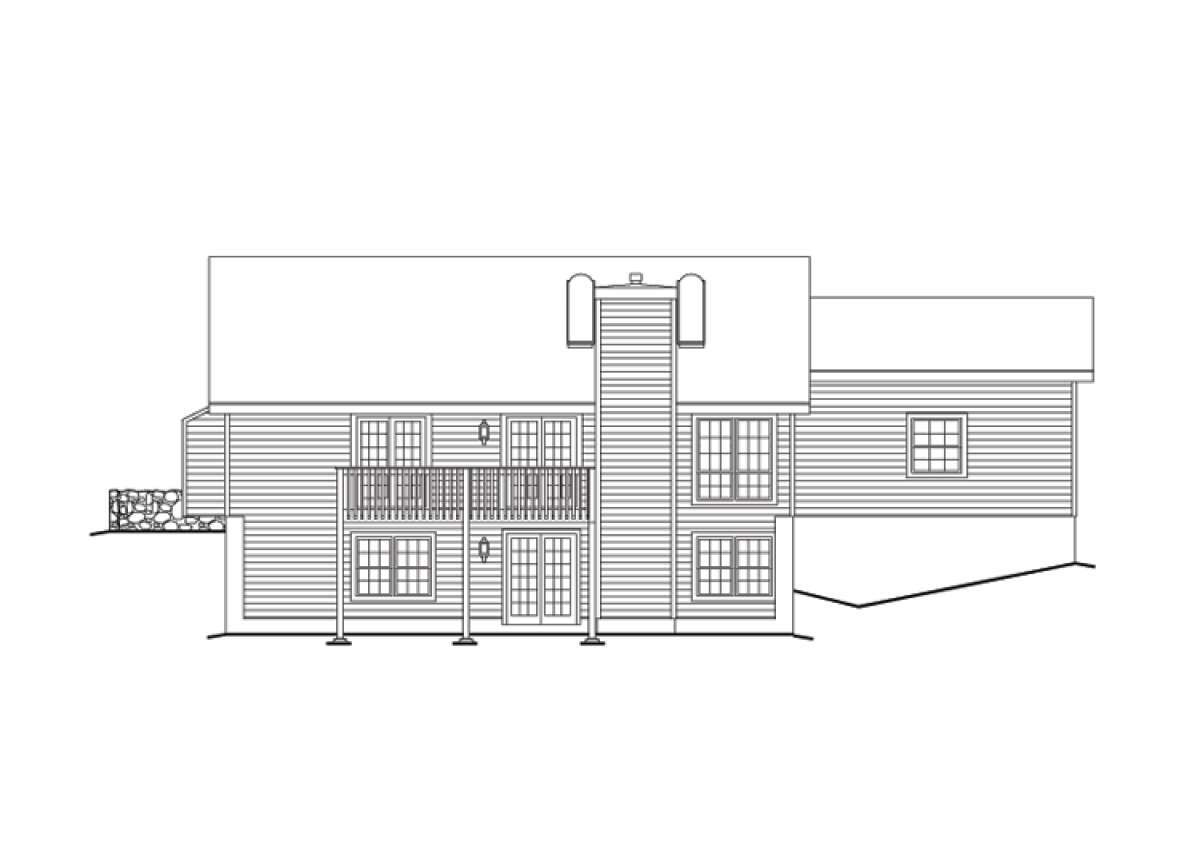

This plan includes the exterior elevations (front, rear, right and left) that show and describe the finished materials of the house.
KITCHEN AND BATH ELEVATIONS
The kitchen and bath elevations show the arrangement of each cabinet and other fixtures in the room. These drawings give basic information that can be used to create customized layouts with a cabinet manufacturer.
MISCELLANEOUS DETAILS
Some details are included for interior and exterior conditions that require more specific information for their construction.
ROOF OVERVIEW PLAN
This is a "bird's eye" view showing the roof slopes, ridges, valleys and any saddles.

Ask Us A Question

About This Plan

This single story Ranch home has a striking exterior façade and an interior floor plan featuring three bedrooms and a bath. There is a walkout basement which substantially increases the home’s footprint and value. Approximately 1,278 square feet of living space is featured on the main living floor and the two car garage adds an additional 434 square feet; a perfect size for vehicle and other equipment storage. The exterior of the home is highlighted by stacked stone accents and a broadly proportioned front covered porch. The home has an excellent entry foyer which houses the lower level staircase and coat closet, opens onto a private study and subsequently leads to the open concept design. The private study features French door access, ample closet space and a great window view overlooking the front yard; this space could function as a third bedroom, if needed. The second bedroom is spacious with a window view and generous closet space. There is a hall linen closet and the large bathroom features double vanities, a toilet area and a dramatic step up garden tub with a lean-to greenhouse window. The vaulted master bedroom features French door access and his and her oversized walk-in master closets. There is private bath access in addition to private access to the rear deck.
The vaulted great room is highlighted by soaring ceiling heights, two skylights and a handsome fireplace flanked by window views and outdoor deck access. This massive space, measuring 22’x18’, is the perfect space for entertaining large gatherings of family and friends and the outdoor access enhances the ability to graciously entertain. The U-shaped kitchen offers a separate pantry and a plethora of counter and cabinet space. Downstairs, there are 805 square feet of optional living space which includes a large family room with fireplace, a spacious fourth bedroom with walk-in closet, a second full bath and loads of storage space. This is an excellent family home with an exciting exterior façade and a comfortable and versatile interior floor plan.
