Ranch Plan 5633-00093


To purchase a reversed plan, please select Right Reading Reverse under Additional Options.
Sq Ft 2,514
Beds 3
Bath 2
1/2 Baths 0
Car 3
Stories 1
Width 86'
Depth 60' 4"

Floorplan Drawings

Floorplan 1
Floorplan 1 for House Plan #5633-00093
Floorplan 2
Floorplan 2 for House Plan #5633-00093

What's Included in these plans?

  • Heated and Cooled Square Footage calculations are made from outside the exterior frame wall and do not include decks, porches, garages, unfinished basements, bonus or attic space.
  • Artist Rendering
  • Foundation & Floor Plans (1/4"=1')
  • Front Elevations (1/4"=1'), Sides & Rear Elevation (1/8" or 1/4" = 1")
  • Kitchen and Bath Elevations (1/4"=1') **
  • Miscellaneous Details (1/4" to 3/4"=1')
  • Stair Section (1/4" to 3/8" = 1')
  • Roof Overview Plan (scale varies) **
    ** Some plans in this series do not provide cabinet elevations or roof overview.  Please call to verify.

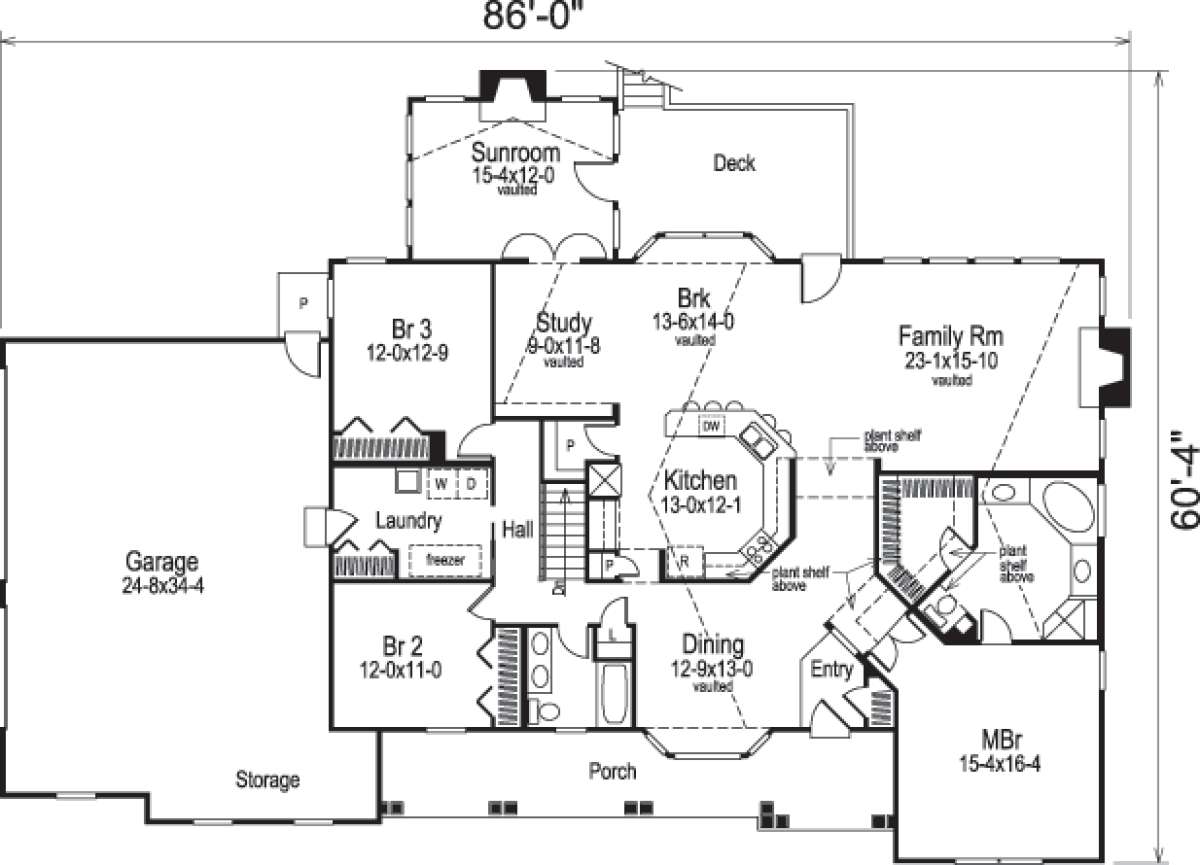

    This home plan includes the floor plan showing the dimensioned locations of walls, doors, and windows as well as suggested locations for light fixtures, outlets and switches.

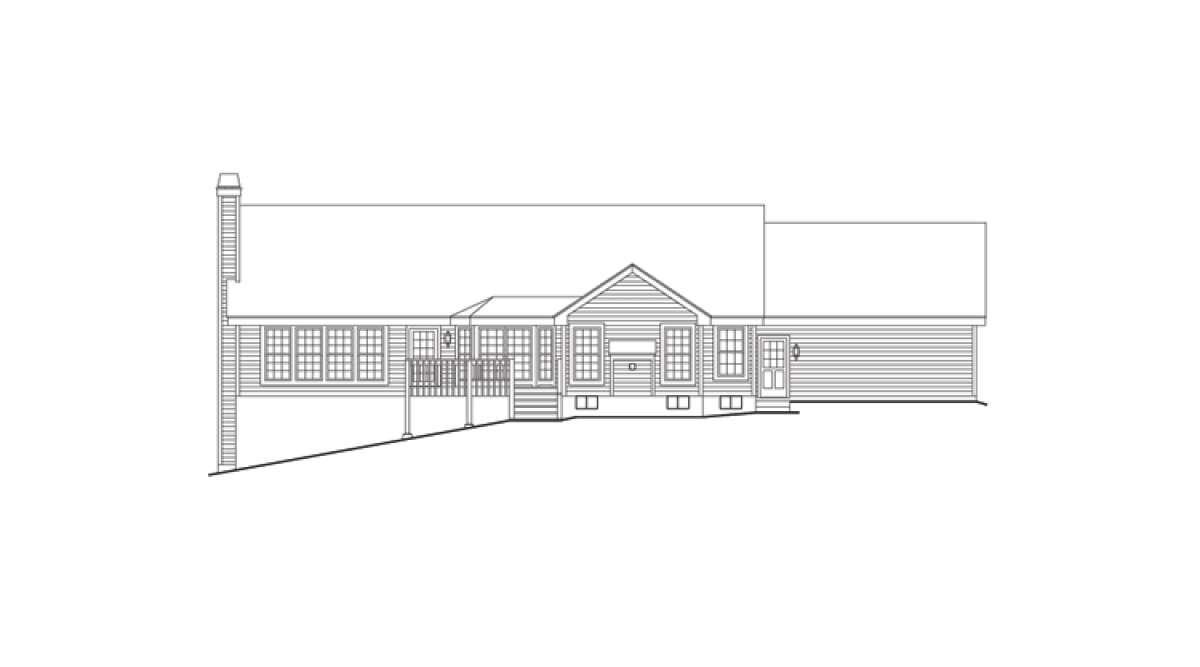

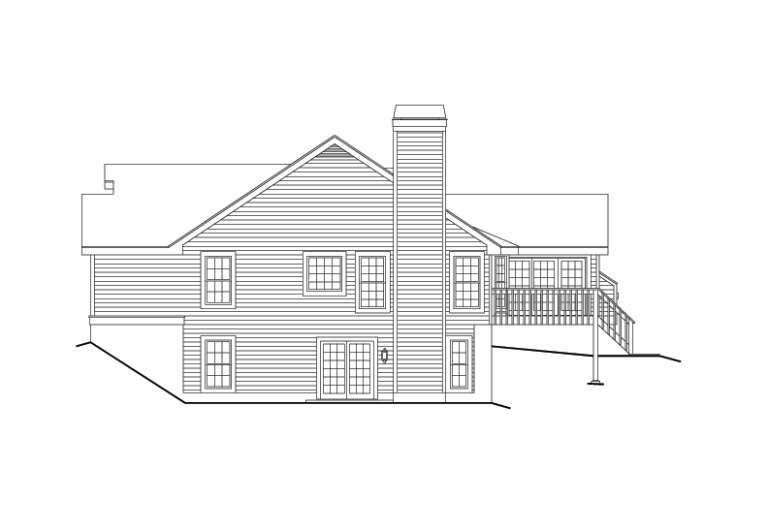

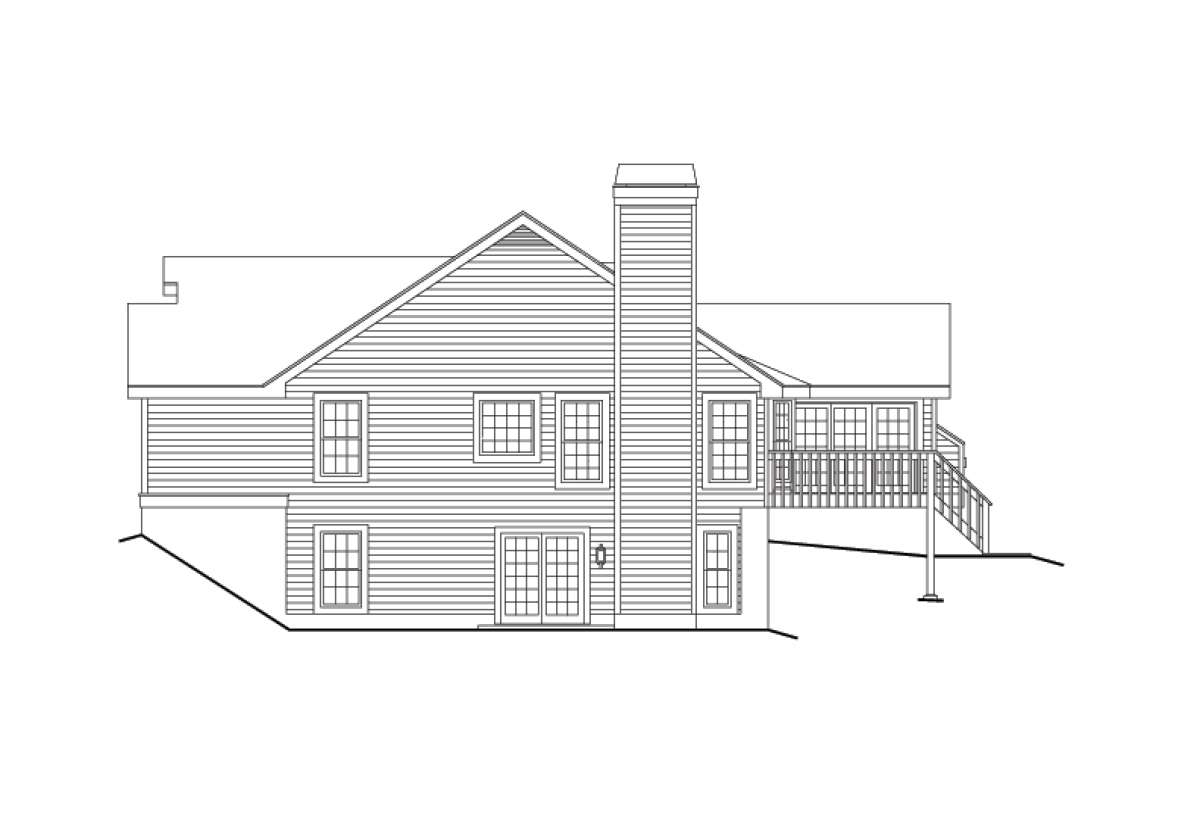

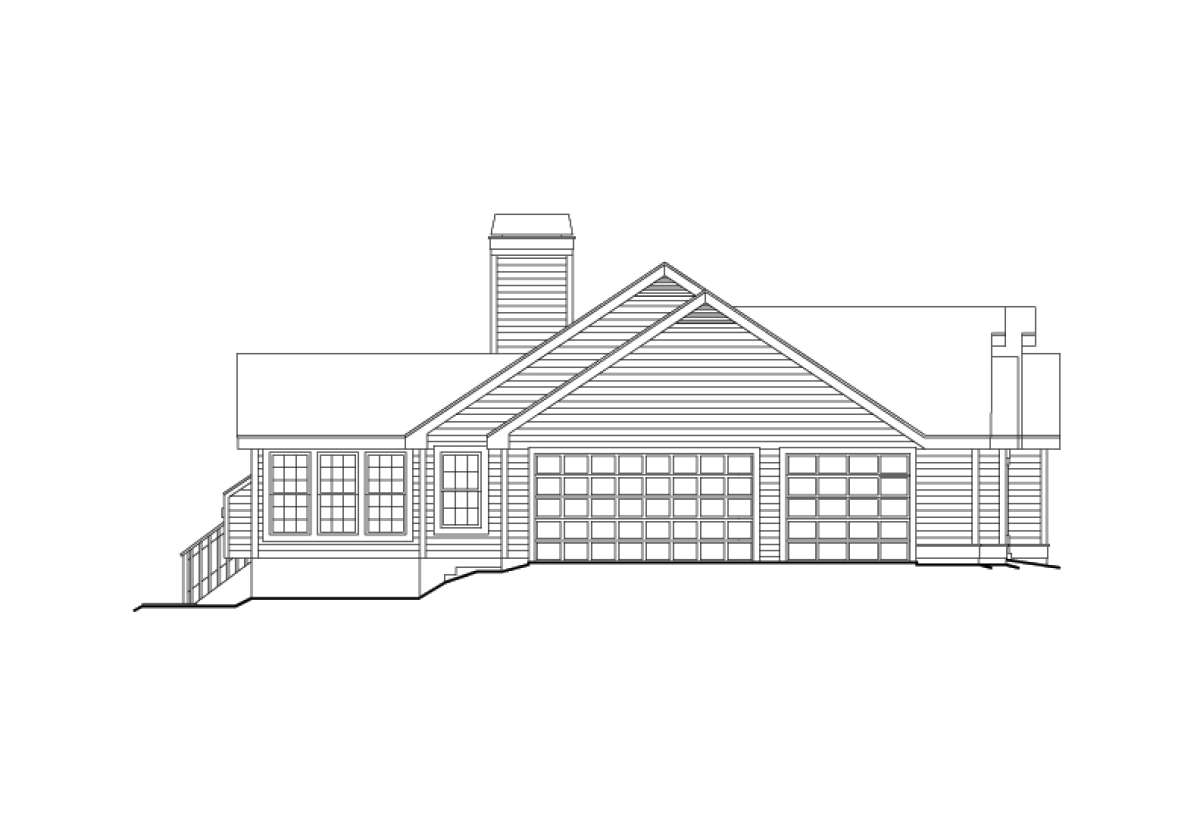

    This plan includes the exterior elevations (front, rear, right and left) that show and describe the finished materials of the house.
    The kitchen and bath elevations show the arrangement of each cabinet and other fixtures in the room. These drawings give basic information that can be used to create customized layouts with a cabinet manufacturer.
    Some details are included for interior and exterior conditions that require more specific information for their construction.
    This is a "bird's eye" view showing the roof slopes, ridges, valleys and any saddles.

Ask Us A Question

To request a modification quote, please use the Modification Request Form.

About This Plan

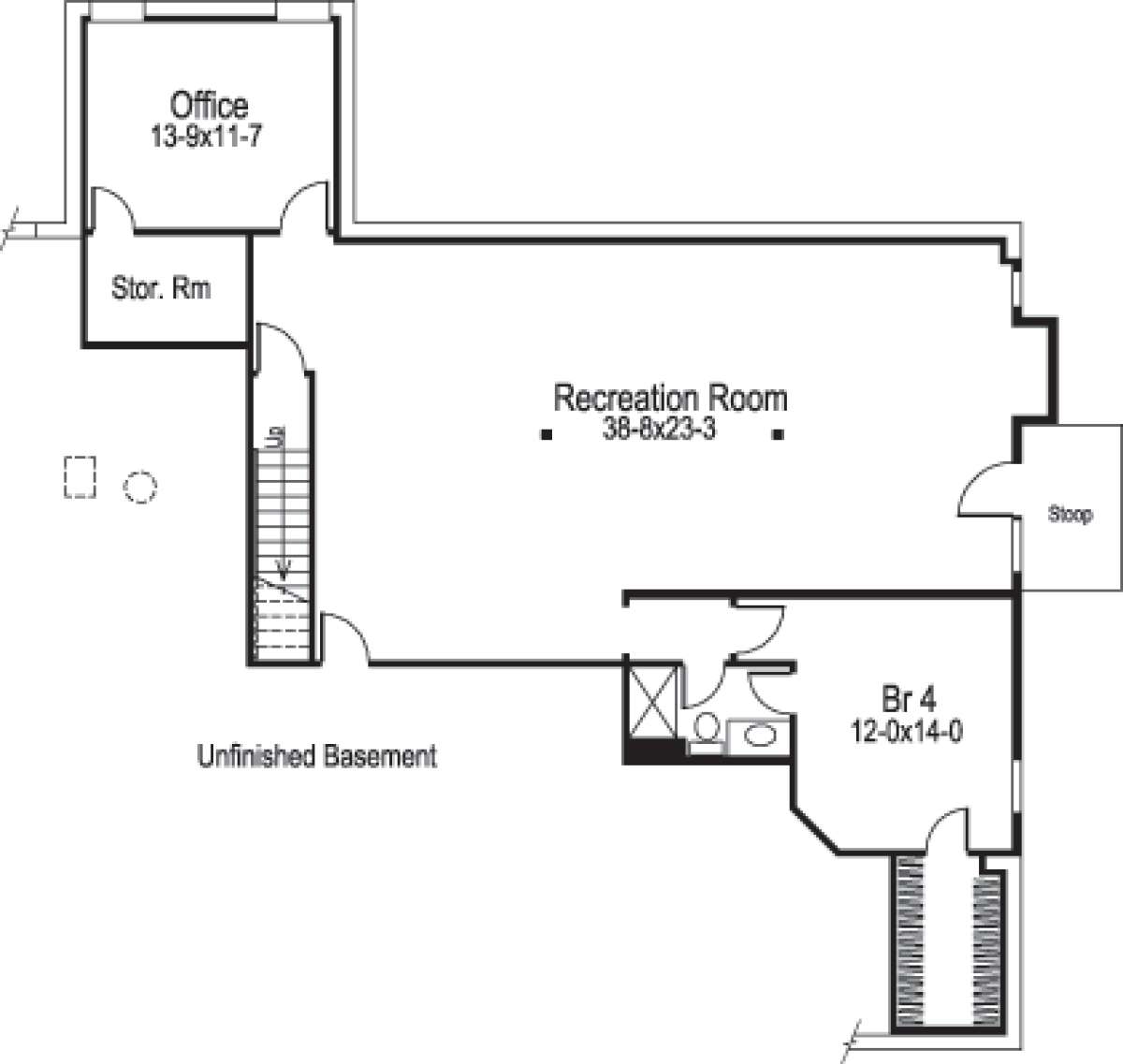

An expansive front covered porch is a welcoming sight in this rambling Ranch home. In addition to the covered porch, plenty of country charm is evident through the use of varied roof lines, window dormers and an arch vaulted front entrance. This is a fantastic family friendly home with a split bedroom plan and open main living spaces. Three bedrooms and two baths comprise the home’s approximate 2,514 square feet and there is a walk-out basement containing additional square footage which could be configured to include a large recreation or multi-purpose room, a fourth bedroom with bath, office space and a storage room. Great family space adorns the home and includes soaring ceiling heights throughout the main living space. There is a formal vaulted dining room which is spacious and sits nestled in a bay window. The rear of the home is filled with an enormous of amount of space and includes an oversized family room with handsome fireplace, a rear wall of windows and access to the deck. The deck is a large space for entertaining and the adjoining vaulted sunroom with fireplace makes the perfect spot for three season outdoor living. The family chef will be delighted to create fabulous meals and memories in the “state of the art” kitchen. Wraparound counter space concludes with an oversized breakfast bar and there are double pantries; one of which is a walk-in. A rear study/home office is also vaulted and provides access to the rear sunroom.
The split bedroom plan features two large family bedrooms with ample closet and a shared hall bath with double sinks and a hall linen closet. There is an enormous interior laundry room with sink area, a closet and space for a freezer conveniently located off the two car side entry garage. The master suite is highlighted by a large bedroom accessible through French doors. The beautifully designed en suite bath features plant shelves, a private toilet area, separate dual vanities, a separate shower and a corner garden tub. The oversized master walk-in closet is situated at the rear of the bath for privacy and convenience. This home features impressively sized optional space in the lower level and a fully functional main floor plan.
