Ranch House Plan 5633-00091

Sq Ft2,194
Beds3
Baths2
1/2 Baths0
Stories1
Cars2
Width55' 8"
Depth46' 4"
Images copyrighted by the designer. Photographs may reflect a homeowner modification.

Floorplan Drawings

 REVERSE  PRINT  DOWNLOAD Images copyrighted by the designer.

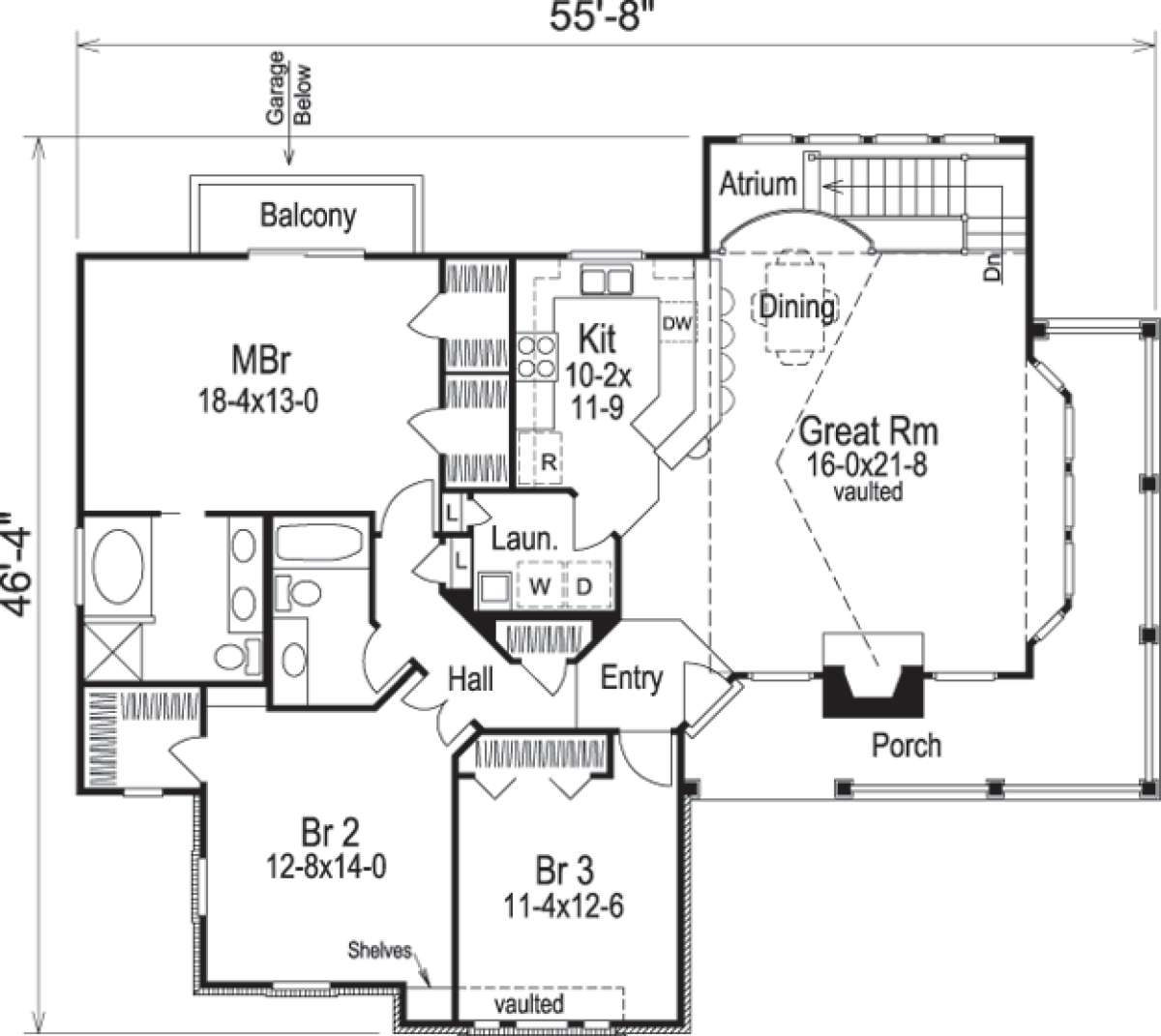

Floorplan 1 for House Plan #5633-00091
Floorplan 2 for House Plan #5633-00091
Floorplan 1
Floorplan 1 for House Plan #5633-00091
Floorplan 2
Floorplan 2 for House Plan #5633-00091


Frequently Asked Questions

COST TO BUILD REPORT

What's Included in these plans?

  • Heated and Cooled Square Footage calculations are made from outside the exterior frame wall and do not include decks, porches, garages, unfinished basements, bonus or attic space.
  • Artist Rendering
  • Foundation & Floor Plans (1/4"=1')
  • Front Elevations (1/4"=1'), Sides & Rear Elevation (1/8" or 1/4" = 1")
  • Kitchen and Bath Elevations (1/4"=1') **
  • Miscellaneous Details (1/4" to 3/4"=1')
  • Stair Section (1/4" to 3/8" = 1')
  • Roof Overview Plan (scale varies) **
    ** Some plans in this series do not provide cabinet elevations or roof overview.  Please call to verify.
  • FLOOR PLANS
    This home plan includes the floor plan showing the dimensioned locations of walls, doors, and windows as well as suggested locations for light fixtures, outlets and switches.
  • SET OF ELEVATIONS

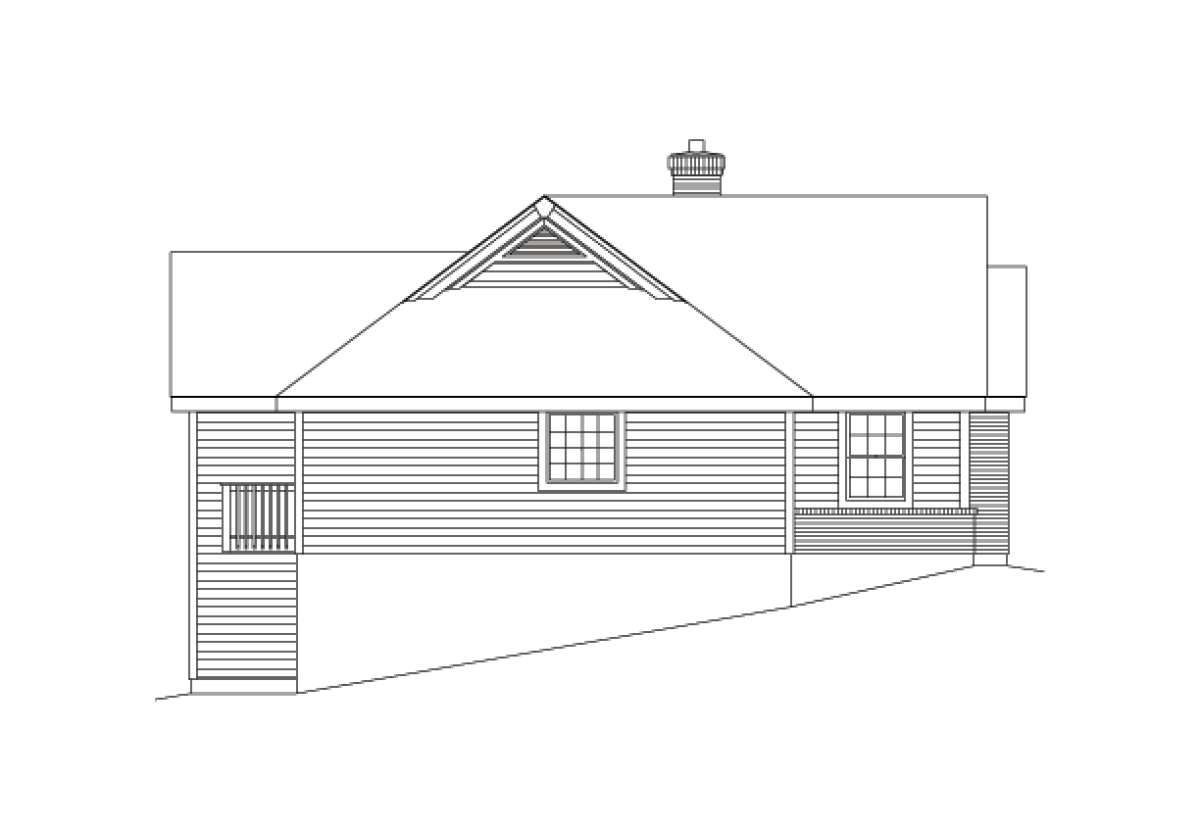

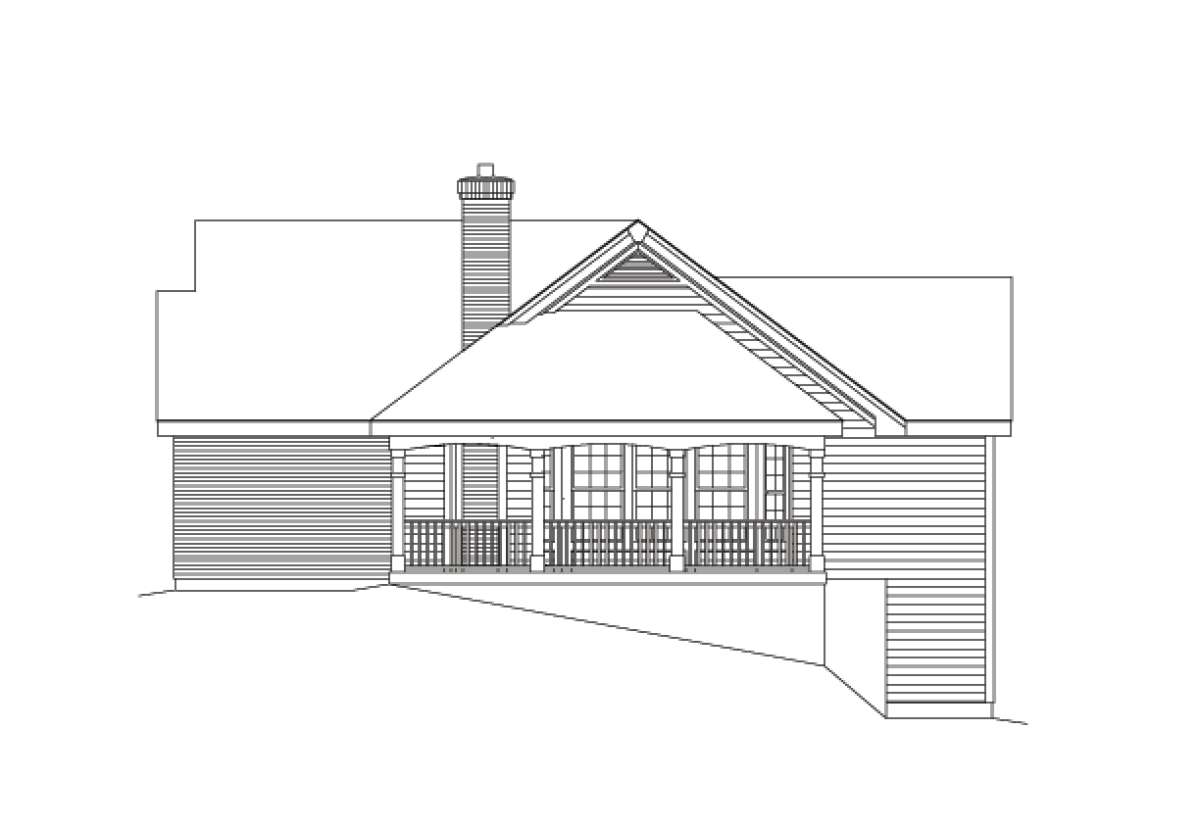

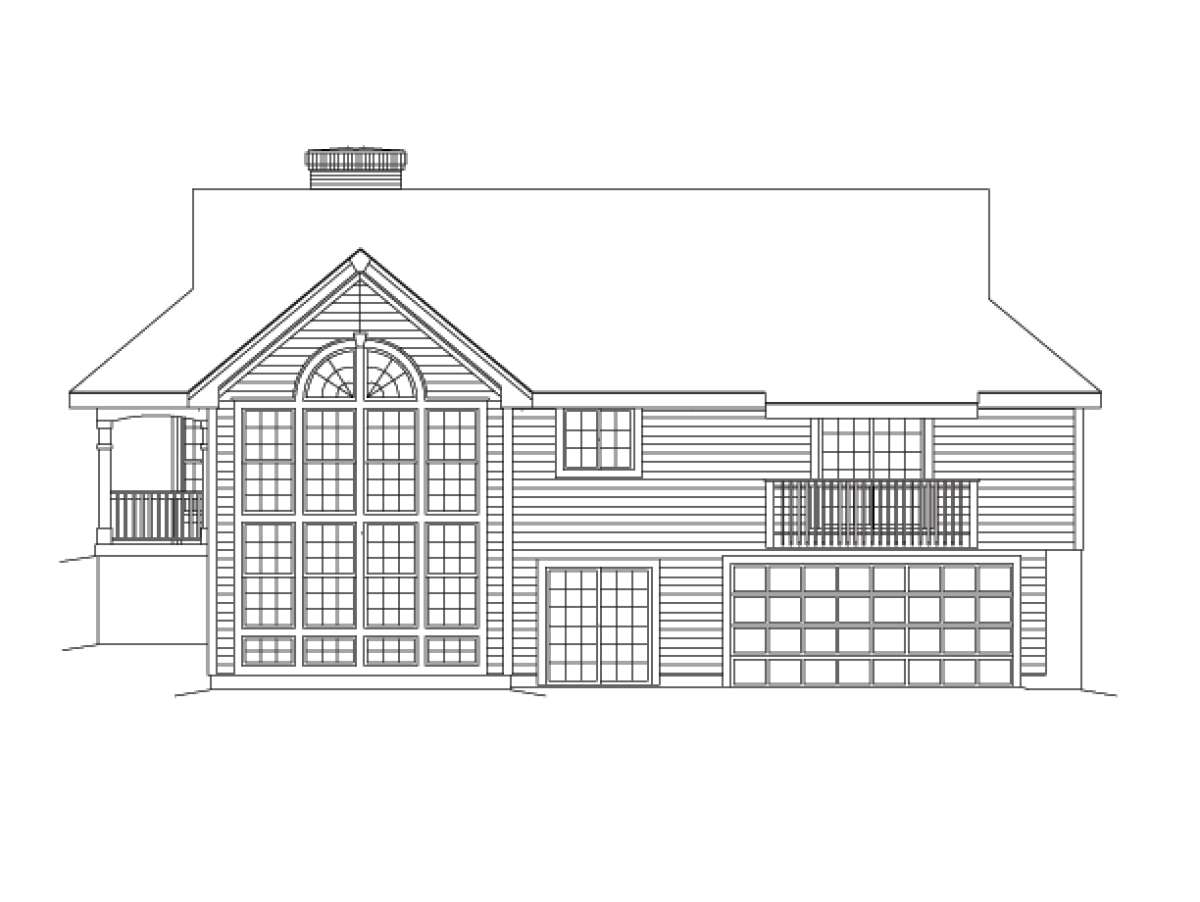

    This plan includes the exterior elevations (front, rear, right and left) that show and describe the finished materials of the house.
    KITCHEN AND BATH ELEVATIONS
    The kitchen and bath elevations show the arrangement of each cabinet and other fixtures in the room. These drawings give basic information that can be used to create customized layouts with a cabinet manufacturer.
  • MISCELLANEOUS DETAILS
    Some details are included for interior and exterior conditions that require more specific information for their construction.
  • ROOF OVERVIEW PLAN
    This is a "bird's eye" view showing the roof slopes, ridges, valleys and any saddles.

ASK US A QUESTION

Name:
E-mail Address:
Password: (for robots)
Your Question:

To request a modification quote, please use the Modification Request Form.

About This Plan

This light filled Ranch house plan has a walk-out basement and a two car drive under rear entry garage. The perfect combination of brick and siding along with a wraparound porch provide a massive amount of curb appeal along the exterior façade. Plenty of entertaining and family space makes for comfortable and enjoyable living within the three bedroom, two bath home. An open concept floor plan is highlighted by vaulted ceilings and the sun drenched living spaces include a rear atrium window wall and an enormous bayed window. There is an open breakfast bar in the gourmet kitchen along with plenty of additional counter and cabinet space. A large laundry room features a sink area and a linen or storage closet. Three large bedrooms and two baths are situated on the main floor and include two oversized family bedrooms; one of which has generous closet space and the other features a walk-in closet. There is a shared hall bath along with a hall linen closet for the two bedrooms. The master suite is a beautiful space with an enormous master bedroom and private balcony along with his and her walk-in master closets. The en suite bath features dual vanities, a separate shower, garden tub with a view and toilet area.

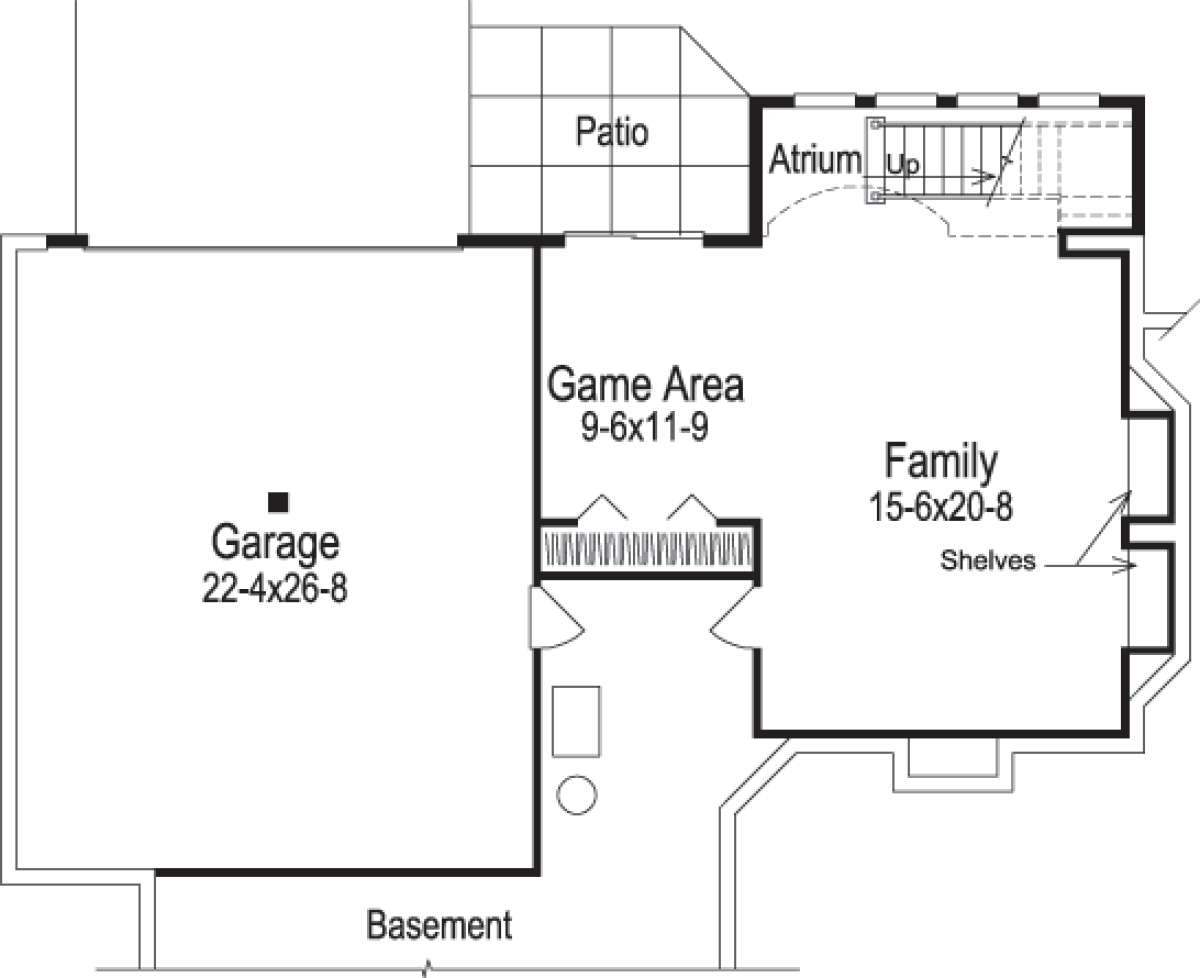

The basement level features outstanding family space as you descend the light enhanced atrium stairwell. There is a large family room with built-in shelving and an adjoining game area with plentiful closet space for tidiness. The walk-out basement provides privacy and a large amount of space which could virtually function as any type of space your family desires; a hobby room, a recreation room or it could be converted to additional sleeping space. In addition to the atrium window wall, there is a sliding glass door providing light and access to the rear patio. This home features a traditional exterior façade and a comfortable and functional interior floor plan.
