Traditional House Plan 5633-00090

Sq Ft4,269
Beds6
Baths4
1/2 Baths1
Stories2
Cars3
Width64' 8"
Depth51' 4"
Images copyrighted by the designer. Photographs may reflect a homeowner modification.

Floorplan Drawings

 REVERSE  PRINT  DOWNLOAD Images copyrighted by the designer.

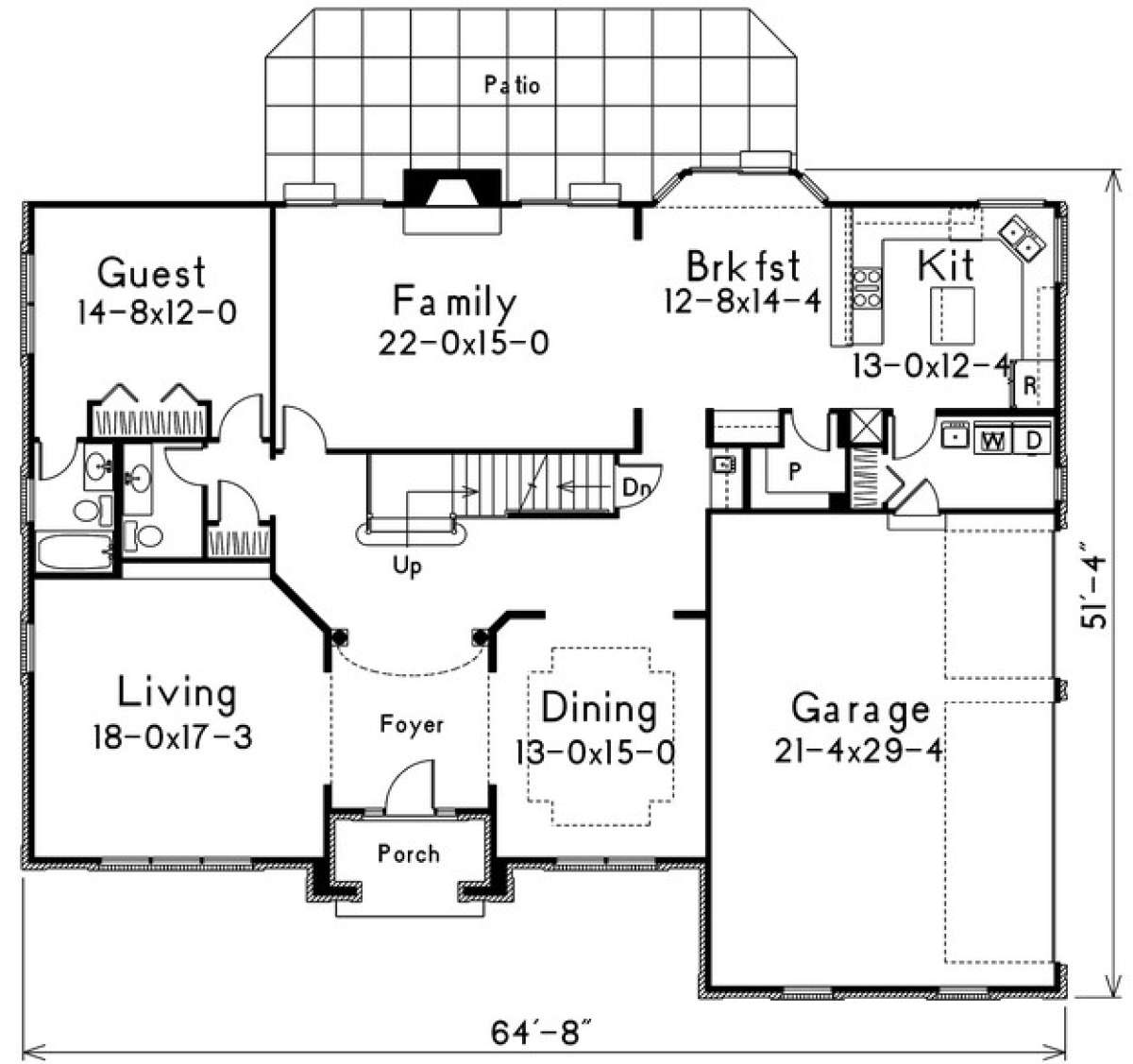

Floorplan 1 for House Plan #5633-00090

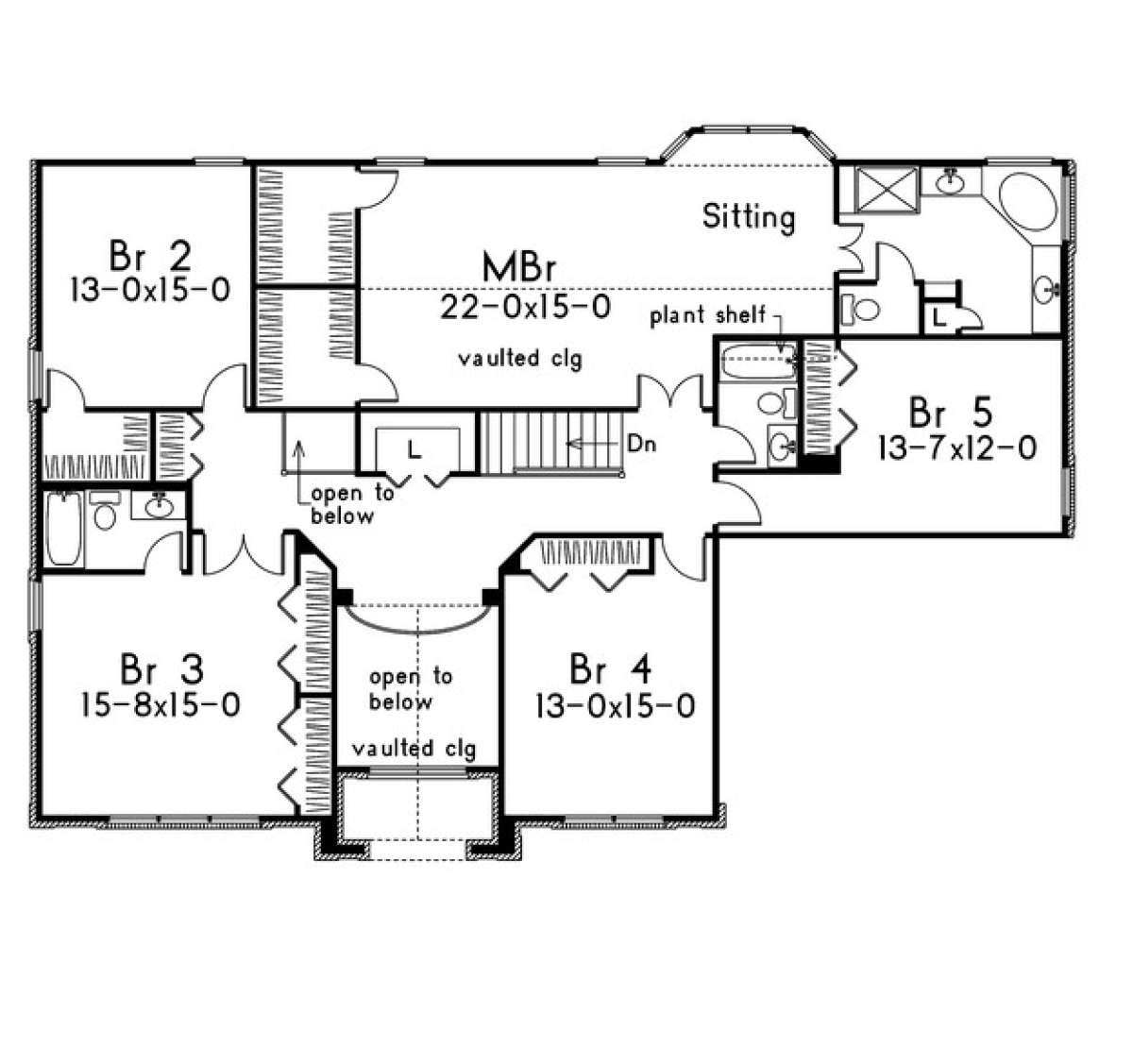

Floorplan 2 for House Plan #5633-00090
Floorplan 1
Floorplan 1 for House Plan #5633-00090
Floorplan 2
Floorplan 2 for House Plan #5633-00090


Frequently Asked Questions

COST TO BUILD REPORT

What's Included in these plans?

  • Heated and Cooled Square Footage calculations are made from outside the exterior frame wall and do not include decks, porches, garages, unfinished basements, bonus or attic space.
  • Artist Rendering
  • Foundation & Floor Plans (1/4"=1')
  • Front Elevations (1/4"=1'), Sides & Rear Elevation (1/8" or 1/4" = 1")
  • Kitchen and Bath Elevations (1/4"=1') **
  • Miscellaneous Details (1/4" to 3/4"=1')
  • Stair Section (1/4" to 3/8" = 1')
  • Roof Overview Plan (scale varies) **
    ** Some plans in this series do not provide cabinet elevations or roof overview.  Please call to verify.
  • FLOOR PLANS
    This home plan includes the floor plan showing the dimensioned locations of walls, doors, and windows as well as suggested locations for light fixtures, outlets and switches.
  • SET OF ELEVATIONS

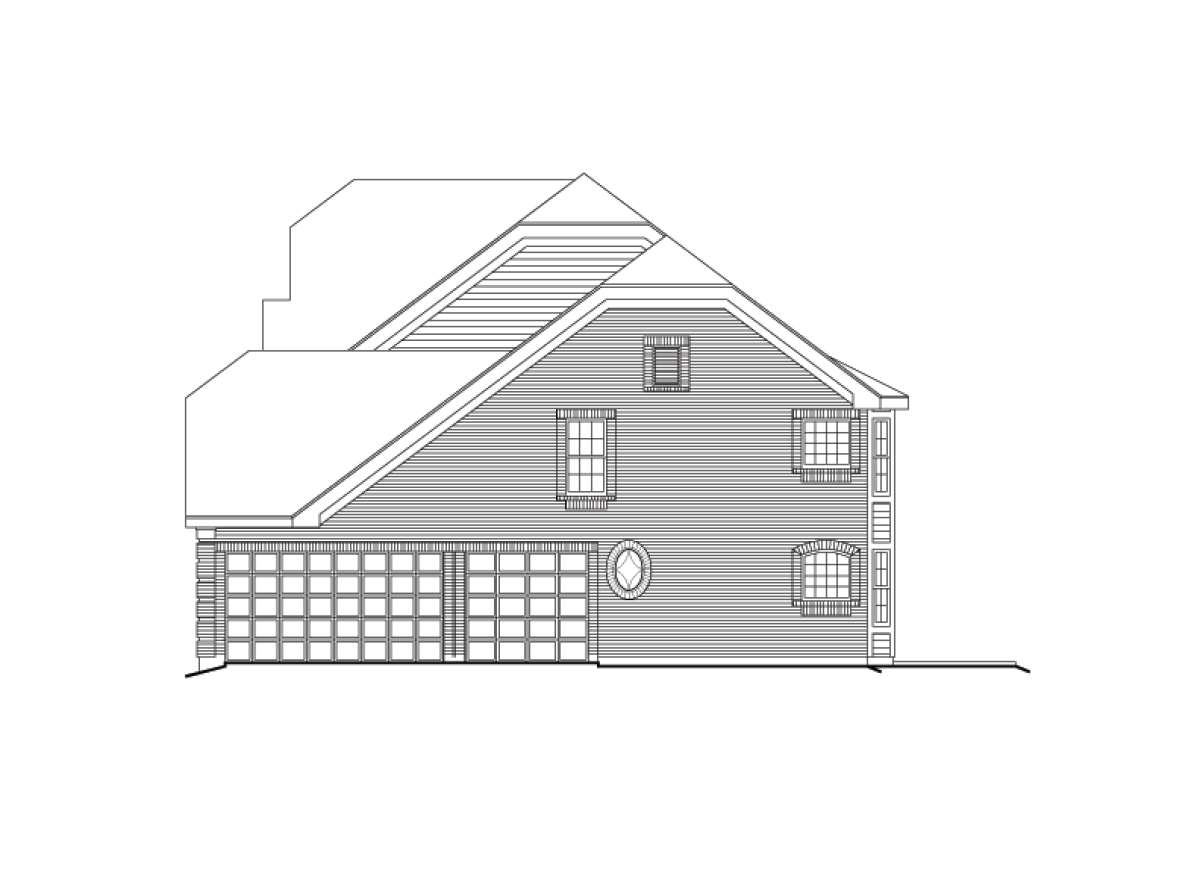

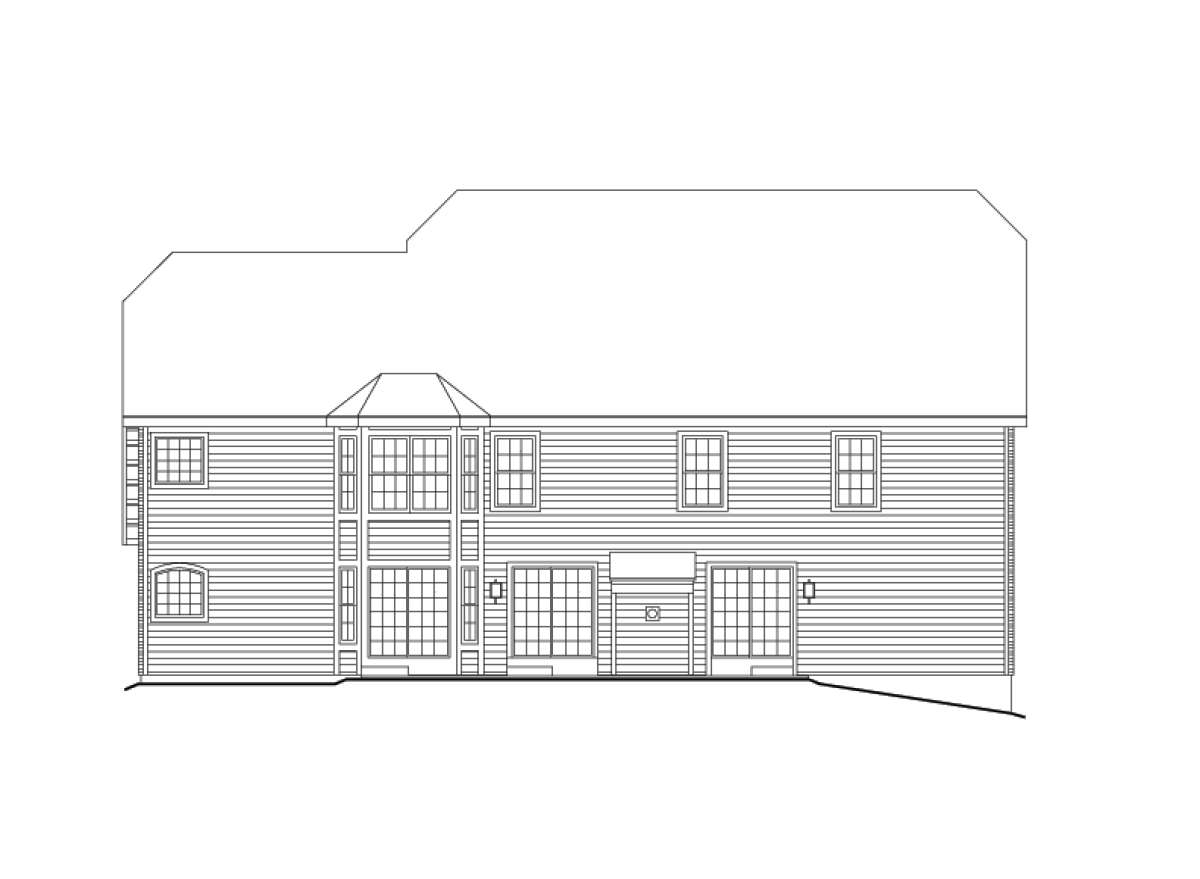

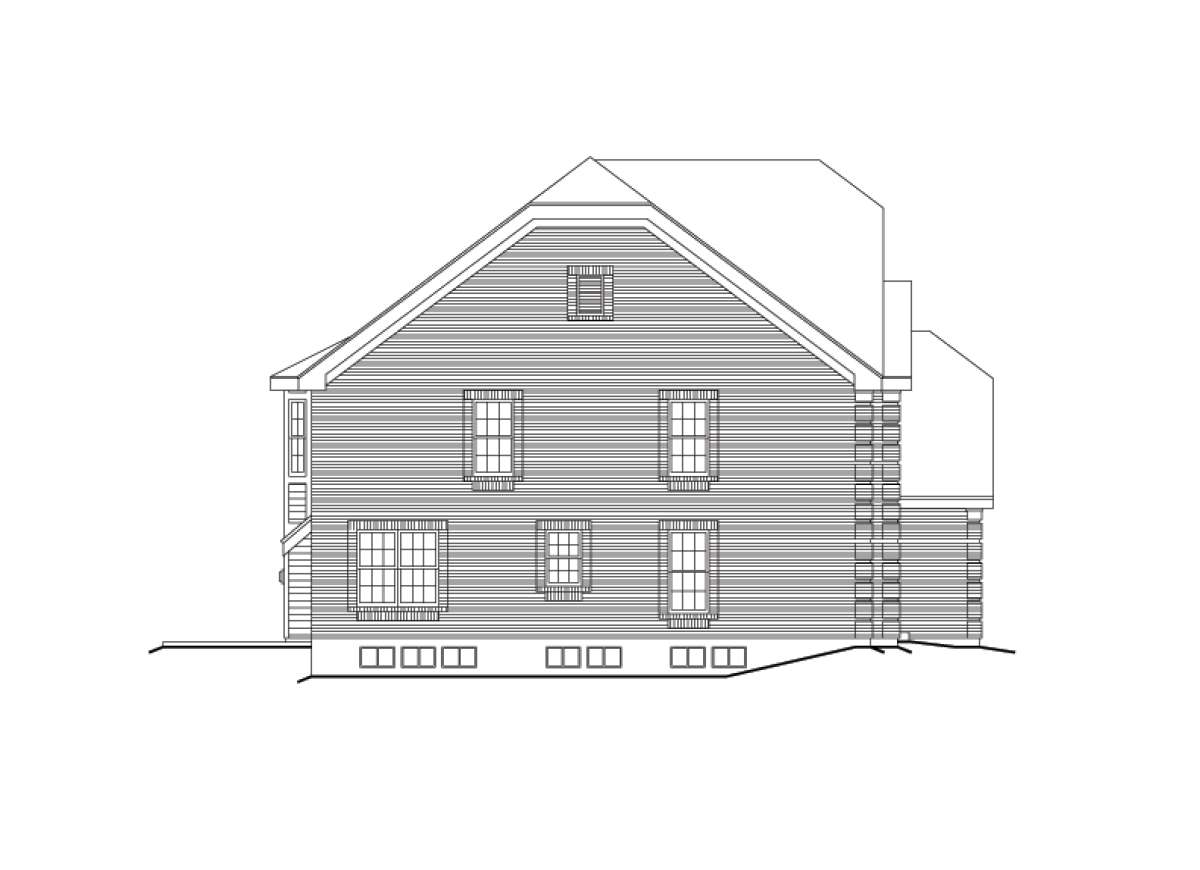

    This plan includes the exterior elevations (front, rear, right and left) that show and describe the finished materials of the house.
    KITCHEN AND BATH ELEVATIONS
    The kitchen and bath elevations show the arrangement of each cabinet and other fixtures in the room. These drawings give basic information that can be used to create customized layouts with a cabinet manufacturer.
  • MISCELLANEOUS DETAILS
    Some details are included for interior and exterior conditions that require more specific information for their construction.
  • ROOF OVERVIEW PLAN
    This is a "bird's eye" view showing the roof slopes, ridges, valleys and any saddles.

ASK US A QUESTION

Name:
E-mail Address:
Please leave blank:
Your Question:

To request a modification quote, please use the Modification Request Form.

About This Plan

A brick front exterior and hipped roof construction combine in this six bedroom home to create timeless elegance and grandeur. The home’s square footage is in excess of 4,200 square feet and there is a basement foundation with an additional 2,125 square feet of potential living space. The home’s classic foyer with marble tiles has a two story vaulted ceiling, a dramatic second floor balcony and a view through a 6’x9’ elliptical window. Oversized and well appointed rooms dominate the first floor living spaces; the living room measures in excess of 18’x17’ while the dining room is quite spacious and boasts of a trey ceiling. The family room is centrally located at the rear of the home and features good family space to relax along with a warming fireplace and rear patio access. The casual breakfast room is nestled into an oversized bay window with an adjoining kitchen breakfast bar. The gourmet kitchen further includes a menu desk, large walk-in pantry and a corner sink with double window views. There is large laundry/mudroom with sink area and coat/storage closet for miscellaneous items off the three car side entry garage. A guest suite is located on the main floor for privacy and features a large bedroom with plentiful closet space and a private full bath.
Dedicated family space is highlighted on the second floor which includes the family’s sleeping and bathing quarters. Bedroom two is spacious with a walk-in closet while the third bedroom features double closets and a private full bath. Bedrooms four and five are quite large as well and each has generous closet space. There is a shared hall bath and an oversized linen closet. The master retreat stands alone and almost spans the length of the home. An enormous master bedroom features vaulted ceilings and a private sitting area tucked into a large bay window. His and her walk-in closets are fabulous storage solutions and the directionally opposite master bath is revealed through French doors. The en suite includes dual vanities, a compartmentalized toilet, separate shower and a corner garden tub ensconced in window views. This traditional exterior home has an abundance of space and a fully functional and comfortable floor plan ideally suited for a large family.
