Traditional House Plan 5633-00088

Sq Ft2,724
Beds4
Baths3
1/2 Baths1
Stories2
Cars2
Width78' 8"
Depth53' 0"
Images copyrighted by the designer. Photographs may reflect a homeowner modification.

Floorplan Drawings

 REVERSE  PRINT  DOWNLOAD Images copyrighted by the designer.
Floorplan 1 for House Plan #5633-00088
Floorplan 2 for House Plan #5633-00088

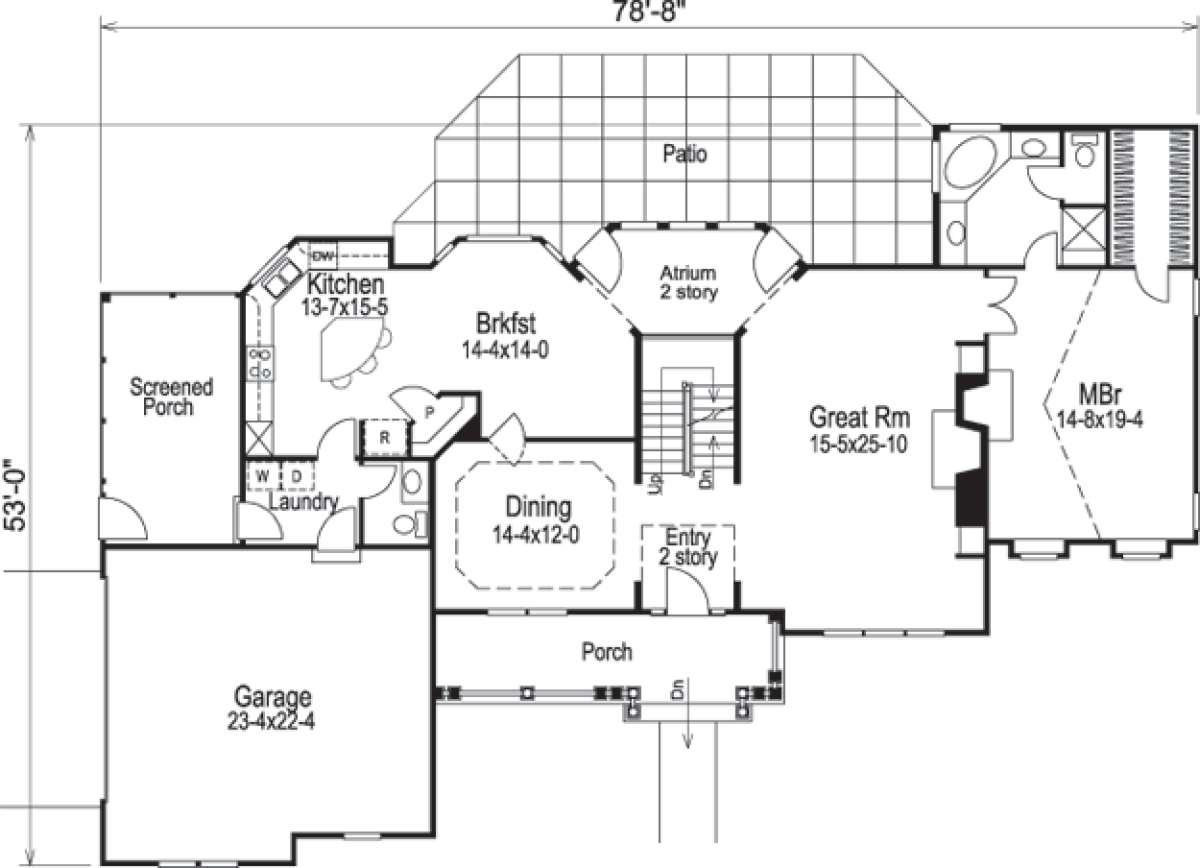

Floorplan 1
Floorplan 1 for House Plan #5633-00088

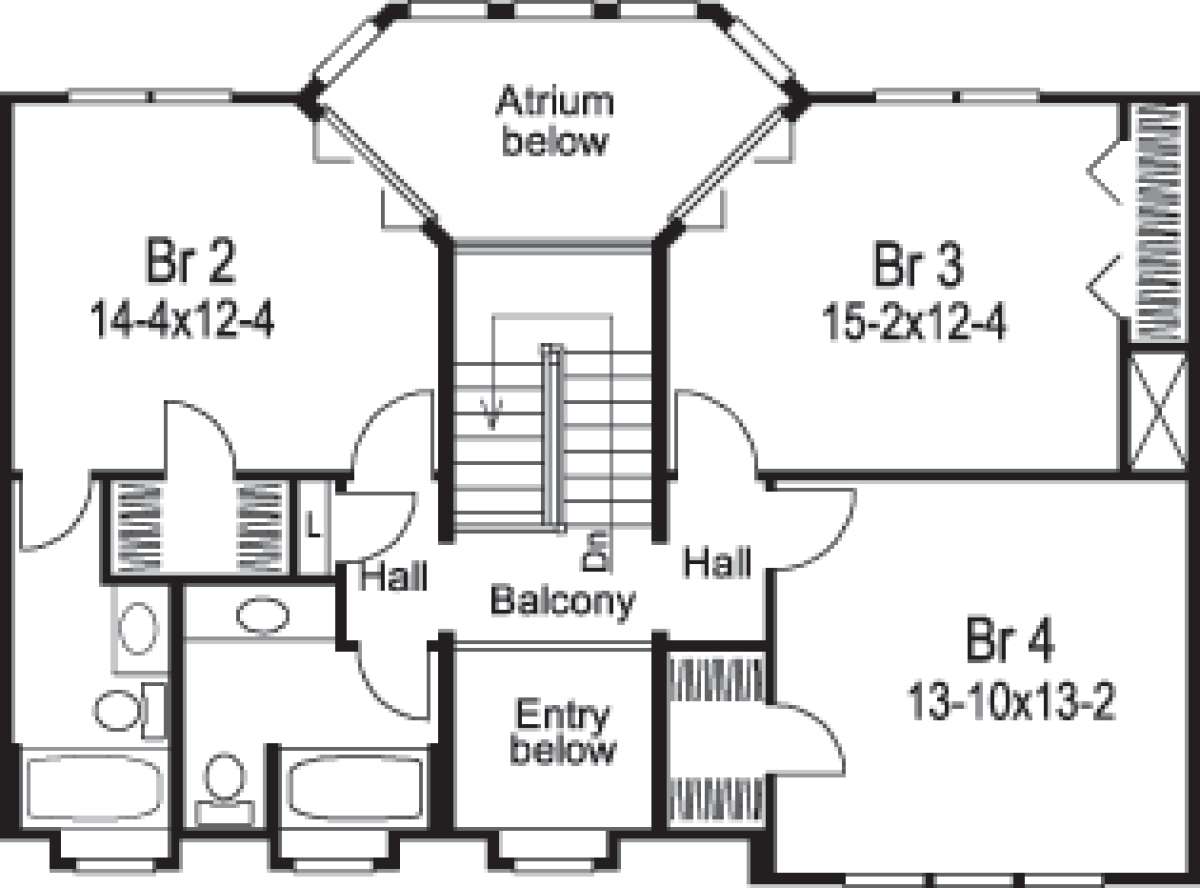

Floorplan 2
Floorplan 2 for House Plan #5633-00088


Frequently Asked Questions

COST TO BUILD REPORT

What's Included in these plans?

  • Heated and Cooled Square Footage calculations are made from outside the exterior frame wall and do not include decks, porches, garages, unfinished basements, bonus or attic space.
  • Artist Rendering
  • Foundation & Floor Plans (1/4"=1')
  • Front Elevations (1/4"=1'), Sides & Rear Elevation (1/8" or 1/4" = 1")
  • Kitchen and Bath Elevations (1/4"=1') **
  • Miscellaneous Details (1/4" to 3/4"=1')
  • Stair Section (1/4" to 3/8" = 1')
  • Roof Overview Plan (scale varies) **
    ** Some plans in this series do not provide cabinet elevations or roof overview.  Please call to verify.
  • FLOOR PLANS
    This home plan includes the floor plan showing the dimensioned locations of walls, doors, and windows as well as suggested locations for light fixtures, outlets and switches.

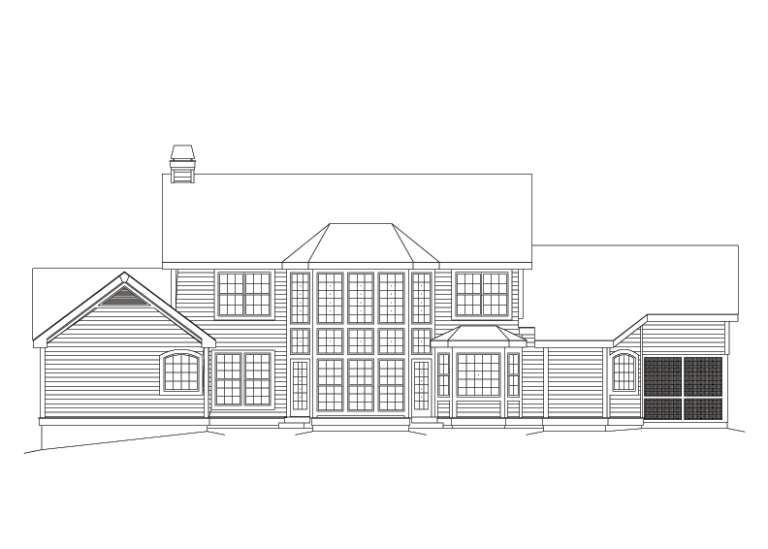

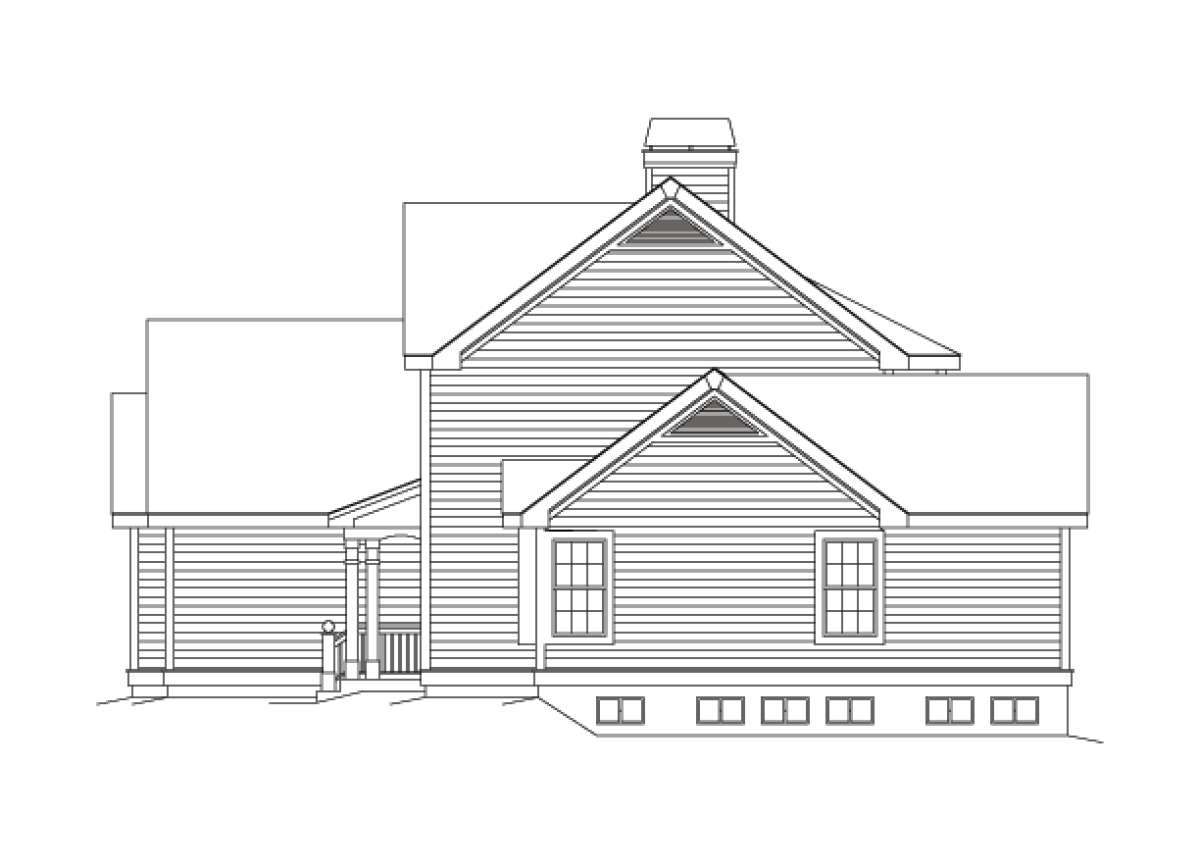

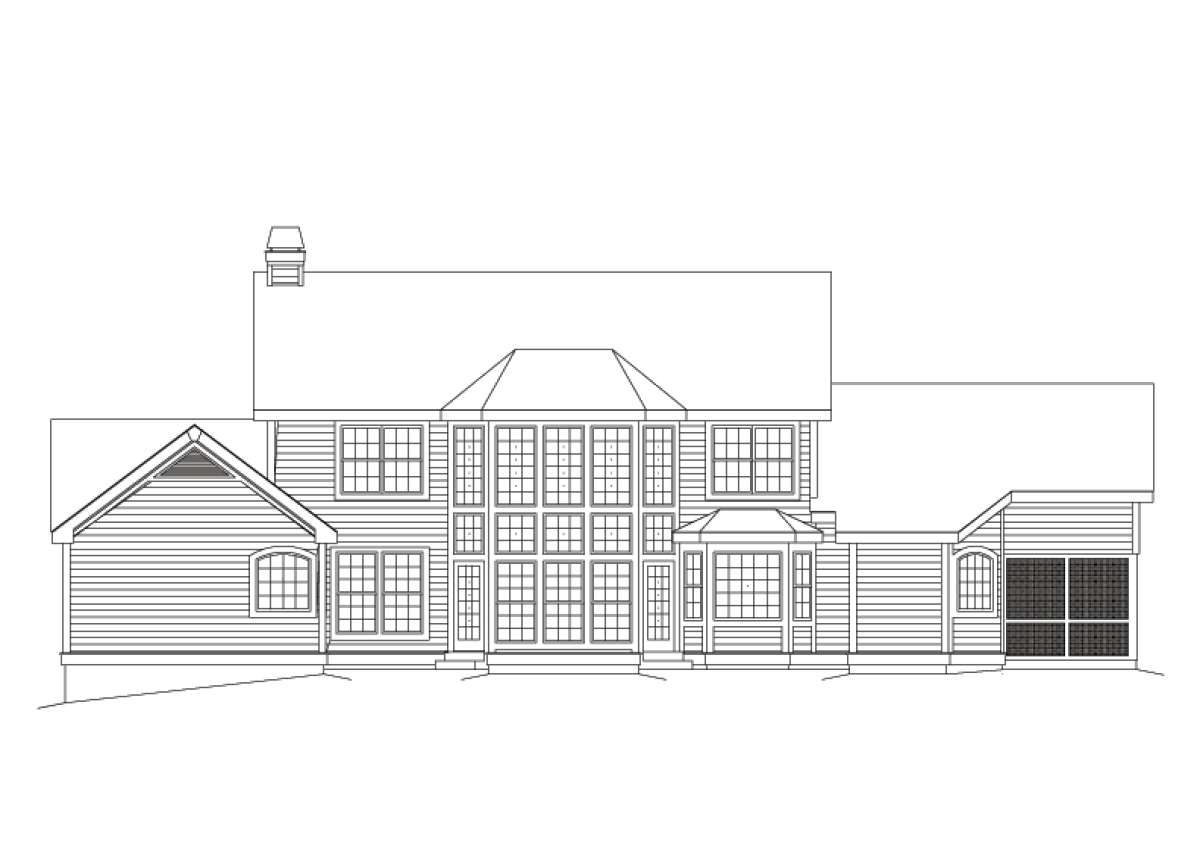

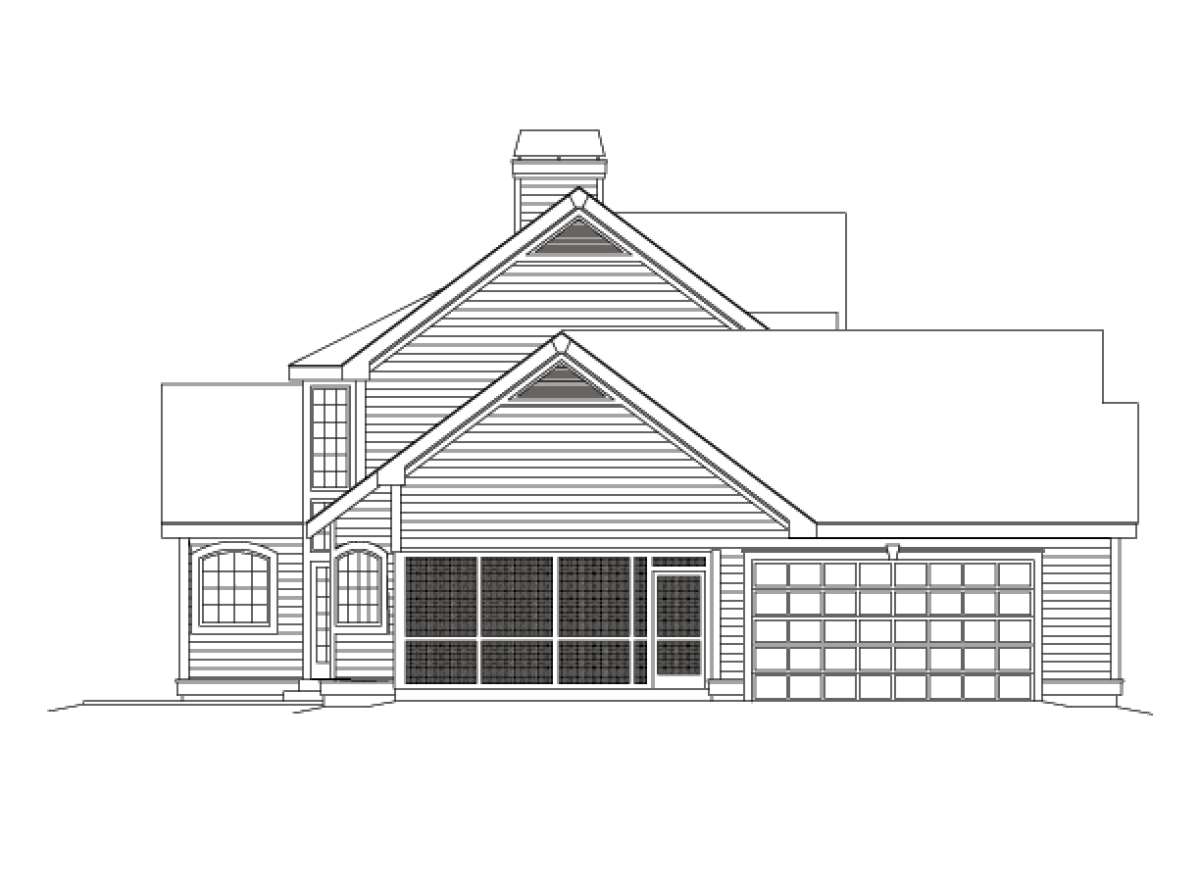

  • SET OF ELEVATIONS
    This plan includes the exterior elevations (front, rear, right and left) that show and describe the finished materials of the house.
    KITCHEN AND BATH ELEVATIONS
    The kitchen and bath elevations show the arrangement of each cabinet and other fixtures in the room. These drawings give basic information that can be used to create customized layouts with a cabinet manufacturer.
  • MISCELLANEOUS DETAILS
    Some details are included for interior and exterior conditions that require more specific information for their construction.
  • ROOF OVERVIEW PLAN
    This is a "bird's eye" view showing the roof slopes, ridges, valleys and any saddles.

ASK US A QUESTION

Name:
E-mail Address:
Password: (for robots)
Your Question:

To request a modification quote, please use the Modification Request Form.

About This Plan

This two storied atrium home provides plenty of natural light into the home and the floor plan is comfortable and versatile. The exterior façade is cloaked in architectural design features reminiscent of Southern charm and tradition with its use of window dormers, a front covered porch and wide column and gable eaves detailing. There are four bedrooms and three plus baths in approximately 2,724 square feet of living space on a basement foundation which has the potential to add an additional 1,817 square feet of space to the home. The two story foyer houses the centrally located staircase and is flanked by the formal dining room and family great room. The dining room features a trey ceiling and a pass-thru to the casual breakfast room which is nestled into a bay window and drenched in sunlight off the rear atrium window wall. The gourmet kitchen includes an island breakfast bar, separate walk-in pantry and the adjacent screened in porch is the ideal spot to dine al fresco. The great room is massive with a center fireplace, built-in cabinetry and access to the atrium and subsequent rear patio. There is a powder room for guests and the interior laundry room is conveniently located off the two car, side entry garage. The master suite is situated on the main level for privacy and features soaring ceiling heights, a large footprint and warming fireplace. An oversized master walk-in closet is attached and the master bath features modern amenities which include dual vanities, a separate shower, a compartmentalized toilet and corner garden tub.
Two spacious second floor bedrooms overlook the vaulted two story atrium below; one has plentiful closet space and the other features a walk-in closet and private full bath. There is a fourth bedroom which is large with a walk-in closet and there is a second full bath located in the hallway along with a hall linen closet. This family friendly home features great architectural design and style on both the exterior and interior of the home.
