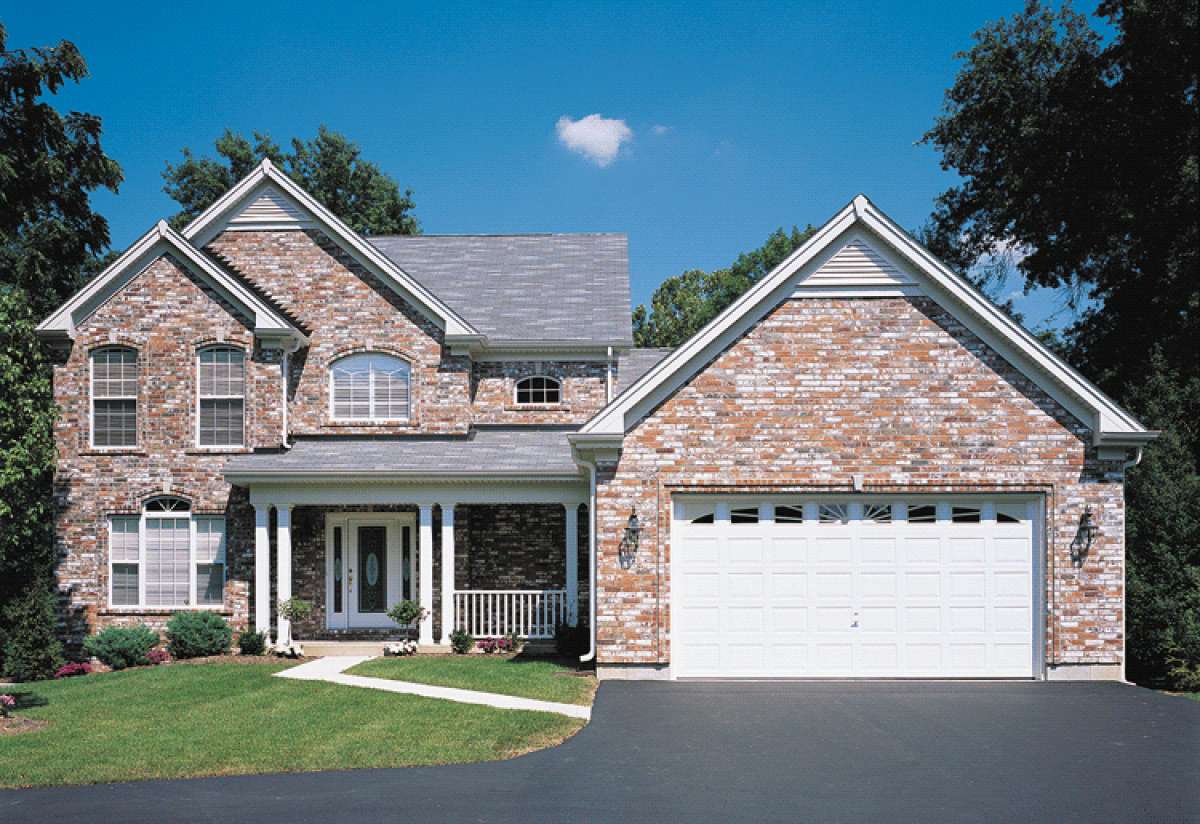

Traditional House Plan #5633-00080 Elevation Photo

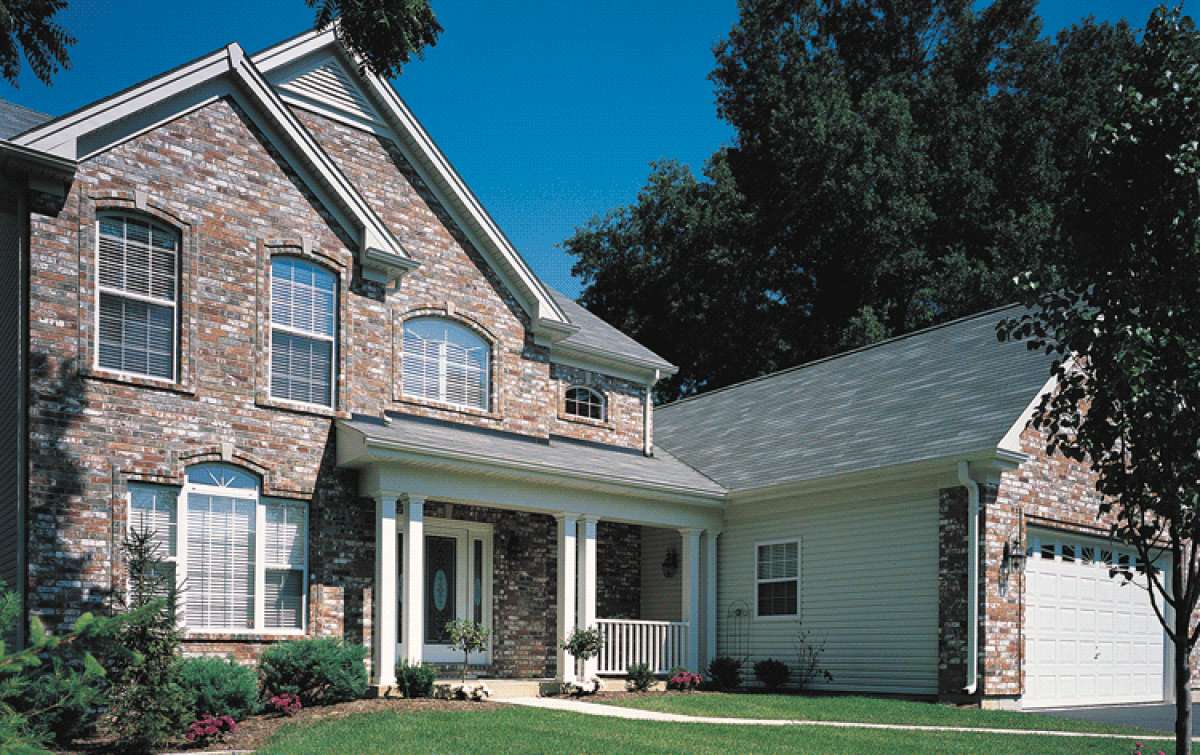

Traditional House Plan #5633-00080 Additional Photo

IMPORTANT NOTICE

To purchase a reversed plan, please select Right Reading Reverse under Additional Options.

Images copyrighted by the designer. Photographs may reflect a homeowner modification.

Sq Ft 3,138

Beds 4

Bath 3

1/2 Baths 1

Car 2

Stories 2

Width 56' 4"

Depth 57' 8"

See What's Included

Select Package

PDF (Single Build)

$1,349.00

ELECTRONIC FORMAT Recommended
One Complete set of working drawings emailed to you in PDF format. Most plans can be emailed same business day or the business day after your purchase. This package comes with a license to construct one home and a copyright release which allows for making copies locally and minor changes to the plan.

PDF (Unlimited Build)

$1,849.00

ELECTRONIC FORMAT
One Complete set of working drawings emailed to you in PDF format. Most plans can be emailed same business day or the business day after your purchase. Comes with a copyright release which allows for making copies locally and minor changes to the plan. This package comes with a multi-use license that allows for the home to be built more than once.

5 Sets (Single Build)

$1,349.00

PHYSICAL FORMAT
Five printed sets of working drawings mailed to you. This package comes with a license to construct one home.

5 Sets Plus PDF (Single Build)

$1,449.00

One Complete set of working drawings emailed to you in PDF format along with 5 physical sets printed and mailed to you. Most plans can be emailed same business day or the business day after your purchase. Comes with a copyright release which allows for making copies locally and minor changes to the plan. This package comes with a license to construct one home.

Select Foundation

Basement Foundation $0.00

Need a different foundation?

Get a free modification quote

Additional Options

Additional Sets $50.00

Dont see the right plan package for you? Add additional sets to create the perfect plan package for your needs.

Mirrored Reverse $15.00

Reverses the plan, however, the text and dimensions will not read correctly.

Material List $125.00

A complete material list for this plan. House plan must be purchased in order to obtain material list.
Important Notice: Please note that the material list is created with the standard foundation only and will not include any alternate foundations or additional options.

Return Policy, Building Code & Copyright Info

Floorplan Drawings

REVERSE PRINT DOWNLOAD

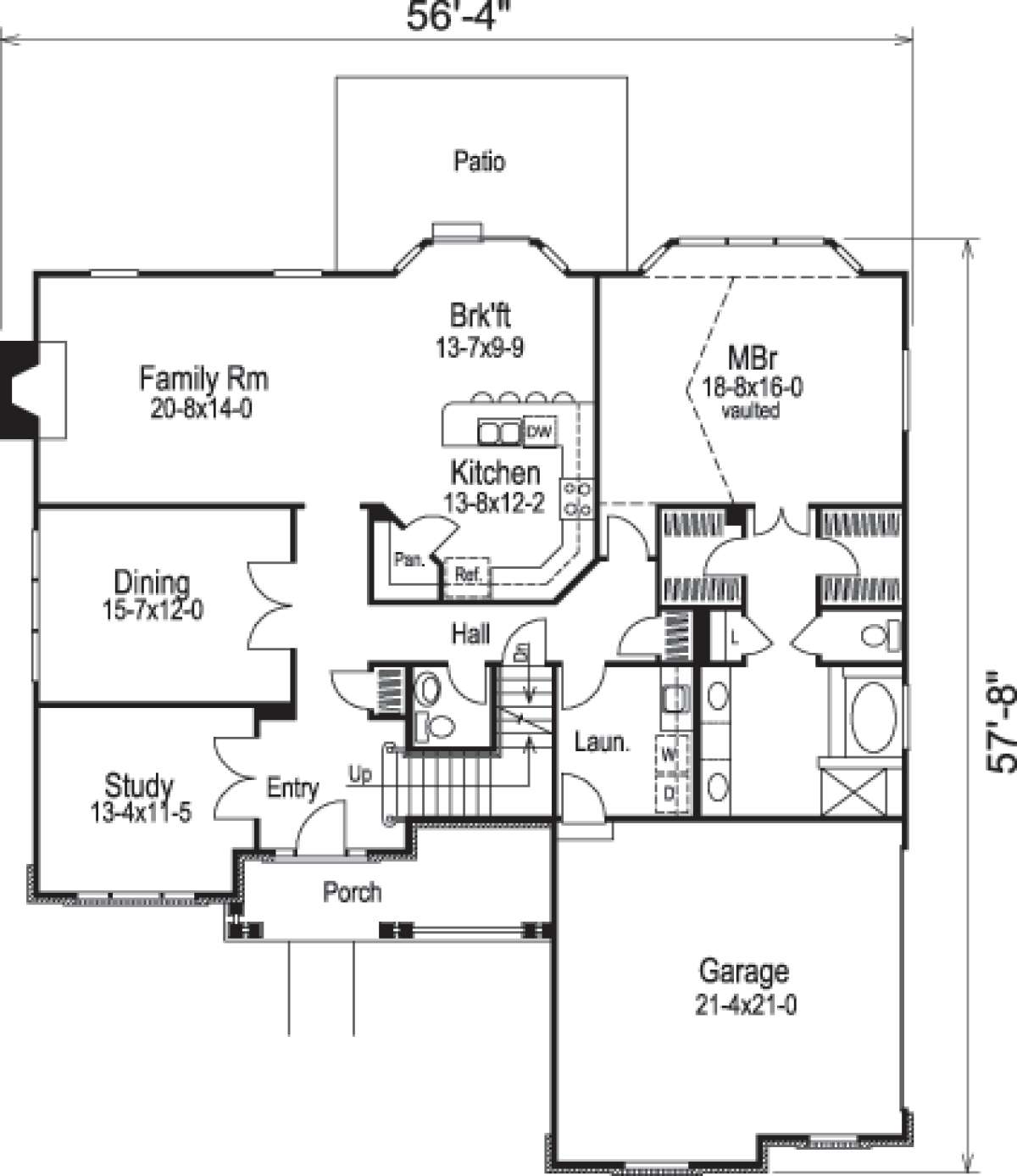

Floorplan 1

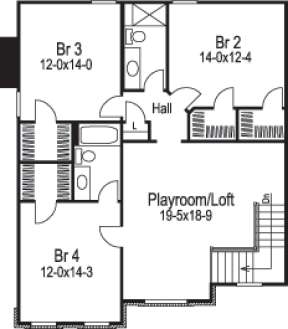

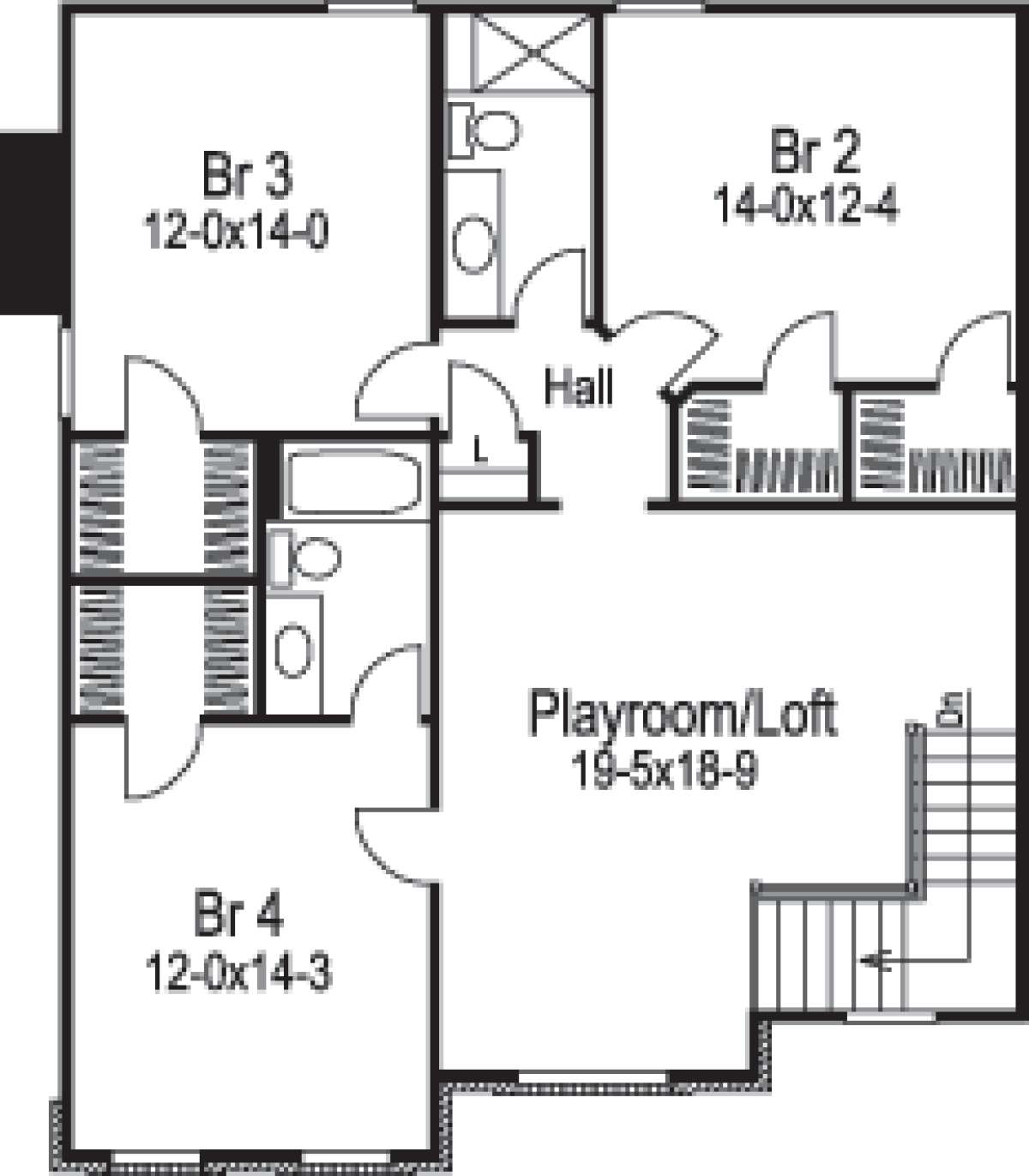

Floorplan 2

Images copyrighted by the designer.

What's Included in these plans?

Heated and Cooled Square Footage calculations are made from outside the exterior frame wall and do not include decks, porches, garages, unfinished basements, bonus or attic space.
Artist Rendering
Foundation & Floor Plans (1/4"=1')
Front Elevations (1/4"=1'), Sides & Rear Elevation (1/8" or 1/4" = 1")
Kitchen and Bath Elevations (1/4"=1') **
Miscellaneous Details (1/4" to 3/4"=1')
Stair Section (1/4" to 3/8" = 1')
Roof Overview Plan (scale varies) **
** Some plans in this series do not provide cabinet elevations or roof overview. Please call to verify.
FLOOR PLANS
This home plan includes the floor plan showing the dimensioned locations of walls, doors, and windows as well as suggested locations for light fixtures, outlets and switches.

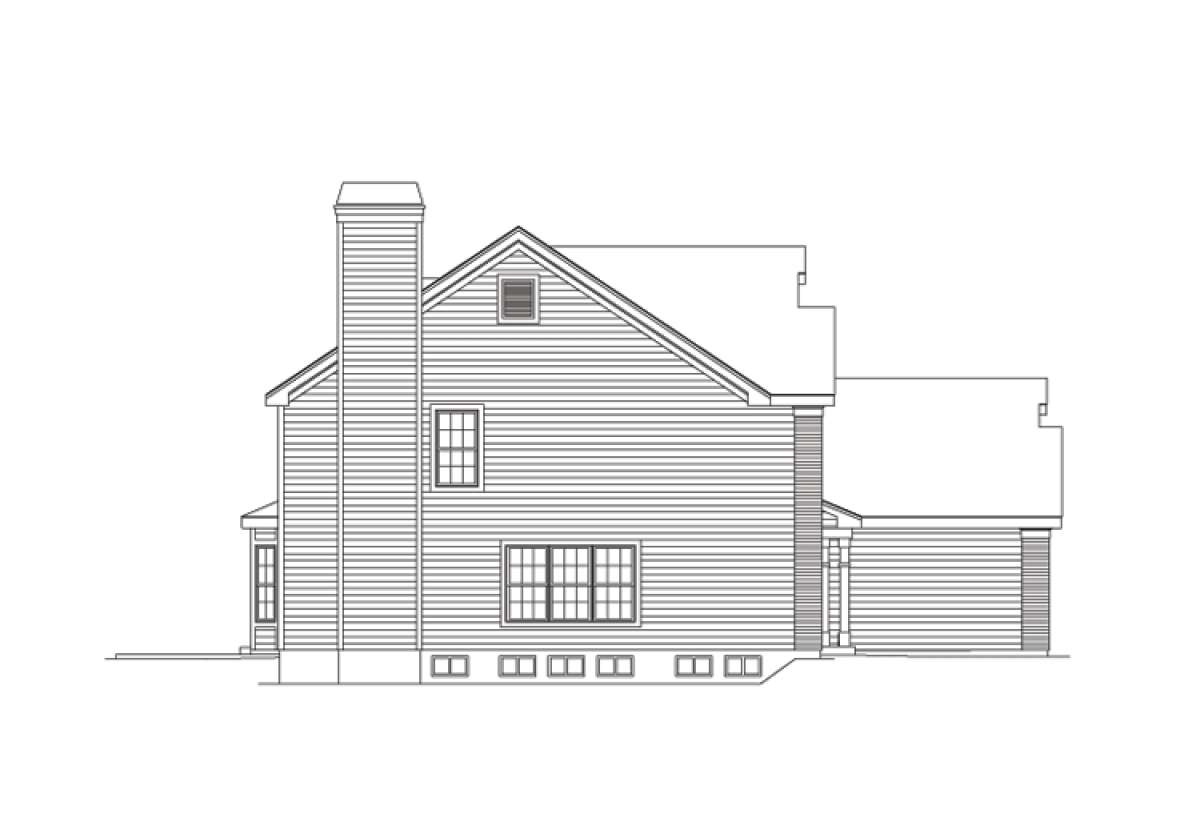

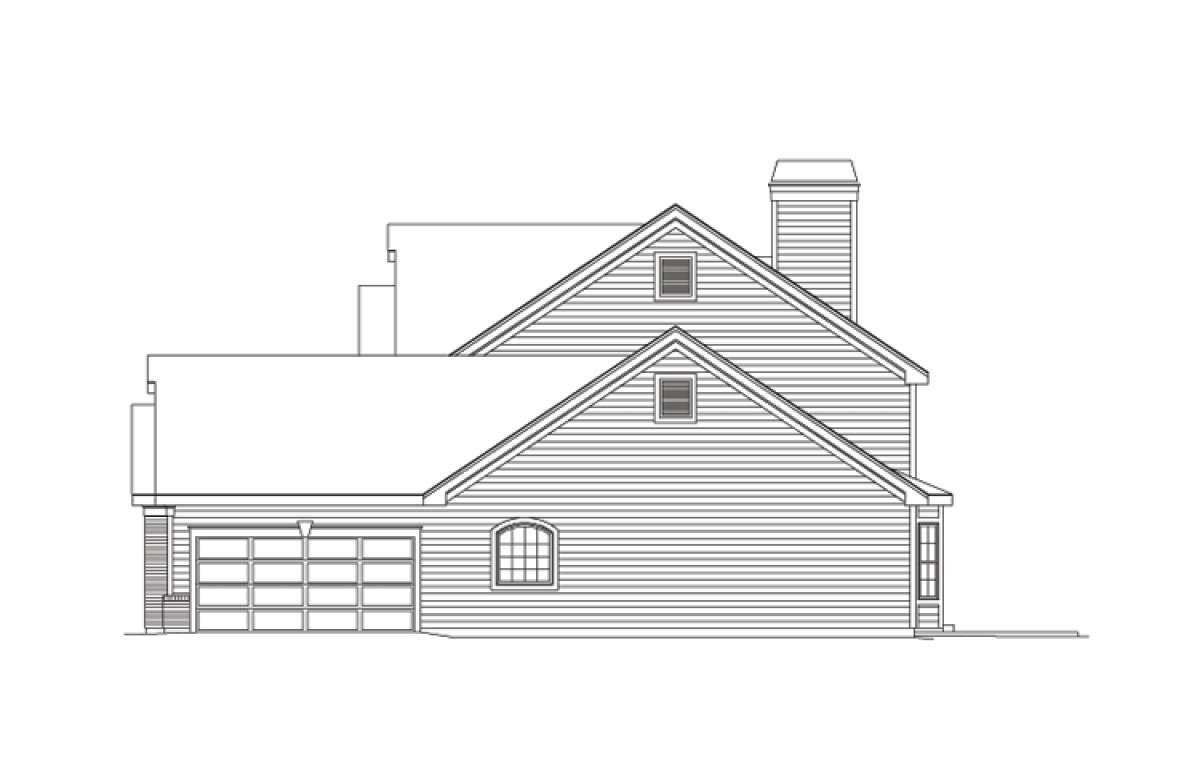

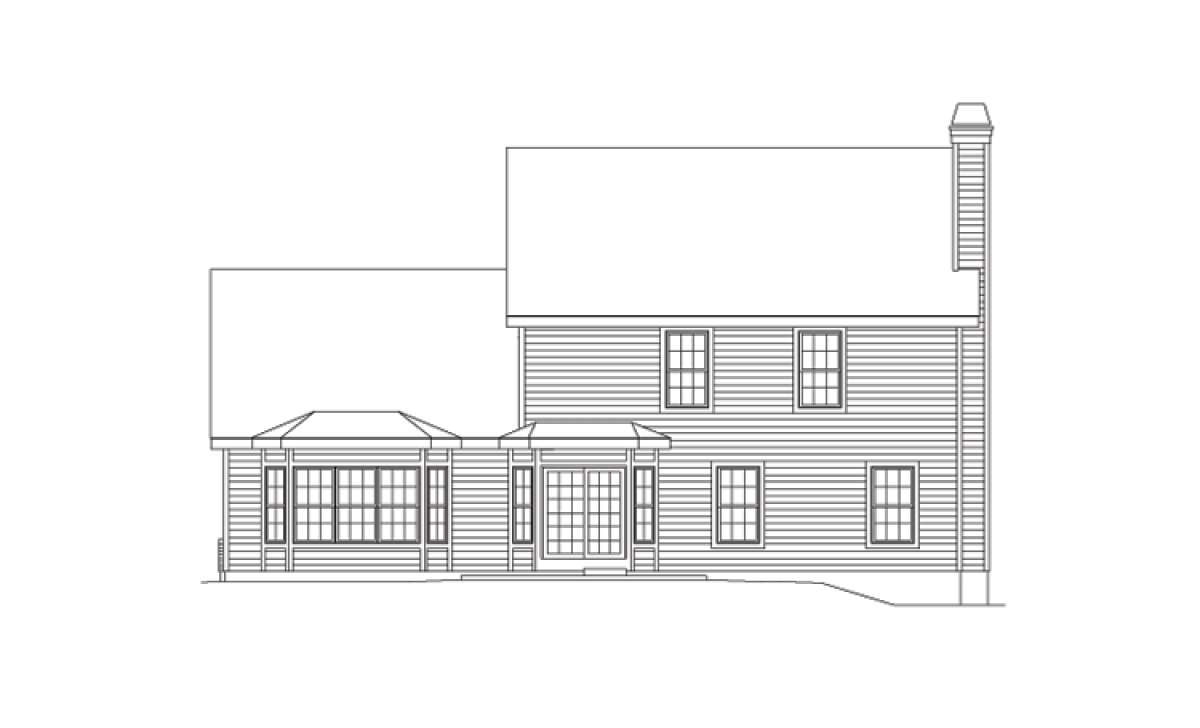

SET OF ELEVATIONS
This plan includes the exterior elevations (front, rear, right and left) that show and describe the finished materials of the house.
KITCHEN AND BATH ELEVATIONS
The kitchen and bath elevations show the arrangement of each cabinet and other fixtures in the room. These drawings give basic information that can be used to create customized layouts with a cabinet manufacturer.
MISCELLANEOUS DETAILS
Some details are included for interior and exterior conditions that require more specific information for their construction.
ROOF OVERVIEW PLAN
This is a "bird's eye" view showing the roof slopes, ridges, valleys and any saddles.

Ask Us A Question

About This Plan

This beautifully designed brick exterior accentuates this distinctive two storied traditional house plan. Wide gable eaves and a front covered porch highlighted with substantial column beams bring character and charm to the home. The home’s interior floor plan includes a basement foundation which substantially increases the value and square footage of the existing 3,138 square feet of living space. This space contains four bedrooms and two plus baths along with 448 additional square feet of garage space; ideal for vehicle and other gear storage. A private study is accessible through French doors off the foyer entry which simultaneously contains a staircase and coat closet. There is a secluded dining room which is richly appointed with a triple wall of windows and a set of French doors. The family room and casual breakfast room feature a warming fireplace and bay window with rear patio access. The family friendly kitchen features a peninsula breakfast bar, oversized walk-in pantry and plenty of additional counter space. There is a large laundry room conveniently located off the two car garage and a powder room for guests. The main level master suite offers privacy and comfort for the homeowner’s pleasure; the master bedroom is expansive with a vaulted ceiling and large bayed window. French door access into the hallway features double wall lined walk-in closets and a rear master bath. There is a linen closet, compartmentalized toilet, separate shower, dual vanities and gorgeous garden tub occupying the space.
Ascending the second level staircase is an enormous loft area; this is ideal for a playroom or homework station for the children. There are three oversized bedrooms; each has window views and at least one walk-in closet. A shared hall bath features a large vanity and there is a hall linen closet as well. This large home would be perfect for a family home with its many entertaining and private family spaces along with the ability to transform the basement foundation into multi-purpose space.
