Ranch House Plan 5633-00079

Sq Ft2,483
Beds3
Baths2
1/2 Baths0
Stories1
Cars2
Width69' 0"
Depth56' 0"

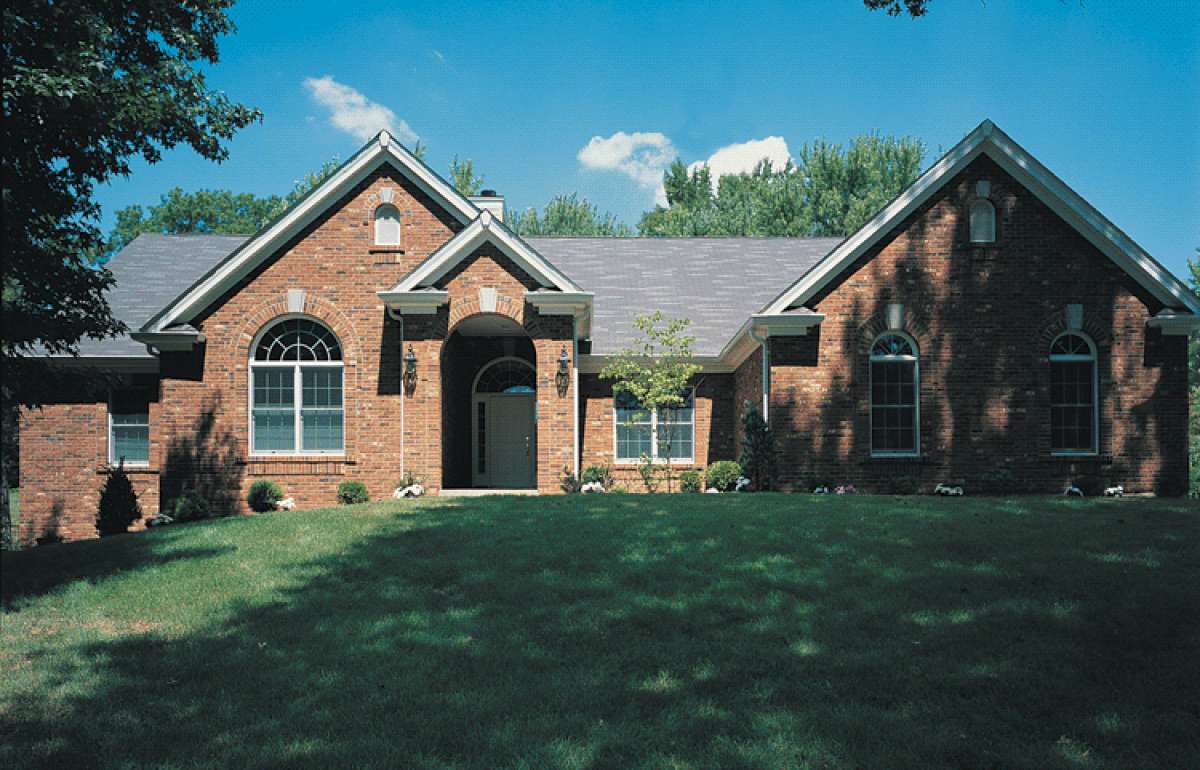

Images copyrighted by the designer. Photographs may reflect a homeowner modification.

Floorplan Drawings

 REVERSE  PRINT  DOWNLOAD Images copyrighted by the designer.

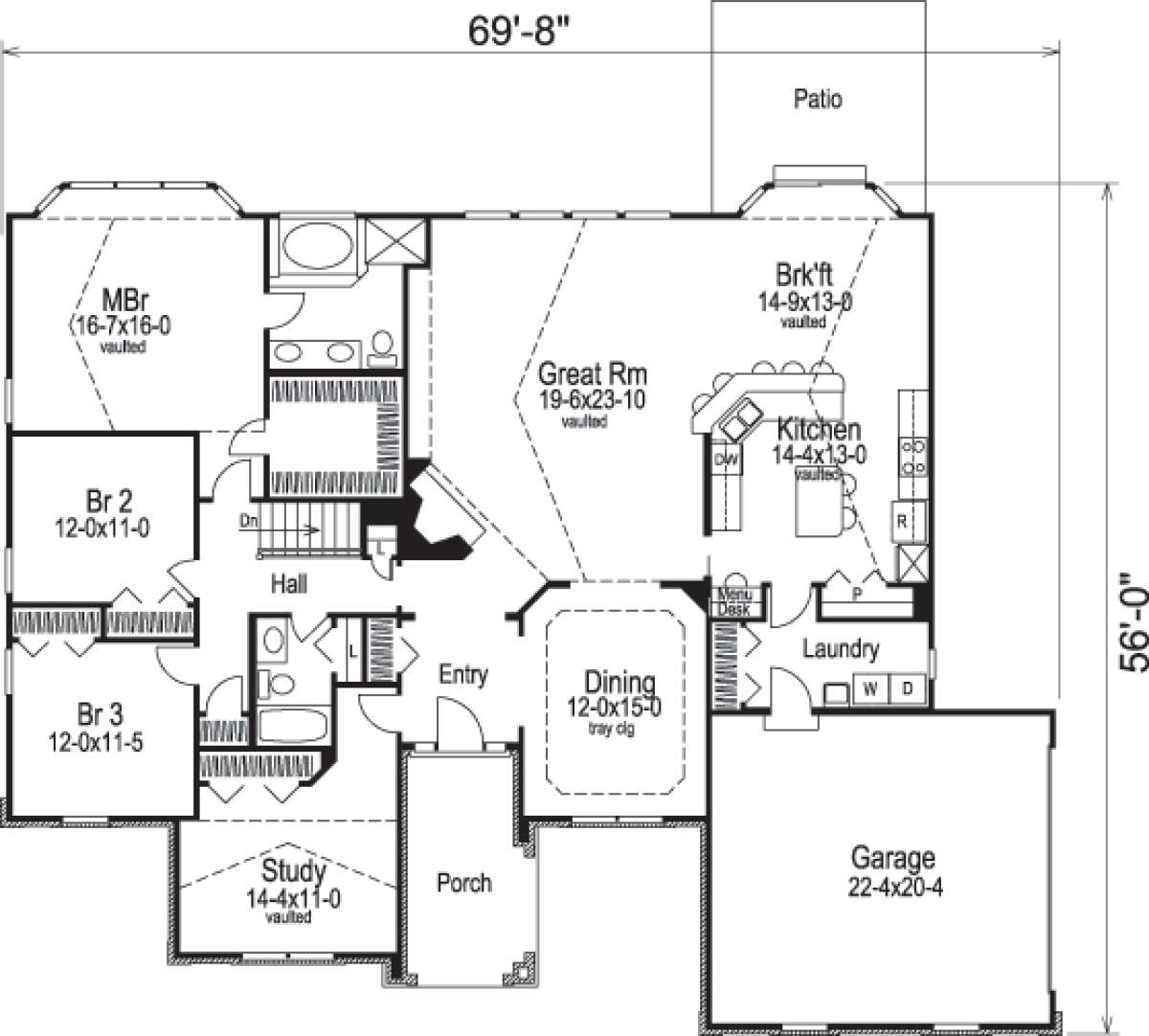

Floorplan 1 for House Plan #5633-00079
Floorplan 1
Floorplan 1 for House Plan #5633-00079


Frequently Asked Questions

COST TO BUILD REPORT

What's Included in these plans?

  • Heated and Cooled Square Footage calculations are made from outside the exterior frame wall and do not include decks, porches, garages, unfinished basements, bonus or attic space.
  • Artist Rendering
  • Foundation & Floor Plans (1/4"=1')
  • Front Elevations (1/4"=1'), Sides & Rear Elevation (1/8" or 1/4" = 1")
  • Kitchen and Bath Elevations (1/4"=1') **
  • Miscellaneous Details (1/4" to 3/4"=1')
  • Stair Section (1/4" to 3/8" = 1')
  • Roof Overview Plan (scale varies) **
    ** Some plans in this series do not provide cabinet elevations or roof overview.  Please call to verify.
  • FLOOR PLANS
    This home plan includes the floor plan showing the dimensioned locations of walls, doors, and windows as well as suggested locations for light fixtures, outlets and switches.

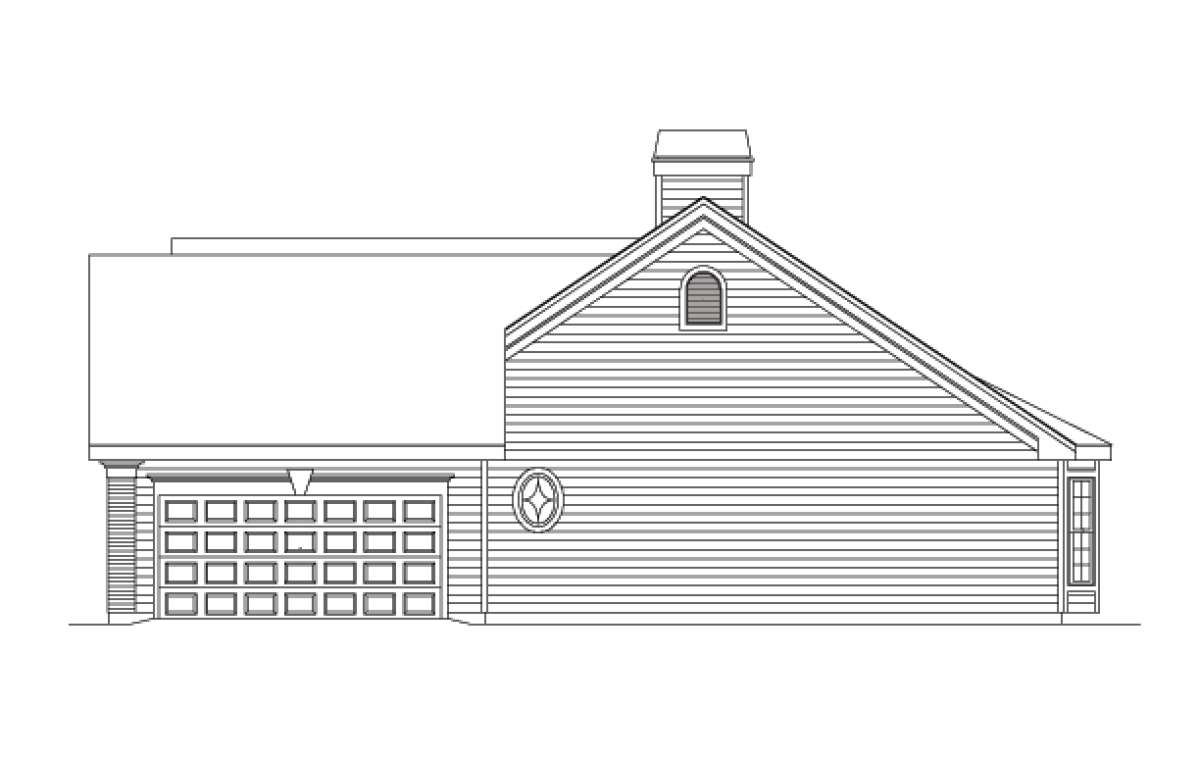

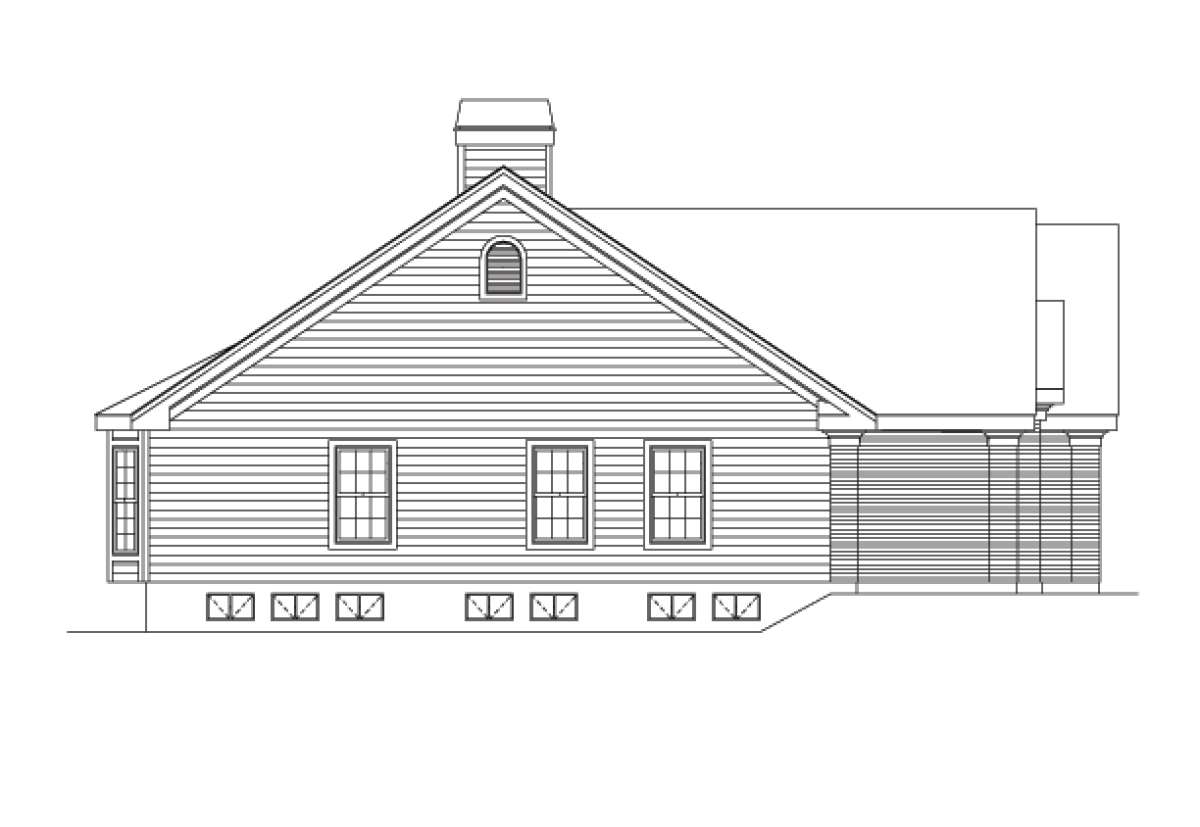

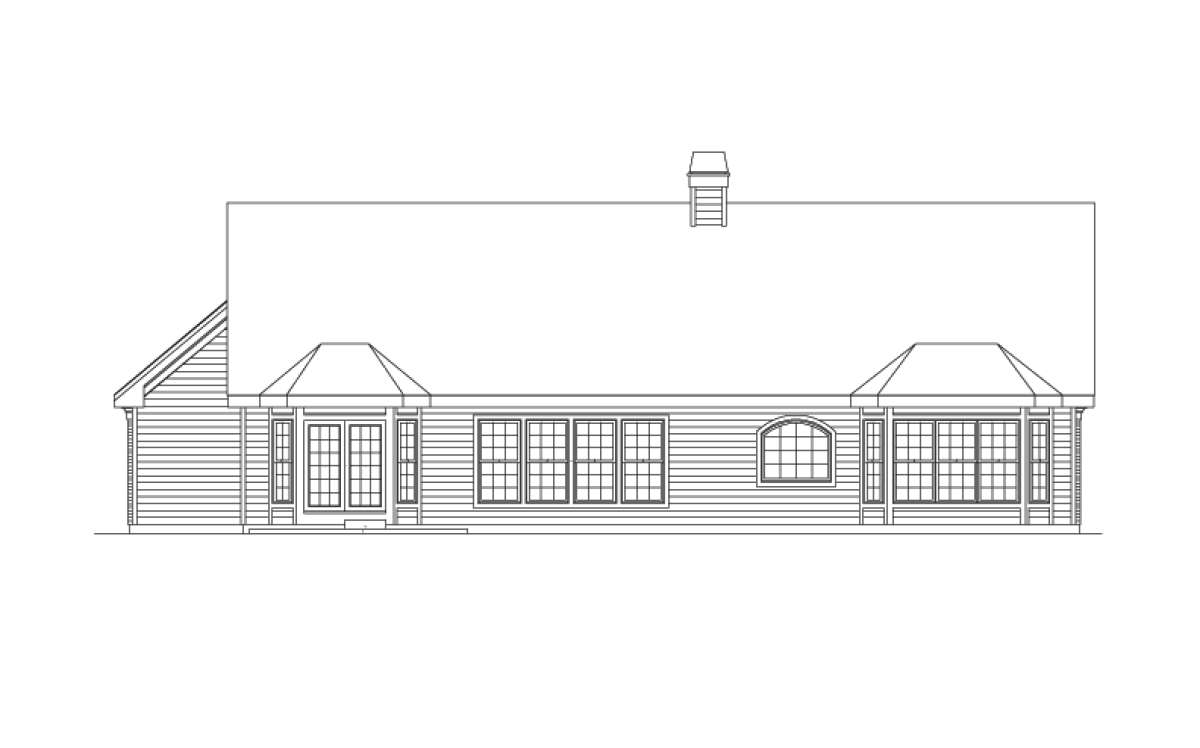

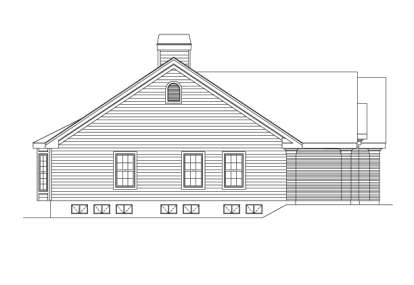

  • SET OF ELEVATIONS
    This plan includes the exterior elevations (front, rear, right and left) that show and describe the finished materials of the house.
    KITCHEN AND BATH ELEVATIONS
    The kitchen and bath elevations show the arrangement of each cabinet and other fixtures in the room. These drawings give basic information that can be used to create customized layouts with a cabinet manufacturer.
  • MISCELLANEOUS DETAILS
    Some details are included for interior and exterior conditions that require more specific information for their construction.
  • ROOF OVERVIEW PLAN
    This is a "bird's eye" view showing the roof slopes, ridges, valleys and any saddles.

ASK US A QUESTION

Name:
E-mail Address:
Password: (for robots)
Your Question:

To request a modification quote, please use the Modification Request Form.

About This Plan

Classic elegance is an apt description of this home’s exterior façade and interior floor plan. The Ranch styled home features an attractive brick front exterior highlighted by a grand entrance while the interior floor plan offers space delineation and impressively sized rooms. The home contains three bedrooms and two bathrooms in approximately 2,483 square feet of space and the basement foundation adds additional square footage and versatility to the home. The great room is massive with a vaulted ceiling, corner fireplace and a rear wall of window views. There is a separate formal dining room with double access points into the space and the trey ceiling gives the room an elegant feel. The casual breakfast room is vaulted and is nestled into the large bayed window which leads to the rear patio. An outstanding kitchen is a delightful space to create fabulous meals and memories with its center island breakfast bar, an additional wraparound bar, separate pantry and a convenient desk area. The interior laundry/mudroom is located off the two car, side entry garage for ease of clean-up creating a tidy home environment.
There is a front vaulted study which has a private entrance off the foyer and ample closet space; this room could easily function as a fourth bedroom or guest suite. A shared bath and linen closet and an additional linen closet line the hallway before reaching the bedrooms. Two bedrooms are spacious with ample closet space and there is more storage space at the hallway end cap. The master retreat features a generously sized bedroom which is vaulted and contains a large bay window and oversized master walk-in closet. An en suite bath is highlighted by dual vanities, a separate shower and gorgeous garden tub. This family friendly home provides comfortable and versatile living space and a timeless exterior.
