Traditional House Plan 5633-00077

Sq Ft1,268
Beds3
Baths2
1/2 Baths0
Stories1
Cars2
Width38' 8"
Depth48' 4"
Images copyrighted by the designer. Photographs may reflect a homeowner modification.

Floorplan Drawings

 REVERSE  PRINT  DOWNLOAD Images copyrighted by the designer.

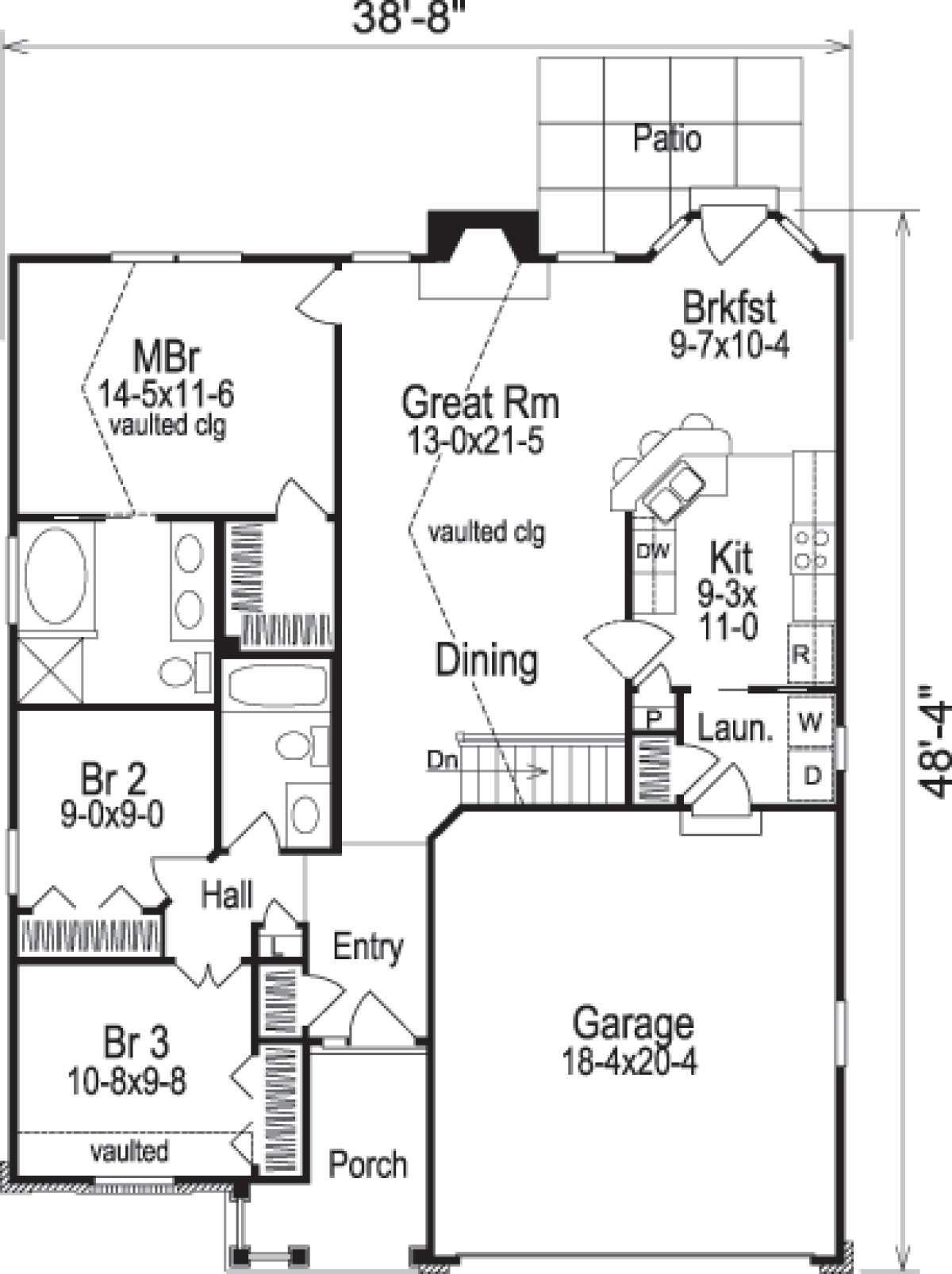

Floorplan 1 for House Plan #5633-00077
Floorplan 1
Floorplan 1 for House Plan #5633-00077


Frequently Asked Questions

COST TO BUILD REPORT

What's Included in these plans?

  • Heated and Cooled Square Footage calculations are made from outside the exterior frame wall and do not include decks, porches, garages, unfinished basements, bonus or attic space.
  • Artist Rendering
  • Foundation & Floor Plans (1/4"=1')
  • Front Elevations (1/4"=1'), Sides & Rear Elevation (1/8" or 1/4" = 1")
  • Kitchen and Bath Elevations (1/4"=1') **
  • Miscellaneous Details (1/4" to 3/4"=1')
  • Stair Section (1/4" to 3/8" = 1')
  • Roof Overview Plan (scale varies) **
    ** Some plans in this series do not provide cabinet elevations or roof overview.  Please call to verify.
  • FLOOR PLANS
    This home plan includes the floor plan showing the dimensioned locations of walls, doors, and windows as well as suggested locations for light fixtures, outlets and switches.
  • SET OF ELEVATIONS

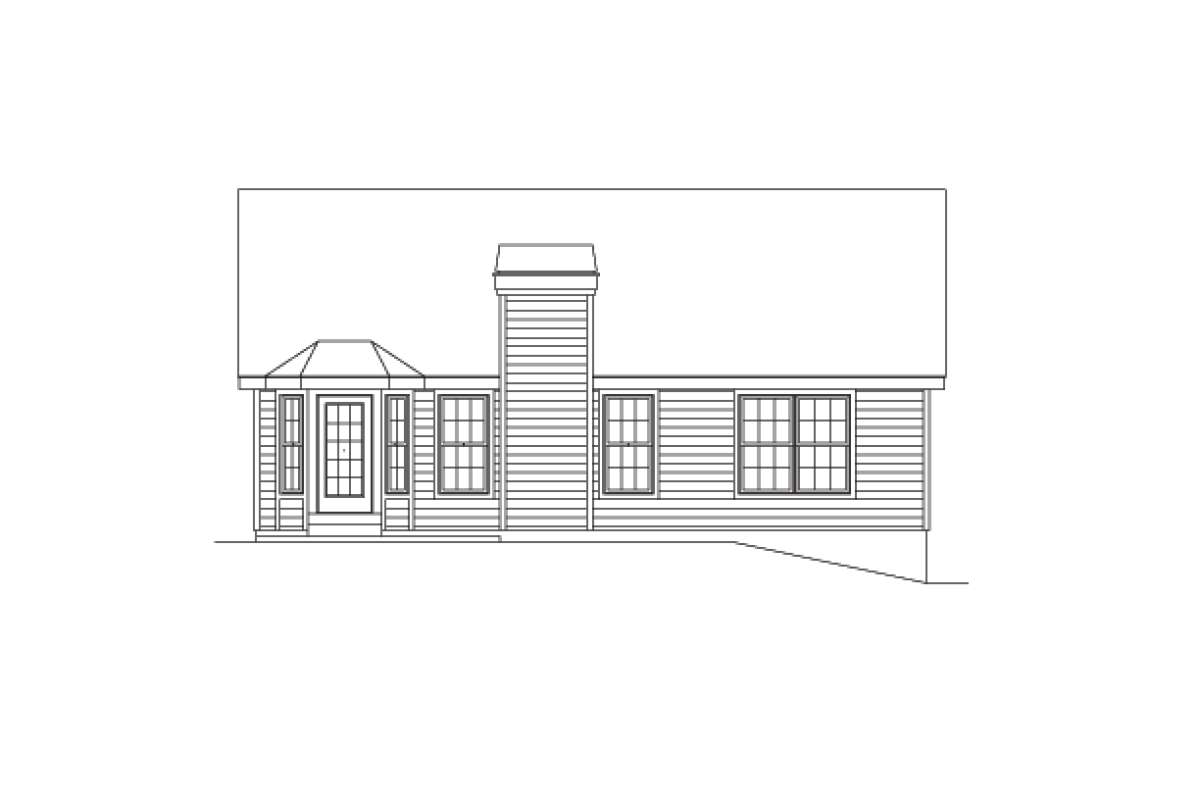

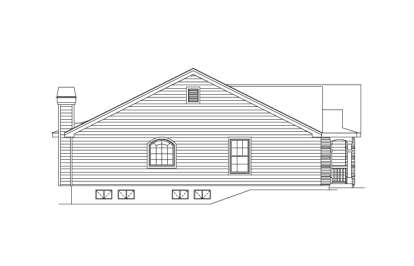

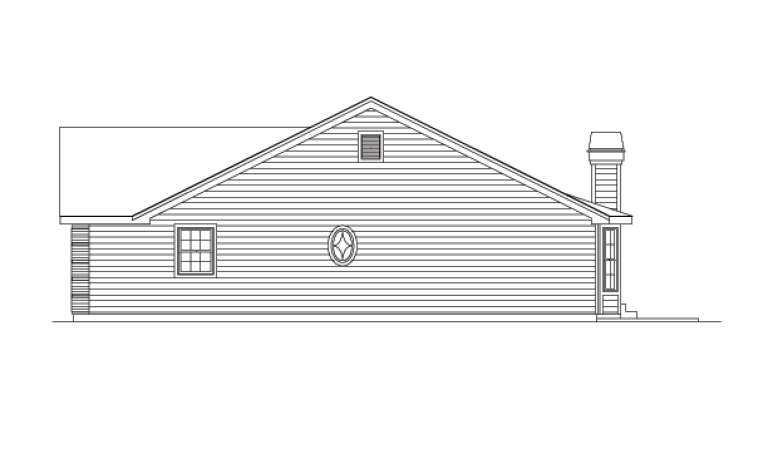

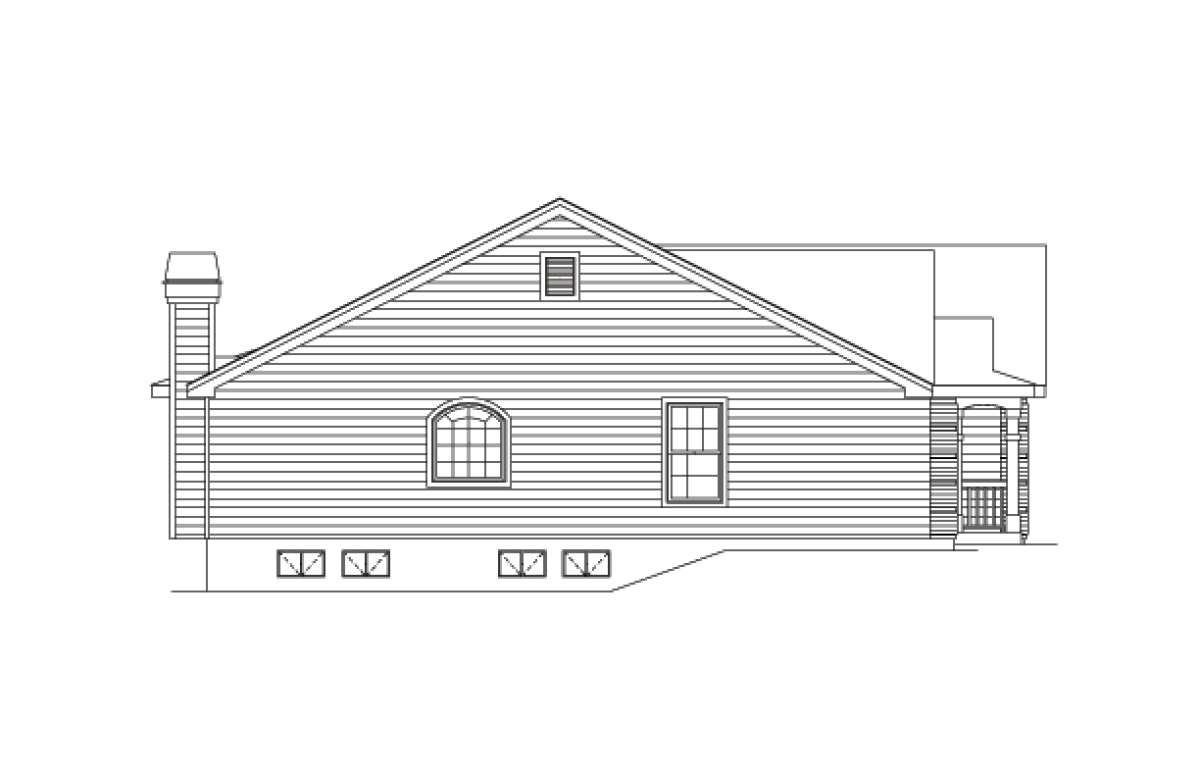

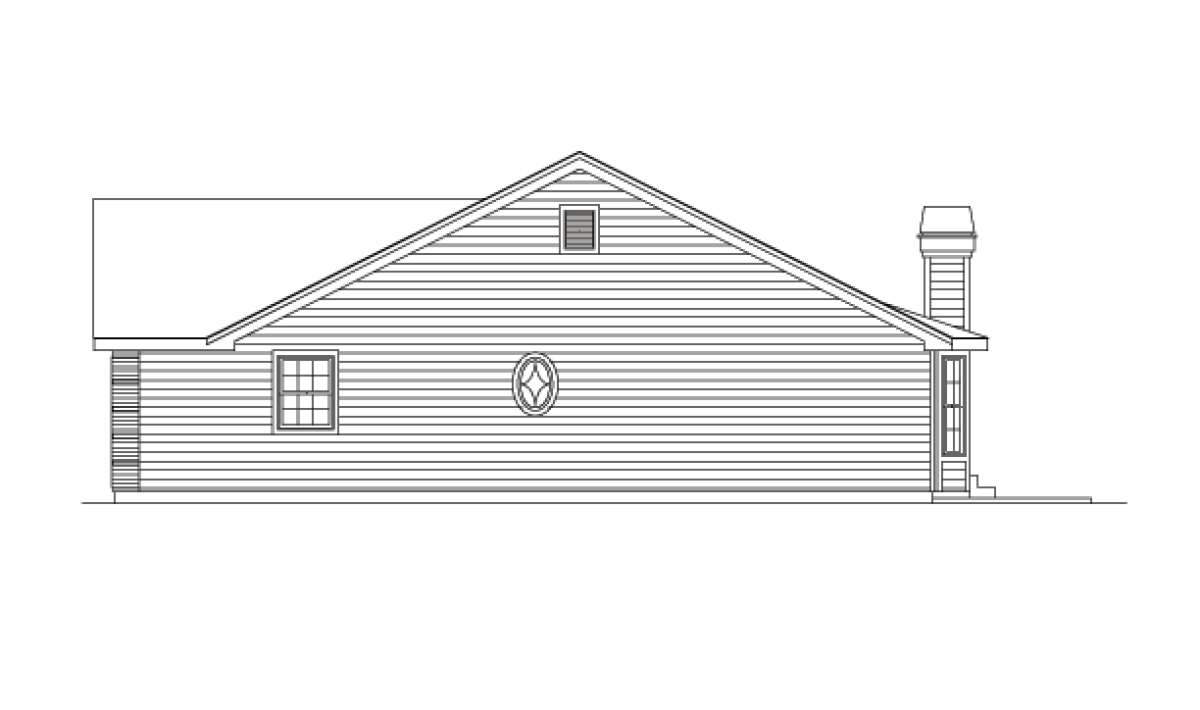

    This plan includes the exterior elevations (front, rear, right and left) that show and describe the finished materials of the house.
    KITCHEN AND BATH ELEVATIONS
    The kitchen and bath elevations show the arrangement of each cabinet and other fixtures in the room. These drawings give basic information that can be used to create customized layouts with a cabinet manufacturer.
  • MISCELLANEOUS DETAILS
    Some details are included for interior and exterior conditions that require more specific information for their construction.
  • ROOF OVERVIEW PLAN
    This is a "bird's eye" view showing the roof slopes, ridges, valleys and any saddles.

ASK US A QUESTION

Name:
E-mail Address:
Password: (for robots)
Your Question:

To request a modification quote, please use the Modification Request Form.

About This Plan

This charming traditional house plan features a siding and brick exterior façade which is highlighted by wide eaves and a covered front porch supported with thick columned beams. This one story Ranch home has approximately 1,268 square feet of living space that incorporates three bedrooms and two baths into the home. The two car garage features an additional 371 square feet and the 38’ plus width is ideal for narrow lots. There is a basement foundation for future expansion possibilities and the drawings also include a slab and crawl space foundation. The entry foyer expands into the open floor plan and features an expansive living and dining space which is vaulted, houses a handsome fireplace flanked by picturesque window views and opens onto the kitchen. The family friendly kitchen is highlighted by a breakfast bar, a separate pantry and a pass thru to both the dining room and breakfast room. The breakfast nook features a triple bay window and rear patio access. The interior laundry room and closet/storage space is situated off the garage for ease and convenience.
There are two family style bedrooms and a shared hall bath at the front of the home; bedroom two has a window view and ample closet space. The third bedroom is vaulted, has a window view and generous closet space and there is a hall linen closet and vanity space, a toilet area and a tub/shower combination in the shared bath. The vaulted master suite boasts of double window views and an oversized master walk-in closet. The master bath is a spectacular design with dual vanities, a separate shower, a garden tub with window views and a private toilet area. This spacious home features a stylish exterior façade, an open concept floor plan and a basement foundation that adds versatility and value to the home.
