Traditional House Plan 5633-00070

Sq Ft2,432
Beds3
Baths2
1/2 Baths0
Stories1
Cars2
Width52' 0"
Depth56' 0"
Images copyrighted by the designer. Photographs may reflect a homeowner modification.

Floorplan Drawings

 REVERSE  PRINT  DOWNLOAD Images copyrighted by the designer.

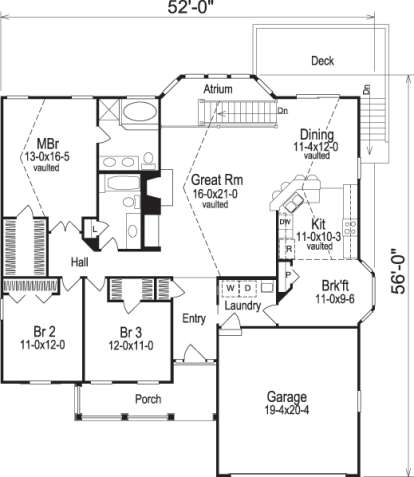

Floorplan 1 for House Plan #5633-00070

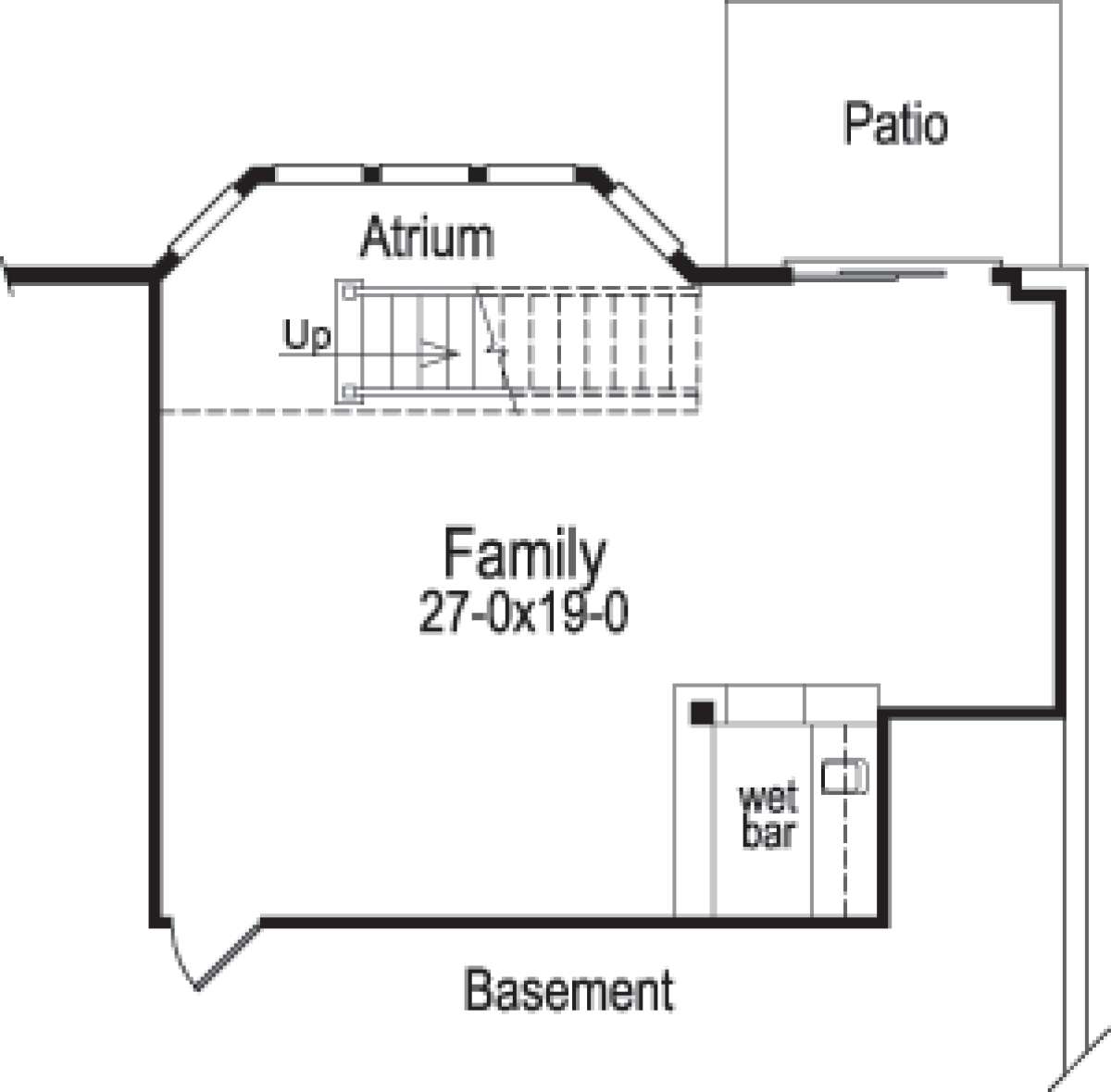

Floorplan 2 for House Plan #5633-00070

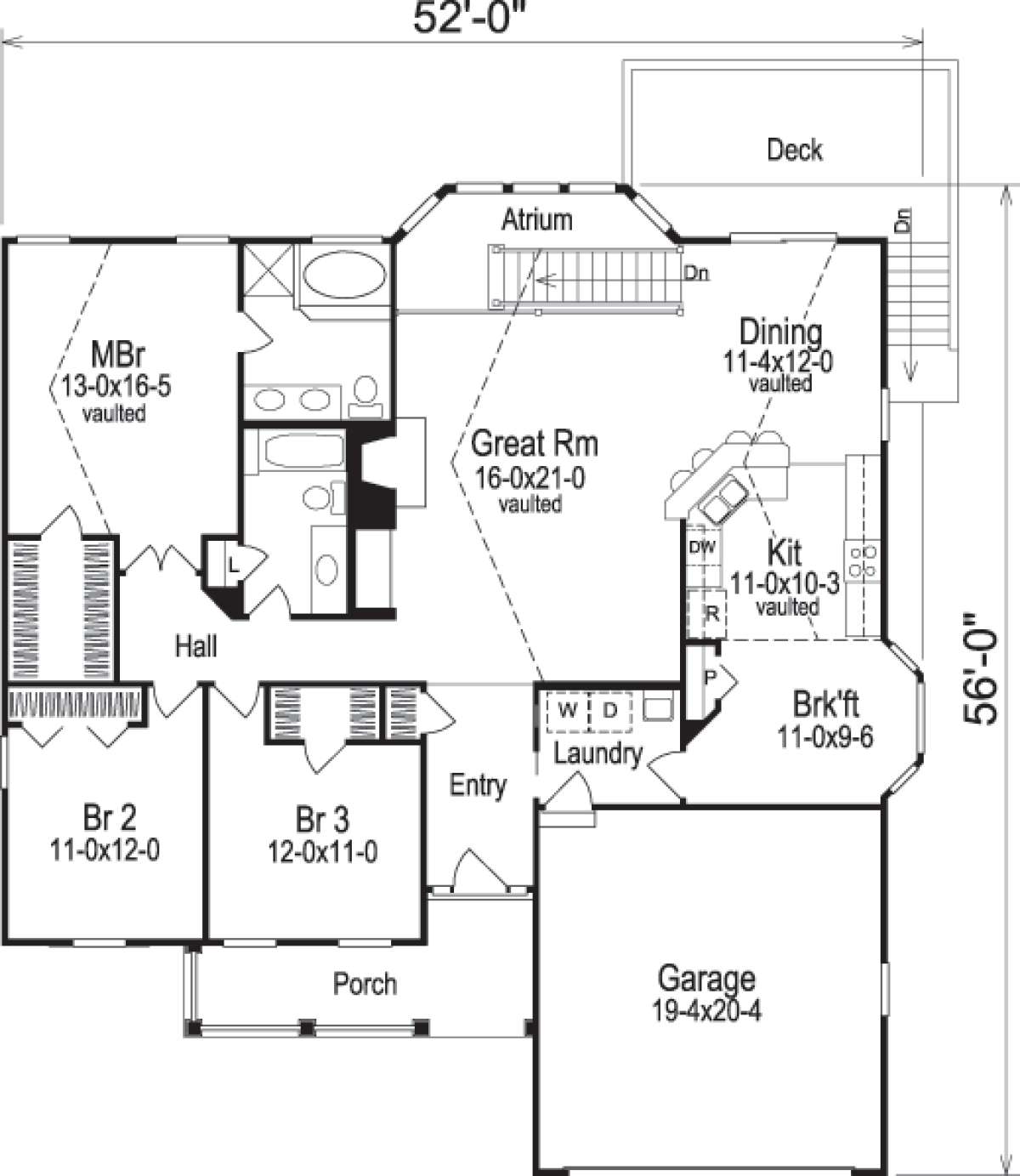

Floorplan 1
Floorplan 1 for House Plan #5633-00070
Floorplan 2
Floorplan 2 for House Plan #5633-00070


Frequently Asked Questions

COST TO BUILD REPORT

What's Included in these plans?

  • Heated and Cooled Square Footage calculations are made from outside the exterior frame wall and do not include decks, porches, garages, unfinished basements, bonus or attic space.
  • Artist Rendering
  • Foundation & Floor Plans (1/4"=1')
  • Front Elevations (1/4"=1'), Sides & Rear Elevation (1/8" or 1/4" = 1")
  • Kitchen and Bath Elevations (1/4"=1') **
  • Miscellaneous Details (1/4" to 3/4"=1')
  • Stair Section (1/4" to 3/8" = 1')
  • Roof Overview Plan (scale varies) **
    ** Some plans in this series do not provide cabinet elevations or roof overview.  Please call to verify.
  • FLOOR PLANS
    This home plan includes the floor plan showing the dimensioned locations of walls, doors, and windows as well as suggested locations for light fixtures, outlets and switches.
  • SET OF ELEVATIONS
    This plan includes the exterior elevations (front, rear, right and left) that show and describe the finished materials of the house.
    KITCHEN AND BATH ELEVATIONS
    The kitchen and bath elevations show the arrangement of each cabinet and other fixtures in the room. These drawings give basic information that can be used to create customized layouts with a cabinet manufacturer.
  • MISCELLANEOUS DETAILS
    Some details are included for interior and exterior conditions that require more specific information for their construction.
  • ROOF OVERVIEW PLAN
    This is a "bird's eye" view showing the roof slopes, ridges, valleys and any saddles.

ASK US A QUESTION

Name:
E-mail Address:
Password: (for robots)
Your Question:

To request a modification quote, please use the Modification Request Form.

About This Plan

This traditional Ranch house design features plentiful entertaining space in its 2,432 square feet of living space. The lower level walkout basement is bright and sunny as a result of the rear atrium wall and there is a second entertaining space; the family room measures 27’x19’, has a wet bar and rear patio access. Of course, the space can be configured to suit any purpose the homeowner may have such as a fourth bedroom and en suite bath, a workshop or artist’s studio. The front country exterior porch is inviting and welcoming as a spot to relax or greet family and friends entering the home. The vaulted great room includes a fireplace, a TV alcove and a pass-through snack bar to the kitchen. This light filled space possesses an atrium wall highlighted by a large bayed window and a descending staircase leads to the lower level family room. The kitchen anchors two dining spaces; a large breakfast room with triple bay window and enclosed pantry while the vaulted dining room provides access to the rear deck. The kitchen, itself, is designed with an abundance of counter and cabinet space in addition to the expansive breakfast bar. There is a large interior laundry room situated off the two car garage for ease and convenience.
