Colonial House Plan #5633-00069 Elevation Photo

Colonial House Plan #5633-00069 Additional Photo

IMPORTANT NOTICE

To purchase a reversed plan, please select Right Reading Reverse under Additional Options.

Images copyrighted by the designer. Photographs may reflect a homeowner modification.

Sq Ft 2,521

Beds 4

Bath 2

1/2 Baths 1

Car 2

Stories 2

Width 65'

Depth 37'

See What's Included

Select Package

PDF (Single Build)

$1,249.00

ELECTRONIC FORMAT Recommended
One Complete set of working drawings emailed to you in PDF format. Most plans can be emailed same business day or the business day after your purchase. This package comes with a license to construct one home and a copyright release which allows for making copies locally and minor changes to the plan.

PDF (Unlimited Build)

$1,749.00

ELECTRONIC FORMAT
One Complete set of working drawings emailed to you in PDF format. Most plans can be emailed same business day or the business day after your purchase. Comes with a copyright release which allows for making copies locally and minor changes to the plan. This package comes with a multi-use license that allows for the home to be built more than once.

5 Sets (Single Build)

$1,249.00

PHYSICAL FORMAT
Five printed sets of working drawings mailed to you. This package comes with a license to construct one home.

5 Sets Plus PDF (Single Build)

$1,349.00

One Complete set of working drawings emailed to you in PDF format along with 5 physical sets printed and mailed to you. Most plans can be emailed same business day or the business day after your purchase. Comes with a copyright release which allows for making copies locally and minor changes to the plan. This package comes with a license to construct one home.

Select Foundation

Basement Foundation $0.00

Need a different foundation?

Get a free modification quote

Additional Options

Additional Sets $50.00

Dont see the right plan package for you? Add additional sets to create the perfect plan package for your needs.

Mirrored Reverse $15.00

Reverses the plan, however, the text and dimensions will not read correctly.

Material List $125.00

A complete material list for this plan. House plan must be purchased in order to obtain material list.
Important Notice: Please note that the material list is created with the standard foundation only and will not include any alternate foundations or additional options.

Return Policy, Building Code & Copyright Info

Floorplan Drawings

REVERSE PRINT DOWNLOAD

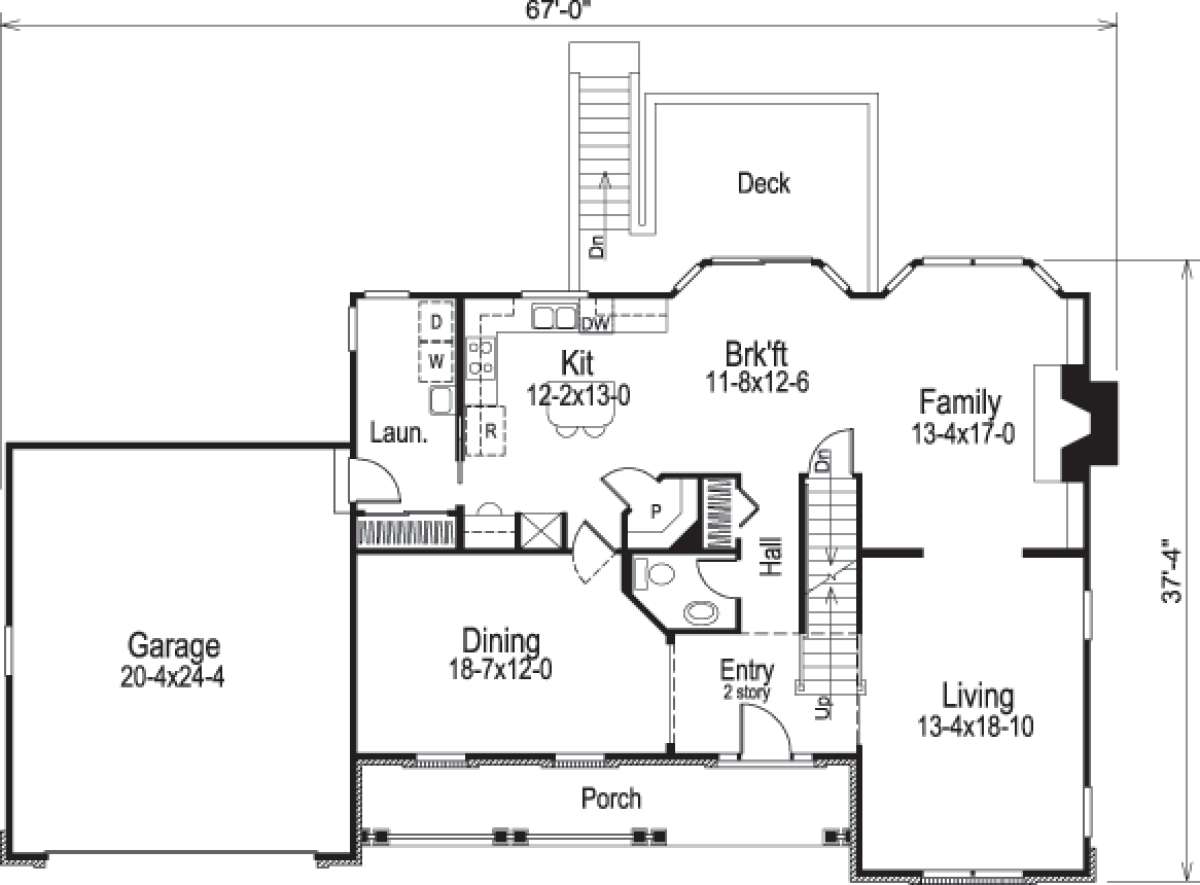

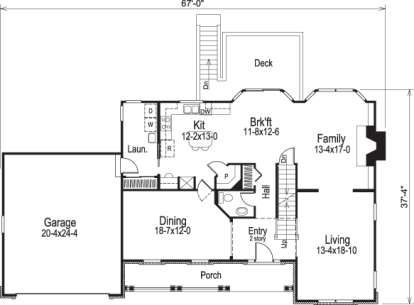

Floorplan 1

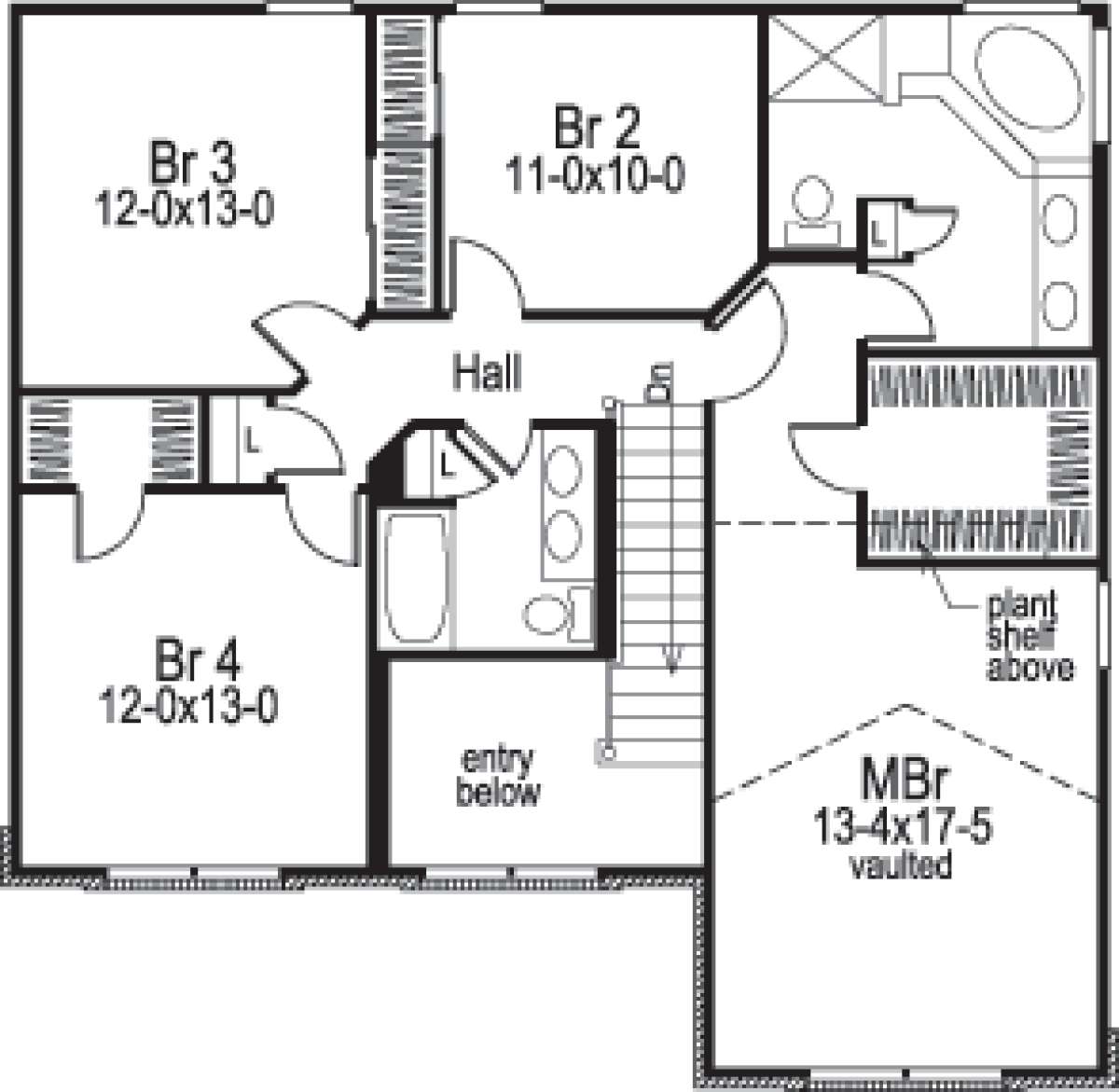

Floorplan 2

Images copyrighted by the designer.

What's Included in these plans?

Heated and Cooled Square Footage calculations are made from outside the exterior frame wall and do not include decks, porches, garages, unfinished basements, bonus or attic space.
Artist Rendering
Foundation & Floor Plans (1/4"=1')
Front Elevations (1/4"=1'), Sides & Rear Elevation (1/8" or 1/4" = 1")
Kitchen and Bath Elevations (1/4"=1') **
Miscellaneous Details (1/4" to 3/4"=1')
Stair Section (1/4" to 3/8" = 1')
Roof Overview Plan (scale varies) **
** Some plans in this series do not provide cabinet elevations or roof overview. Please call to verify.
FLOOR PLANS
This home plan includes the floor plan showing the dimensioned locations of walls, doors, and windows as well as suggested locations for light fixtures, outlets and switches.

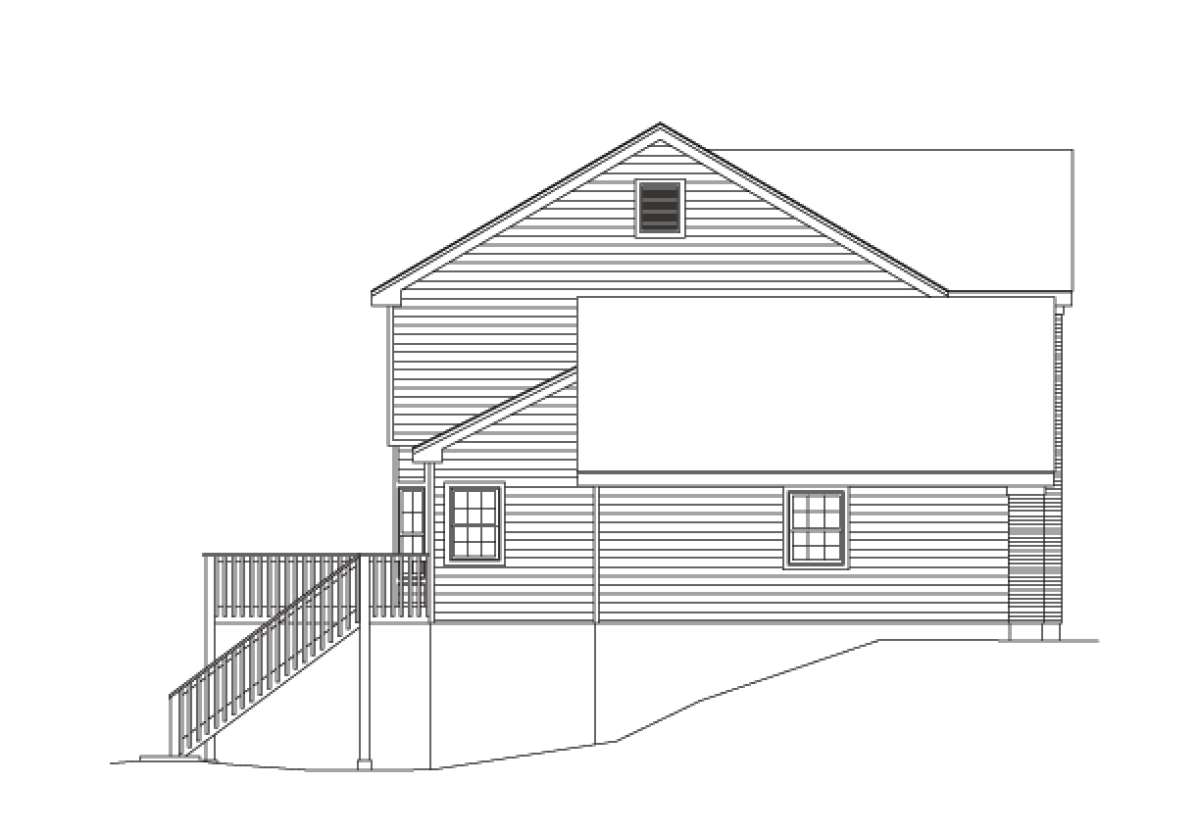

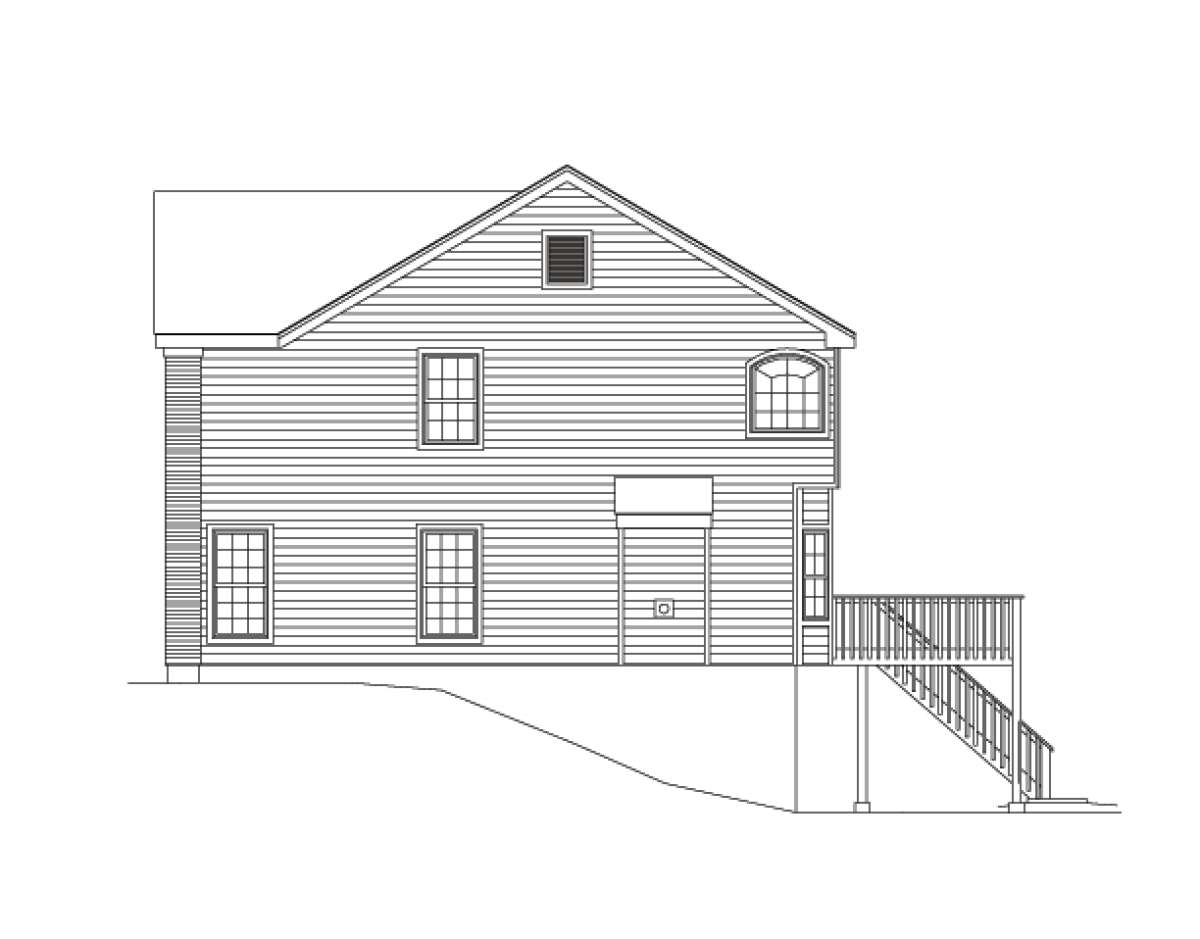

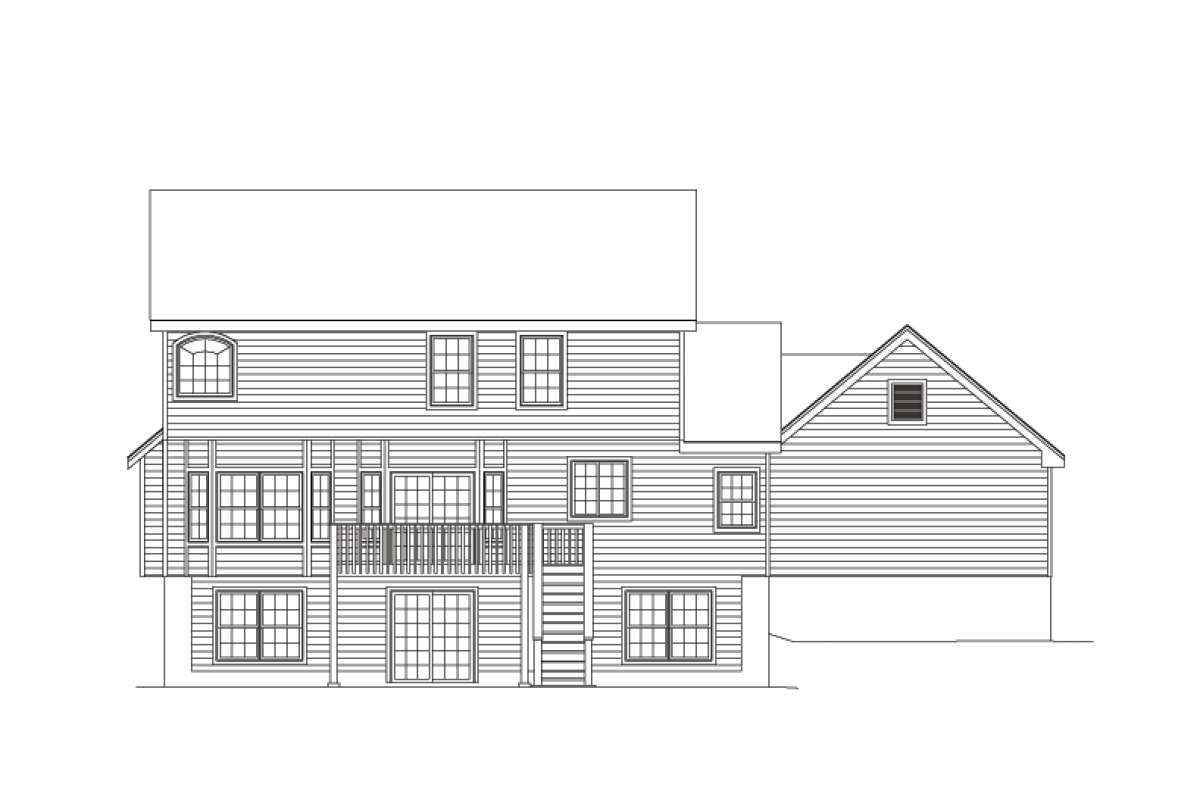

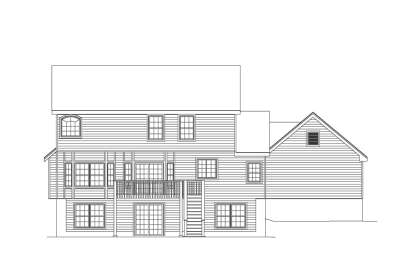

SET OF ELEVATIONS
This plan includes the exterior elevations (front, rear, right and left) that show and describe the finished materials of the house.
KITCHEN AND BATH ELEVATIONS
The kitchen and bath elevations show the arrangement of each cabinet and other fixtures in the room. These drawings give basic information that can be used to create customized layouts with a cabinet manufacturer.
MISCELLANEOUS DETAILS
Some details are included for interior and exterior conditions that require more specific information for their construction.
ROOF OVERVIEW PLAN
This is a "bird's eye" view showing the roof slopes, ridges, valleys and any saddles.

Ask Us A Question

About This Plan

This beautiful front exterior is accentuated by elliptical brick arches, an expansive front covered porch and decorative, yet practical window features. The two story house plan is complete with an abundance of space including four bedrooms and two plus baths in approximately 2,500 square feet. The basement foundation is an added bonus and contains in excess of 1,300 square feet; ideal for an in-law suite, additional bedrooms and baths or an artist’s studio. The home enjoys large living and dining rooms which are perfect for formal entertaining or hosting special family occasions or events. The casual breakfast room, kitchen and family room features a 37’ vista and double bay window views along the rear wall of the home. The family room houses a warming fireplace while the breakfast room is nestled into an oversized bay window with rear deck access. The family friendly kitchen features a center island, desk area and a walk-in pantry. The two car garage leads to the interior laundry room which is spacious and contains a sink area and large storage/coat closet. A powder room for guests and double staircase to the upper and lower levels of the home complete the main level.
Private family space is evident on the second story along with overlook views into the two story foyer. Bedrooms two and three are comfortable sized and feature generous closet space while the fourth bedroom features a walk-in closet. The shared hall bath’s focal point is double sinks and a linen closet solving storage issues and morning chaos. The master suite occupies one wing of the second story and features a vaulted ceiling in the master bedroom along with double window views. An oversized walk-in master closet lines the hallway to the en suite bath. The master bath is a luxurious design and features dual vanities, a linen closet, separate shower and a garden tub encased in window views. This home displays the finest in architectural design features and a basement foundation increases the home’s versatility and value.
