Contemporary Plan 5633-00061


To purchase a reversed plan, please select Right Reading Reverse under Additional Options.
Sq Ft 1,516
Beds 3
Bath 2
1/2 Baths 0
Car 2
Stories 1
Width 40'
Depth 62' 4"

Floorplan Drawings

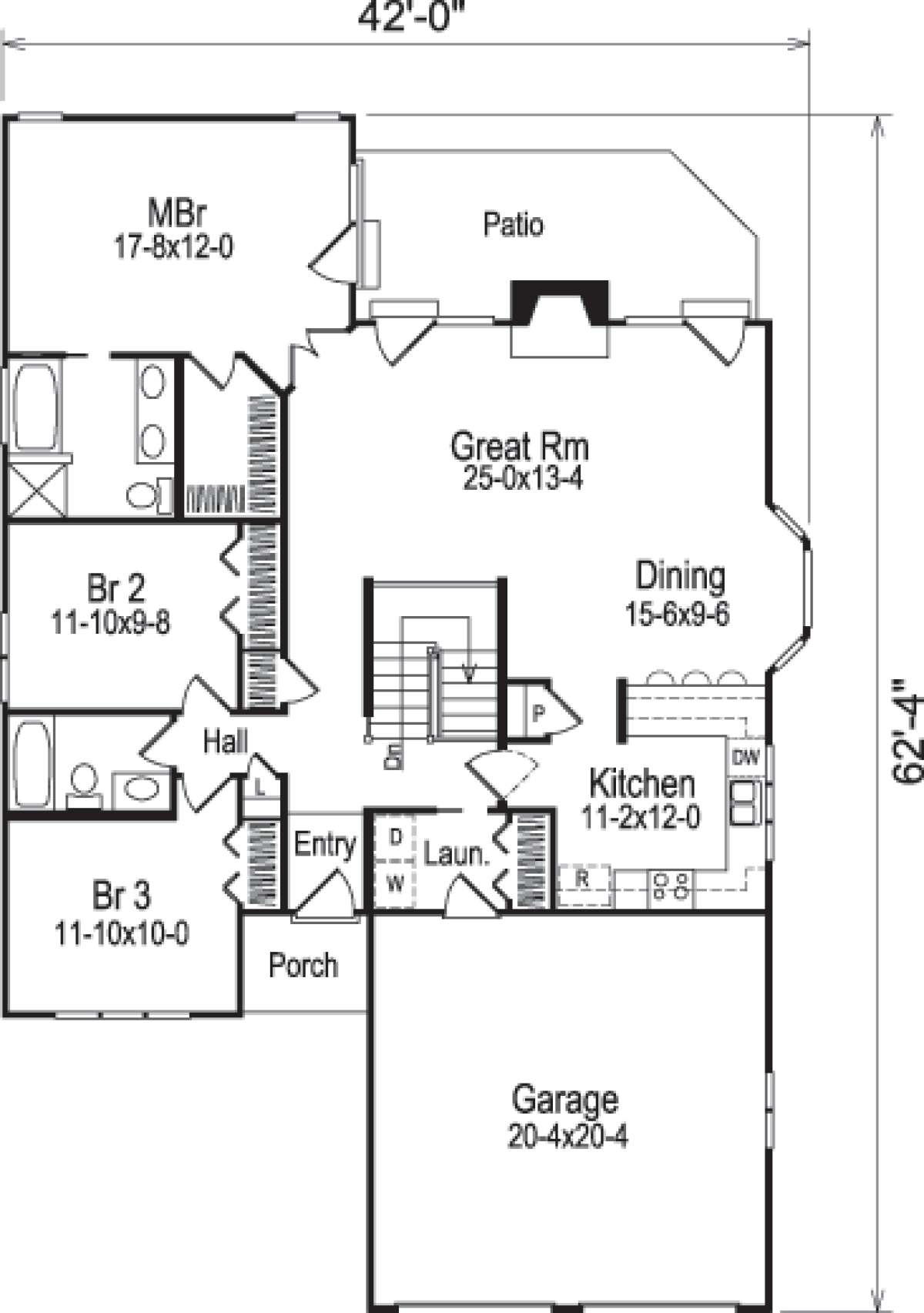

Floorplan 1
Floorplan 1 for House Plan #5633-00061

What's Included in these plans?

  • Heated and Cooled Square Footage calculations are made from outside the exterior frame wall and do not include decks, porches, garages, unfinished basements, bonus or attic space.
  • Artist Rendering
  • Foundation & Floor Plans (1/4"=1')
  • Front Elevations (1/4"=1'), Sides & Rear Elevation (1/8" or 1/4" = 1")
  • Kitchen and Bath Elevations (1/4"=1') **
  • Miscellaneous Details (1/4" to 3/4"=1')
  • Stair Section (1/4" to 3/8" = 1')
  • Roof Overview Plan (scale varies) **
    ** Some plans in this series do not provide cabinet elevations or roof overview.  Please call to verify.
    This home plan includes the floor plan showing the dimensioned locations of walls, doors, and windows as well as suggested locations for light fixtures, outlets and switches.

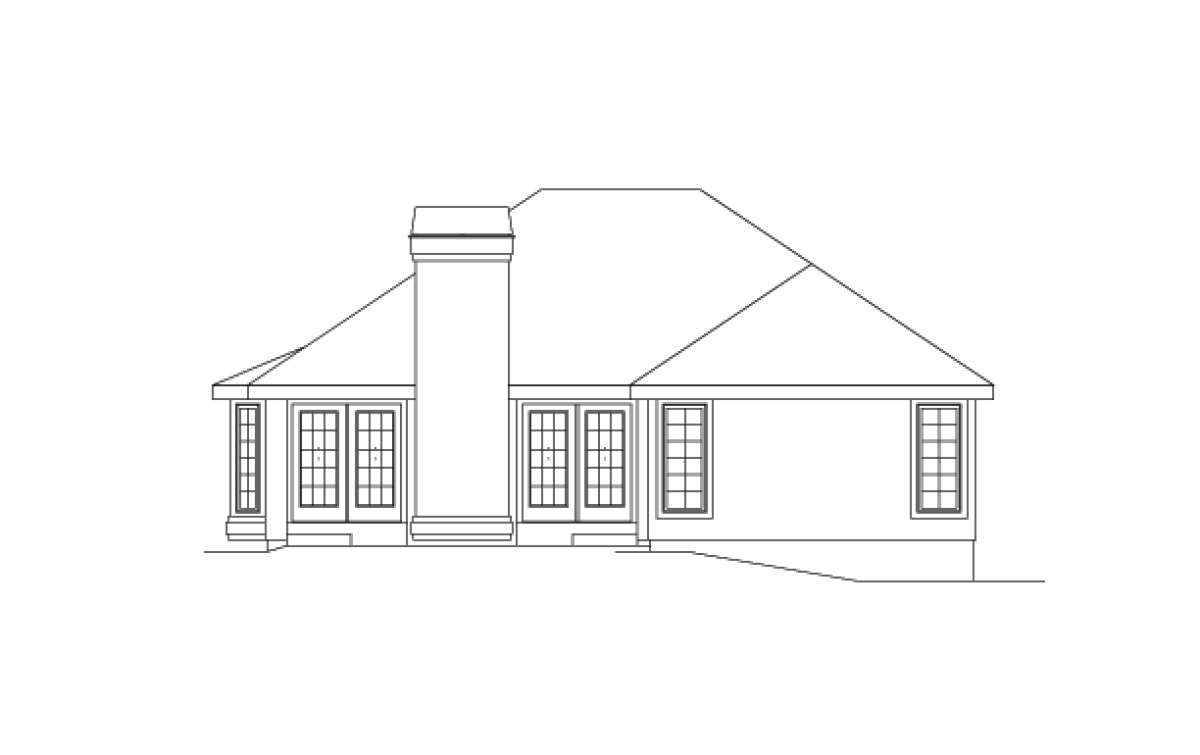

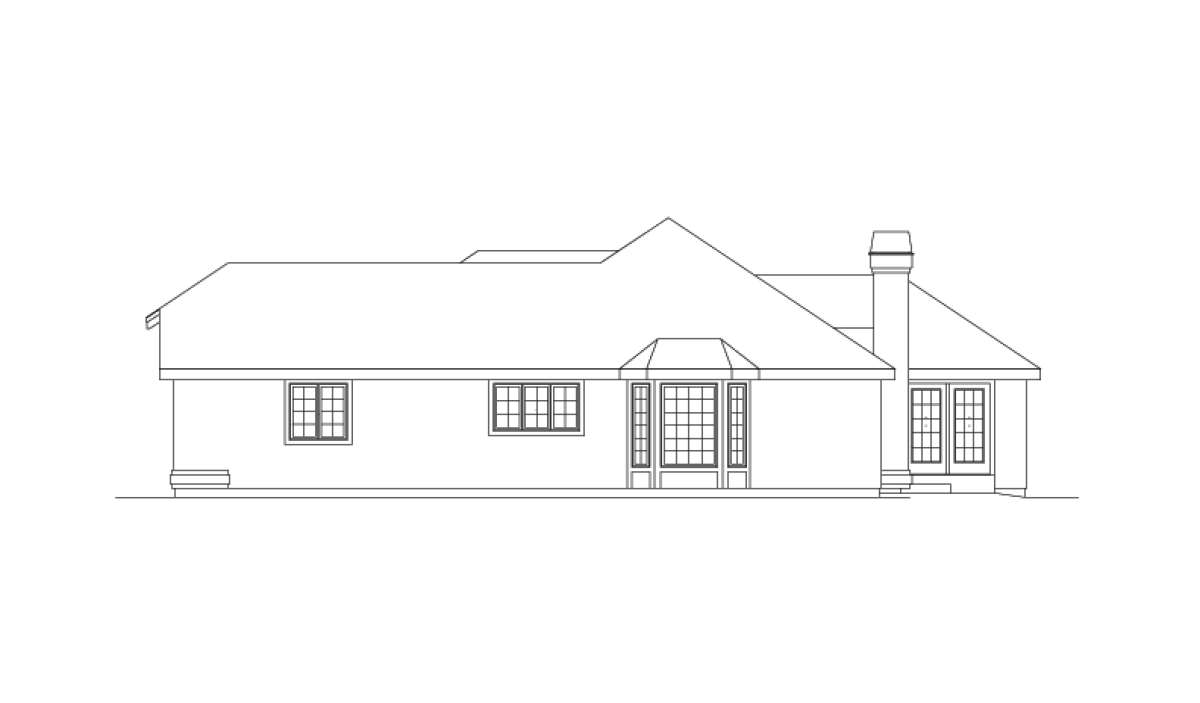

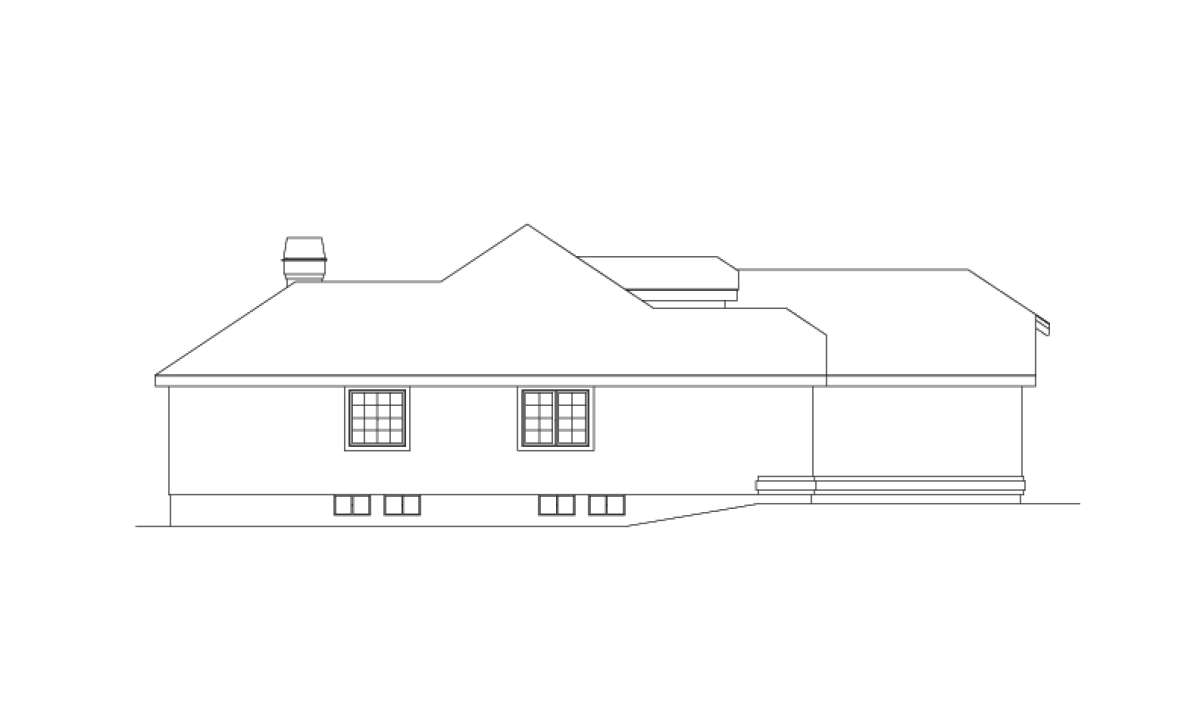

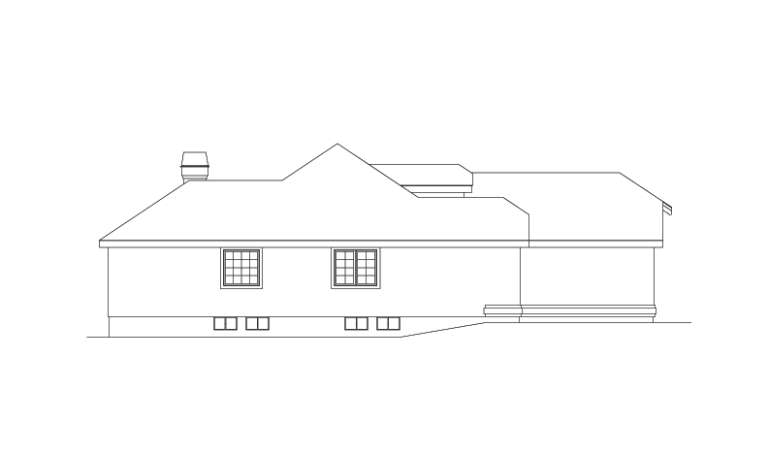

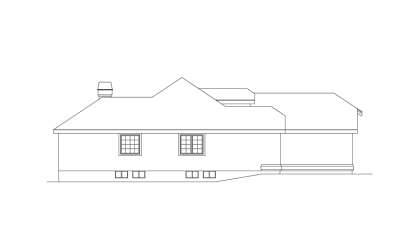

    This plan includes the exterior elevations (front, rear, right and left) that show and describe the finished materials of the house.
    The kitchen and bath elevations show the arrangement of each cabinet and other fixtures in the room. These drawings give basic information that can be used to create customized layouts with a cabinet manufacturer.
    Some details are included for interior and exterior conditions that require more specific information for their construction.
    This is a "bird's eye" view showing the roof slopes, ridges, valleys and any saddles.

Ask Us A Question

To request a modification quote, please use the Modification Request Form.

About This Plan

This contemporary house design features a bold and exciting exterior and a functional interior floor plan. The exterior is highlighted by a decorative double window dormer, wide eaves, great window features and a covered front entrance. The interior floor space features approximately 1,526 square feet of living space which contains three bedrooms and two baths in the single story home. There is a two car garage which features 413 square feet of space; plenty of room for vehicle and other storage items. The home’s drawings are on a basement foundation that approximate the first level’s square footage and would considerably add value and versatility to the home. The entry foyer leads to the lower level staircase, a coat closet and into the home’s open concept floor plan. An enormous great room, measuring in excess of 25’x13’ features a handsome fireplace flanked by picturesque window views and double access points to the rear patio. The dining space is comfortable and bright due to a triple bay window feature and is open to the kitchen breakfast bar. The U-shaped kitchen features additional counter and cabinet space, a separate pantry and great sink window views. The interior family laundry room is situated off the garage for ease and convenience.
The second and third bedrooms lie off a small hallway; bedroom two features great window views and plentiful closet space while bedroom three has a triple wall of windows and generous closet space. There is a shared hall linen closet and hall bath which contains a vanity space, toilet area and a tub/shower combination. The master suite is located at the rear of the home for privacy and features French door access into the large master bedroom with an oversized master walk-in closet and private patio access. The master bath features dual vanities, a separate shower, a soaking tub and toilet area. This home is fully functional with a comfortable floor plan and limitless expansion possibilities.
