Traditional House Plan 5633-00058

Sq Ft1,700
Beds4
Baths2
1/2 Baths1
Stories2
Cars2
Width39' 0"
Depth42' 8"
Images copyrighted by the designer. Photographs may reflect a homeowner modification.

Floorplan Drawings

 REVERSE  PRINT  DOWNLOAD Images copyrighted by the designer.
Floorplan 1 for House Plan #5633-00058
Floorplan 2 for House Plan #5633-00058

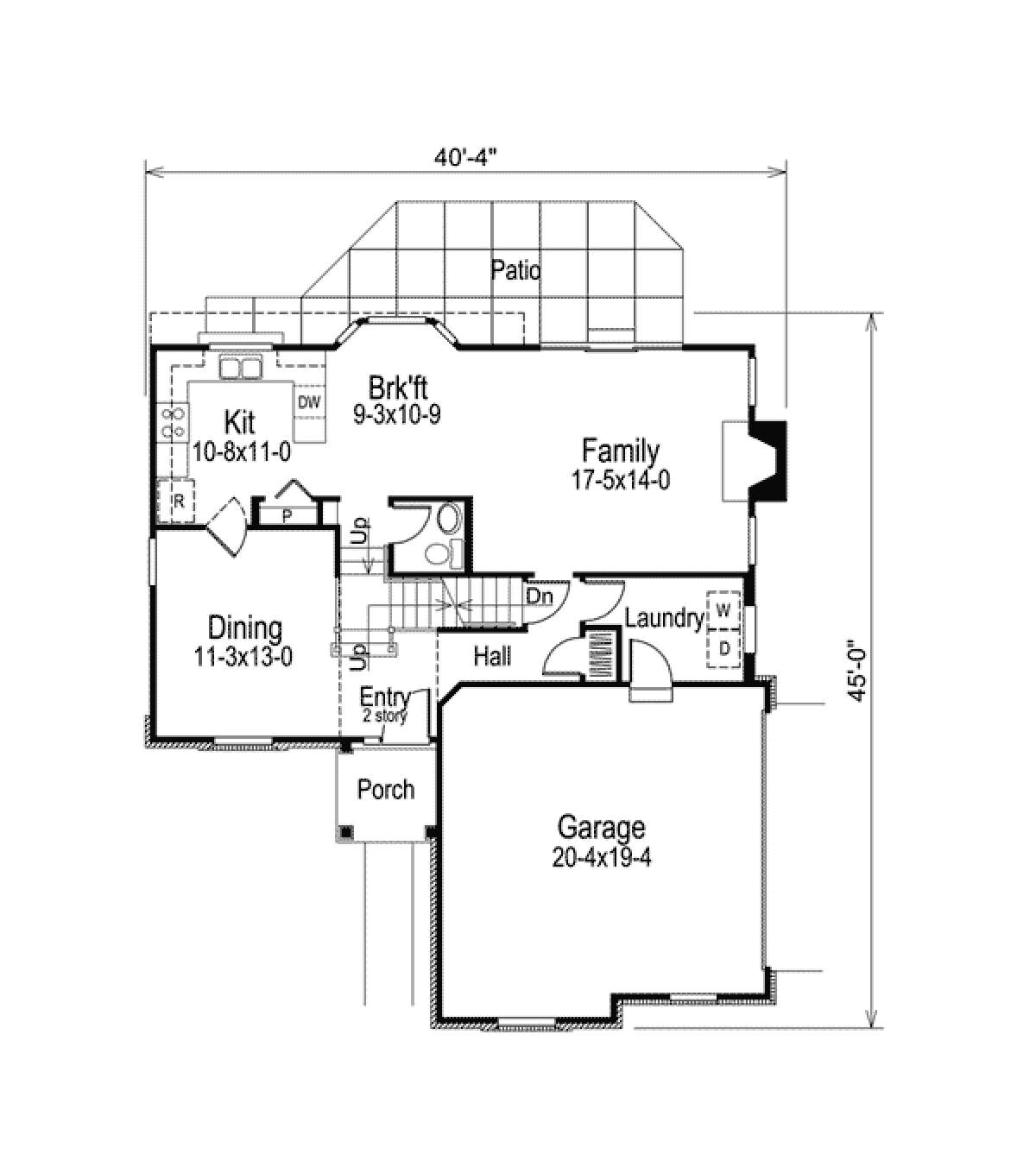

Floorplan 1
Floorplan 1 for House Plan #5633-00058
Floorplan 2
Floorplan 2 for House Plan #5633-00058


Frequently Asked Questions

COST TO BUILD REPORT

What's Included in these plans?

  • Heated and Cooled Square Footage calculations are made from outside the exterior frame wall and do not include decks, porches, garages, unfinished basements, bonus or attic space.
  • Artist Rendering
  • Foundation & Floor Plans (1/4"=1')
  • Front Elevations (1/4"=1'), Sides & Rear Elevation (1/8" or 1/4" = 1")
  • Kitchen and Bath Elevations (1/4"=1') **
  • Miscellaneous Details (1/4" to 3/4"=1')
  • Stair Section (1/4" to 3/8" = 1')
  • Roof Overview Plan (scale varies) **
    ** Some plans in this series do not provide cabinet elevations or roof overview.  Please call to verify.
  • FLOOR PLANS
    This home plan includes the floor plan showing the dimensioned locations of walls, doors, and windows as well as suggested locations for light fixtures, outlets and switches.

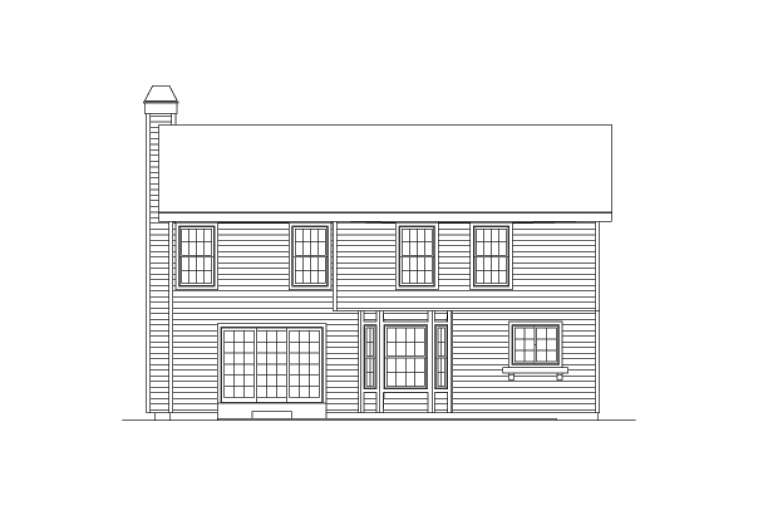

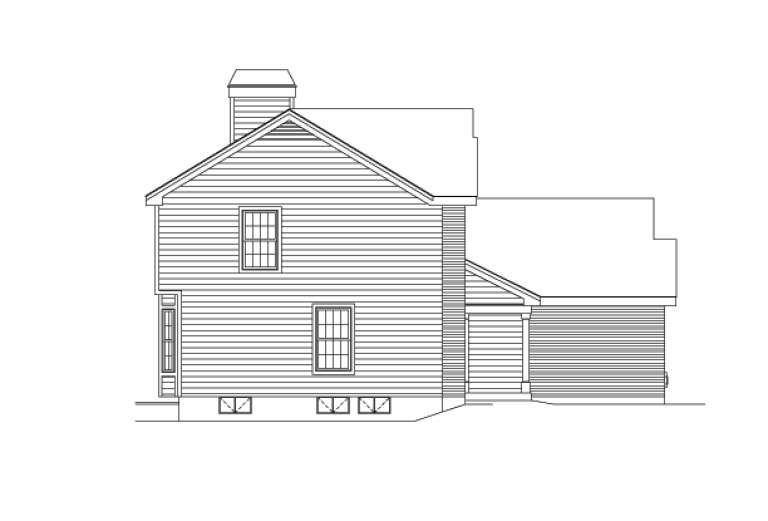

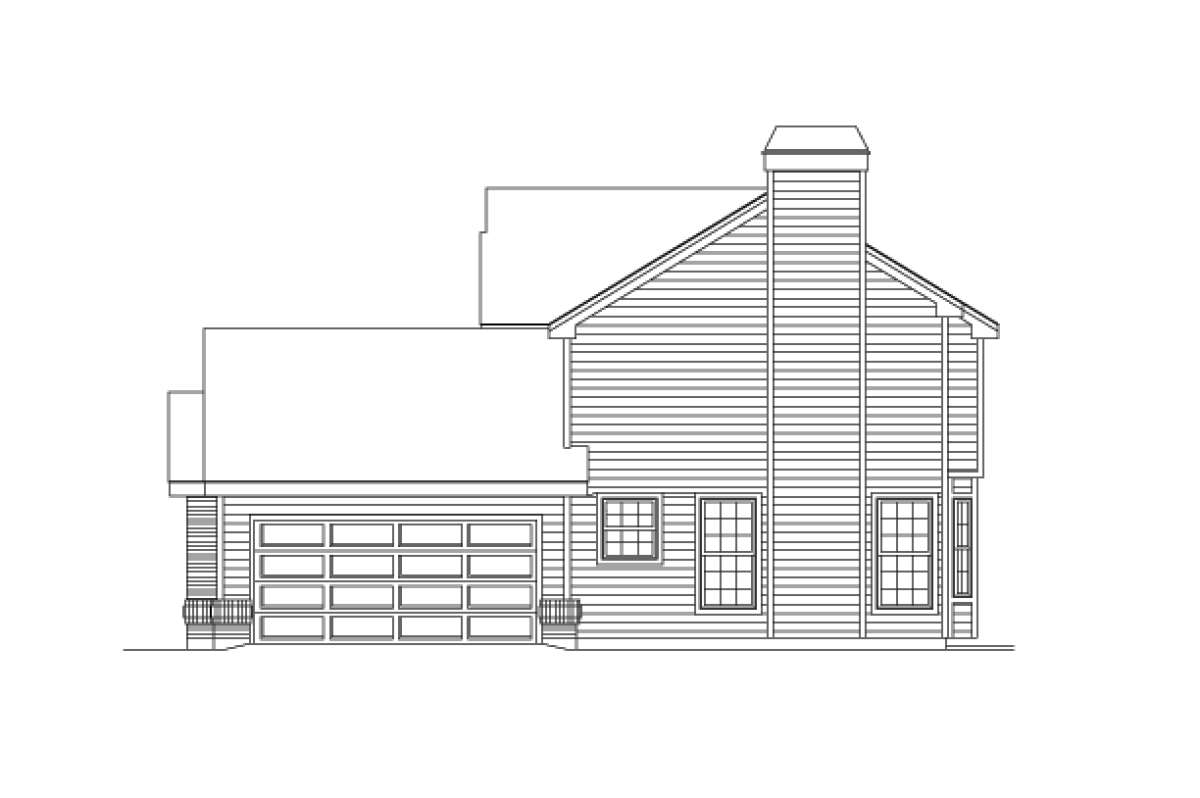

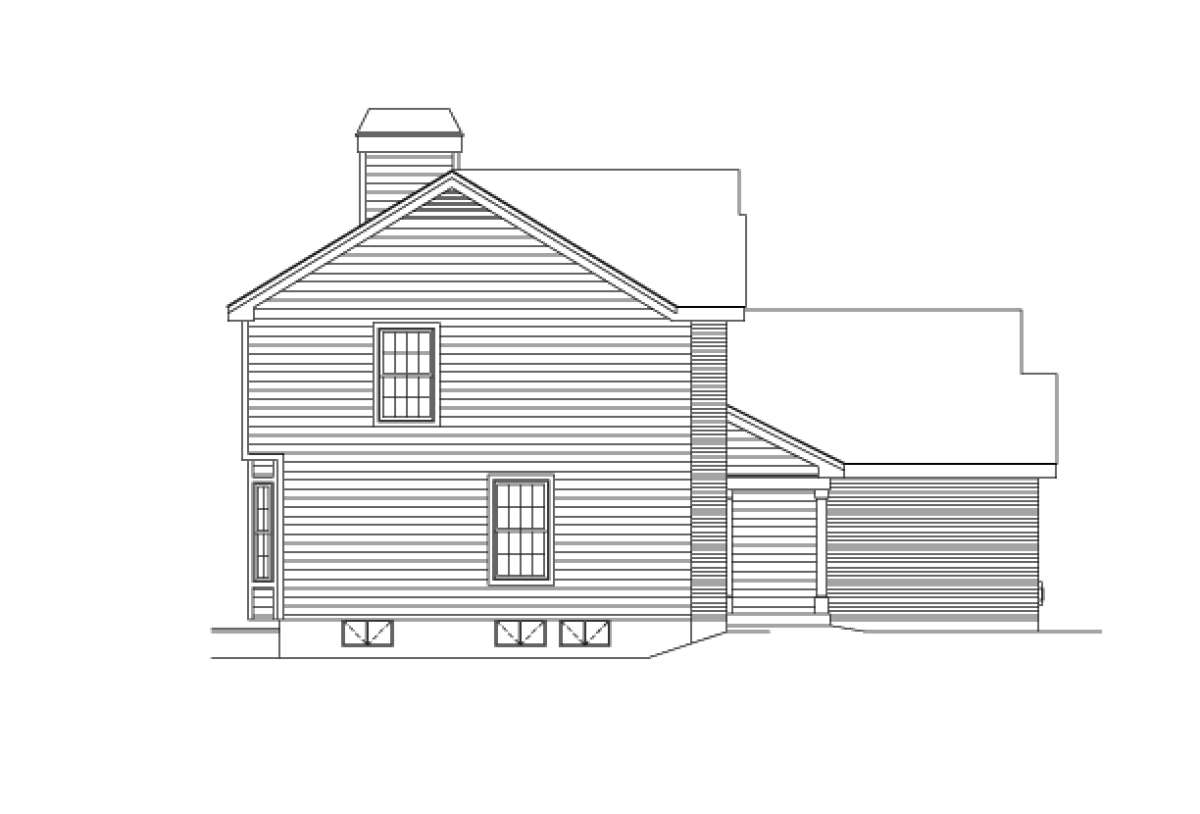

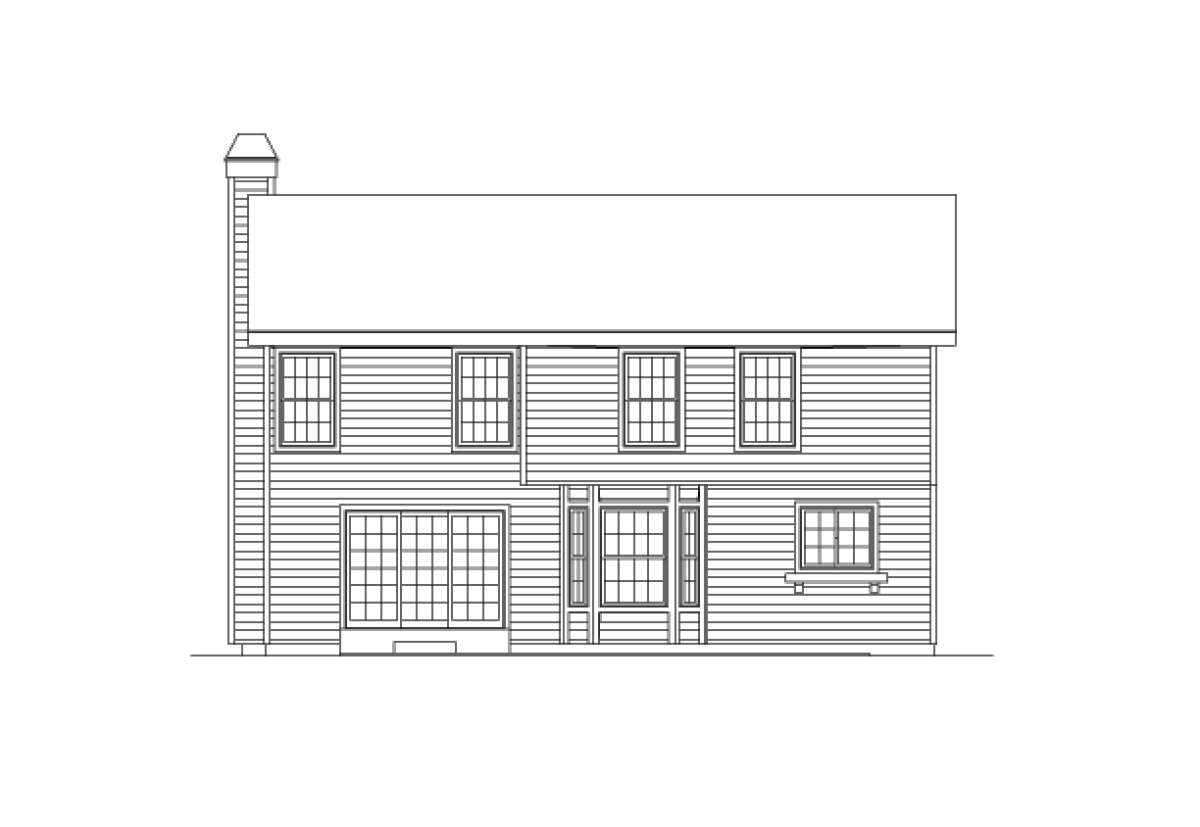

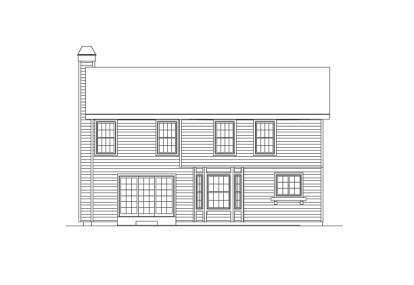

  • SET OF ELEVATIONS
    This plan includes the exterior elevations (front, rear, right and left) that show and describe the finished materials of the house.
    KITCHEN AND BATH ELEVATIONS
    The kitchen and bath elevations show the arrangement of each cabinet and other fixtures in the room. These drawings give basic information that can be used to create customized layouts with a cabinet manufacturer.
  • MISCELLANEOUS DETAILS
    Some details are included for interior and exterior conditions that require more specific information for their construction.
  • ROOF OVERVIEW PLAN
    This is a "bird's eye" view showing the roof slopes, ridges, valleys and any saddles.

ASK US A QUESTION

Name:
E-mail Address:
Password: (for robots)
Your Question:

To request a modification quote, please use the Modification Request Form.

About This Plan

This exciting traditional exterior is comprised of multiple gables, attractive window features and a front covered porch highlighted with columned beams. The interior floor plan features approximately 1,700 square feet of living space which includes four bedrooms and two plus bathrooms on two levels. Additionally, the home’s drawings are on a basement foundation offering 872 square feet of living space resulting in added value and versatility. There is a two car garage, side entry garage with 393 square feet; plenty of space for vehicles and other storage items. The two story entrance foyer features a T-shaped staircase and is brightened by an oval window feature and opens onto the formal dining room. The dining room is quite spacious with wonderful window views and a swing door into the kitchen. The U-shaped kitchen features a separate pantry, a window sink view and an abundance of counter and cabinet space. There is a casual breakfast nook nestled into the triple bay window which overlooks the rear patio and is open to the family room. This space is enormous and ideal for entertaining and/or provides excellent family relaxing space; the room measures in excess of 17’x15, houses a handsome fireplace flanked with picturesque window views and provides rear patio access. There is a hall coat/storage closet and a powder room for guests. The interior laundry room is situated off the two car garage for ease and convenience.
Ascending the second story staircase is an overlook into the foyer, a plant shelf and an enormous storage room is located at the top of the landing. There are three family styled bedrooms, a master suite and two full baths on the second floor of the home. The three bedrooms feature plentiful closet space, great window views and generous floor space. There is a shared hall bath with vanity space, a toilet area and a tub/shower combination along with a hall linen closet. The master suite is accessed through French doors where a large bedroom is available with window views and an oversized walk-in master closet. The master bath features a vanity space, toilet area and a tub/shower combination. This family friendly home is highlighted by a traditional exterior façade, a functional floor plan and a basement foundation with future expansion possibilities.
