Ranch House Plan 5633-00054

Sq Ft1,403
Beds3
Baths2
1/2 Baths0
Stories1
Cars2
Width47' 4"
Depth32' 4"
Images copyrighted by the designer. Photographs may reflect a homeowner modification.

Floorplan Drawings

 REVERSE  PRINT  DOWNLOAD Images copyrighted by the designer.

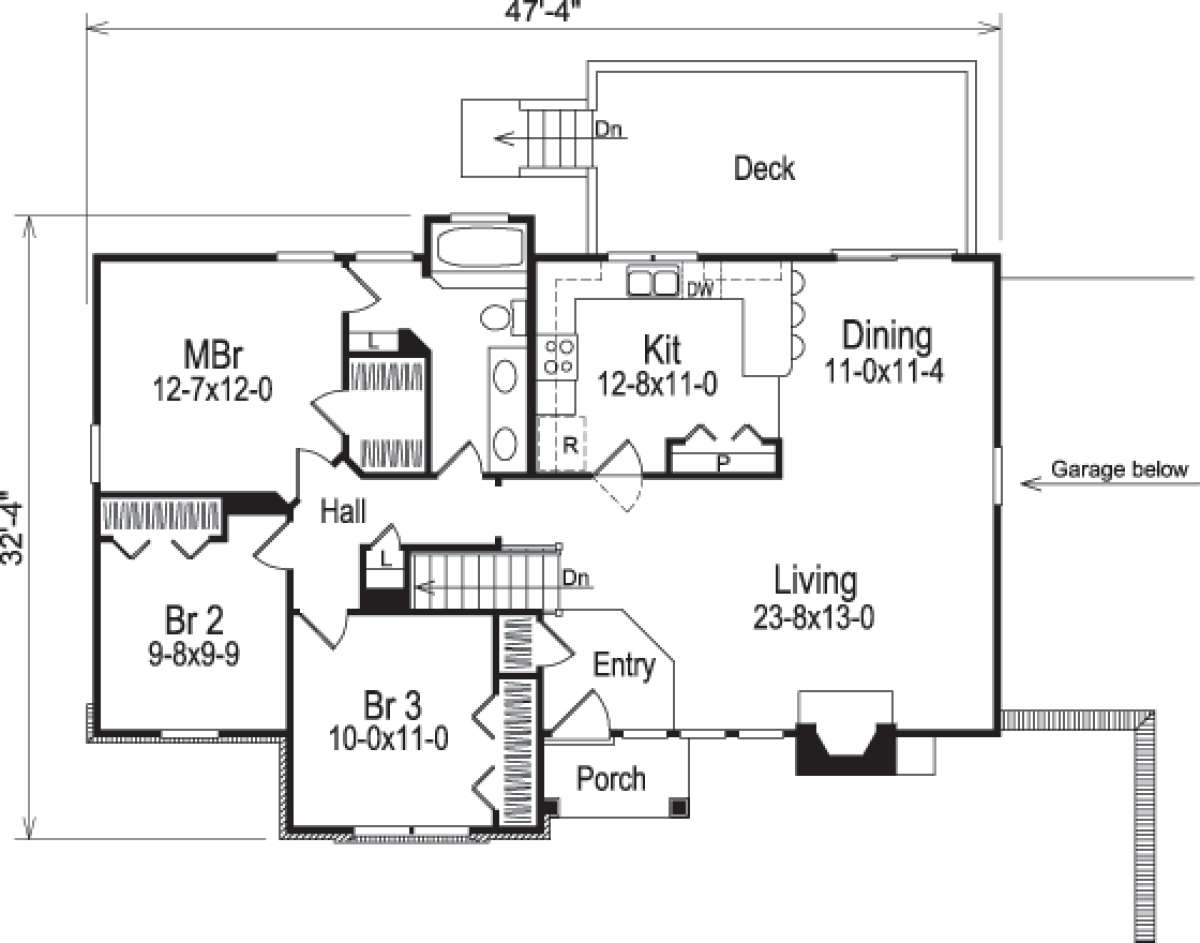

Floorplan 1 for House Plan #5633-00054

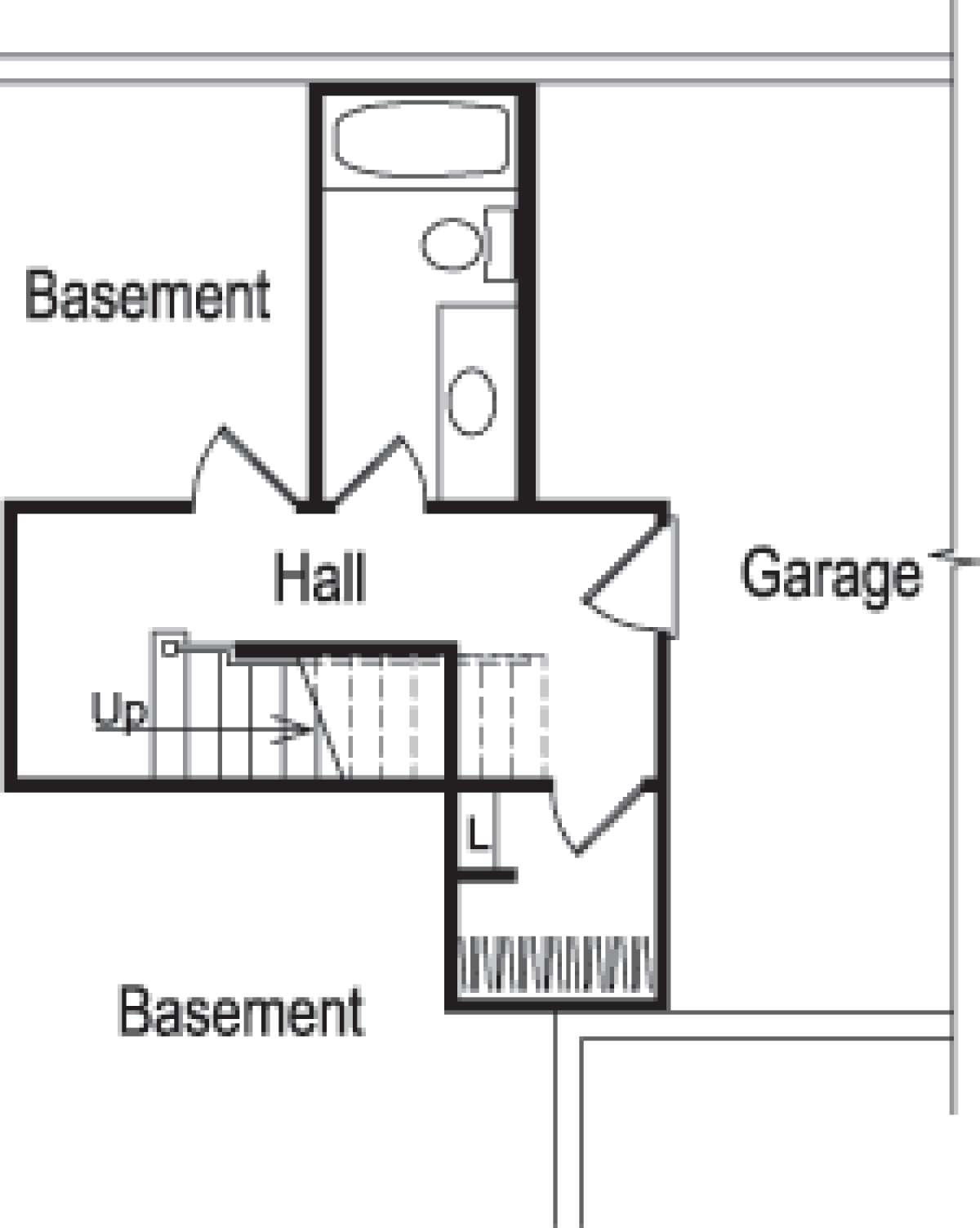

Floorplan 2 for House Plan #5633-00054
Floorplan 1
Floorplan 1 for House Plan #5633-00054
Floorplan 2
Floorplan 2 for House Plan #5633-00054


Frequently Asked Questions

COST TO BUILD REPORT

What's Included in these plans?

  • Heated and Cooled Square Footage calculations are made from outside the exterior frame wall and do not include decks, porches, garages, unfinished basements, bonus or attic space.
  • Artist Rendering
  • Foundation & Floor Plans (1/4"=1')
  • Front Elevations (1/4"=1'), Sides & Rear Elevation (1/8" or 1/4" = 1")
  • Kitchen and Bath Elevations (1/4"=1') **
  • Miscellaneous Details (1/4" to 3/4"=1')
  • Stair Section (1/4" to 3/8" = 1')
  • Roof Overview Plan (scale varies) **
    ** Some plans in this series do not provide cabinet elevations or roof overview.  Please call to verify.
  • FLOOR PLANS
    This home plan includes the floor plan showing the dimensioned locations of walls, doors, and windows as well as suggested locations for light fixtures, outlets and switches.
  • SET OF ELEVATIONS
    This plan includes the exterior elevations (front, rear, right and left) that show and describe the finished materials of the house.
    KITCHEN AND BATH ELEVATIONS
    The kitchen and bath elevations show the arrangement of each cabinet and other fixtures in the room. These drawings give basic information that can be used to create customized layouts with a cabinet manufacturer.
  • MISCELLANEOUS DETAILS
    Some details are included for interior and exterior conditions that require more specific information for their construction.
  • ROOF OVERVIEW PLAN
    This is a "bird's eye" view showing the roof slopes, ridges, valleys and any saddles.

ASK US A QUESTION

Name:
E-mail Address:
Password: (for robots)
Your Question:

To request a modification quote, please use the Modification Request Form.

About This Plan

Great interior floor space and a bold exterior façade combine beautifully to create this exciting Ranch home design. The interior floor plan boasts of approximately 1,403 square feet of living space; there are 1,252 square feet on the main living level and an additional 151 square feet in the basement level. The basement level has a full bath as well which contains a large vanity space, a toilet area and a tub/shower combination. The remainder of the space could be used as additional storage space or a home office/study or combination thereof. Additionally, there is a drive under, two car garage which features 450 square feet of space. The exterior of the home has amazing curb appeal featuring a brick Palladian styled window wall and a front brick chimney. Attractive siding, a multitude of windows and a front covered porch highlighted with columned beams enhance the home’s exterior beauty. The front covered porch leads into the entry foyer containing a coat closet and subsequently opens onto the oversized living room. This open concept design features great entertaining and relaxing space for family and friends. The living room measures in excess of 23’x13’, has a triple wall of windows and a handsome fireplace. The casual dining room has rear deck access from the sliding glass doors and opens onto the family friendly kitchen. The kitchen boasts of a breakfast bar, a separate pantry and a plethora of additional counter and cabinet space.
There is a lower level staircase and a hall linen closet adjacent to the shared hall bath. This is an oversized bathroom with dual vanities, a toilet area and a step-up tub with window views along with an additional linen closet. The master suite has private access to the bathroom along with wonderful window views and an oversized master walk-in closet. There are two family styled bedrooms; the second bedroom features wonderful window views and ample closet space. Bedroom three has a gorgeous window features and generous closet space. This family home has a functional floor plan, great lower level space and an inviting exterior façade.
