House Plan 5633-00047

 Reverse

If a real photograph is available please note that it may reflect the homeowner's modifications to the plan and that you should always reference the floor plans and renderings.

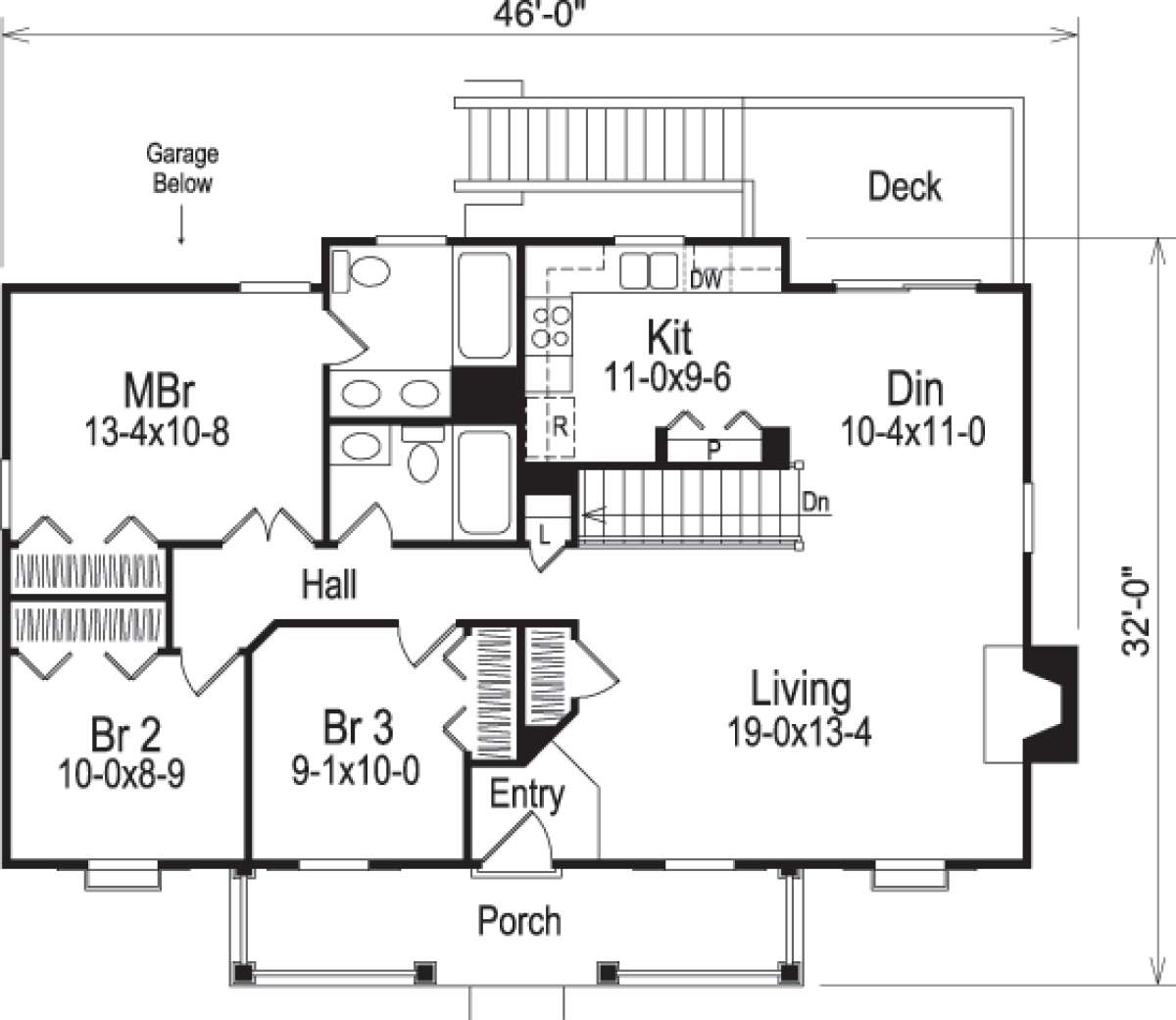

Gorgeous exterior architectural features abound in this Ranch house plan. Two window dormers and a front covered porch highlighted by a barrel arched opening, decorative column beams and open railing blend beautifully to create a spectacular and inviting front exterior. There are approximately 1,140 square feet of living space on one floor which incorporates three bedrooms and two baths in the floor plan. Additionally, the drawings come with a basement foundation which poses further expansion options as both value related and increased square footage. The two car garage is situated at the rear of the home and provides uninterrupted sight lines to the front exterior and an additional 475 square feet for vehicle and other gear storage. Entrance off the expansive front porch leads to the greeting entry where there is a coat closet and the subsequent living room. The living room is large, measuring in excess of 19’x13’ and contains a handsome fireplace. The dining room anchors the living room and U-shaped kitchen which features an abundance of counter and cabinet space and a large, separate pantry. There is a large deck off the dining room that is perfect for entertaining large groups of family and friends.
Travelling the hallway, there is a hall linen closet and shared bath which features a vanity, toilet area and tub/shower combination for the two family styled bedrooms. Each bedroom is spacious, contains generous closet space and window views. The master suite is situated at the rear of the home for privacy and is highlighted by a large bedroom with a spacious closet, wonderful window views and an en suite master bath. The master bath features dual vanities, a toilet area and a tub/shower combination. This is a great family home that presents a picturesque exterior façade and a fully functional and comfortable interior floor plan with expansion possibilities.

⇓ READ MORE ⇓

⇑ COLLAPSE ⇑

floorplans

Images Copyrighted by Designer

Want To
Modify This Plan?

Our designers can customize this plan to your exact specifications.
Requesting a quote is easy and fast!

MODIFY THIS PLAN IN
4 EASY STEPS...
1 Tell Us About Your Modifications

Send us a description of the changes you want to make, using the form below. We will send you a confirmation email letting you know we are working on a quote.

Optional: For some changes, it may be helpful to print or download the floor plan drawings and mark them up. You may send marked-up drawings to us through the confirmation email we send to you, or by faxing the images and a copy of the email to us at 1-678-388-9651.

Show Me An Example

2 Review Your No-Obligation Quote

One of our designers will review your request and provide a custom quote within 3 business days. The quote will include the price for the modifications, plus the time frame needed to complete the changes.

How Much Do Modifications Cost?

3 Submit Payment & Hire A Designer

Once you approve the quote and submit payment, your designer will get to work!

Can I See The Plans Before Paying?

4 Receive Your Modified Plans!

Custom modifications typically take 3-4 weeks, but can vary depending on the volume and complexity of the changes. The exact time frame to complete your plans will be specified in the quote.


More questions? We can help!

Call us at 1-888-501-7526 to talk to a house plans specialist who can help you with your request. You can also review our MODIFICATIONS page for additional information.


Get started on your dream home today!

Fill out the form below, or fax us at 1-678-388-9651 to receive your free no-obligation quote.

*First Name:
*Last Name:
*Zip:
*Phone:
*E-mail Address:
*Password: (for robots)
Description of Changes:

What's Included IN these Plans?

  • Heated and Cooled Square Footage calculations are made from outside the exterior frame wall and do not include decks, porches, garages, unfinished basements, bonus or attic space.
  • Artist Rendering
  • Foundation & Floor Plans (1/4"=1')
  • Front Elevations (1/4"=1'), Sides & Rear Elevation (1/8" or 1/4" = 1")
  • Kitchen and Bath Elevations (1/4"=1') **
  • Miscellaneous Details (1/4" to 3/4"=1')
  • Stair Section (1/4" to 3/8" = 1')
  • Roof Overview Plan (scale varies) **
    ** Some plans in this series do not provide cabinet elevations or roof overview.  Please call to verify.
  • FLOOR PLANS

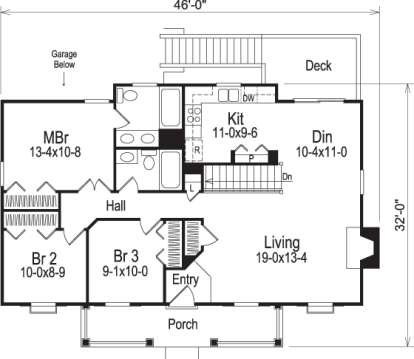

    his home plan includes the floor plan showing the dimensioned locations of walls, doors, and windows as well as suggested locations for light fixtures, outlets and switches.
  • SET OF ELEVATIONS

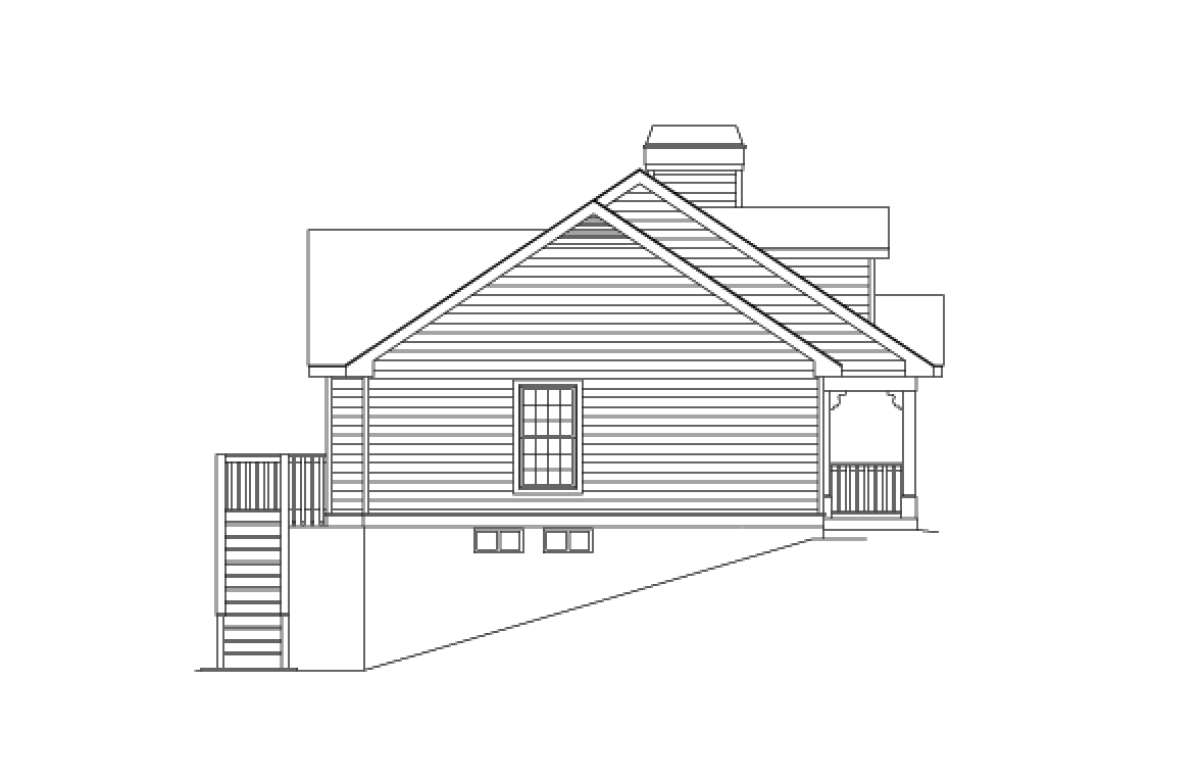

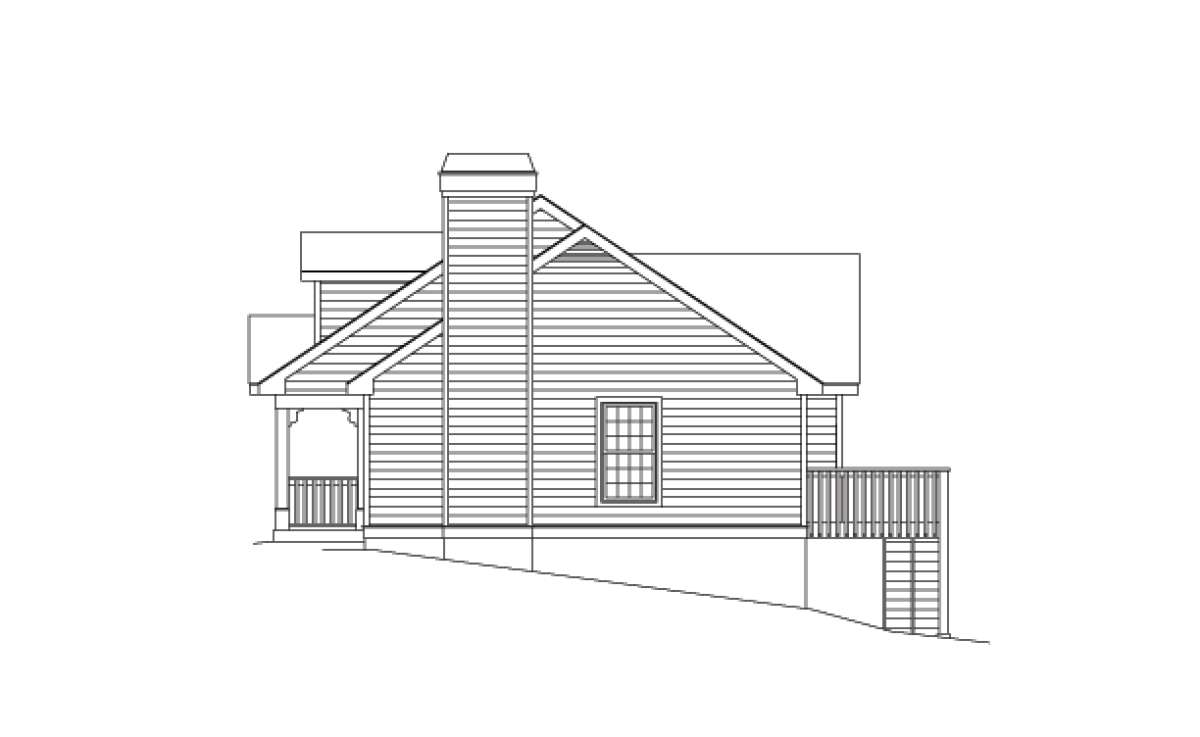

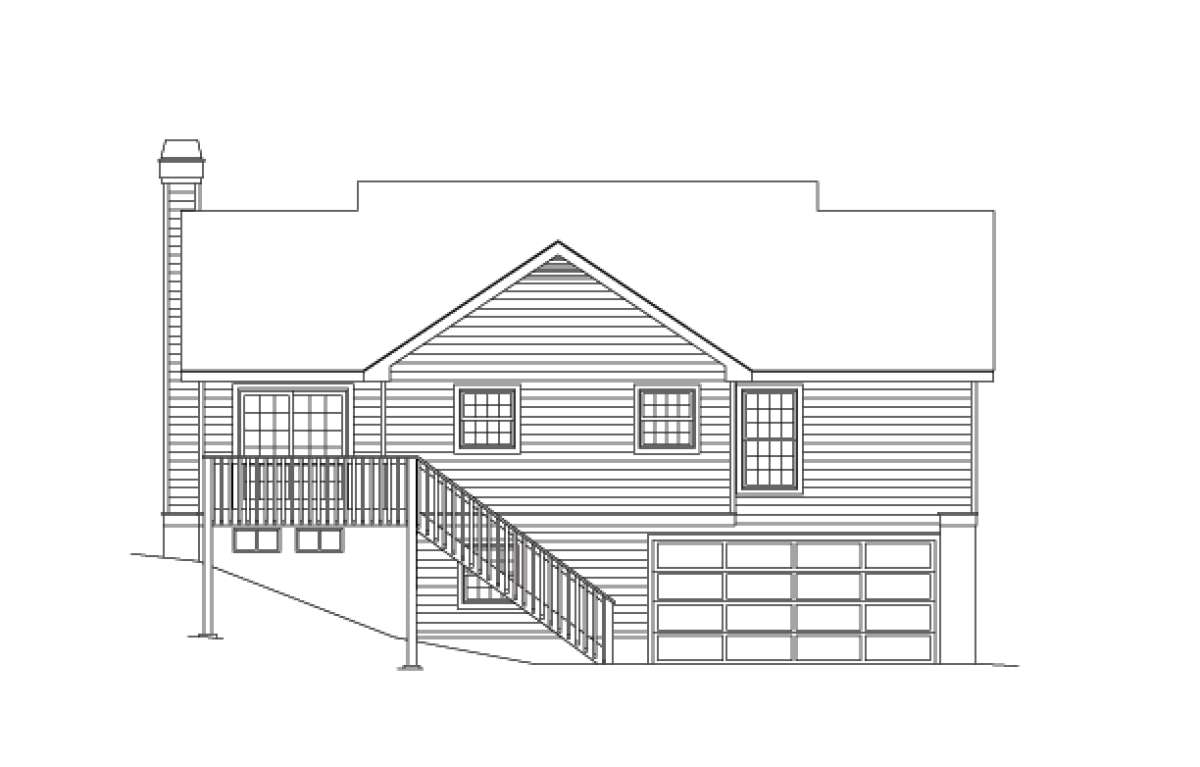

    This plan includes the exterior elevations (front, rear, right and left) that show and describe the finished materials of the house.
    KITCHEN AND BATH ELEVATIONS
    The kitchen and bath elevations show the arrangement of each cabinet and other fixtures in the room. These drawings give basic information that can be used to create customized layouts with a cabinet manufacturer.
  • MISCELLANEOUS DETAILS
    Some details are included for interior and exterior conditions that require more specific information for their construction.
  • ROOF OVERVIEW PLAN
    This is a "bird's eye" view showing the roof slopes, ridges, valleys and any saddles.

SHARE THIS PLAN

Free Shipping On Every Order
LOW PRICE GUARANTEE

ADD TO CART

PLAN PRICING

5 Sets: $740.00
8 Sets: $810.00
Reproducible : $950.00
PDF : $910.00
CAD Files : $1,480.00

Additional Options

Additional Sets: $50.00
Right Reading Reverse: $150.00
Material List: $125.00

Free Shipping On Every Order

PLAN DETAILS

Square Footage:1,140 sq. ft.
First Floor:1,140 sq. ft.
Garage:475 sq. ft.
Basement:665 sq. ft.
Floors:1
Bedrooms:3
Bathrooms:2
Garages:2 car
Width:46ft.
Depth:32ft.
Height:19ft.-6in.
Foundation:Basement
Main Roof Pitch:9:12

Ceiling Height
First Floor:8 feet

PLAN FEATURES

Features

  • Laundry Lower Level
  • Master On Main Floor

Garage Type

  • Drive Under
  • Rear Entry

Porch Type

  • Front
