Cottage House Plan 5633-00046

Sq Ft576
1/2 Baths0
Width24' 0"
Depth30' 0"
Cottage House Plan #5633-00046 Elevation Photo

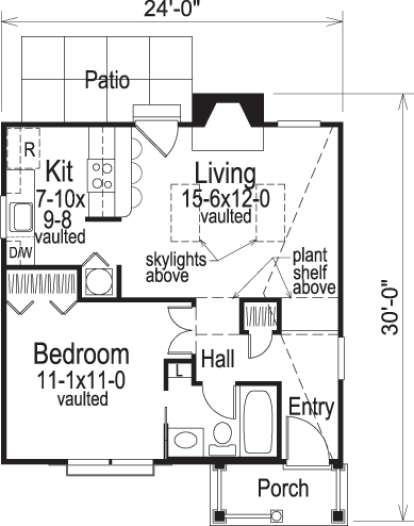

Floorplan 1
Floorplan 1 for House Plan #5633-00046
Cottage House Plan #5633-00046 Elevation Photo
Cottage House Plan #5633-00046 Additional Photo
Cottage House Plan #5633-00046 Additional Photo

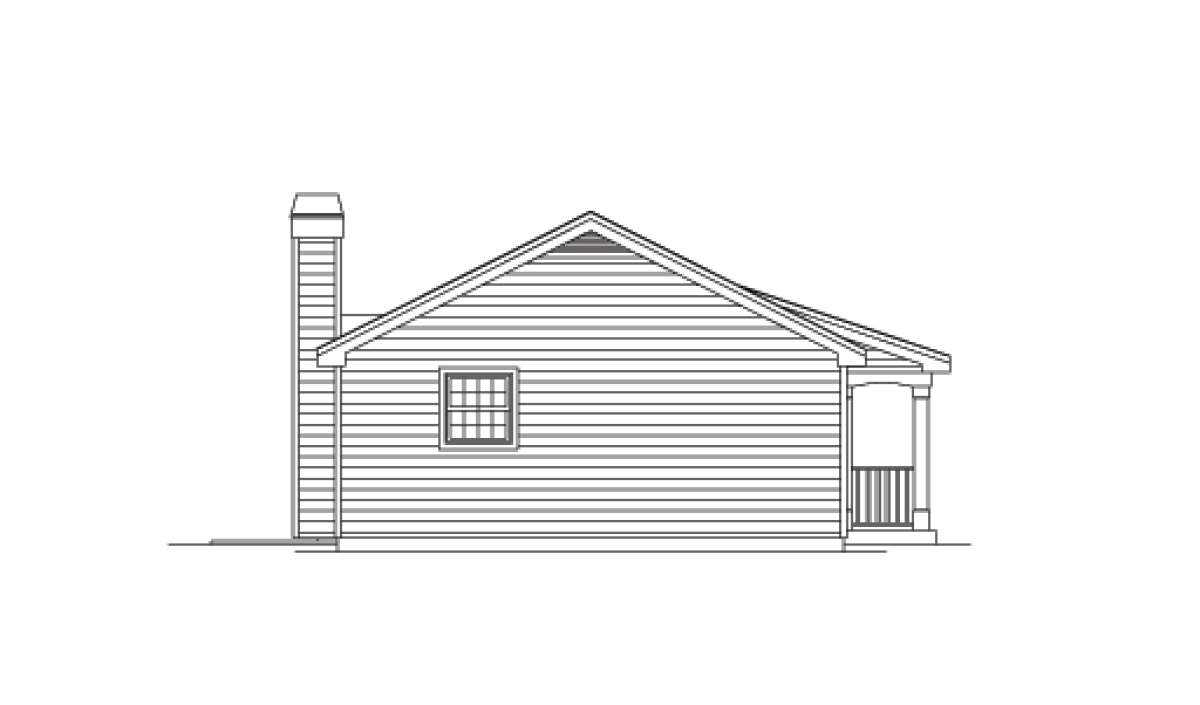

Cottage House Plan #5633-00046 Elevation Photo
Floorplan 1 for House Plan #5633-00046
Cottage House Plan #5633-00046 Elevation Photo
Cottage House Plan #5633-00046 Additional Photo
Cottage House Plan #5633-00046 Additional Photo
Images copyrighted by the designer. Photographs may reflect a homeowner modification.

Floorplan Drawings

 REVERSE  PRINT  DOWNLOAD Images copyrighted by the designer.
Floorplan 1 for House Plan #5633-00046
Floorplan 1
Floorplan 1 for House Plan #5633-00046

Frequently Asked Questions


What's Included in these plans?

  • Heated and Cooled Square Footage calculations are made from outside the exterior frame wall and do not include decks, porches, garages, unfinished basements, bonus or attic space.
  • Artist Rendering
  • Foundation & Floor Plans (1/4"=1')
  • Front Elevations (1/4"=1'), Sides & Rear Elevation (1/8" or 1/4" = 1")
  • Kitchen and Bath Elevations (1/4"=1') **
  • Miscellaneous Details (1/4" to 3/4"=1')
  • Stair Section (1/4" to 3/8" = 1')
  • Roof Overview Plan (scale varies) **
    ** Some plans in this series do not provide cabinet elevations or roof overview.  Please call to verify.
    This home plan includes the floor plan showing the dimensioned locations of walls, doors, and windows as well as suggested locations for light fixtures, outlets and switches.

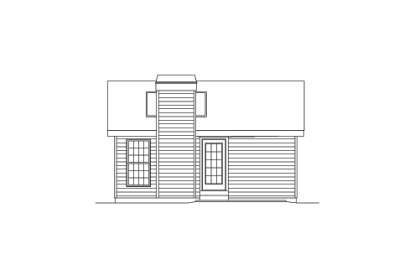

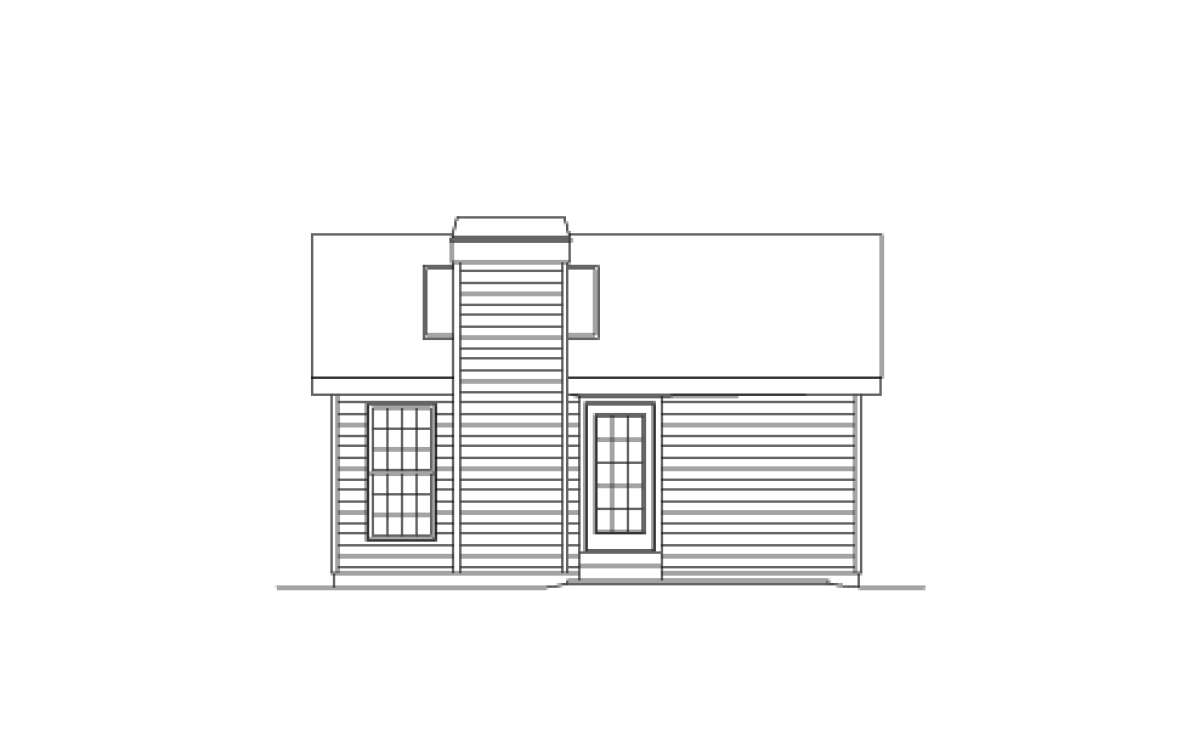

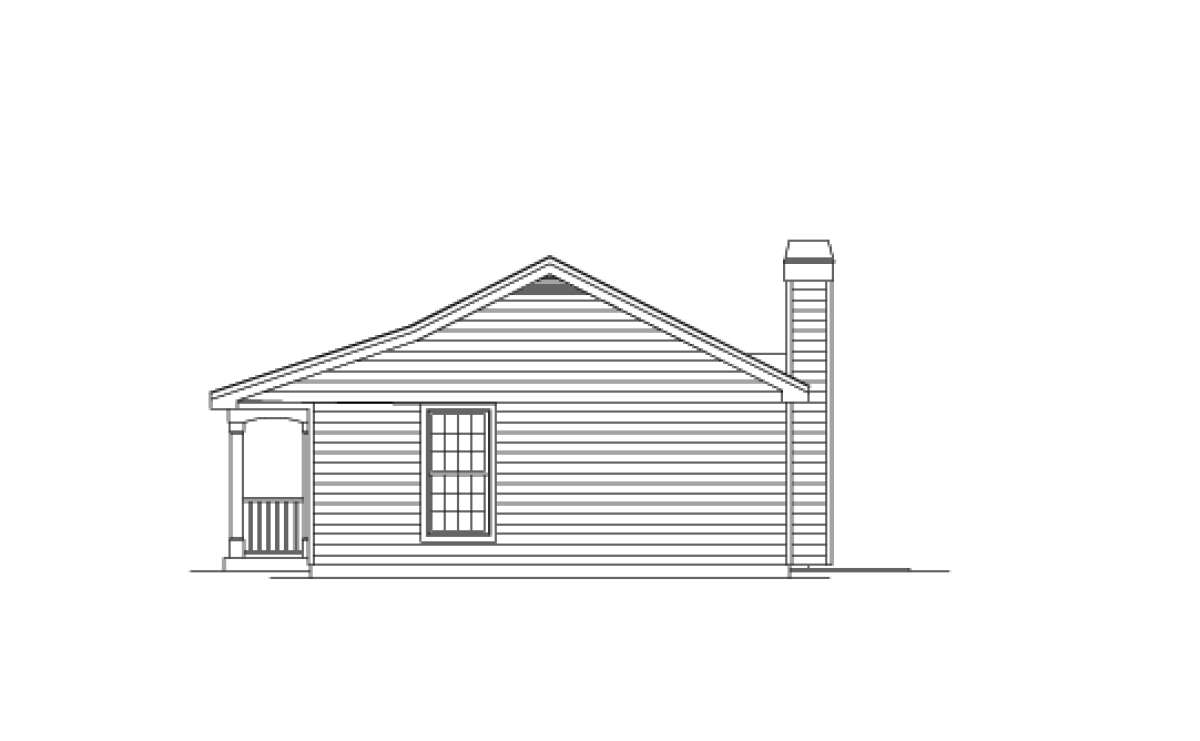

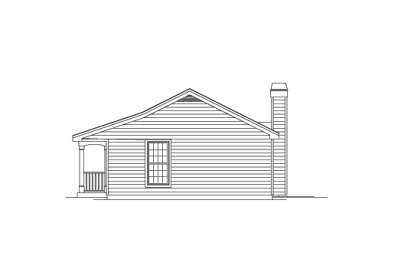

    This plan includes the exterior elevations (front, rear, right and left) that show and describe the finished materials of the house.
    The kitchen and bath elevations show the arrangement of each cabinet and other fixtures in the room. These drawings give basic information that can be used to create customized layouts with a cabinet manufacturer.
    Some details are included for interior and exterior conditions that require more specific information for their construction.
    This is a "bird's eye" view showing the roof slopes, ridges, valleys and any saddles.


E-mail Address:
Please leave blank:
Your Question:

To request a modification quote, please use the Modification Request Form.

About This Plan

This appealing Cottage home has enormous curb appeal and an abundance of distinguishing features that “make a house a home.” The exterior of the home features siding, simple lines and a covered front porch entrance into the home. The interior floor plan is fabulously designed with one bedroom and one bath in approximately 576 square feet of living space and is ideally suited for a narrow lot with its 24’ width. The entry foyer features a closet and double plant shelves before leading into the main common spaces. There is an impressive sized living room which features vaulted ceilings and a skylight creating a spacious and airy feeling to the room. Additionally, there is a handsome fireplace located in the living room for chilly seasonal nights. The vaulted kitchen is a chef’s delight with a large cook top counter space and inclusive breakfast bar. There is rear patio space ideal for entertaining family and friends and is accessible from the main living space. French door access leads to a spacious vaulted bedroom which is highlighted by ample closet space, wonderful window views and private access to the full bath. This attractive home is perfect as a couple’s getaway or vacation home.
