Cottage Plan 5633-00042


To purchase a reversed plan, please select Right Reading Reverse under Additional Options.
Sq Ft 1,882
Beds 4
Bath 2
1/2 Baths 1
Car 2
Stories 1
Width 46'
Depth 46' 8"

Floorplan Drawings

Floorplan 1
Floorplan 1 for House Plan #5633-00042
Floorplan 2
Floorplan 2 for House Plan #5633-00042

What's Included in these plans?

  • Heated and Cooled Square Footage calculations are made from outside the exterior frame wall and do not include decks, porches, garages, unfinished basements, bonus or attic space.
  • Artist Rendering
  • Foundation & Floor Plans (1/4"=1')
  • Front Elevations (1/4"=1'), Sides & Rear Elevation (1/8" or 1/4" = 1")
  • Kitchen and Bath Elevations (1/4"=1') **
  • Miscellaneous Details (1/4" to 3/4"=1')
  • Stair Section (1/4" to 3/8" = 1')
  • Roof Overview Plan (scale varies) **
    ** Some plans in this series do not provide cabinet elevations or roof overview.  Please call to verify.

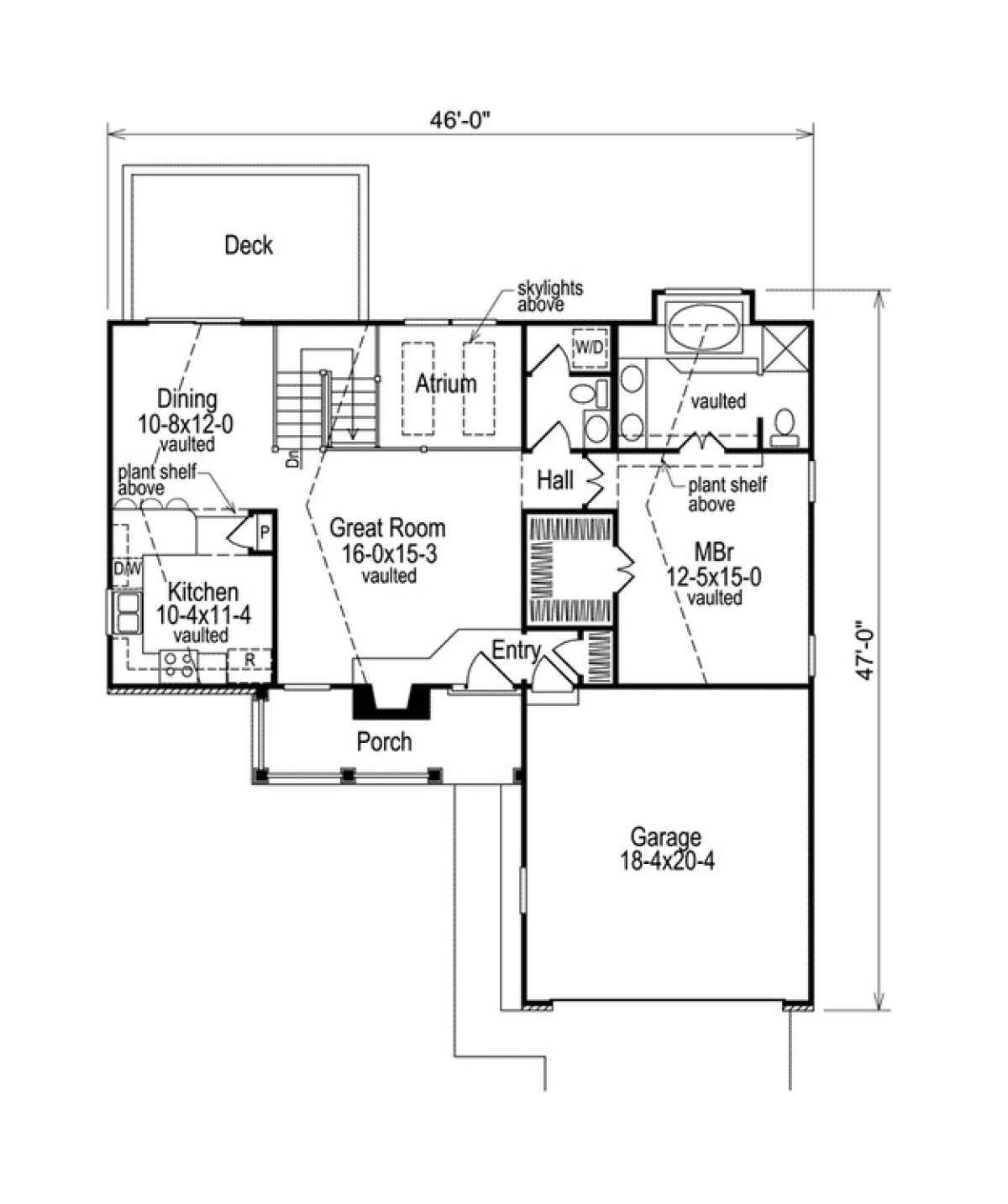

    This home plan includes the floor plan showing the dimensioned locations of walls, doors, and windows as well as suggested locations for light fixtures, outlets and switches.

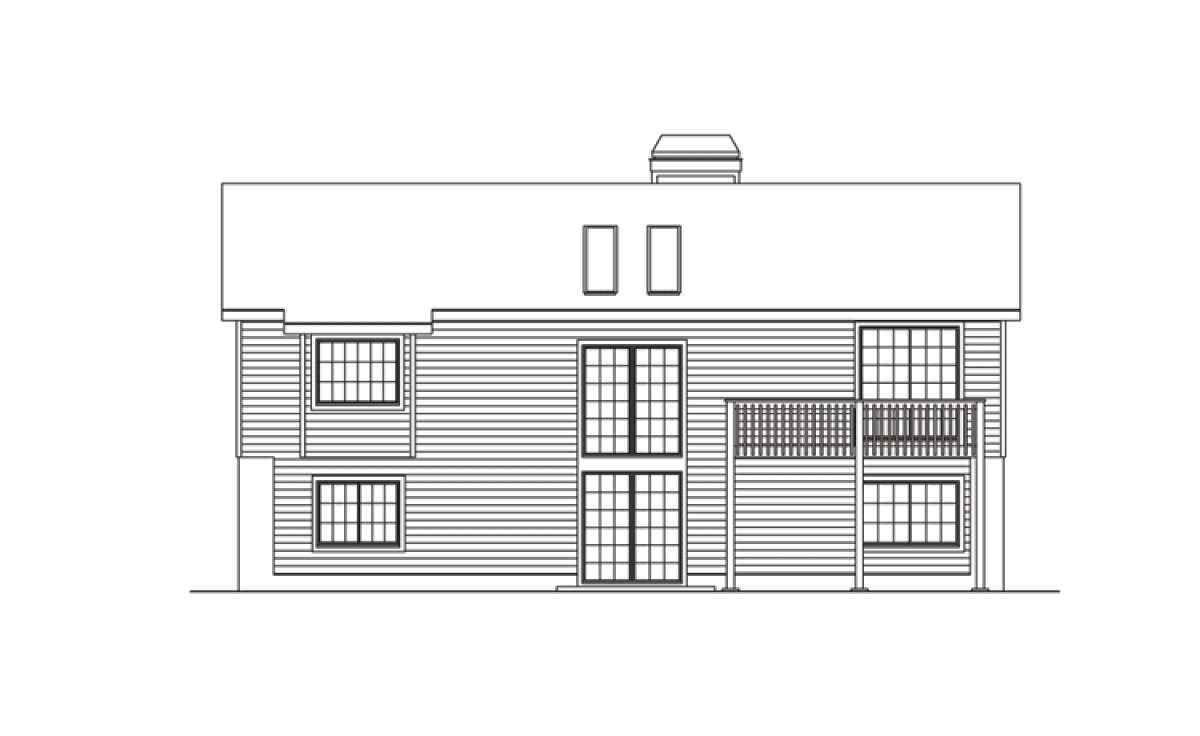

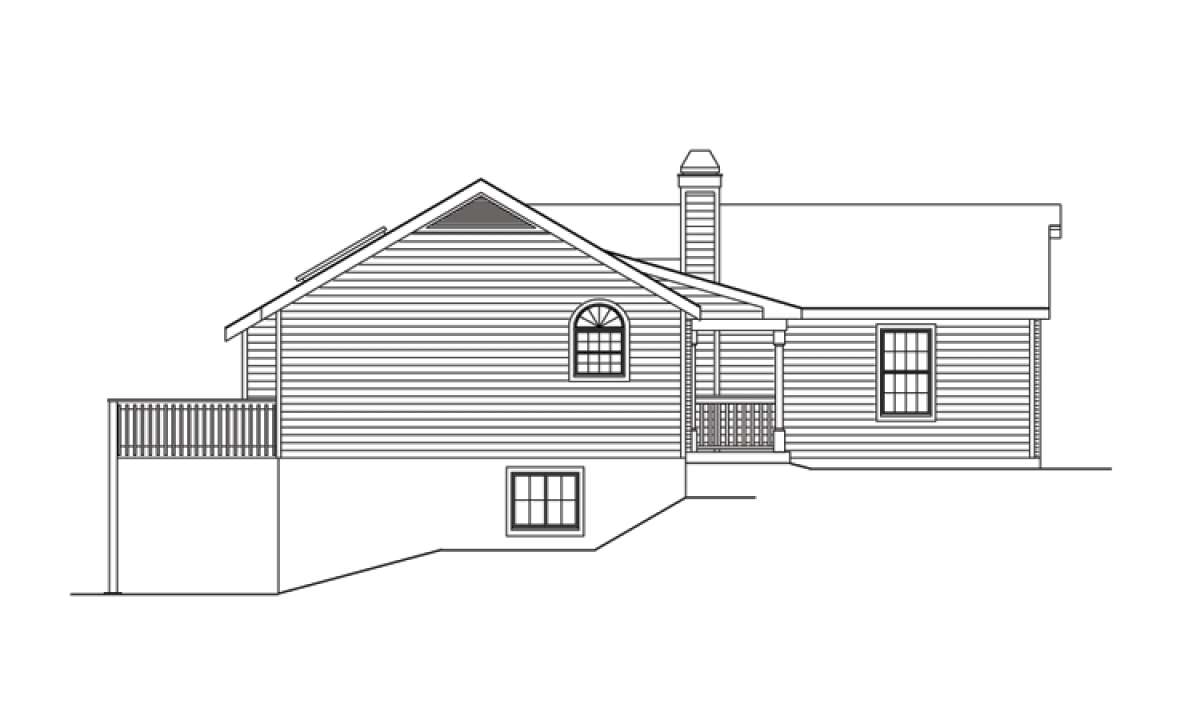

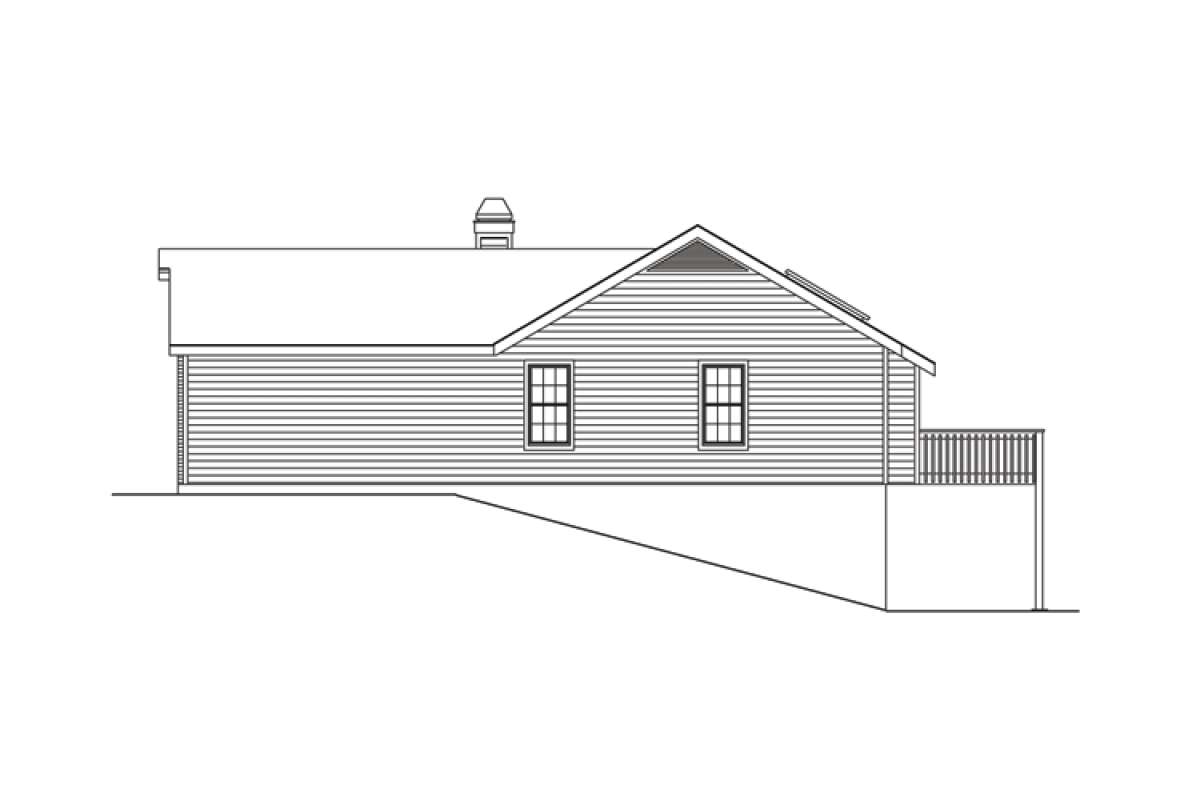

    This plan includes the exterior elevations (front, rear, right and left) that show and describe the finished materials of the house.
    The kitchen and bath elevations show the arrangement of each cabinet and other fixtures in the room. These drawings give basic information that can be used to create customized layouts with a cabinet manufacturer.
    Some details are included for interior and exterior conditions that require more specific information for their construction.
    This is a "bird's eye" view showing the roof slopes, ridges, valleys and any saddles.

Ask Us A Question

To request a modification quote, please use the Modification Request Form.

About This Plan

Four bedrooms and two plus bathrooms are featured in this Ranch styled house plan. There are approximately 1,118 square feet of living space on the main level of the home and an additional 764 square feet in the walk-out basement level. A two car, front loading garage adds another 371 square feet of vehicle and other gear storage space. The exterior façade is highlighted by Cottage features including a front covered porch with open railing and columned beams along with siding and brick accents. There is a greeting foyer that houses a coat closet before opening onto the vaulted great room which is highlighted by a handsome fireplace and a sunken atrium window wall with double skylights that brighten the space. The dining room and kitchen both features vaulted ceilings and the dining space features rear deck access. The gourmet kitchen is highlighted by an open breakfast bar, a separate pantry and an abundance of additional counter and cabinet space. This combination open concept living space is dramatic, sun drenched and offers spacious rooms in which to entertain guests and relax as a family. The main level master suite is a gorgeous design highlighted with soaring ceiling heights in the master bedroom as well as great window views, plant shelves and an oversized master walk-in closet. The luxurious master bath features French door access, dual vanities, a separate shower, private toilet area and a vaulted, step-up garden tub. There is a powder room for guests and a laundry nook to complete the main level of living.
The lower level of living is highlighted, as well, with the atrium window wall and features walk-out patio access. A multi-purpose family room features a large entertaining bar and enormous space and there is a large storage area with W/D space. There are three spacious bedrooms; all have great window views and generous closet space. A shared hall bath features a vanity space, a toilet area and a tub/shower combination along with a hall linen closet. This family friendly home offers a traditional exterior façade with an interior floor plan that is comfortable and highly versatile.

Browse Similar PlansVIEW MORE PLANS
