Ranch House Plan #5633-00041 Elevation Photo

Ranch House Plan #5633-00041 Additional Photo

IMPORTANT NOTICE

To purchase a reversed plan, please select Right Reading Reverse under Additional Options.

Images copyrighted by the designer. Photographs may reflect a homeowner modification.

Sq Ft 1,882

Beds 4

Bath 2

1/2 Baths 0

Car 2

Stories 1

Width 60' 4"

Depth 47' 10"

See What's Included

Select Package

PDF (Single Build)

$1,049.00

ELECTRONIC FORMAT Recommended
One Complete set of working drawings emailed to you in PDF format. Most plans can be emailed same business day or the business day after your purchase. This package comes with a license to construct one home and a copyright release which allows for making copies locally and minor changes to the plan.

PDF (Unlimited Build)

$1,449.00

ELECTRONIC FORMAT
One Complete set of working drawings emailed to you in PDF format. Most plans can be emailed same business day or the business day after your purchase. Comes with a copyright release which allows for making copies locally and minor changes to the plan. This package comes with a multi-use license that allows for the home to be built more than once.

5 Sets (Single Build)

$1,049.00

PHYSICAL FORMAT
Five printed sets of working drawings mailed to you. This package comes with a license to construct one home.

5 Sets Plus PDF (Single Build)

$1,149.00

One Complete set of working drawings emailed to you in PDF format along with 5 physical sets printed and mailed to you. Most plans can be emailed same business day or the business day after your purchase. Comes with a copyright release which allows for making copies locally and minor changes to the plan. This package comes with a license to construct one home.

CAD Files (Single Build)

$1,649.00

ELECTRONIC FORMAT
A CAD file is a set of construction drawings in an electronic format. The CAD file can be used to make minor or major modifications to our plans. The CAD files come with a copyright release so you can customize the plan however you like. CAD files can also be emailed to avoid shipping costs. Most plans can be emailed same business day or the business day after your purchase. Requires a CAD program to open the files by a design professional. This package comes with a license to construct one home.

CAD Files (Unlimited Build)

$2,049.00

ELECTRONIC FORMAT
A CAD file is a set of construction drawings in an electronic format. The CAD file can be used to make minor or major modifications to our plans. The CAD files come with a copyright release so you can customize the plan however you like. CAD files can also be emailed to avoid shipping costs. Most plans can be emailed same business day or the business day after your purchase. This package comes with a multi-use license that allows for the home to be built more than once. Requires a CAD program to open the files by a design professional.

Select Foundation

Basement Foundation $0.00

Slab Foundation $250.00

Crawlspace Foundation $250.00

Need a different foundation?

Get a free modification quote

Additional Options

Additional Sets $50.00

Dont see the right plan package for you? Add additional sets to create the perfect plan package for your needs.

Right Reading Reverse $150.00

Reverses the entire plan including all text and dimensions so that they are reading correctly.

2x6 Conversion $150.00

Convert the exterior framing to 2x6 walls.

Material List $125.00

A complete material list for this plan. House plan must be purchased in order to obtain material list.
Important Notice: Please note that the material list is created with the standard foundation only and will not include any alternate foundations or additional options.

Return Policy, Building Code & Copyright Info

Floorplan Drawings

REVERSE PRINT DOWNLOAD

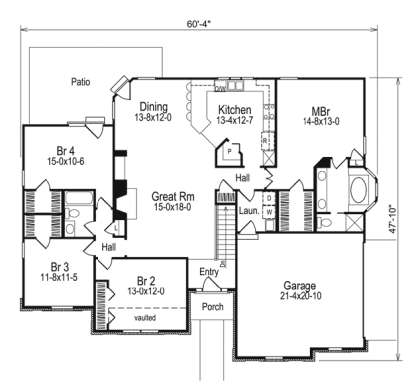

Floorplan 1

Images copyrighted by the designer.

What's Included in these plans?

Heated and Cooled Square Footage calculations are made from outside the exterior frame wall and do not include decks, porches, garages, unfinished basements, bonus or attic space.
Artist Rendering
Foundation & Floor Plans (1/4"=1')

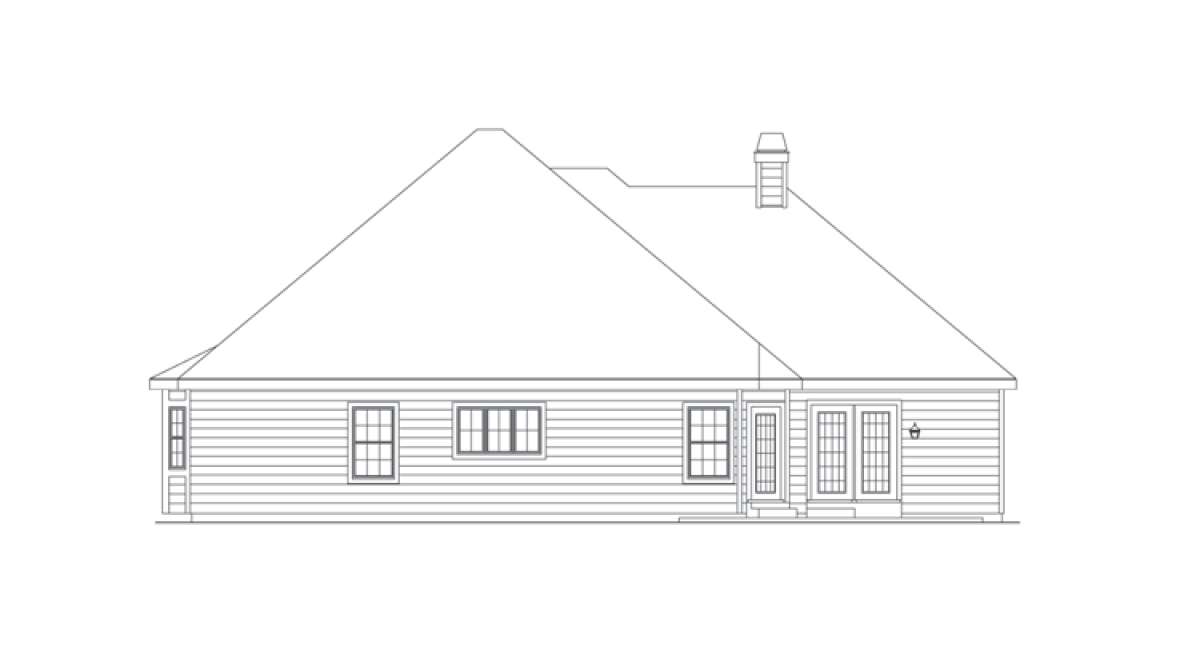

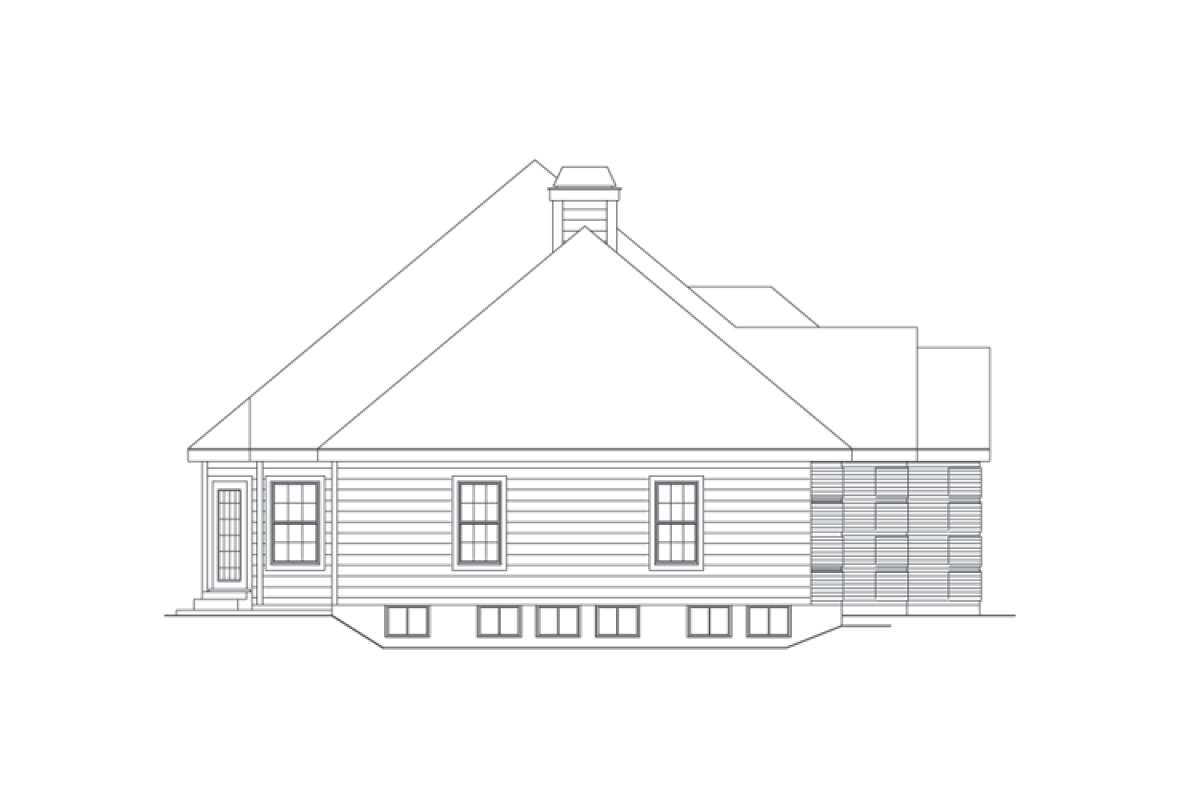

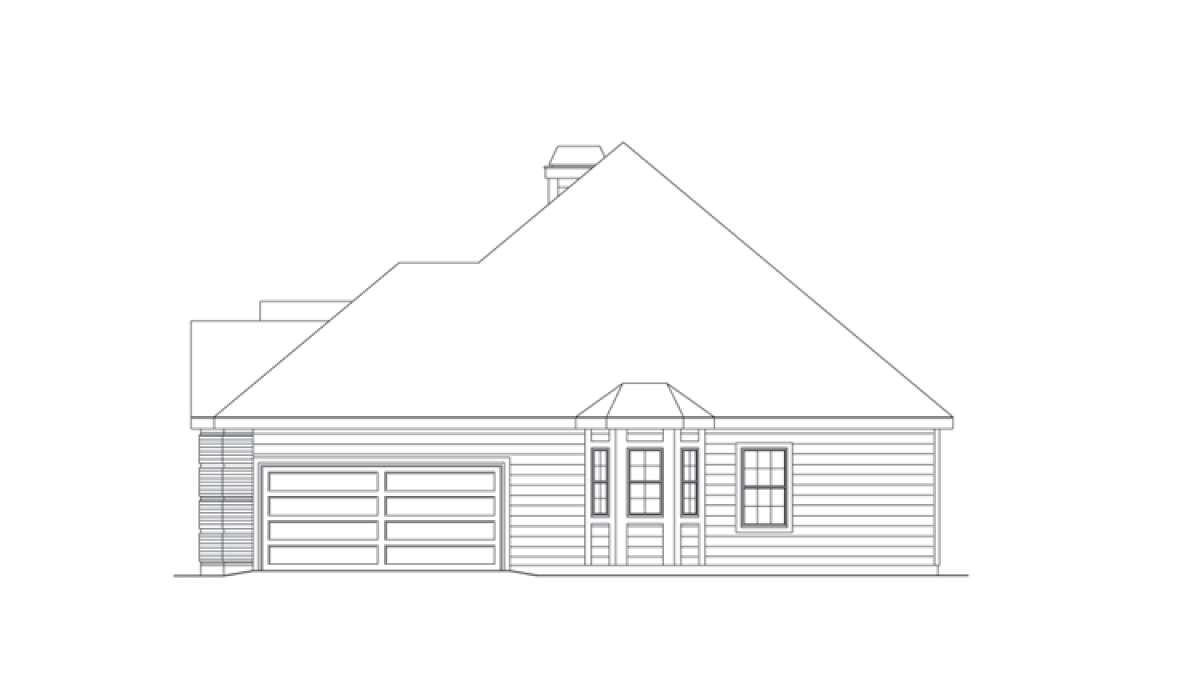

Front Elevations (1/4"=1'), Sides & Rear Elevation (1/8" or 1/4" = 1")
Kitchen and Bath Elevations (1/4"=1') **
Miscellaneous Details (1/4" to 3/4"=1')
Stair Section (1/4" to 3/8" = 1')
Roof Overview Plan (scale varies) **
** Some plans in this series do not provide cabinet elevations or roof overview. Please call to verify.
FLOOR PLANS
This home plan includes the floor plan showing the dimensioned locations of walls, doors, and windows as well as suggested locations for light fixtures, outlets and switches.
SET OF ELEVATIONS
This plan includes the exterior elevations (front, rear, right and left) that show and describe the finished materials of the house.
KITCHEN AND BATH ELEVATIONS
The kitchen and bath elevations show the arrangement of each cabinet and other fixtures in the room. These drawings give basic information that can be used to create customized layouts with a cabinet manufacturer.
MISCELLANEOUS DETAILS
Some details are included for interior and exterior conditions that require more specific information for their construction.
ROOF OVERVIEW PLAN
This is a "bird's eye" view showing the roof slopes, ridges, valleys and any saddles.

Ask Us A Question

About This Plan

The open concept and split bedroom plan are highlighted in this attractive Ranch styled home. Four bedrooms and two baths are featured in approximately 1,882 square feet of living space. The home’s drawings are centered on a basement foundation which would substantially increase the square footage of the home; however, the drawings also include a slab and crawl space foundation. There is a two car, side entry garage that adds an additional 444 square feet of vehicle and storage space. A handsome exterior façade is highlighted by brick, multiple gables and Palladian style window features. Entrance into the home is through the foyer which houses the lower level staircase and a convenient coat closet sits on the other side of the staircase. The open concept design features a large great room with warming fireplace and built-in cabinetry while the dining space has great window views and rear patio access. The beautiful kitchen features an oversized breakfast bar, a separate pantry and loads of additional counter and cabinet space. There is an interior laundry room with sink area located off the garage for ease and convenience.
Four bedrooms and two baths are featured in the split bedroom plan. Bedroom two is quite spacious and features double window views, soaring ceiling heights and plentiful closet space. The third bedroom is a generous size with a walk-in closet while bedroom four is clearly oversized with a walk-in closet and private access to the rear patio. The shared hall bath features a vanity space, toilet area, tub/shower combination and there is a hall linen closet. The master suite is a lovely design and accessible through French doors where a large bedroom awaits. Great window views and an oversized master walk-in closet are available and the adjacent master bath is gorgeous and functional. The master bath includes dual vanities, a private toilet area, separate shower, linen closet and garden tub encased in a triple bay window. This home has a handsome exterior and a comfortable and versatile interior floor plan.
