Traditional House Plan 5633-00040

Sq Ft3,850
Beds5
Baths3
1/2 Baths1
Stories1
Cars3
Width81' 4"
Depth52' 0"
Images copyrighted by the designer. Photographs may reflect a homeowner modification.

Floorplan Drawings

 REVERSE  PRINT  DOWNLOAD Images copyrighted by the designer.
Floorplan 1 for House Plan #5633-00040
Floorplan 2 for House Plan #5633-00040

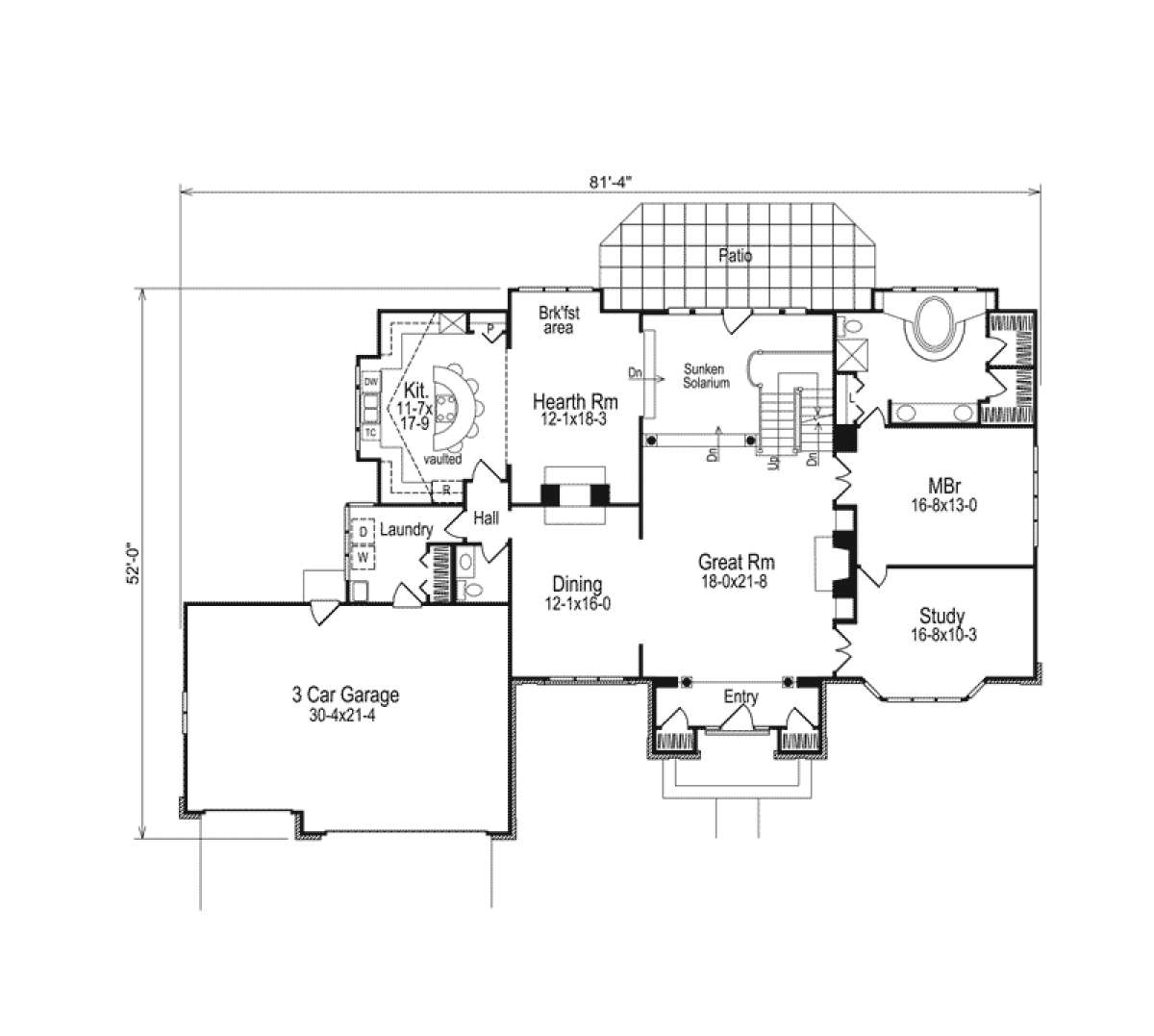

Floorplan 1
Floorplan 1 for House Plan #5633-00040

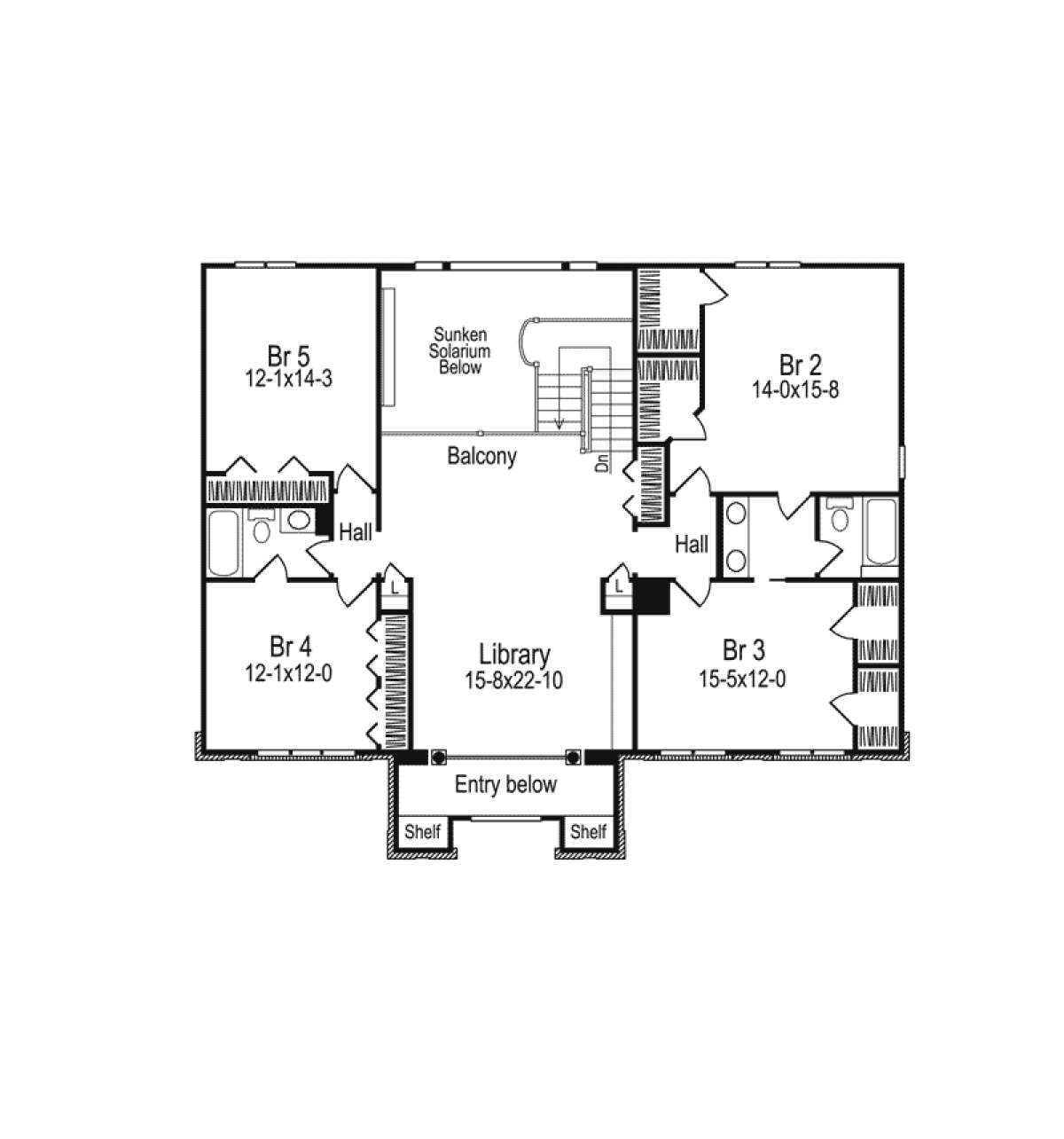

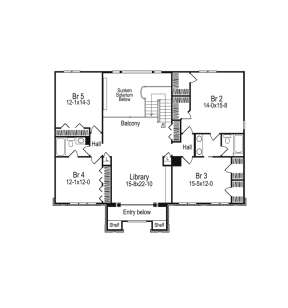

Floorplan 2
Floorplan 2 for House Plan #5633-00040


Frequently Asked Questions

COST TO BUILD REPORT

What's Included in these plans?

  • Heated and Cooled Square Footage calculations are made from outside the exterior frame wall and do not include decks, porches, garages, unfinished basements, bonus or attic space.
  • Artist Rendering
  • Foundation & Floor Plans (1/4"=1')
  • Front Elevations (1/4"=1'), Sides & Rear Elevation (1/8" or 1/4" = 1")
  • Kitchen and Bath Elevations (1/4"=1') **
  • Miscellaneous Details (1/4" to 3/4"=1')
  • Stair Section (1/4" to 3/8" = 1')
  • Roof Overview Plan (scale varies) **
    ** Some plans in this series do not provide cabinet elevations or roof overview.  Please call to verify.
  • FLOOR PLANS
    This home plan includes the floor plan showing the dimensioned locations of walls, doors, and windows as well as suggested locations for light fixtures, outlets and switches.

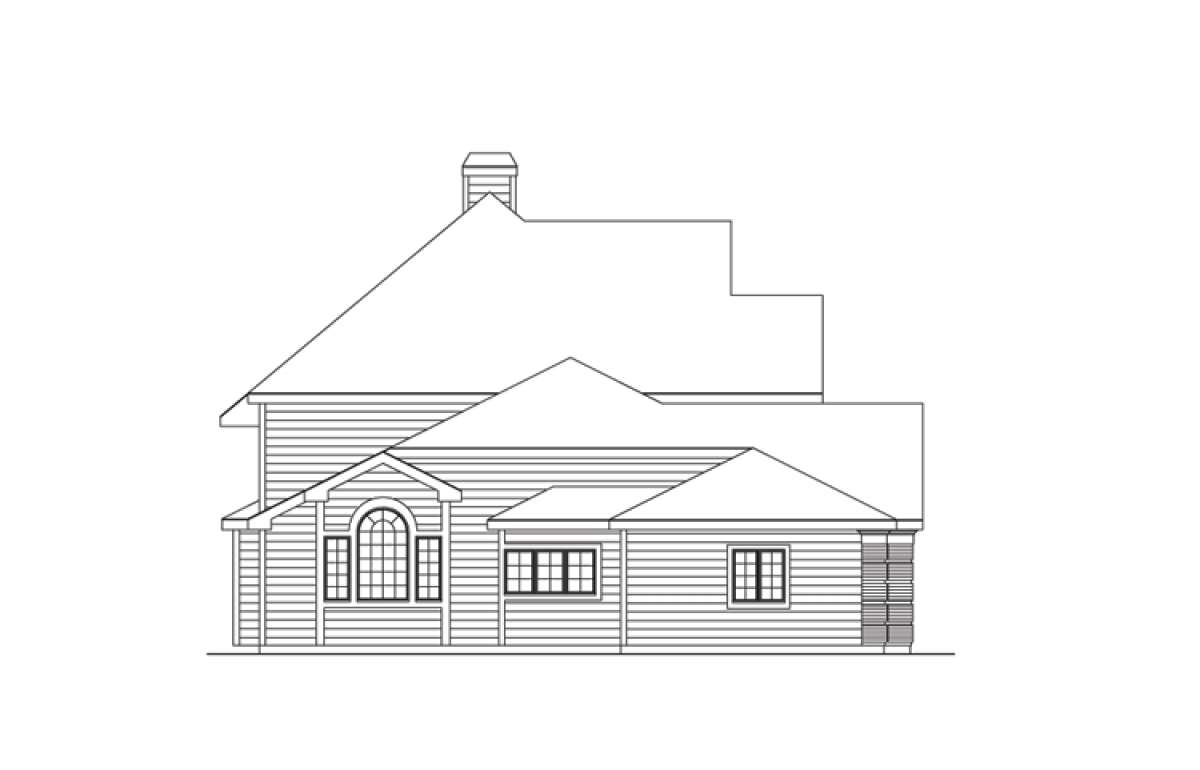

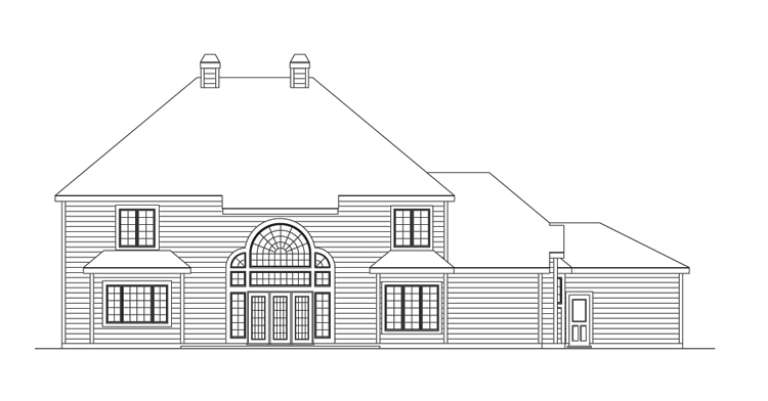

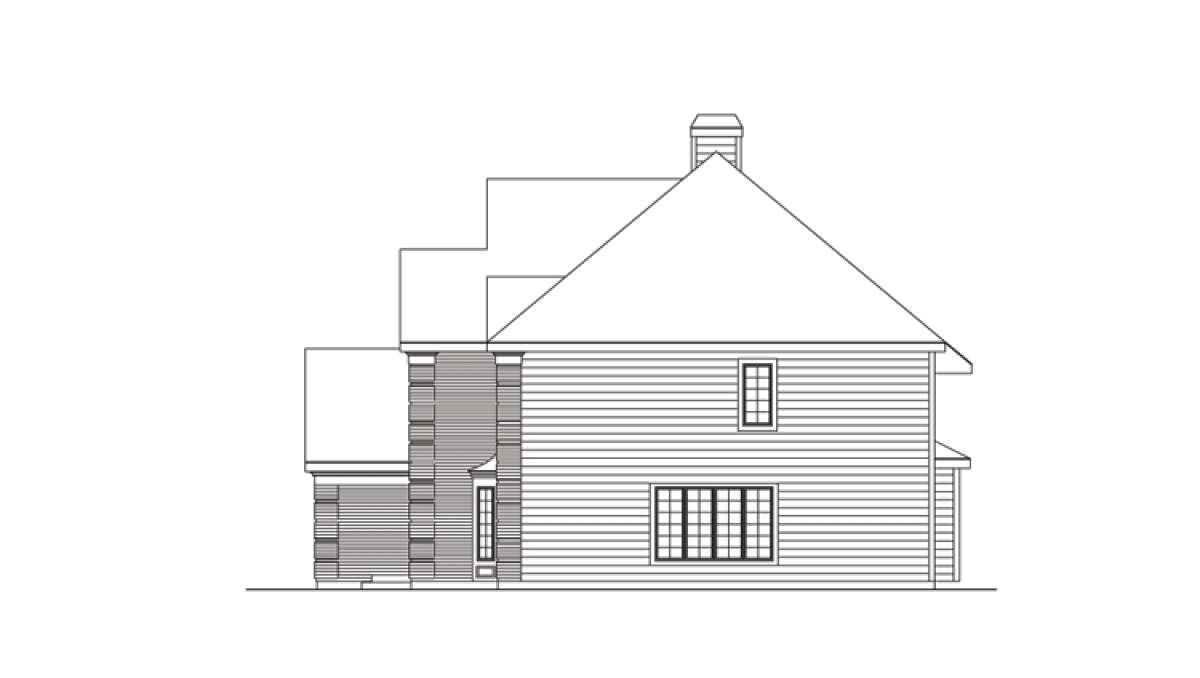

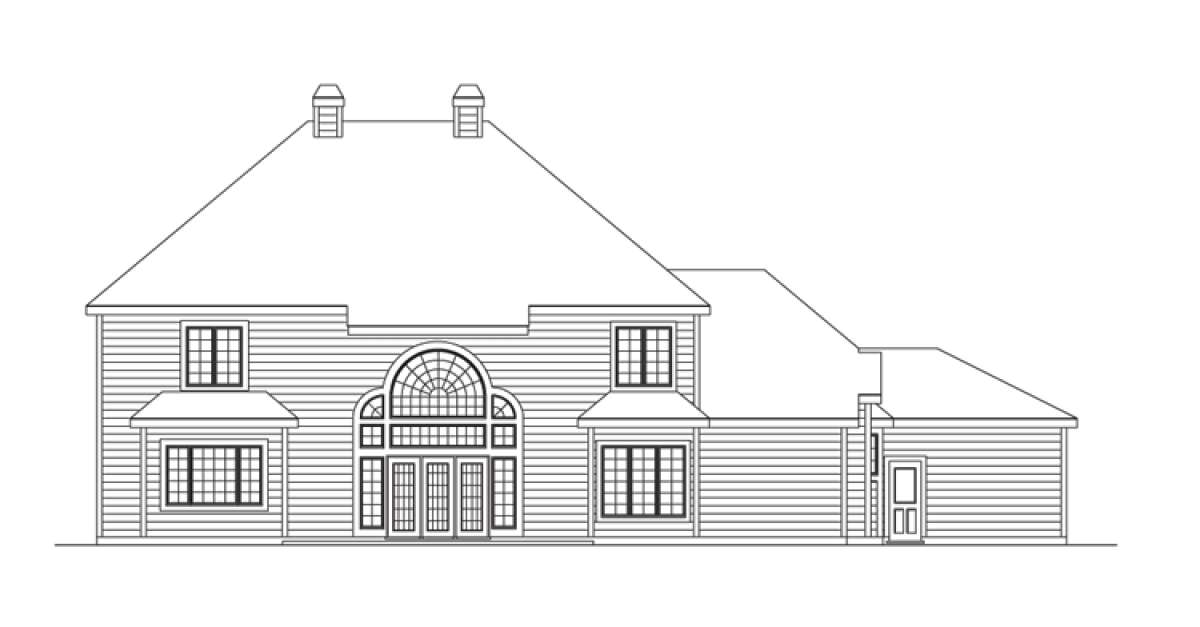

  • SET OF ELEVATIONS

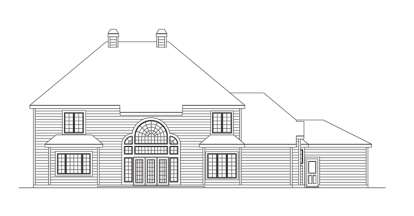

    This plan includes the exterior elevations (front, rear, right and left) that show and describe the finished materials of the house.
    KITCHEN AND BATH ELEVATIONS
    The kitchen and bath elevations show the arrangement of each cabinet and other fixtures in the room. These drawings give basic information that can be used to create customized layouts with a cabinet manufacturer.
  • MISCELLANEOUS DETAILS
    Some details are included for interior and exterior conditions that require more specific information for their construction.
  • ROOF OVERVIEW PLAN
    This is a "bird's eye" view showing the roof slopes, ridges, valleys and any saddles.

ASK US A QUESTION

Name:
E-mail Address:
Password: (for robots)
Your Question:

To request a modification quote, please use the Modification Request Form.

About This Plan

A stone façade with multiple split gables and a large bay window embellish the exterior of this traditional house plan. The two story home features an impressive amount of interior living space well in excess of 3,800 square feet which is comprised of five bedrooms and three plus bathrooms. A basement foundation has the potential to increase the home’s expansion possibilities, value and versatility. The entry foyer possesses two coat/storage closets before opening onto the great room where an enormous space is revealed. The great room features a handsome fireplace with side cabinetry and subsequently opens onto the formal dining room and sunken solarium. The dining room is spacious with a triple window wall and the solarium features a column detailed entrance, a beautiful staircase and a rear wall of window inserts. There is an adjacent hearth room with a see-thru fireplace and casual breakfast room. The grand kitchen features top-of-the line amenities including a semi-moon breakfast bar, vaulted ceilings, a separate pantry and loads of additional counter and cabinet space. An efficient laundry room is conveniently located off the three car garage and there is a powder room for guests. More living space is accentuated with French door access leading to a private study; this space would ideally be used as a room for entertaining business associates, intimate friends or as a home office. The main level master suite occupies the rear of the home for privacy and features a large bedroom through French doors. The elegantly designed master bath comes equipped with dual vanities, a separate shower, oversized linen closet and a beautiful garden tub ensconced in window views. There are two large master walk-in closets at the rear of the space for convenience.
The ascending staircase allows for balcony overlooks into the solarium and gracefully opens onto the family library. The library is a great space to read and relax with built-in shelving and could also function as a multi-purpose flex room. Bedrooms two and three are quite large with double walk-in closets and a shared jack and jill bathroom including double vanities between them. The fourth and fifth bedrooms are quite spacious with generous closet space and there is a shared hall bath with double linen closets lining the hallway. This home features an abundance of space for a large family and a traditional exterior façade.
