Traditional Plan 5633-00038


To purchase a reversed plan, please select Right Reading Reverse under Additional Options.
Sq Ft 1,985
Beds 4
Bath 3
1/2 Baths 1
Car 2
Stories 2
Width 37'
Depth 56'

Floorplan Drawings

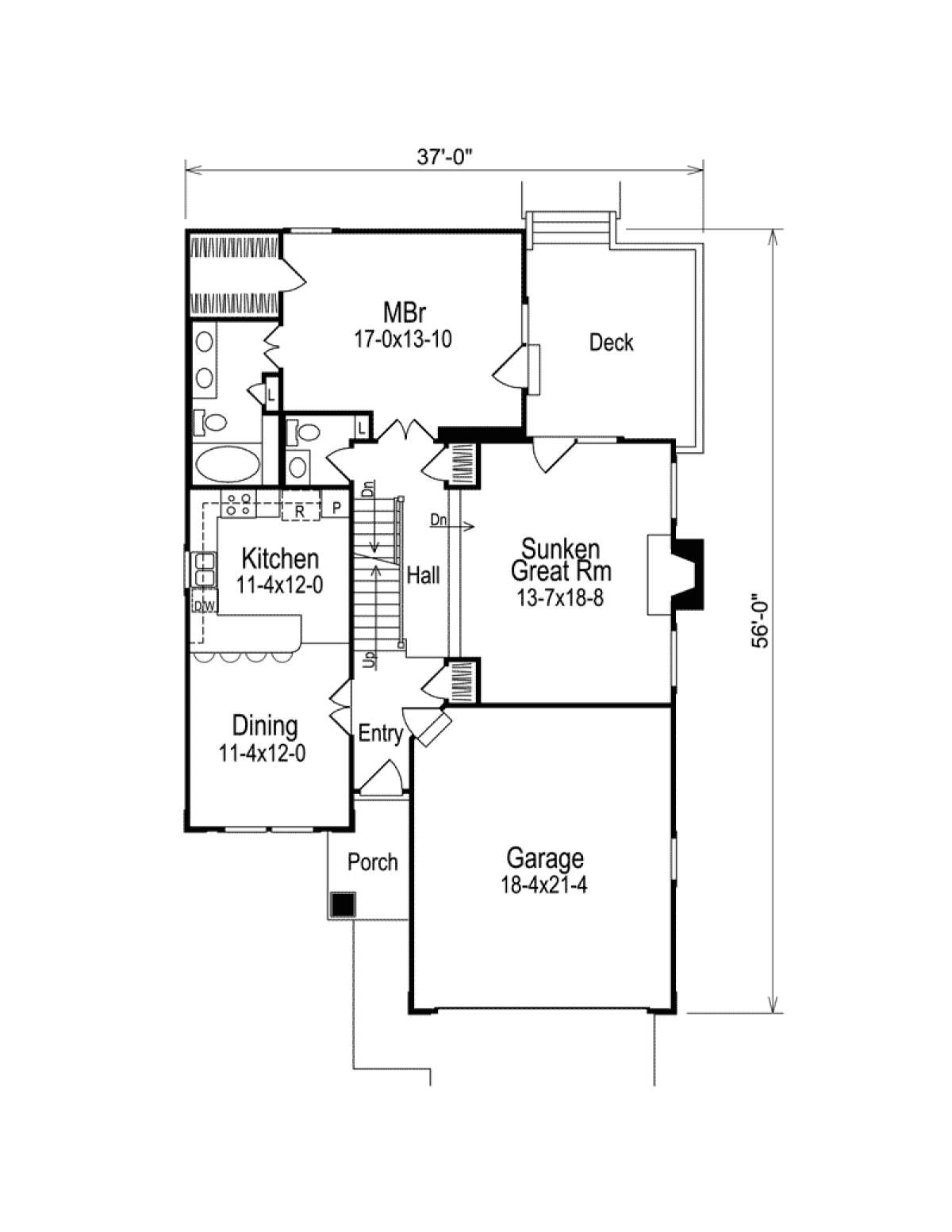

Floorplan 1
Floorplan 1 for House Plan #5633-00038

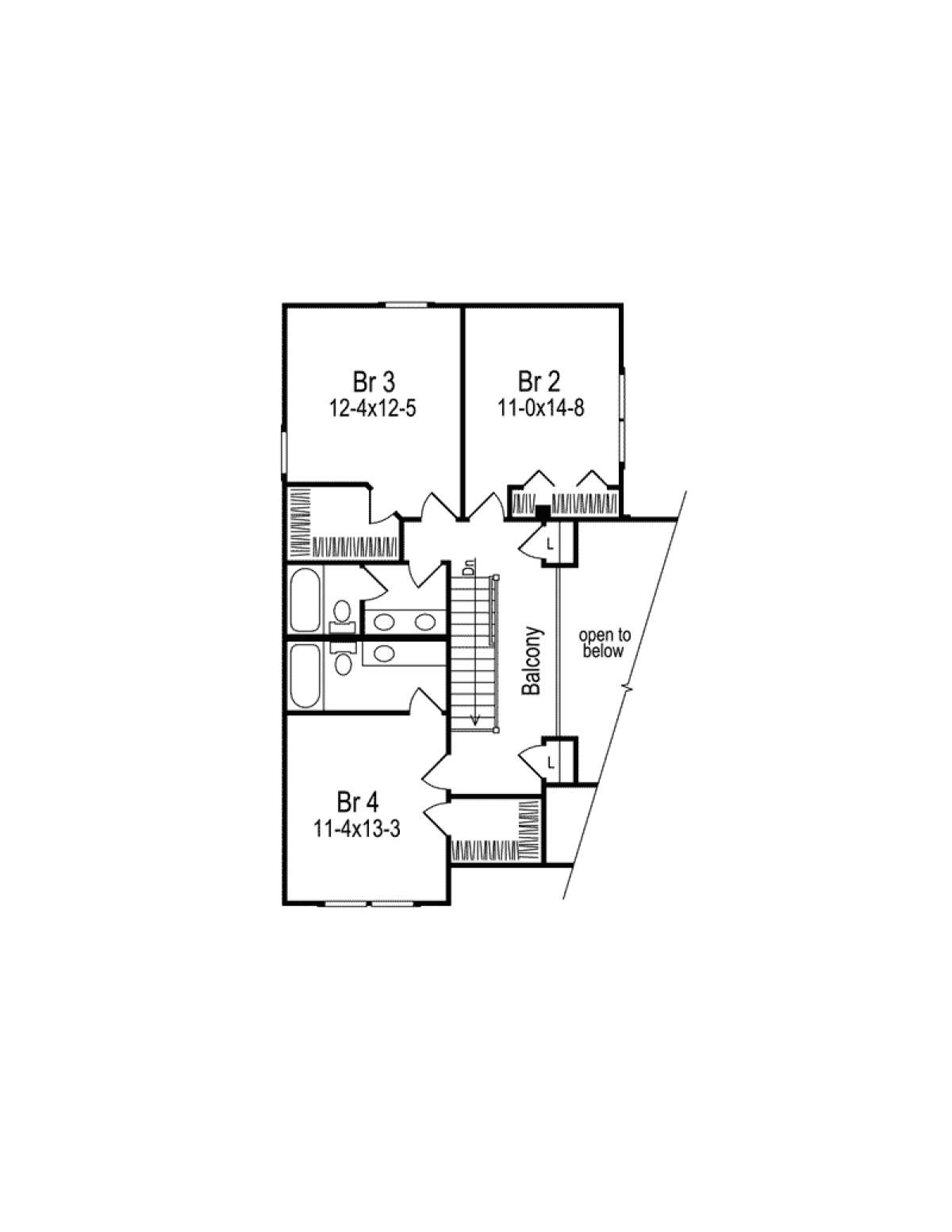

Floorplan 2
Floorplan 2 for House Plan #5633-00038

What's Included in these plans?

  • Heated and Cooled Square Footage calculations are made from outside the exterior frame wall and do not include decks, porches, garages, unfinished basements, bonus or attic space.
  • Artist Rendering
  • Foundation & Floor Plans (1/4"=1')
  • Front Elevations (1/4"=1'), Sides & Rear Elevation (1/8" or 1/4" = 1")
  • Kitchen and Bath Elevations (1/4"=1') **
  • Miscellaneous Details (1/4" to 3/4"=1')
  • Stair Section (1/4" to 3/8" = 1')
  • Roof Overview Plan (scale varies) **
    ** Some plans in this series do not provide cabinet elevations or roof overview.  Please call to verify.
    This home plan includes the floor plan showing the dimensioned locations of walls, doors, and windows as well as suggested locations for light fixtures, outlets and switches.

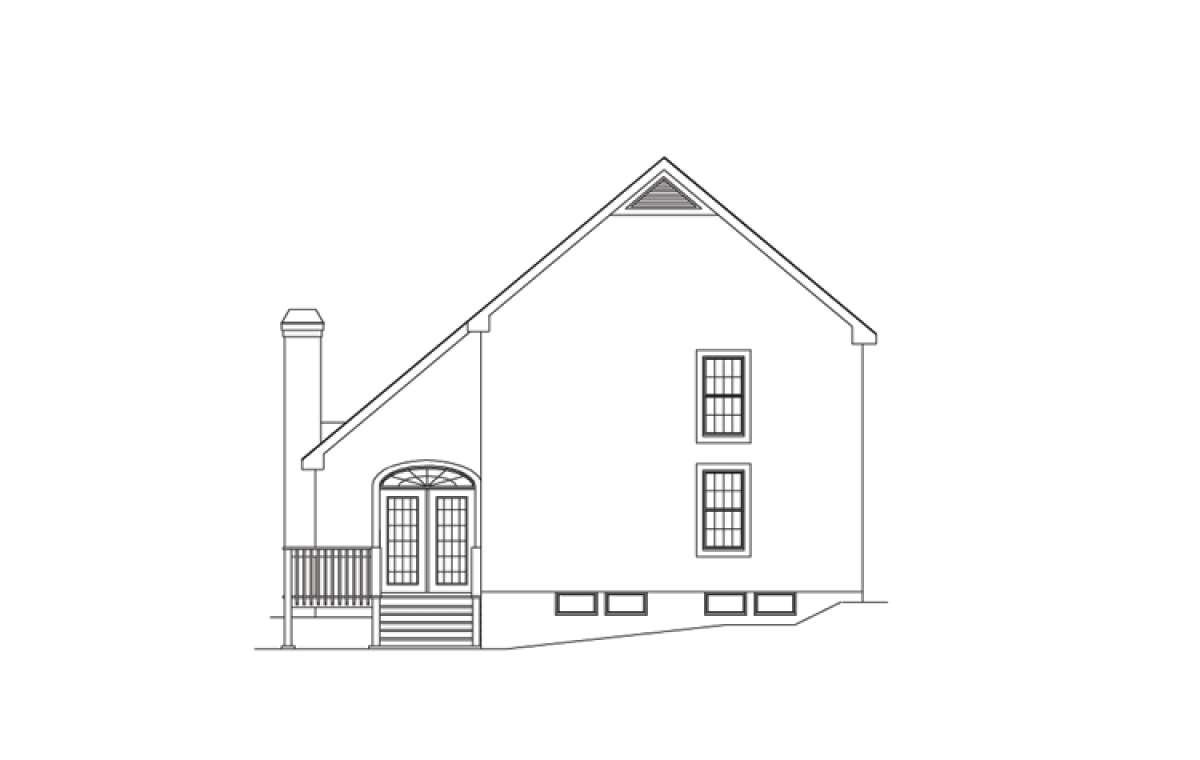

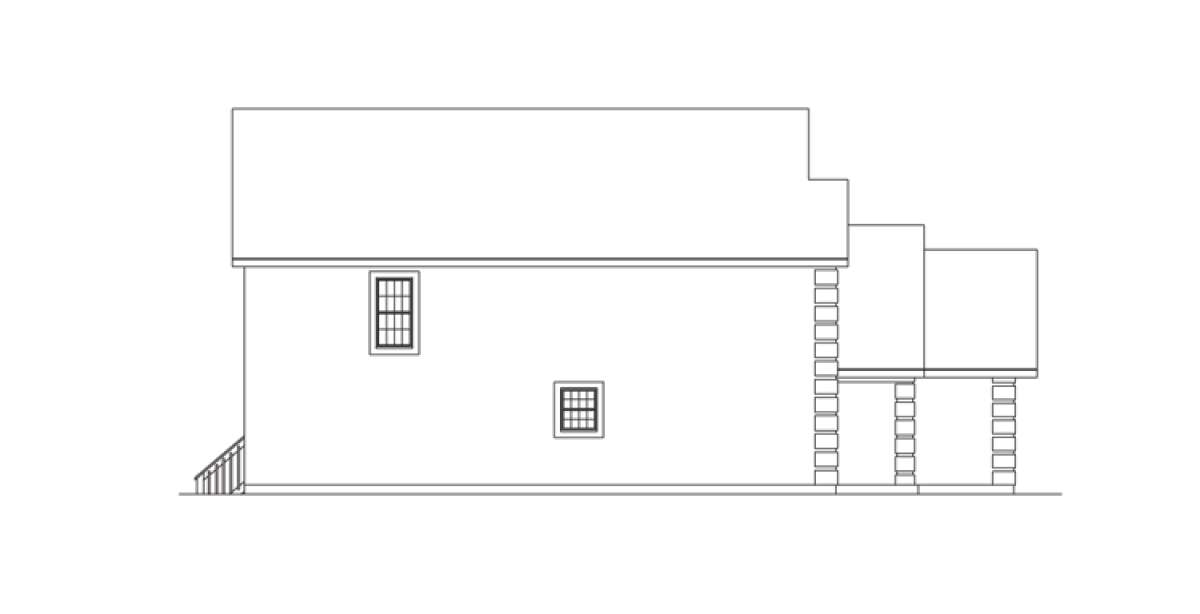

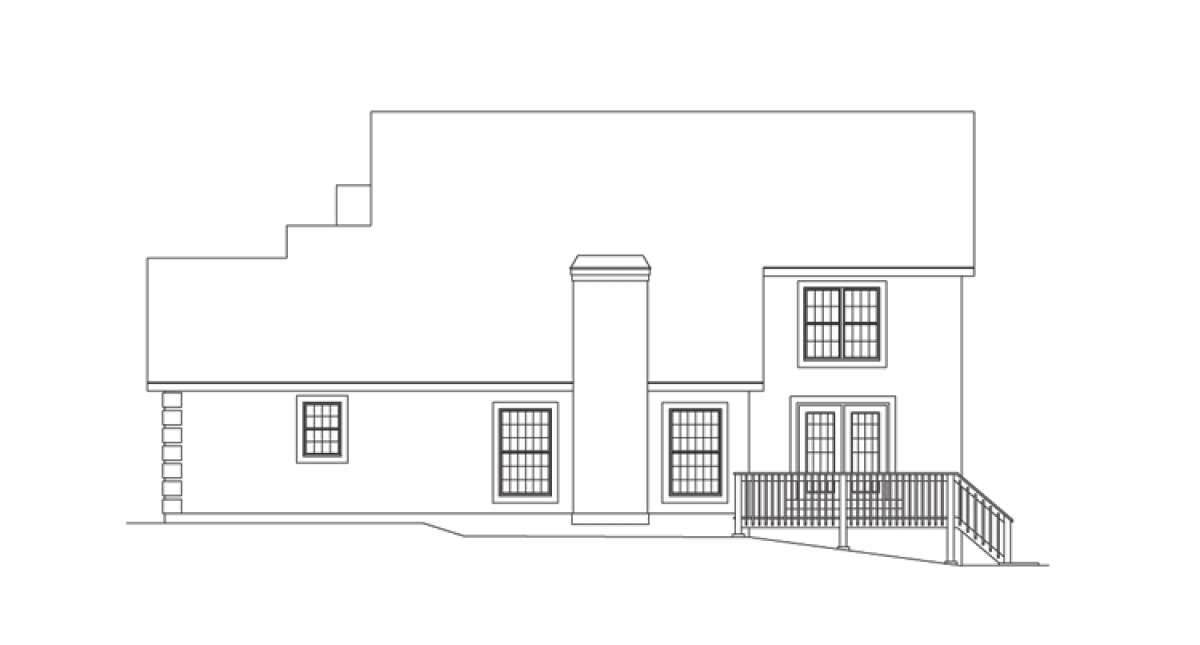

    This plan includes the exterior elevations (front, rear, right and left) that show and describe the finished materials of the house.
    The kitchen and bath elevations show the arrangement of each cabinet and other fixtures in the room. These drawings give basic information that can be used to create customized layouts with a cabinet manufacturer.
    Some details are included for interior and exterior conditions that require more specific information for their construction.
    This is a "bird's eye" view showing the roof slopes, ridges, valleys and any saddles.

Ask Us A Question

To request a modification quote, please use the Modification Request Form.

About This Plan

This two storied home is ideally suited for a narrow lot with its 37’width dimension. The charming exterior exudes enormous curb appeal with its use of stucco, numerous gables and a front covered entrance. The home features abundant living space in approximately 2,000 square feet located on two levels. The home’s drawings include a slab, crawl space and basement foundation which would substantially increase the home’s value and versatility. The front loading, two car garage provides easy entrance into the home as well as the front covered entrance. Entertaining is enjoyable and effortless in the home’s interior space that consists of a sunken living room with fireplace and rear deck access. There is a large dining room and a casual breakfast bar in the family friendly kitchen. The main level master suite is accessible through French doors and boasts of an enormous master bedroom with private deck access and an oversized master walk-in closet. The elegantly designed bath features French door access, dual vanities, a linen closet, private toilet area and a beautiful garden tub. A powder room for guests and dual staircase to the upper and lower levels complete the first floor.
The second floor of the home boasts of great space for the children or guests. An extended balcony overlooks the lower level living spaces and there are three additional bedrooms and two bathrooms. Bedroom two is spacious with ample closet space while the third bedroom features a walk-in closet. A shared hall bath with double vanities and double hall linen closet are available. Bedroom four features an oversized walk-in closet and a private full bath. This modern design features functional interior space, expansion possibilities and a spectacular exterior façade with enormous curb appeal.
