Contemporary Plan 5633-00036



To purchase a reversed plan, please select Right Reading Reverse under Additional Options.
Sq Ft 2,563
Beds 3
Bath 2
1/2 Baths 0
Car 2
Stories 1
Width 93'
Depth 51'

Floorplan Drawings

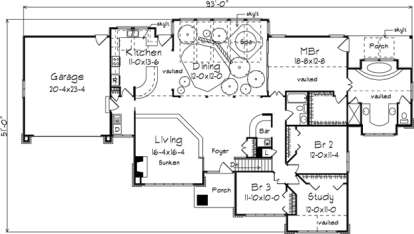

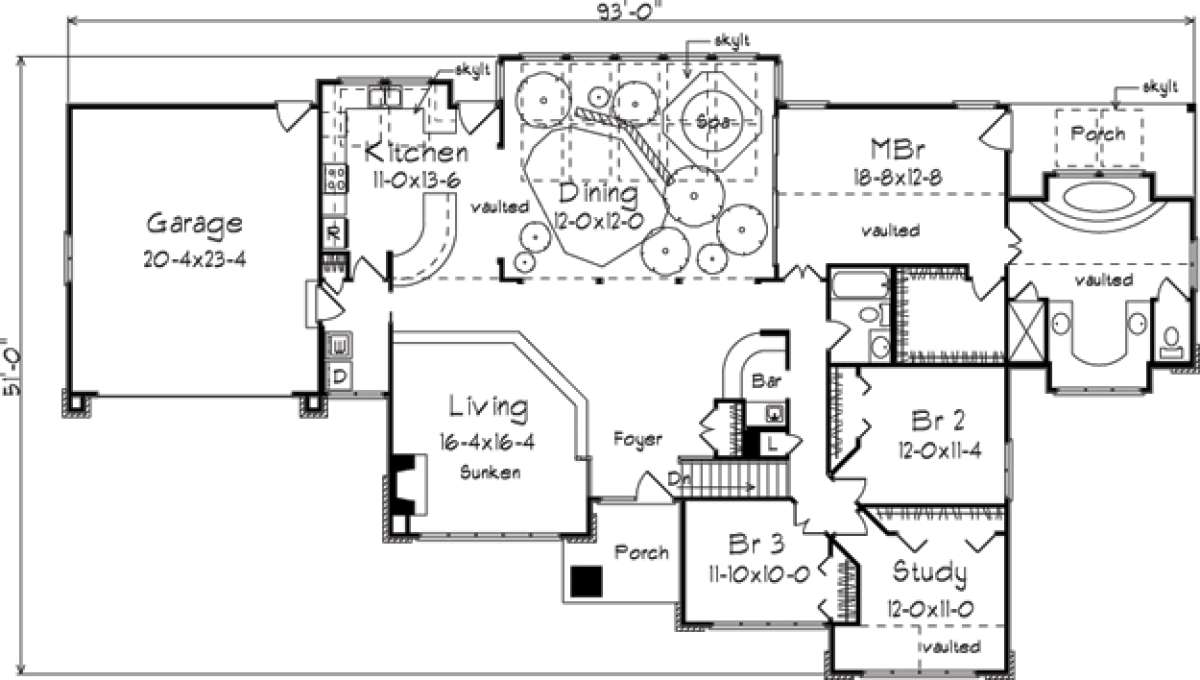

Floorplan 1
Floorplan 1 for House Plan #5633-00036

What's Included in these plans?

  • Heated and Cooled Square Footage calculations are made from outside the exterior frame wall and do not include decks, porches, garages, unfinished basements, bonus or attic space.
  • Artist Rendering
  • Foundation & Floor Plans (1/4"=1')
  • Front Elevations (1/4"=1'), Sides & Rear Elevation (1/8" or 1/4" = 1")
  • Kitchen and Bath Elevations (1/4"=1') **
  • Miscellaneous Details (1/4" to 3/4"=1')
  • Stair Section (1/4" to 3/8" = 1')
  • Roof Overview Plan (scale varies) **
    ** Some plans in this series do not provide cabinet elevations or roof overview.  Please call to verify.
    This home plan includes the floor plan showing the dimensioned locations of walls, doors, and windows as well as suggested locations for light fixtures, outlets and switches.

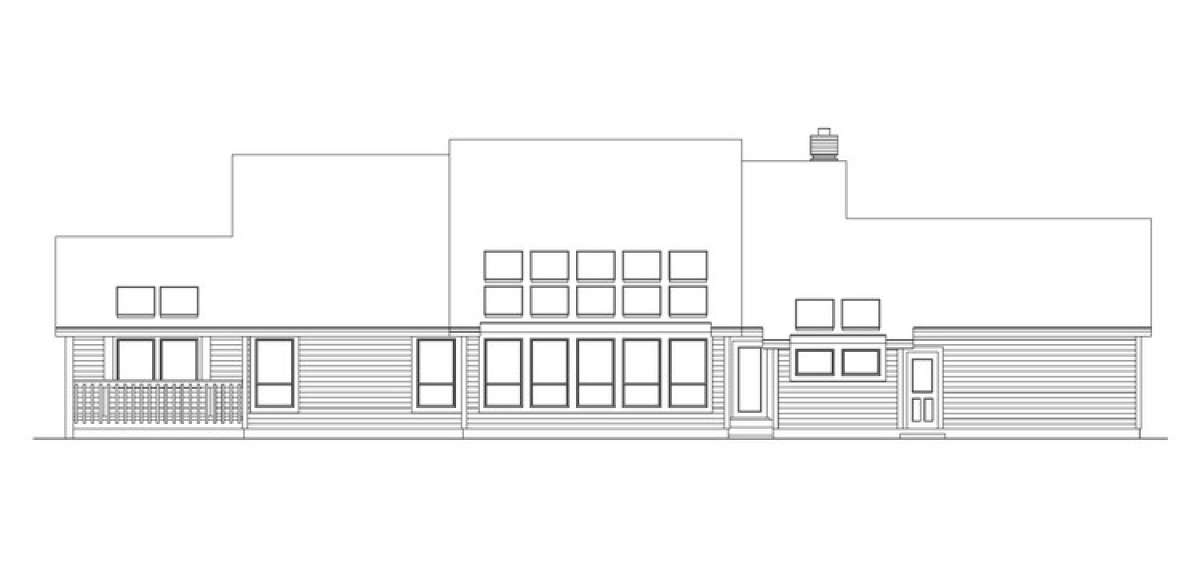

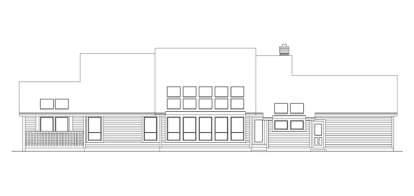

    This plan includes the exterior elevations (front, rear, right and left) that show and describe the finished materials of the house.
    The kitchen and bath elevations show the arrangement of each cabinet and other fixtures in the room. These drawings give basic information that can be used to create customized layouts with a cabinet manufacturer.
    Some details are included for interior and exterior conditions that require more specific information for their construction.
    This is a "bird's eye" view showing the roof slopes, ridges, valleys and any saddles.

Ask Us A Question

To request a modification quote, please use the Modification Request Form.

About This Plan

Clean lines, brick facing and a myriad of practical and decorative window views give this modern home charisma and character. A front covered entrance is the perfect spot to greet family and friends entering the home’s approximate 2,563 square feet of living space where three bedrooms and two baths are found. An added incentive to the home’s square footage is the basement foundation which secures the home’s vast expansion possibilities. The open concept plan encourages superior entertaining and features a sunken living room with a handsome fireplace and space delineation. The foyer is extensive and houses a coat closet and rounded open bar area. The rear of the home is highlighted with soaring ceiling heights and skylights creating a luxurious and spacious feel to the home. The kitchen features a rounded breakfast bar and a plethora of counter and cabinet space while the dining space is grand with a back wall of window panels. The two car garage has direct access to the interior laundry room resulting in a tidy and clean environment.
There are three bedrooms and two baths for the family’s sleeping and bathing comfort. Bedrooms two and three are comfortable with generous closet space and there is a shared hall bath and linen closet. There is a fourth bedroom which could double as a study; it has a large closet and vaulted ceiling heights along with outstanding natural light. The master retreat is situated at the rear of the home for privacy and includes French door access into the vaulted bedroom. The suite is complemented with an oversized walk-in closet and the master bath is a masterful blend of luxury and grandeur. There is a vaulted ceiling in the space along with U-shaped double vanities, a compartmentalized toilet, separate shower and an outstanding garden tub highlighted with a skylight. This home has generous proportions and a fully functional interior floor plan.
