Southern House Plan 5633-00034

Sq Ft1,845
1/2 Baths0
Width83' 0"
Depth42' 4"

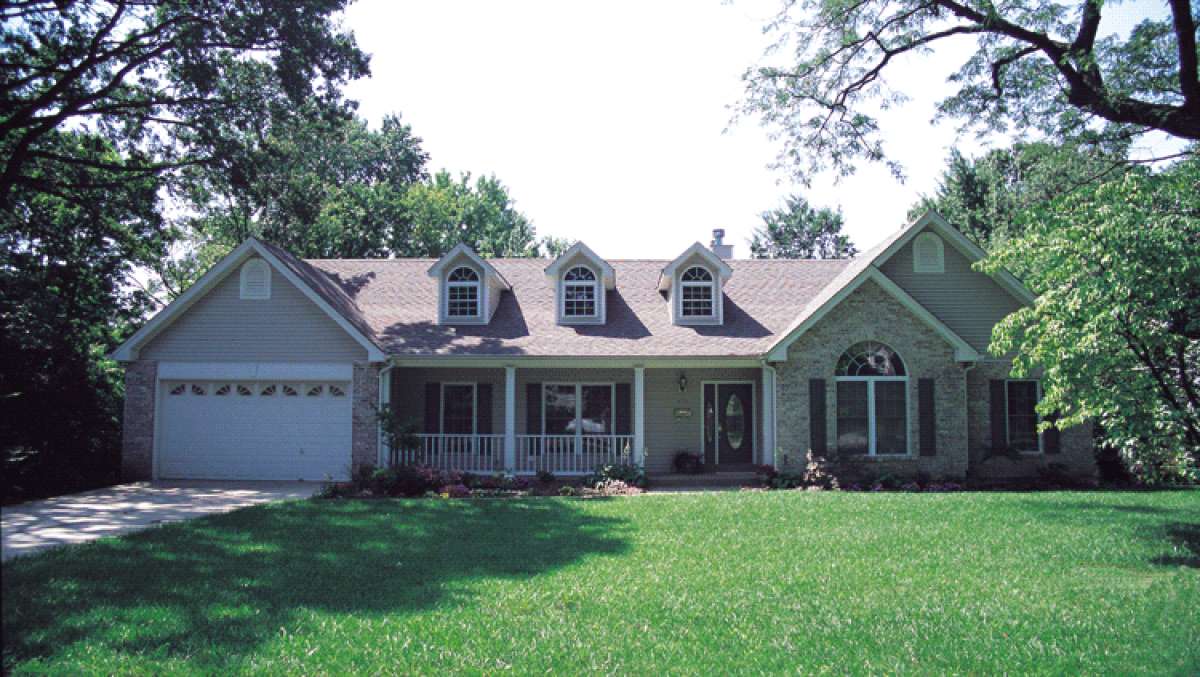

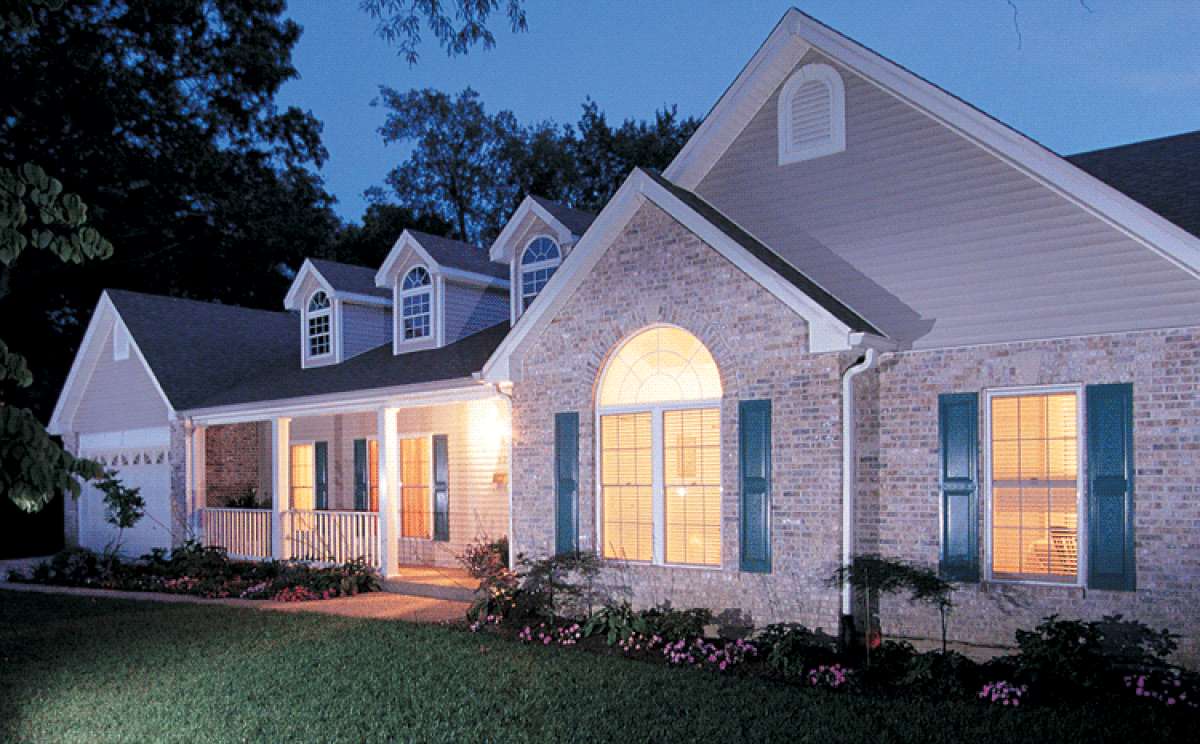

Images copyrighted by the designer. Photographs may reflect a homeowner modification.

Floorplan Drawings

 REVERSE  PRINT  DOWNLOAD Images copyrighted by the designer.
Floorplan 1 for House Plan #5633-00034
Floorplan 2 for House Plan #5633-00034

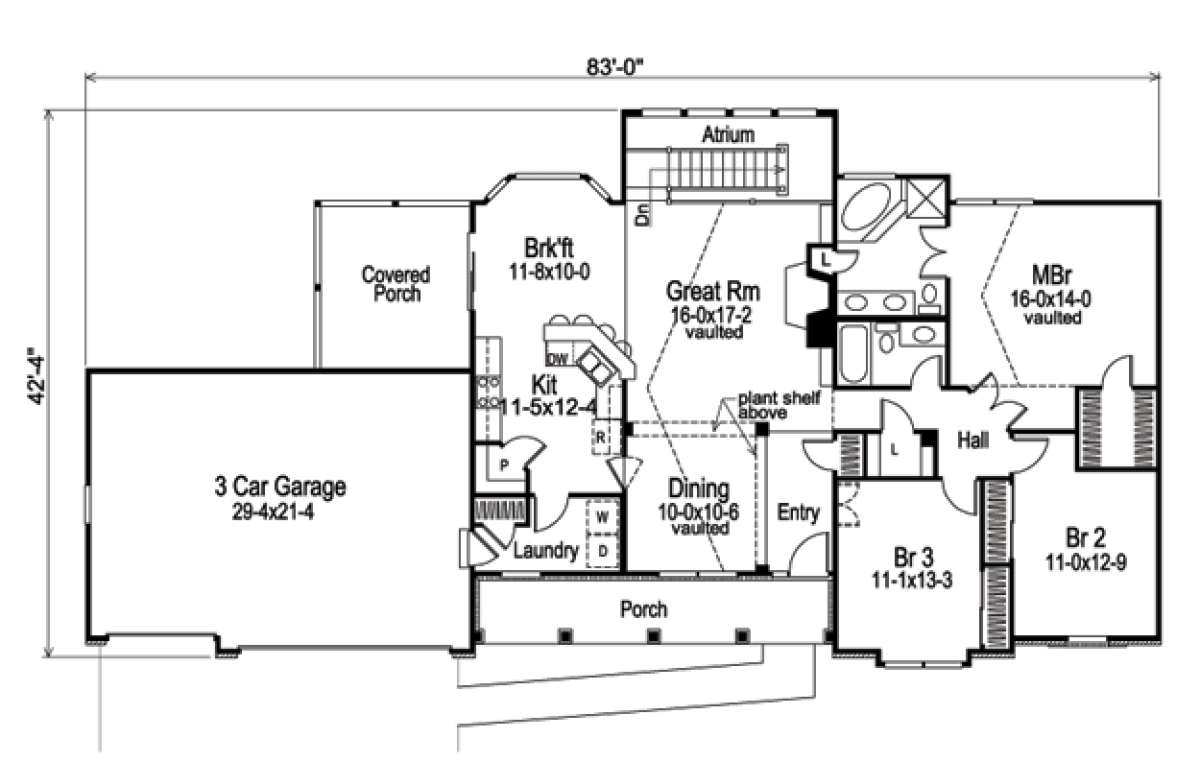

Floorplan 1
Floorplan 1 for House Plan #5633-00034

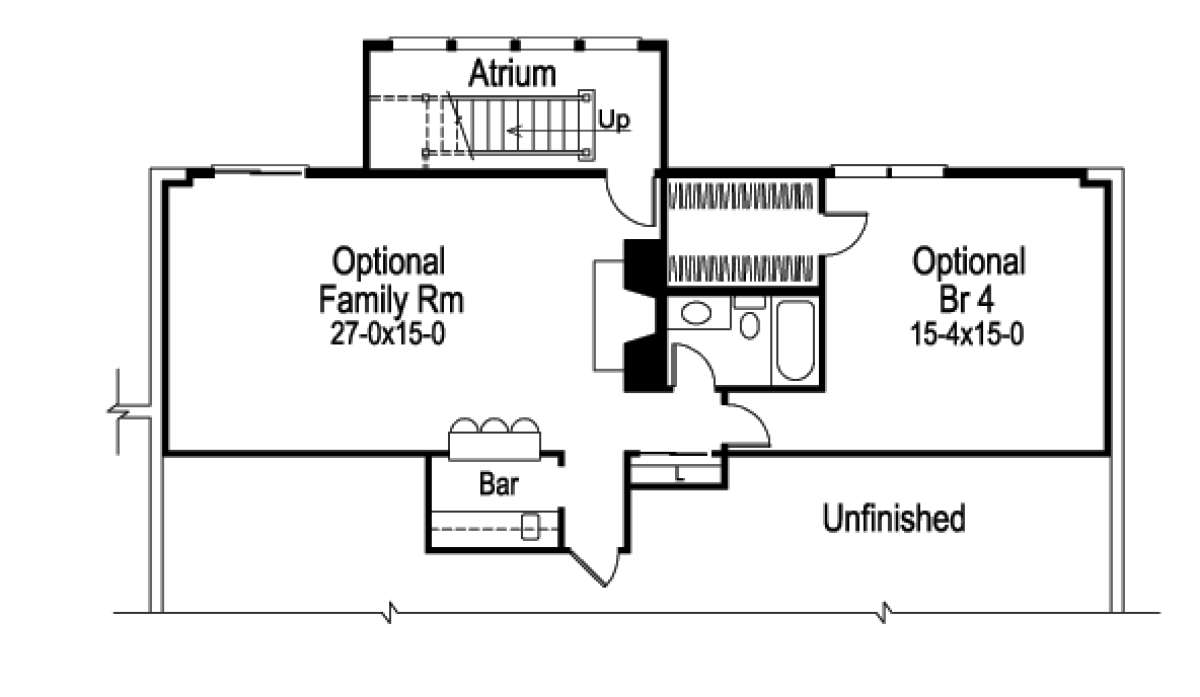

Floorplan 2
Floorplan 2 for House Plan #5633-00034

Frequently Asked Questions


What's Included in these plans?

  • Heated and Cooled Square Footage calculations are made from outside the exterior frame wall and do not include decks, porches, garages, unfinished basements, bonus or attic space.
  • Artist Rendering
  • Foundation & Floor Plans (1/4"=1')
  • Front Elevations (1/4"=1'), Sides & Rear Elevation (1/8" or 1/4" = 1")
  • Kitchen and Bath Elevations (1/4"=1') **
  • Miscellaneous Details (1/4" to 3/4"=1')
  • Stair Section (1/4" to 3/8" = 1')
  • Roof Overview Plan (scale varies) **
    ** Some plans in this series do not provide cabinet elevations or roof overview.  Please call to verify.
    This home plan includes the floor plan showing the dimensioned locations of walls, doors, and windows as well as suggested locations for light fixtures, outlets and switches.

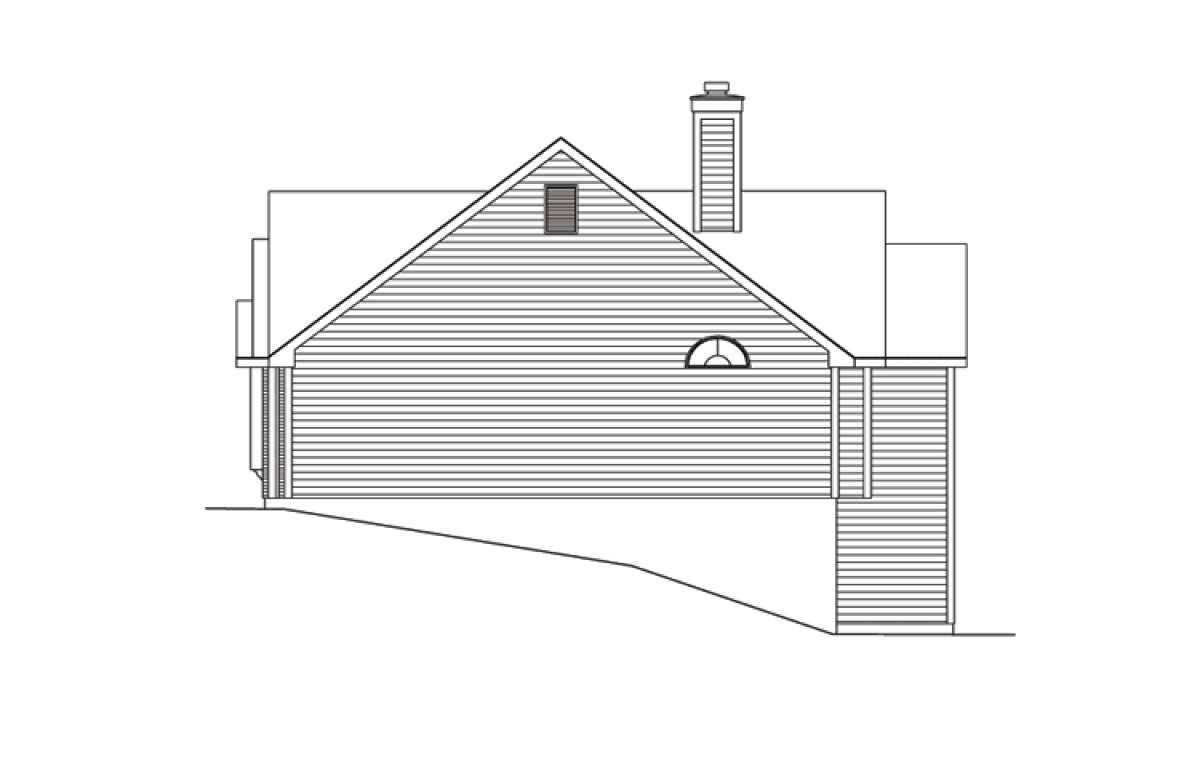

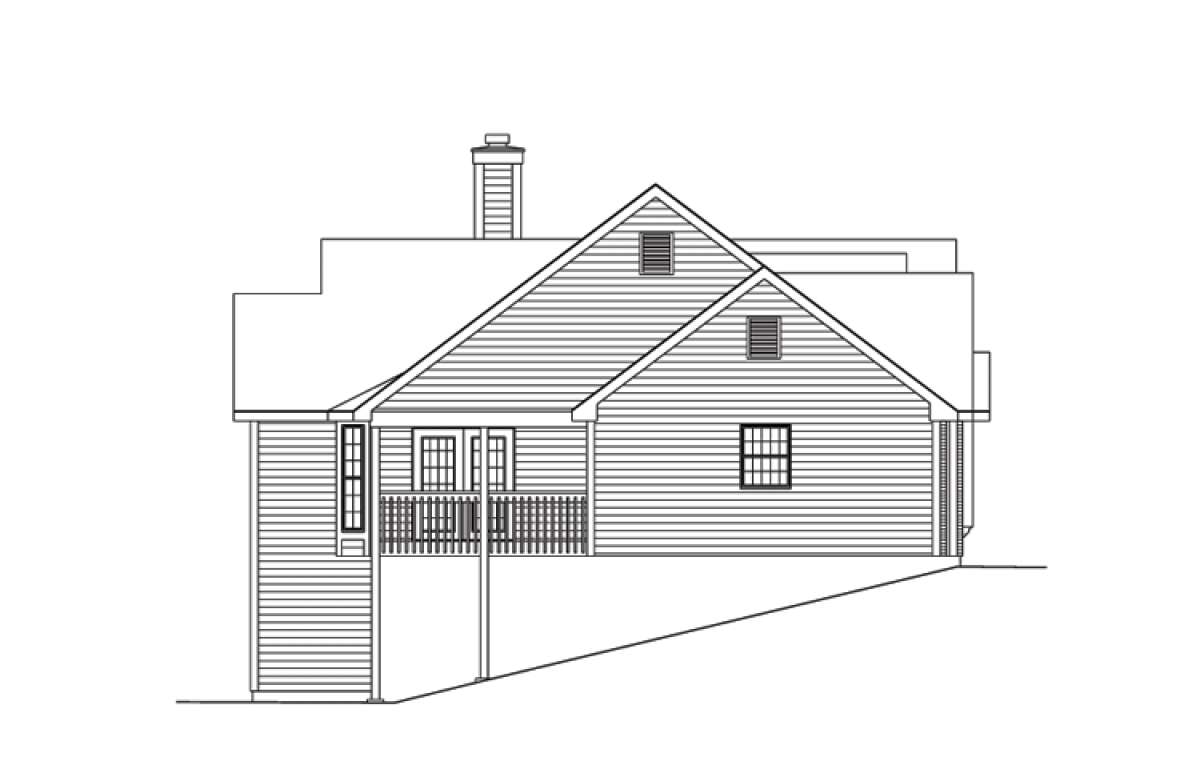

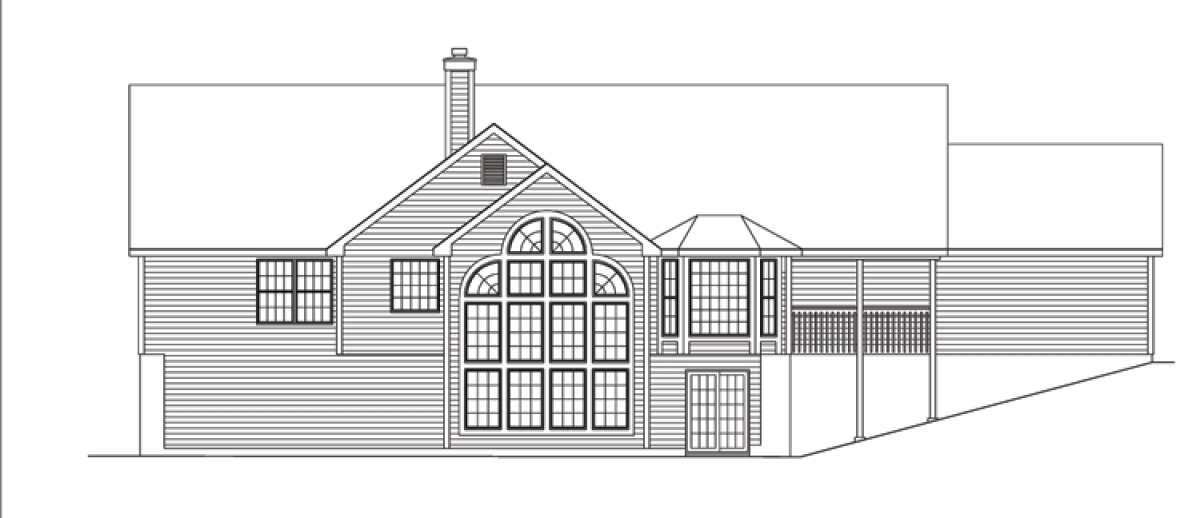

    This plan includes the exterior elevations (front, rear, right and left) that show and describe the finished materials of the house.
    The kitchen and bath elevations show the arrangement of each cabinet and other fixtures in the room. These drawings give basic information that can be used to create customized layouts with a cabinet manufacturer.
    Some details are included for interior and exterior conditions that require more specific information for their construction.
    This is a "bird's eye" view showing the roof slopes, ridges, valleys and any saddles.


E-mail Address:
Please leave blank:
Your Question:

To request a modification quote, please use the Modification Request Form.

About This Plan

Triple window dormers, wide eaves, multiple gables and an expansive front covered porch blend beautifully to define and strengthen this Southern house plan’s curb appeal. There are approximately 1,845 square feet of living space on the main floor of the home that incorporates three bedrooms and two baths into the space; an additional 889 square feet is available in the lower level, walk-out basement. The home’s drawings also are available with a slab and crawl space foundation for your convenience. The three car garage features an additional 626 square feet of space that allows for multiple vehicles and other storage items. An expansive foyer houses a coat closet and opens onto the formal dining room, which is vaulted and displays column accents, before extending into the home’s great room. This space is vaulted as well and features a handsome fireplace and is drenched in sunlight from the large atrium window wall. An angled breakfast bar is highlighted in the gourmet kitchen along with an oversized walk-in pantry and a multitude of additional counter and cabinet space. The light filled breakfast room is nestled into a triple bay window and provides access to the side covered porch great for entertaining or dining al fresco as a family. The large interior laundry room has a closet/storage space and is conveniently located off the garage.
Bedroom two is spacious with plentiful closet space while the third bedroom features an optional entrance off the foyer, great window views and generous closet space. There is a shared hall bath featuring a vanity space, toilet area, tub/shower combination and an oversized hall linen closet, as well. The master suite is situated at the rear of the home for privacy and offers a luxurious design; the master bedroom is large and vaulted with an attached oversized master walk-in closet. The elegant master bath is accessed through French doors and features dual vanities, a toilet area, linen closet, a separate closet and a lavish step-up garden tub with window views. The optional lower level features an abundance of space designed to include an enormous recreation room with wet bar, a fourth bedroom with an expansive walk-in closet and private full bath along with additional storage space. This large, family friendly home has great curb appeal and a fully functional and versatile interior floor plan.
