Traditional House Plan 5633-00033

Sq Ft2,716
1/2 Baths1
Width61' 4"
Depth46' 0"
Images copyrighted by the designer. Photographs may reflect a homeowner modification.

Floorplan Drawings

 REVERSE  PRINT  DOWNLOAD Images copyrighted by the designer.
Floorplan 1 for House Plan #5633-00033
Floorplan 2 for House Plan #5633-00033

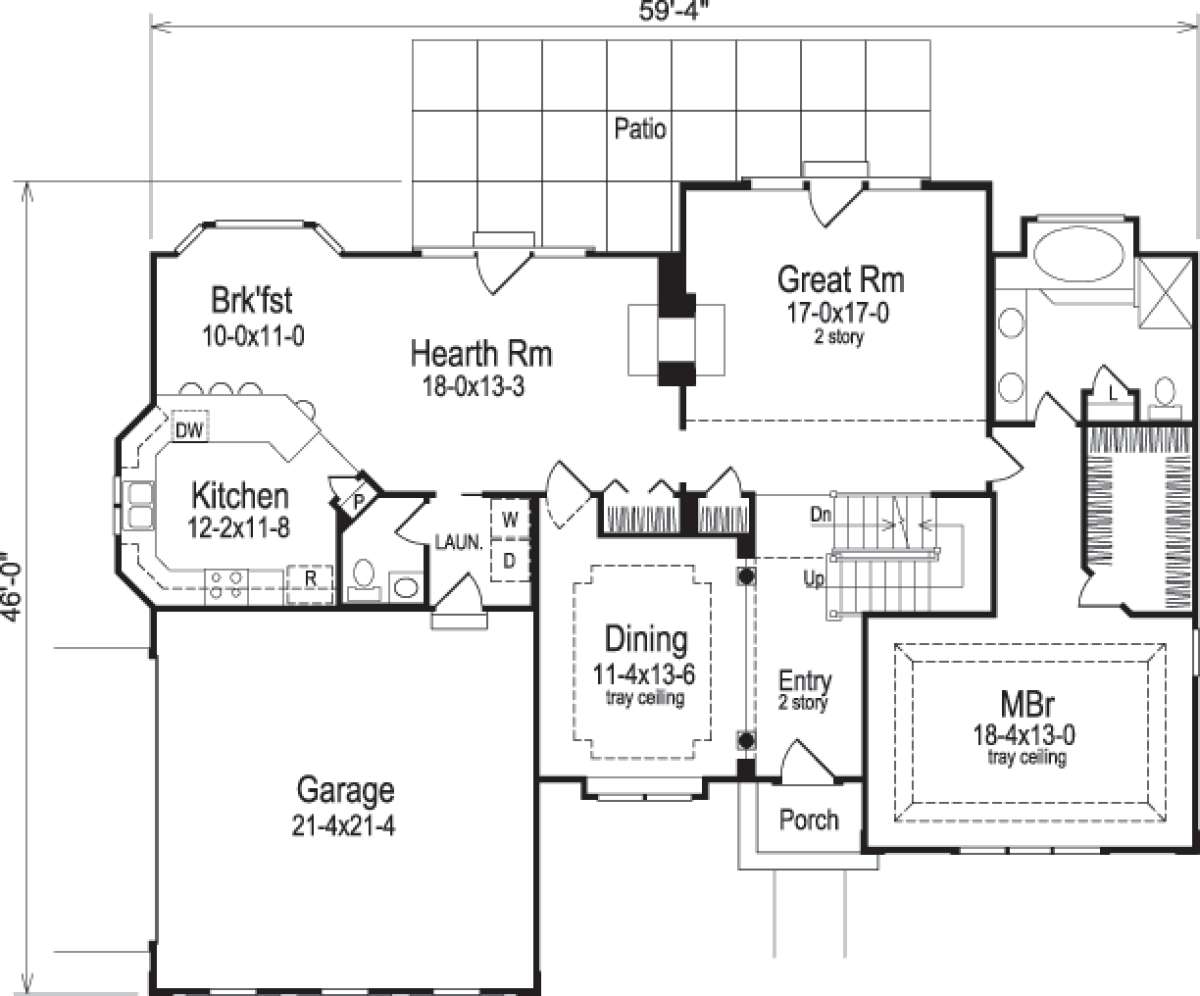

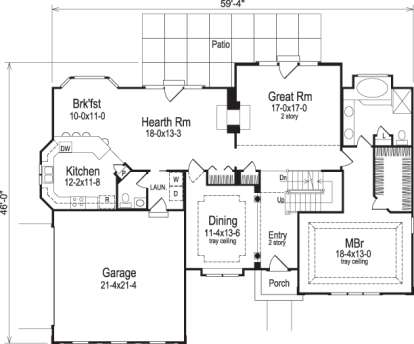

Floorplan 1
Floorplan 1 for House Plan #5633-00033

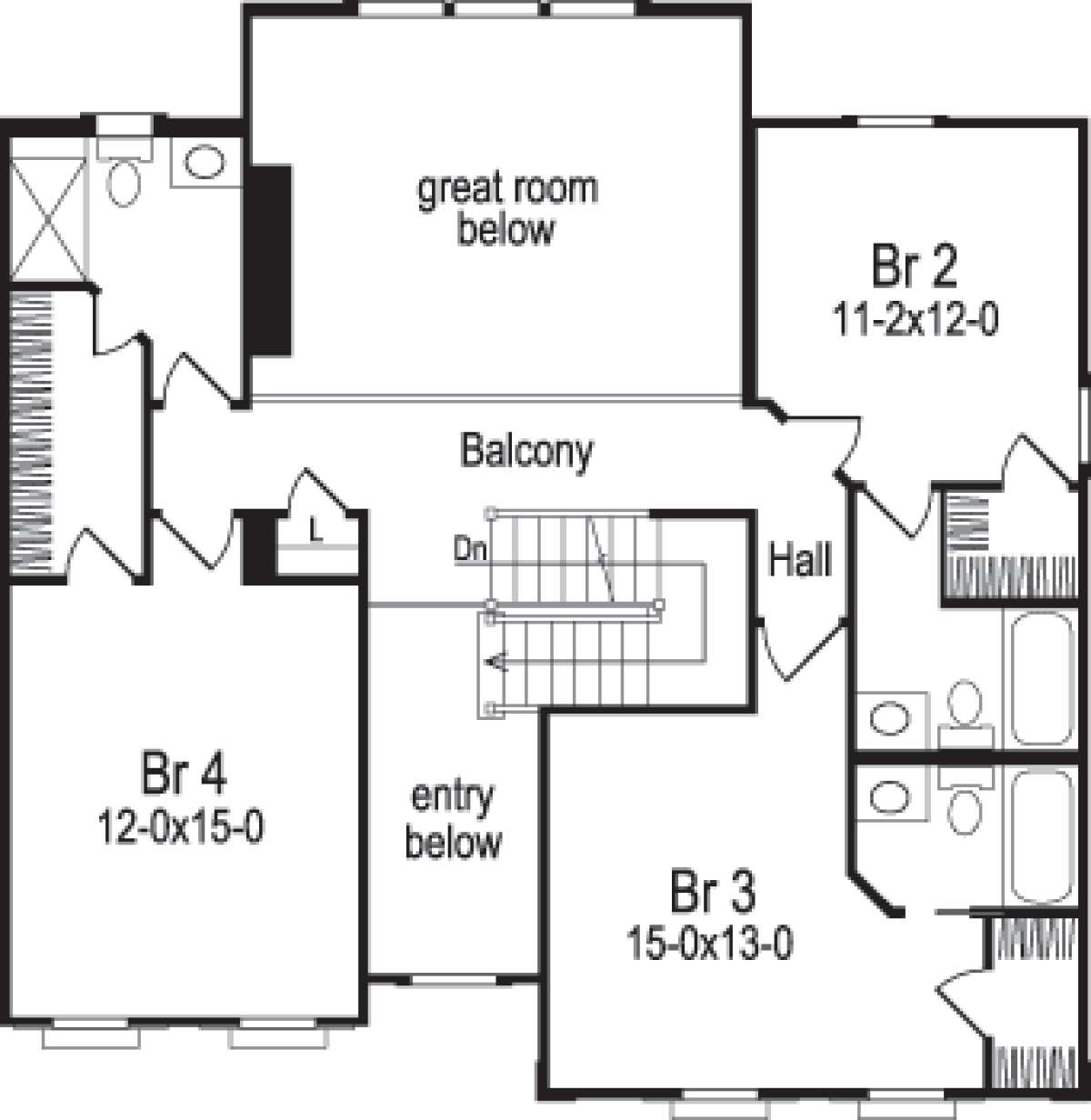

Floorplan 2
Floorplan 2 for House Plan #5633-00033

Frequently Asked Questions


What's Included in these plans?

  • Heated and Cooled Square Footage calculations are made from outside the exterior frame wall and do not include decks, porches, garages, unfinished basements, bonus or attic space.
  • Artist Rendering
  • Foundation & Floor Plans (1/4"=1')
  • Front Elevations (1/4"=1'), Sides & Rear Elevation (1/8" or 1/4" = 1")
  • Kitchen and Bath Elevations (1/4"=1') **
  • Miscellaneous Details (1/4" to 3/4"=1')
  • Stair Section (1/4" to 3/8" = 1')
  • Roof Overview Plan (scale varies) **
    ** Some plans in this series do not provide cabinet elevations or roof overview.  Please call to verify.
    This home plan includes the floor plan showing the dimensioned locations of walls, doors, and windows as well as suggested locations for light fixtures, outlets and switches.

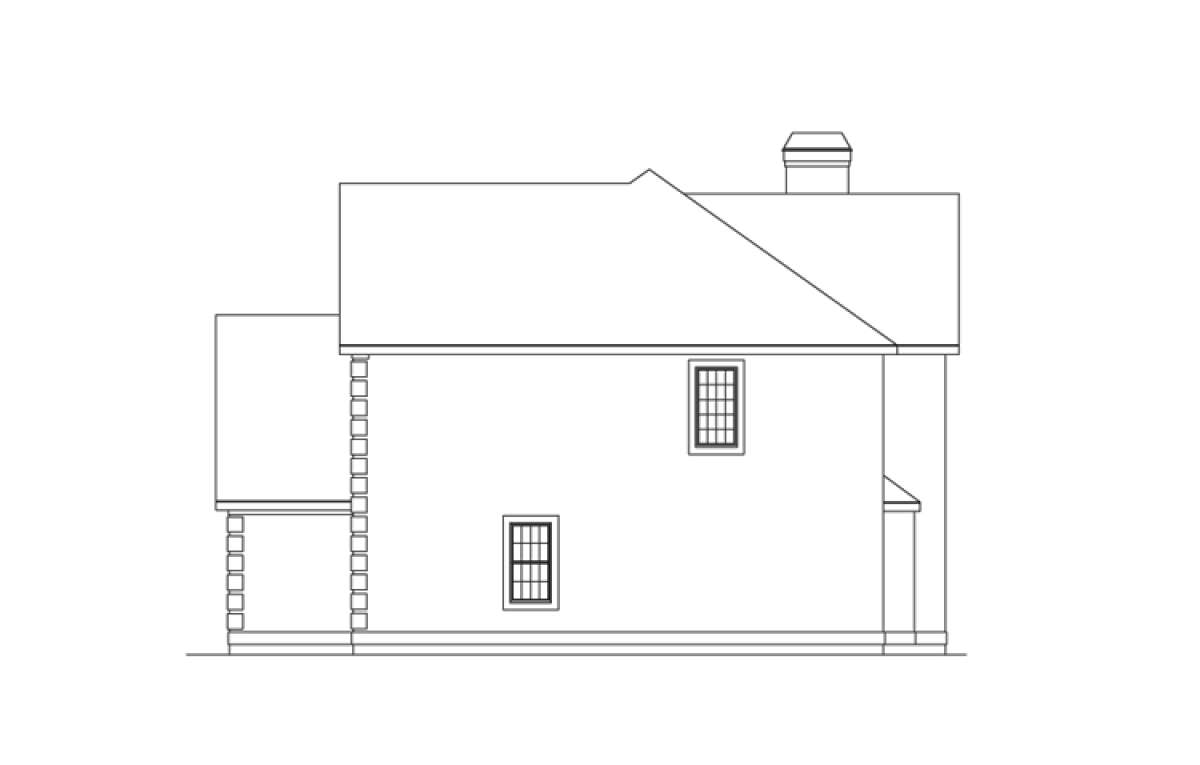

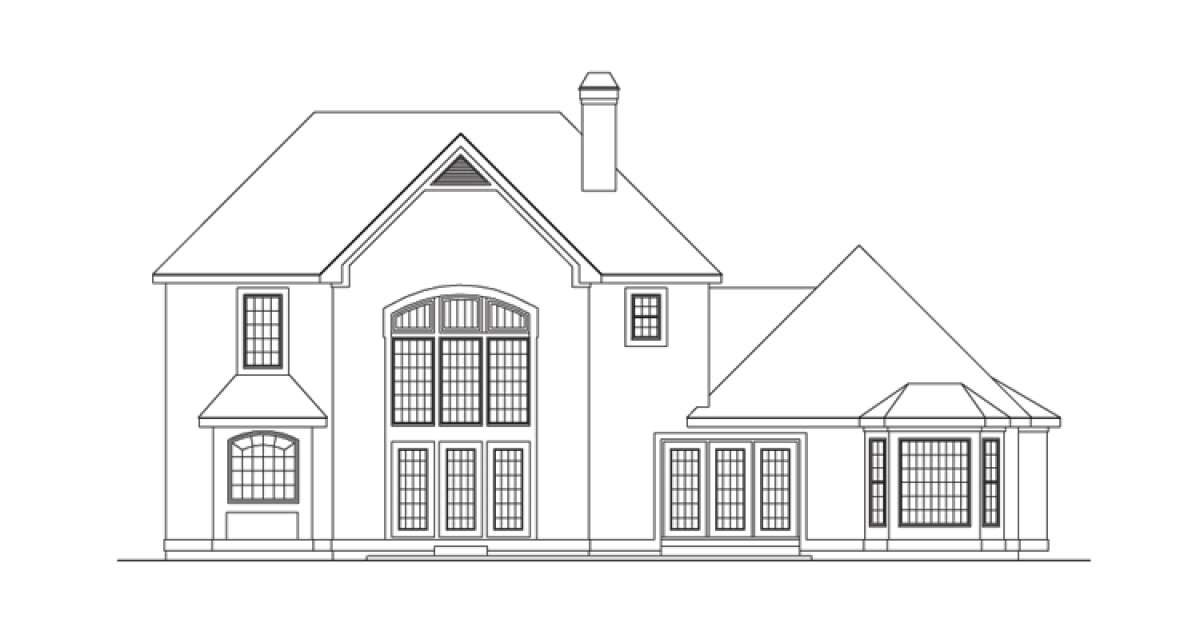

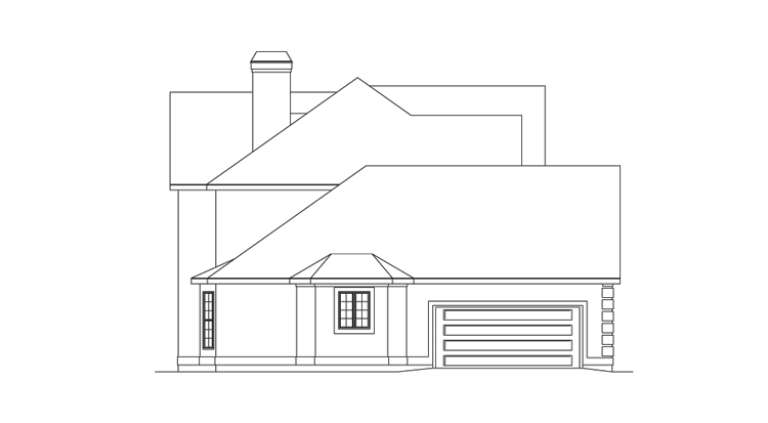

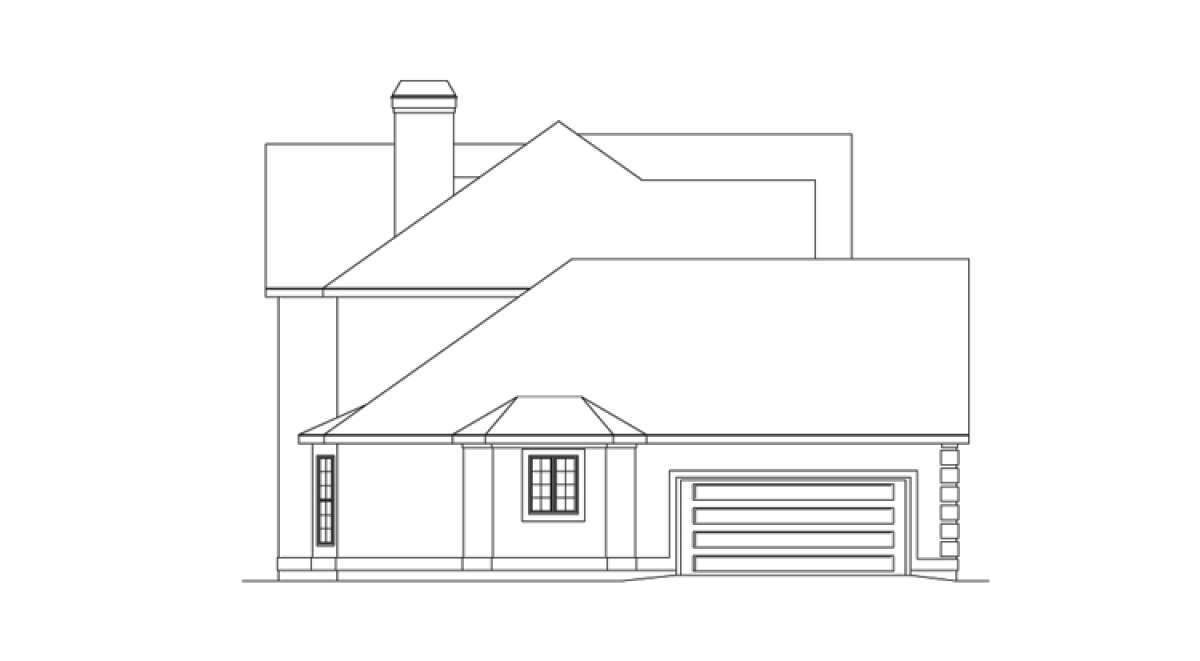

    This plan includes the exterior elevations (front, rear, right and left) that show and describe the finished materials of the house.
    The kitchen and bath elevations show the arrangement of each cabinet and other fixtures in the room. These drawings give basic information that can be used to create customized layouts with a cabinet manufacturer.
    Some details are included for interior and exterior conditions that require more specific information for their construction.
    This is a "bird's eye" view showing the roof slopes, ridges, valleys and any saddles.


E-mail Address:
Please leave blank:
Your Question:

To request a modification quote, please use the Modification Request Form.

About This Plan

Graceful elegance is highlighted in this Traditional house plan where a stucco exterior, multiple gables and decorative window boxes provide an element of surprise and grandeur. There are approximately 2,700 square feet of interior floor space in the home which incorporates four bedrooms and four plus baths into the space. A basement foundation further expands the space by 1,708 square feet offering spaciousness, versatility and value. The two story foyer entrance continues into the family’s great room, but not before passing by the formal dining room with trey ceiling. The great room contains a warming fireplace and rear access to the patio. The adjacent hearth room also features a fireplace and rear patio access making the home’s living spaces functional and comfortable. The gourmet kitchen features an angled breakfast bar, separate pantry and an outstanding layout containing loads of additional counter and cabinet space. There is a casual breakfast nook nestled into an expansive bayed window and the interior laundry room is conveniently situated off the two car garage. The master suite is situated on the first level of the home for privacy and features outstanding bedroom space measuring in excess of 18’x13’ with trey ceiling accent. There is an oversized master walk-in closet and an en suite master bath which includes dual vanities, a linen closet, separate shower and a garden tub.
Three oversized bedroom suites and balcony overlooks onto the main living spaces are highlighted on the second floor of the home. The second bedroom is spacious with a walk-in closet and private full bath. The third bedroom is clearly oversized with beautiful window views, a walk-in closet and its own private bath. Finally, the fourth bedroom features double walk-in closet access and an extended bedroom size along with a private access to the bathroom. This home is designed with comfort and versatility in mind for a family that enjoys their private space.
