Ranch House Plan 5633-00031

Sq Ft2,523
1/2 Baths0
Width90' 4"
Depth48' 4"
Images copyrighted by the designer. Photographs may reflect a homeowner modification.

Floorplan Drawings

 REVERSE  PRINT  DOWNLOAD Images copyrighted by the designer.

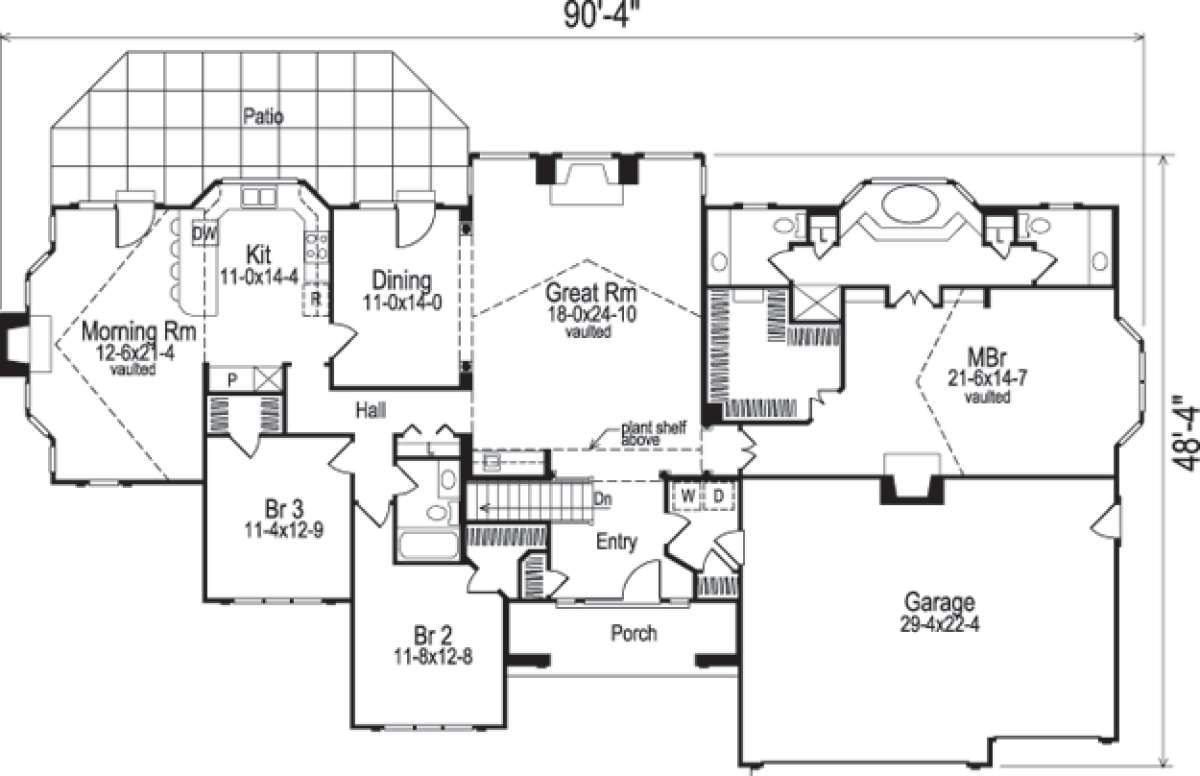

Floorplan 1 for House Plan #5633-00031
Floorplan 1
Floorplan 1 for House Plan #5633-00031

Frequently Asked Questions


What's Included in these plans?

  • Heated and Cooled Square Footage calculations are made from outside the exterior frame wall and do not include decks, porches, garages, unfinished basements, bonus or attic space.
  • Artist Rendering
  • Foundation & Floor Plans (1/4"=1')
  • Front Elevations (1/4"=1'), Sides & Rear Elevation (1/8" or 1/4" = 1")
  • Kitchen and Bath Elevations (1/4"=1') **
  • Miscellaneous Details (1/4" to 3/4"=1')
  • Stair Section (1/4" to 3/8" = 1')
  • Roof Overview Plan (scale varies) **
    ** Some plans in this series do not provide cabinet elevations or roof overview.  Please call to verify.
    This home plan includes the floor plan showing the dimensioned locations of walls, doors, and windows as well as suggested locations for light fixtures, outlets and switches.

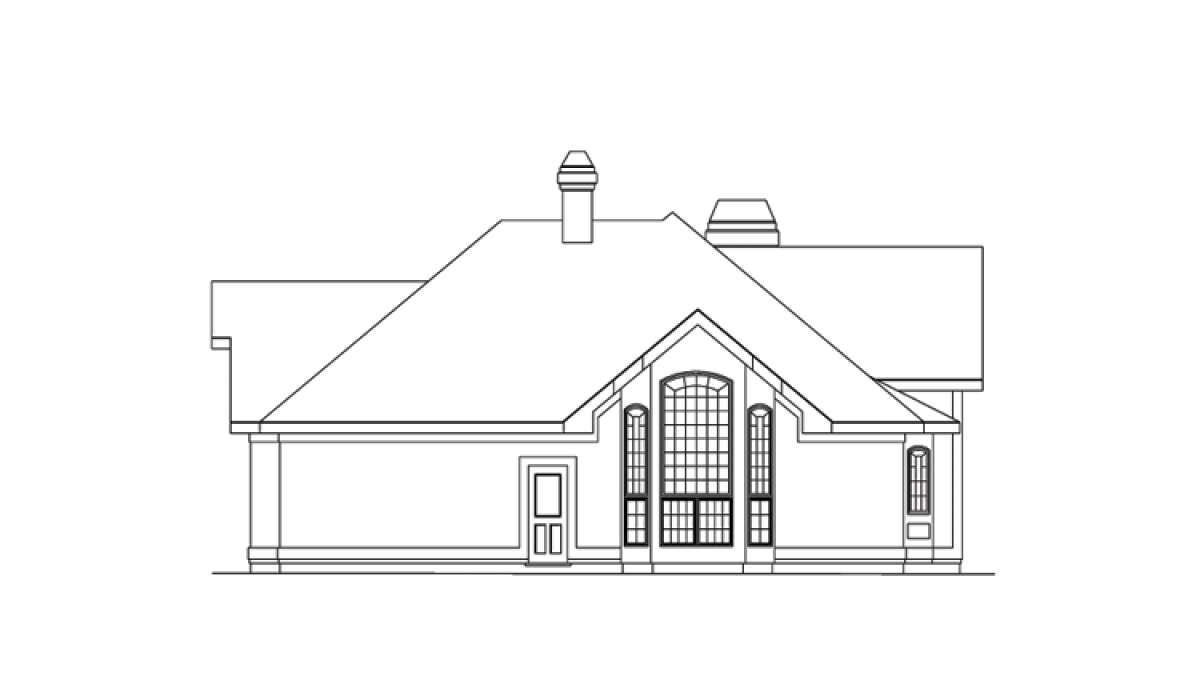

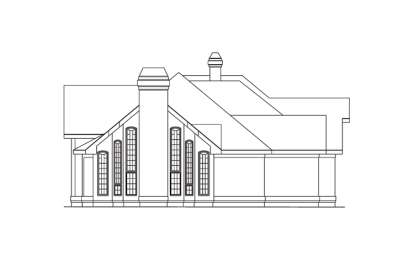

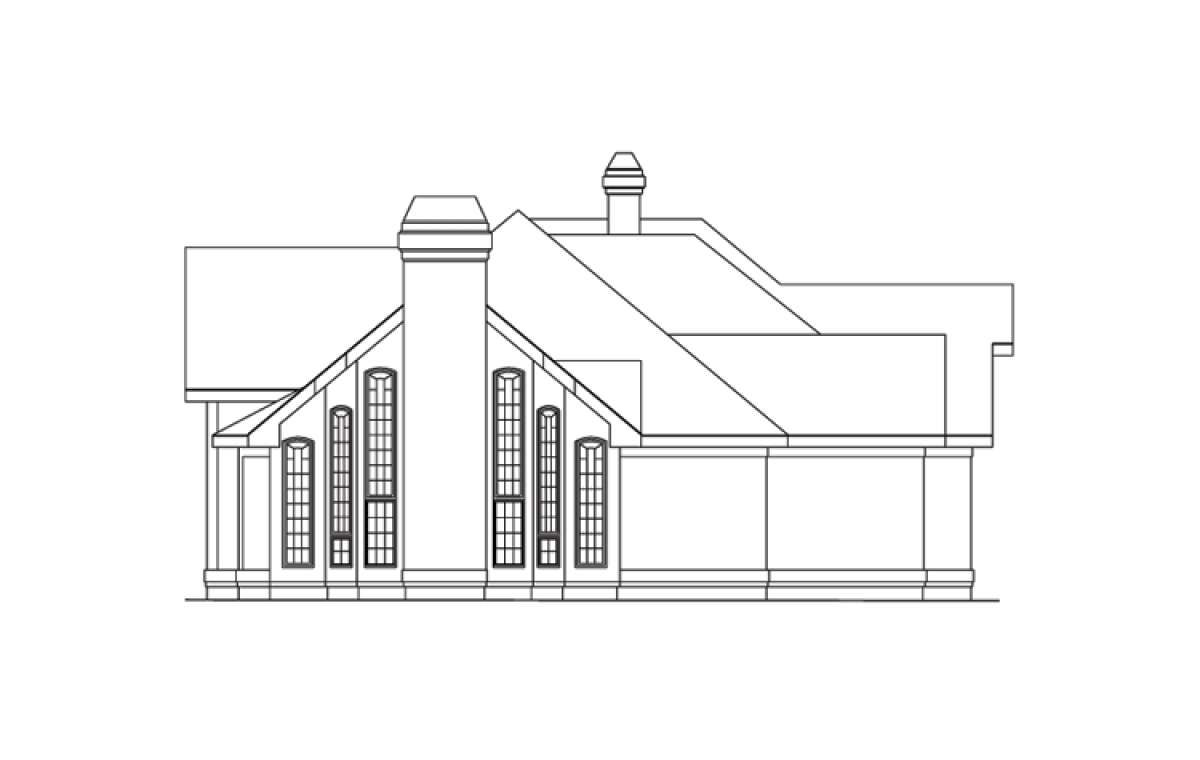

    This plan includes the exterior elevations (front, rear, right and left) that show and describe the finished materials of the house.
    The kitchen and bath elevations show the arrangement of each cabinet and other fixtures in the room. These drawings give basic information that can be used to create customized layouts with a cabinet manufacturer.
    Some details are included for interior and exterior conditions that require more specific information for their construction.
    This is a "bird's eye" view showing the roof slopes, ridges, valleys and any saddles.


E-mail Address:
Please leave blank:
Your Question:

To request a modification quote, please use the Modification Request Form.

About This Plan

A symmetrical approach adds balance to this classic Ranch exterior façade featuring a brick front with multiple gables and an inviting front porch entrance. The traditional interior floor plan offers room definition and large open spaces where entertaining guests and relaxing with family offers maximum benefit. The home’s versatility is satisfied with a slab, crawl space or basement foundation resulting in a myriad of expansion options if needed. There are approximately 2,500 square feet of living space on the main floor which encompasses three bedrooms and two baths into the space. A three car garage is perfect for vehicle and other storage items and the interior laundry room’s location provides a tidy environment in which to enter the home. There is a spacious foyer that leads to the commanding great room where vaulted ceiling heights and a handsome fireplace are displayed. The adjoining dining room is highlighted with columned beams and provides direct patio access. The U-shaped kitchen anchors the formal dining space and casual morning room. The kitchen is designed with a separate pantry and plenty of counter and cabinet space including the breakfast bar which opens onto the morning room. This space is ideal for family relaxing and enjoys a vaulted ceiling, a handsome fireplace and is encased in beautiful window views.
The bedroom plan offers maximum privacy with two family styled bedrooms located on one side of the home; both bedrooms are spacious with triple window walls and walk-in closets. There is an adjacent hall bath and linen closet for the bedrooms usage. The master suite is the epitome of luxury; the master bedroom is accessible through French doors and features soaring ceiling heights, a fireplace, a large bayed window and an enormous amount of floor space. There is another set of French doors leading to the oversized master walk-in closet and a third set of French doors lead to the luxuriously designed en suite bath. The master bathroom has a front and center step-up garden tub wrapped in a beautiful triple bay window; additionally, there is a separate shower, linen closet and private double vanities and toilet areas. This Ranch home displays luxury and grandeur designed for the homeowner’s pleasure and comfort.
