Traditional House Plan 5633-00029

Sq Ft2,336
Beds4
Baths2
1/2 Baths1
Stories1
Cars2
Width49' 8"
Depth42' 4"
Images copyrighted by the designer. Photographs may reflect a homeowner modification.

Floorplan Drawings

 REVERSE  PRINT  DOWNLOAD Images copyrighted by the designer.
Floorplan 1 for House Plan #5633-00029
Floorplan 2 for House Plan #5633-00029

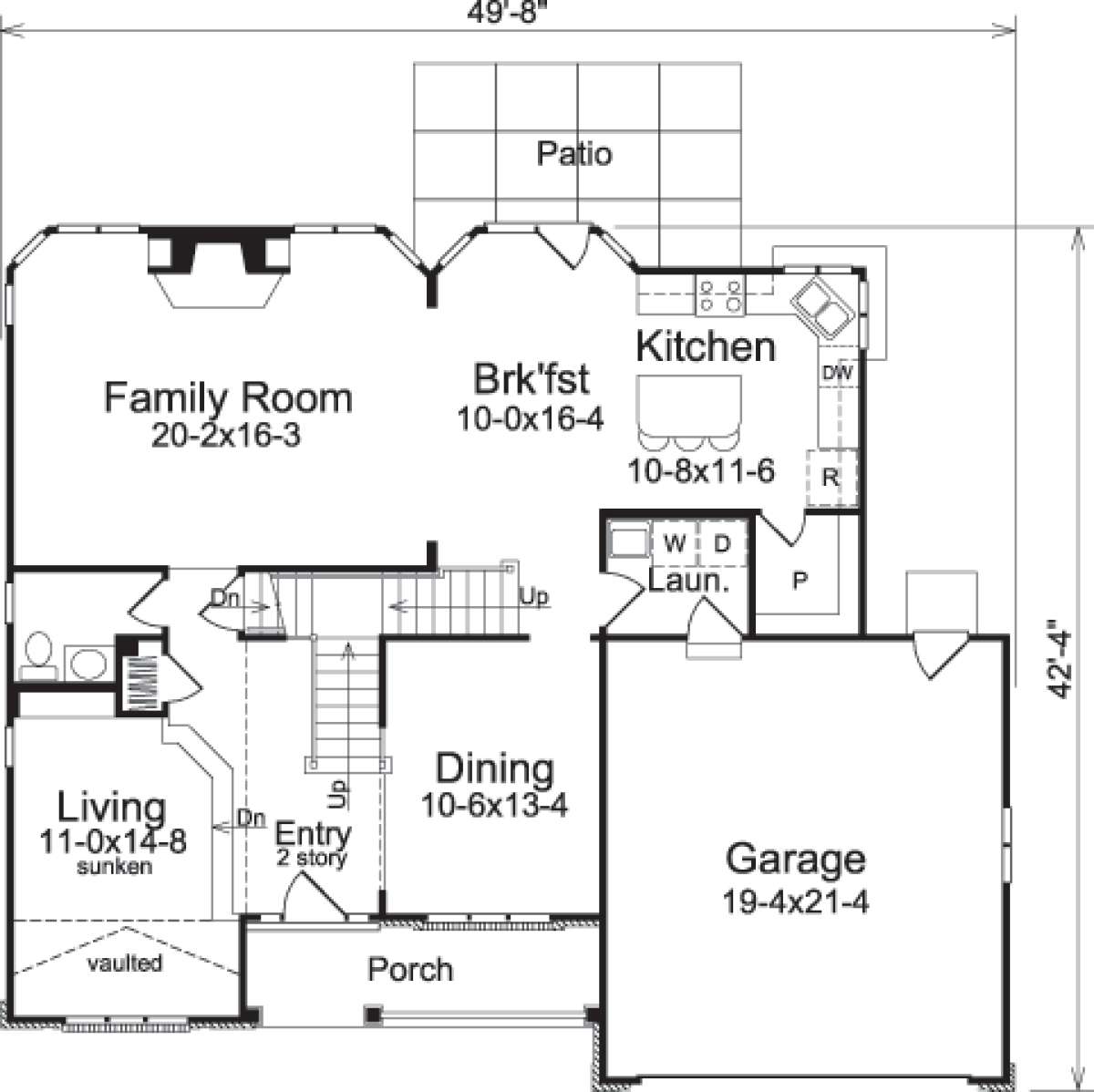

Floorplan 1
Floorplan 1 for House Plan #5633-00029

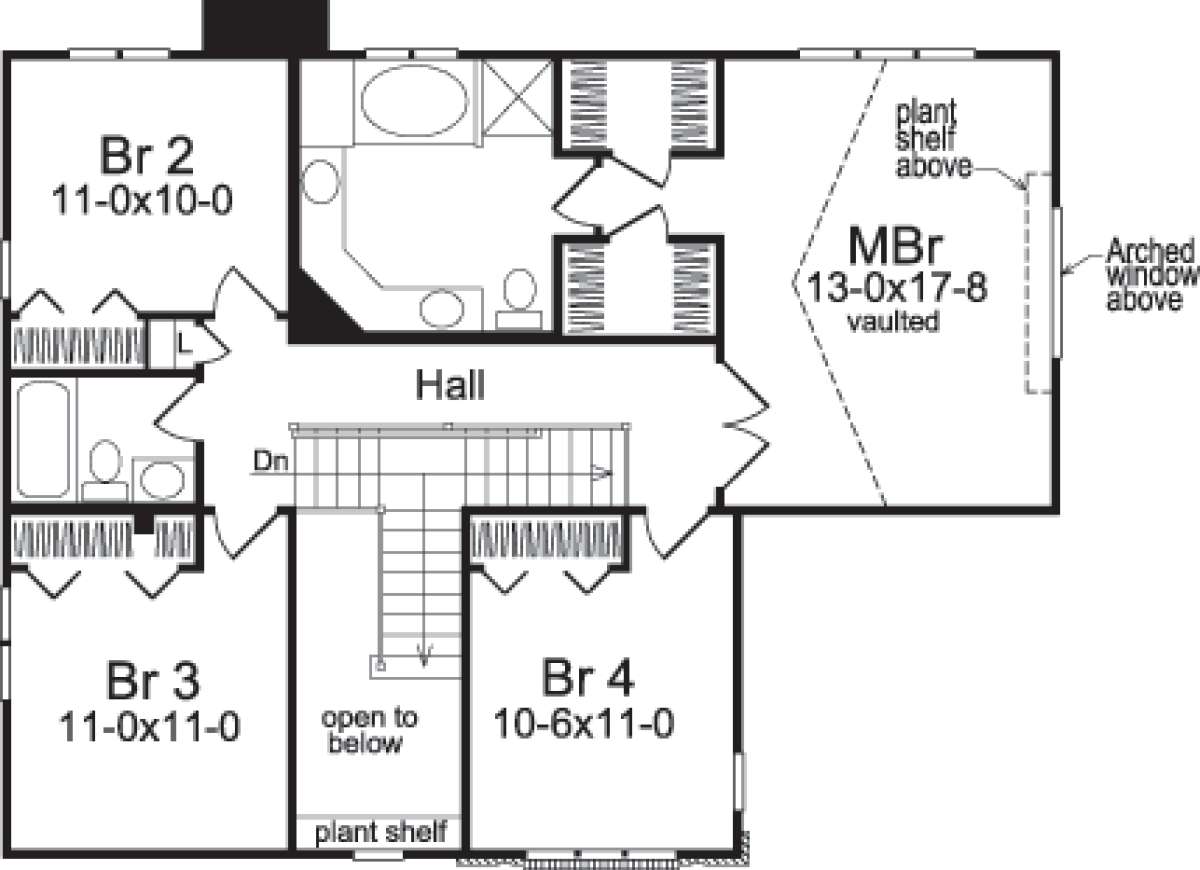

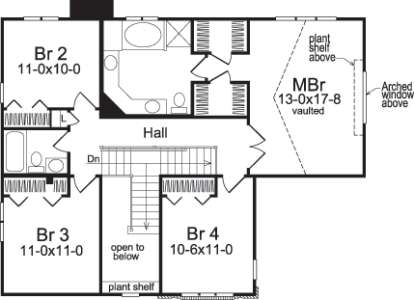

Floorplan 2
Floorplan 2 for House Plan #5633-00029


Frequently Asked Questions

COST TO BUILD REPORT

What's Included in these plans?

  • Heated and Cooled Square Footage calculations are made from outside the exterior frame wall and do not include decks, porches, garages, unfinished basements, bonus or attic space.
  • Artist Rendering
  • Foundation & Floor Plans (1/4"=1')
  • Front Elevations (1/4"=1'), Sides & Rear Elevation (1/8" or 1/4" = 1")
  • Kitchen and Bath Elevations (1/4"=1') **
  • Miscellaneous Details (1/4" to 3/4"=1')
  • Stair Section (1/4" to 3/8" = 1')
  • Roof Overview Plan (scale varies) **
    ** Some plans in this series do not provide cabinet elevations or roof overview.  Please call to verify.
  • FLOOR PLANS
    This home plan includes the floor plan showing the dimensioned locations of walls, doors, and windows as well as suggested locations for light fixtures, outlets and switches.

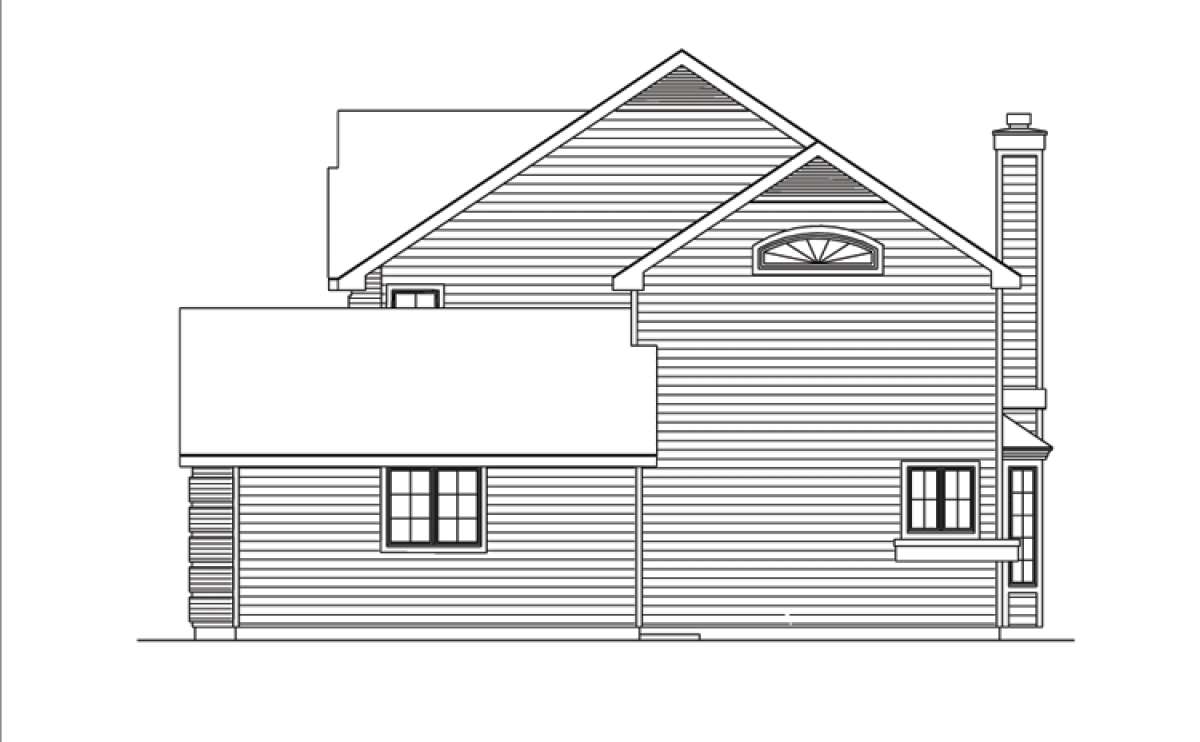

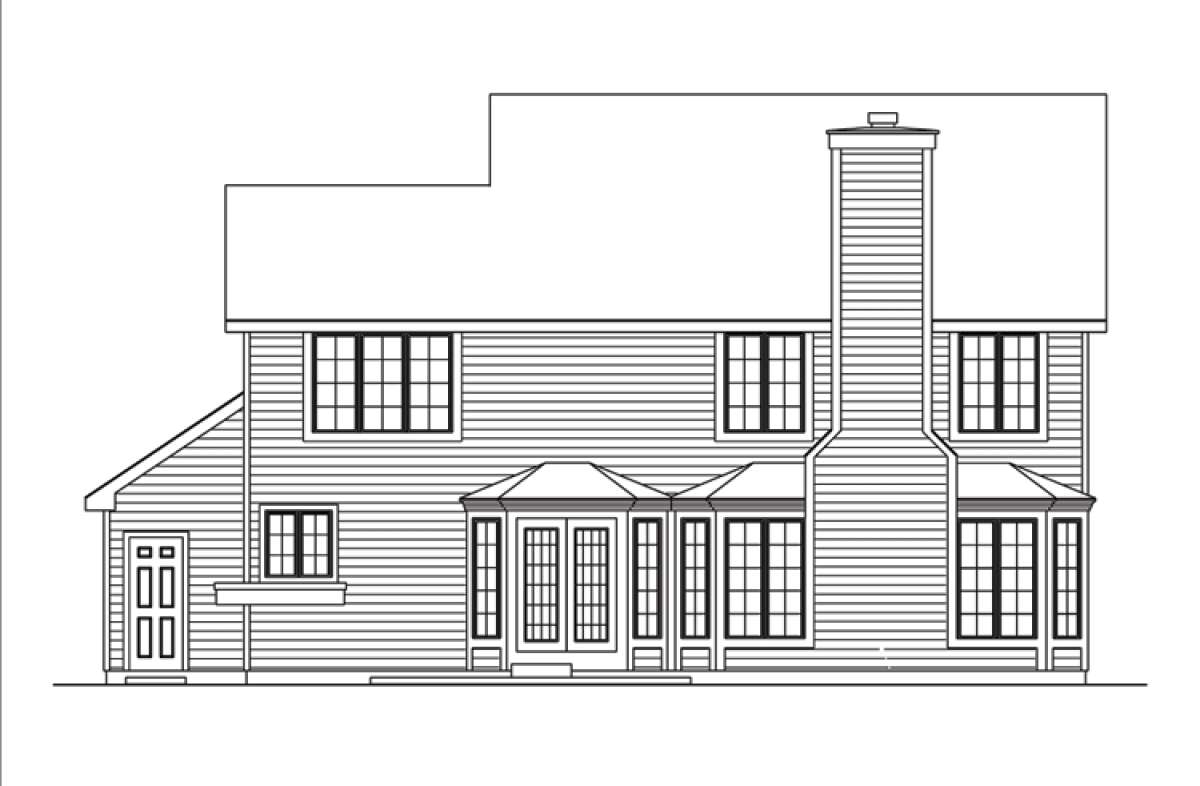

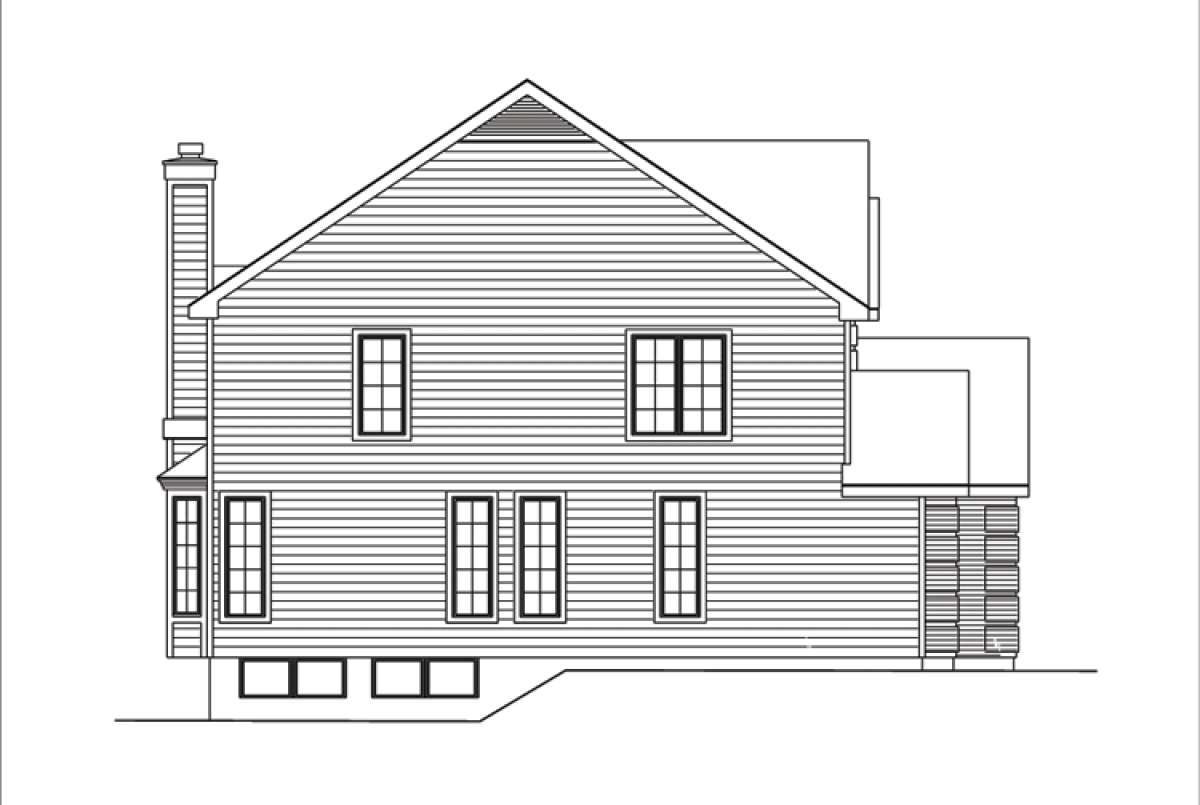

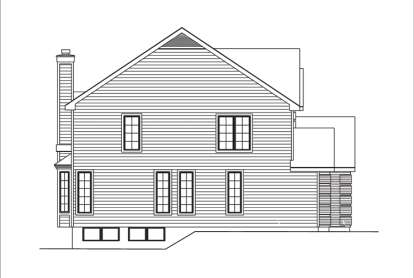

  • SET OF ELEVATIONS
    This plan includes the exterior elevations (front, rear, right and left) that show and describe the finished materials of the house.
    KITCHEN AND BATH ELEVATIONS
    The kitchen and bath elevations show the arrangement of each cabinet and other fixtures in the room. These drawings give basic information that can be used to create customized layouts with a cabinet manufacturer.
  • MISCELLANEOUS DETAILS
    Some details are included for interior and exterior conditions that require more specific information for their construction.
  • ROOF OVERVIEW PLAN
    This is a "bird's eye" view showing the roof slopes, ridges, valleys and any saddles.

ASK US A QUESTION

Name:
E-mail Address:
Password: (for robots)
Your Question:

To request a modification quote, please use the Modification Request Form.

About This Plan

Two delightful stories of interior spaces are highlighted in this traditional house design. The exterior façade is a bold mix of brick and siding with a front country covered porch that is welcoming and inviting. The traditional floor plan features unlimited entertaining options on the first level of the home and private family space on the second level. A centrally located staircase is situated in the two story foyer which opens onto the formal dining and living rooms. The dining room features a large space perfect for special occasion and family event dining. The living room is vaulted and sunken creating a dramatic space for entertaining. There is a guest closet and powder room before reaching the rear of the home where family relaxing and dining is evident. The family room is a massive space, measuring in excess of 20’x16’ with a rear wall fireplace is flanked by a multitude of window views. The breakfast room is nestled into a large bayed window which provides patio access. The gourmet kitchen is certainly a space in which the most discriminating chef would be happy to create delicious meals. There is a large center island with an attached breakfast bar, an enormous walk-in pantry and loads of additional counter and cabinet space included. The spacious interior laundry room with sink area is directly accessible from the two car garage.
Ascending the second level staircase is a plant shelf and overlook in the foyer below. Three bedrooms are available; each is spacious with generous closet space and the adjacent hall bath and linen closet are nearby. The master retreat has French door access into the bedroom which is vaulted with great window views and a plant shelf. His and her master walk-in closets line the hallway to the en suite bath. The master bath enjoys a large footprint with double vanities, a separate shower and a garden tub with views. This home has a traditional floor plan that is functional and comfortable along with a charming exterior façade.
