Traditional Plan 5633-00025


To purchase a reversed plan, please select Right Reading Reverse under Additional Options.
Sq Ft 2,597
Beds 4
Bath 3
1/2 Baths 1
Car 2
Stories 2
Width 61' 8"
Depth 54' 4"

Floorplan Drawings

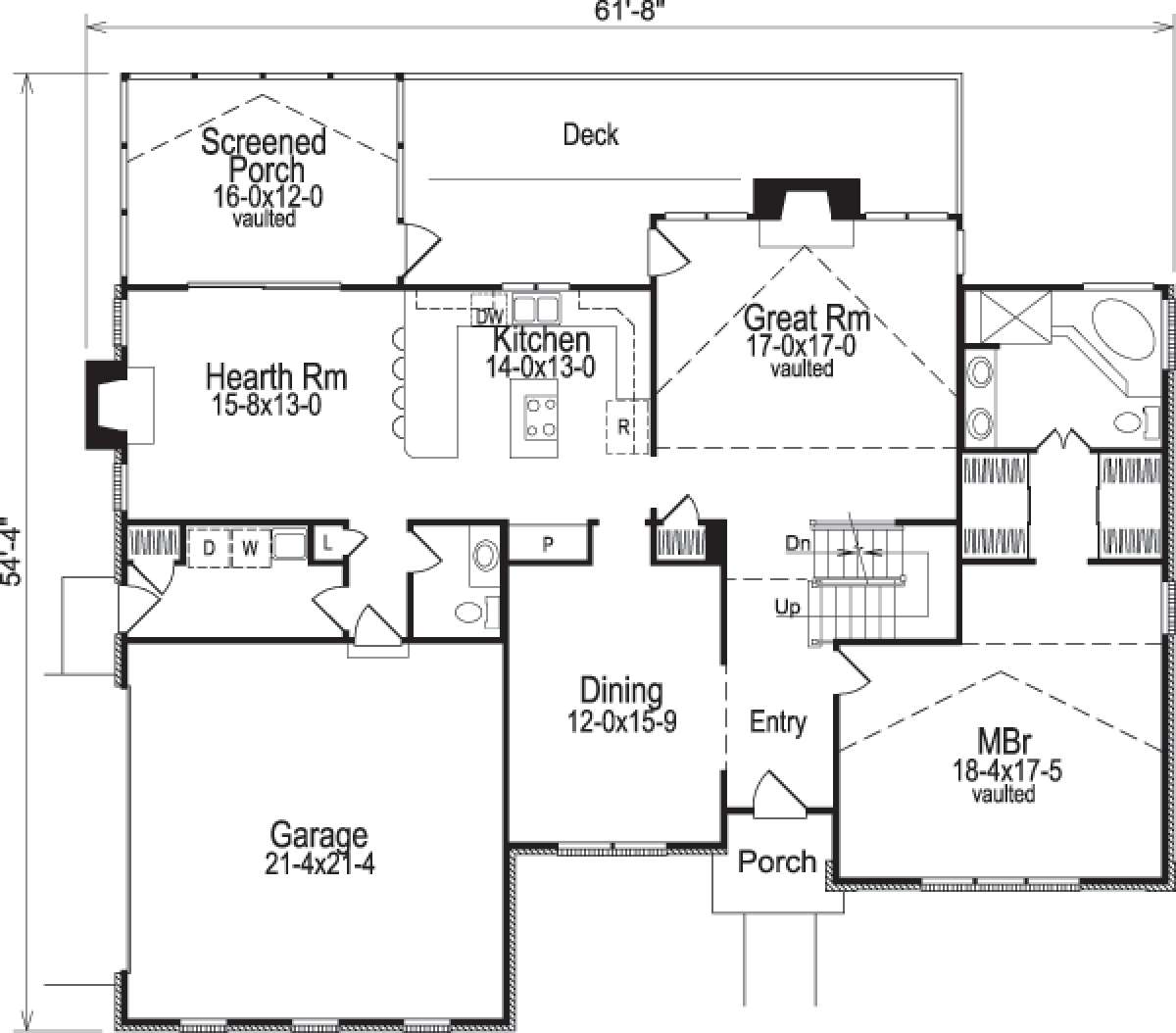

Floorplan 1
Floorplan 1 for House Plan #5633-00025

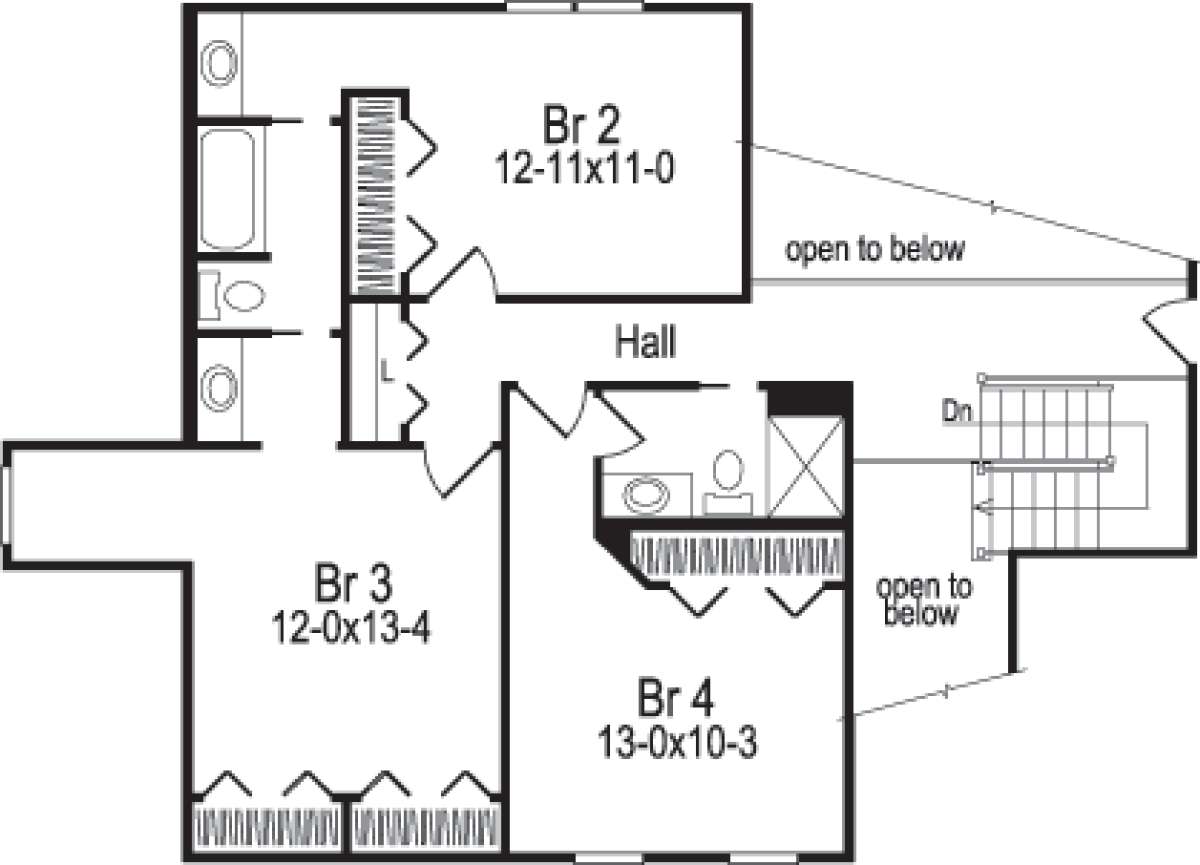

Floorplan 2
Floorplan 2 for House Plan #5633-00025

What's Included in these plans?

  • Heated and Cooled Square Footage calculations are made from outside the exterior frame wall and do not include decks, porches, garages, unfinished basements, bonus or attic space.
  • Artist Rendering
  • Foundation & Floor Plans (1/4"=1')
  • Front Elevations (1/4"=1'), Sides & Rear Elevation (1/8" or 1/4" = 1")
  • Kitchen and Bath Elevations (1/4"=1') **
  • Miscellaneous Details (1/4" to 3/4"=1')
  • Stair Section (1/4" to 3/8" = 1')
  • Roof Overview Plan (scale varies) **
    ** Some plans in this series do not provide cabinet elevations or roof overview.  Please call to verify.
    This home plan includes the floor plan showing the dimensioned locations of walls, doors, and windows as well as suggested locations for light fixtures, outlets and switches.

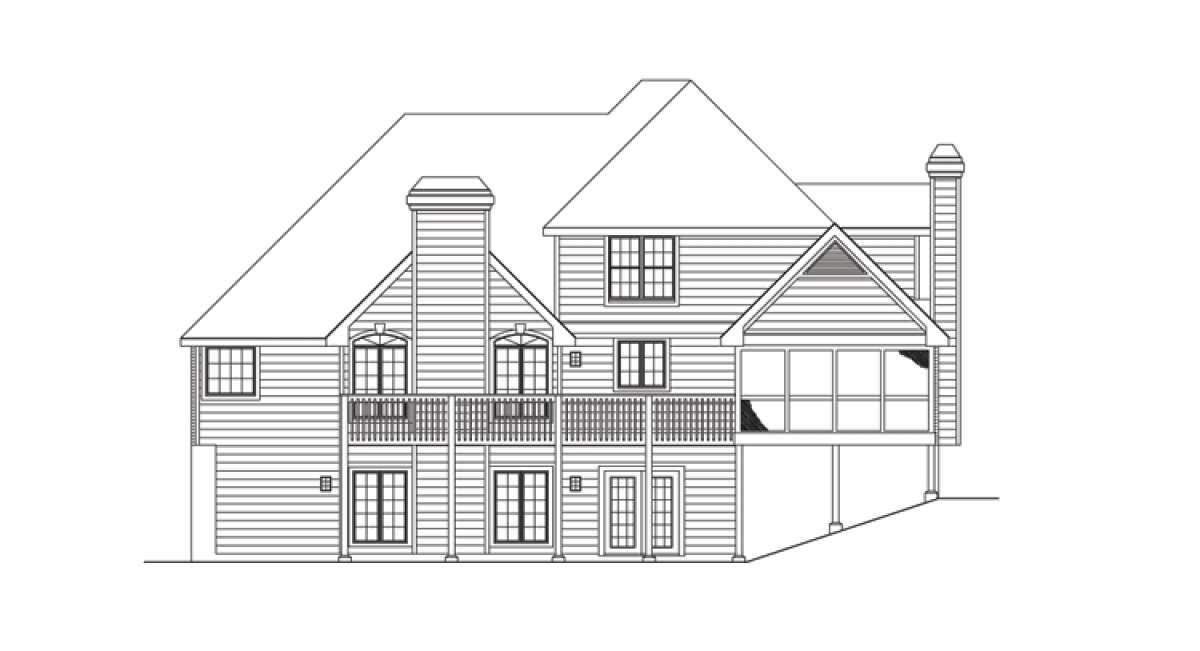

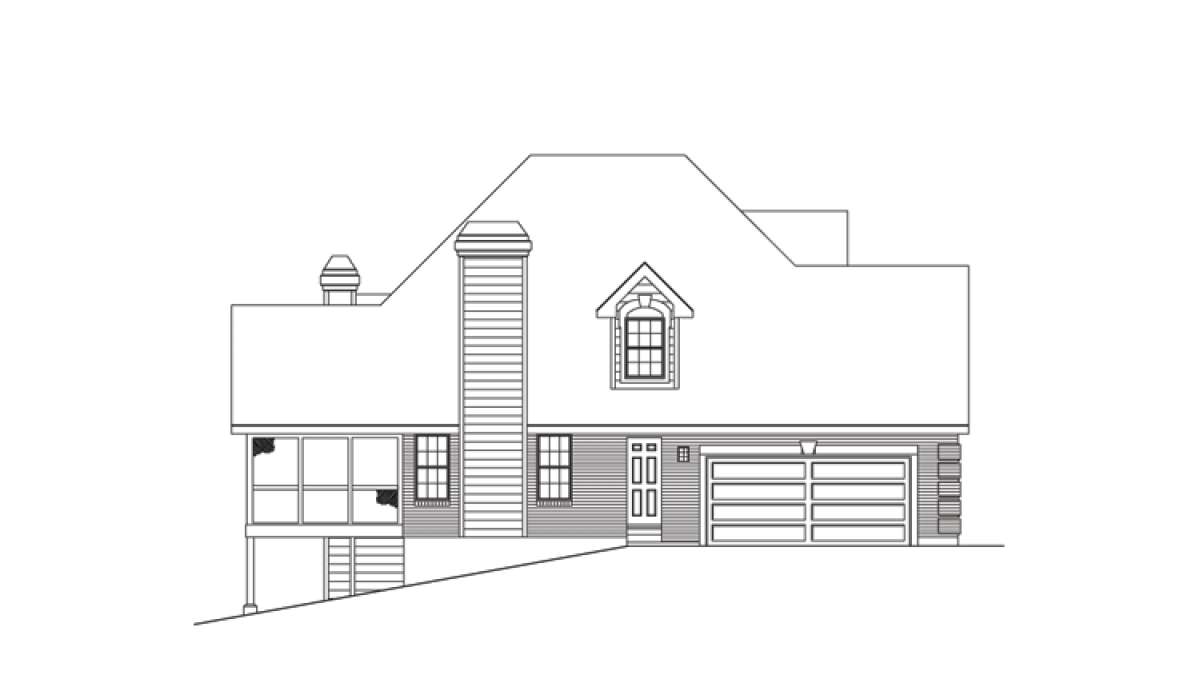

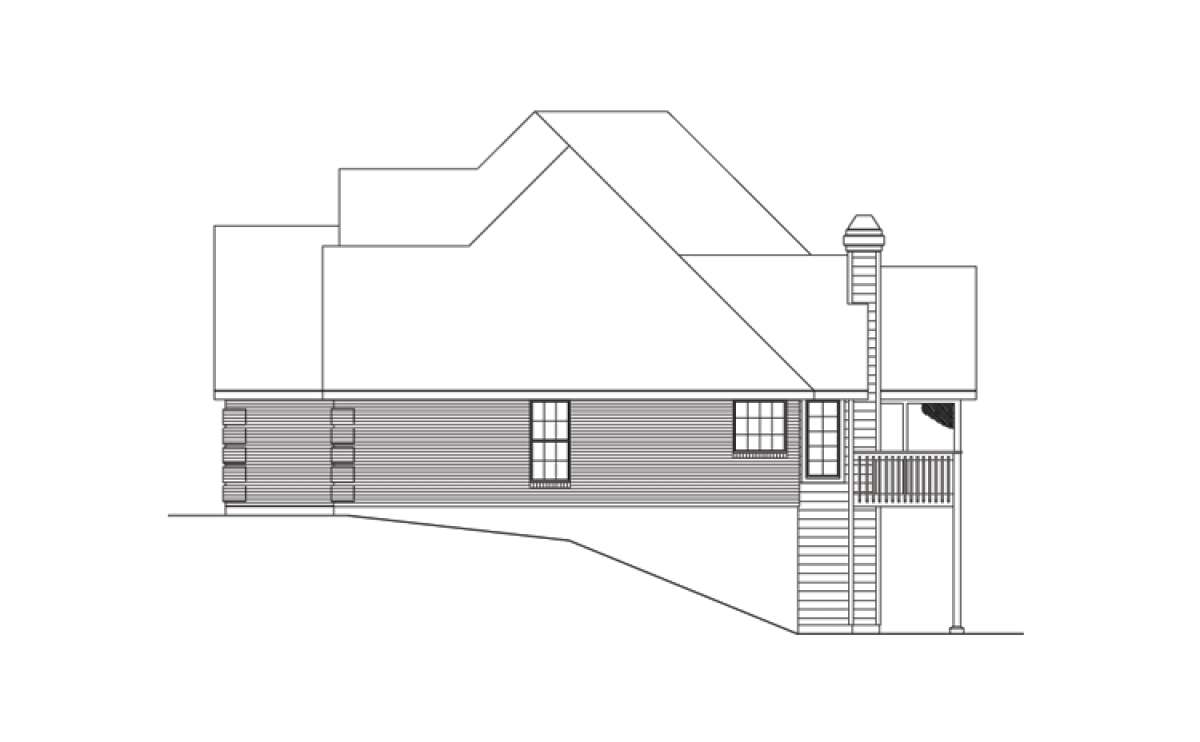

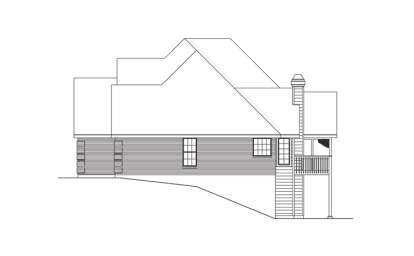

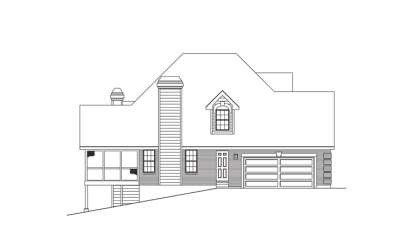

    This plan includes the exterior elevations (front, rear, right and left) that show and describe the finished materials of the house.
    The kitchen and bath elevations show the arrangement of each cabinet and other fixtures in the room. These drawings give basic information that can be used to create customized layouts with a cabinet manufacturer.
    Some details are included for interior and exterior conditions that require more specific information for their construction.
    This is a "bird's eye" view showing the roof slopes, ridges, valleys and any saddles.

Ask Us A Question

To request a modification quote, please use the Modification Request Form.

About This Plan

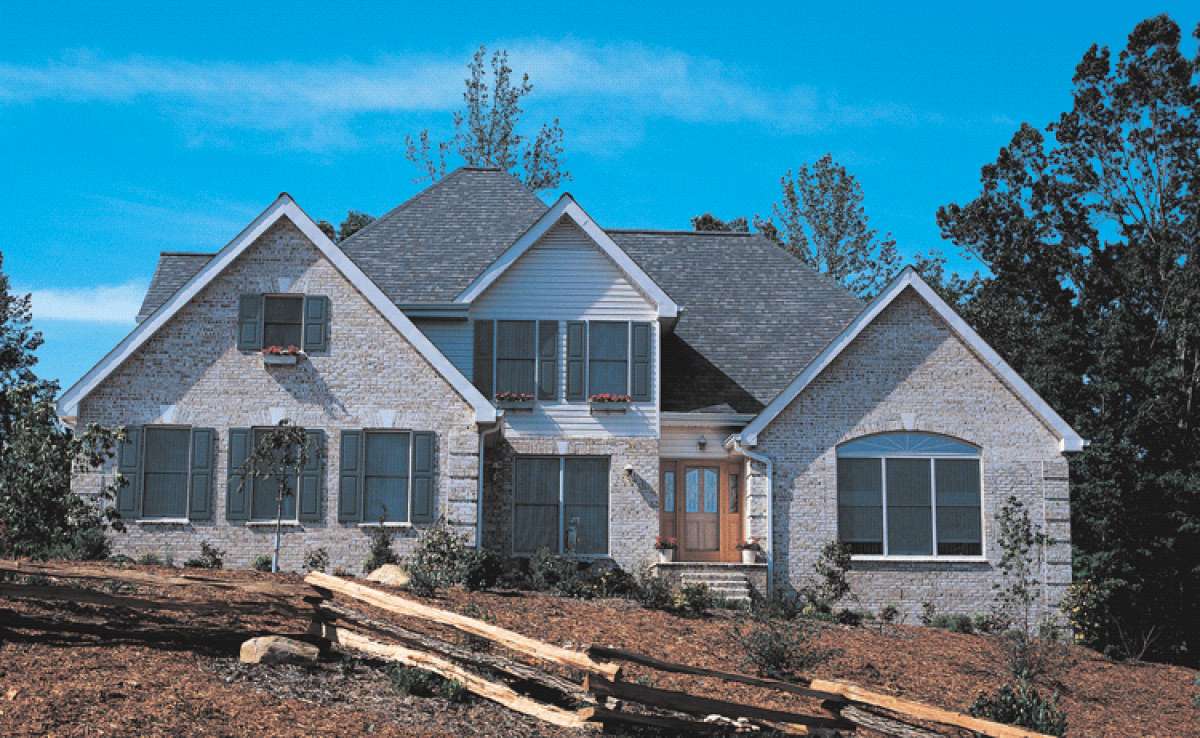

This classic brick front exterior is virtually maintenance free and gives the home substance and character. The symmetrical gables and plethora of window features balance the home while decorative planter boxes provide whimsy. The interior floor plan features approximately 2,600 square feet of living space highlighted by a great family friendly layout. There are four bedrooms and three plus bathrooms provided for family comfort and the home’s drawings come with a slab, crawl space or basement foundation. The basement foundation adds additional square footage, versatility and value to the home. A traditional layout features a spacious foyer with formal dining room access and the great room is highlighted with vaulted ceilings, a handsome fireplace flanked by window views and there is rear deck access off the great room. There is a large gourmet kitchen with a center cook top island, a peninsula for casual dining and a separate pantry. The kitchen is open to the hearth room with a second fireplace and a screened in porch is accessible from the space. The rear spaces of the home are dedicated to family relaxing and entertaining large groups of family and friends. There is a large laundry room with sink and closet space directly off the two car garage for ease and convenience along with a powder room for guests. The main level master suite features a private retreat where an oversized, vaulted master bedroom is highlighted and double walk-in closets line the hallway to the master bath. The “showpiece” of the en suite is the corner step-up garden tub encased in window views; there are dual vanities and a separate shower, as well.
Ascending the second story staircase are overlooks onto the lower level and three additional bedrooms. Bedrooms two and three are spacious with generous closet space and a shared hall bath with separate vanities is accessible from each bedroom. The fourth bedroom is generously sized with a large storage space and private access to the full bath. This home has a functional layout which will provide years of comfort for your family.
