Ranch House Plan 5633-00024

Sq Ft1,674
Beds3
Baths2
1/2 Baths0
Stories1
Cars2
Width77' 8"
Depth32' 0"
Images copyrighted by the designer. Photographs may reflect a homeowner modification.

Floorplan Drawings

 REVERSE  PRINT  DOWNLOAD Images copyrighted by the designer.

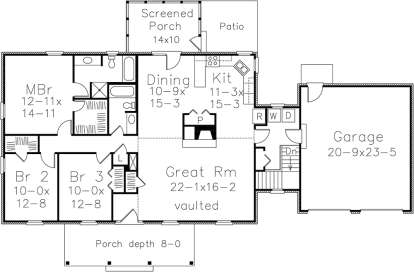

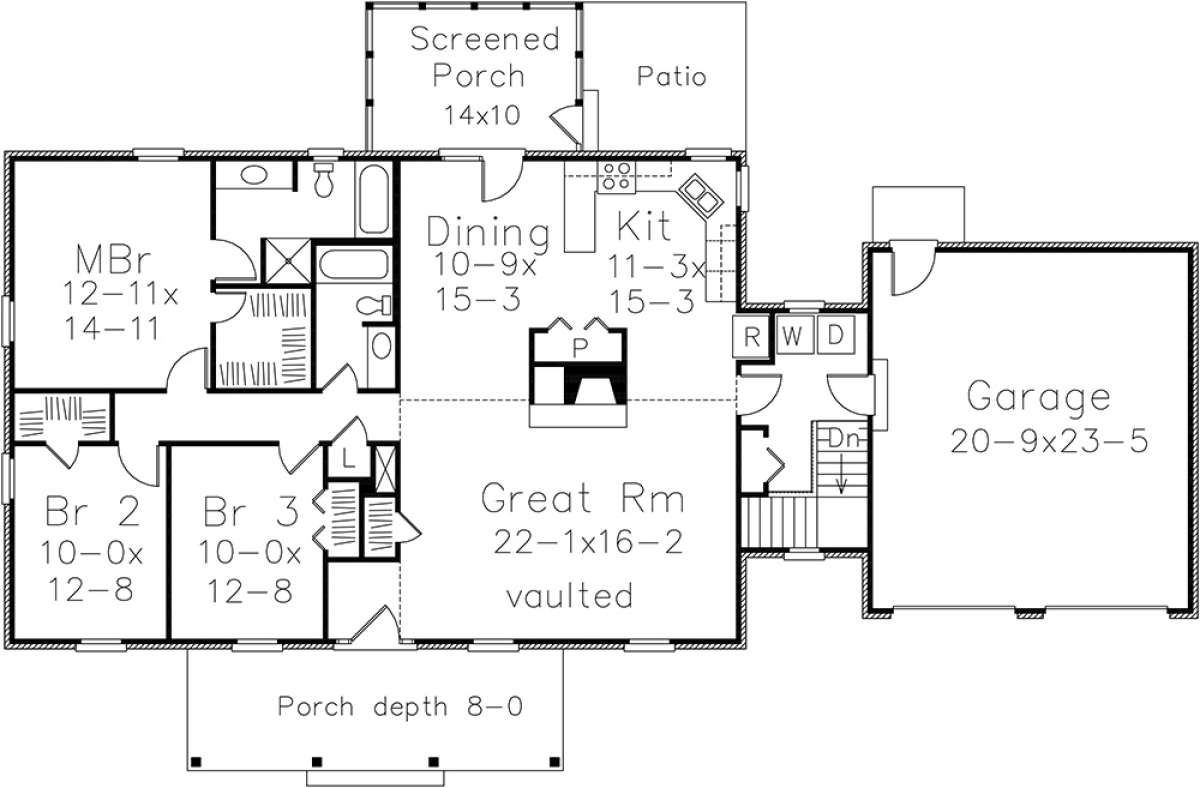

Main Level for House Plan #5633-00024
Main Level
Main Level for House Plan #5633-00024


Frequently Asked Questions

COST TO BUILD REPORT

What's Included in these plans?

  • Heated and Cooled Square Footage calculations are made from outside the exterior frame wall and do not include decks, porches, garages, unfinished basements, bonus or attic space.
  • Artist Rendering
  • Foundation & Floor Plans (1/4"=1')
  • Front Elevations (1/4"=1'), Sides & Rear Elevation (1/8" or 1/4" = 1")
  • Kitchen and Bath Elevations (1/4"=1') **
  • Miscellaneous Details (1/4" to 3/4"=1')
  • Stair Section (1/4" to 3/8" = 1')
  • Roof Overview Plan (scale varies) **
    ** Some plans in this series do not provide cabinet elevations or roof overview.  Please call to verify.
  • FLOOR PLANS
    This home plan includes the floor plan showing the dimensioned locations of walls, doors, and windows as well as suggested locations for light fixtures, outlets and switches.
  • SET OF ELEVATIONS

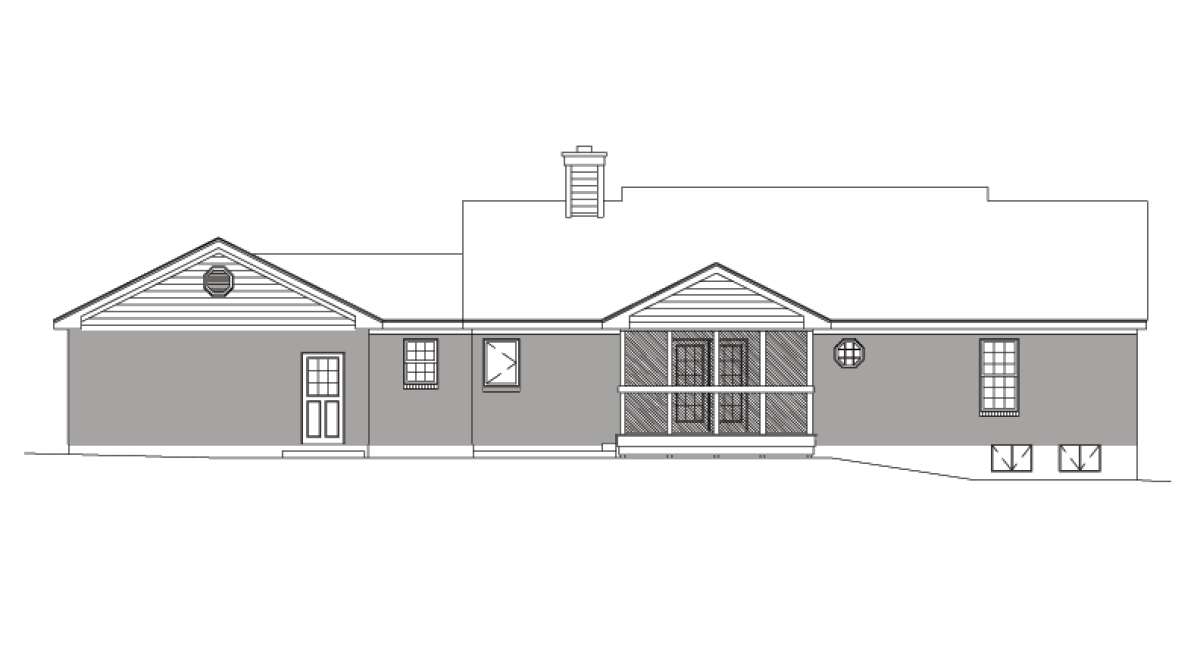

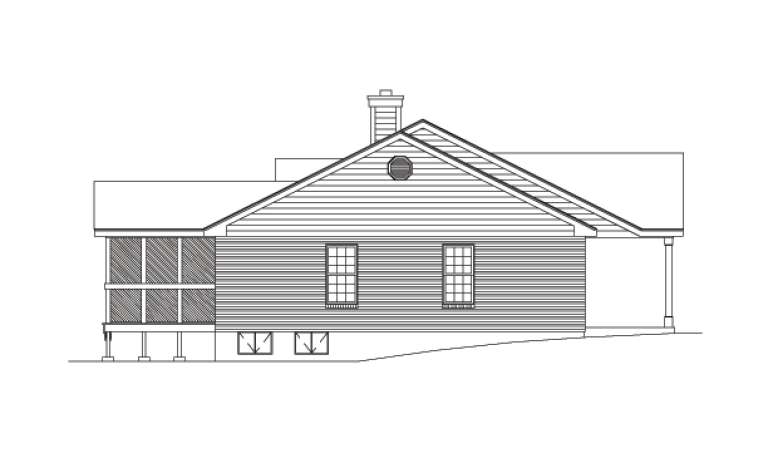

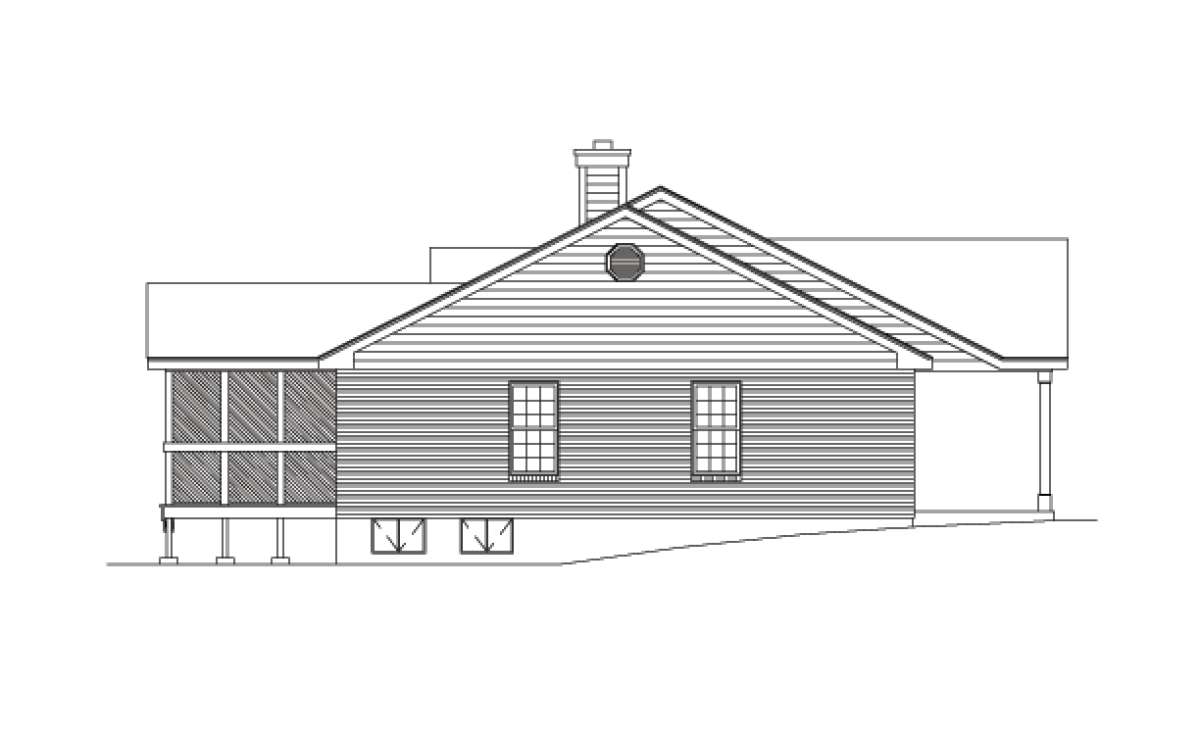

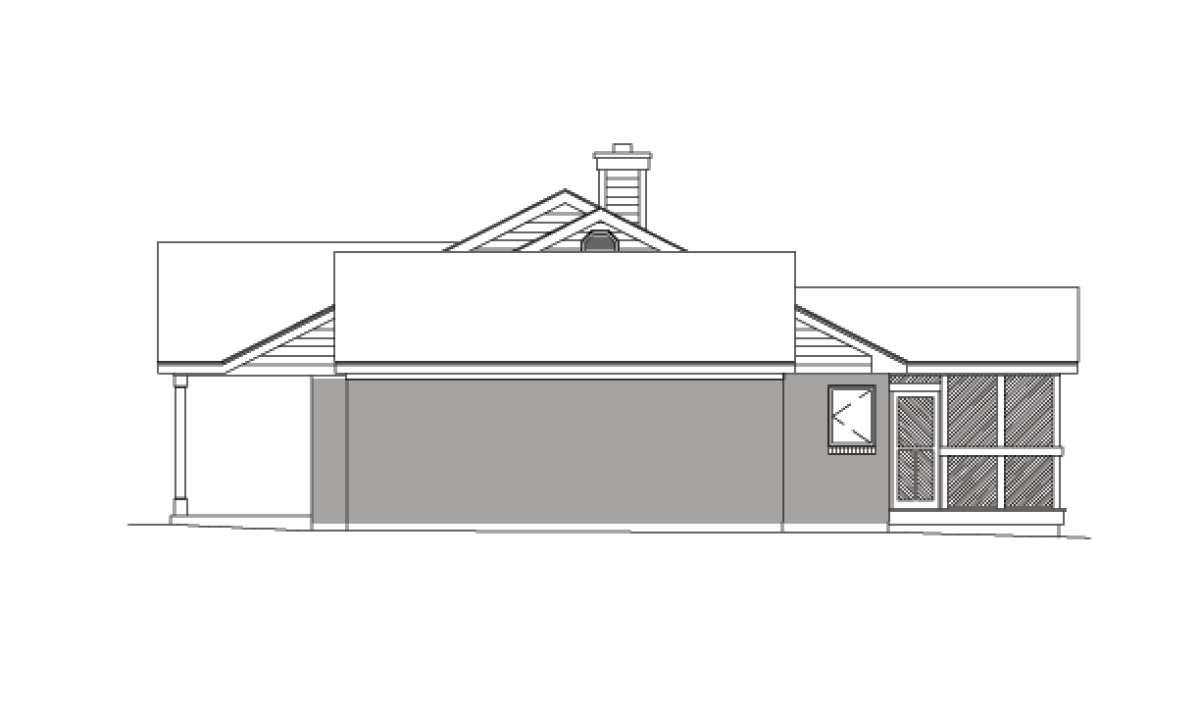

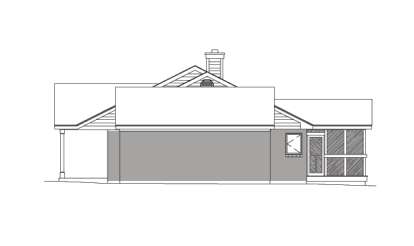

    This plan includes the exterior elevations (front, rear, right and left) that show and describe the finished materials of the house.
    KITCHEN AND BATH ELEVATIONS
    The kitchen and bath elevations show the arrangement of each cabinet and other fixtures in the room. These drawings give basic information that can be used to create customized layouts with a cabinet manufacturer.
  • MISCELLANEOUS DETAILS
    Some details are included for interior and exterior conditions that require more specific information for their construction.
  • ROOF OVERVIEW PLAN
    This is a "bird's eye" view showing the roof slopes, ridges, valleys and any saddles.

ASK US A QUESTION

Name:
E-mail Address:
Password: (for robots)
Your Question:

To request a modification quote, please use the Modification Request Form.

About This Plan

This large Ranch house design has a traditional exterior and a comfortable interior floor plan. The brick exterior of the home combines beautifully with a front covered porch highlighted by columns, a sculptured roof line and siding to create a spectacular façade. There are approximately 1,674 total square feet of living space in the home which is comprised of three bedrooms and two baths. The two car garage contributes an additional 486 square feet of vehicle and other paraphernalia storage space. The home’s drawings are on a basement foundation that substantially increases the home’s value and versatility; a slab and crawl space foundation is also included. The traditionally styled deep front porch provides entrance into the home’s greeting foyer and subsequent great room. The open concept floor plan features an enormous great room that is vaulted, has a storage/coat closet and center floor fireplace. The dining space is spacious and provides access to the rear screened in porch and patio space. The family friend kitchen features a separate, oversized pantry and plenty of counter and cabinet space. This combination of open living space and fantastic outdoor space provides great entertaining and family relaxing options. The interior laundry/mudroom is situated off the garage for ease and convenience and provides direct access to the lower level.
The main level hallway houses the family bedrooms and bathrooms. There is a shared hall bath which features a large vanity space, toilet area and a tub/shower combination along with a hall linen closet for bedrooms two and three. Both bedrooms are equal in size and have great window views; the second bedroom has a walk-in closet while bedroom three features generous closet space. The master suite is situated at the rear of the home for privacy and features a large bedroom with wonderful window views and an oversized master walk-in closet. The en suite master bath includes a large vanity space, a toilet area, a separate shower and a soaking tub. This home features a functional floor plan, unlimited expansion possibilities and a handsome exterior façade.
