Country Plan 5633-00020


To purchase a reversed plan, please select Right Reading Reverse under Additional Options.
Sq Ft 1,708
Beds 3
Bath 2
1/2 Baths 0
Car 2
Stories 1
Width 80'
Depth 42'

Floorplan Drawings

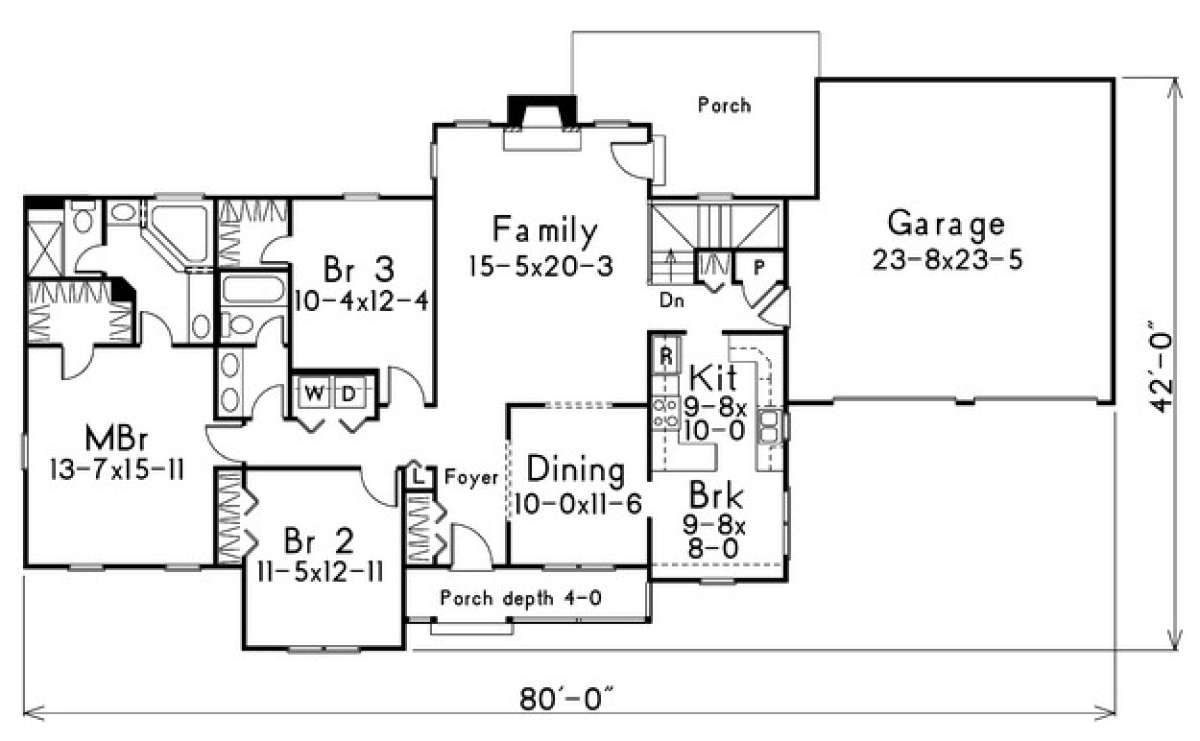

Floorplan 1

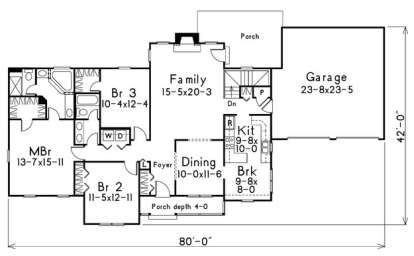

Floorplan 1 for House Plan #5633-00020

What's Included in these plans?

  • Heated and Cooled Square Footage calculations are made from outside the exterior frame wall and do not include decks, porches, garages, unfinished basements, bonus or attic space.
  • Artist Rendering
  • Foundation & Floor Plans (1/4"=1')
  • Front Elevations (1/4"=1'), Sides & Rear Elevation (1/8" or 1/4" = 1")
  • Kitchen and Bath Elevations (1/4"=1') **
  • Miscellaneous Details (1/4" to 3/4"=1')
  • Stair Section (1/4" to 3/8" = 1')
  • Roof Overview Plan (scale varies) **
    ** Some plans in this series do not provide cabinet elevations or roof overview.  Please call to verify.
    This home plan includes the floor plan showing the dimensioned locations of walls, doors, and windows as well as suggested locations for light fixtures, outlets and switches.

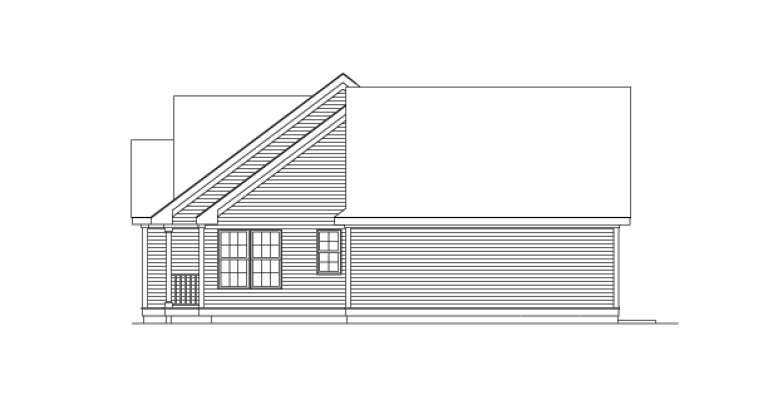

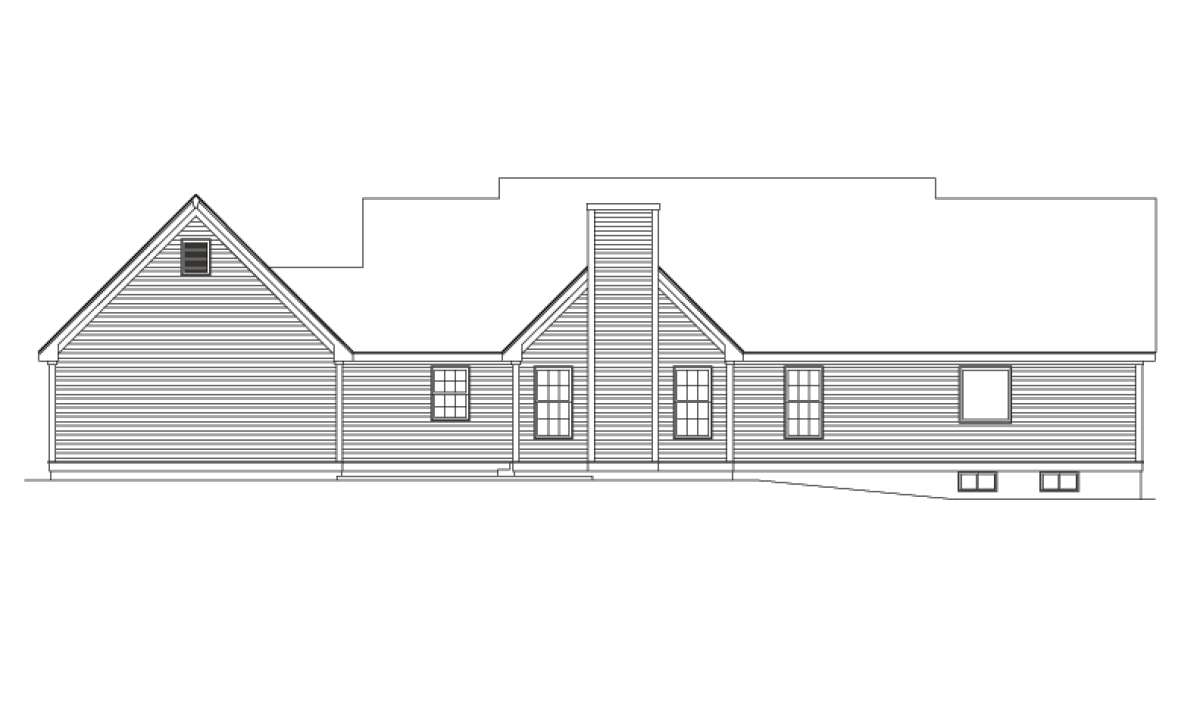

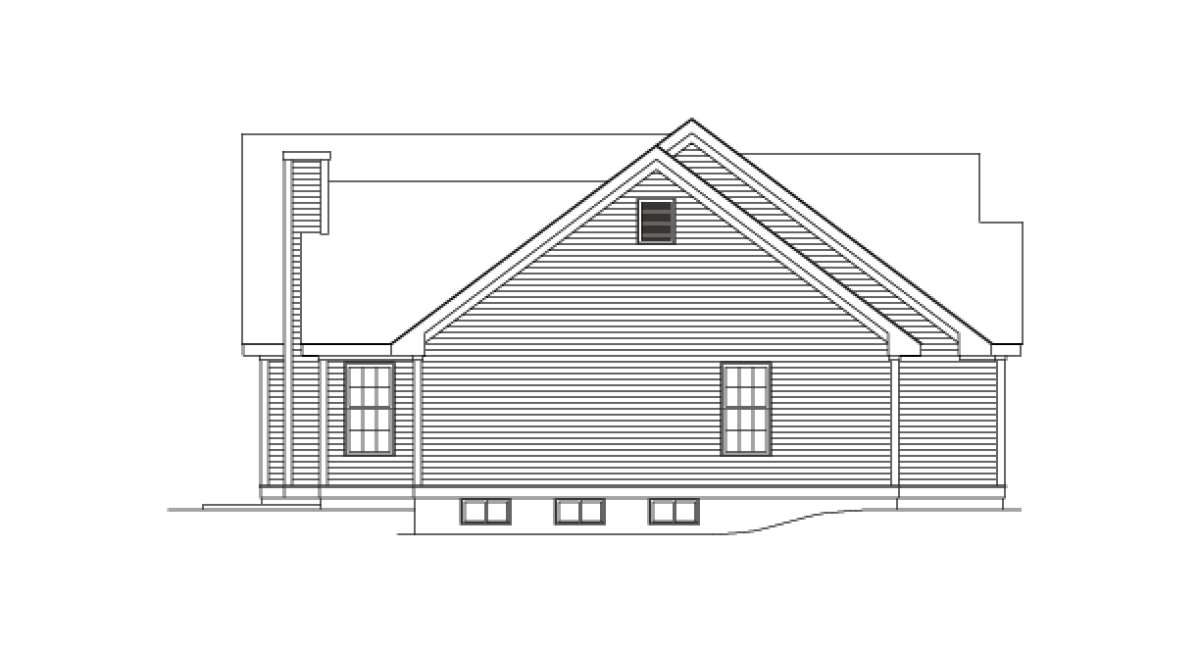

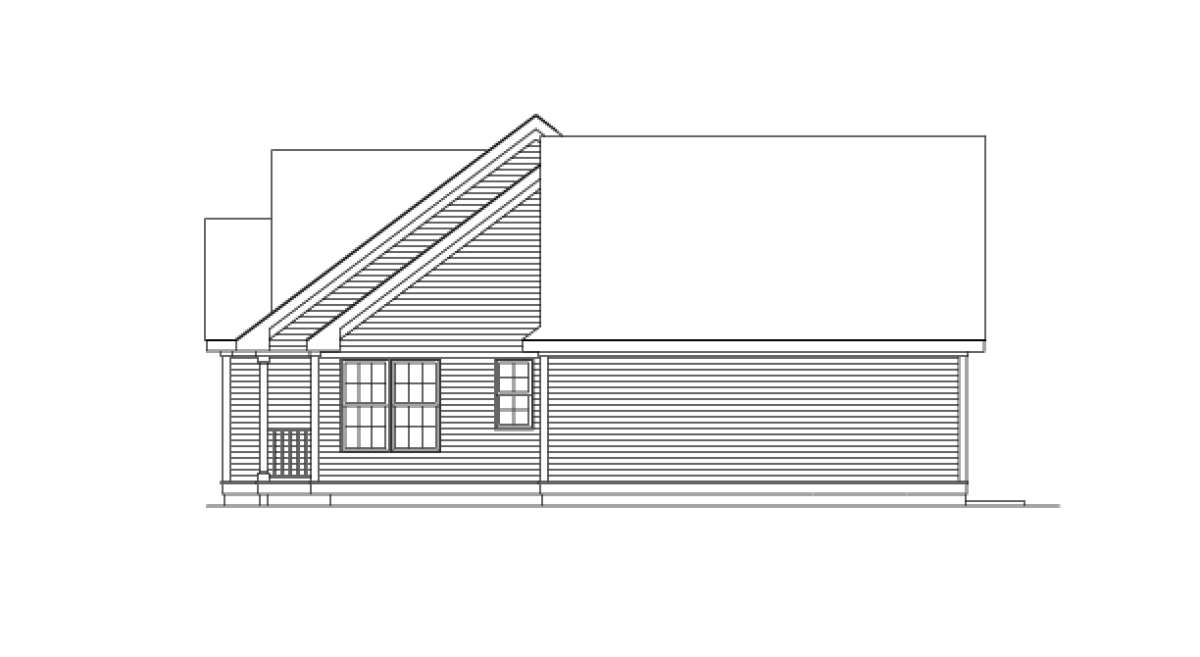

    This plan includes the exterior elevations (front, rear, right and left) that show and describe the finished materials of the house.
    The kitchen and bath elevations show the arrangement of each cabinet and other fixtures in the room. These drawings give basic information that can be used to create customized layouts with a cabinet manufacturer.
    Some details are included for interior and exterior conditions that require more specific information for their construction.
    This is a "bird's eye" view showing the roof slopes, ridges, valleys and any saddles.

Ask Us A Question

To request a modification quote, please use the Modification Request Form.

About This Plan

This sprawling Ranch styled house plan features an abundance of interior space and a striking exterior façade containing a rocking chair front porch highlighted with open railing and beam supports. 1,708 square feet of living space is provided in the single story home and incorporates three bedrooms and two baths into the space. There is a two car garage which features 554 square feet of space for vehicle and other gear storage. The home’s drawings are on a basement foundation which is ideal for future expansion, increased home value and versatility; the drawings also included a crawl space. The expansive front porch leads to the foyer which houses a coat/storage closet and is open to the formal dining room. The dining room is highlighted with double window views and three point access before opening onto the oversized family room. This space measures in excess of 15’x20’, has a handsome fireplace flanked by picturesque window views and provides access to the rear porch. The family friendly kitchen features plenty of counter and cabinet space, has an adjacent pantry and there is a cozy breakfast nook.
Travelling the main hallway are the family sleeping quarters and bathrooms along with the laundry nook and hall linen closet. Bedroom two is spacious with great window views and generous closet space while the third bedroom features a walk-in closet, window views and great floor space. The shared hall bath features double vanities, a toilet area and a tub/shower combination. The master suite is situated at the rear of the home for privacy and offers a spacious master bedroom with excellent window views and a large master walk-in closet. The deluxe master bath is highlighted with separate dual vanities, a separate shower, private toilet area and a step-up corner tub with window views. This beautiful home has a bold exterior, spacious interior floor plan and unlimited expansion possibilities in the lower level.
