Country Plan 5633-00017

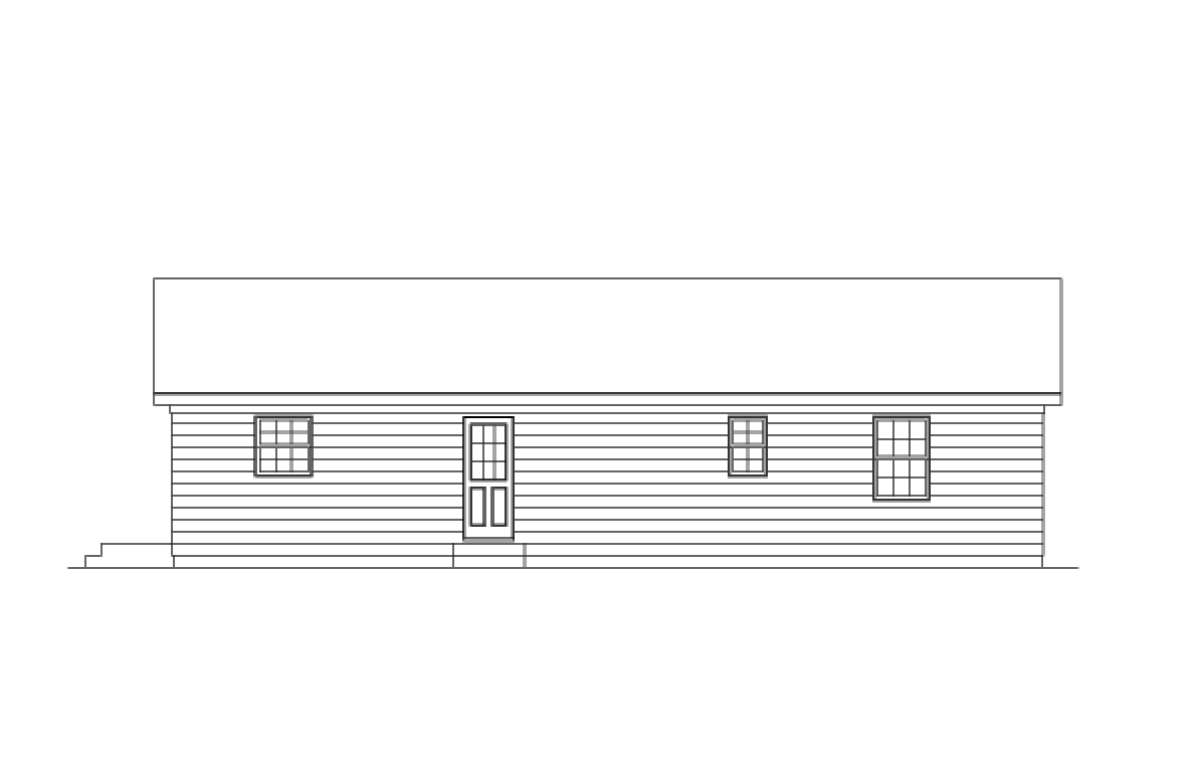

Country House Plan #5633-00017 Elevation Photo
Country House Plan #5633-00017 Elevation Photo
Country House Plan #5633-00017 Additional Photo
Country House Plan #5633-00017 Additional Photo
Floorplan1 for House Plan #5633-00017
5 Images

IMPORTANT NOTICE

To purchase a reversed plan, please select Right Reading Reverse under Additional Options.
Square Footage Icon Sq Ft 1,344
Beds Icon Beds 3
Baths Icon Baths 2
Half Baths Icon 1/2 Baths 0
Cars Icon Cars 0
Stories Icon Stories 1
Width Icon Width 48'
Depth Icon Depth 28'

Floorplan Drawings

 PRINT  DOWNLOAD

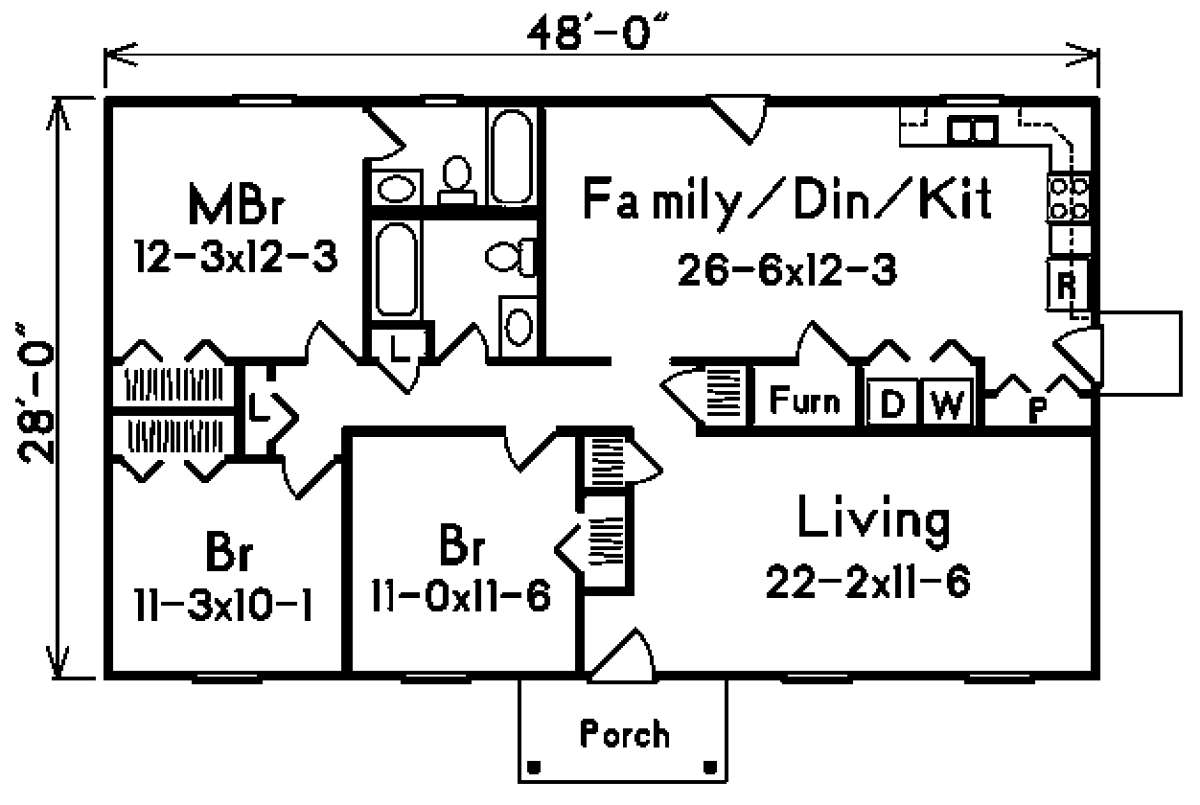

Floorplan1 for House Plan #5633-00017
Floorplan1
Floorplan1 for House Plan #5633-00017
Images copyrighted by the designer.


What's Included in these plans?

  • Heated and Cooled Square Footage calculations are made from outside the exterior frame wall and do not include decks, porches, garages, unfinished basements, bonus or attic space.
  • Artist Rendering
  • Foundation & Floor Plans (1/4"=1')
  • Front Elevations (1/4"=1'), Sides & Rear Elevation (1/8" or 1/4" = 1")
  • Kitchen and Bath Elevations (1/4"=1') **
  • Miscellaneous Details (1/4" to 3/4"=1')
  • Stair Section (1/4" to 3/8" = 1')
  • Roof Overview Plan (scale varies) **
    ** Some plans in this series do not provide cabinet elevations or roof overview.  Please call to verify.
  • FLOOR PLANS
    This home plan includes the floor plan showing the dimensioned locations of walls, doors, and windows as well as suggested locations for light fixtures, outlets and switches.
  • SET OF ELEVATIONS

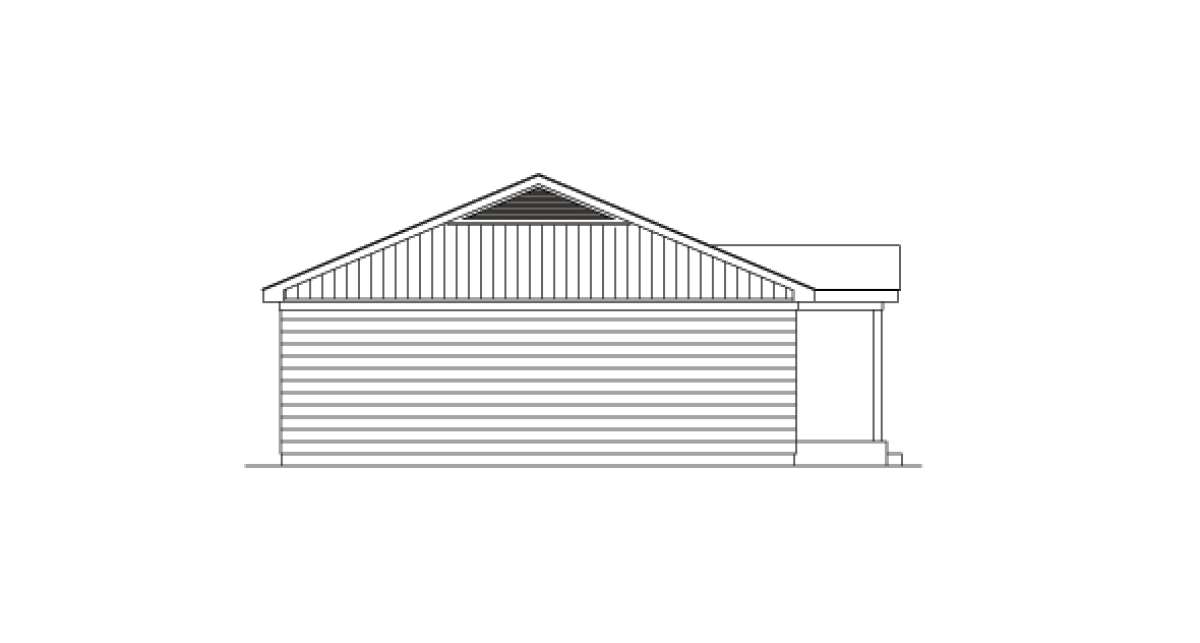

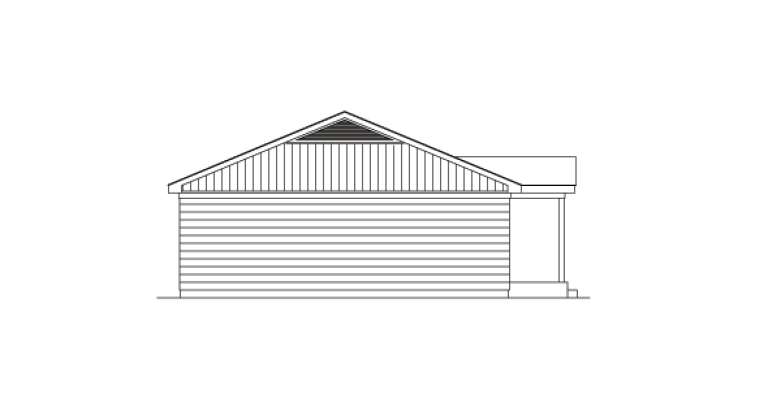

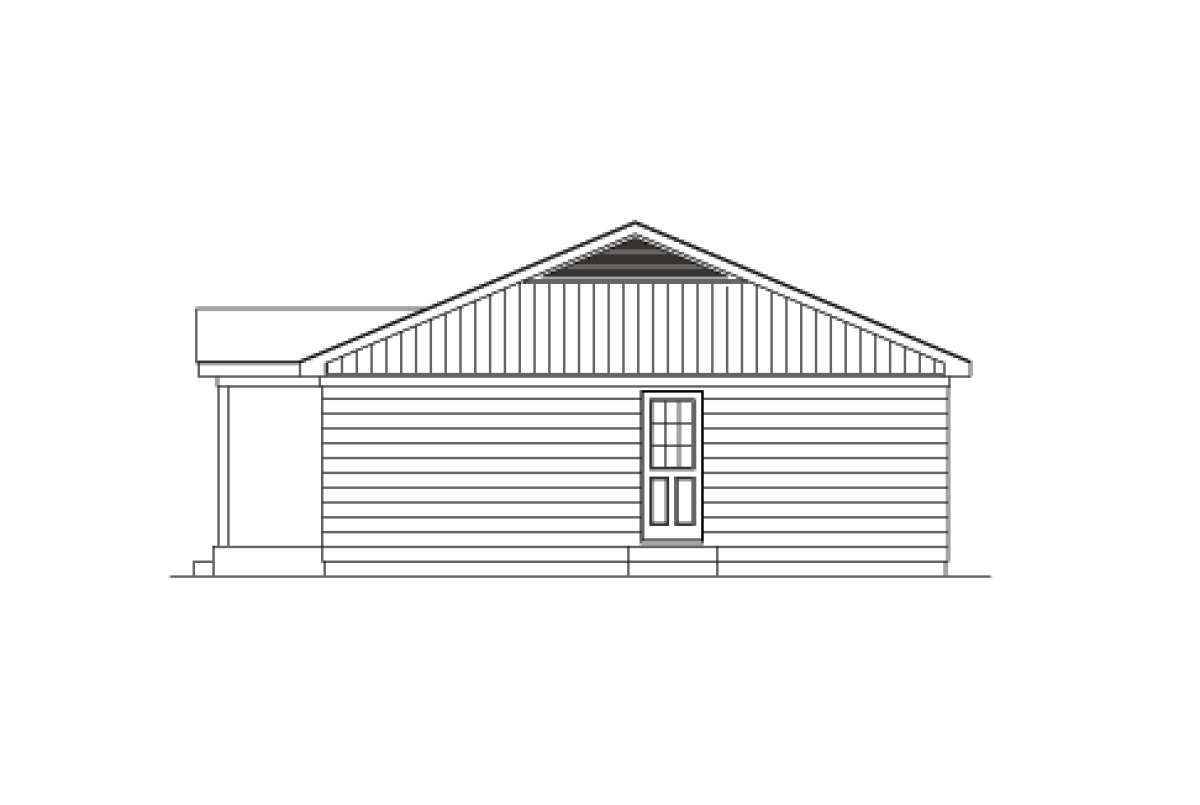

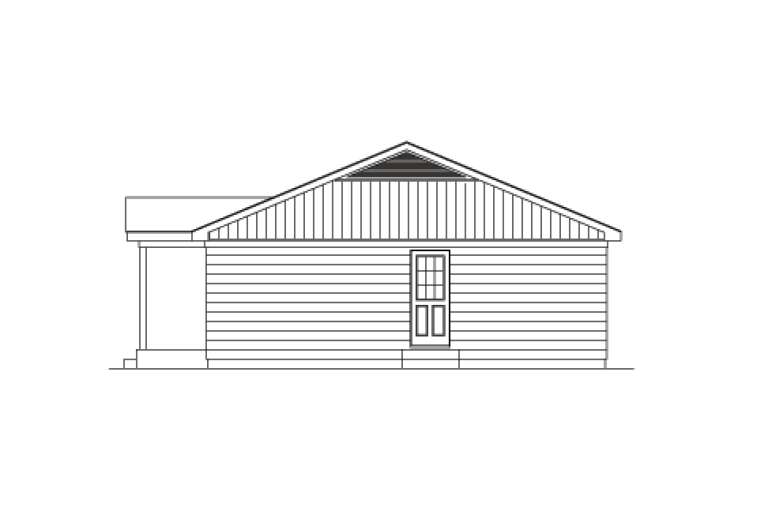

    This plan includes the exterior elevations (front, rear, right and left) that show and describe the finished materials of the house.
    KITCHEN AND BATH ELEVATIONS
    The kitchen and bath elevations show the arrangement of each cabinet and other fixtures in the room. These drawings give basic information that can be used to create customized layouts with a cabinet manufacturer.
  • MISCELLANEOUS DETAILS
    Some details are included for interior and exterior conditions that require more specific information for their construction.
  • ROOF OVERVIEW PLAN
    This is a "bird's eye" view showing the roof slopes, ridges, valleys and any saddles.

What's not included:  House plans do not typically include mechanical, plumbing, or truss drawings. Additionally, some jurisdictions require a local architect or engineer to make adjustments to the plan to comply with local building codes. We advise you to check with your local building department regarding codes. For more information, visit the What's Included in Our Plans page.

Ask Us A Question

To request a modification quote, please use the Modification Request Form.

About This Plan

Approximately 1,344 square feet is available in this Country home which is comprised of three bedrooms and two baths. The single story home features a crawl space foundation; however, the drawings include a slab and basement foundation as well. The basement foundation would be ideal for future expansion possibilities and would enhance the value and versatility of the home. The exterior of the home is highlighted by a front covered porch, siding and a simple construction roof line. The front covered porch opens onto the expansive living room, measuring in excess of 22’x11’; this is great entertaining and family relaxing space. There are two generous coat closets between the living room and the combination family living and dining spaces. This combination space is massive and contains family living space, a casual dining space and the family friendly kitchen which features a separate pantry, plenty of counter and cabinet space, the laundry nook and double access points onto the rear and side yards. The family sleeping quarters and bathrooms are situated down the main hallway along with double linen closets. The two family style bedrooms are spacious and both contain generous closet space along with wonderful window views. There is a shared hall bath which offers a vanity space, toilet area and a shower/tub combination. The master suite enjoys a large bedroom with window views and ample closet space while the en suite bath features a vanity space, toilet area and a tub/shower combination. This home features a comfortable and versatile floor plan ideal for a small family, empty nesters or young professionals.
