Country Plan 5633-00013

IMPORTANT NOTICE

To purchase a reversed plan, please select Right Reading Reverse under Additional Options.
Sq Ft 1,160
Beds 3
Bath 1
1/2 Baths 1
Car 0
Stories 1
Width 44'
Depth 28'

Floorplan Drawings

Floorplan 1

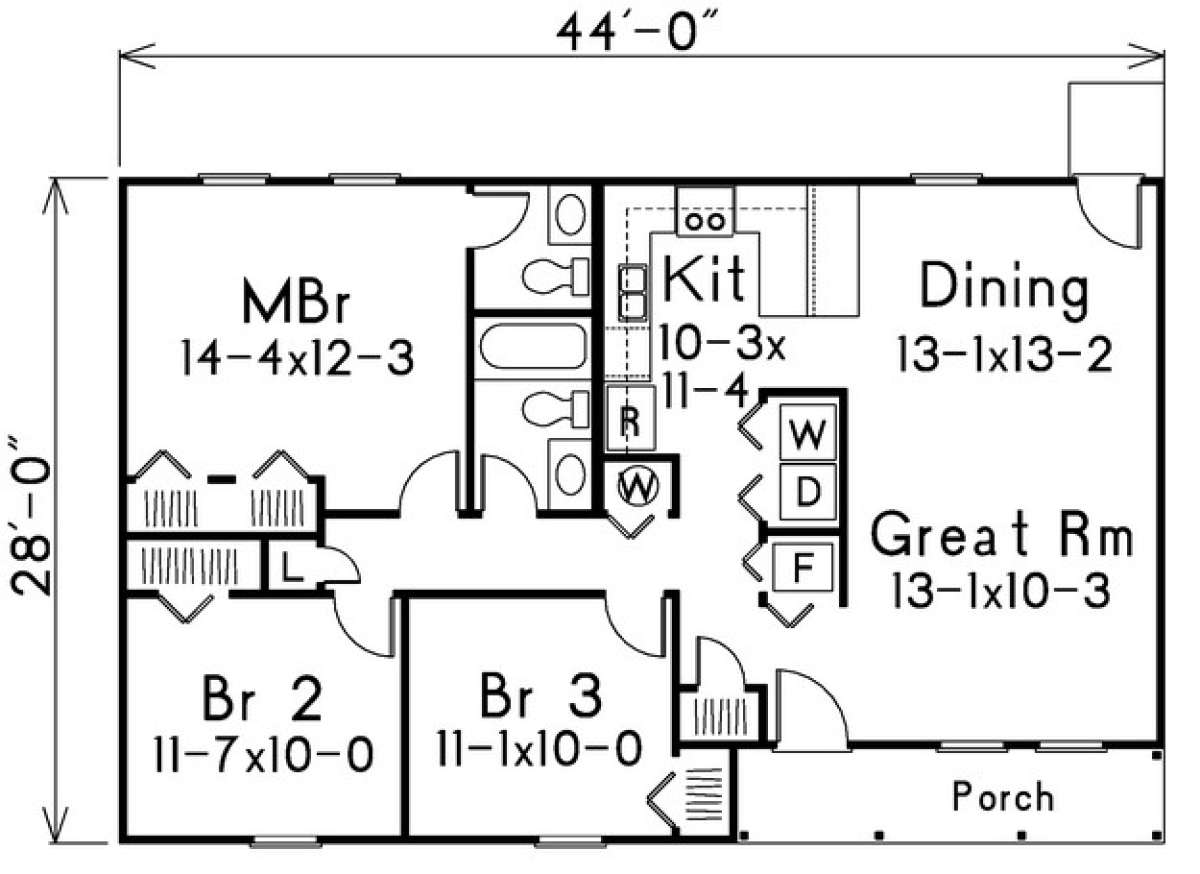

Floorplan 1 for House Plan #5633-00013


What's Included in these plans?

  • Heated and Cooled Square Footage calculations are made from outside the exterior frame wall and do not include decks, porches, garages, unfinished basements, bonus or attic space.
  • Artist Rendering
  • Foundation & Floor Plans (1/4"=1')
  • Front Elevations (1/4"=1'), Sides & Rear Elevation (1/8" or 1/4" = 1")
  • Kitchen and Bath Elevations (1/4"=1') **
  • Miscellaneous Details (1/4" to 3/4"=1')
  • Stair Section (1/4" to 3/8" = 1')
  • Roof Overview Plan (scale varies) **
    ** Some plans in this series do not provide cabinet elevations or roof overview.  Please call to verify.
  • FLOOR PLANS
    This home plan includes the floor plan showing the dimensioned locations of walls, doors, and windows as well as suggested locations for light fixtures, outlets and switches.

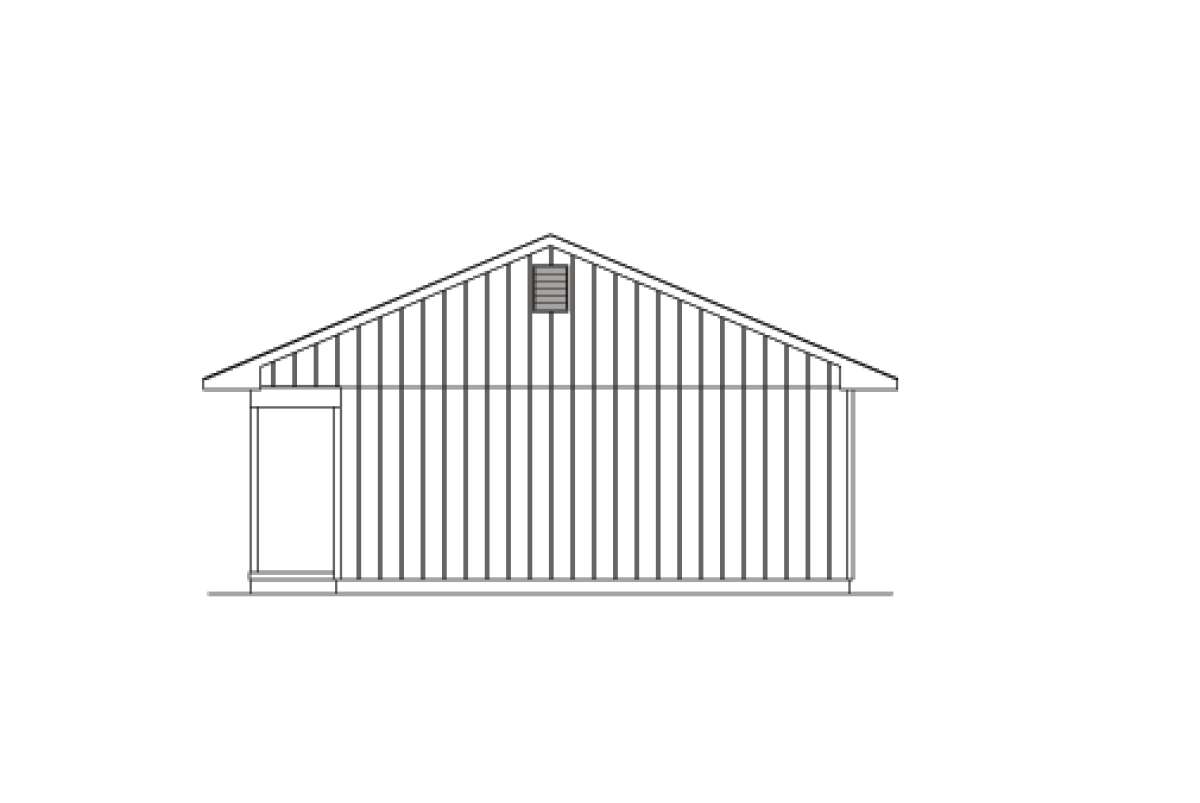

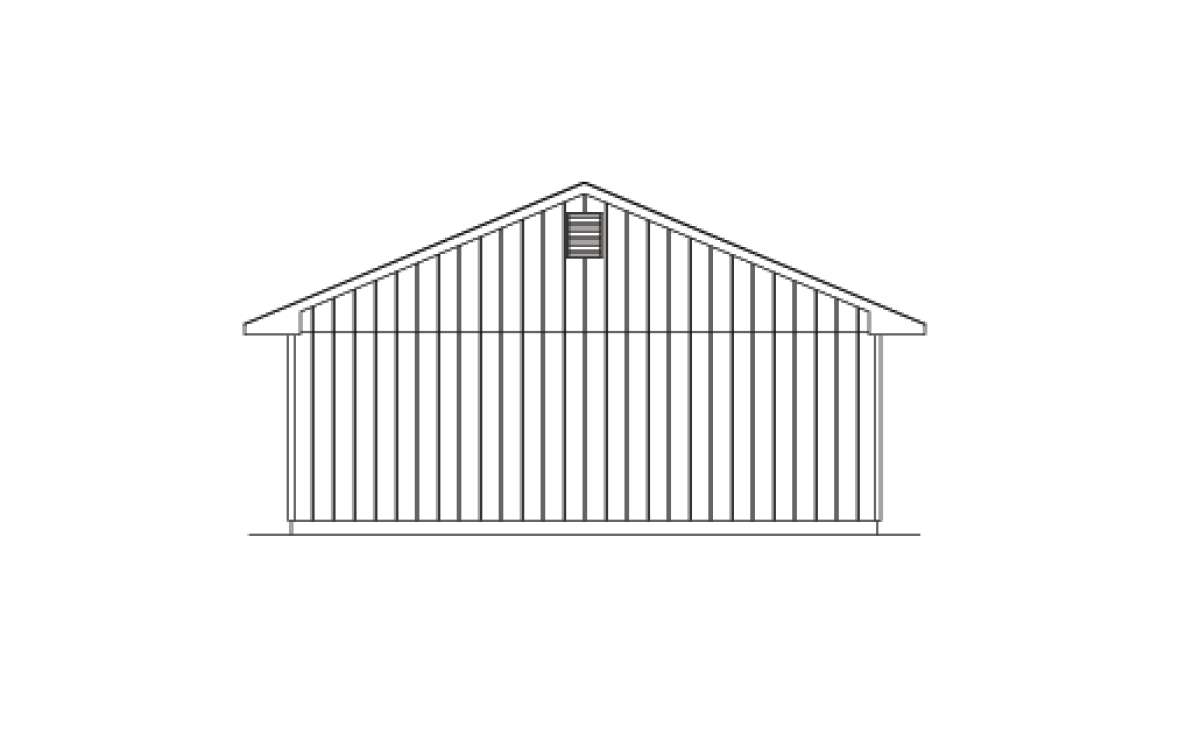

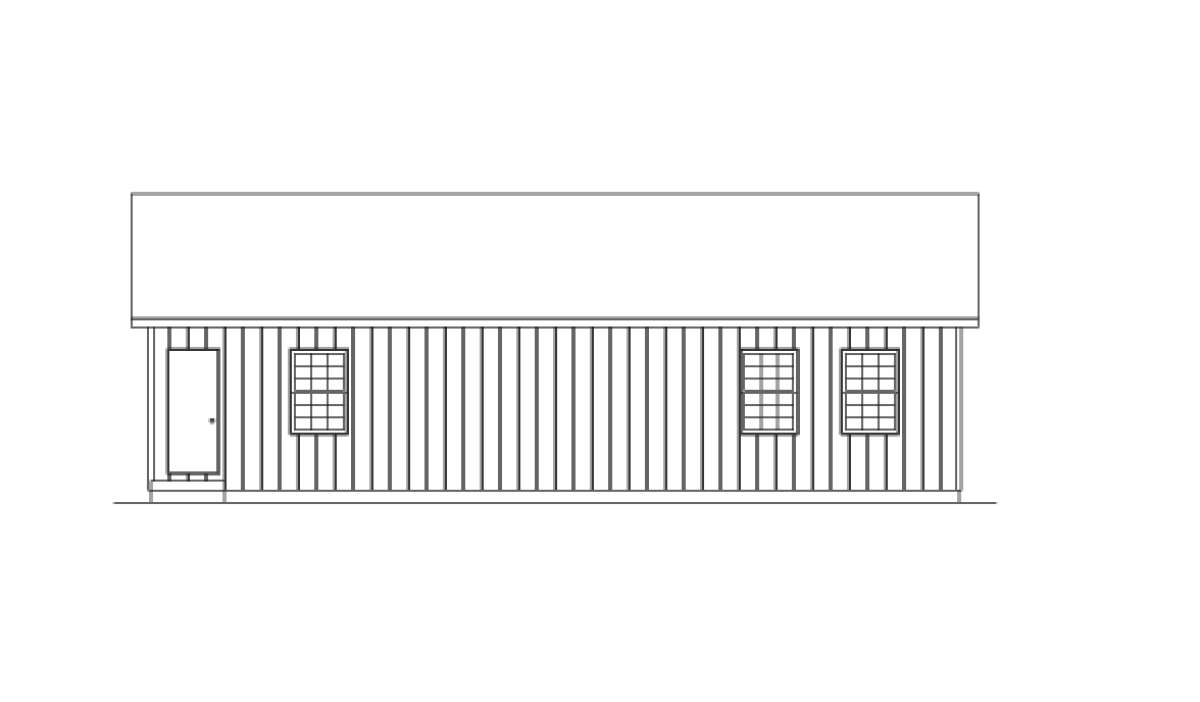

  • SET OF ELEVATIONS
    This plan includes the exterior elevations (front, rear, right and left) that show and describe the finished materials of the house.
    KITCHEN AND BATH ELEVATIONS
    The kitchen and bath elevations show the arrangement of each cabinet and other fixtures in the room. These drawings give basic information that can be used to create customized layouts with a cabinet manufacturer.
  • MISCELLANEOUS DETAILS
    Some details are included for interior and exterior conditions that require more specific information for their construction.
  • ROOF OVERVIEW PLAN
    This is a "bird's eye" view showing the roof slopes, ridges, valleys and any saddles.

Ask Us A Question

To request a modification quote, please use the Modification Request Form.

About This Plan

This Country home has a simple exterior comprised of siding and a large front covered porch highlighted with columned beams. The interior floor plan is well constructed and functional and offers an abundance of room for a small family, young professionals or empty nesters. There are approximately 1,160 square feet of living space which features three bedrooms and one and half bathrooms. The drawings for this home come complete with a slab, crawl space and basement foundation; the basement foundation adds further expansion options and added value to the house plan. Entrance into the home off the front covered porch, opens onto the oversized great room. This space features fantastic entertaining space and is open to the casual dining space with rear yard access is provided. The U-shaped kitchen features a functional and practical breakfast bar for early morning dining and late night snacking and there is additional counter and cabinet space as well. The laundry nook is situated off the kitchen for ease and convenience and there is a coat/storage closet off the greeting foyer.
The hallway contains the family bedrooms and baths; bedrooms two and three are spacious and both contain ample closet space. There is a shared hall bath with vanity, toilet area and a tub/shower combination as well as a hall linen closet. The master suite features a generous footprint, double closets, great window views and a private half bath. This home is fully functional and comfortable for a small family and the expansion possibilities are abundant and limitless.
