Ranch Plan 5633-00010


To purchase a reversed plan, please select Right Reading Reverse under Additional Options.
Sq Ft 1,000
Beds 3
Bath 1
1/2 Baths 0
Car 0
Stories 1
Width 40'
Depth 25'

Floorplan Drawings

Floorplan 1
Floorplan 1 for House Plan #5633-00010

What's Included in these plans?

  • Heated and Cooled Square Footage calculations are made from outside the exterior frame wall and do not include decks, porches, garages, unfinished basements, bonus or attic space.
  • Artist Rendering
  • Foundation & Floor Plans (1/4"=1')
  • Front Elevations (1/4"=1'), Sides & Rear Elevation (1/8" or 1/4" = 1")
  • Kitchen and Bath Elevations (1/4"=1') **
  • Miscellaneous Details (1/4" to 3/4"=1')
  • Stair Section (1/4" to 3/8" = 1')
  • Roof Overview Plan (scale varies) **
    ** Some plans in this series do not provide cabinet elevations or roof overview.  Please call to verify.

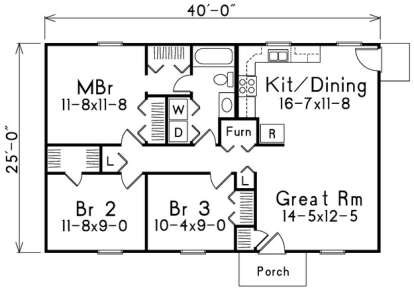

    This home plan includes the floor plan showing the dimensioned locations of walls, doors, and windows as well as suggested locations for light fixtures, outlets and switches.

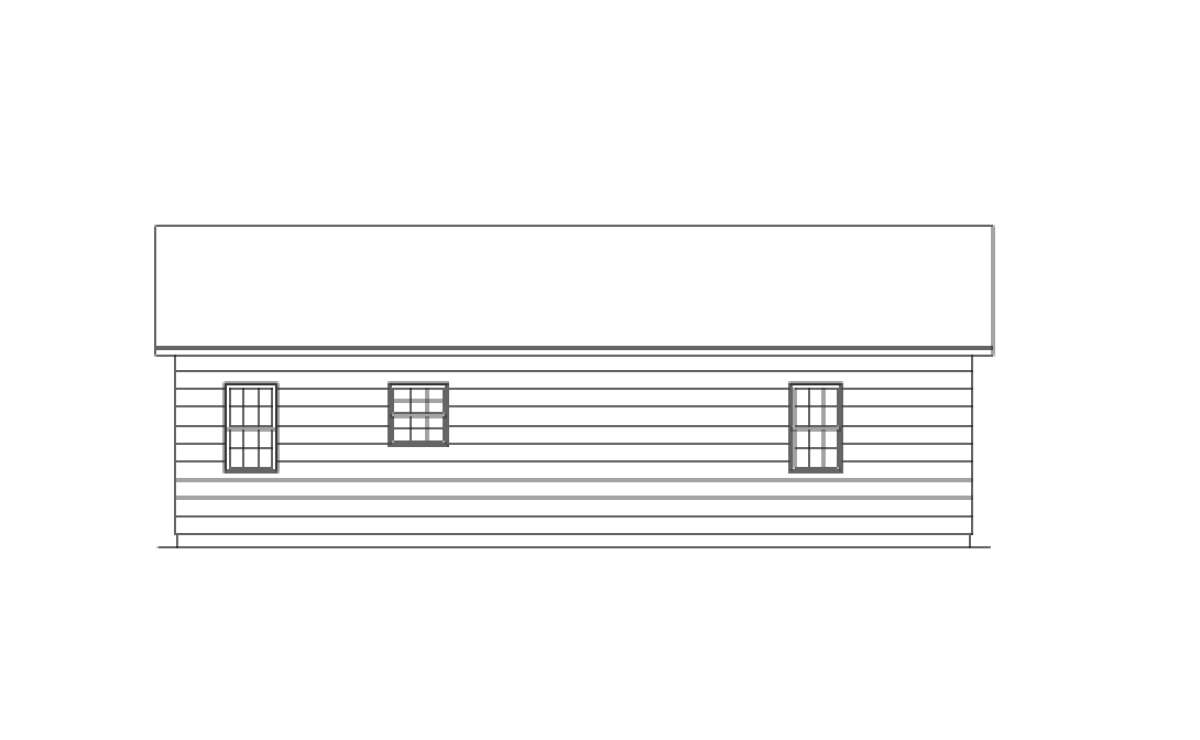

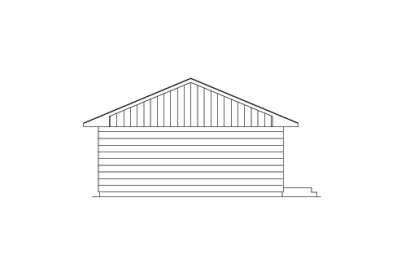

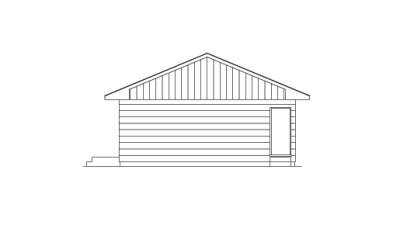

    This plan includes the exterior elevations (front, rear, right and left) that show and describe the finished materials of the house.
    The kitchen and bath elevations show the arrangement of each cabinet and other fixtures in the room. These drawings give basic information that can be used to create customized layouts with a cabinet manufacturer.
    Some details are included for interior and exterior conditions that require more specific information for their construction.
    This is a "bird's eye" view showing the roof slopes, ridges, valleys and any saddles.

Ask Us A Question

To request a modification quote, please use the Modification Request Form.

About This Plan

This Ranch home is ideally suited for a narrow lot plan and has approximately 1,000 square feet of living space. There are three bedrooms and one bath in the 40’width by 25’depth floor plan with a crawl space foundation; additionally, the plan includes an optional slab and basement foundation which would further enhance the square footage. The exterior façade is a simple construction of siding, a simple roof line and loads of window features. The front porch leads into the home’s entry foyer which contains a coat closet for family members and guest.

An open concept plan provides the home with a spacious, open feel perfect for entertaining and relaxing with family and friends. The living room measures in excess of 14’x12’ and opens onto the dining room and kitchen space. There you will find comfortable space in which to cook and dine with plenty of cabinet and counter space and outdoor accessibility. Down the hallway are two family style bedrooms; both are spacious with great window views. Bedroom two features a walk-in closet while the third bedroom has ample closet space. The shared hall bath is spacious with the family laundry nook located there while two linen closets are housed in the hallway. The master suite features a generous sized bedroom with a master walk-in closet and private access to the bath. This is a great floor plan for a small family, young professionals and/or empty nesters with several foundation options, one of which leads to future expansion.
