Southern Plan 5633-00007

IMPORTANT NOTICE

To purchase a reversed plan, please select Right Reading Reverse under Additional Options.
Sq Ft 1,501
Beds 3
Bath 2
1/2 Baths 0
Car 2
Stories 1
Width 48'
Depth 64'

Floorplan Drawings

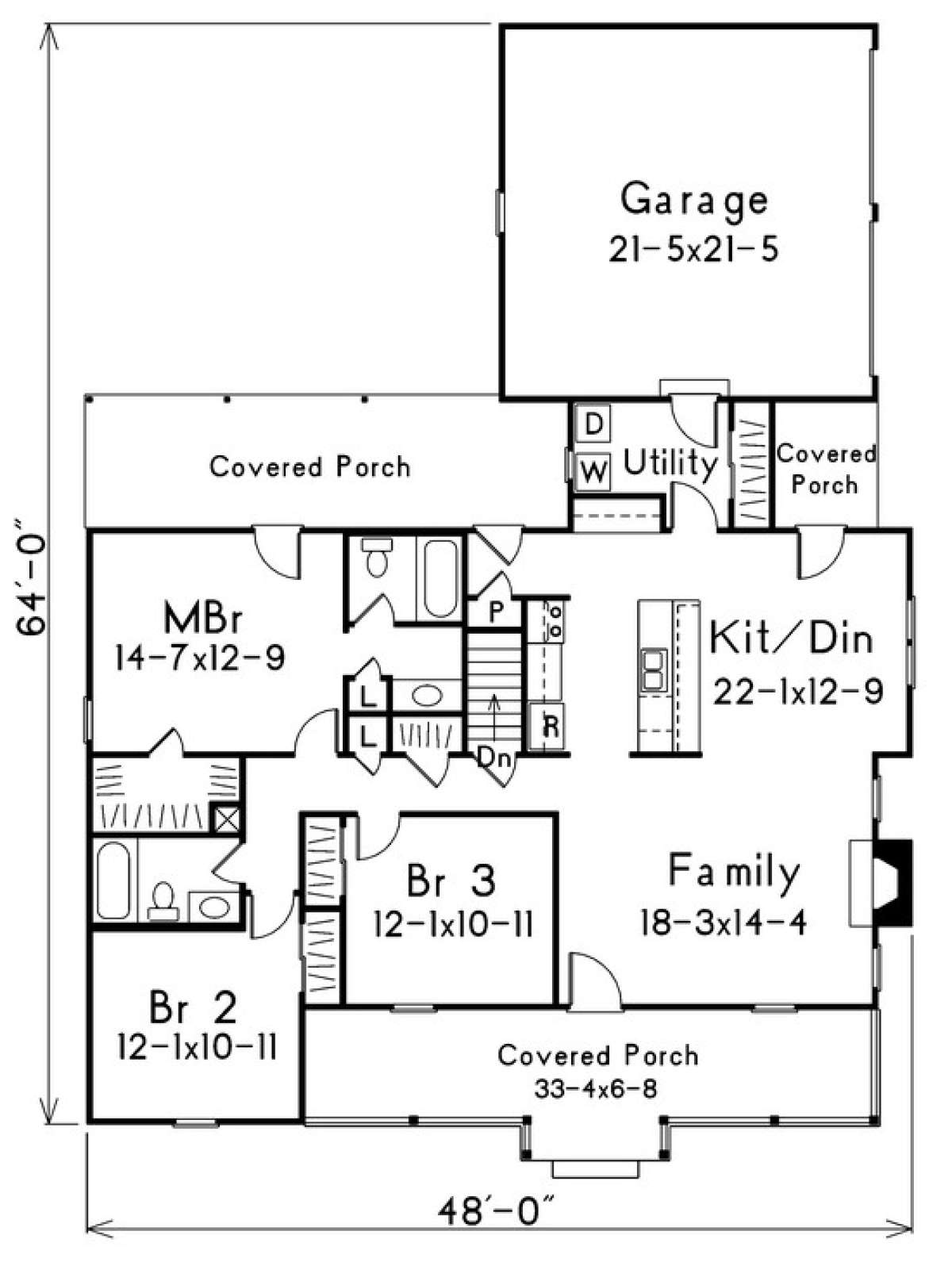

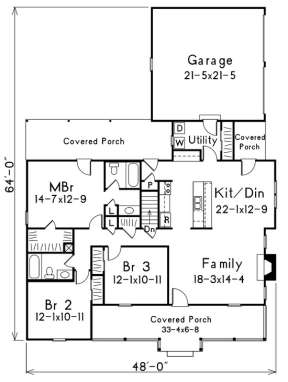

Floorplan 1
Floorplan 1 for House Plan #5633-00007


What's Included in these plans?

  • Heated and Cooled Square Footage calculations are made from outside the exterior frame wall and do not include decks, porches, garages, unfinished basements, bonus or attic space.
  • Artist Rendering
  • Foundation & Floor Plans (1/4"=1')
  • Front Elevations (1/4"=1'), Sides & Rear Elevation (1/8" or 1/4" = 1")
  • Kitchen and Bath Elevations (1/4"=1') **
  • Miscellaneous Details (1/4" to 3/4"=1')
  • Stair Section (1/4" to 3/8" = 1')
  • Roof Overview Plan (scale varies) **
    ** Some plans in this series do not provide cabinet elevations or roof overview.  Please call to verify.
  • FLOOR PLANS
    This home plan includes the floor plan showing the dimensioned locations of walls, doors, and windows as well as suggested locations for light fixtures, outlets and switches.

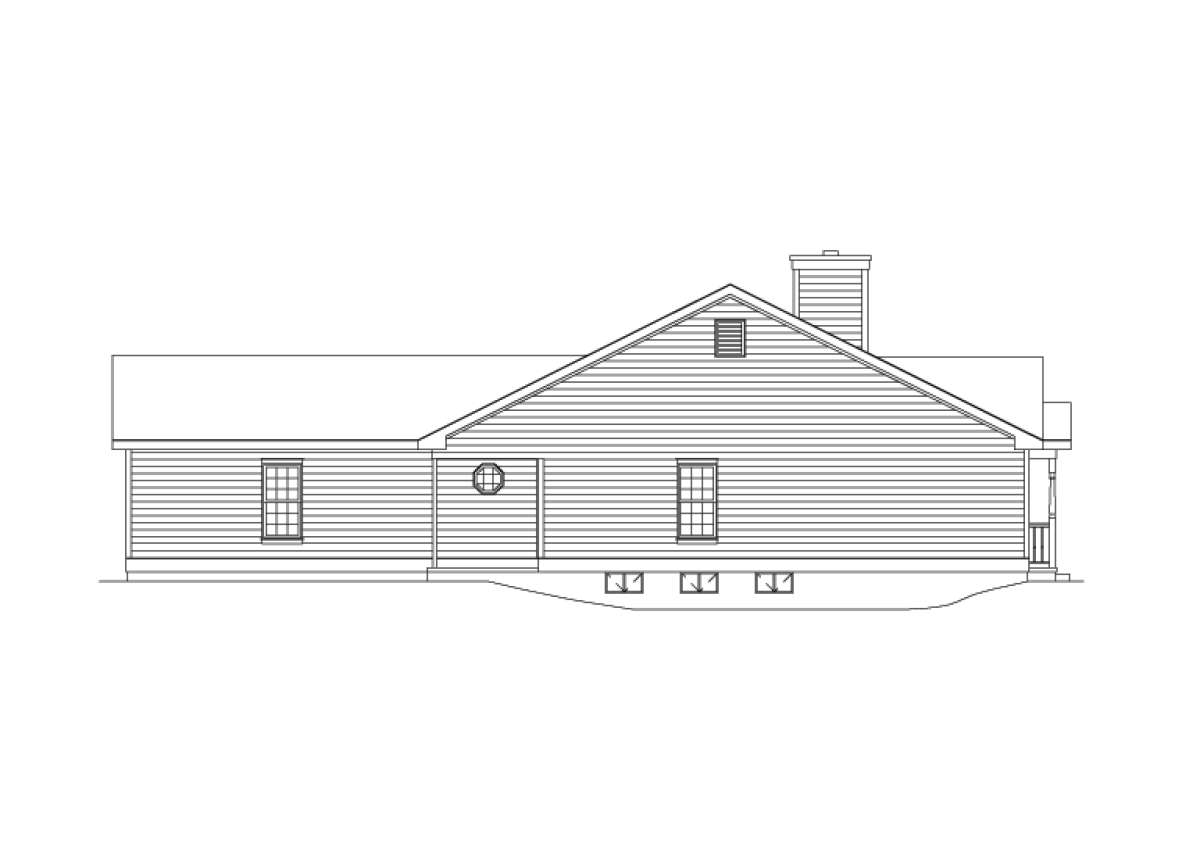

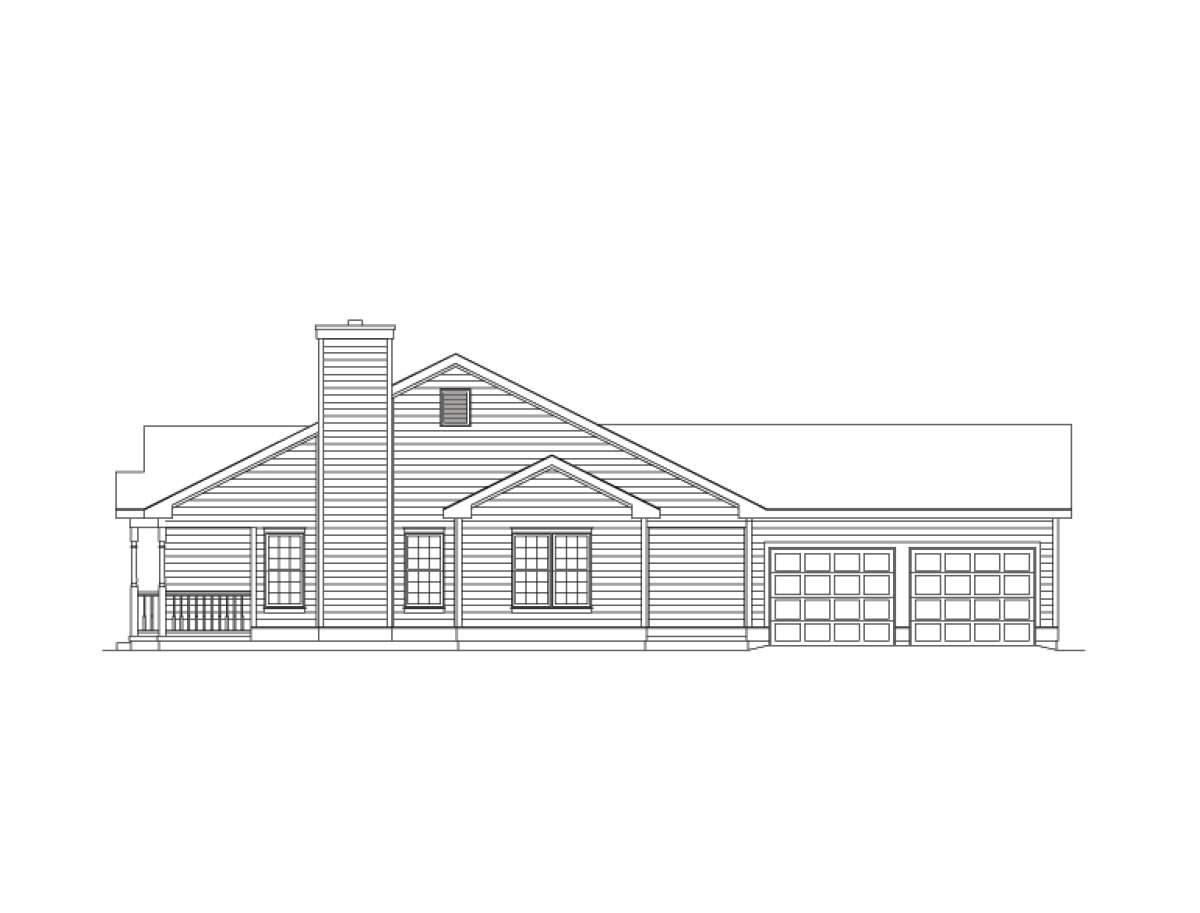

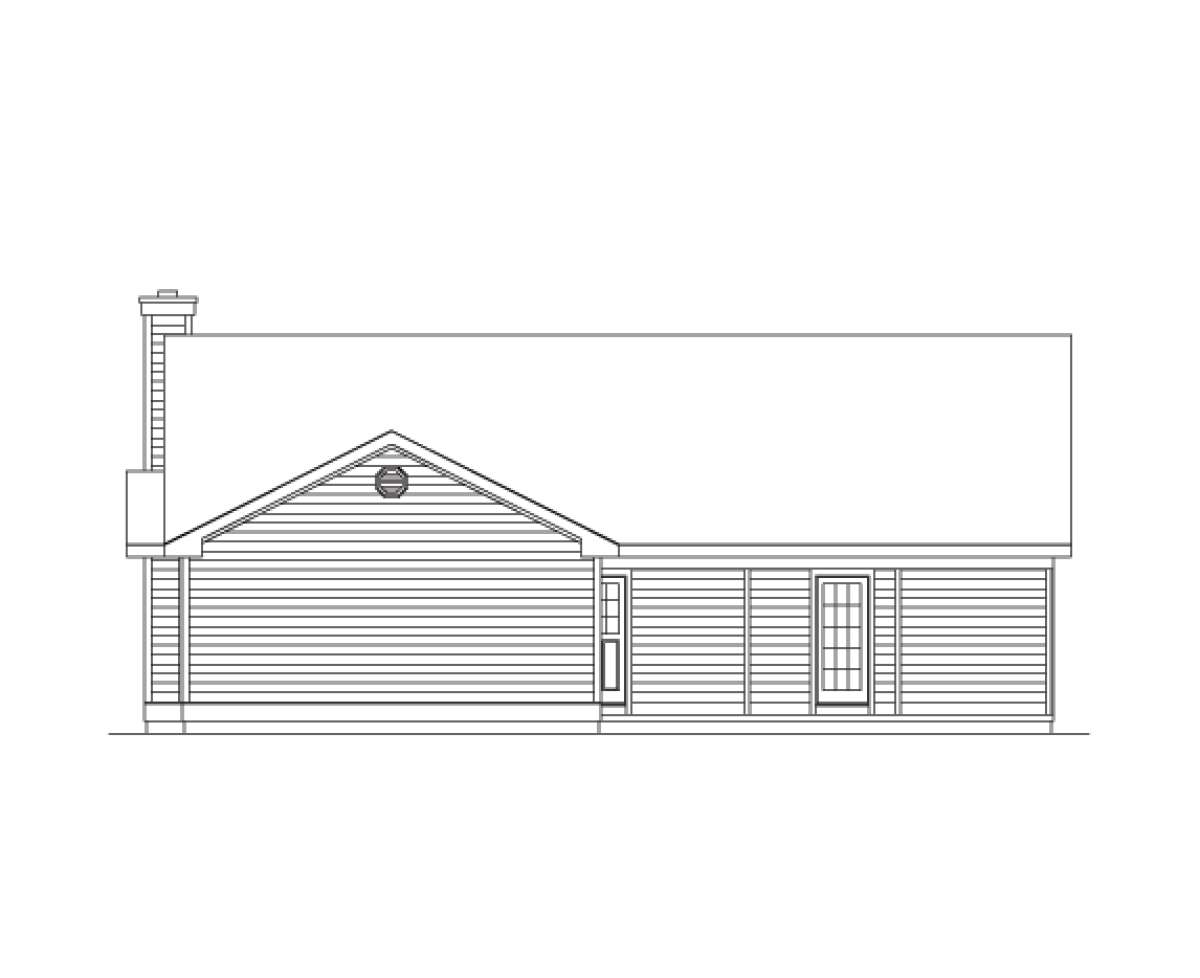

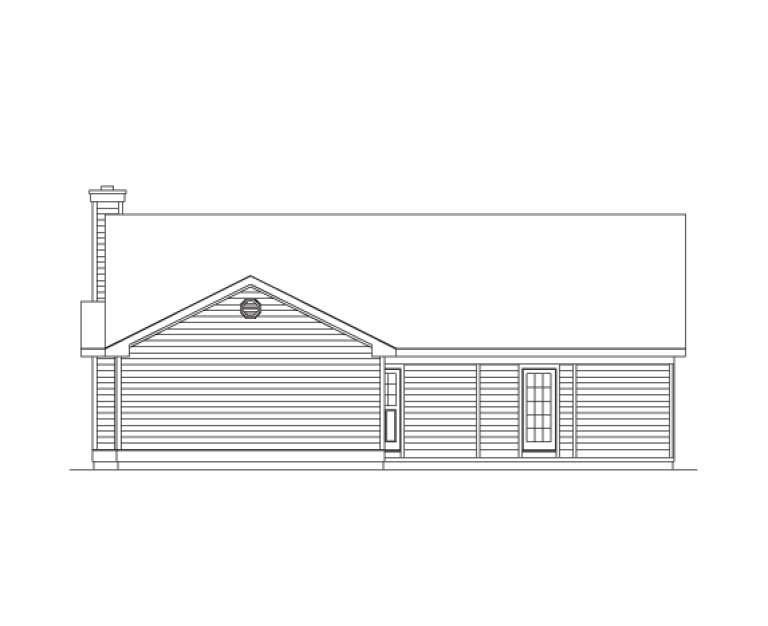

  • SET OF ELEVATIONS
    This plan includes the exterior elevations (front, rear, right and left) that show and describe the finished materials of the house.
    KITCHEN AND BATH ELEVATIONS
    The kitchen and bath elevations show the arrangement of each cabinet and other fixtures in the room. These drawings give basic information that can be used to create customized layouts with a cabinet manufacturer.
  • MISCELLANEOUS DETAILS
    Some details are included for interior and exterior conditions that require more specific information for their construction.
  • ROOF OVERVIEW PLAN
    This is a "bird's eye" view showing the roof slopes, ridges, valleys and any saddles.

Ask Us A Question

To request a modification quote, please use the Modification Request Form.

About This Plan

This Southern house plan features an extensive rocking chair front porch with open railing, endless window views and wide decorative gable eaves. The interior floor plan is highlighted by approximately 1,501 square feet of living space which encompasses three bedrooms and two baths in the single story home. A two car, side entry garage features plenty of vehicle space in its 458 square feet and the home’s drawing include basement foundation with a slab or crawlspace option for an additional cost. The basement foundation approximates the first floor square footage and substantially increases the home’s square footage and value. Entrance into the home is off the front covered porch into the expansive family room which measures in excess of 18’x14’, houses a handsome fireplace flanked by picture windows and is open to the dining and kitchen spaces. This open concept floor plan features a lovely dining space with “bump-out” window views and access to a small covered porch that is ideal for dining al fresco. The gourmet kitchen features a large center island/breakfast bar with a separate pantry, plenty of additional counter and cabinet space and rear access to the second covered porch which is large and provides great entertaining and family relaxing space. There is a large interior laundry room situated off the garage for ease and convenience.
Travelling the main hallway, there is a linen closet, lower level staircase, a coat/storage closet and the family bedrooms and bathrooms. The second bedroom is spacious with generous closet space and has direct access to the shared bath which features a vanity space, toilet area and a shower/tub combination. Bedroom three contains ample closet space and a window view overlooking the front covered porch. The master suite showcases a large bedroom and an oversized walk-in master closet along with private access to the rear covered porch. There is a private en suite master bath with a compartmentalized toilet, large vanity space, a linen closet and a tub/shower combination. This is a handsome family home with loads of interior space and great outdoor entertaining space.
