Ranch Plan 5631-00117

Name: House Plan 5631-00117 - Ranch Plan: 2,594 Square Feet, 2-4 Bedrooms, 2.5 Bathrooms
Brand: America's Best House Plans
SKU: 5631-00117
Price: 1487.50 USD

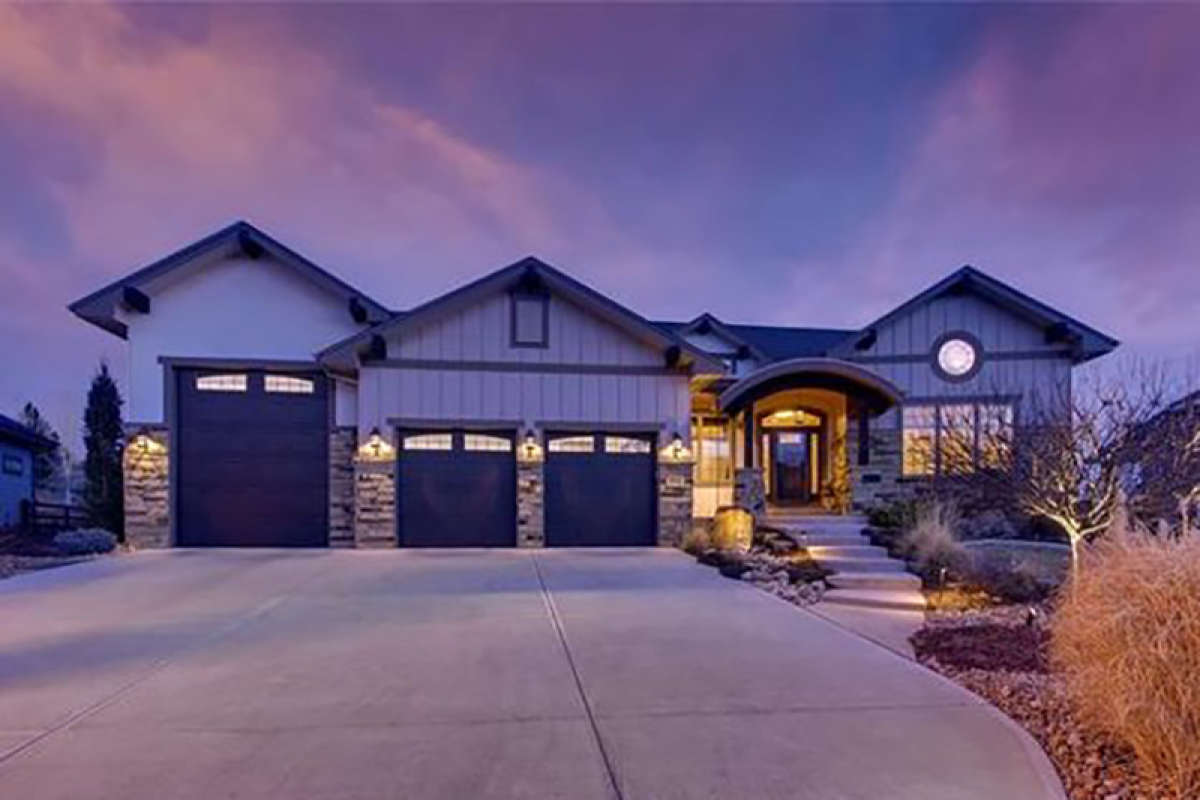

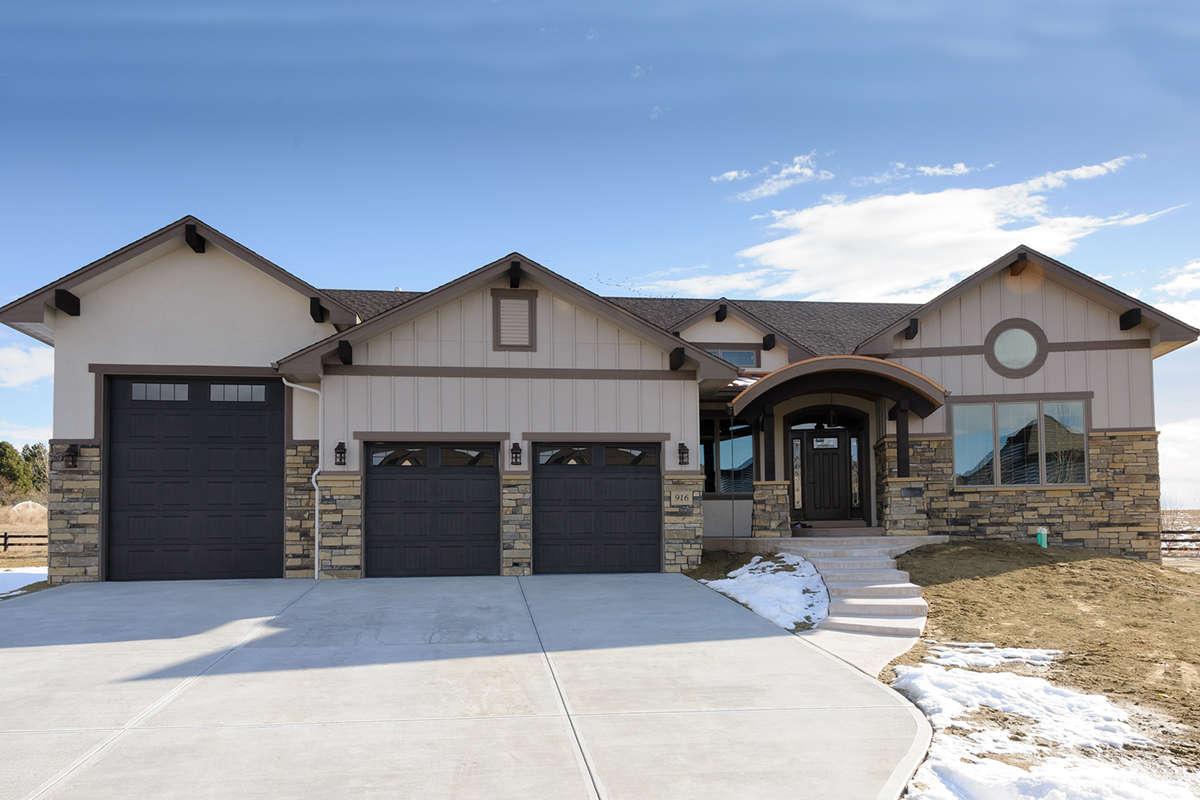

Ranch House Plan #5631-00117 Elevation Photo

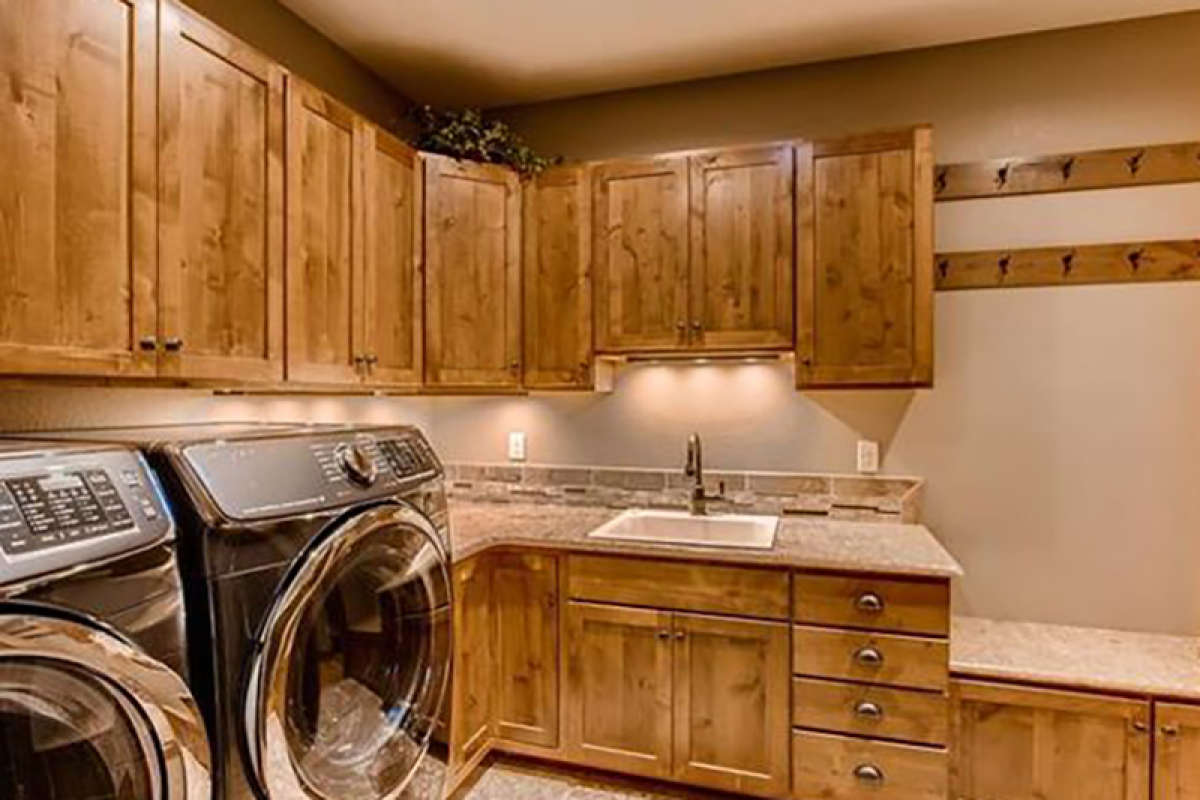

Ranch House Plan #5631-00117 Additional Photo

SALE

IMPORTANT NOTICE

To purchase a reversed plan, please select Right Reading Reverse under Additional Options.

Images copyrighted by the designer. Photographs may reflect a homeowner modification.

Sq Ft 2,594

Beds 2-4

Bath 2

1/2 Baths 1

Car 5

Stories 1

Width 82' 2"

Depth 67' 9"

See What's Included

Select Package

PDF (Single Build)

$1,750 $1,487.50

ELECTRONIC FORMAT Recommended
One Complete set of working drawings emailed to you in PDF format. Most plans can be emailed same business day or the business day after your purchase. This package comes with a license to construct one home and a release for making copies locally and minor changes to the plan.

CAD Files (Single Build)

$3,050 $2,592.50

ELECTRONIC FORMAT
A CAD file is a set of construction drawings in an electronic format. The CAD file can be used to make minor or major modifications to our plans. The CAD files come with a release to customize the plan however you like. CAD files can also be emailed to avoid shipping costs. Most plans can be emailed same business day or the business day after your purchase. This package comes with a license to construct one home. Requires a CAD program to open the files and drafting experience to make changes.
Important Notice: This plan is designed using Softplan and delivered in .dwg format. Please call our office to ensure compatibility with your CAD program prior to purchase.

Select Foundation

Basement Foundation $0 $0.00

Slab Foundation $495 $420.75

Crawlspace Foundation $495 $420.75

Need a different foundation?

Get a free modification quote

Additional Options

Right Reading Reverse $245 $208.25

Reverses the entire plan including all text and dimensions so that they are reading correctly.

ABHP Material List $305 $259.25

A complete material list for this plan plus purchased options excluding right reading reverse and any modifications. Product requires up to one week to prepare.

View Sample ABHP Material List

Return Policy, Building Code & Copyright Info

Floorplan Drawings

PRINT DOWNLOAD

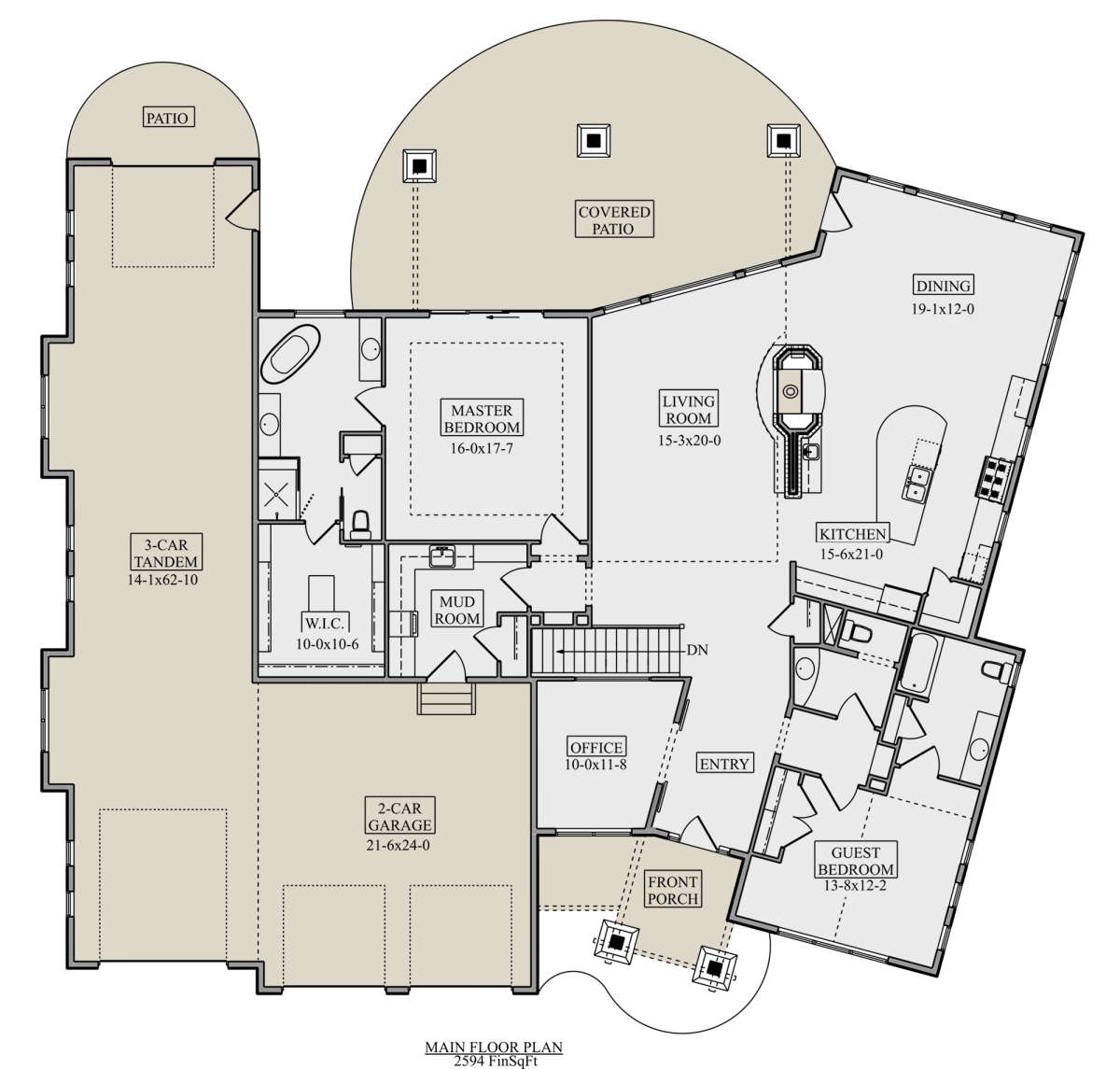

Main Floor

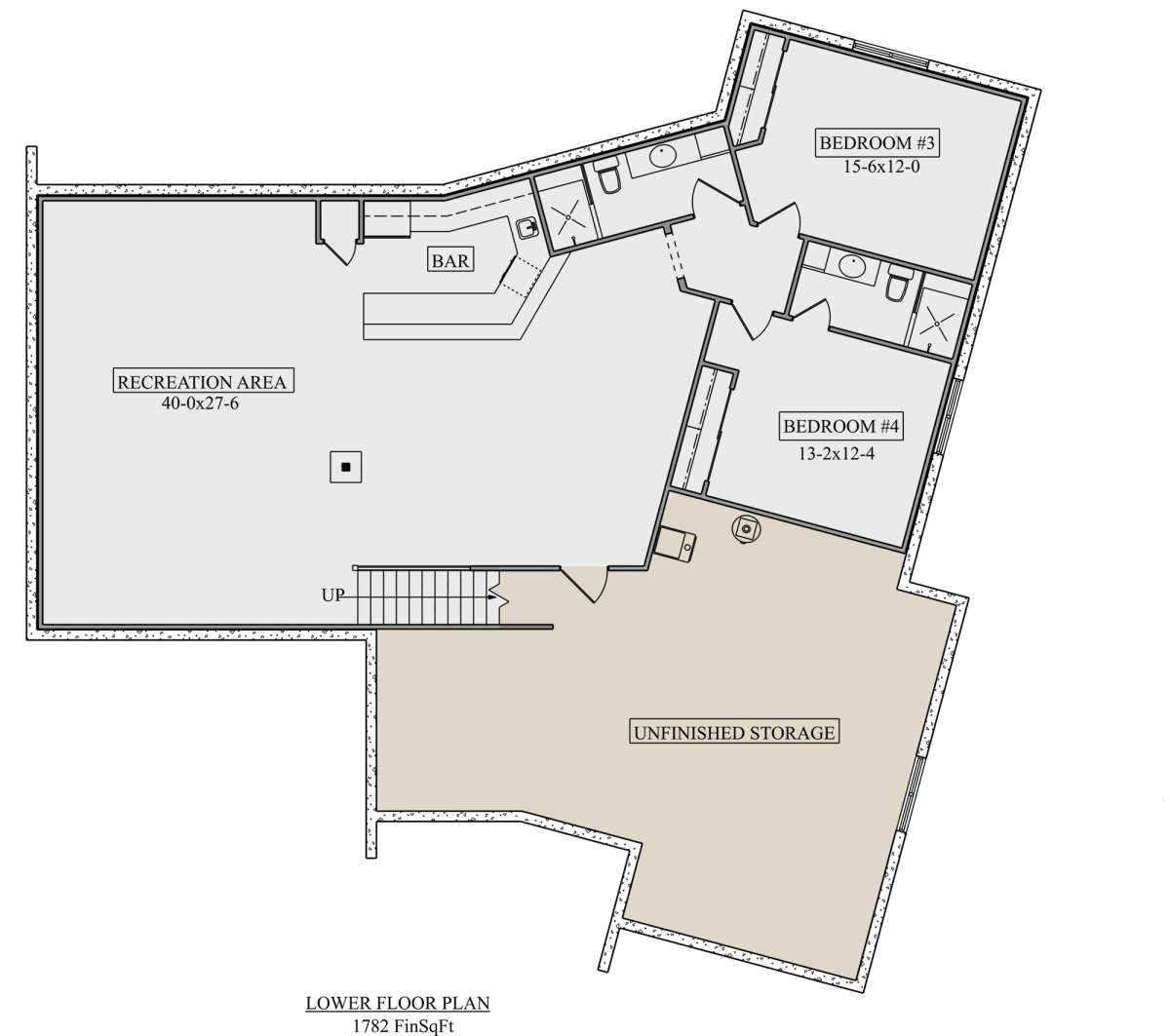

Basement

Images copyrighted by the designer.

Details

HEATED Sq Ft

Total Heated Area: 2,594 sq. ft. First Floor: 2,594 sq. ft.

UNHEATED Sq Ft

Total Unheated Area: 3,299 sq. ft. Basement: 1,782 sq. ft. Garage: 1,517 sq. ft.

Bedrooms: 2-4

Full Baths: 2

Half Baths: 1

Floors: 1

Garage Size: 5 car

Width: 82ft.-2in.

Depth: 67ft.-9in.

Height: 22ft.-1in.

Foundation: Basement Foundation PAID OPTION Slab Foundation PAID OPTION Crawlspace Foundation

Main Roof Pitch: 8:12

Exterior Framing: 2x6 Wood

CEILING HEIGHTS

Basement: 9 feet

First Floor: 9 feet

What's Included in these plans?

Cover Page- includes plan schedule, general notes and square footages
Front and Back Elevations- Showing roof lines, exterior materials and wall heights. Scale varies per size of home
Left and Right Elevations-Showing roof lines, exterior materials and wall heights. Scale varies per size of home
Floor Plans (floors per each design)- Scale varies per size of home
Foundation Plan (Architectural)- Foundation wall layout and post and beam layouts
Roof Plan- Birdseye view showing ridges and valleys
Section(s)
Electrical Plans

What's not included: House plans do not typically include mechanical, plumbing, or truss drawings. Additionally, some jurisdictions require a local architect or engineer to make adjustments to the plan to comply with local building codes. We advise you to check with your local building department regarding codes. For more information, visit the What's Included in Our Plans page.

Ask Us A Question

About This Plan

Remarkable in the daylight and stunning in the evening, this Ranch house plan raves awesome curb appeal. Its mix of board and batten siding with slate tiles create a wonderful exterior. The covered patio in the rear of the home makes for a lovely entertaining area. The interior layout measures approximately 2,594 square feet with two-four bedrooms and two bathrooms, with the five-car garage adding 1,517 square feet and the basement adding 1,782 square feet to the overall square footage of the home.

Directly upon front entry, the home office and guest suite flank the foyer with the guest powder room nestled close by. The living room and kitchen are separated by the floor-to-ceiling- fireplace; however, there is still great flow between the two. The island kitchen and dining area run right into one another and offer access to the covered patio. The master bedroom and laundry/mud room complete the main floor and is host to a walk-in closet, private sliding room access to the covered patio, and has a walk-in closet.

The basement features a sizable recreation area with a bar and two additional bedrooms.

Browse Similar PlansVIEW MORE PLANS

Depth 104' 9"

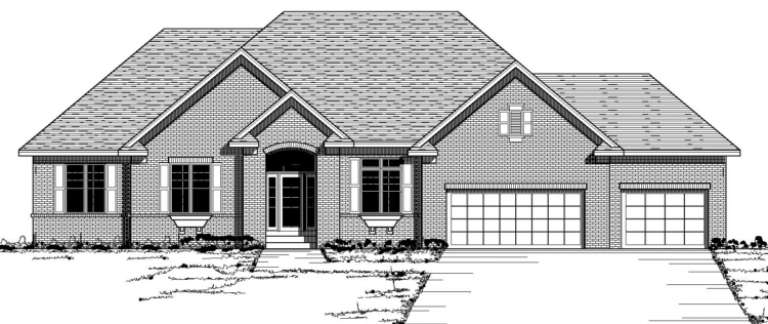

House Plan House Plan #20136 Front Elevation
