Craftsman Plan 5631-00098

Name: House Plan 5631-00098 - Craftsman Plan: 2,682 Square Feet, 2-5 Bedrooms, 2.5 Bathrooms
Brand: America's Best House Plans
SKU: 5631-00098
Price: 1487.50 USD

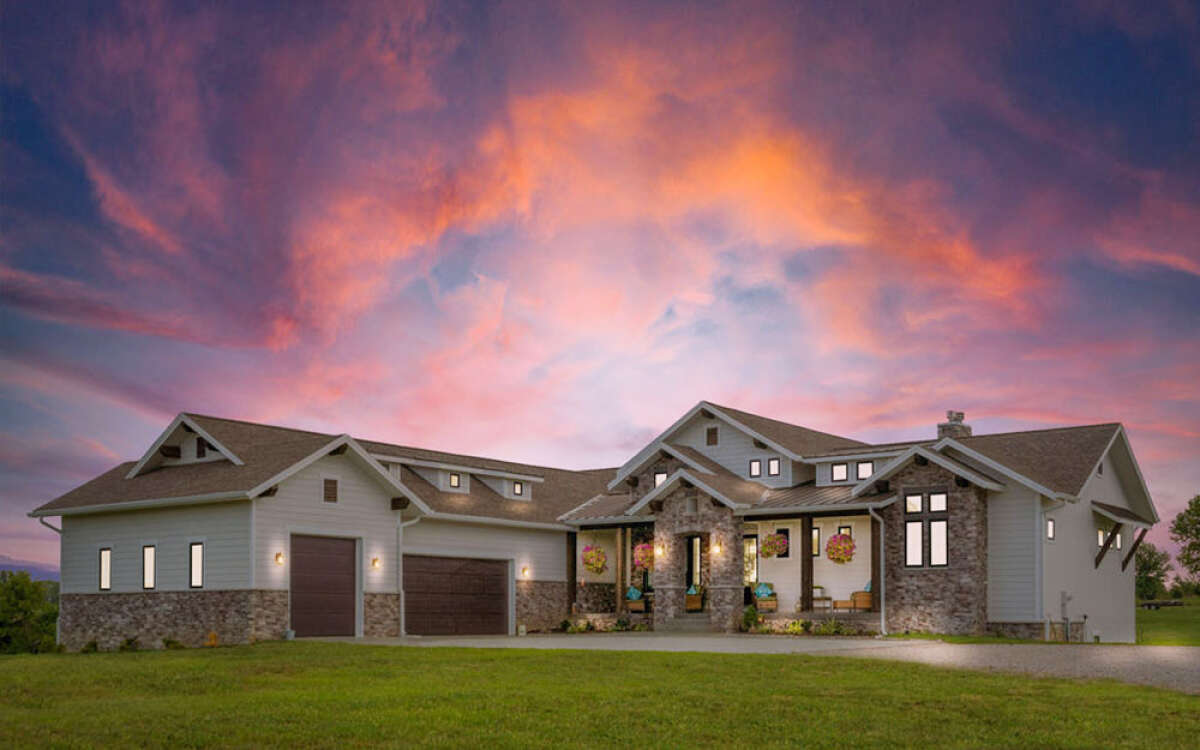

Craftsman House Plan #5631-00098 Elevation Photo

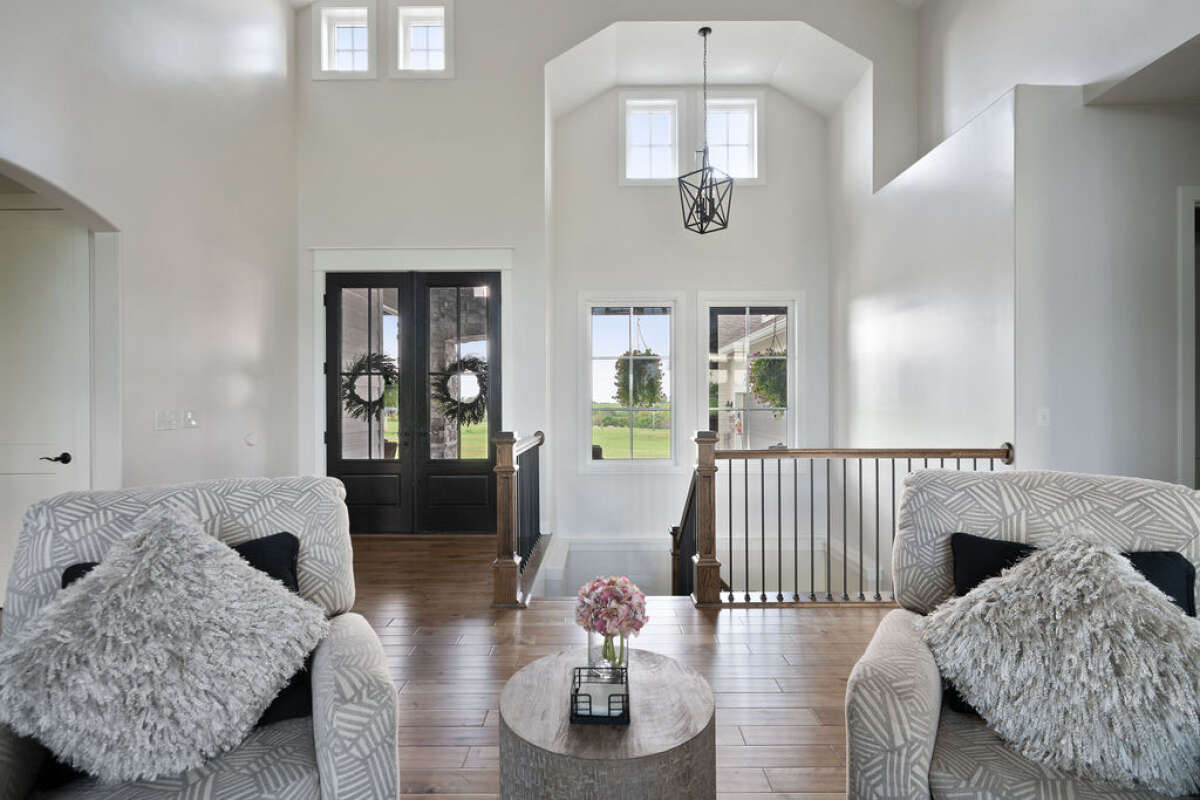

Craftsman House Plan #5631-00098 Additional Photo

Kansas

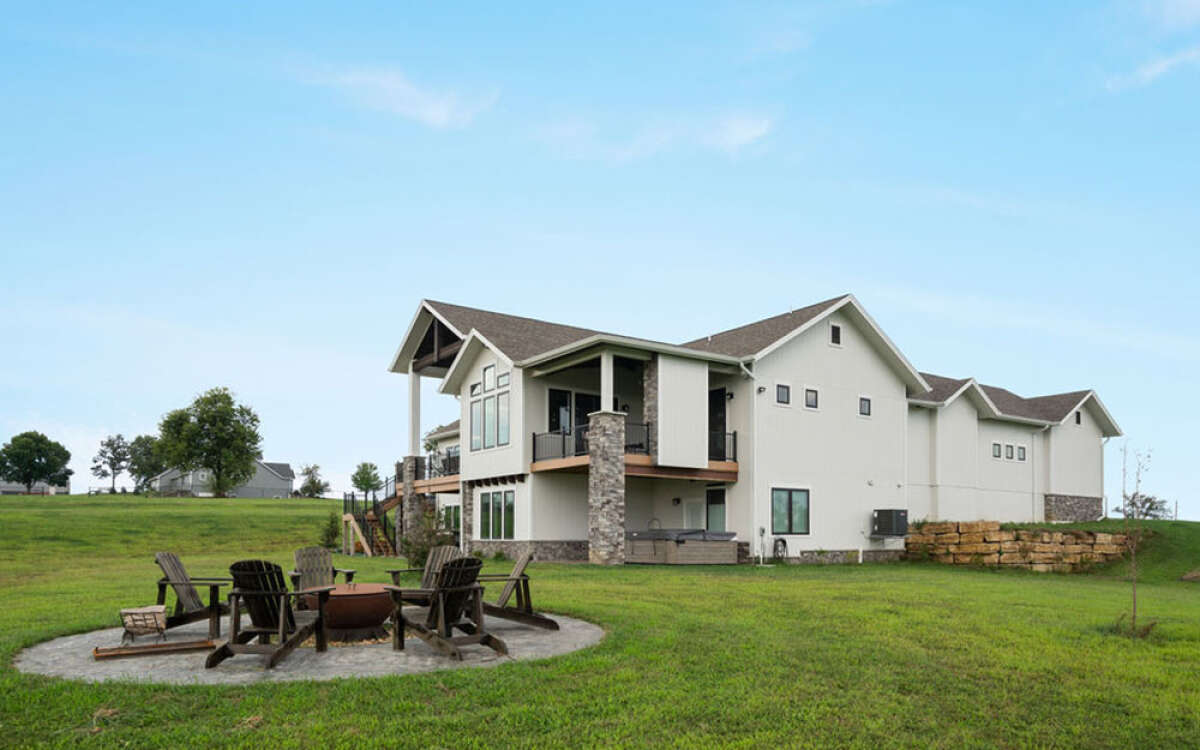

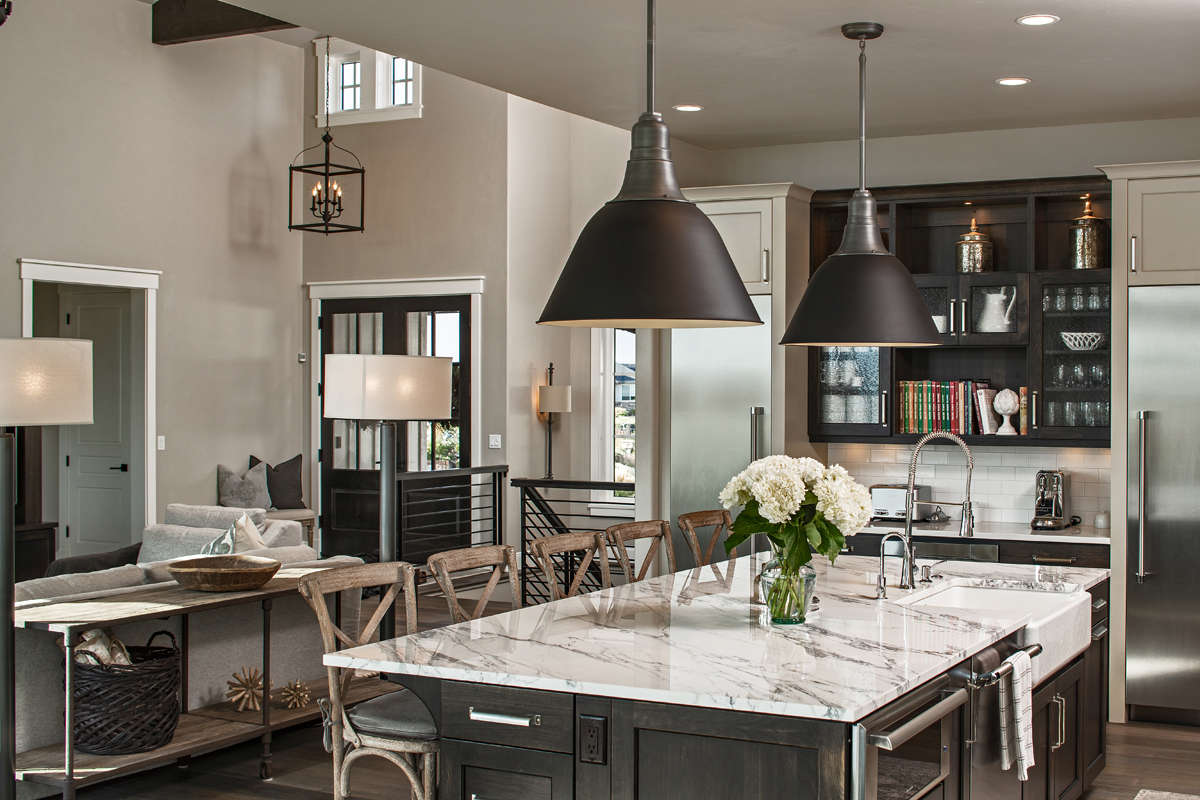

Craftsman House Plan #5631-00098 Build Photo

Kansas

SALE

IMPORTANT NOTICE

To purchase a reversed plan, please select Right Reading Reverse under Additional Options.

Images copyrighted by the designer. Photographs may reflect a homeowner modification.

Sq Ft 2,682

Beds 2-5

Bath 2

1/2 Baths 1

Car 3

Stories 1

Width 79'

Depth 97' 9"

See What's Included

Select Package

PDF (Single Build)

$1,750 $1,487.50

ELECTRONIC FORMAT Recommended
One Complete set of working drawings emailed to you in PDF format. Most plans can be emailed same business day or the business day after your purchase. This package comes with a license to construct one home and a release for making copies locally and minor changes to the plan.

CAD Files (Single Build)

$3,050 $2,592.50

ELECTRONIC FORMAT
A CAD file is a set of construction drawings in an electronic format. The CAD file can be used to make minor or major modifications to our plans. The CAD files come with a release to customize the plan however you like. CAD files can also be emailed to avoid shipping costs. Most plans can be emailed same business day or the business day after your purchase. This package comes with a license to construct one home. Requires a CAD program to open the files and drafting experience to make changes.
Important Notice: This plan is designed using Softplan and delivered in .dwg format. Please call our office to ensure compatibility with your CAD program prior to purchase.

Select Foundation

Walkout Basement Foundation $0 $0.00

Basement Foundation $395 $335.75

Slab Foundation $495 $420.75

Crawlspace Foundation $495 $420.75

Need a different foundation?

Get a free modification quote

Additional Options

Right Reading Reverse $245 $208.25

Reverses the entire plan including all text and dimensions so that they are reading correctly.

ABHP Material List $305 $259.25

A complete material list for this plan plus purchased options excluding right reading reverse and any modifications. Product requires up to one week to prepare.

View Sample ABHP Material List

Return Policy, Building Code & Copyright Info

Floorplan Drawings

PRINT DOWNLOAD

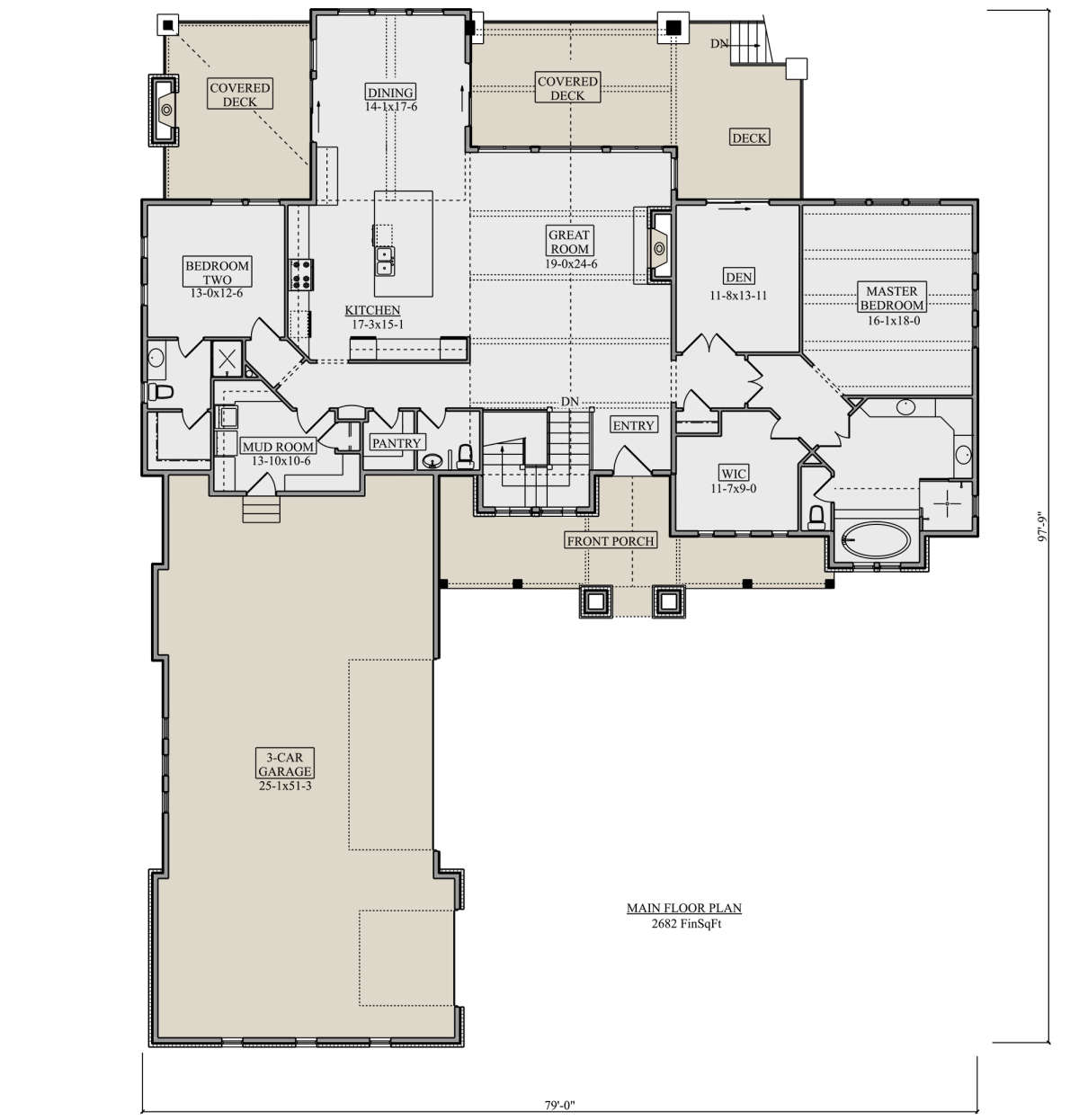

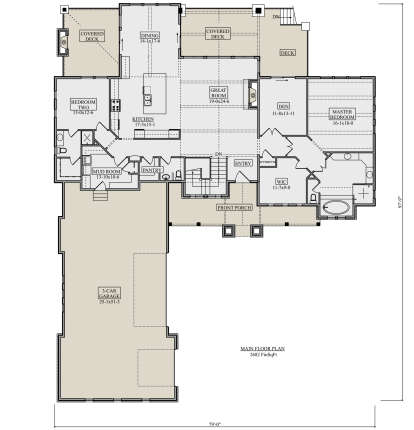

Main Floor

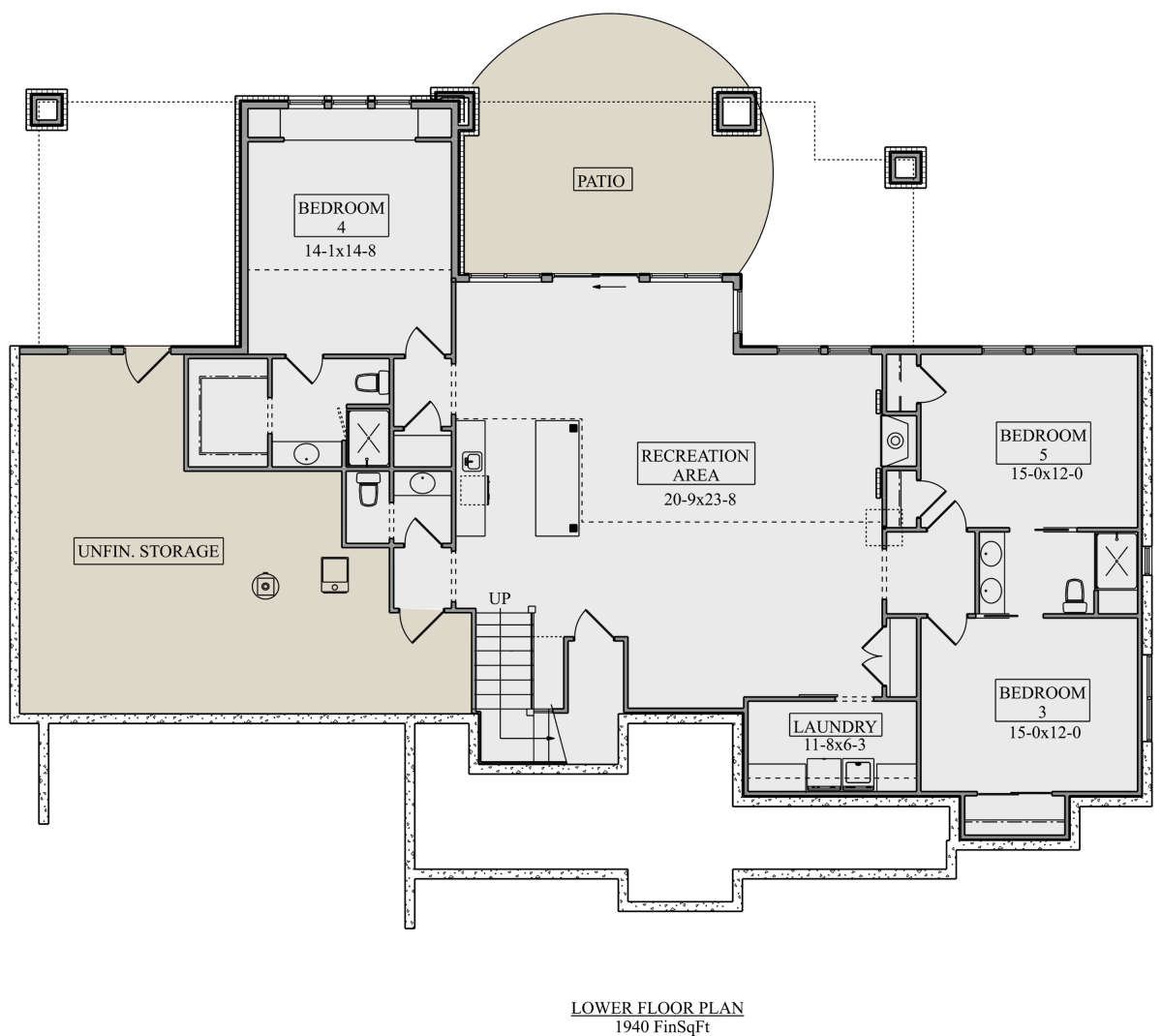

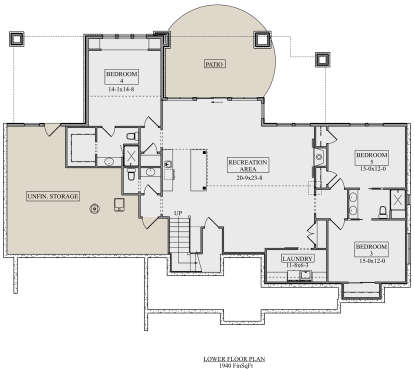

Basement

Images copyrighted by the designer.

Details

HEATED Sq Ft

Total Heated Area: 2,682 sq. ft. First Floor: 2,682 sq. ft.

UNHEATED Sq Ft

Total Unheated Area: 3,365 sq. ft. Basement: 1,940 sq. ft. Garage: 1,425 sq. ft.

Bedrooms: 2-5

Full Baths: 2

Half Baths: 1

Floors: 1

Garage Size: 3 car

Width: 79ft.

Depth: 97ft.-9in.

Height: 23ft.

Foundation: Walkout Basement Foundation PAID OPTION Basement Foundation PAID OPTION Slab Foundation PAID OPTION Crawlspace Foundation

Main Roof Pitch: 7:12

Exterior Framing: 2x6 Wood

CEILING HEIGHTS

Basement: 10 feet

First Floor: 10 feet

What's Included in these plans?

Cover Page- includes plan schedule, general notes and square footages
Front and Back Elevations- Showing roof lines, exterior materials and wall heights. Scale varies per size of home
Left and Right Elevations-Showing roof lines, exterior materials and wall heights. Scale varies per size of home
Floor Plans (floors per each design)- Scale varies per size of home
Foundation Plan (Architectural)- Foundation wall layout and post and beam layouts
Roof Plan- Birdseye view showing ridges and valleys
Section(s)
Electrical Plans

What's not included: House plans do not typically include mechanical, plumbing, or truss drawings. Additionally, some jurisdictions require a local architect or engineer to make adjustments to the plan to comply with local building codes. We advise you to check with your local building department regarding codes. For more information, visit the What's Included in Our Plans page.

Ask Us A Question

About This Plan

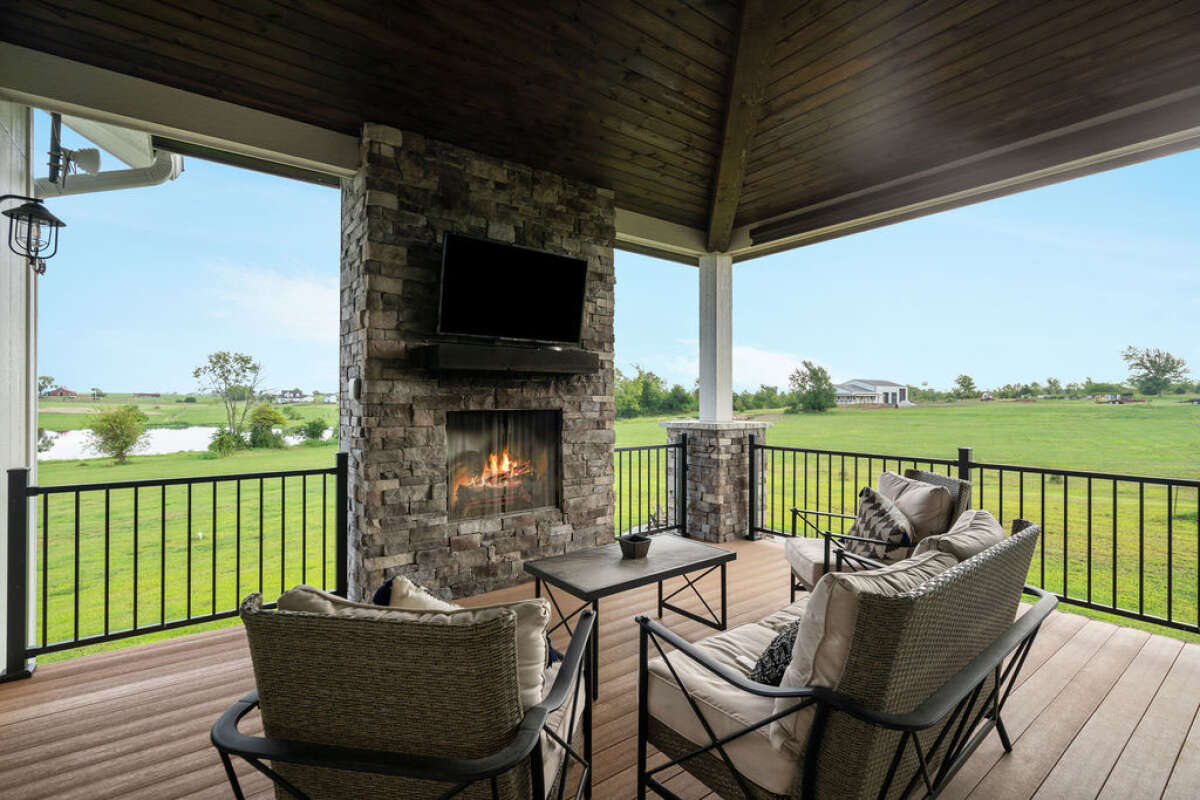

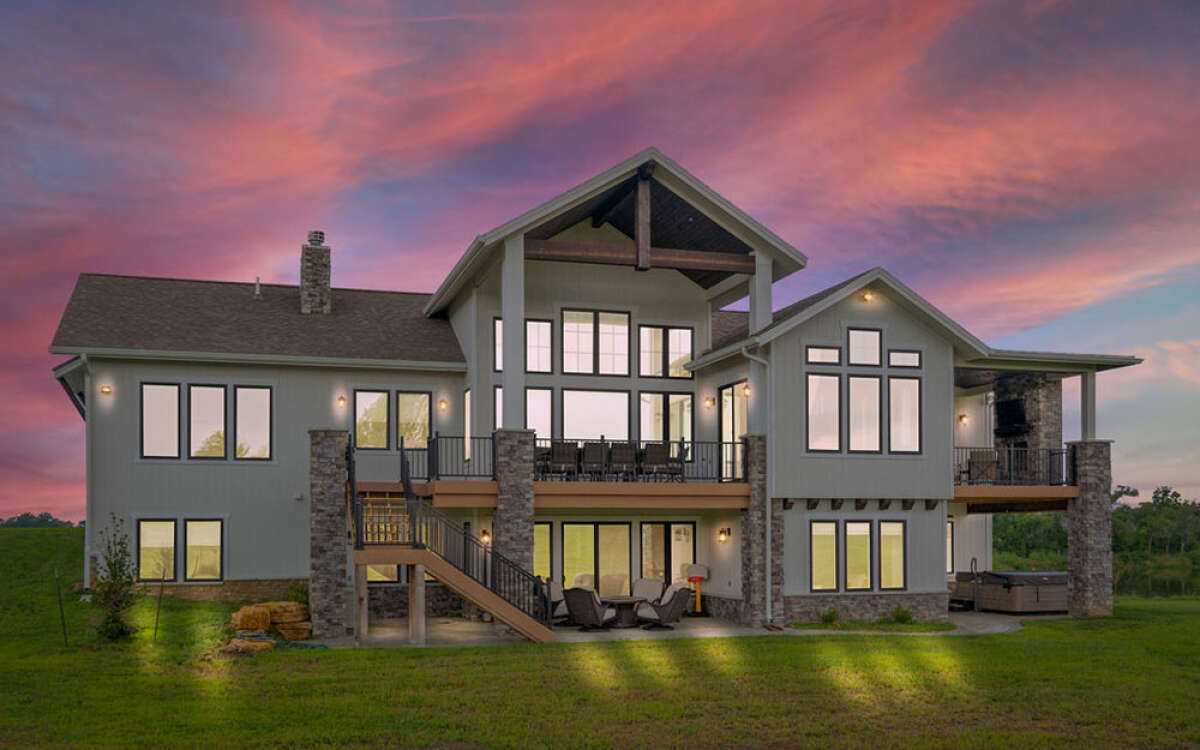

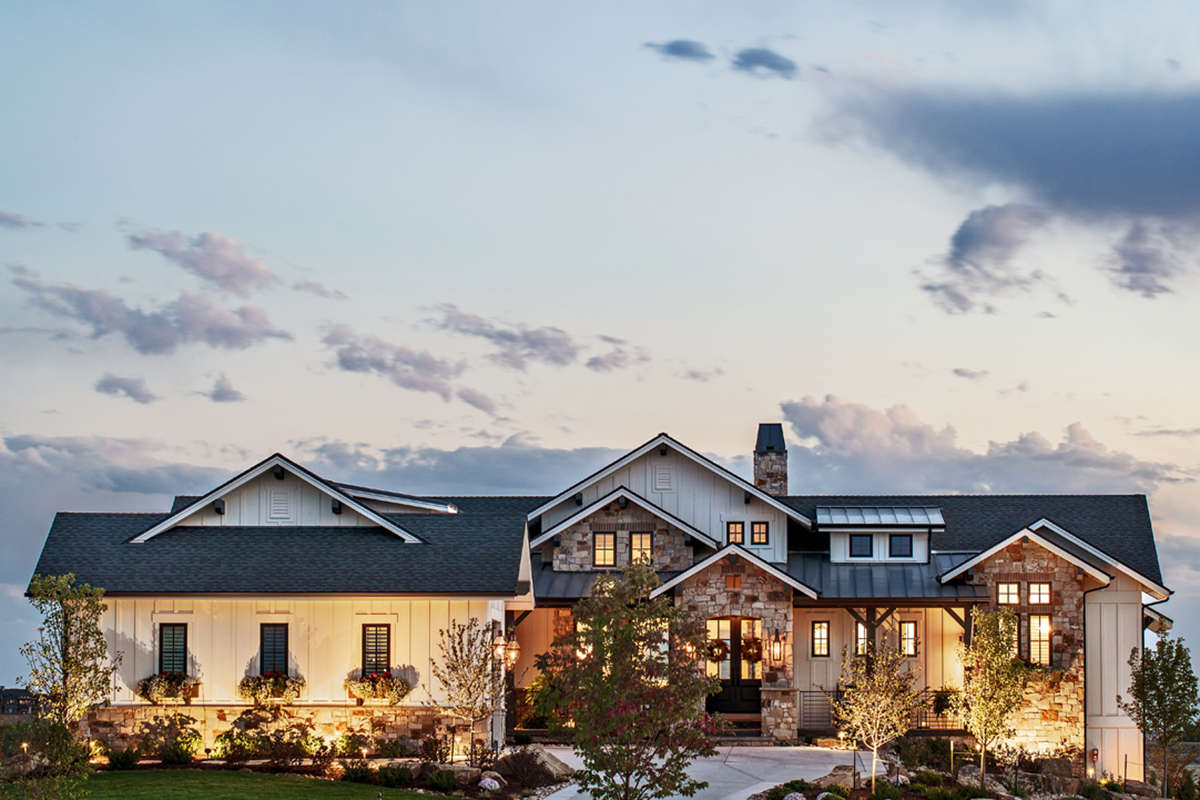

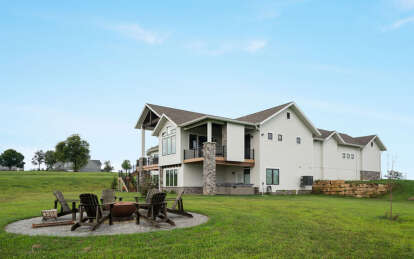

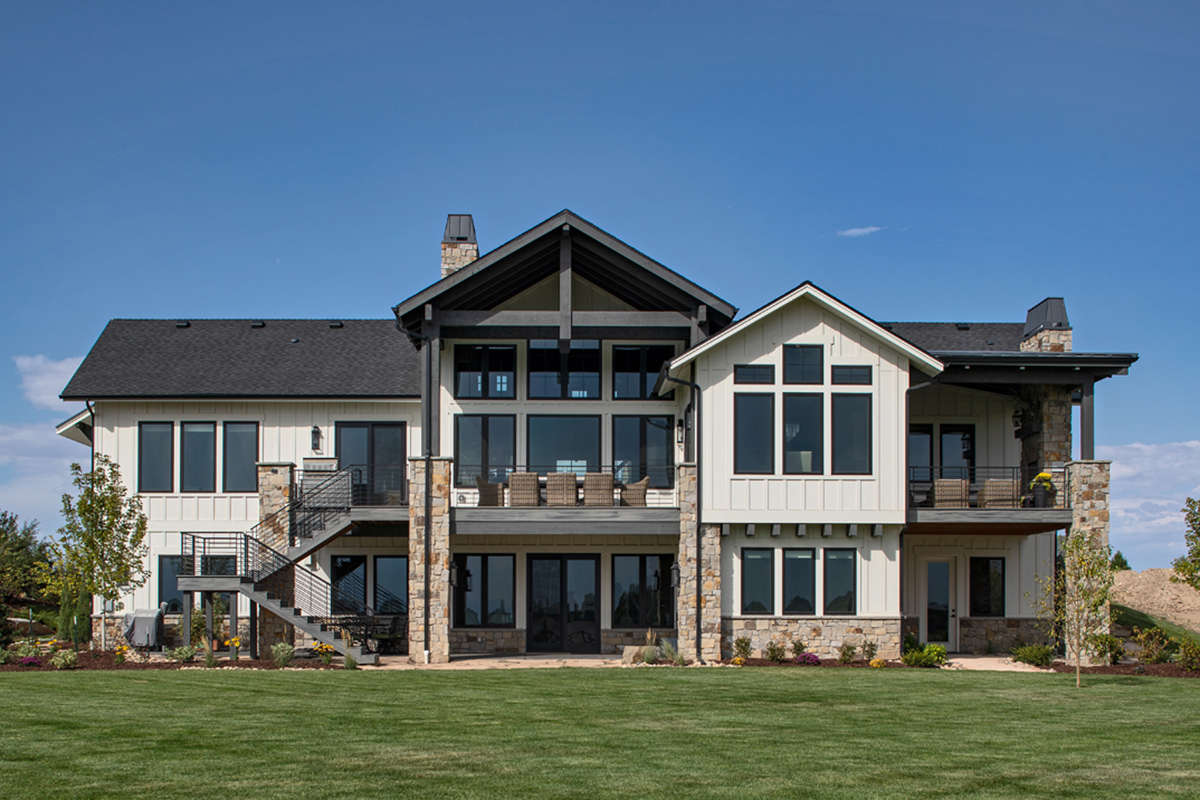

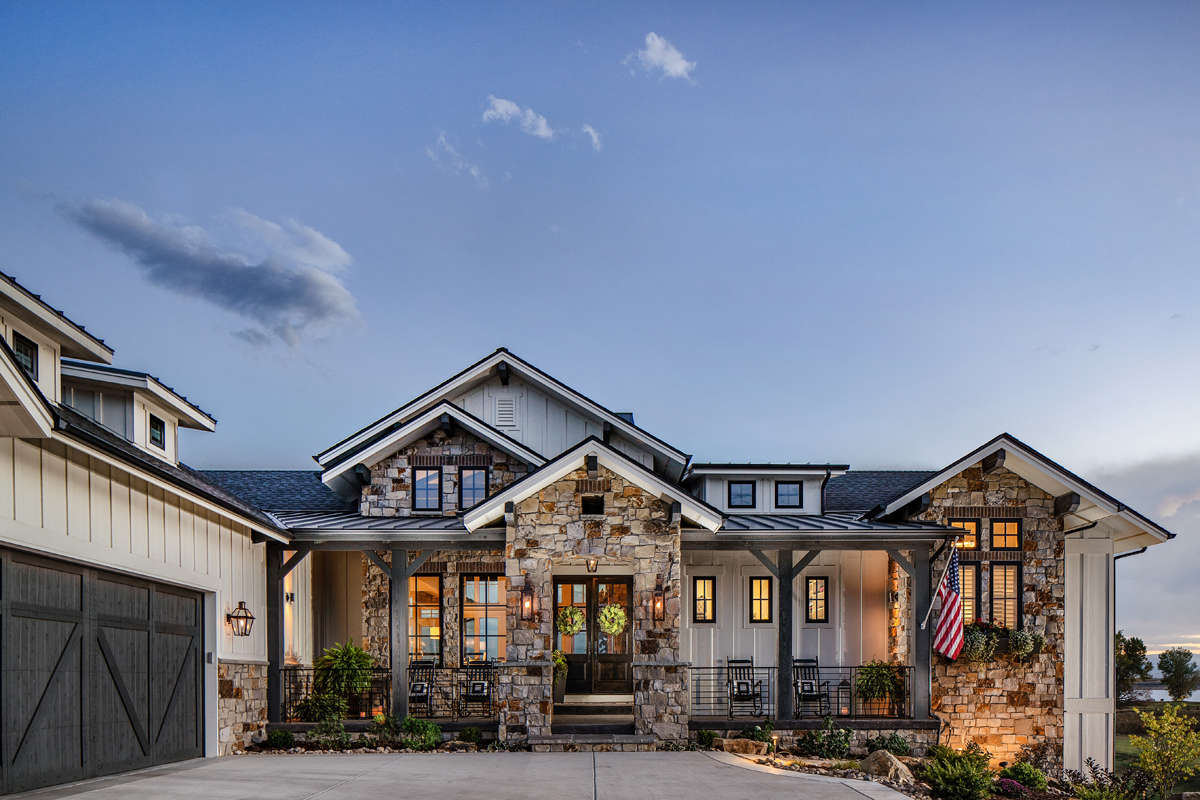

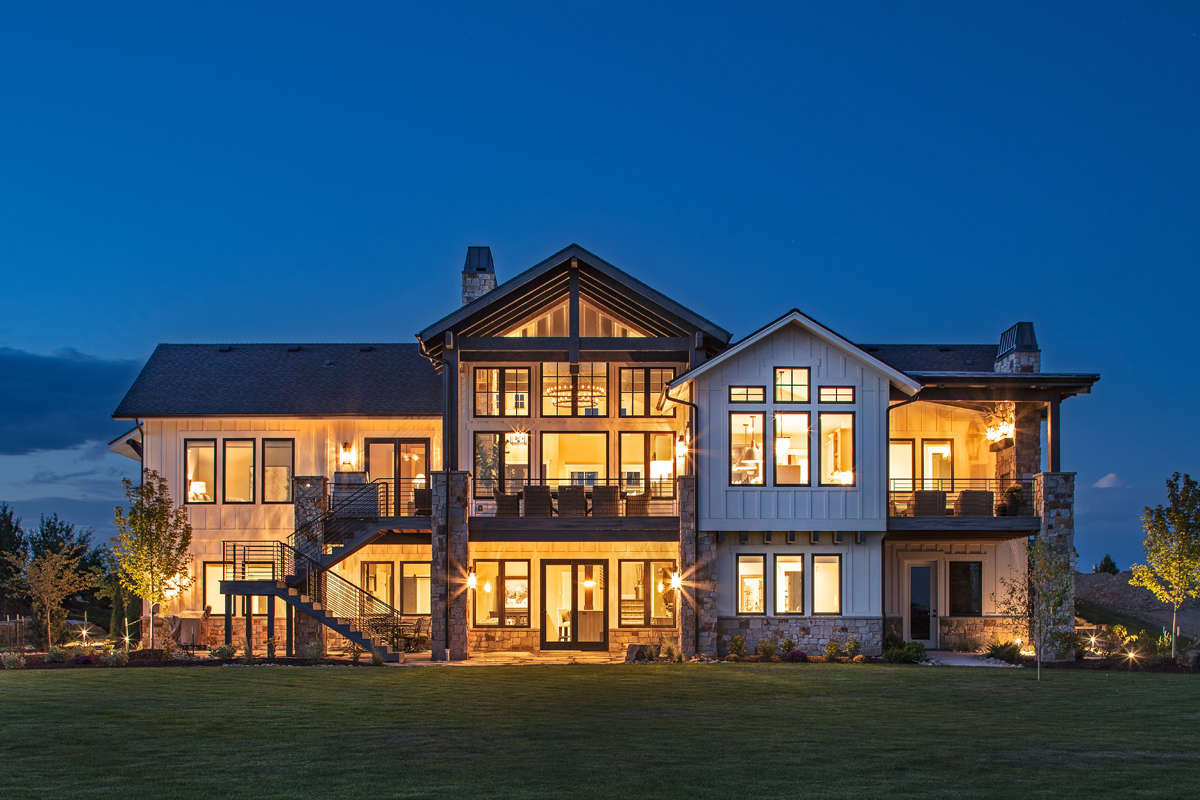

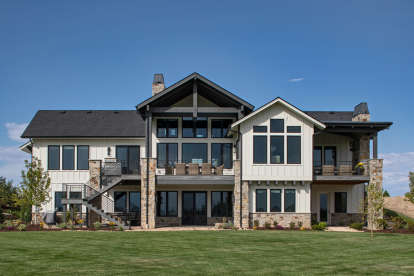

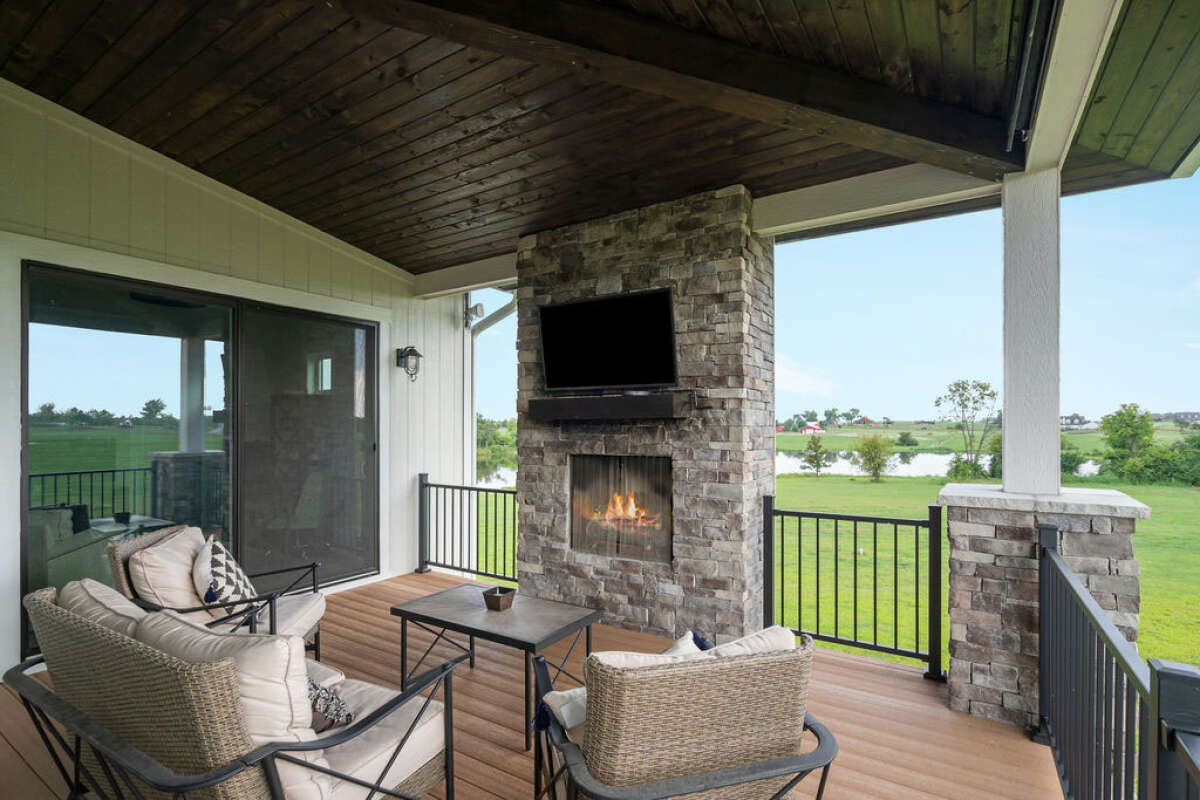

This Craftsman house plan welcomes you with an inviting courtyard entry to a beautiful 2,682 square foot home with a dynamite walkout basement foundation. The exterior is composed of board and batten with wonderful brick accents and a covered front porch with a railing. The rear elevation details a host of windows ranging in size to optimize natural light to its fullest as well as partially covered decks spacious enough to entertain with ease and comfort, an outdoor fireplace, and a staircase leading down to the basement level. The three-car side entry garage offers ample amount of space for vehicle and storage.

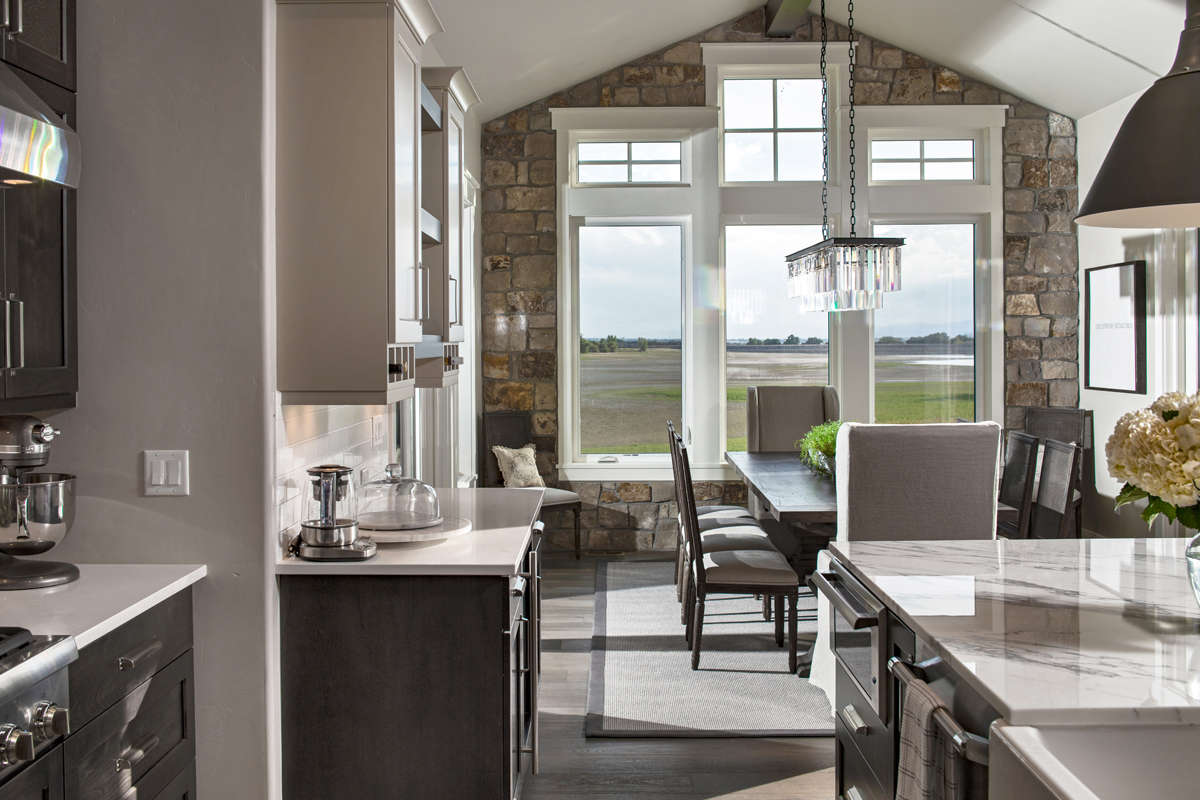

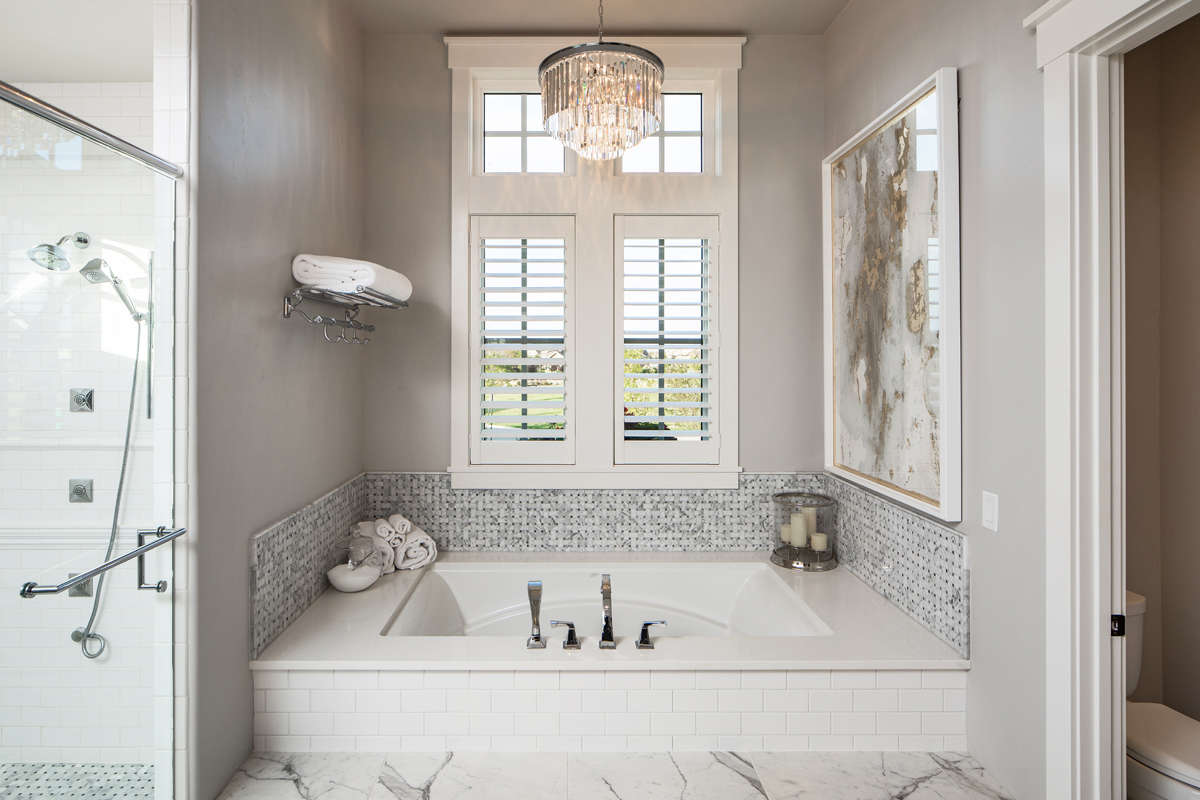

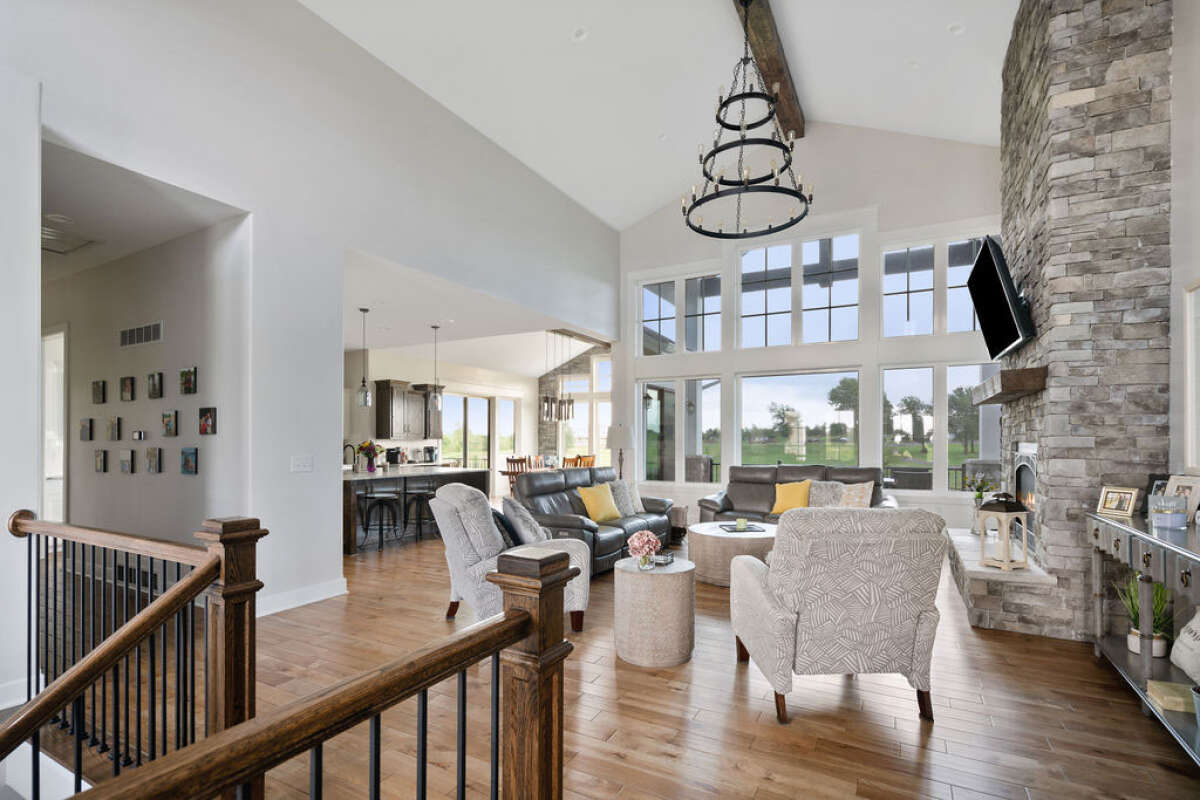

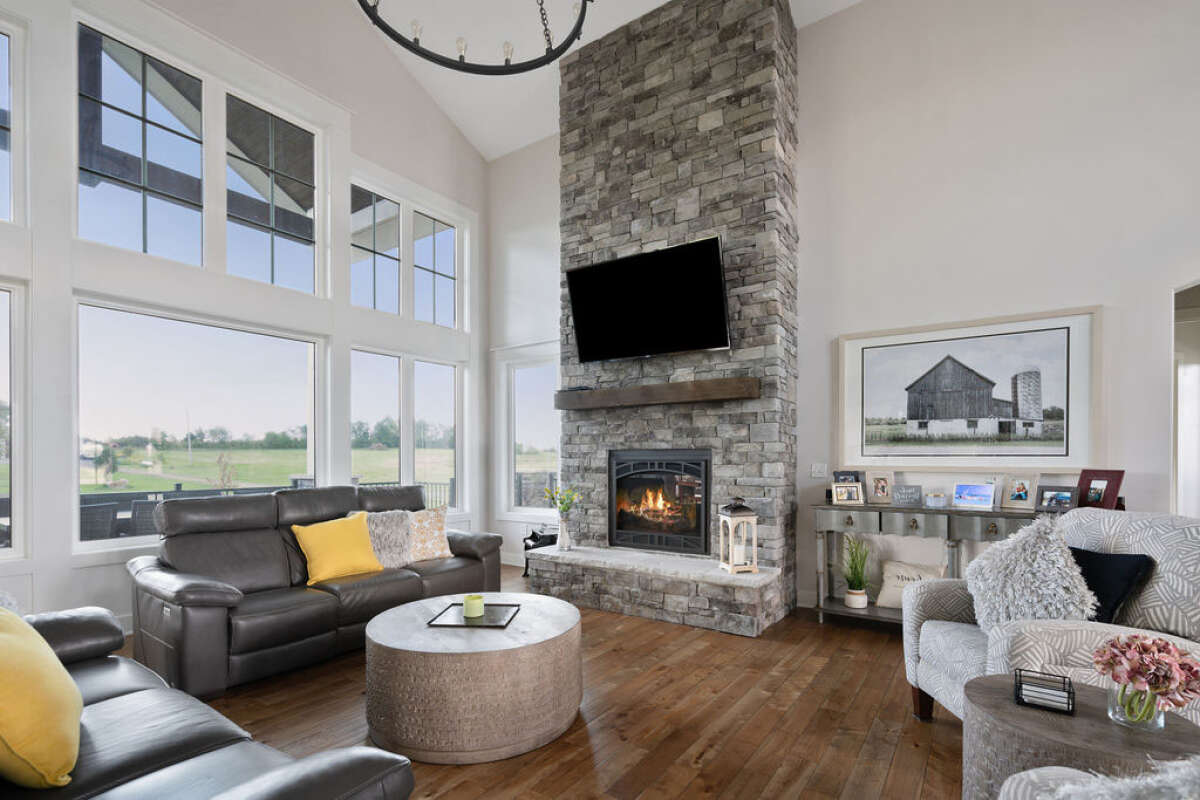

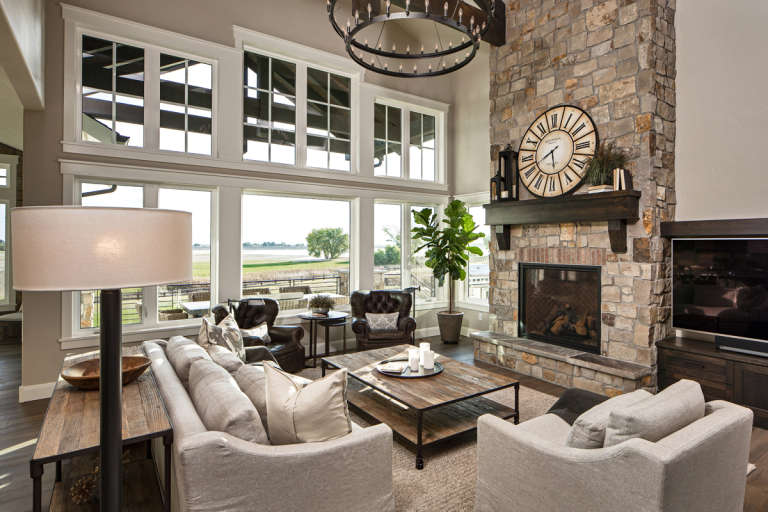

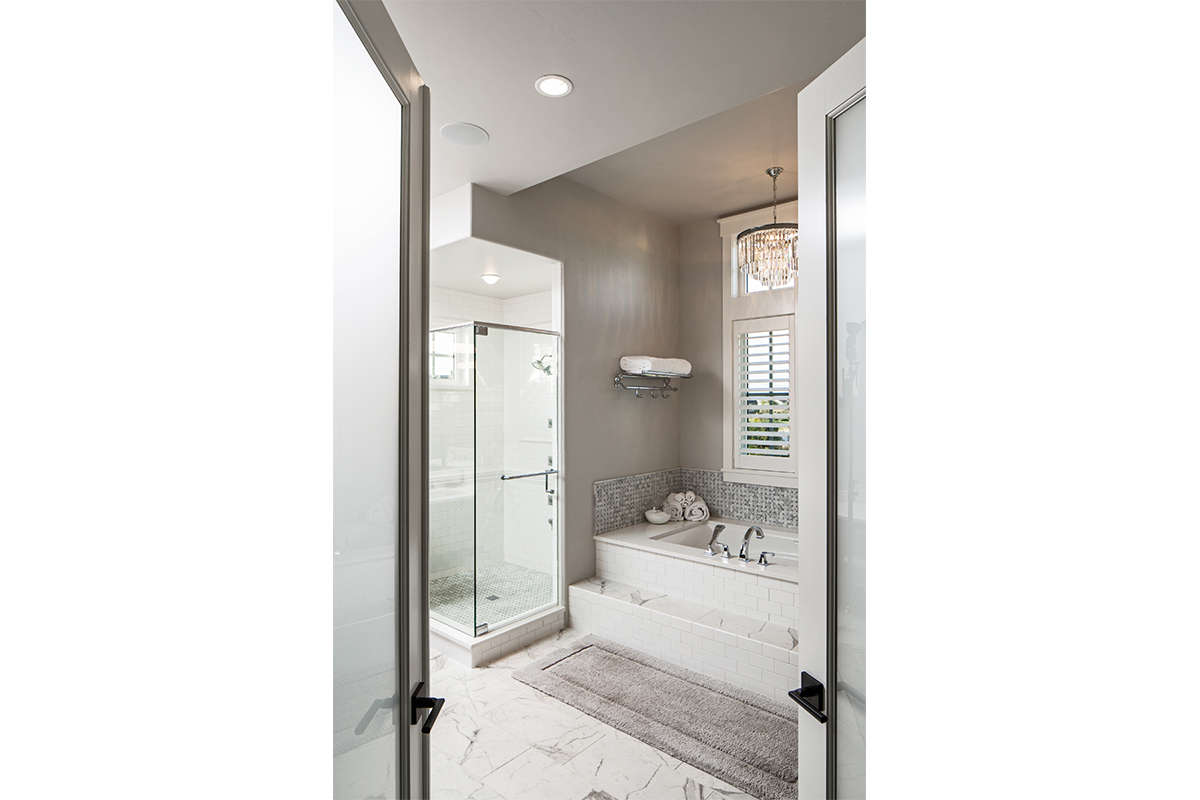

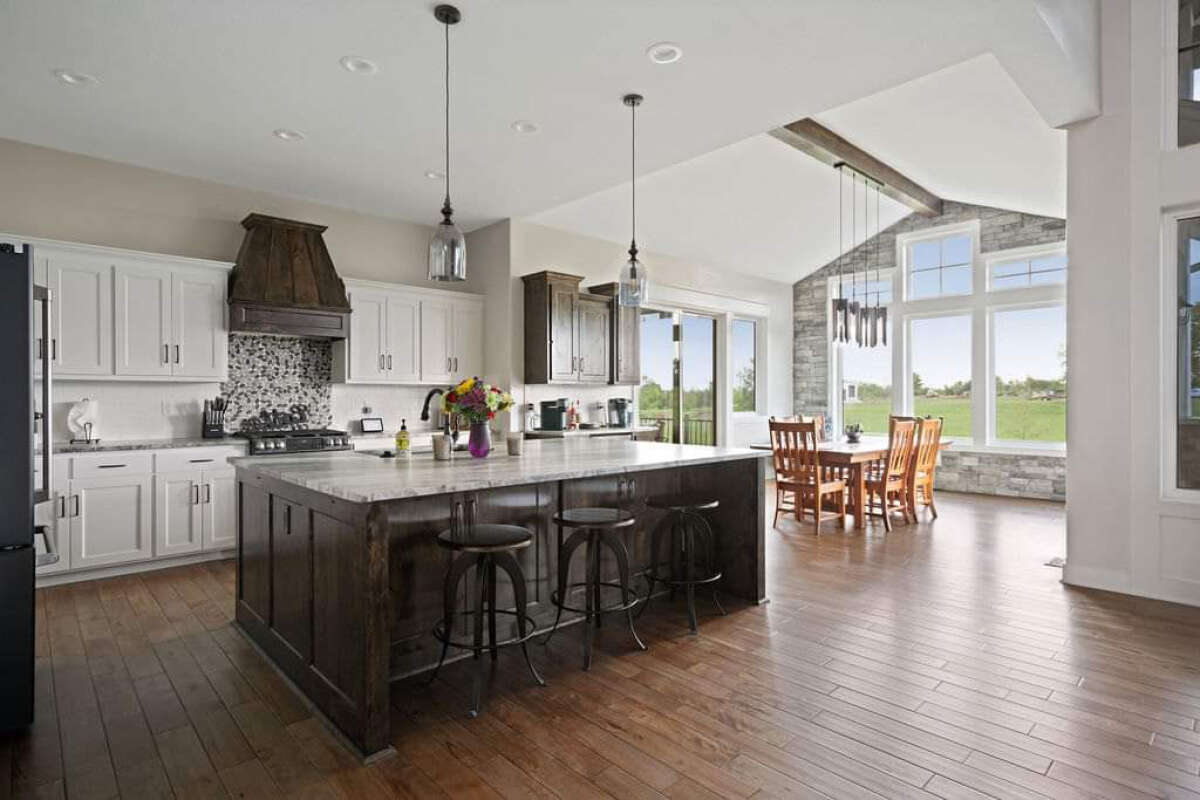

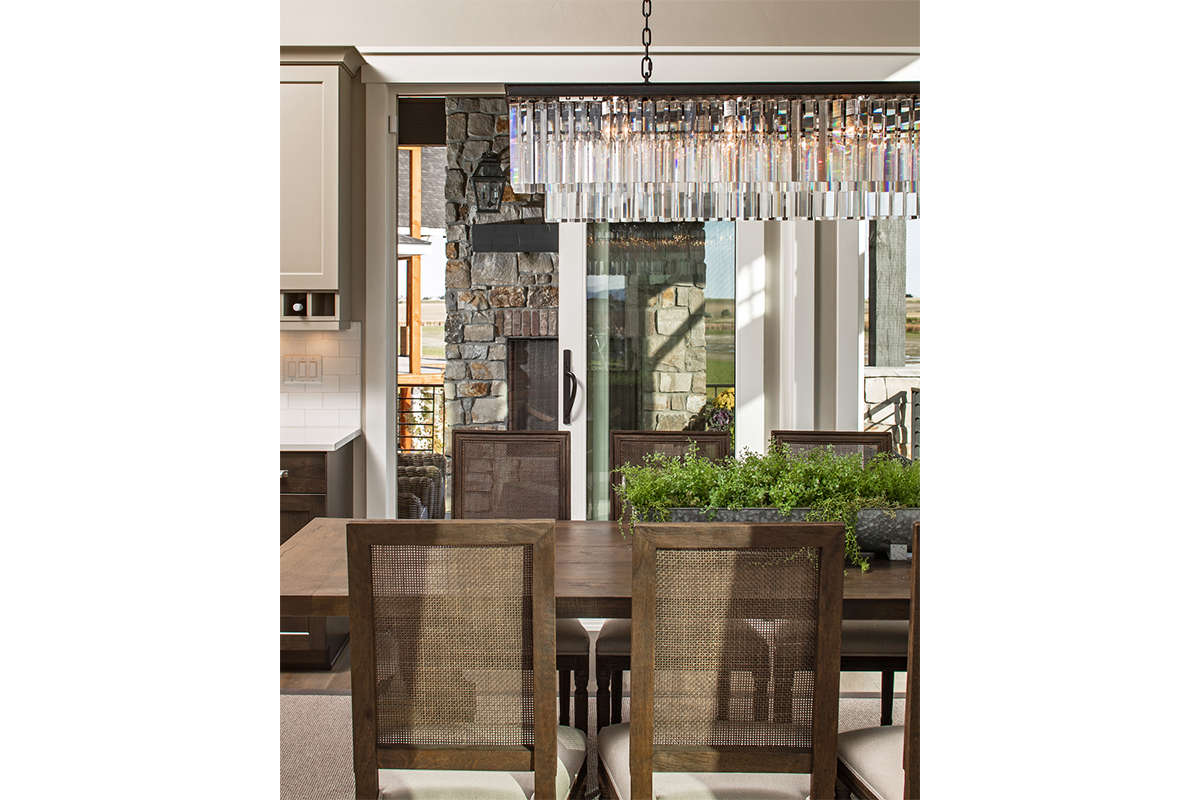

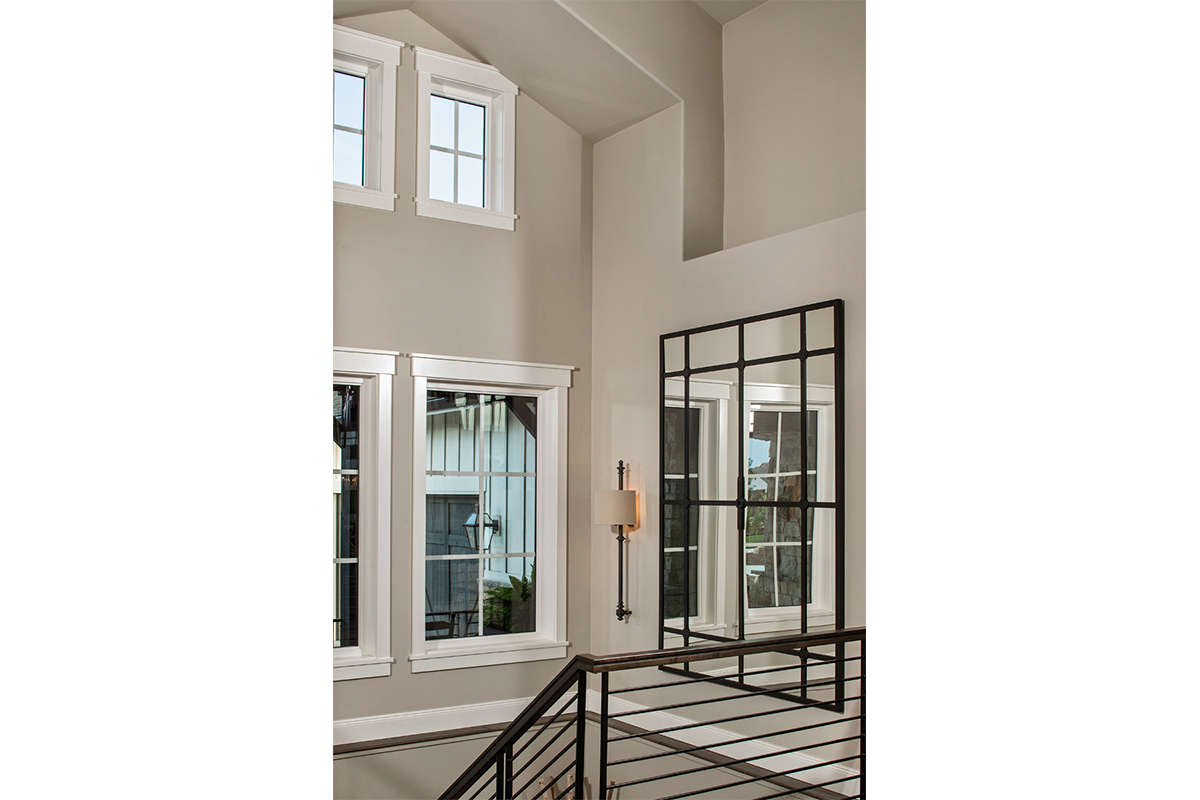

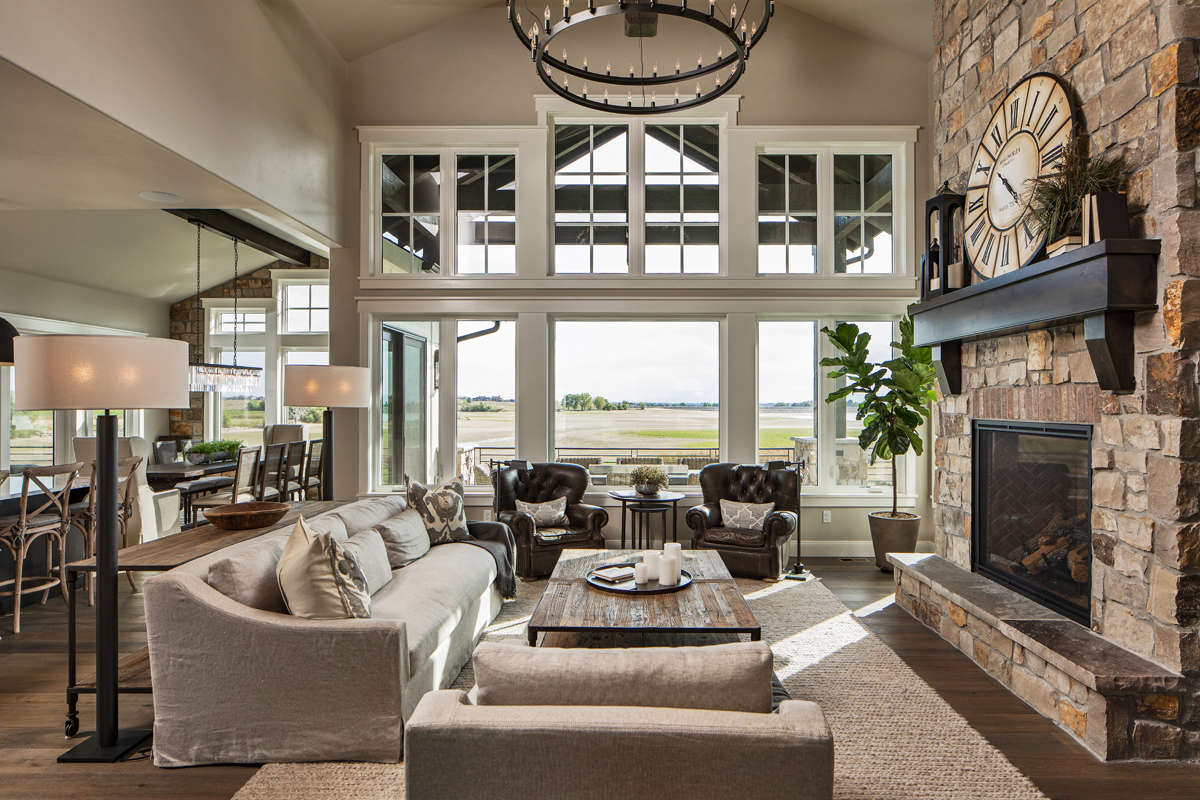

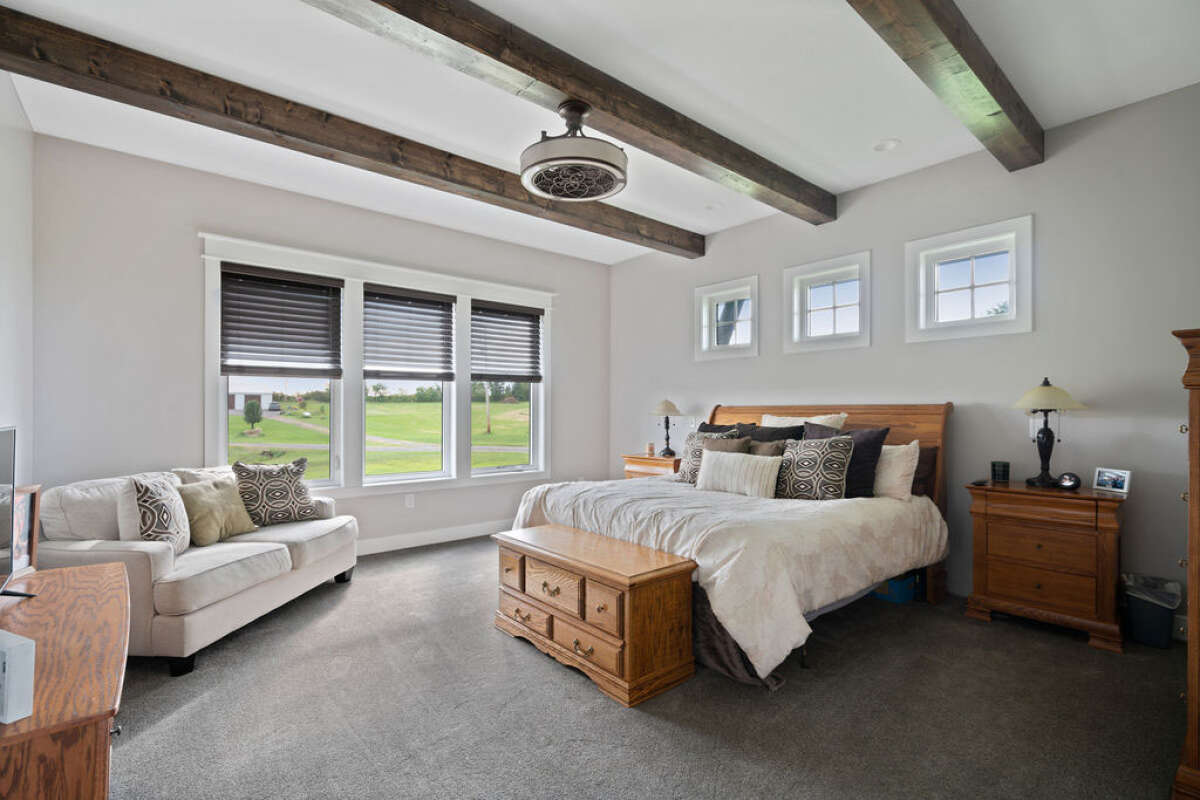

Upon entering the home, you get an immediate sense of space outlined by the open floor plan. Voluminous ceiling heights add to the personality and height of the common areas as well as the owner's bedroom while the floor-to-ceiling fireplace stands as the focal point of the room. The sunlit dining room is flanked on either side with sliding door access to the covered deck as well as the den. All five bedrooms enjoy the convenience of an en suite with two of the secondary bedrooms on the basement level sharing a Jack and Jill bathroom. This Craftsman house plan is defined by spacious living and awesome entertaining with a beautiful exterior to showboat.
