Modern Plan 5631-00087



To purchase a reversed plan, please select Right Reading Reverse under Additional Options.
Sq Ft 2,491
Beds 3-5
Bath 2
1/2 Baths 1
Car 3
Stories 1
Width 66' 6"
Depth 80'

Floorplan Drawings

Main Floor

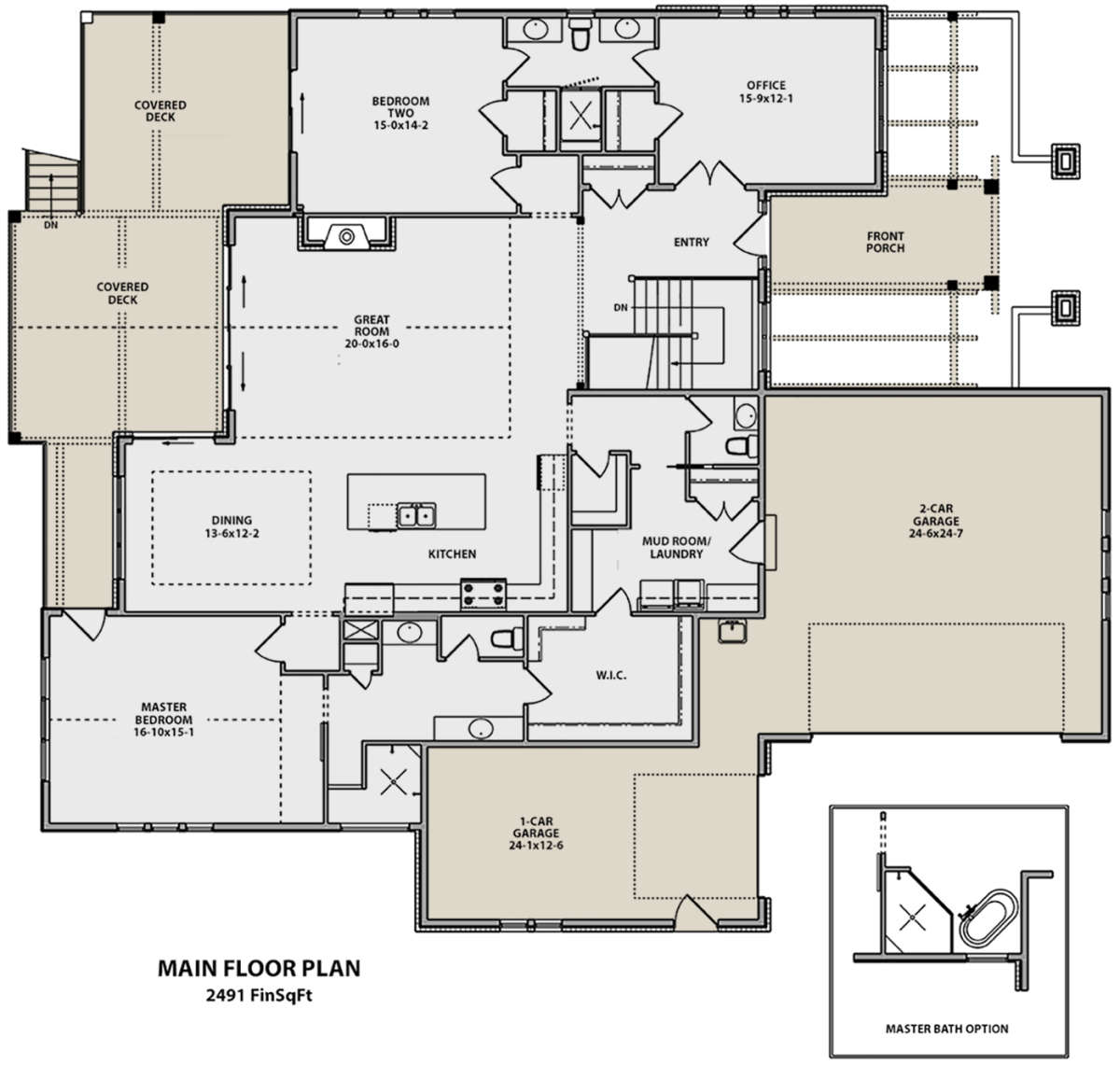

Main Floor for House Plan #5631-00087

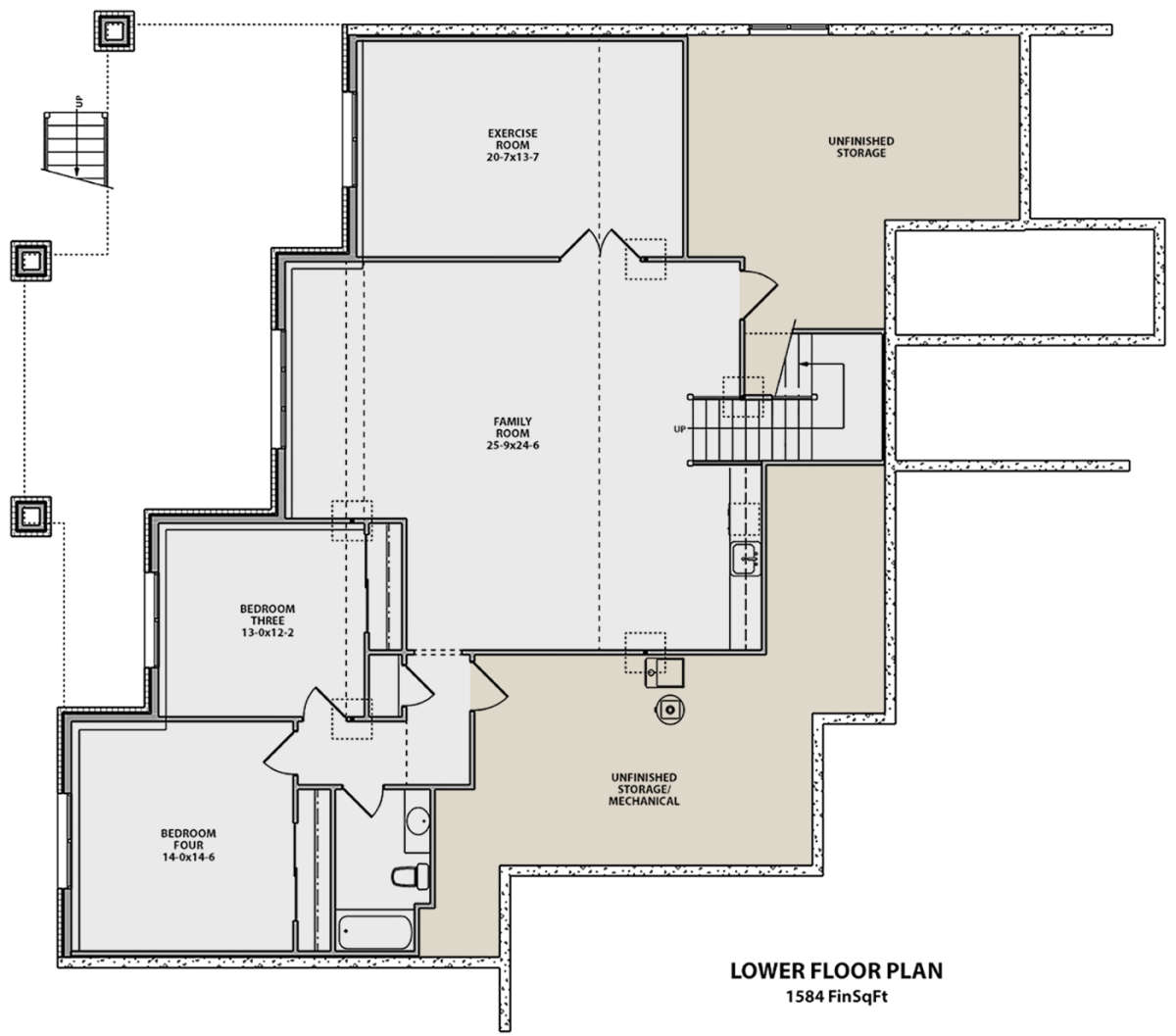

Basement for House Plan #5631-00087

What's Included in these plans?

  • Cover Page- includes plan schedule, general notes and square footages
  • Front and Back Elevations- Showing roof lines, exterior materials and wall heights. Scale varies per size of home
  • Left and Right Elevations-Showing roof lines, exterior materials and wall heights. Scale varies per size of home
  • Floor Plans (floors per each design)- Scale varies per size of home
  • Foundation Plan (Architectural)- Foundation wall layout and post and beam layouts
  • Roof Plan- Birdseye view showing ridges and valleys
  • Section(s)
  • Electrical Plans

Ask Us A Question

To request a modification quote, please use the Modification Request Form.

About This Plan

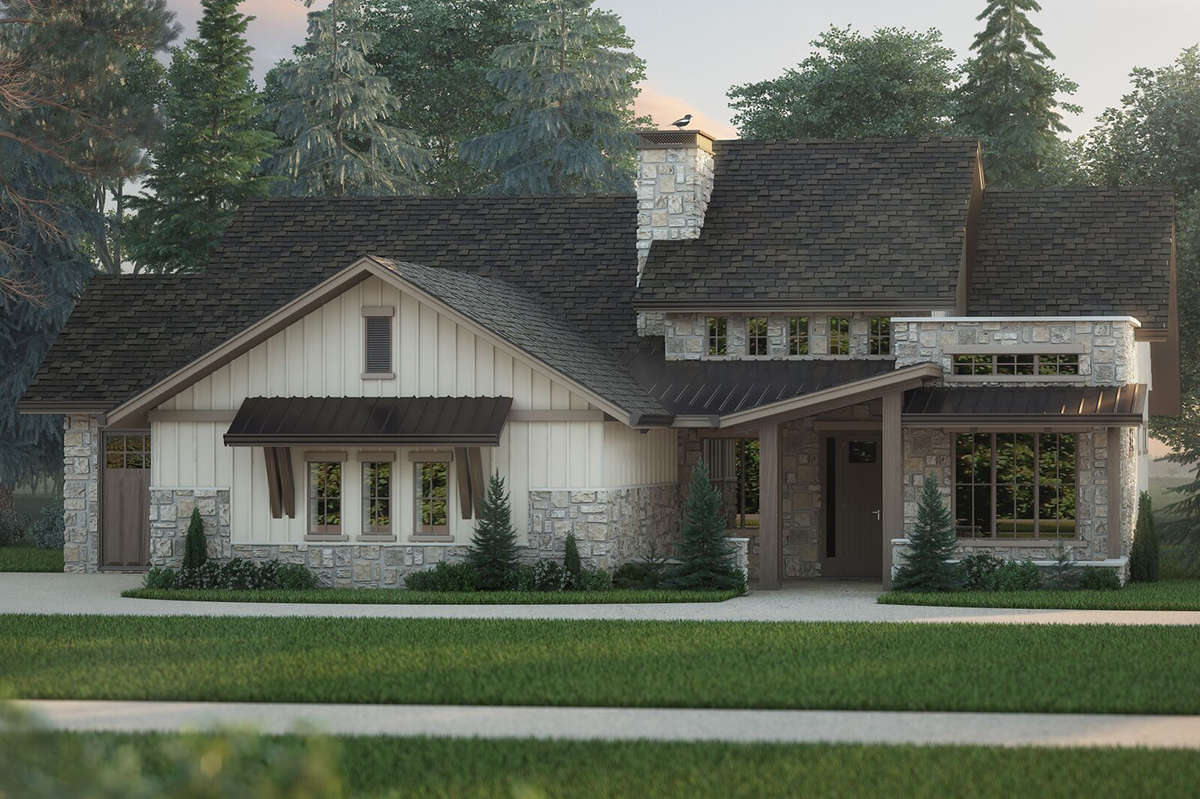

This lovely Modern house plan features an exterior designed to capture the imagination with its cleverly designed façade that offers refreshingly modern detailing. Board and batten, substantial stonework, attractive awnings and tucked in transom window inserts highlight the façade nicely adding charm and character to the home. There is a spacious front covered porch before accessing the entry into the home’s interior that offers a nice gathering spot for family and friends. There is a two car side loading garage bay as well as a one car front loading bay featuring great vehicle and storage space for the home’s occupants and perhaps, guests. The main floor of the home features approximately 2,491 square feet of living space which includes two-to-three bedrooms and two plus bathrooms. The basement foundation offers an additional 1,584 square feet of living space with unfinished and finished space. There is plenty of storage space, mechanical space, an exercise room and a large family/recreation room measuring in excess of 25’ x 24’ with a bar/sink area. Two additional bedrooms are located on the lower level as well as a full bath. All this space would be wonderful as an in-law or teen-age suite or alternately as casual entertaining space along with additional bedrooms for a large family. The main level floor is highlighted with a large great room containing a fireplace and sliders onto the covered deck; the covered deck continues towards the second bedroom as well as to the master suite. Open to the great room is the dining room with a trey ceiling and sliders to the outdoor area; perfect for dining al fresco. Adjacent to the dining room and great room is the grand kitchen which features a large center island, great counter and cabinet space and a nearby walk-in food storage pantry. From the double garage bay is secondary access into the home’s mud/laundry room and guest powder room.

Near the front entrance is the office/third bedroom with French door entry and closet space along with fantastic window views and access into the jack and jill bath connecting to the second bedroom. The bath features double sinks, a toilet area and a shower. The second bedroom features generous floor space, good closet space, great window views and slider access onto the covered deck. The master suite is located on the opposite side of the home for privacy and features a large master bedroom with private access onto the outdoor space; a lovely spot for morning coffee or evening cocktails. There is an attached master bath with separate dual sinks, an enclosed linen closet, a private toilet room and a large shower. The walk-in closet is situated at the rear of the space, offers an enormous amount of clothing and accessory space as well as a separate entrance into the laundry room. This Modern house plan is highlighted with excellent outdoor space, a practical and functional family floor plan and expansion possibilities.
