Mediterranean Plan 5631-00045


To purchase a reversed plan, please select Right Reading Reverse under Additional Options.
Sq Ft 7,805
Beds 5
Bath 5
1/2 Baths 3
Car 4
Stories 1
Width 123' 6"
Depth 103' 5"

Floorplan Drawings

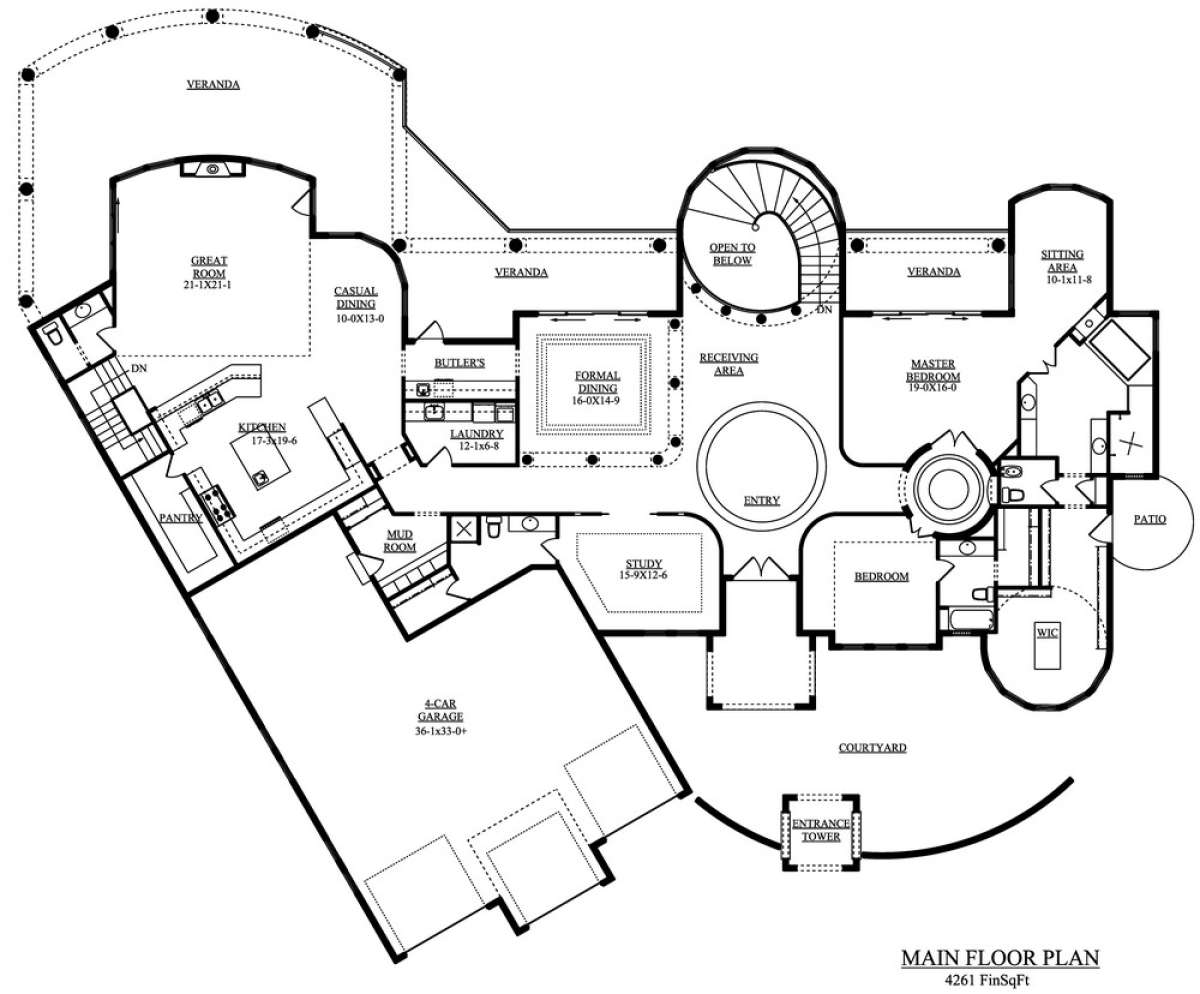

Floorplan 1
Floorplan 1 for House Plan #5631-00045

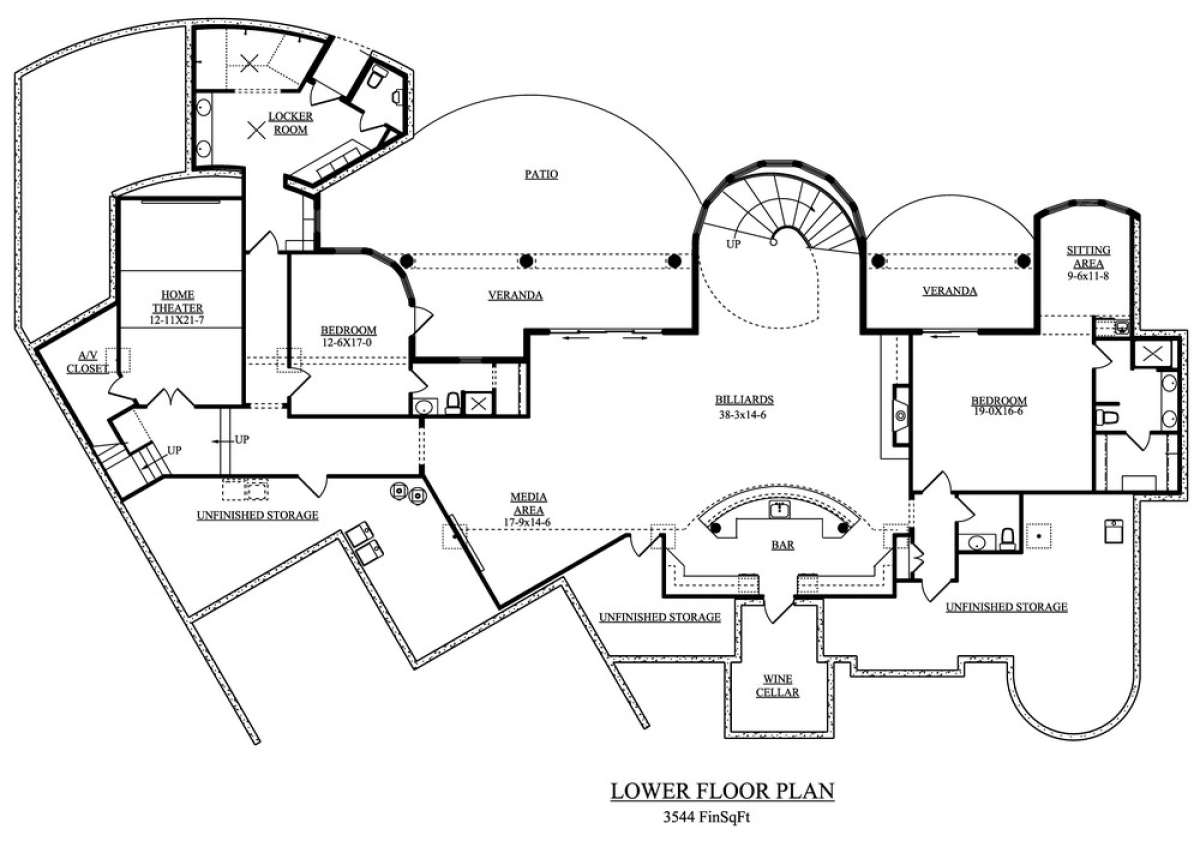

Basement Floor Plan
Basement Floor Plan for House Plan #5631-00045

What's Included in these plans?

  • Cover Page- includes plan schedule, general notes and square footages
  • Front and Back Elevations- Showing roof lines, exterior materials and wall heights. Scale varies per size of home
  • Left and Right Elevations-Showing roof lines, exterior materials and wall heights. Scale varies per size of home
  • Floor Plans (floors per each design)- Scale varies per size of home
  • Foundation Plan (Architectural)- Foundation wall layout and post and beam layouts
  • Roof Plan- Birdseye view showing ridges and valleys
  • Section(s)
  • Electrical Plans

Ask Us A Question

To request a modification quote, please use the Modification Request Form.

About This Plan

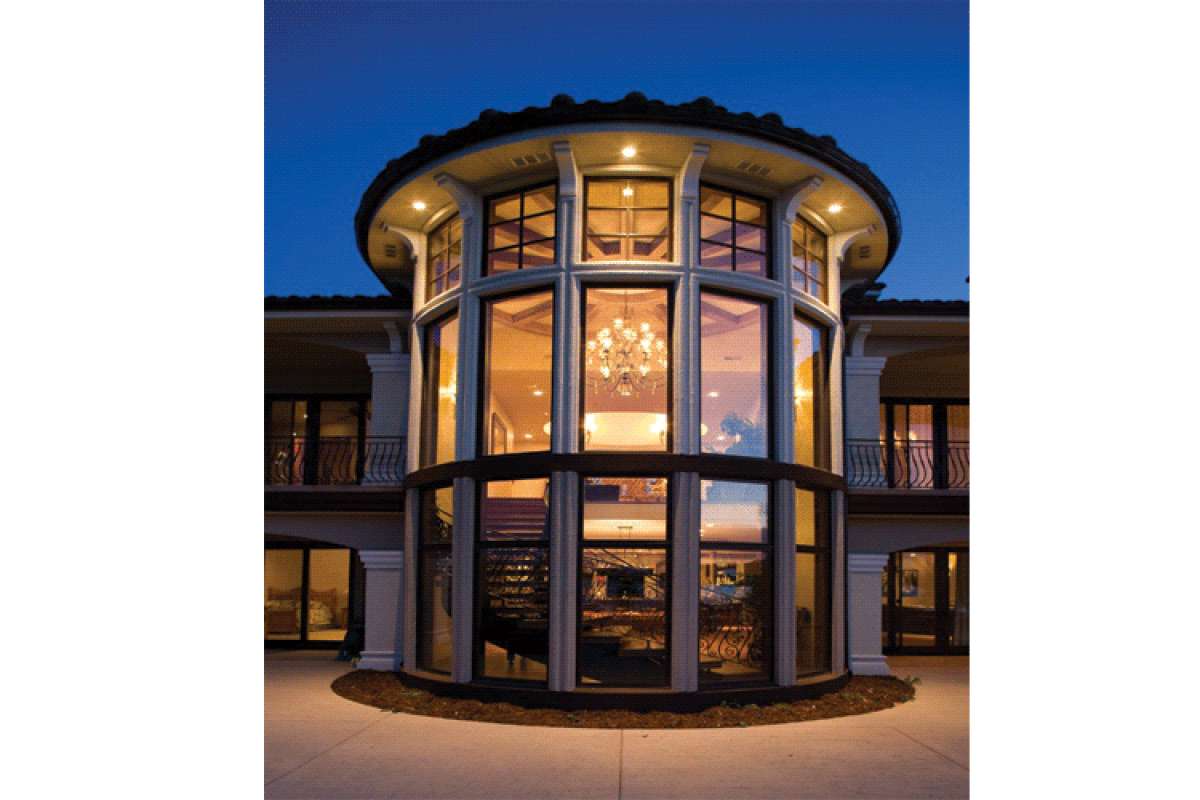

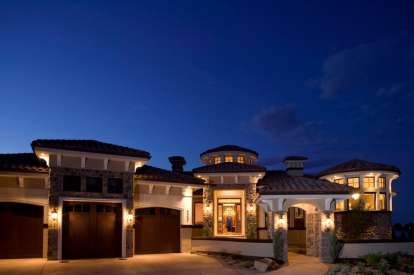

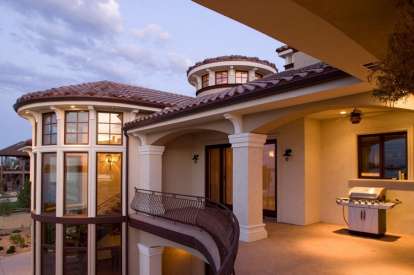

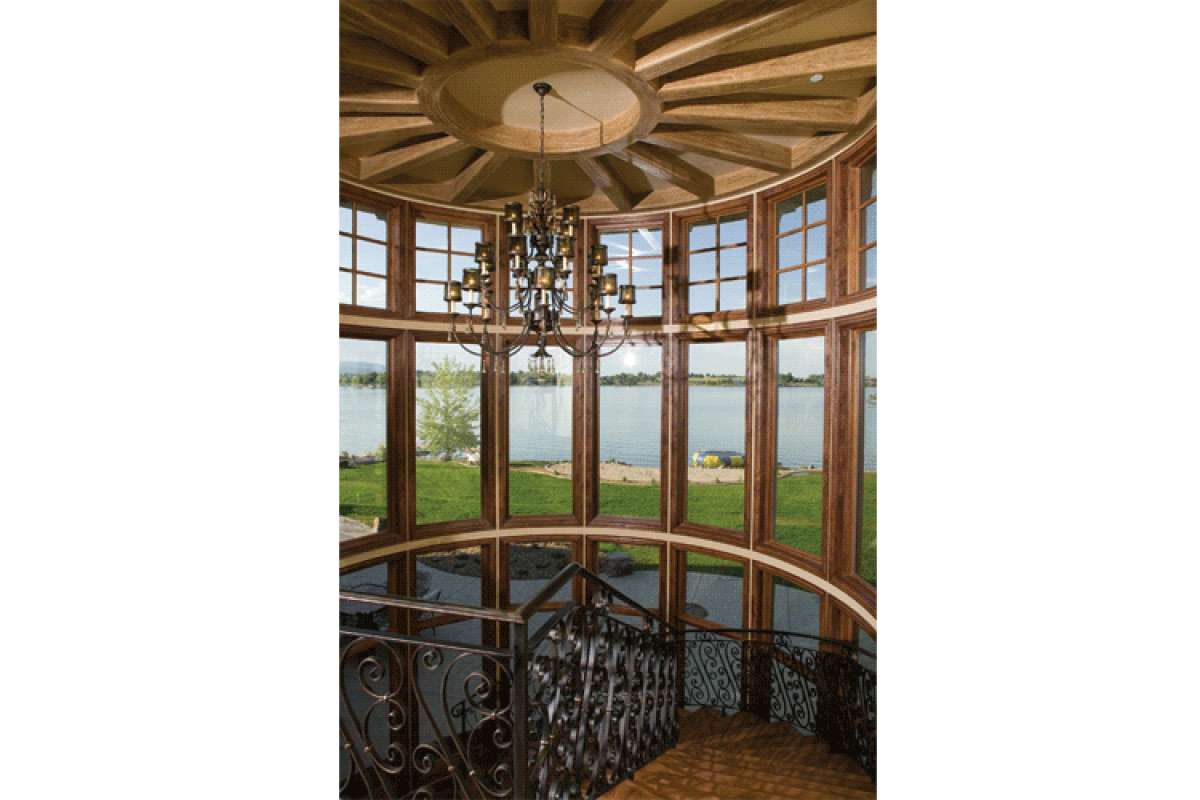

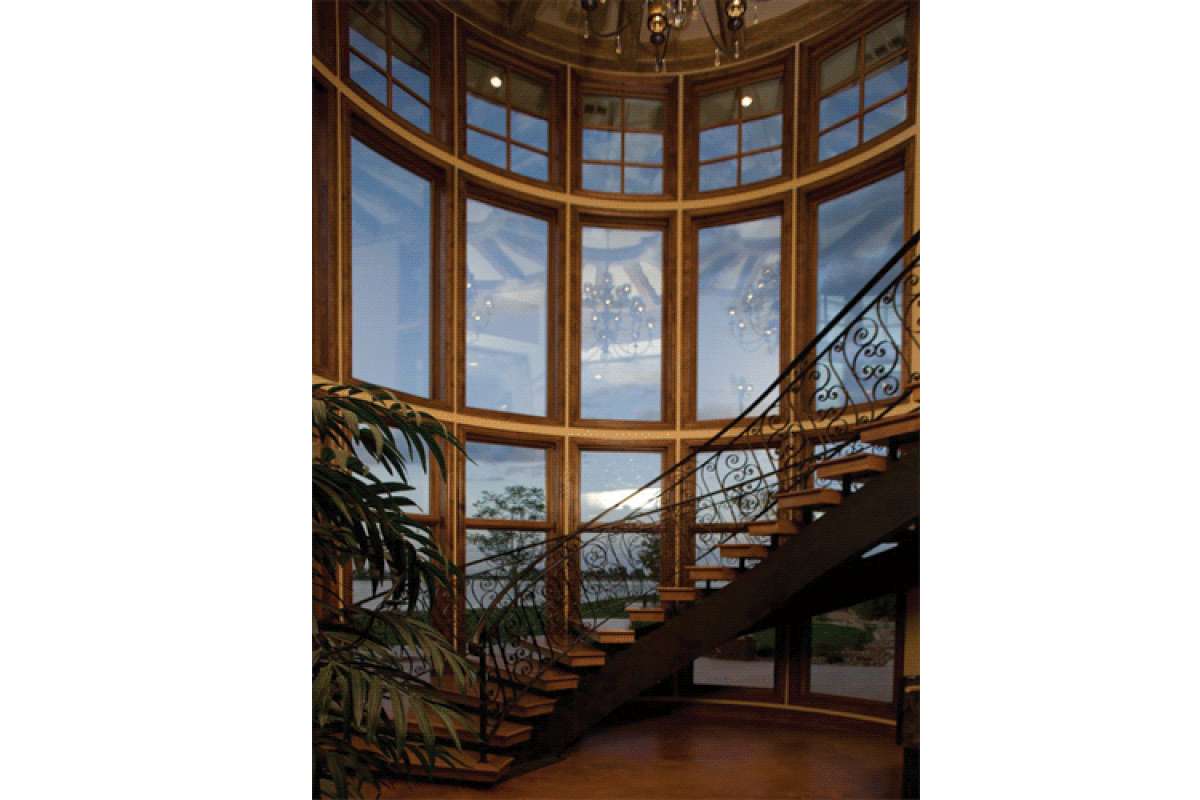

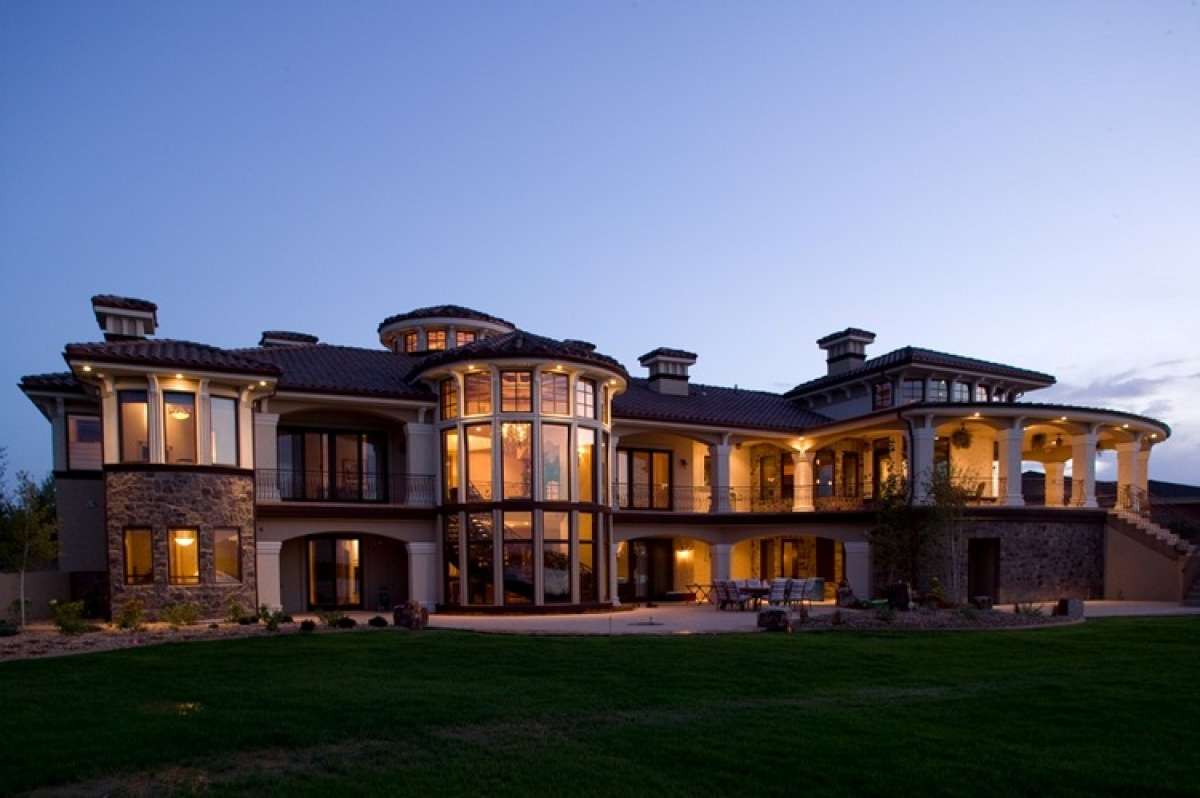

This fabulous Mediterranean home has a lovely and unique exterior façade; the front exterior is constructed of a smooth stucco finish highlighted with stacked stone and a grand front entrance while the rear exterior possesses gorgeous archways, floor to ceiling windows offering panoramic vista views, substantial beams, and verandahs and covered patios designed to enhance the outdoor space. The warmth and character of the Mediterranean Sea is represented by the home’s building elements where luxury and grandeur are primary features in the home and continue throughout the interior as well. There are in excess of 7,800 square feet of living space with five bedrooms and five plus baths within the layout and the 1,470 square foot, four car garage supplies amazing space for vehicles and other gear. An entrance tower leads to the home’s courtyard featuring French door access into the home. A dramatic foyer entrance highlights the floor to ceiling window insets at the rear of home flooding the space with natural light. The formal dining room is large with columns outlining the space and provides access to the grand verandah that spans the width of the home and envelops the main living and dining spaces of the home. Unbelievably large and luxurious, this outdoor space is an extension of the interior entertaining space and provides copious amounts of outdoor room to graciously entertain large gatherings of family and friends. There is a butler’s pantry that features a pass-thru to the family areas; a large kitchen, breakfast room and family room. The great room features a rear wall fireplace and access to the verandah and there is a casual breakfast nook along with the grand kitchen. The kitchen features amazing space which includes a sprawling peninsula bar and an extended walk-in pantry. There is a private study, laundry room, two guest bathrooms and mudroom before stepping over to the sleeping quarters. The main floor features two bedrooms, one is the guest suite or a small child’s nursery; the other is a spacious bedroom with private bath. The vestibule allows access to the master suite wherein lies a retreat for a “king and queen.” A large bedroom with access to the private verandah and adjacent sitting room are featured along French door access to the elegantly appointed en suite bath. The master bath enjoys a large footprint with dual vanities, a separate shower and rectangle garden tub. The enviable master walk-in closet is oversized with a second patio access.

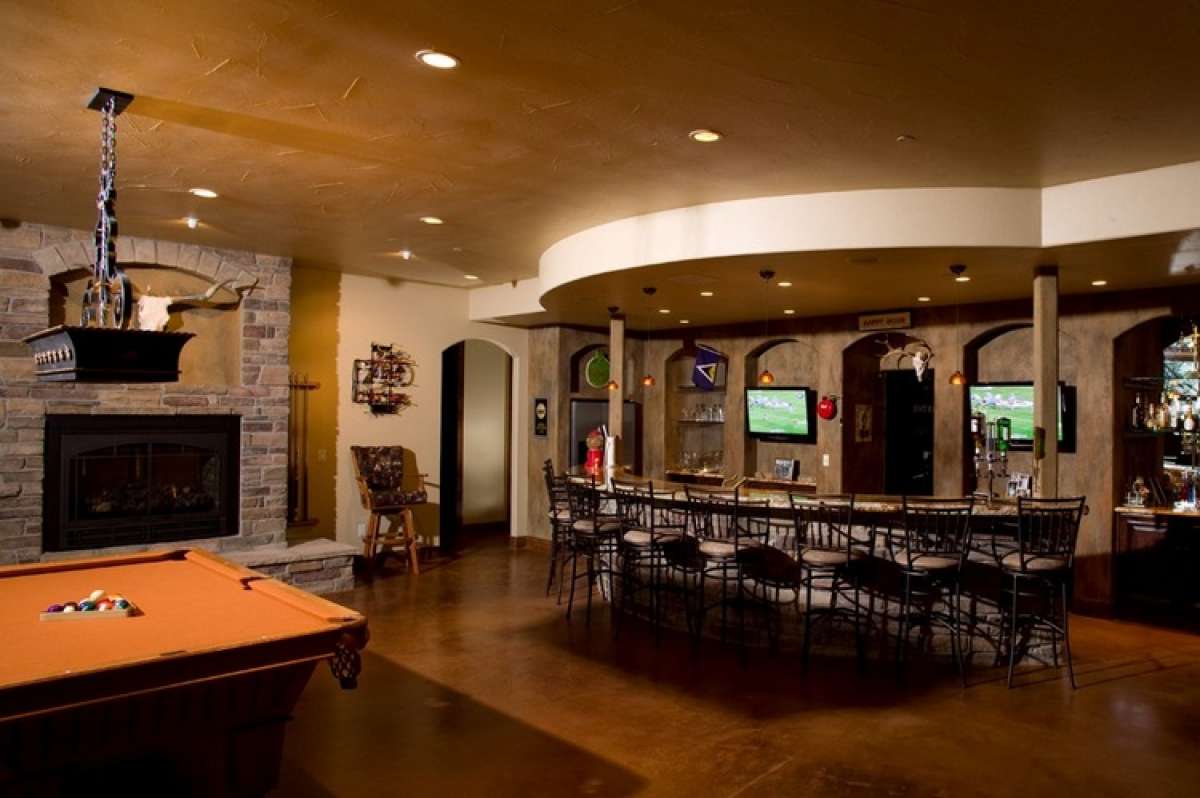

The terrace level of the home is a showcase for casual entertaining; there is a centrally located recreation room and adjoining media room that features a gorgeous walk-in bar with wine cellar, a handsome fireplace, built-in cabinetry and access onto the verandah and subsequent patio. A separate home theatre offers privacy and an enclosed space with A/V closet for unsightly wires and the like. There is a rear locker room with bathing facilities, two large bedrooms; one of which has a private sitting area, with en suite bathrooms and private access to the verandahs. Massive amounts of storage space outline the rear of the space for seasonal clothing and other storage items. This warm Mediterranean home features a spectacular exterior façade with a bold entrance, great outdoor space and an interior floor plan highlighted with spacious and well appointed rooms.
