Contemporary Plan 5565-00058

IMPORTANT NOTICE

To purchase a reversed plan, please select Right Reading Reverse under Additional Options.
Sq Ft 3,394
Beds 4
Bath 3
1/2 Baths 1
Car 4
Stories 1
Width 110' 4"
Depth 59' 4"

Floorplan Drawings

Main Floor

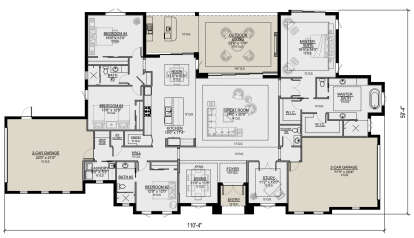

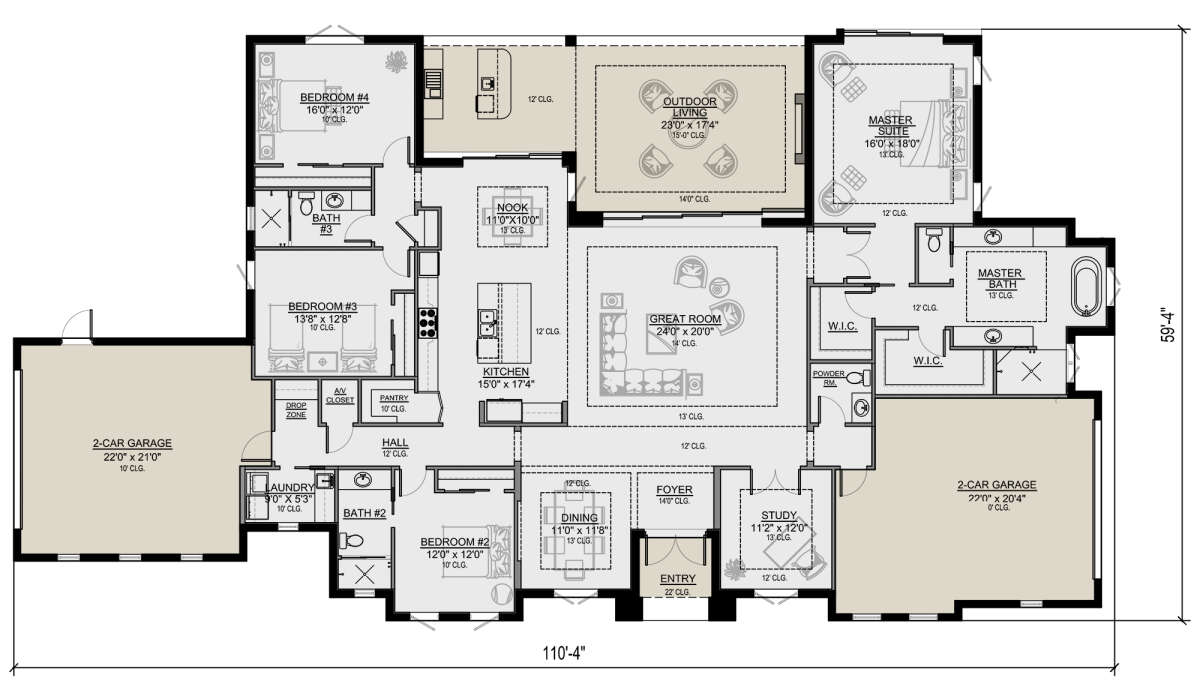

Main Floor for House Plan #5565-00058


What's Included in these plans?

  • Each plan set is drawn at 1/8" to 1/4" = 1' scale and includes the following drawings:
  • Elevations:

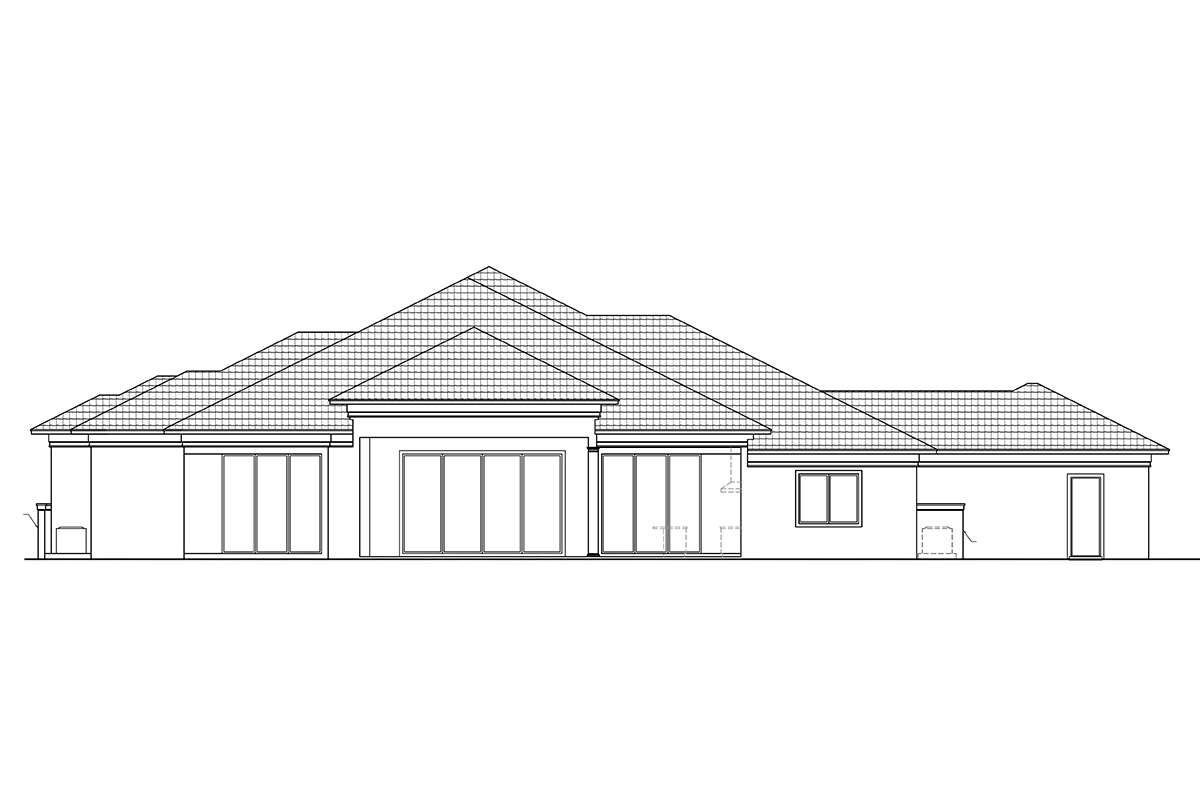

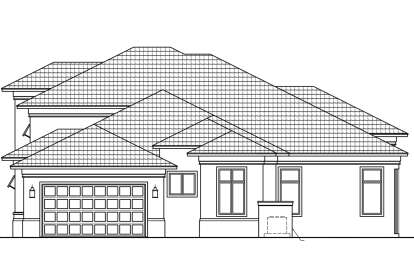

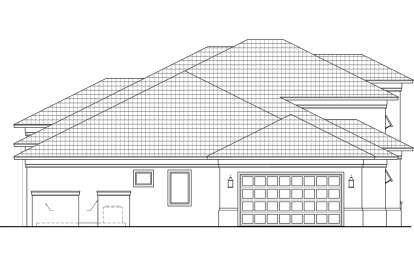

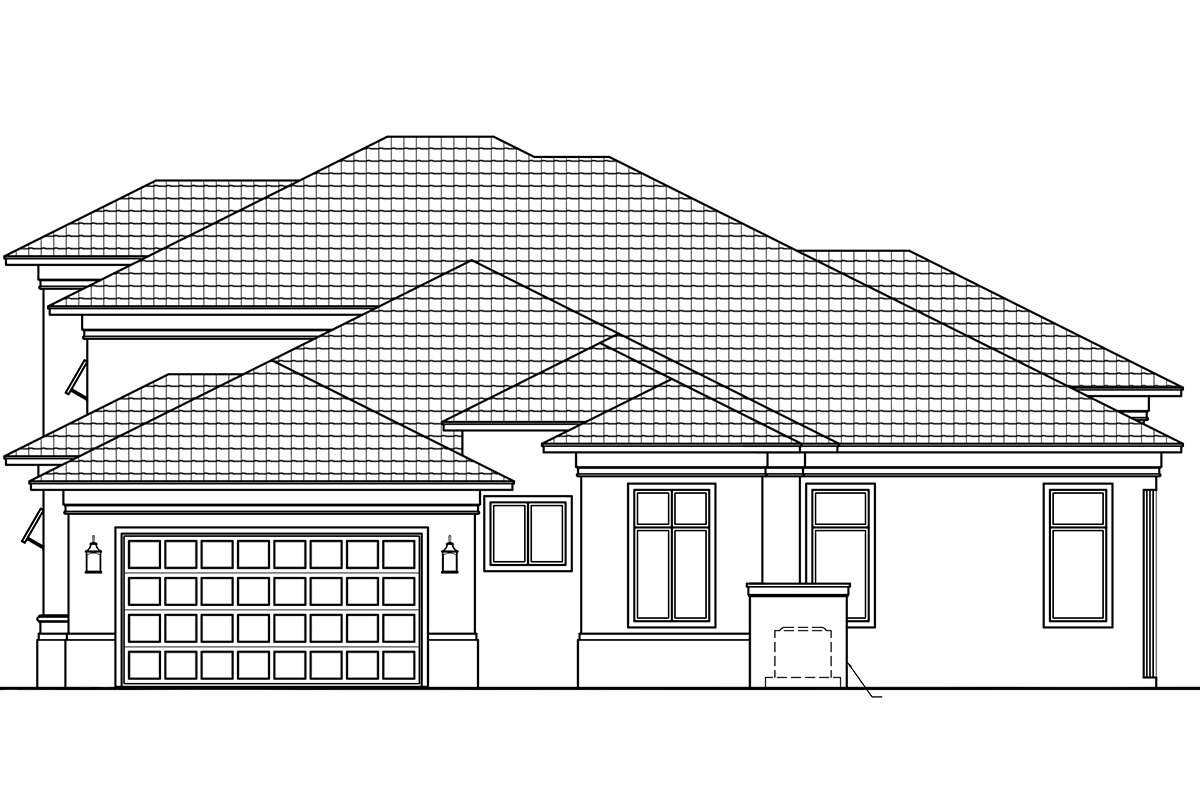

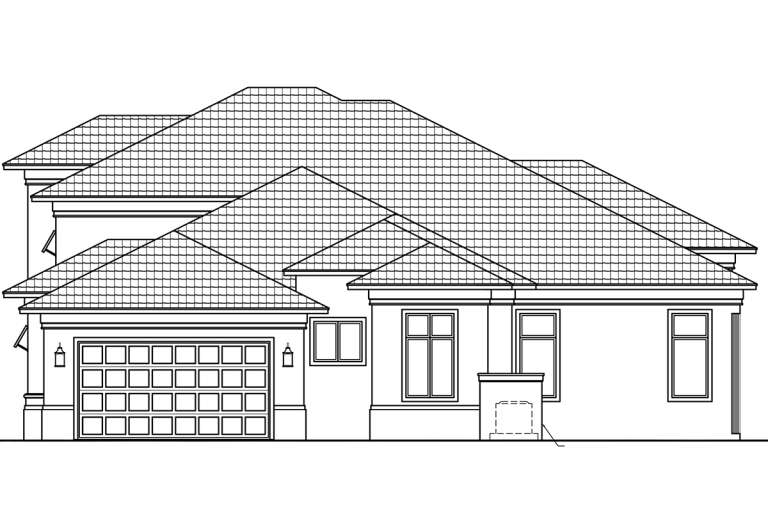

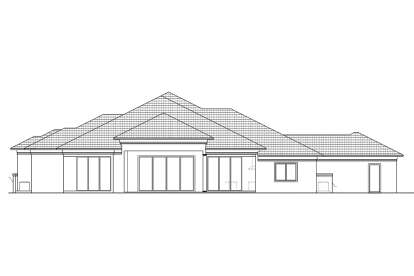

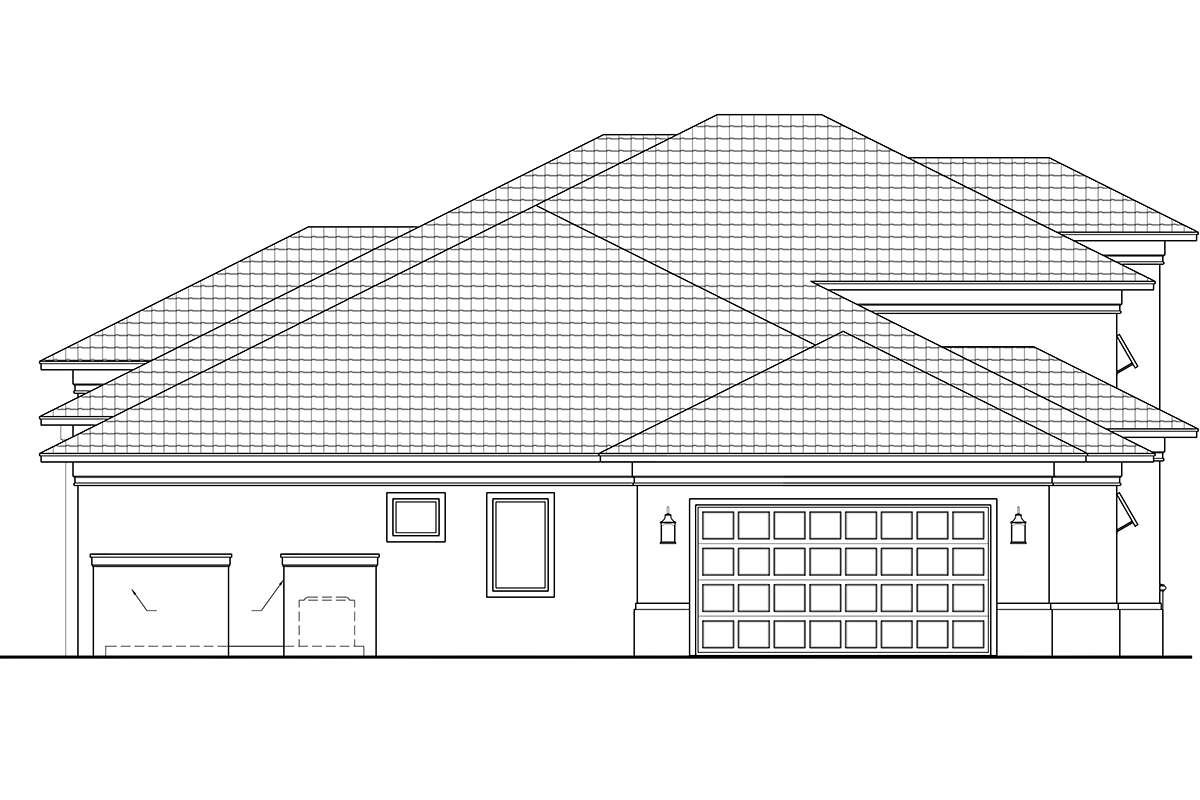

    Shows the front, sides, and rear, including exterior materials, trim sizes, roof pitches, etc.
  • Main Floor Plan:
    Shows placement and dimensions of walls, doors & windows. Includes the location of appliances, plumbing fixtures, beams, ceiling heights, etc.
  • Second Floor Plan (if any):
    Shows the second floor in the same detail as the main floor. Includes second floor framing and details.
  • Foundation or Slab Plan:
    Floor and Deck Joist Sizes, Spacing and Direction, Rough-In Plumbing Location (if applicable), Mechanical Equipment Locations (if applicable), Electrical Locations (if applicable)
  • Roof Framing:
    Shows roof outlines, All Beam and Header Heights and Locations, All Hips, Gables, Ridges and Valleys.
  • Section:
    Shows a cross-section of the home. Shows Floor Joist Size and Spacing, Floor-To-Floor Heights,
    Non-Typical Plate Heights Indicated
  • Electrical Plan:
    A schematic layout of all lighting, switches and electrical outlets.
  • Typical Wall Section and Cut-through Section
  • *Single Build License is included with plan packages of 5 sets or more.

Ask Us A Question

To request a modification quote, please use the Modification Request Form.

About This Plan

This 4 bedroom, 3 bathroom Contemporary house plan features 3,394 sq ft of living space. America's Best House Plans offers high quality plans from professional architects and home designers across the country with a best price guarantee. Our extensive collection of house plans are easy to read, versatile, and affordable, with a seamless modification process available if your plans need to be changed to suit your lifestyle and personal choice.
