Modern House Plan 5565-00018

Sq Ft3,633
Beds4
Baths4
1/2 Baths1
Stories2
Cars2
Width64' 8"
Depth70' 8"

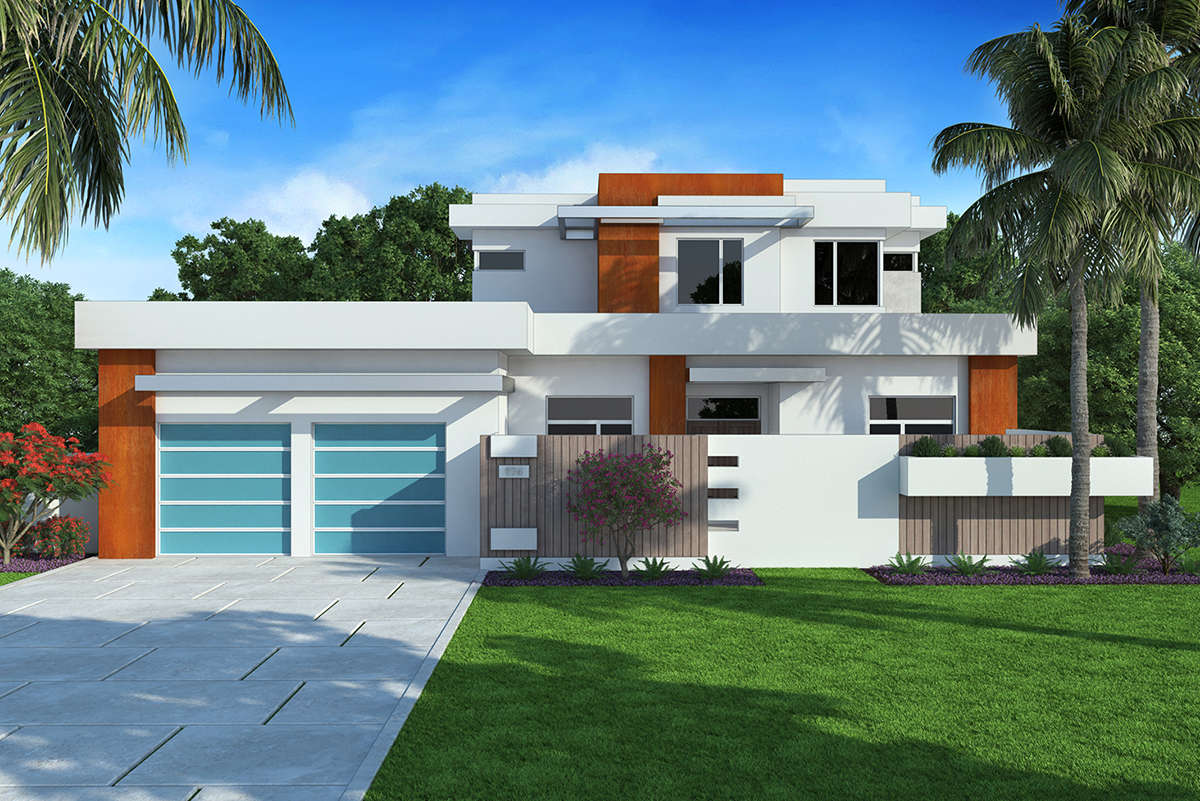

Images copyrighted by the designer. Photographs may reflect a homeowner modification.

Floorplan Drawings

  REVERSE     PRINT     DOWNLOAD   Images copyrighted by the designer.
Main Floor for House Plan #5565-00018
Second Floor for House Plan #5565-00018

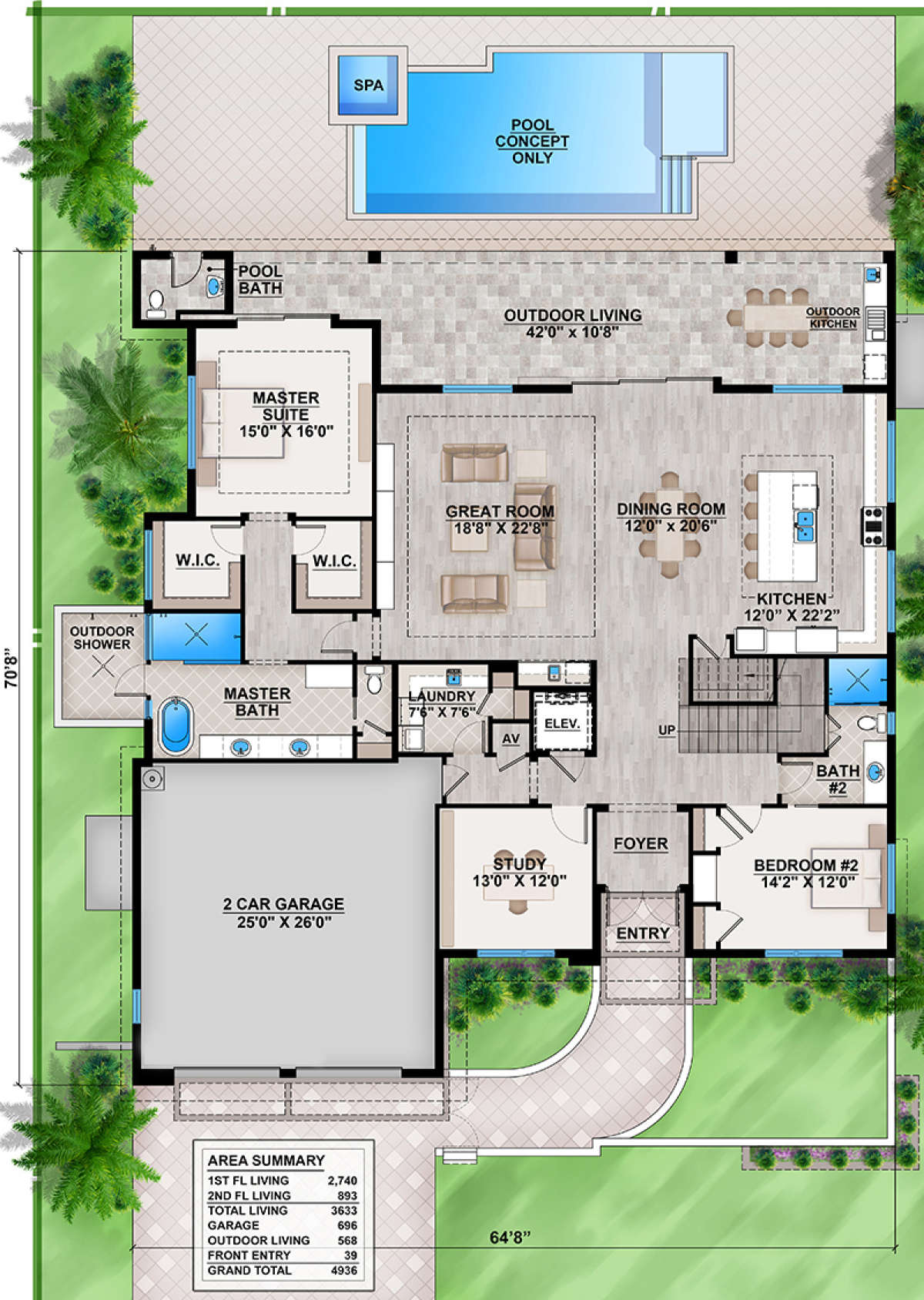

Main Floor
Main Floor for House Plan #5565-00018

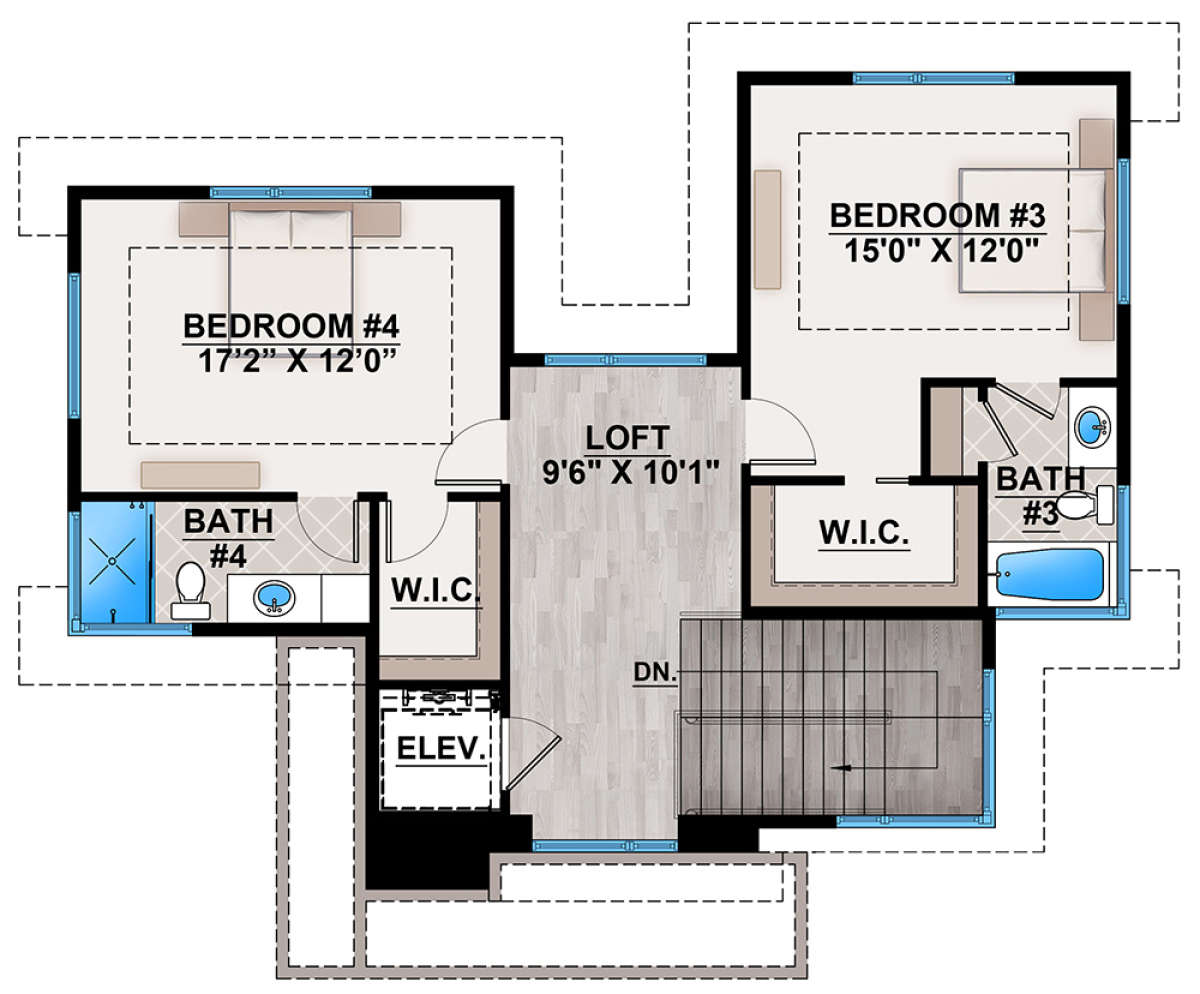

Second Floor
Second Floor for House Plan #5565-00018


Frequently Asked Questions

COST TO BUILD REPORT

What's Included in these plans?

  • Each plan set is drawn at 1/8" to 1/4" = 1' scale and includes the following drawings:

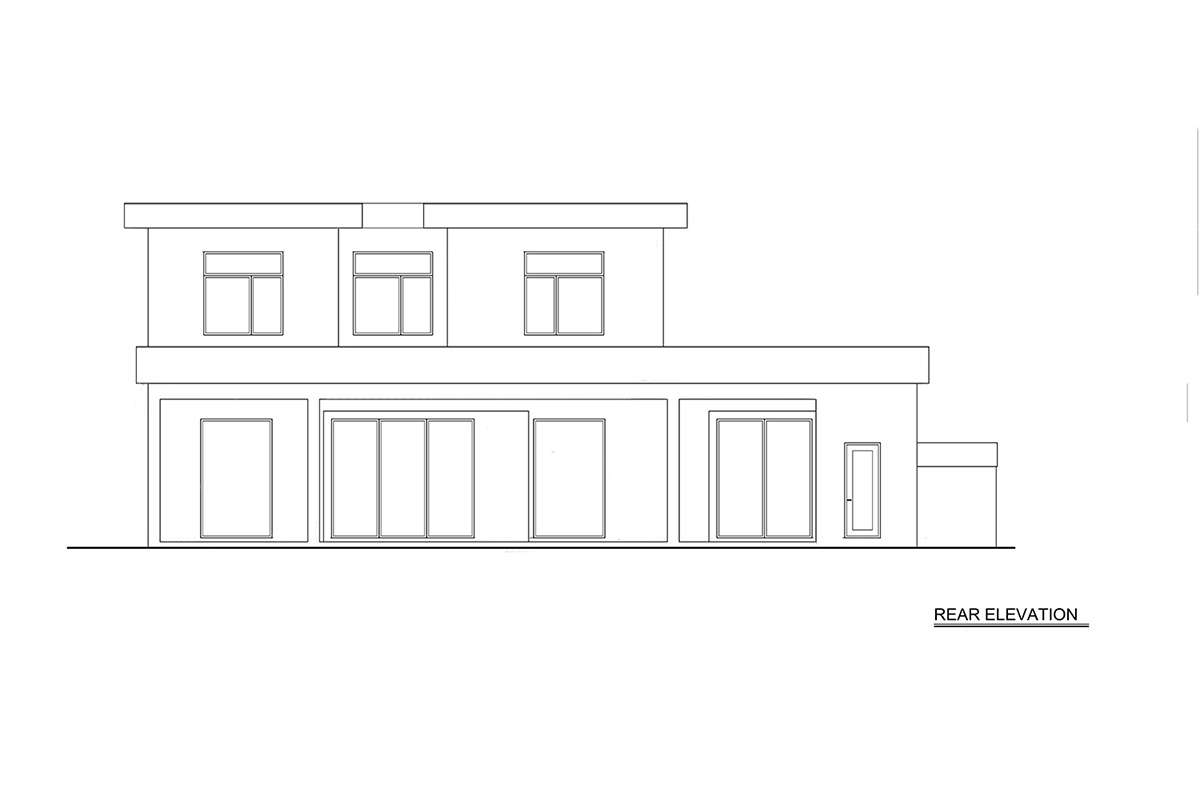

  • Elevations:
    Shows the front, sides, and rear, including exterior materials, trim sizes, roof pitches, etc.
  • Main Floor Plan:
    Shows placement and dimensions of walls, doors & windows. Includes the location of appliances, plumbing fixtures, beams, ceiling heights, etc.
  • Second Floor Plan (if any):
    Shows the second floor in the same detail as the main floor. Includes second floor framing and details.
  • Foundation or Slab Plan:
    Floor and Deck Joist Sizes, Spacing and Direction, Rough-In Plumbing Location (if applicable), Mechanical Equipment Locations (if applicable), Electrical Locations (if applicable)
  • Roof Framing:
    Shows roof outlines, All Beam and Header Heights and Locations, All Hips, Gables, Ridges and Valleys.
  • Section:
    Shows a cross-section of the home. Shows Floor Joist Size and Spacing, Floor-To-Floor Heights,
    Non-Typical Plate Heights Indicated
  • Electrical Plan:
    A schematic layout of all lighting, switches and electrical outlets.
  • Typical Wall Section and Cut-through Section
  • *Single Build License is included with plan packages of 5 sets or more.

ASK US A QUESTION

Name:
E-mail Address:
Password: (for robots)
Your Question:

To request a modification quote, please use the Modification Request Form.

About This Plan

This 4 bedroom, 4 bathroom Modern house plan features 3,633 sq ft of living space. America's Best House Plans offers high quality plans from professional architects and home designers across the country with a best price guarantee. Our extensive collection of house plans are suitable for all lifestyles and are easily viewed and readily available when you begin the process of building your dream home. All our house designs are easy to read, versatile and affordable with a seamless modification process available if your plans need to be changed to suit your lifestyle and personal choice.
