Ranch House Plan 526-00080

Sq Ft1,400
Beds3
Baths2
1/2 Baths0
Stories1
Cars0
Width50' 0"
Depth28' 0"
SALE

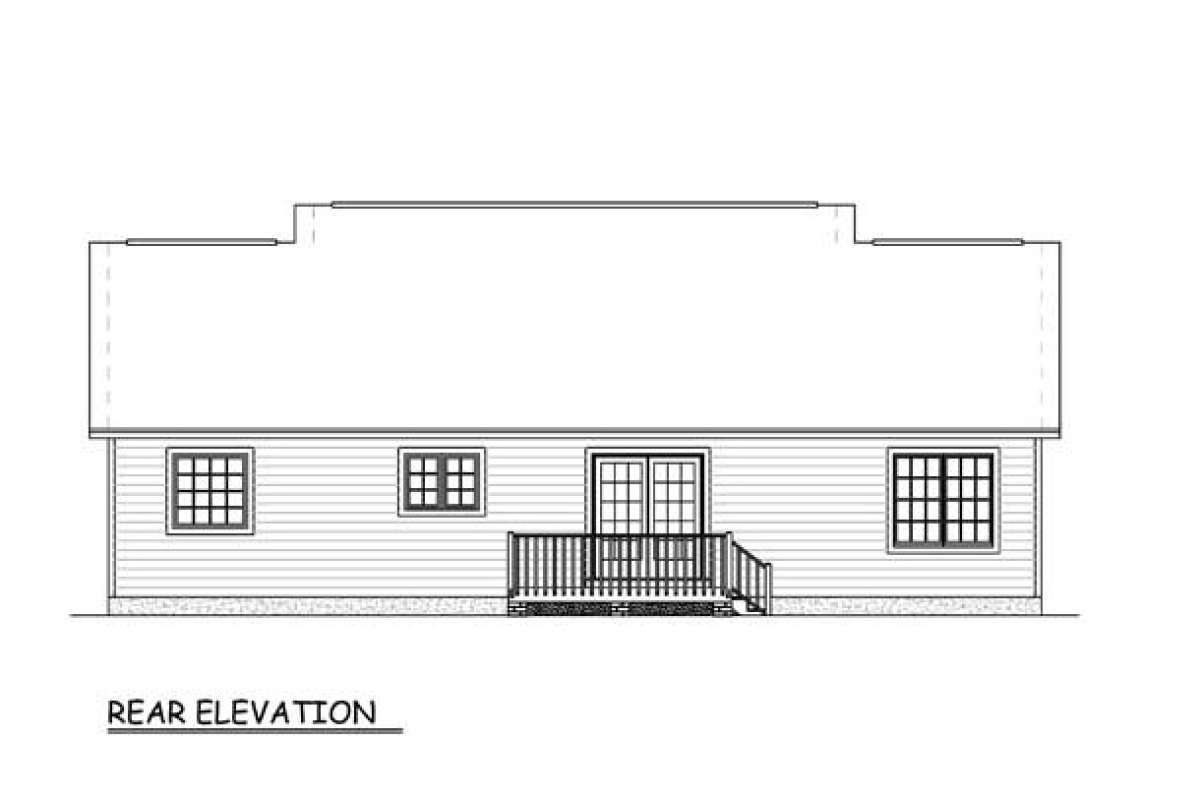

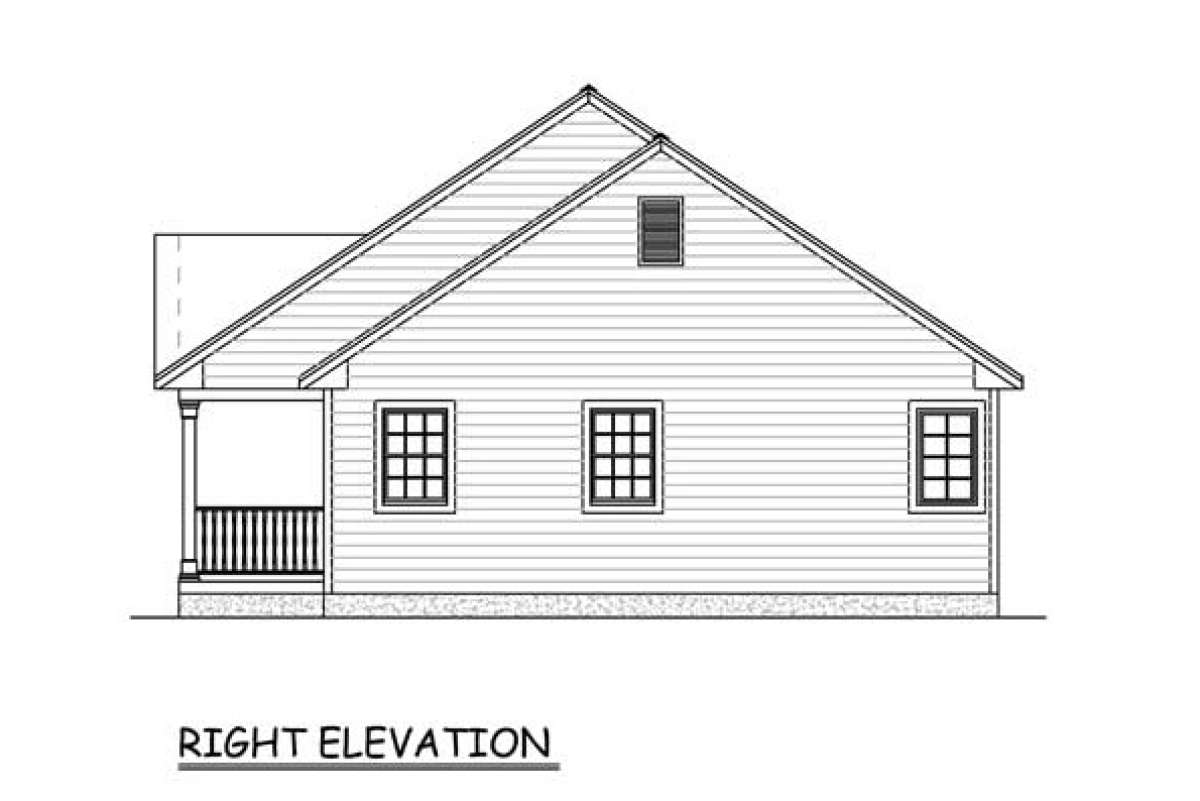

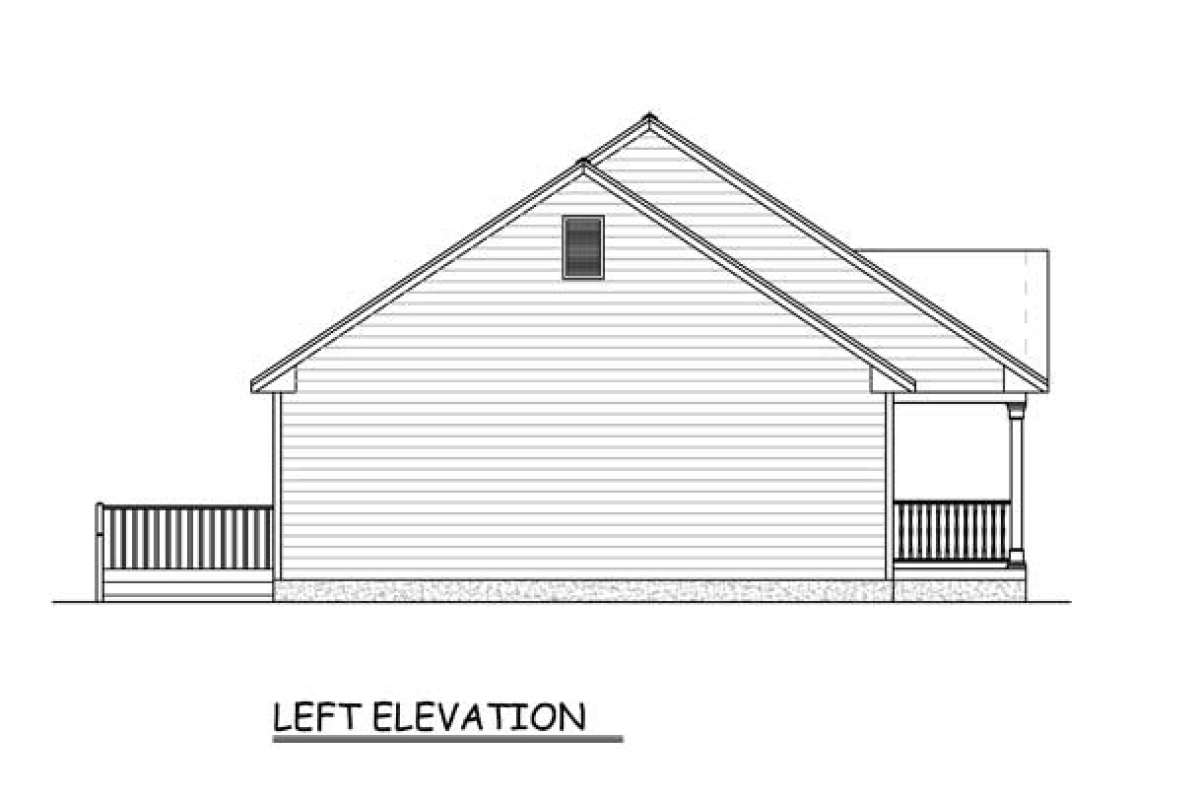

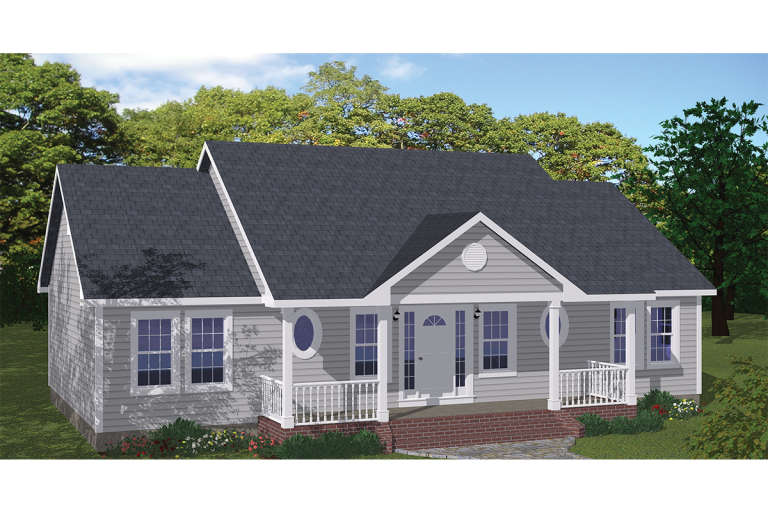

Ranch House Plan #526-00080 Elevation Photo
Main Floor
Main Floor for House Plan #526-00080
Main Floor Basement Stair Location
Main Floor Basement Stair Location for House Plan #526-00080
Ranch House Plan #526-00080 Elevation Photo
Ranch House Plan #526-00080 Elevation Photo
Ranch House Plan #526-00080 Elevation Photo
Ranch House Plan #526-00080 Elevation Photo
Main Floor for House Plan #526-00080
Main Floor Basement Stair Location for House Plan #526-00080
Ranch House Plan #526-00080 Elevation Photo
Ranch House Plan #526-00080 Elevation Photo
Ranch House Plan #526-00080 Elevation Photo
Images copyrighted by the designer. Photographs may reflect a homeowner modification.

Floorplan Drawings

 REVERSE  PRINT  DOWNLOAD Images copyrighted by the designer.
Main Floor for House Plan #526-00080
Main Floor Basement Stair Location for House Plan #526-00080

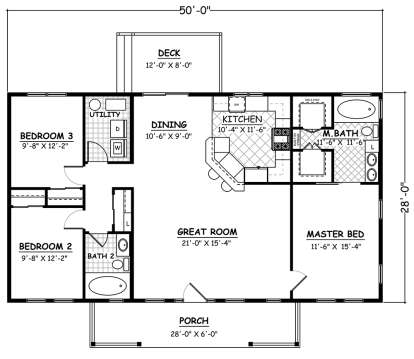

Main Floor
Main Floor for House Plan #526-00080

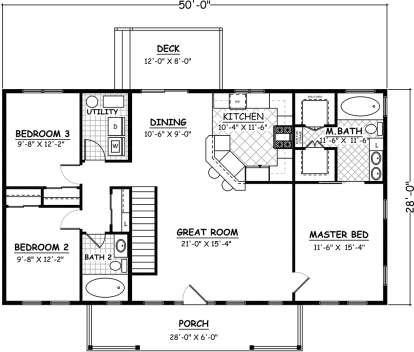

Main Floor Basement Stair Location
Main Floor Basement Stair Location for House Plan #526-00080


Frequently Asked Questions

COST TO BUILD REPORT

What's Included in these plans?

  • C-1     Color cover page
  • A-1     Foundation
  • A-2     1st Floor plan
  • A-2.1  2nd Floor plan (when applicable)
  • A-3     Front and Left Elevations
  • A-4     Rear and Right Elevations
  • A-5     Roof Plan
  • A-6     Sections
  • D-1     Details
  • S-1     1st Floor Structural Framing Plan
  • S-2.1   2nd Floor Structural Framing Plan (when applicable)
  • S-2     Ceiling Structural Framing Plan
  • S-3     Roof Structural Framing Plan
  • E-1     Electrical Plan

ASK US A QUESTION

Name:
E-mail Address:
Please leave blank:
Your Question:

To request a modification quote, please use the Modification Request Form.

About This Plan

This All-American, Ranch house plan is showcased on both the exterior and interior with charming design elements. Touches of country living adorn the exterior with its sculpted beams, open railing, and the oversized front covered porch. The overhead gable and all the window views add character to the plan and the brick walk-up is a nice touch. There is an outdoor rear deck as well which is perfect for outdoor living, entertaining and hosting cook-outs for family and friends.


Approximately 1,400 square feet of living space is found on the interior of the plan which includes three bedrooms and two baths. Walking in from the covered front porch, you will step into the large family room highlighted with window views and open to the dining area and kitchen. The kitchen features a bar area for additional seating and there is a rear slider off the dining space that leads to the deck. The split bedroom floor plan offers the primary suite on one side of the home and the two secondary bedrooms on the opposite. The owner’s suite features good floor space, dual walk-in closets, and an en suite bath with double vanities. The remaining bedrooms share a bath at one end of the hall with an adjacent large linen closet. The opposite end of the hall features the utility room. This is a great floor plan for a young family, empty nesters who love to have family and friends over or a young professional couple who like to balance work and life in one space.
