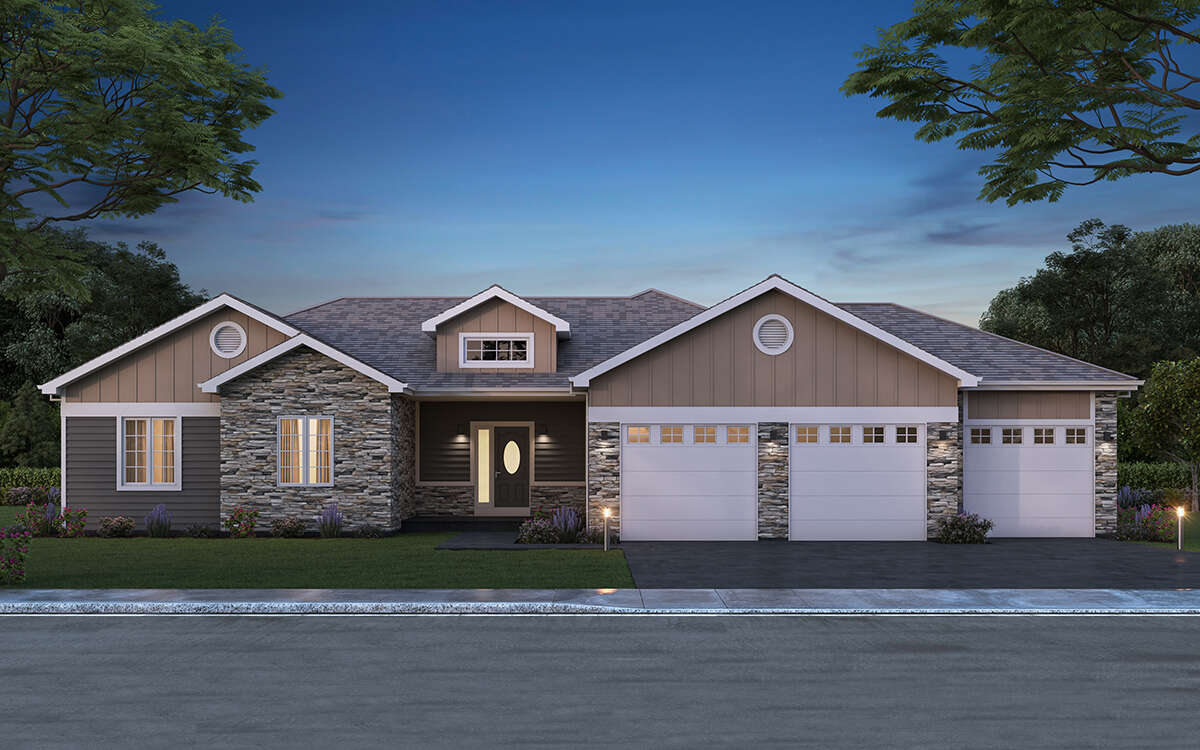

Traditional Plan 5244-00022

IMPORTANT NOTICE

To purchase a reversed plan, please select Right Reading Reverse under Additional Options.
Sq Ft 1,784
Beds 3
Bath 2
1/2 Baths 0
Car 3
Stories 1
Width 74'
Depth 57'

Floorplan Drawings

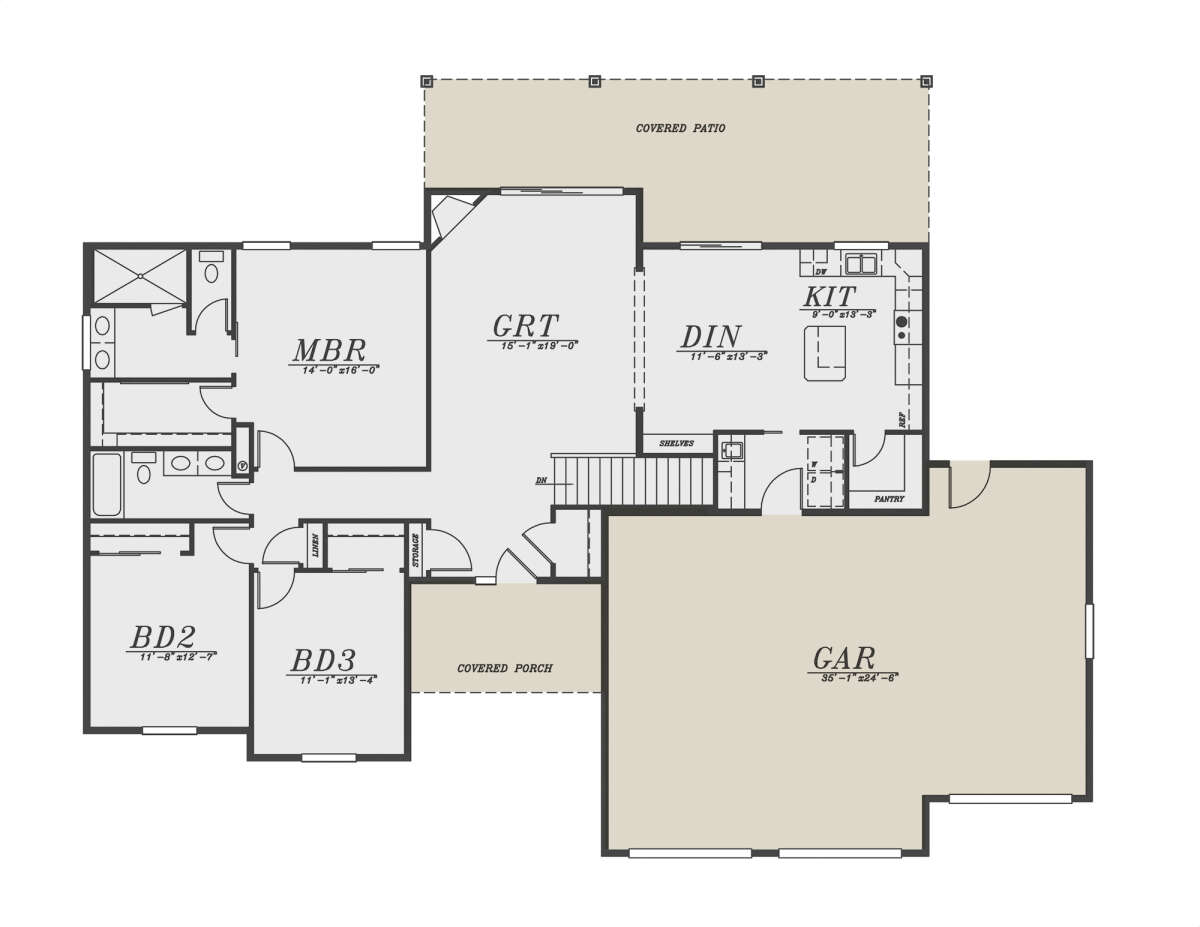

Main Floor
Main Floor  for House Plan #5244-00022


What's Included in these plans?

  • Exterior Elevations, all at 1/4" Scale.
  • Floor Plans, Fully dimensioned and noted.
  • Electrical Plans.  Separate sheet 1/4" Scale.
  • Foundation Plan.  Full Basement is standard.
  • Building Sections. At least one cross section, one typical wall section and stair details.
  • Roof Plan.  Separate sheet, 1/4" Scale.
  • Cover Sheet.  Front elevation, 1/8" Floor plan, general plan information.

What's not included:  House plans do not typically include mechanical, plumbing, or truss drawings. Additionally, some jurisdictions require a local architect or engineer to make adjustments to the plan to comply with local building codes. We advise you to check with your local building department regarding codes. For more information, visit the What's Included in Our Plans page.

Ask Us A Question

To request a modification quote, please use the Modification Request Form.

About This Plan

This 3 bedroom, 2 bathroom Traditional house plan features 1,784 sq ft of living space. America's Best House Plans offers high quality plans from professional architects and home designers across the country with a best price guarantee. Our extensive collection of house plans are easy to read, versatile, and affordable, with a seamless modification process available if your plans need to be changed to suit your lifestyle and personal choice.
