Traditional Plan 5244-00007

Name: Traditional Plan - 2,128 Square Feet, 4 Bedrooms, 2.5 Bathrooms | Floor Plan #5244-00007 | America's Best House Plans
Brand: America's Best House Plans
SKU: 5244-00007
Price: 531.25 USD
Availability: InStock

Traditional House Plan #5244-00007 Elevation Photo

SALE

IMPORTANT NOTICE

To purchase a reversed plan, please select Right Reading Reverse under Additional Options.

Sq Ft 2,128

Beds 4

Baths 2

1/2 Baths 1

Cars 2

Stories 2

Width 49'

Depth 36'

See What's Included

Select Package

PDF (Single Build)

$795 $675.75

ELECTRONIC FORMAT Recommended
One Complete set of construction drawings emailed to you in PDF format. Most plans can be emailed same business day or the business day after your purchase. This package comes with a license to construct one home and a release for printing copies locally.

5 Sets (Single Build)

$625 $531.25

PHYSICAL FORMAT
Five printed sets of construction drawings shipped to you. This package comes with a license to construct one home.

8 Sets (Single Build)

$695 $590.75

PHYSICAL FORMAT
Eight printed sets of construction drawings shipped to you. This package comes with a license to construct one home.

CAD Files (Single Build)

$1,100 $935.00

ELECTRONIC FORMAT
A CAD file is a set of construction drawings in an electronic format. The CAD file can be used to make minor or major modifications to our plans. The CAD files come with a release to customize the plan however you like. CAD files can also be emailed to avoid shipping costs. Most plans can be emailed same business day or the business day after your purchase. This package comes with a license to construct one home. Requires a CAD program to open the files and drafting experience to make changes.

Select Foundation

Unfinished Basement $0 $0.00

Need a different foundation?

Get a free modification quote

Additional Options

Additional Sets $45 $38.25

Add additional sets to create the perfect plan package for your needs.

Right Reading Reverse $50 $42.50

Reverses the entire plan including all text and dimensions so that they are reading correctly.

Material List $100 $85.00

A complete material list for this plan. House plan must be purchased in order to obtain material list.

Need a different option?

Get a free modification quote

Return Policy, Building Code & Copyright Info

Floorplan Drawings

PRINT DOWNLOAD

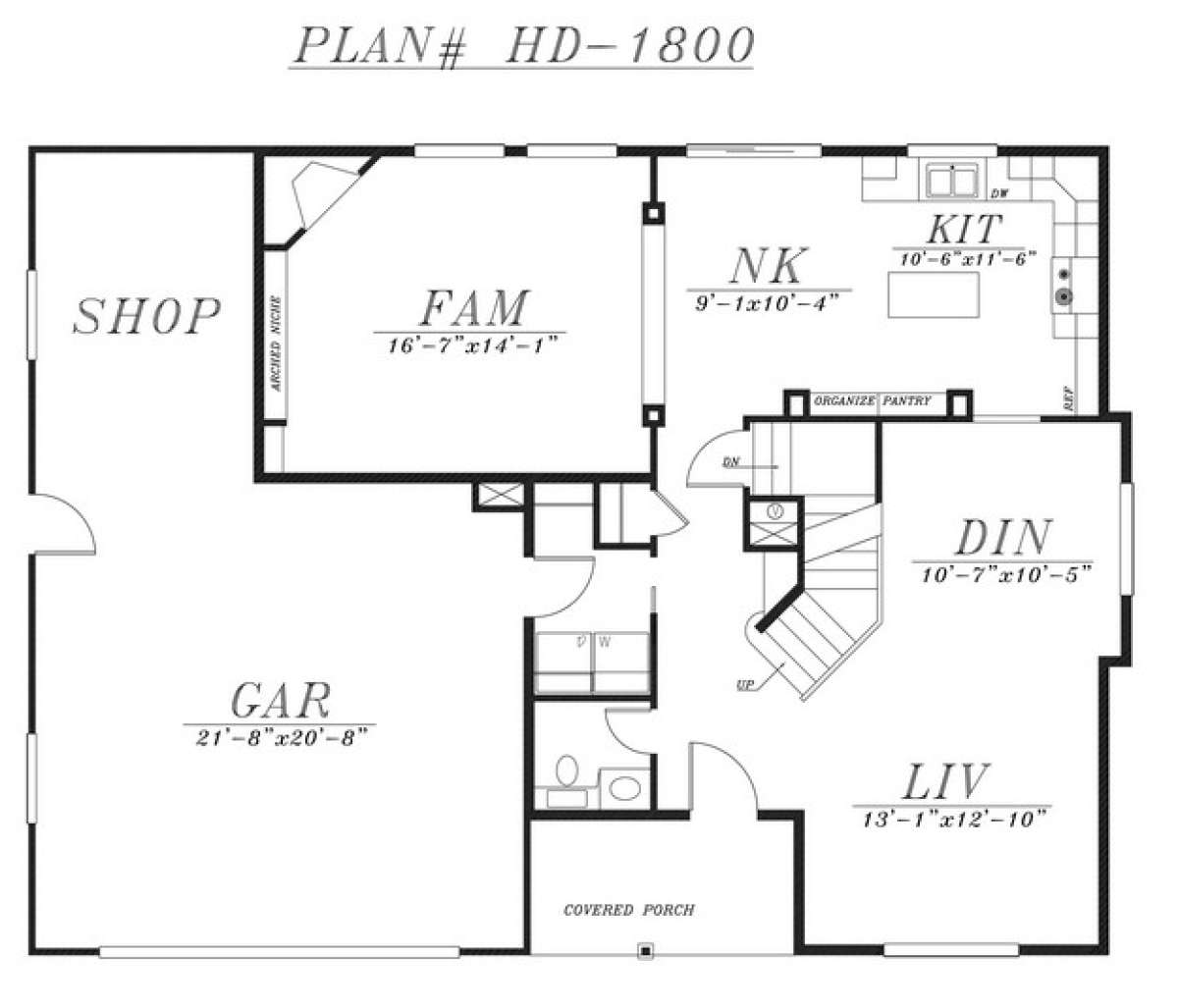

Floorplan 1

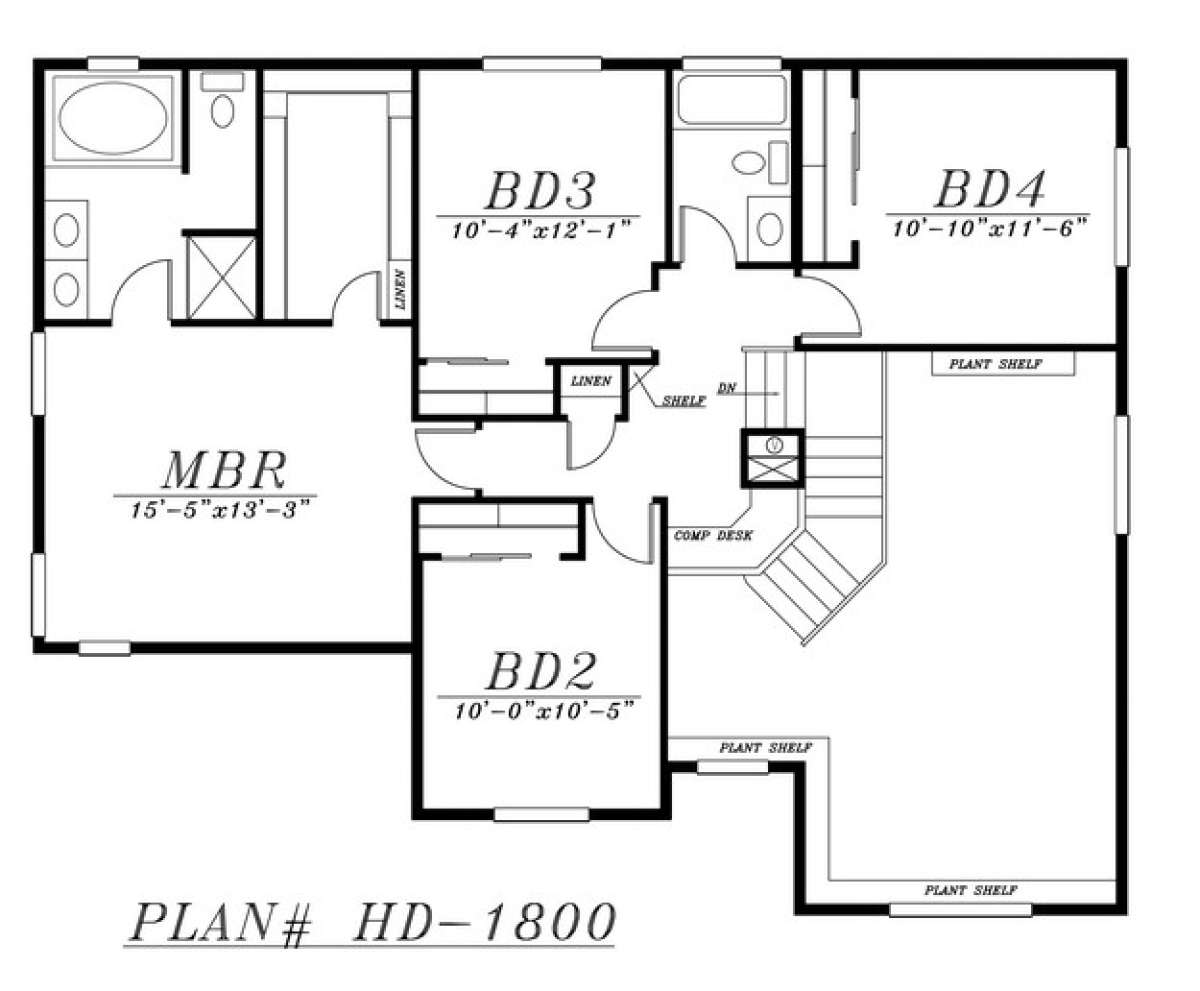

Floorplan 2

Images copyrighted by the designer.

Details

HEATED Sq Ft

Total Heated Area: 2,128 sq. ft. First Floor: 1,055 sq. ft. Second Floor: 1,073 sq. ft.

UNHEATED Sq Ft

Total Unheated Area: 1,651 sq. ft. Basement: 1,040 sq. ft. Garage: 611 sq. ft.

Bedrooms: 4

Full Baths: 2

Half Baths: 1

Floors: 2

Garage Size: 2 car

Width: 49ft.

Depth: 36ft.

Height: 26ft.-10in.

Foundation:

Unfinished Basement

Main Roof Pitch: 6:12

Exterior Framing:

What's Included in these plans?

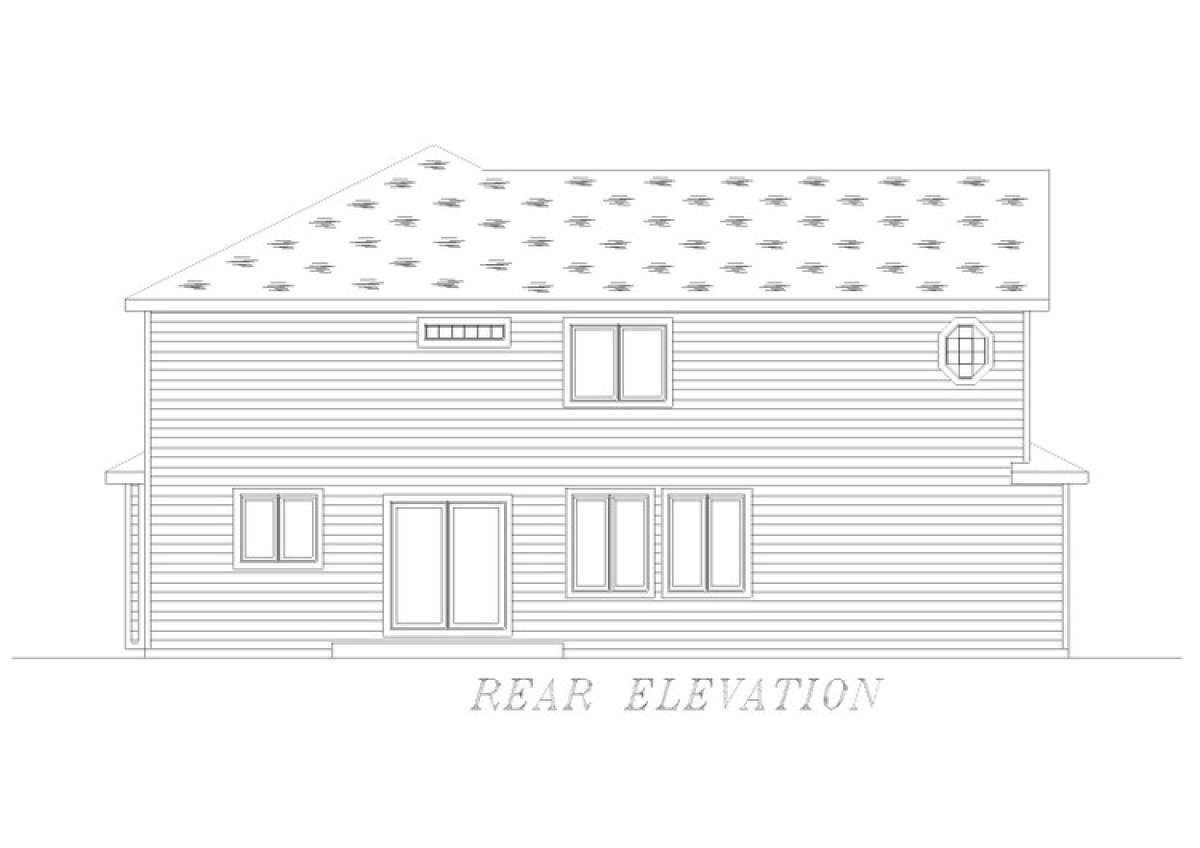

Exterior Elevations, all at 1/4" Scale.
Floor Plans, Fully dimensioned and noted.
Electrical Plans. Separate sheet 1/4" Scale.
Foundation Plan. Full Basement is standard.
Building Sections. At least one cross section, one typical wall section and stair details.
Roof Plan. Separate sheet, 1/4" Scale.
Cover Sheet. Front elevation, 1/8" Floor plan, general plan information.

What's not included: House plans do not typically include mechanical, plumbing, or truss drawings. Additionally, some jurisdictions require a local architect or engineer to make adjustments to the plan to comply with local building codes. We advise you to check with your local building department regarding codes. For more information, visit the What's Included in Our Plans page.

Ask Us A Question

About This Plan

At only 49' wide and 36' deep this efficient 4 bedroom, 2 story plan will fit almost any lot. This home plan features a formal living room and dining room spaces as well as a kitchen with an island, pantry and wall organizer. The 2 car garage comes with a large shop area at the back. The master suite includes a 5 piece bath and large walk-in closet.
