Ranch Plan 5244-00006

Name: Ranch Plan - 1,909 Square Feet, 3 Bedrooms, 2 Bathrooms | Floor Plan #5244-00006 | America's Best House Plans
Brand: America's Best House Plans
SKU: 5244-00006
Price: 625.00 USD
Availability: InStock

Ranch House Plan #5244-00006 Elevation Photo

IMPORTANT NOTICE

To purchase a reversed plan, please select Right Reading Reverse under Additional Options.

Sq Ft 1,909

Beds 3

Baths 2

1/2 Baths 0

Cars 3

Stories 1

Width 68'

Depth 60'

See What's Included

Select Package

PDF (Single Build)

$795.00

ELECTRONIC FORMAT Recommended
One Complete set of construction drawings emailed to you in PDF format. Most plans can be emailed same business day or the business day after your purchase. This package comes with a license to construct one home and a release for printing copies locally.

5 Sets (Single Build)

$625.00

PHYSICAL FORMAT
Five printed sets of construction drawings shipped to you. This package comes with a license to construct one home.

8 Sets (Single Build)

$695.00

PHYSICAL FORMAT
Eight printed sets of construction drawings shipped to you. This package comes with a license to construct one home.

CAD Files (Single Build)

$1,100.00

ELECTRONIC FORMAT
A CAD file is a set of construction drawings in an electronic format. The CAD file can be used to make minor or major modifications to our plans. The CAD files come with a release to customize the plan however you like. CAD files can also be emailed to avoid shipping costs. Most plans can be emailed same business day or the business day after your purchase. This package comes with a license to construct one home. Requires a CAD program to open the files and drafting experience to make changes.

Select Foundation

Unfinished Basement $0.00

Need a different foundation?

Get a free modification quote

Additional Options

Additional Sets $45.00

Add additional sets to create the perfect plan package for your needs.

Right Reading Reverse $50.00

Reverses the entire plan including all text and dimensions so that they are reading correctly.

Mirrored Reverse $100.00

Reverses the plan, however, the text and dimensions will not read correctly.

ABHP Material List $325.00

A complete material list for this plan plus purchased options excluding right reading reverse, windows and doors and any modifications. Product requires 5-7 business days to complete.

View Sample ABHP Material List

Need a different option?

Get a free modification quote

Return Policy, Building Code & Copyright Info

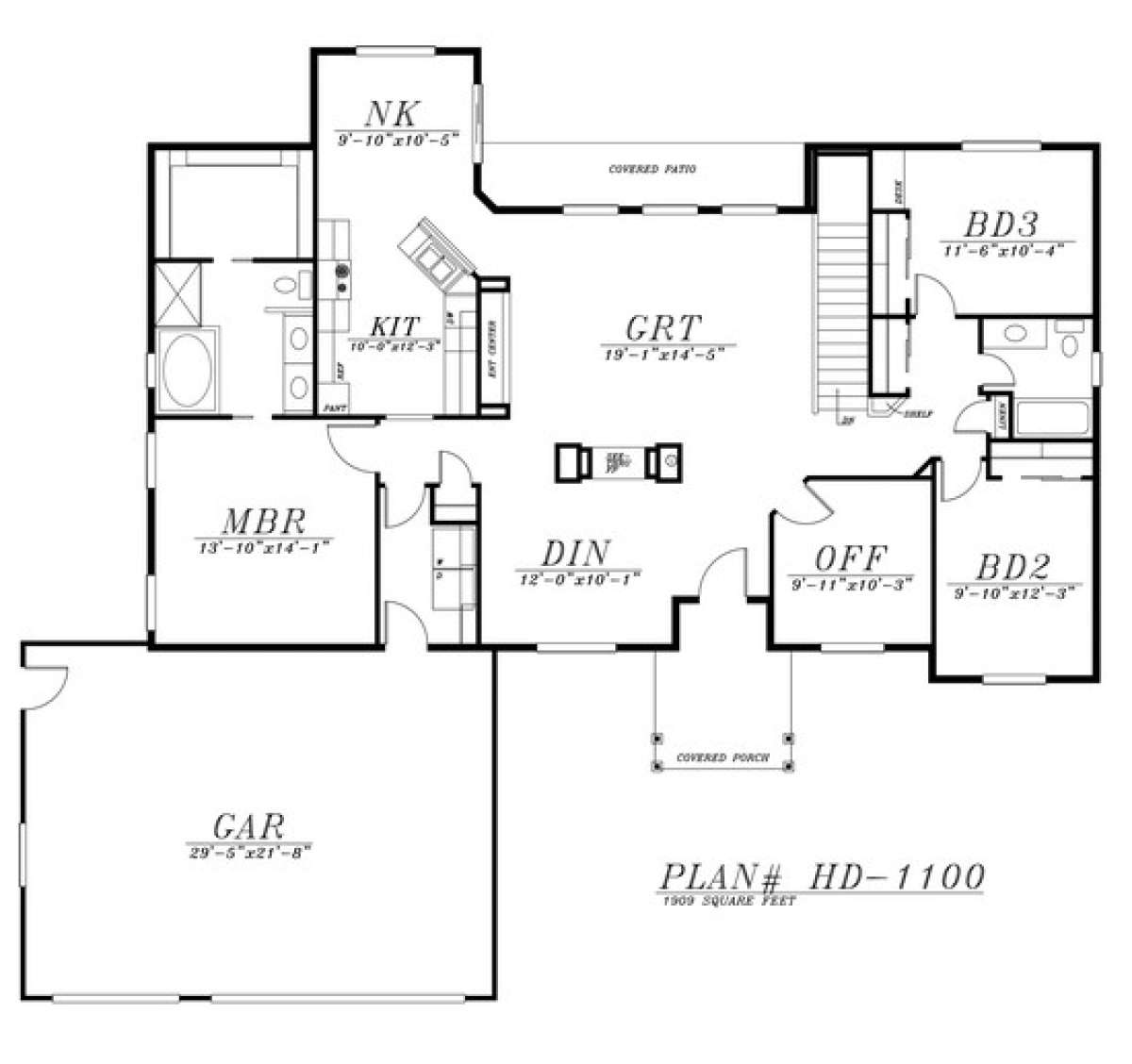

Floorplan Drawings

PRINT DOWNLOAD

Floorplan1

Images copyrighted by the designer.

Details

HEATED Sq Ft

Total Heated Area: 1,909 sq. ft. First Floor: 1,909 sq. ft.

UNHEATED Sq Ft

Total Unheated Area: 2,567 sq. ft. Basement: 1,902 sq. ft. Garage: 665 sq. ft.

Bedrooms: 3

Full Baths: 2

Floors: 1

Garage Size: 3 car

Width: 68ft.

Depth: 60ft.

Height: 21ft.-4in.

Foundation:

Unfinished Basement

Main Roof Pitch: 7:12

Exterior Framing:

CEILING HEIGHTS

First Floor: 9-1 feet

What's Included in these plans?

Exterior Elevations, all at 1/4" Scale.
Floor Plans, Fully dimensioned and noted.
Electrical Plans. Separate sheet 1/4" Scale.
Foundation Plan. Full Basement is standard.
Building Sections. At least one cross section, one typical wall section and stair details.
Roof Plan. Separate sheet, 1/4" Scale.
Cover Sheet. Front elevation, 1/8" Floor plan, general plan information.

What's not included: House plans do not typically include mechanical, plumbing, or truss drawings. Additionally, some jurisdictions require a local architect or engineer to make adjustments to the plan to comply with local building codes. We advise you to check with your local building department regarding codes. For more information, visit the What's Included in Our Plans page.
