Ranch Plan 5244-00004

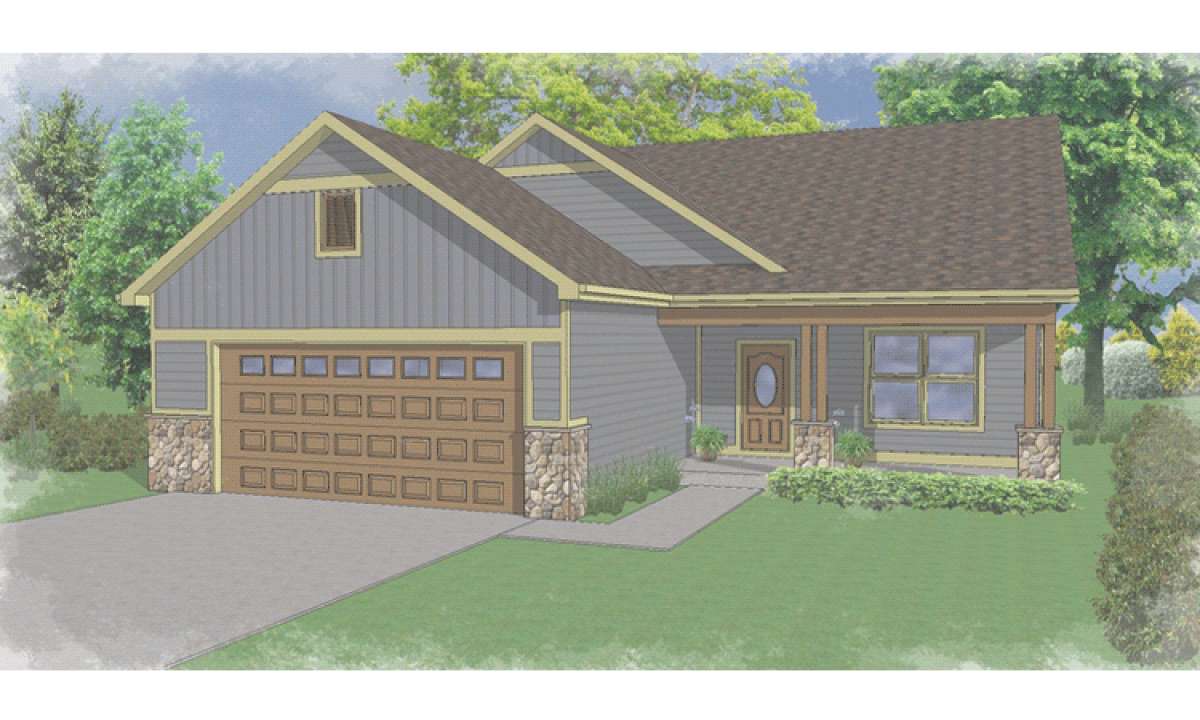

Ranch House Plan #5244-00004 Elevation Photo

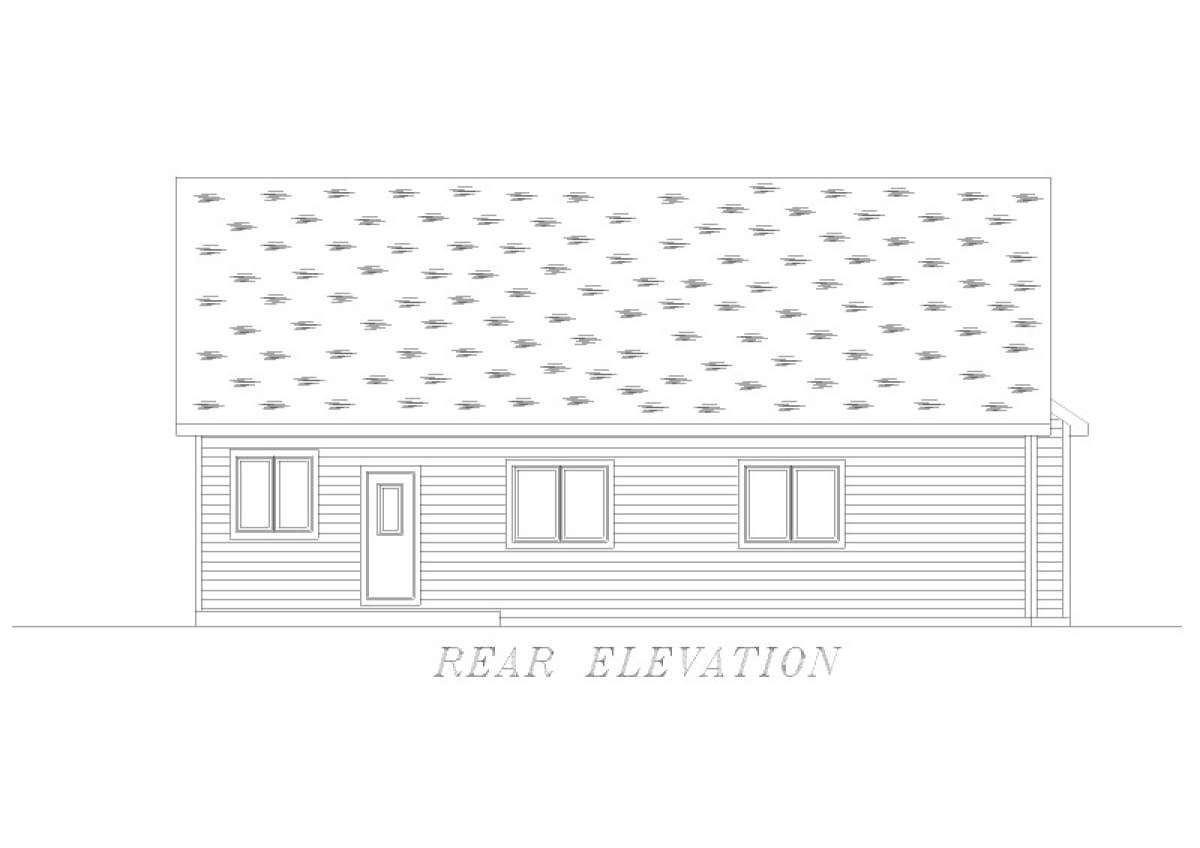

Ranch House Plan #5244-00004 Elevation Photo

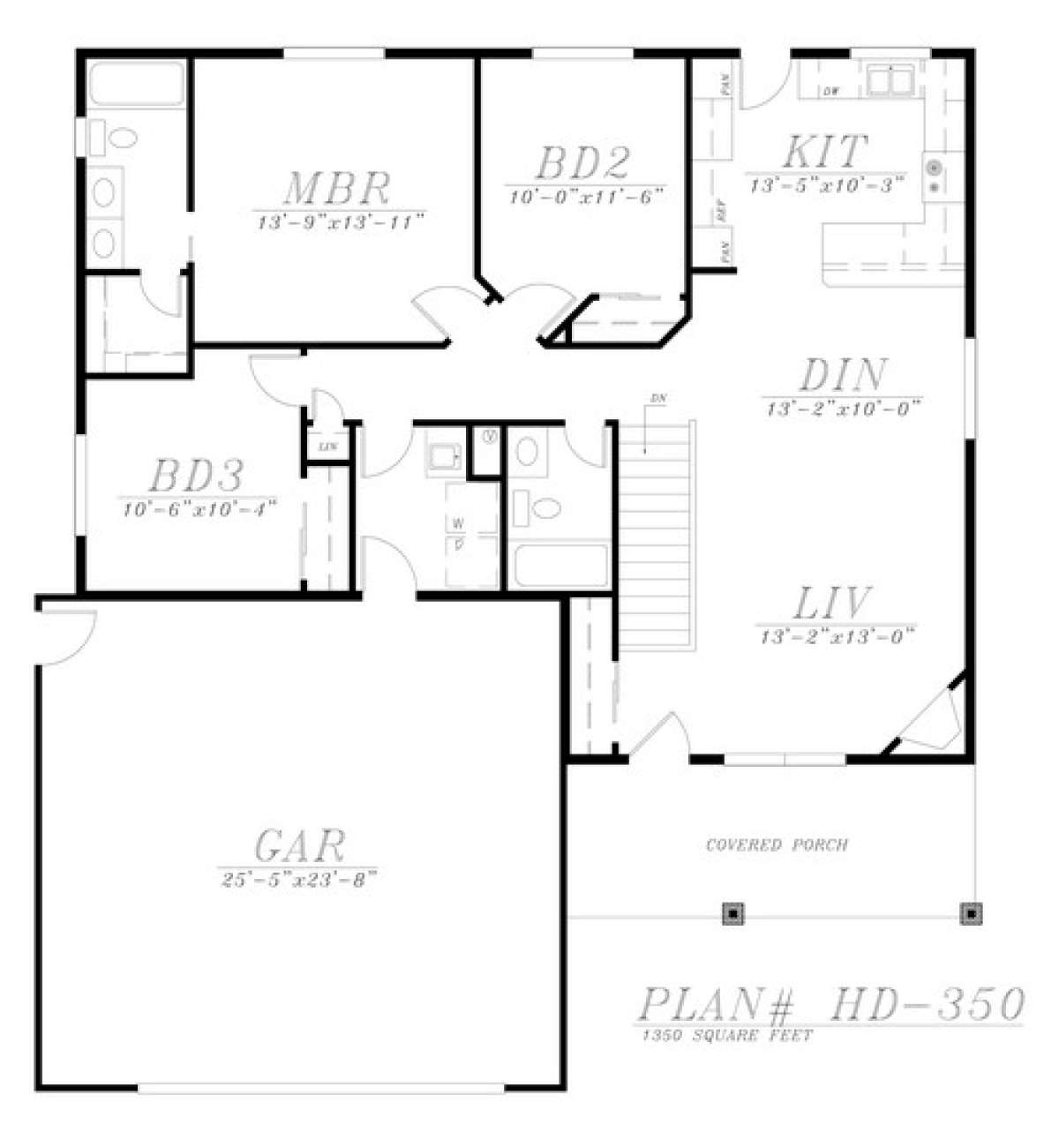

Floorplan 1 for House Plan #5244-00004

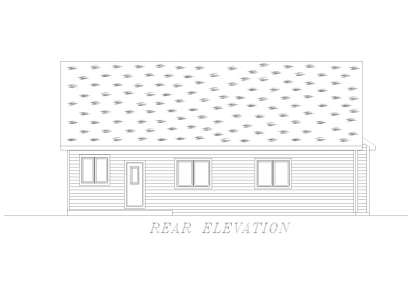

Ranch House Plan #5244-00004 Elevation Photo
Ranch House Plan #5244-00004 Elevation Photo
Floorplan 1 for House Plan #5244-00004

IMPORTANT NOTICE

To purchase a reversed plan, please select Right Reading Reverse under Additional Options.
Images copyrighted by the designer. Photographs may reflect a homeowner modification.
Sq Ft 1,350
Beds 3
Bath 2
1/2 Baths 0
Car 2
Stories 1
Width 46'
Depth 51'

Floorplan Drawings

 PRINT  DOWNLOAD
Floorplan 1 for House Plan #5244-00004
Floorplan 1
Floorplan 1 for House Plan #5244-00004
Images copyrighted by the designer.


What's Included in these plans?

  • Exterior Elevations, all at 1/4" Scale.
  • Floor Plans, Fully dimensioned and noted.
  • Electrical Plans.  Separate sheet 1/4" Scale.
  • Foundation Plan.  Full Basement is standard.
  • Building Sections. At least one cross section, one typical wall section and stair details.
  • Roof Plan.  Separate sheet, 1/4" Scale.
  • Cover Sheet.  Front elevation, 1/8" Floor plan, general plan information.

What's not included:  House plans do not typically include mechanical, plumbing, or truss drawings. Additionally, some jurisdictions require a local architect or engineer to make adjustments to the plan to comply with local building codes. We advise you to check with your local building department regarding codes. For more information, visit the What's Included in Our Plans page.

Ask Us A Question

To request a modification quote, please use the Modification Request Form.

About This Plan

Good things come in small packages! At only 1,350 square feet, this home packs a lot of wow. A large covered front porch welcomes you to a vaulted living room with a fireplace. The kitchen has a large eating peninsula and a cabinet pantry. The master suite includes a 4 piece master bath and walk-in closet.
