Barn Plan 5032-00207

IMPORTANT NOTICE

To purchase a reversed plan, please select Right Reading Reverse under Additional Options.
Sq Ft 2,578
Beds 3
Bath 2
1/2 Baths 1
Car 2
Stories 1
Width 94' 2"
Depth 81' 5"

Floorplan Drawings

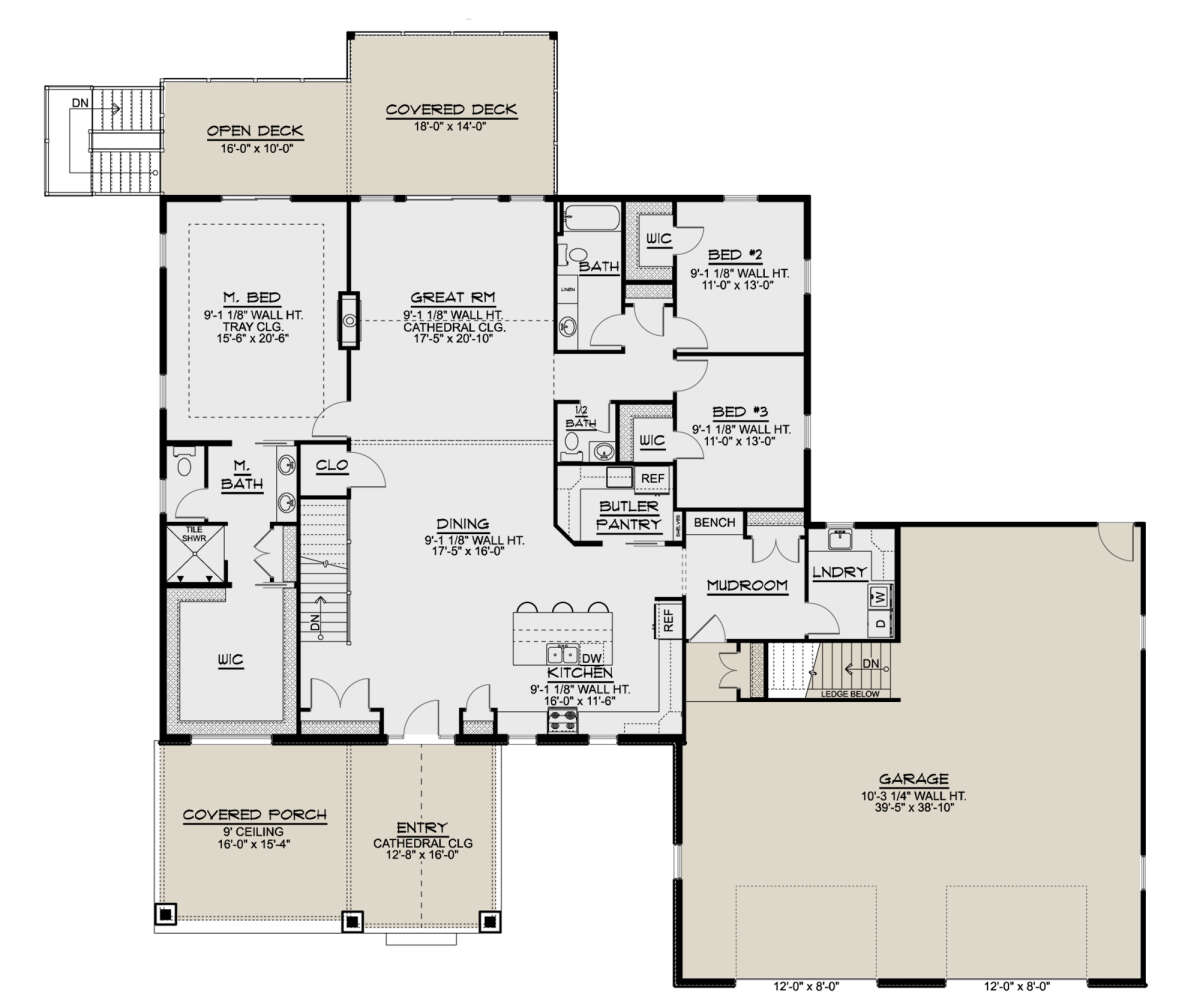

Main Floor
Main Floor  for House Plan #5032-00207

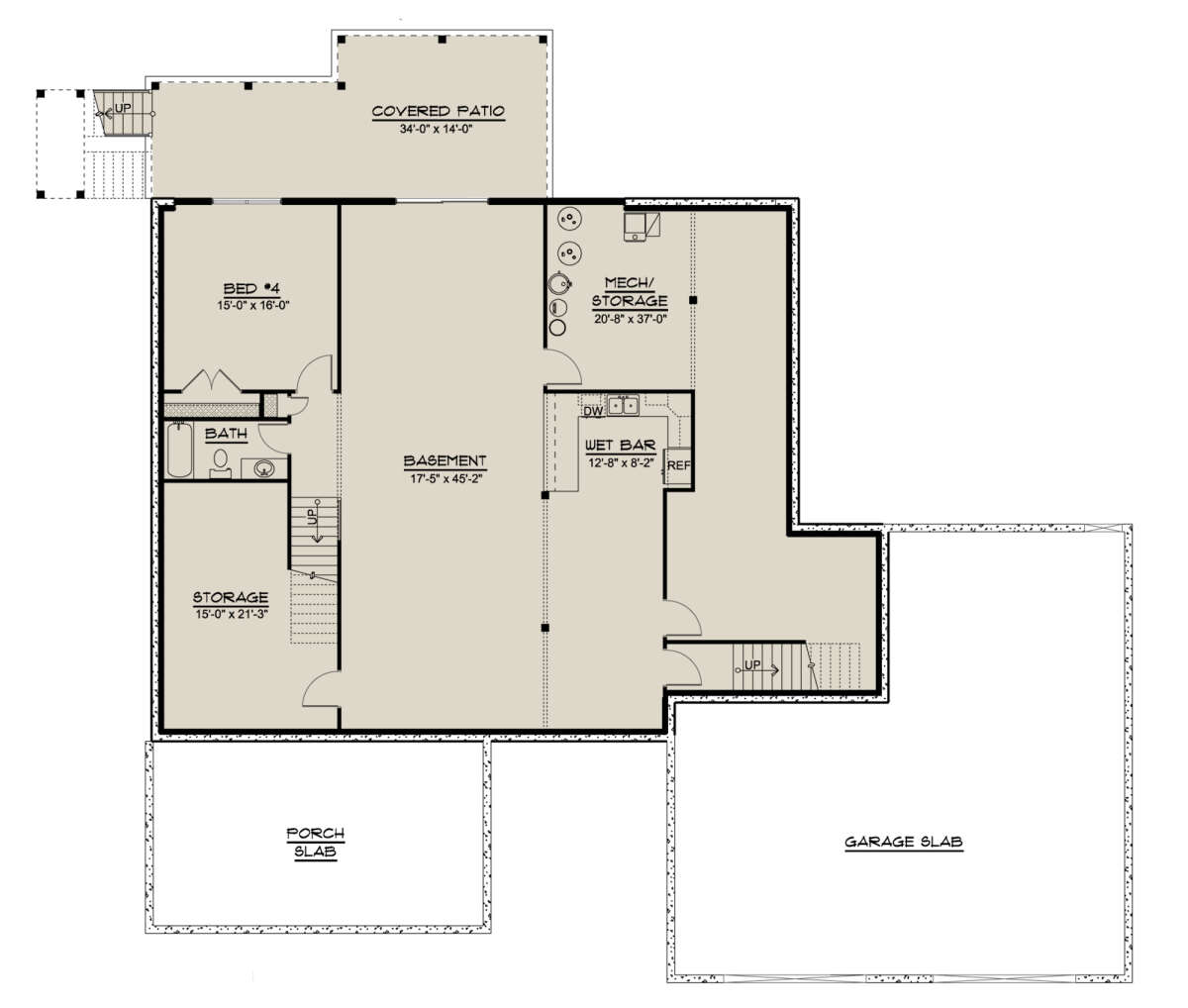

Basement
Basement for House Plan #5032-00207


What's Included in these plans?

  • Title Sheet
  • 4 Detailed Elevations, fully dimensioned and noted
  • Floor Plans
  • Roof Plan
  • Typical Wall Section or Cross Section
  • Foundation Plan & Details
  • General Notes Page
  • Electrical Plan for each floor





What's not included:  House plans do not typically include mechanical, plumbing, or truss drawings. Additionally, some jurisdictions require a local architect or engineer to make adjustments to the plan to comply with local building codes. We advise you to check with your local building department regarding codes. For more information, visit the What's Included in Our Plans page.

Ask Us A Question

To request a modification quote, please use the Modification Request Form.

About This Plan

This 3 bedroom, 2 bathroom Barn house plan features 2,578 sq ft of living space. America's Best House Plans offers high quality plans from professional architects and home designers across the country with a best price guarantee. Our extensive collection of house plans are easy to read, versatile, and affordable, with a seamless modification process available if your plans need to be changed to suit your lifestyle and personal choice.
