Barn House Plan 5032-00201

Sq Ft2,400
1/2 Baths1
Width96' 0"
Depth47' 0"
Images copyrighted by the designer. Photographs may reflect a homeowner modification.

Floorplan Drawings

 REVERSE  PRINT  DOWNLOAD Images copyrighted by the designer.

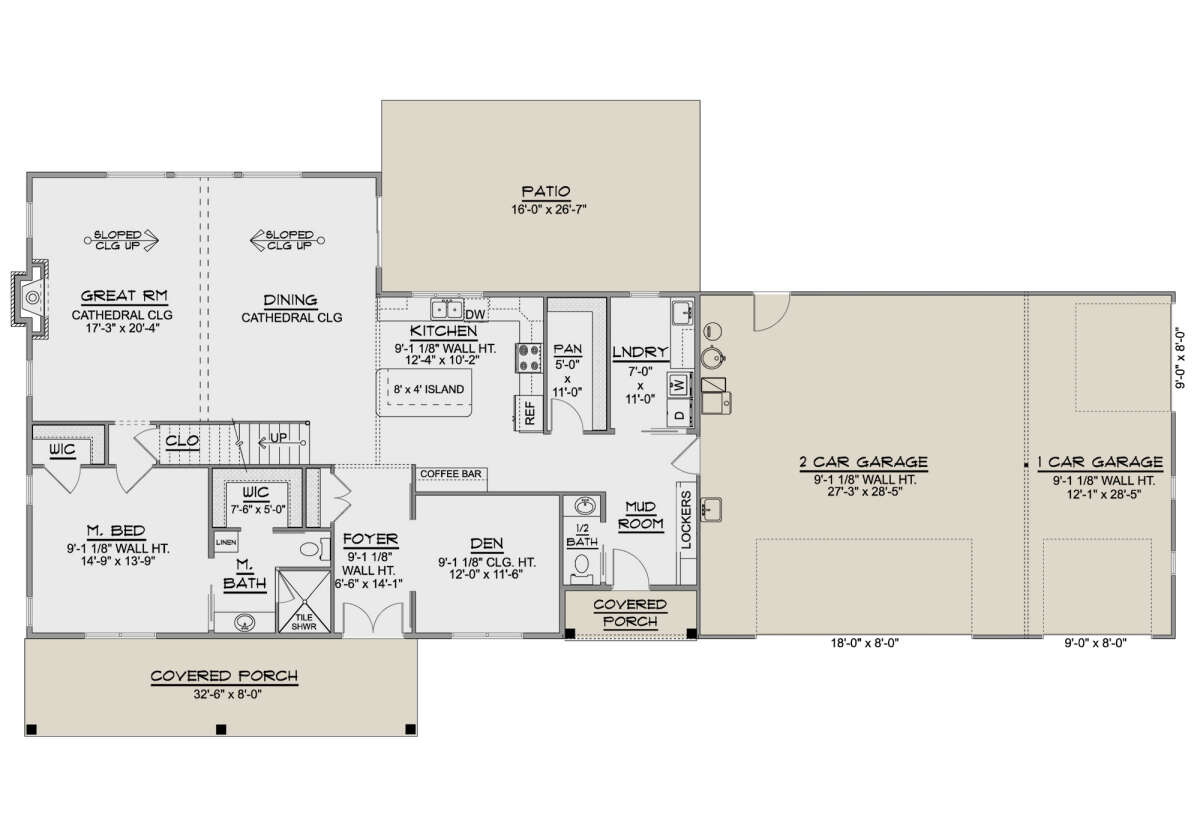

Main Floor  for House Plan #5032-00201

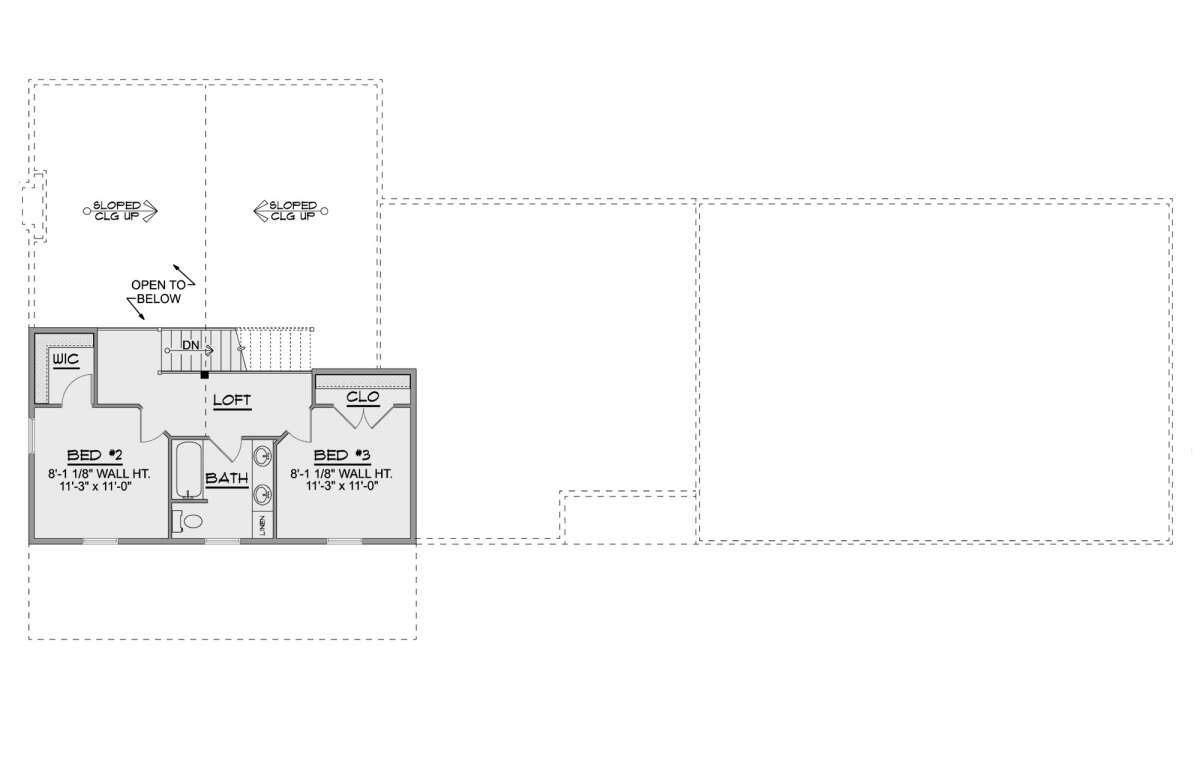

Second Floor for House Plan #5032-00201
Main Floor
Main Floor  for House Plan #5032-00201
Second Floor
Second Floor for House Plan #5032-00201

Frequently Asked Questions


What's Included in these plans?

  • Title Sheet
  • 4 Detailed Elevations, fully dimensioned and noted
  • Floor Plans
  • Roof Plan
  • Typical Wall Section or Cross Section
  • Foundation Plan & Details
  • General Notes Page
  • Electrical Plan for each floor


E-mail Address:
Please leave blank:
Your Question:

To request a modification quote, please use the Modification Request Form.

About This Plan

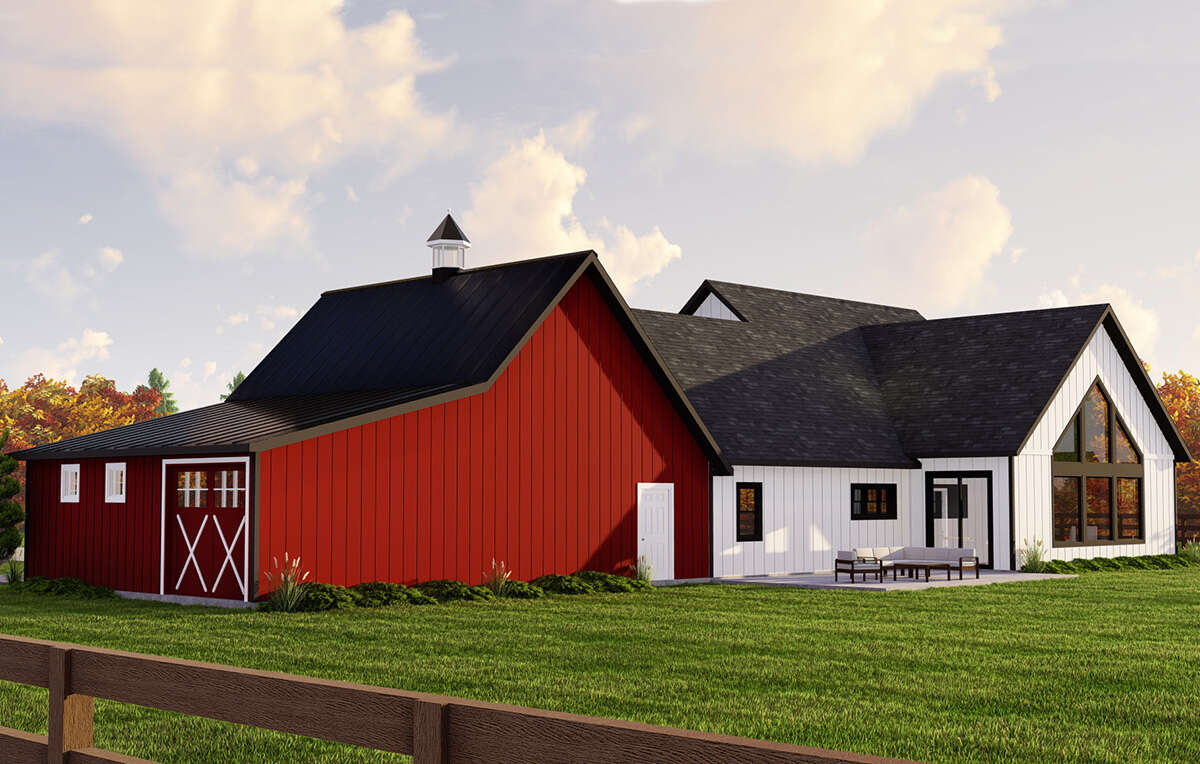

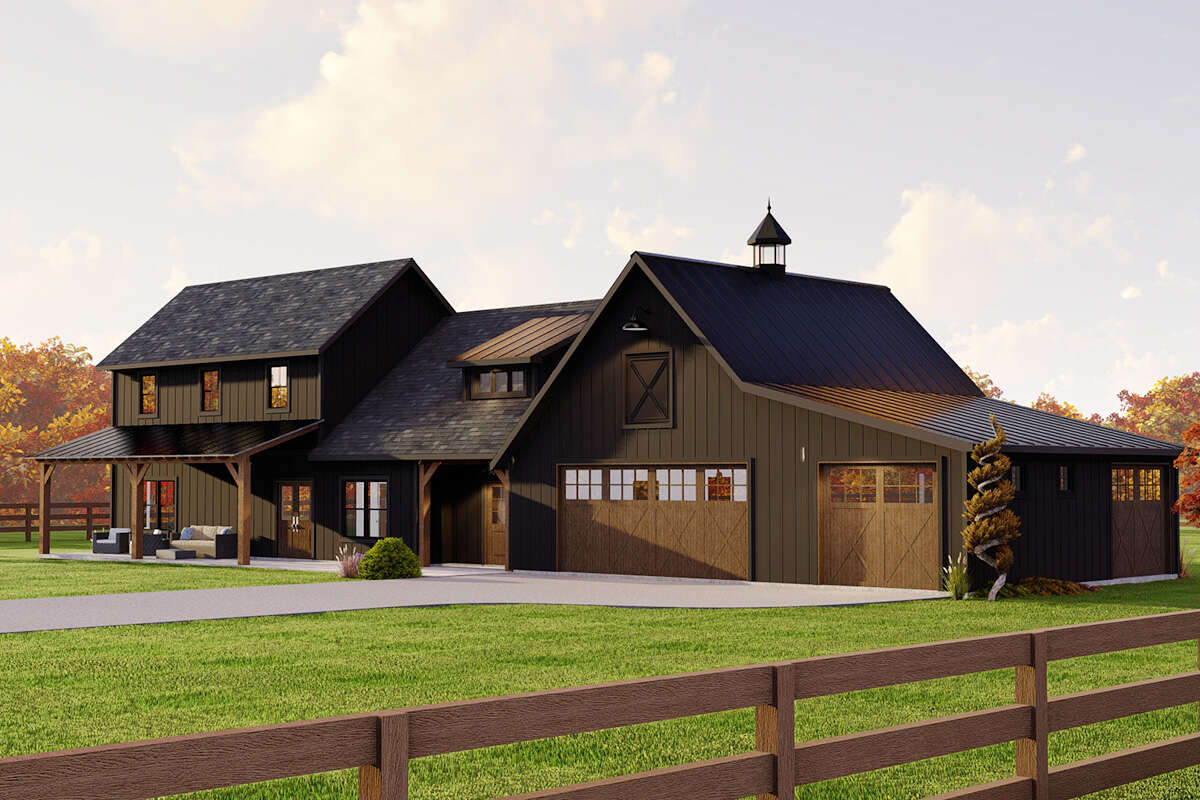

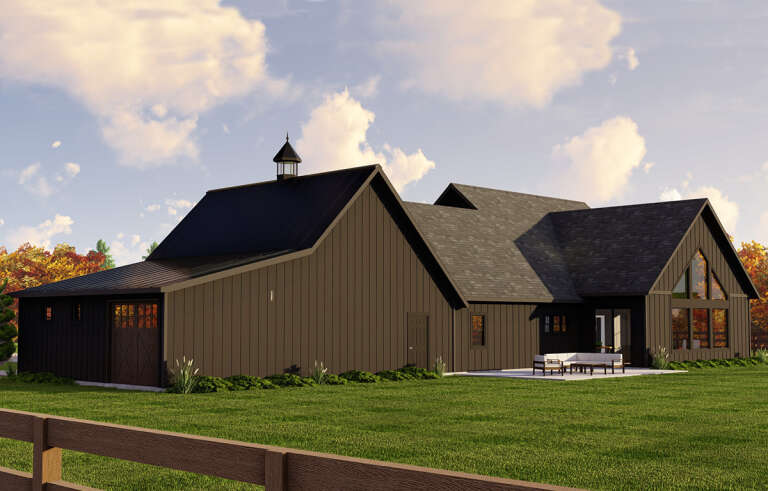

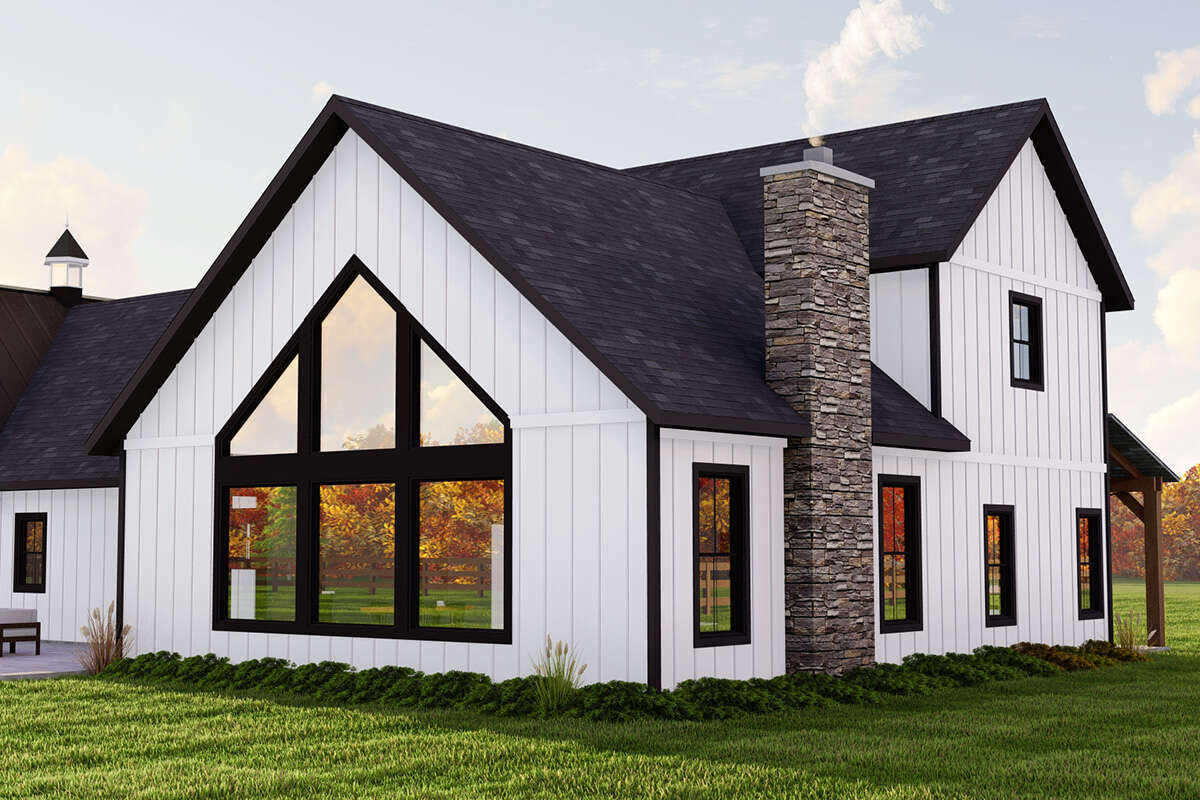

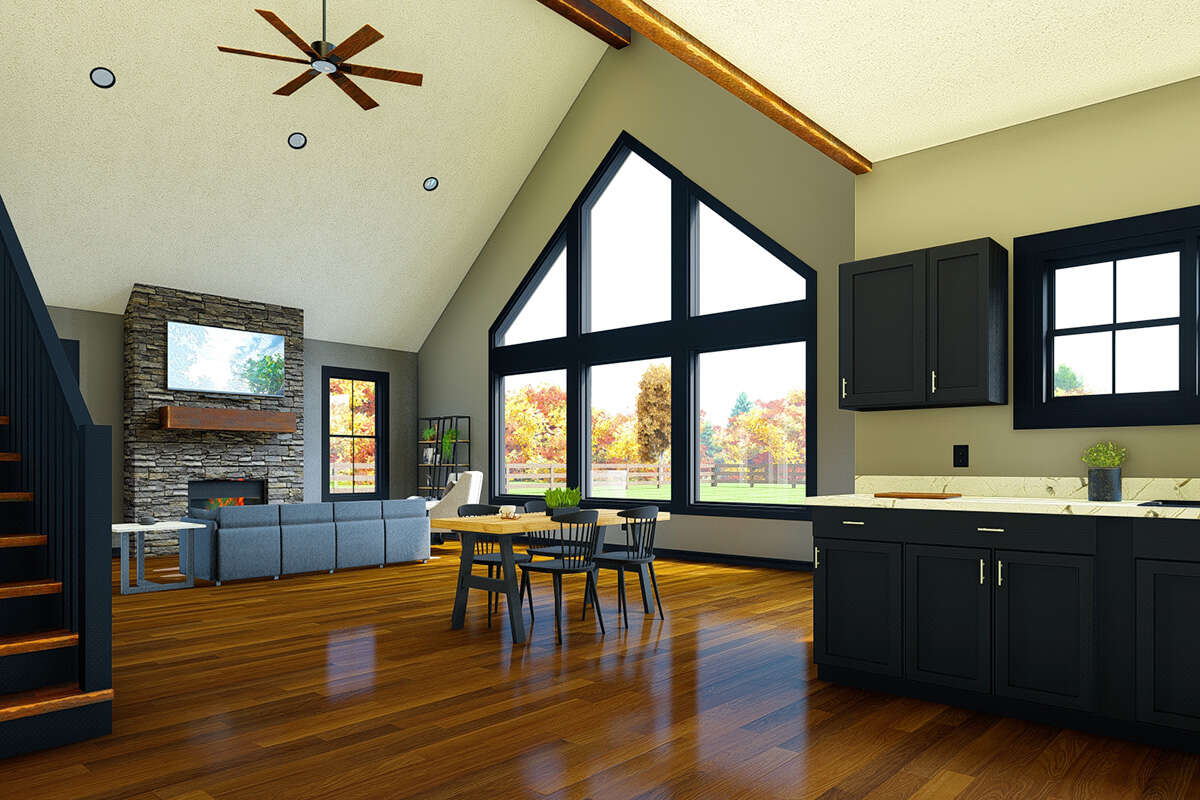

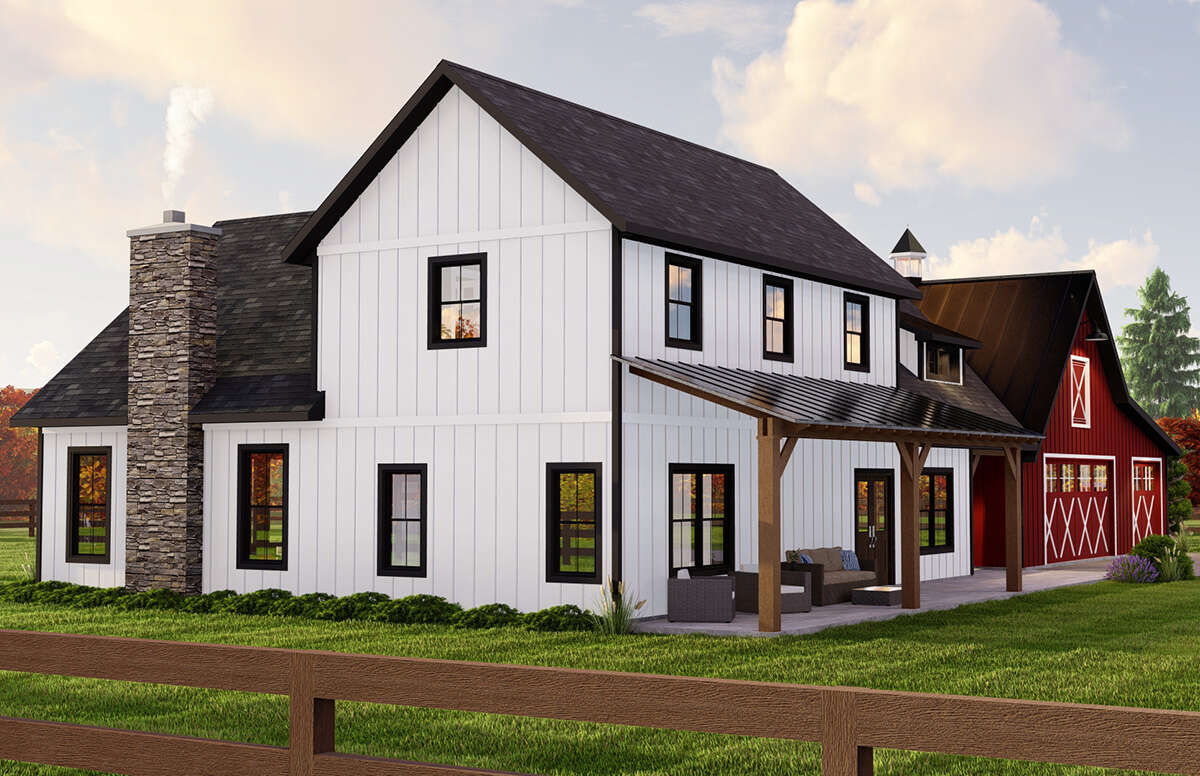

This Barndominium house plan features a striking exterior with colorful accents and great design choices. Board and batten, a sprawling front covered front porch, a stacked stone chimney and enormous garage space combine to create a unique exterior. The barn shaped and red colored garage houses a huge amount of square footage; enough to hold three vehicles or better and plenty of room for either a workshop or storage as well. The interior heated square footage is approximately 2,400 and includes three bedrooms and two plus baths. The main living area features a great room with cathedral ceiling heights to match the dining room; great space in both making entertaining a breeze. The nearby kitchen offers a center island and a nearby pantry for food storage items. At the end of the hallway, before accessing the garage is a laundry room with a sink and counter space that is situated directly across from the mudroom and powder room. There is an additional gathering space for family and friends at the front of the home located off the foyer for a bit of privacy and the main bedroom suite is also on the main floor.

The primary suite features a spacious bedroom, a walk-in closet and the main bath which offers a shower, vanity space, toilet area and linen closet. The second floor houses two additional bedrooms; one with a walk-in closet, the other features plenty of closet space for clothing and accessories. The hall bathroom is situated between the bedrooms with double sinks, a toilet area, and a tub/shower combination. There is also a loft which is quite spacious overlooking the living/dining spaces below; the loft can be utilized as a homework station for older children, a playroom for young children or a “hang-out” spot for friends and family. This is a great opportunity to have a unique plan with loads of vehicle or hobby/workshop space while also plenty of room for private family space as well as entertainment space.
