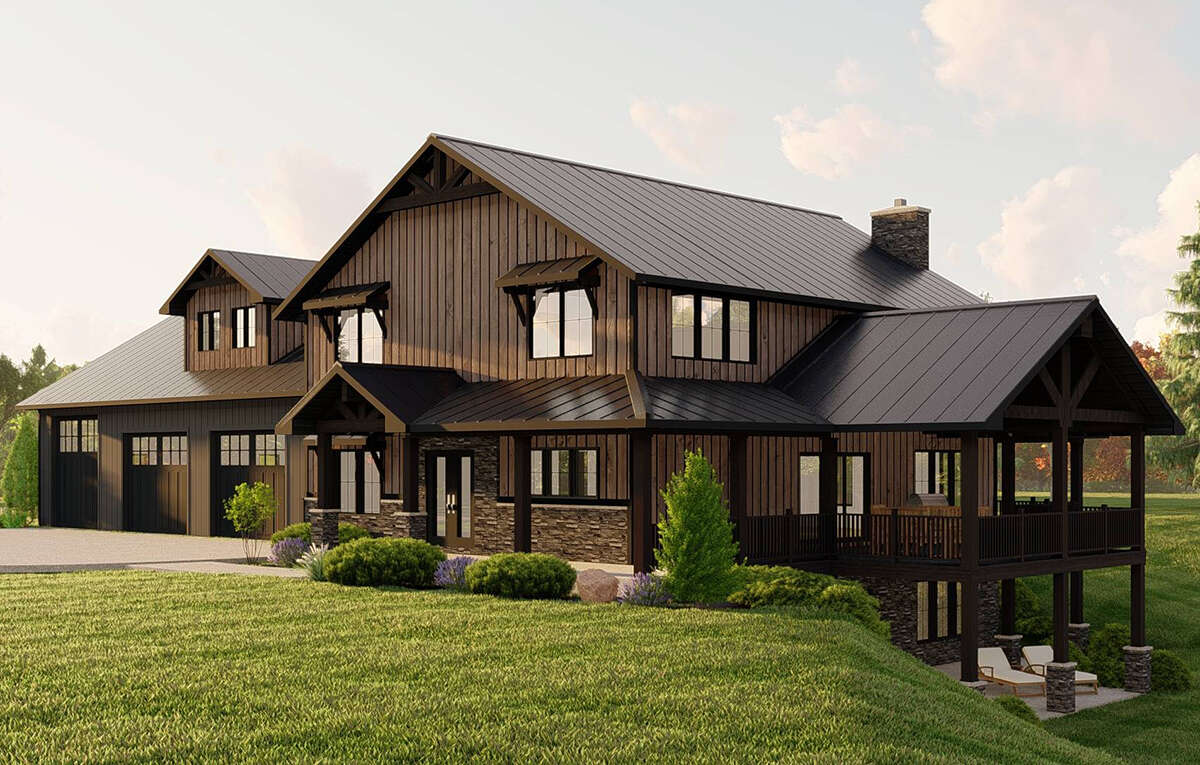

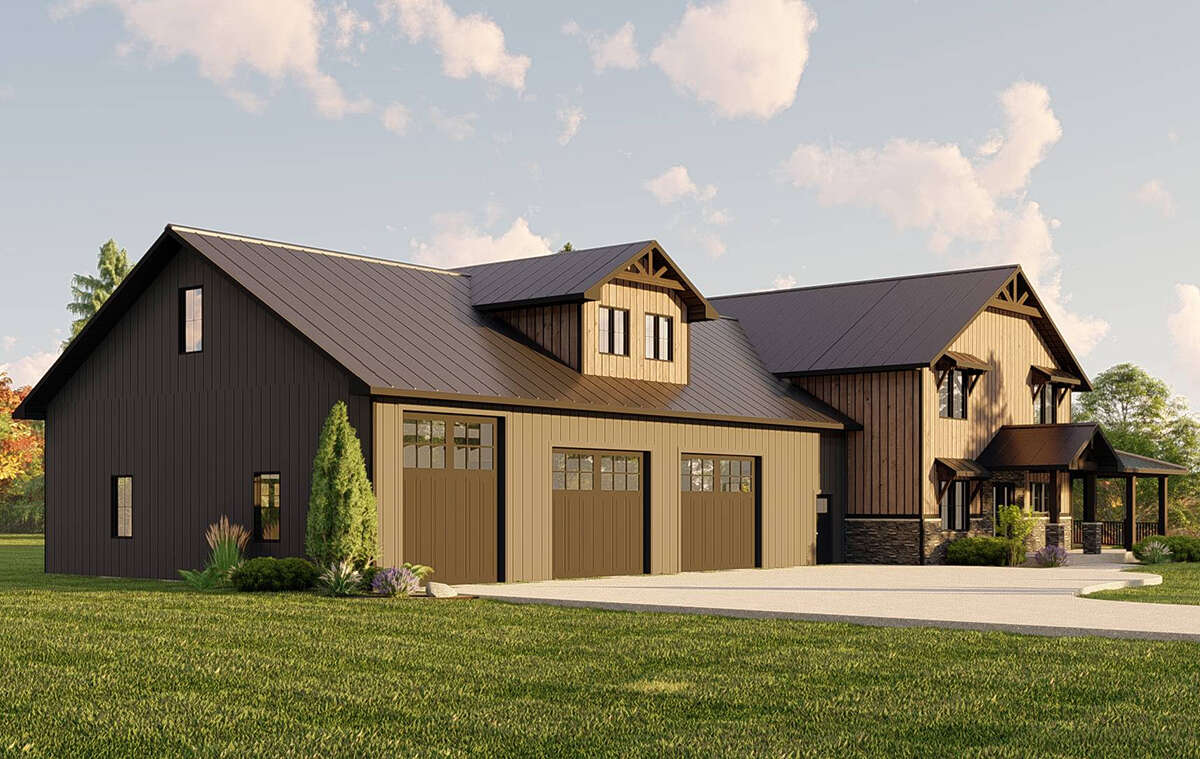

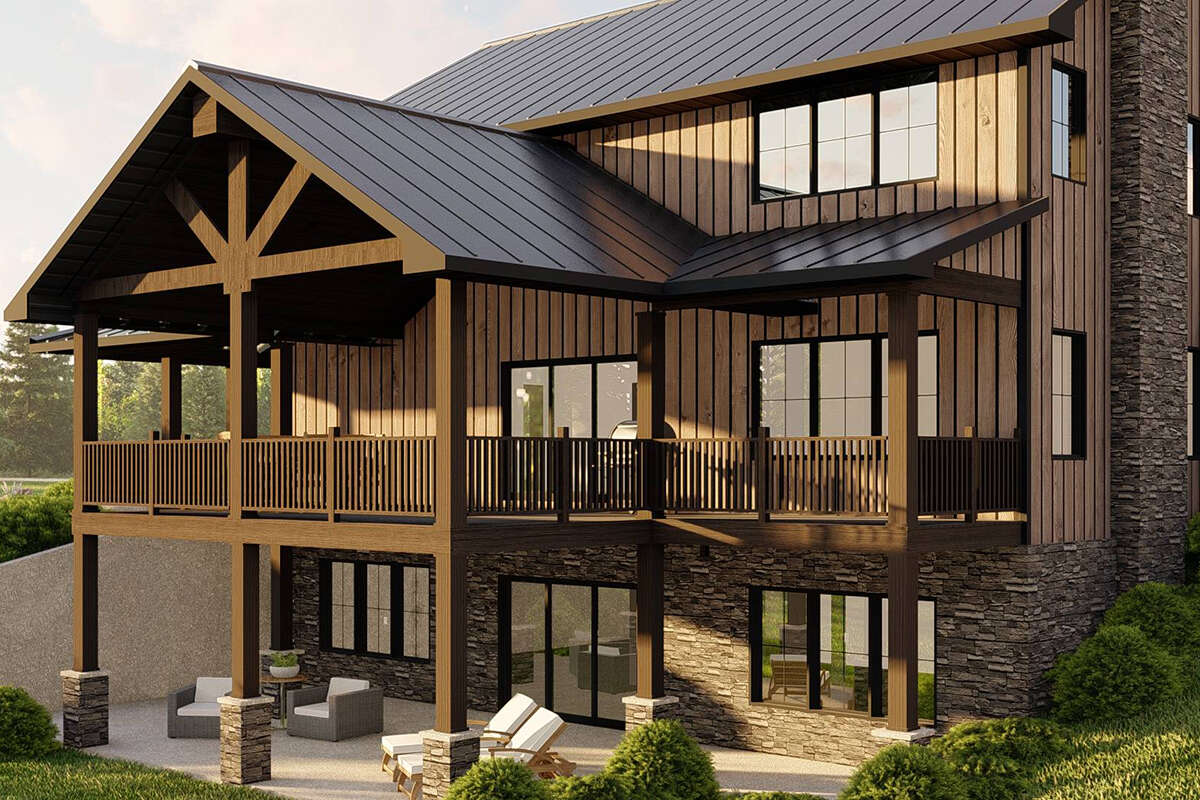

Barn Plan 5032-00189

IMPORTANT NOTICE

To purchase a reversed plan, please select Right Reading Reverse under Additional Options.
Sq Ft 2,840
Beds 2-3
Bath 3
1/2 Baths 2
Car 3
Stories 2
Width 94'
Depth 57'

Floorplan Drawings

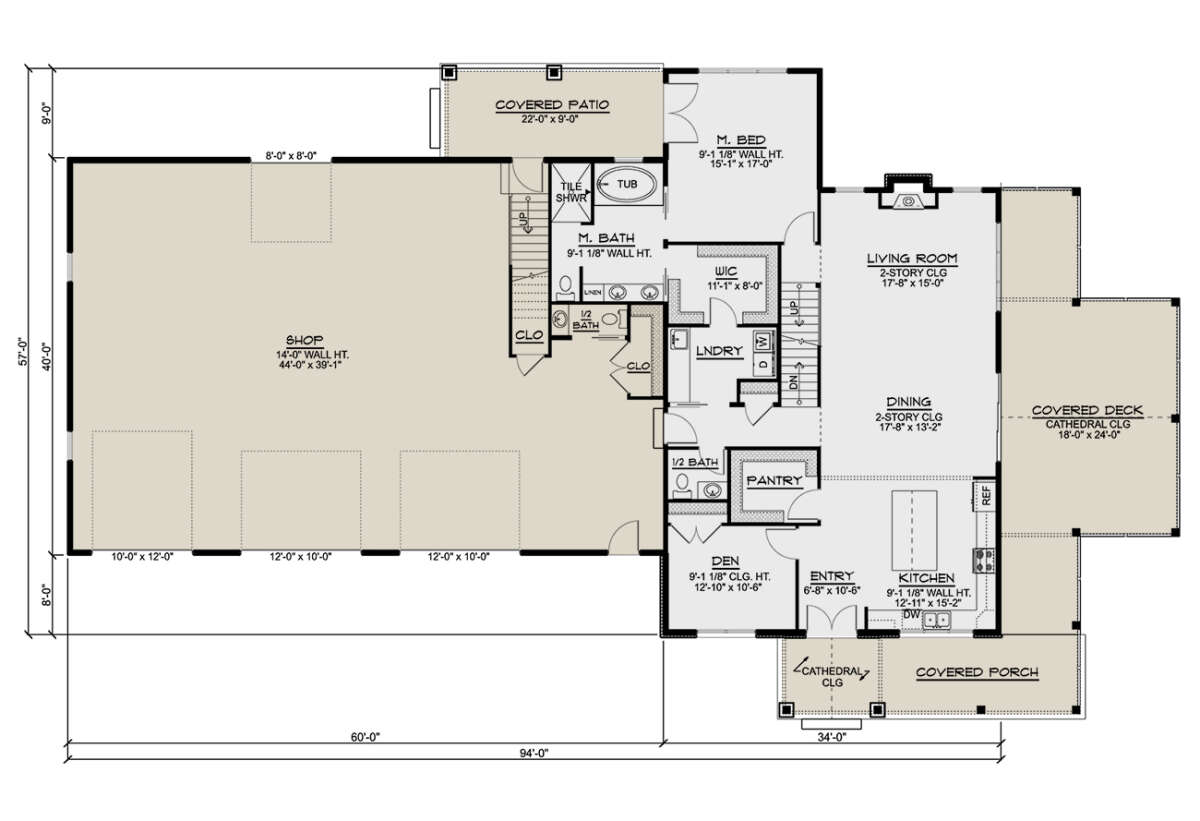

Main Floor
Main Floor  for House Plan #5032-00189

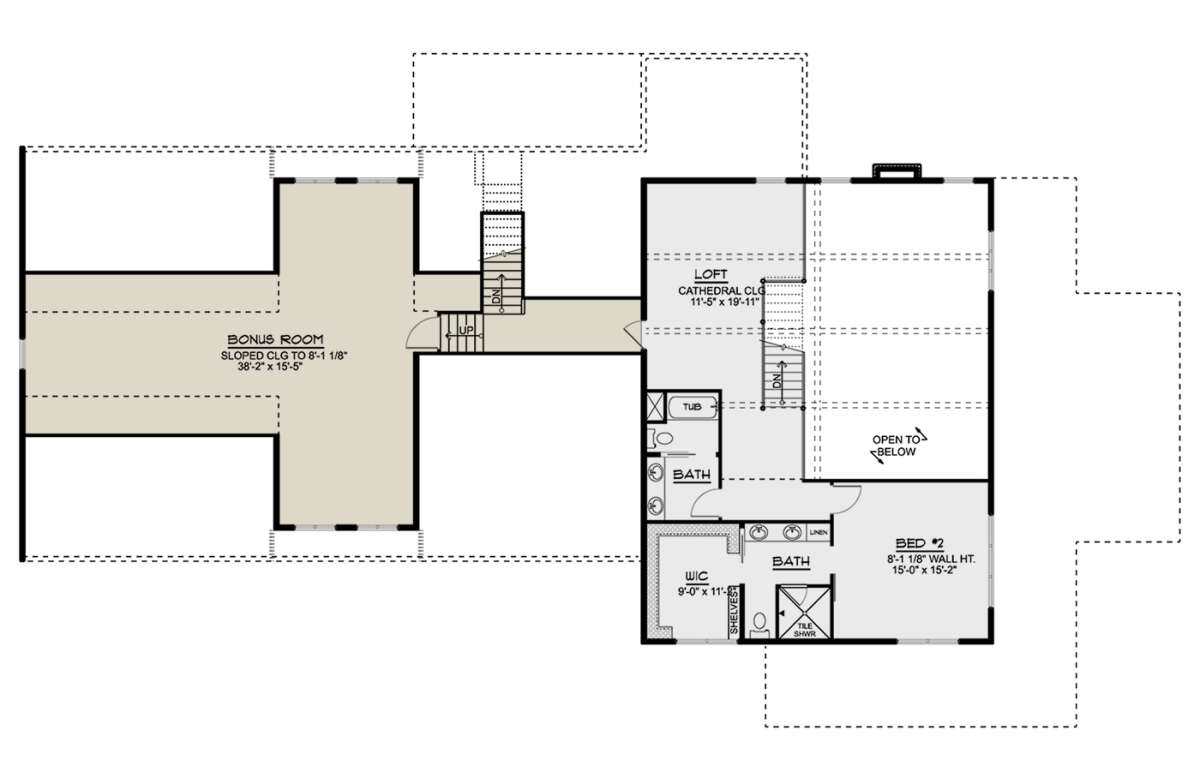

Second Floor
Second Floor for House Plan #5032-00189

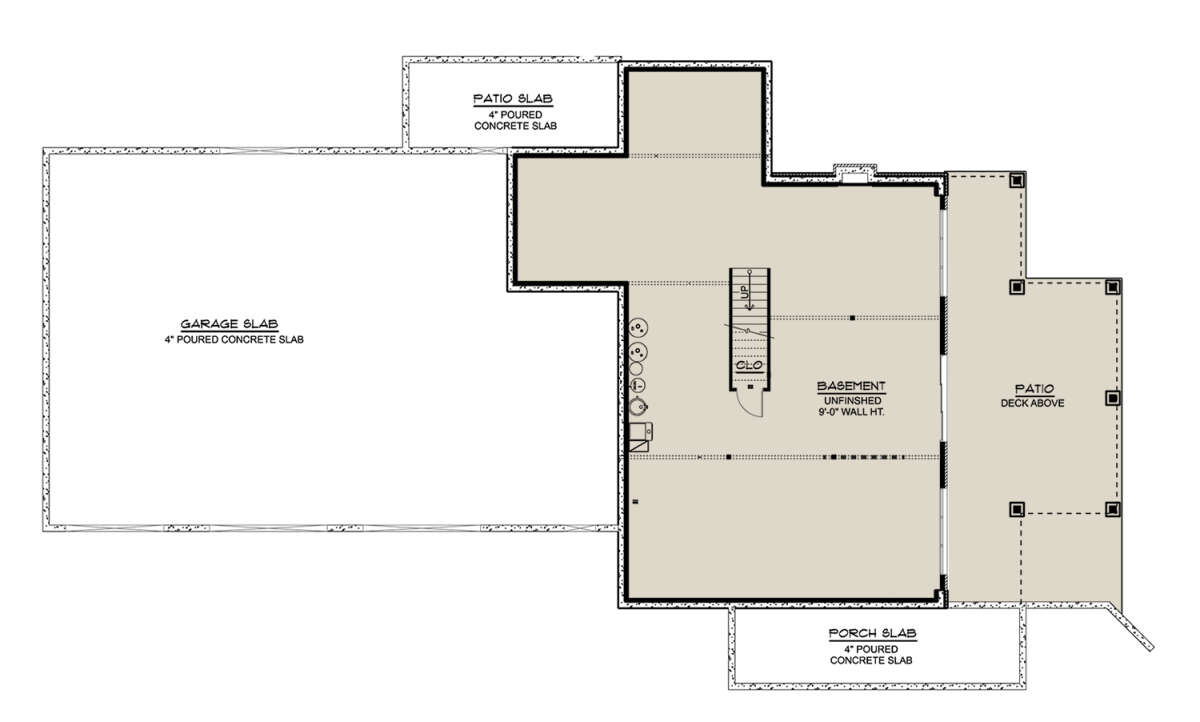

Basement
Basement for House Plan #5032-00189


What's Included in these plans?

  • Title Sheet
  • 4 Detailed Elevations, fully dimensioned and noted
  • Floor Plans
  • Roof Plan
  • Typical Wall Section or Cross Section
  • Foundation Plan & Details
  • General Notes Page
  • Electrical Plan for each floor





Ask Us A Question

To request a modification quote, please use the Modification Request Form.

About This Plan

This 2 bedroom, 3 bathroom Barn house plan features 2,840 sq ft of living space. America's Best House Plans offers high quality plans from professional architects and home designers across the country with a best price guarantee. Our extensive collection of house plans are easy to read, versatile, and affordable, with a seamless modification process available if your plans need to be changed to suit your lifestyle and personal choice.
