Barn House Plan 5032-00162

Sq Ft2,030
Beds3
Baths2
1/2 Baths0
Stories1
Cars0
Width50' 0"
Depth64' 0"
Images copyrighted by the designer. Photographs may reflect a homeowner modification.

Floorplan Drawings

 REVERSE  PRINT  DOWNLOAD Images copyrighted by the designer.
Main Floor  for House Plan #5032-00162

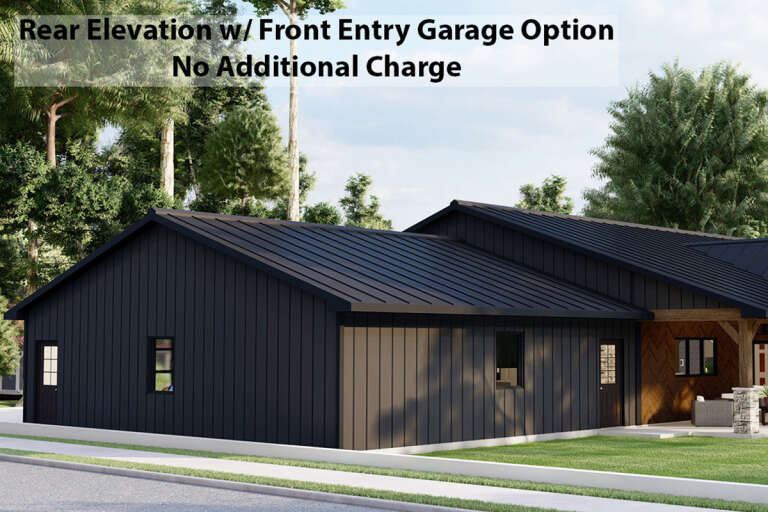

Main Floor w/ Front Entry Garage Option for House Plan #5032-00162
Walkout Basement for House Plan #5032-00162

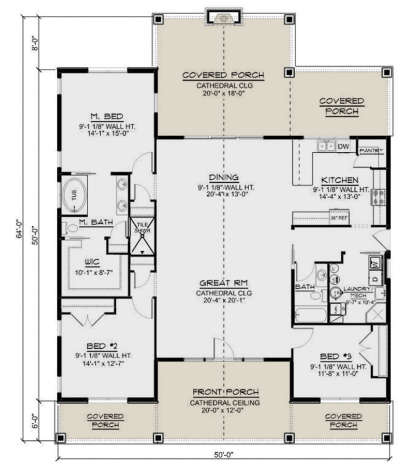

Main Floor
Main Floor  for House Plan #5032-00162

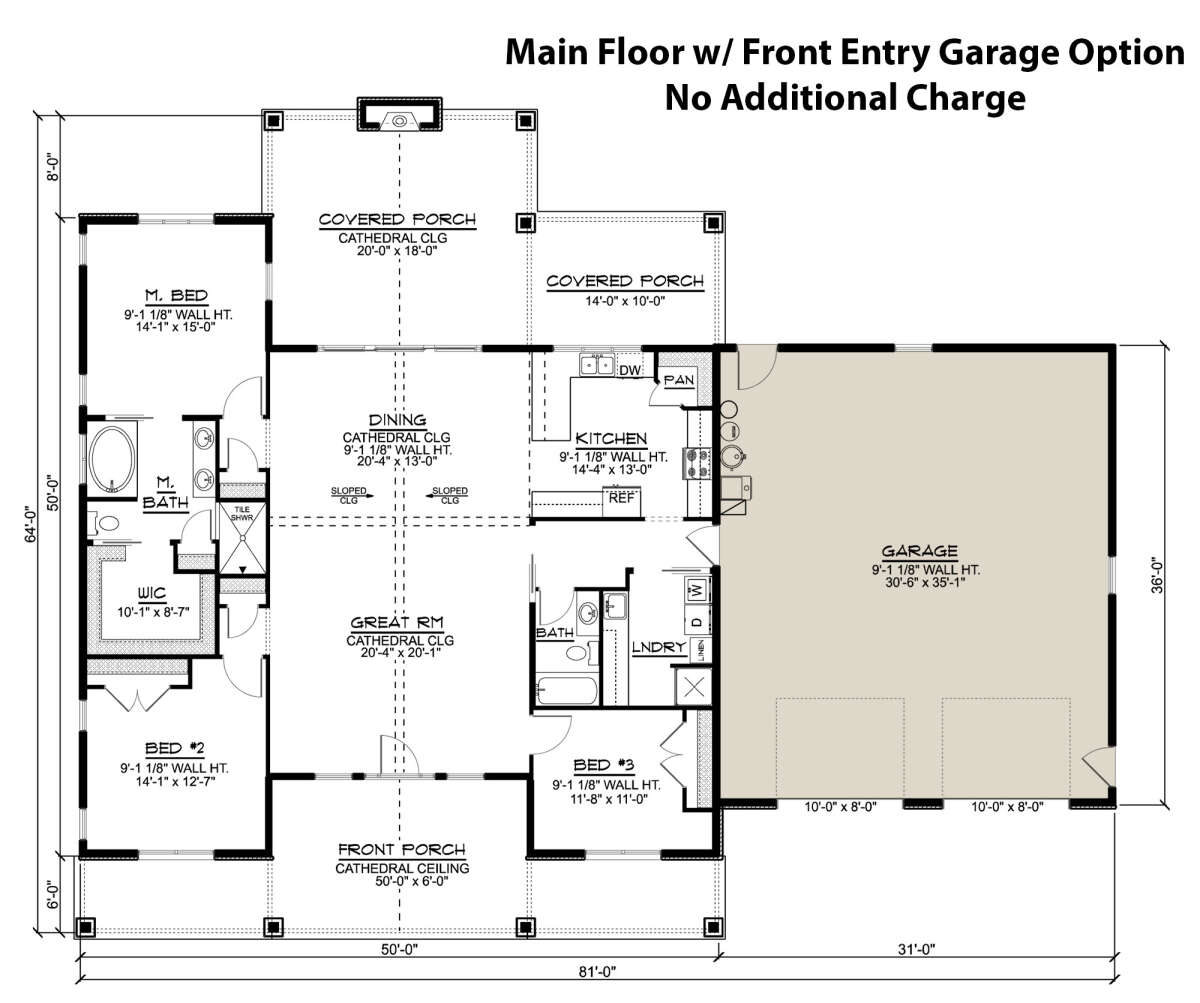

Main Floor w/ Front Entry Garage Option
Main Floor w/ Front Entry Garage Option for House Plan #5032-00162

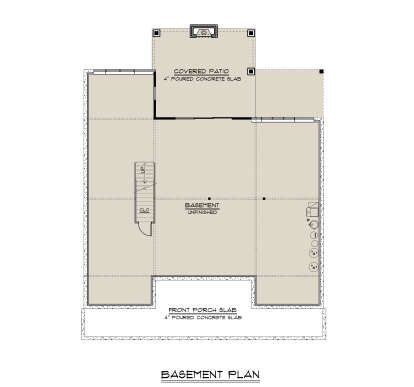

Walkout Basement
Walkout Basement for House Plan #5032-00162


Frequently Asked Questions

COST TO BUILD REPORT

What's Included in these plans?

  • Title Sheet
  • 4 Detailed Elevations, fully dimensioned and noted
  • Floor Plans
  • Roof Plan
  • Typical Wall Section or Cross Section
  • Foundation Plan & Details
  • General Notes Page
  • Electrical Plan for each floor

ASK US A QUESTION

Name:
E-mail Address:
Please leave blank:
Your Question:

To request a modification quote, please use the Modification Request Form.

About This Plan

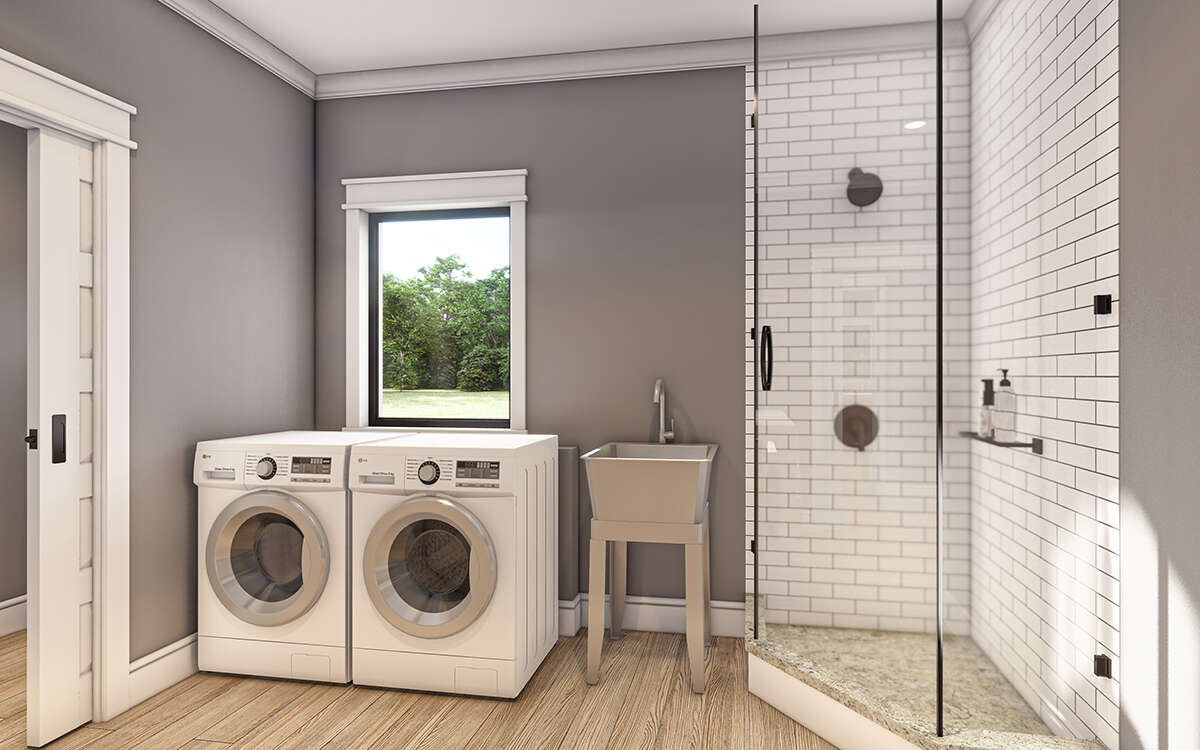

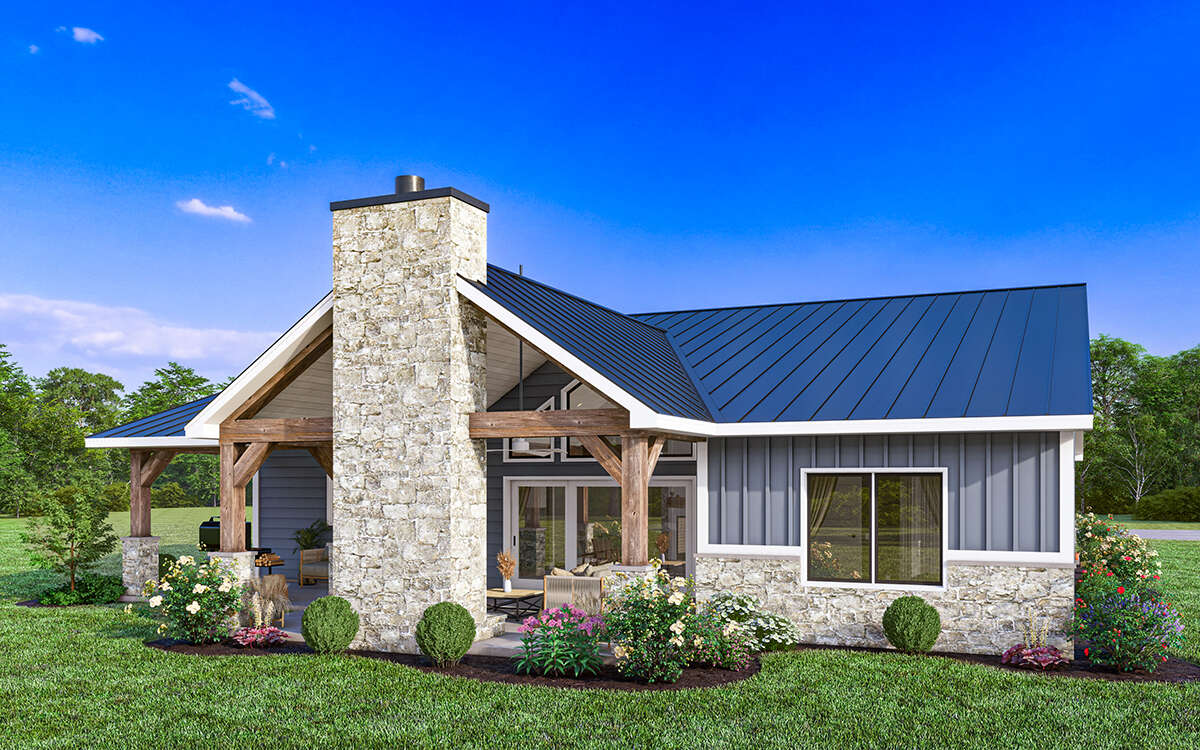

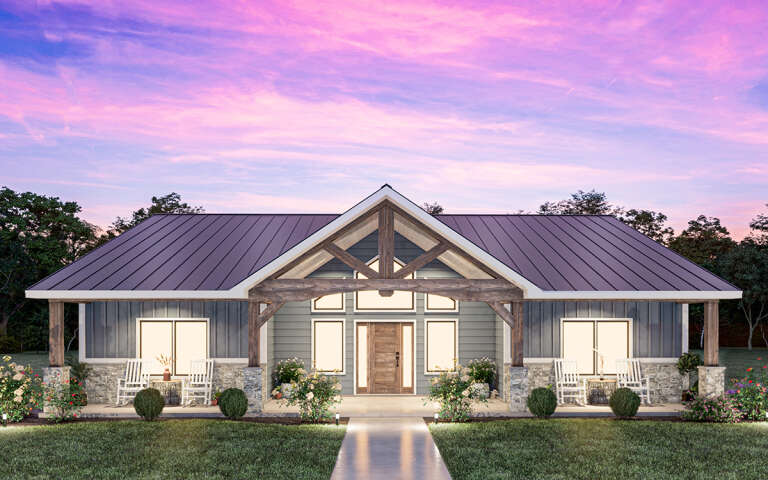

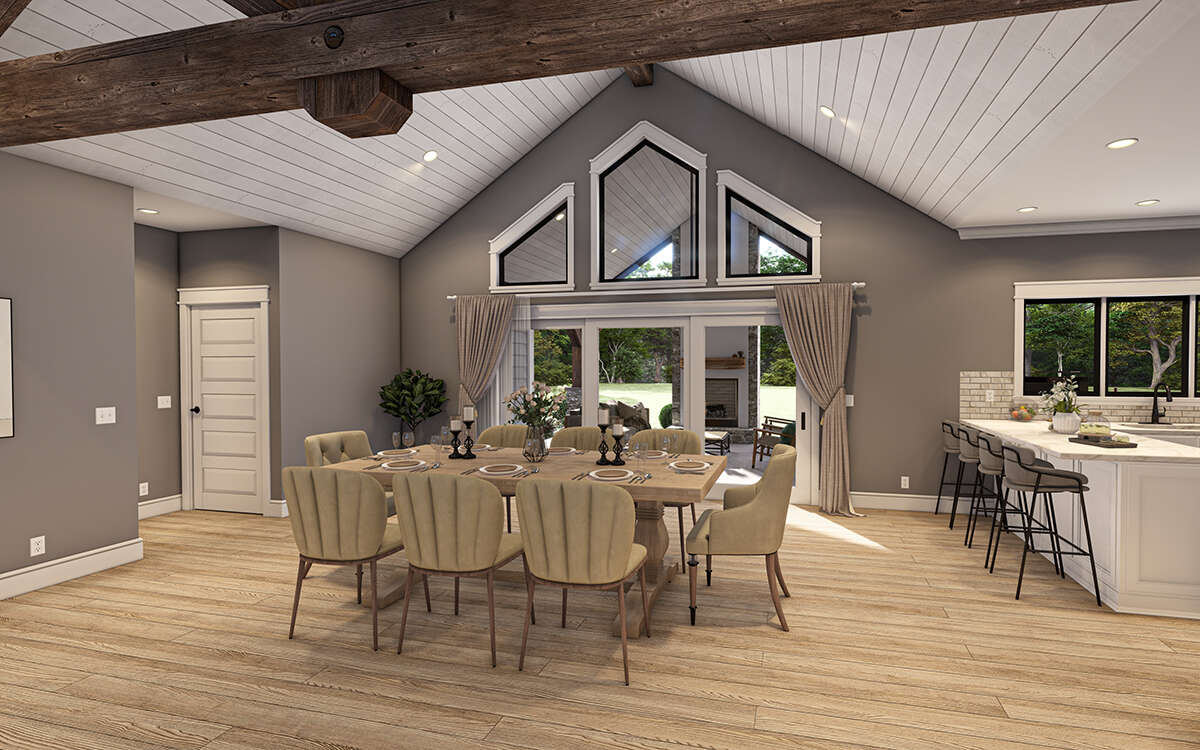

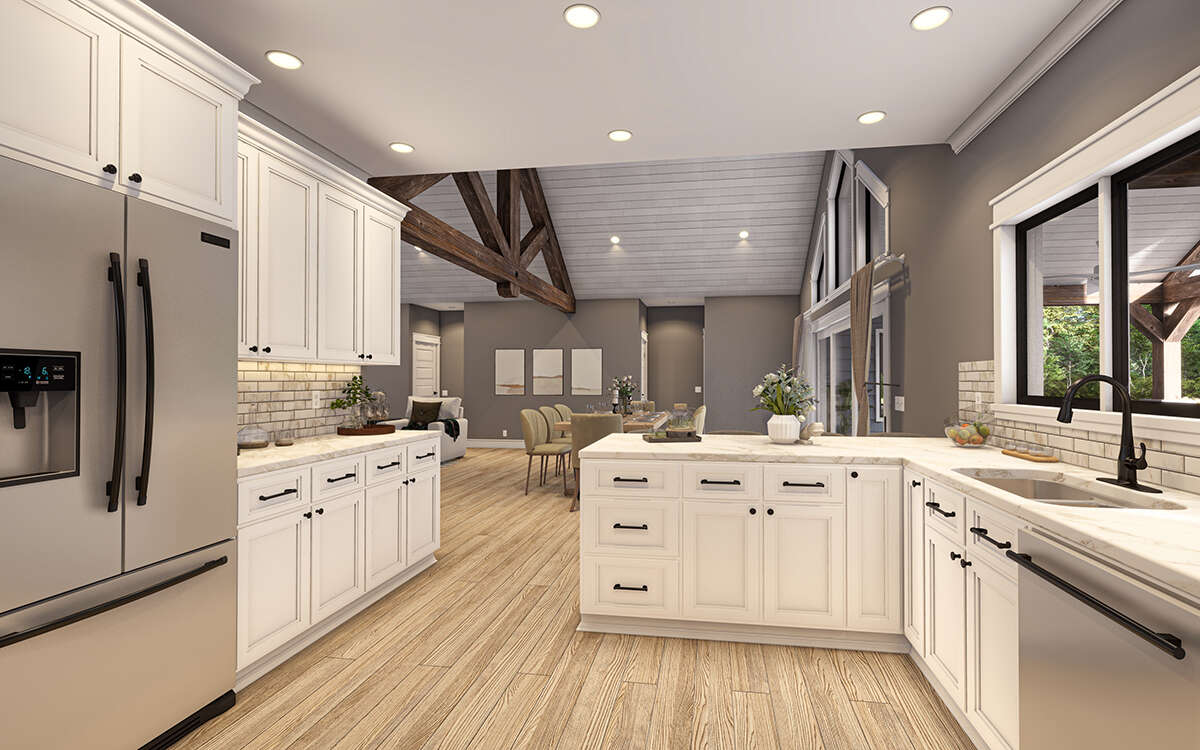

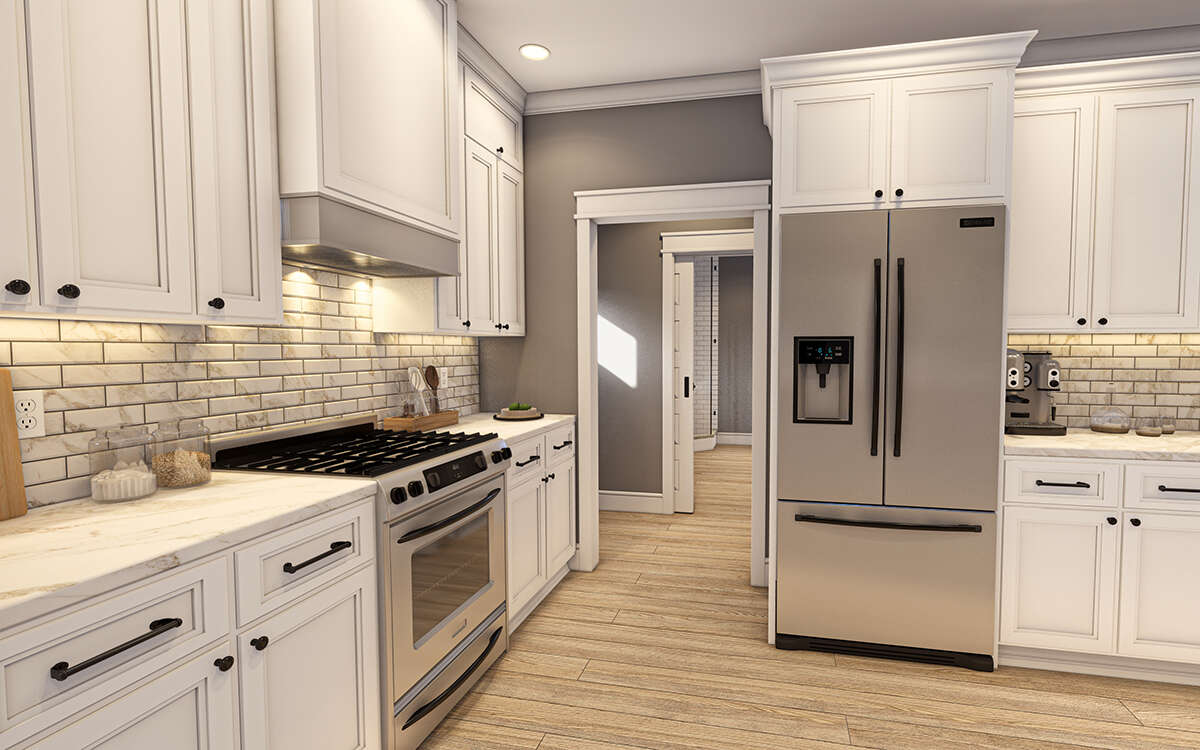

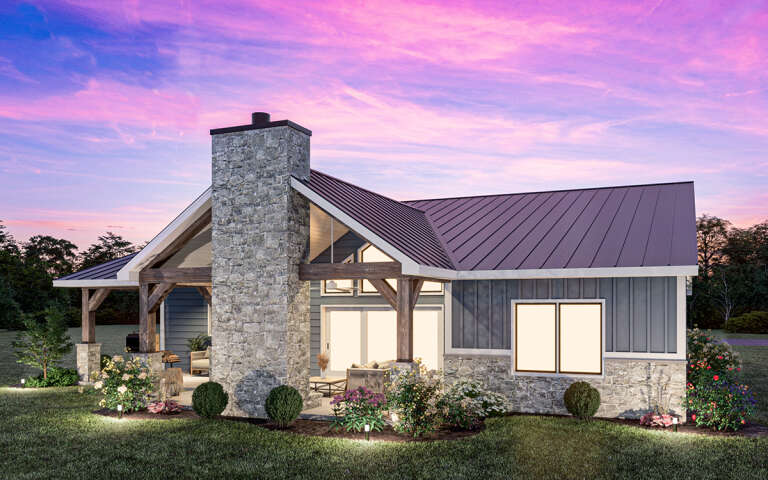

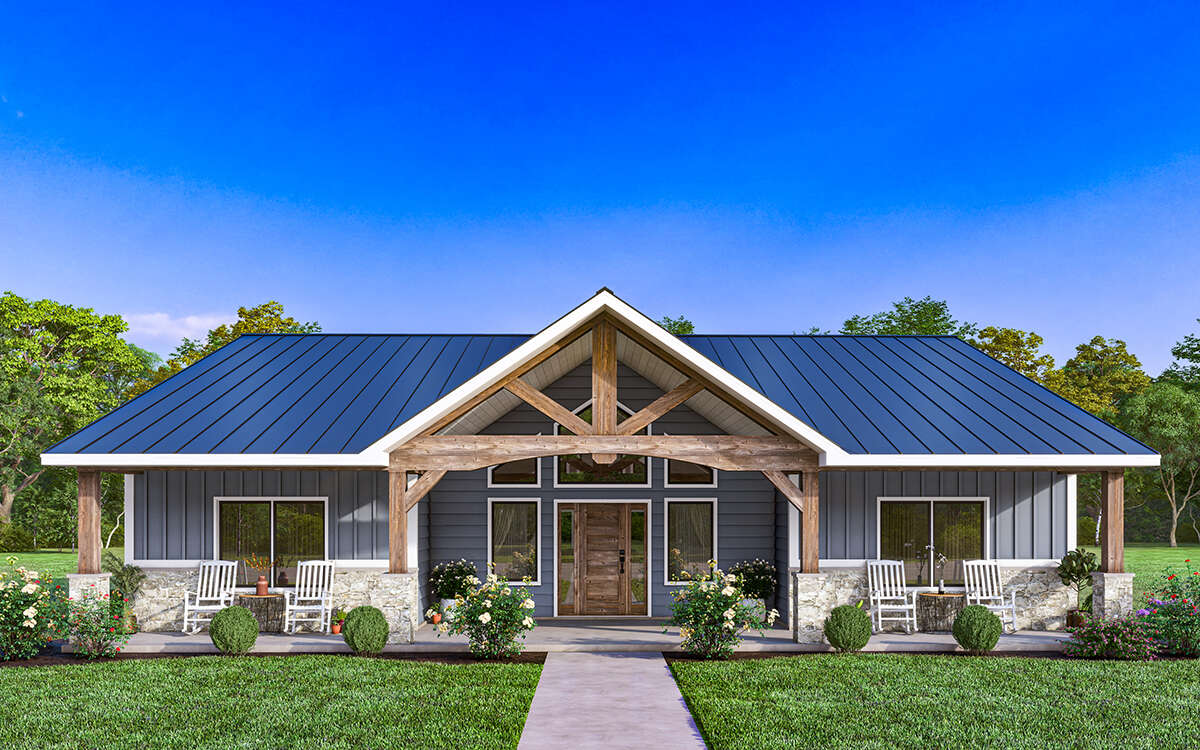

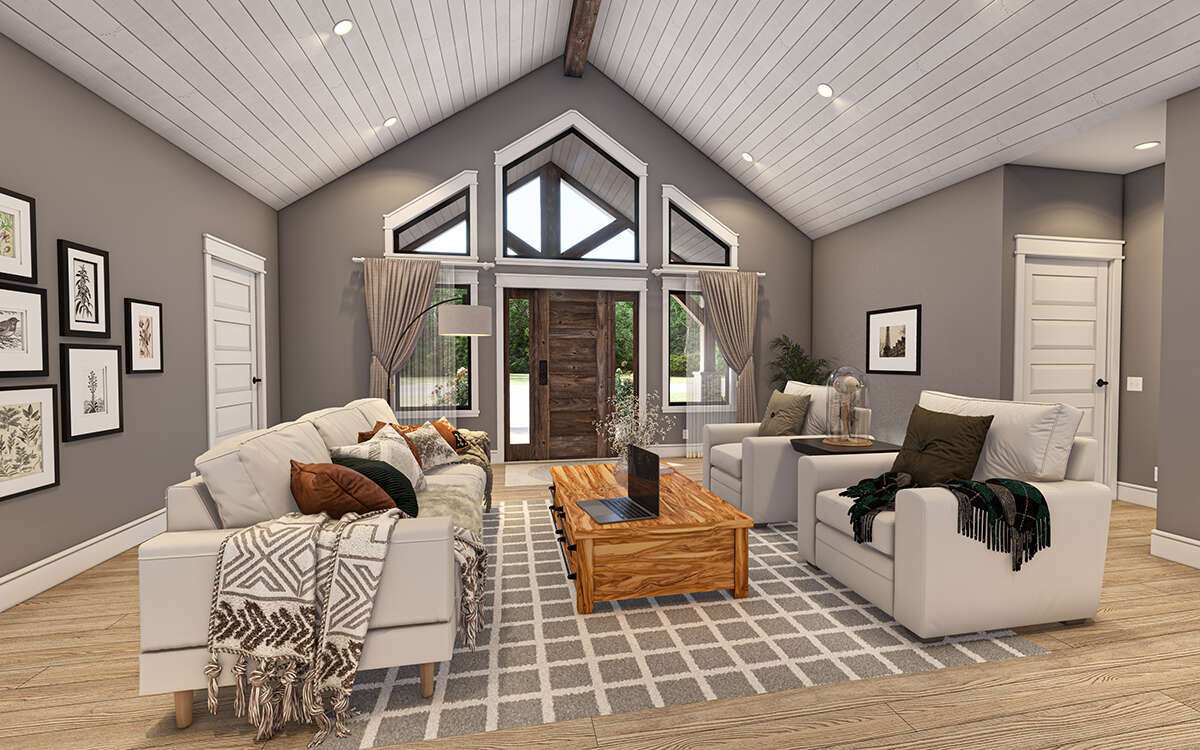

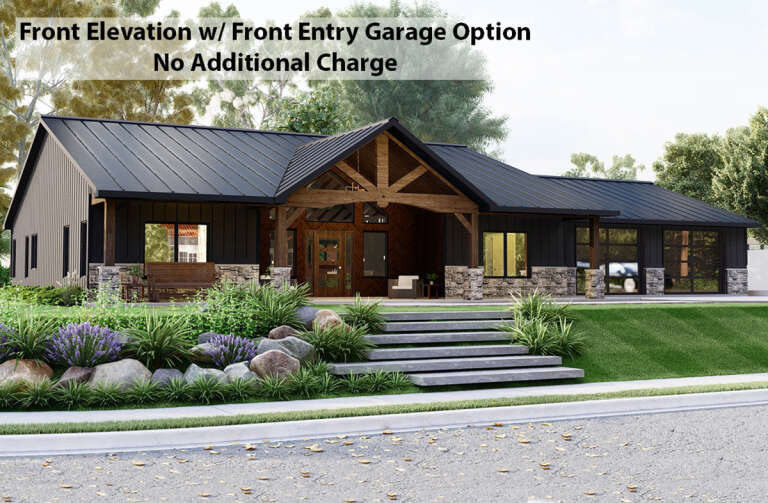

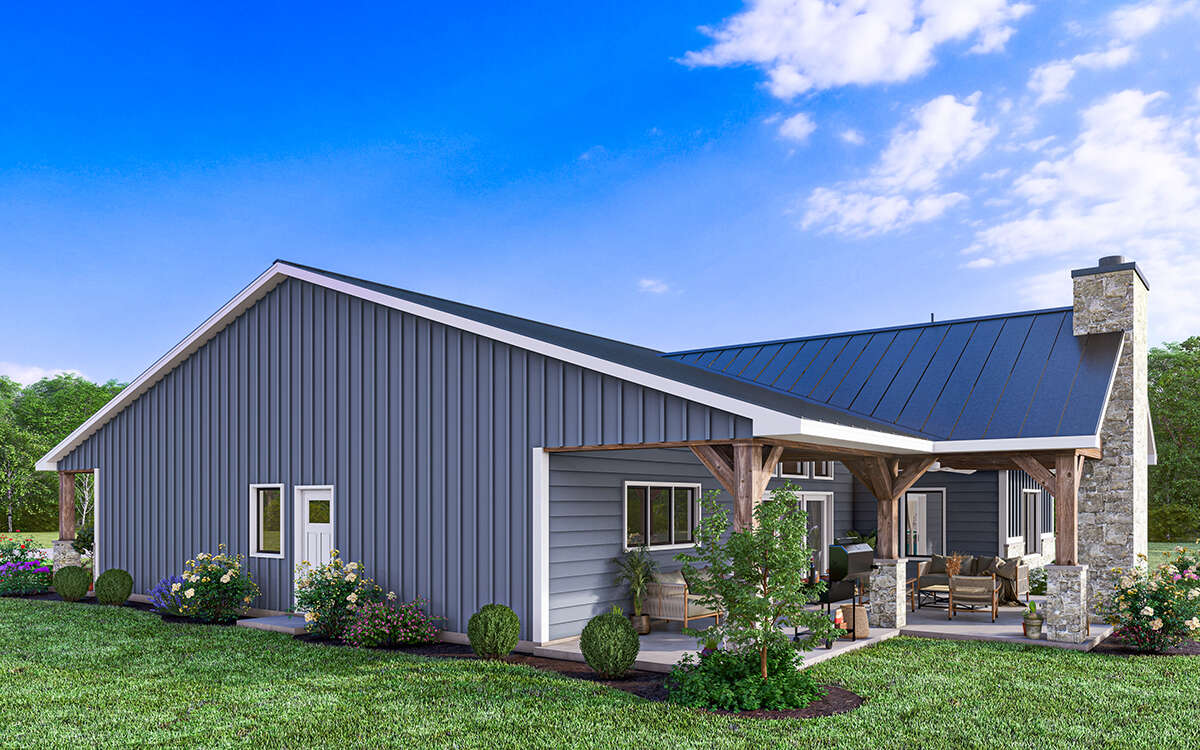

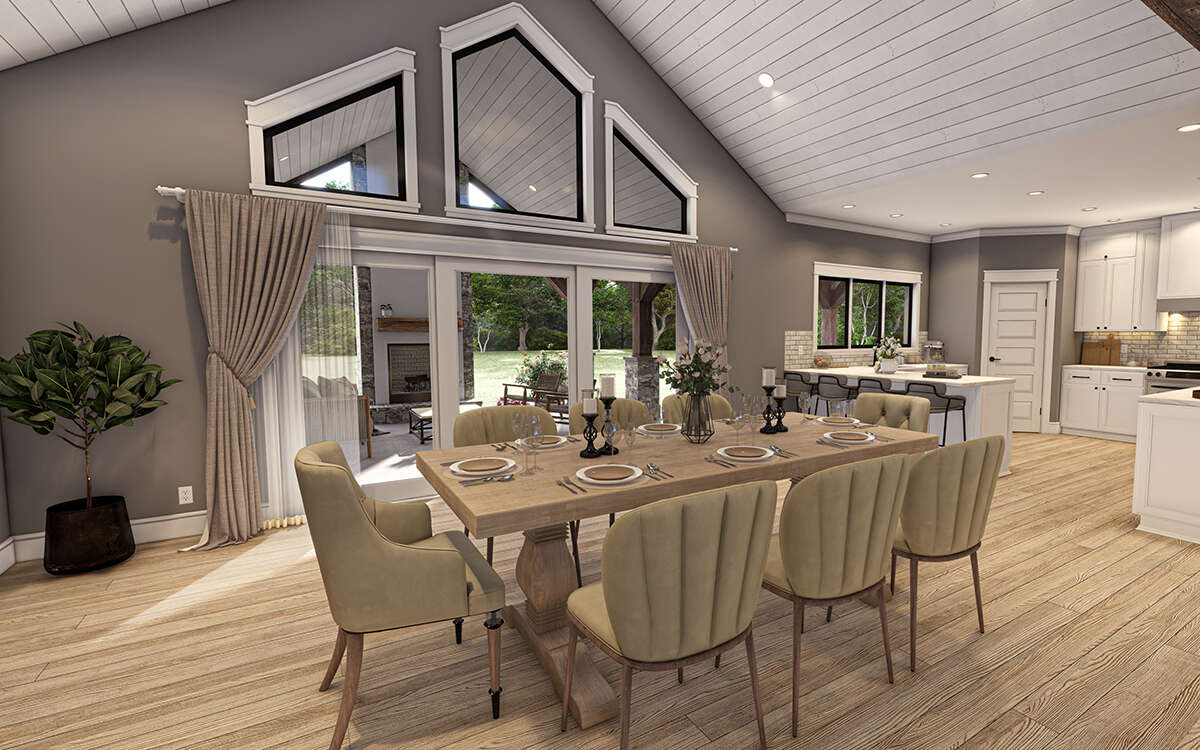

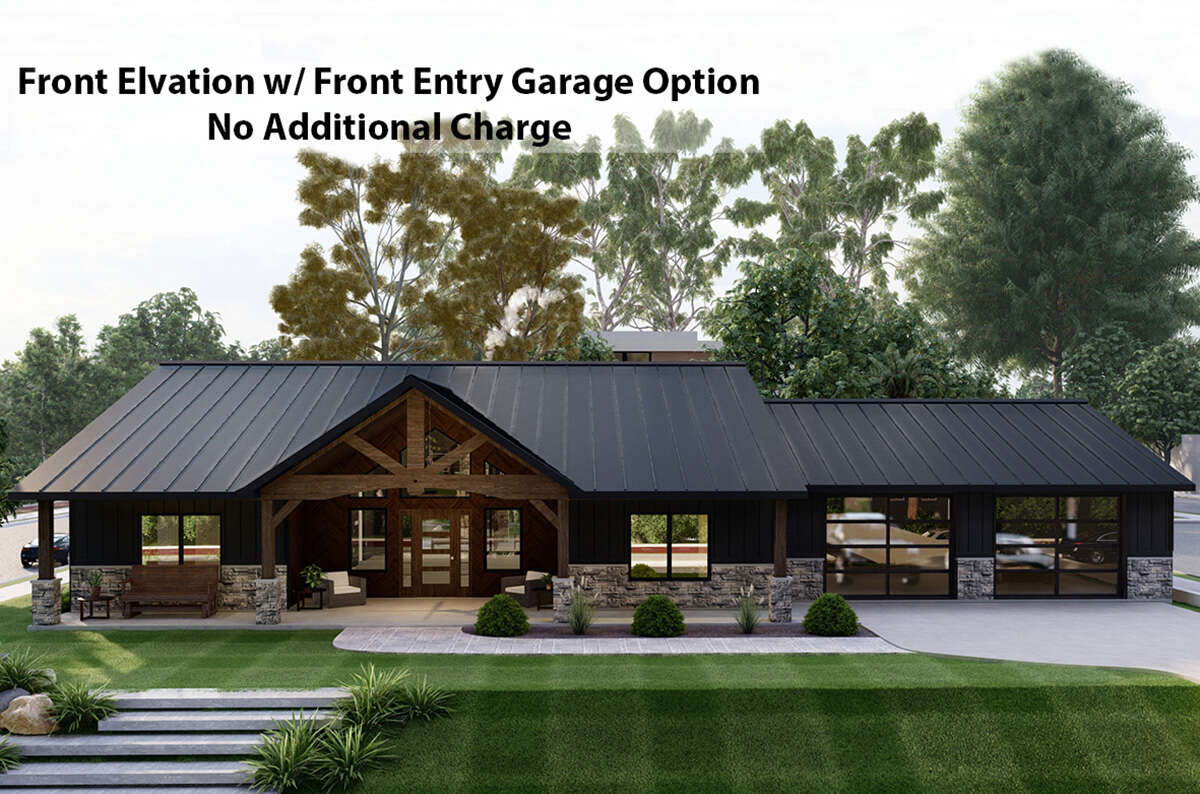

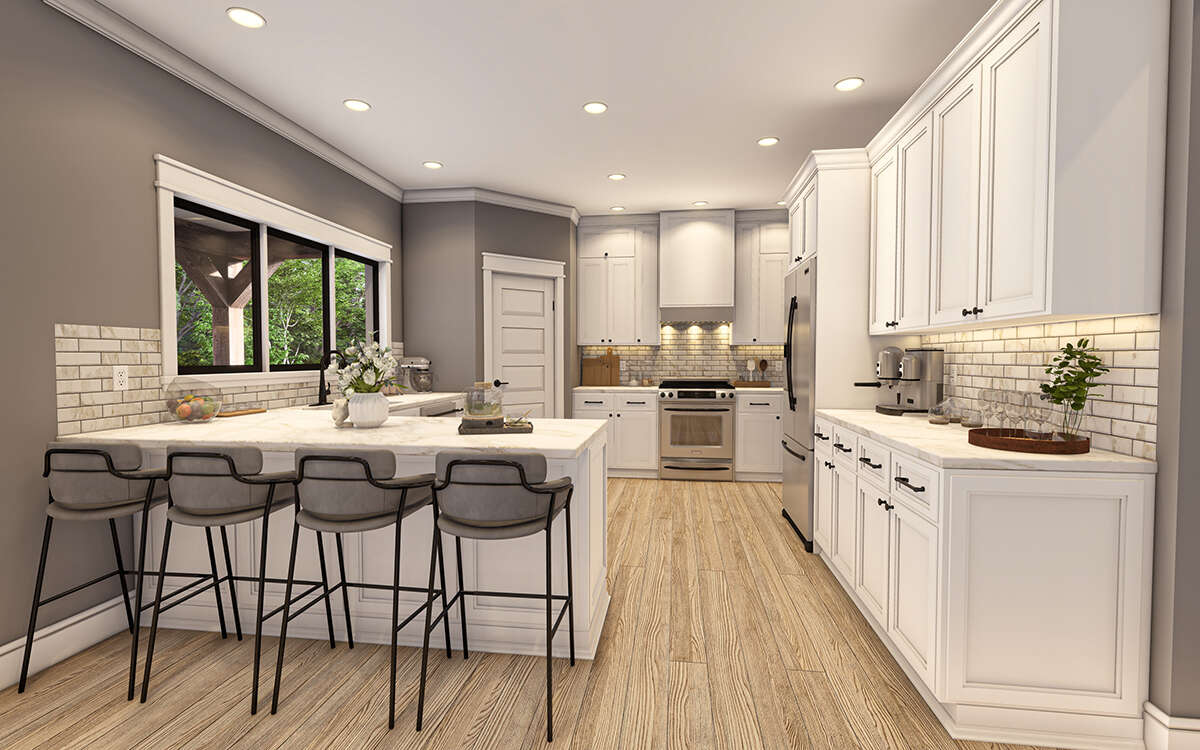

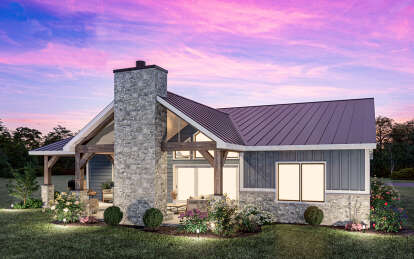

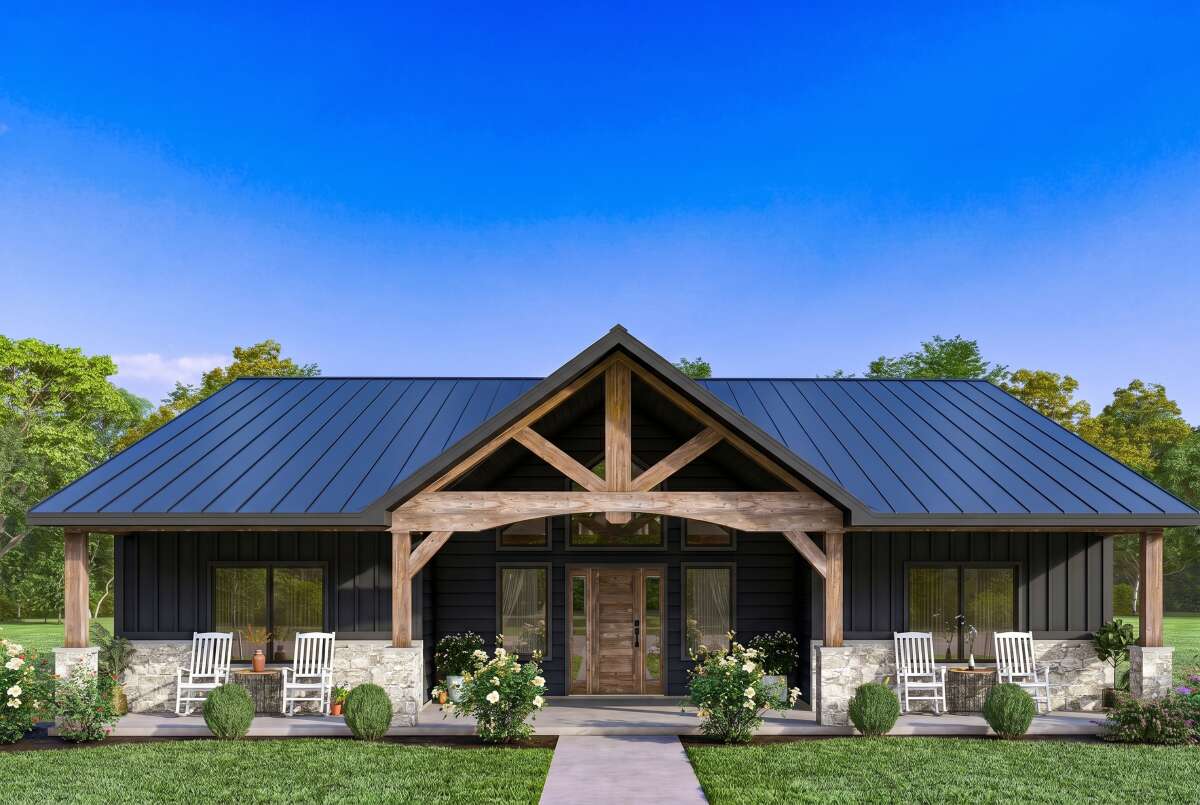

Great curb appeal is found in this Barndominium design with its combination of stonework, wood beams and vertical siding. The front covered porch features cathedral ceilings and a large overhead open gable with attached side porches for additional aesthetic appeal along with stone pillars supporting the wood beams. There is also a rear covered porch with cathedral ceiling heights, great space to entertain, and a center rear wall warming fireplace for guests and family to enjoy. The interior floor plan features three bedrooms and two baths in approximately 2,030 square feet of living space. Front to back when entering is the great room which again, features cathedral ceiling heights, and a center beam running throughout the interior and exterior including the dining room which is located beyond the great room. The kitchen is conveniently located off the dining room and features a corner walk-in pantry and sliders onto the rear covered porch for ease of entertaining and dining outdoors. The laundry and mechanical room are nearby and the third bedroom is located on this side of the home with front window views overlooking the porch and a full bath around the corner.

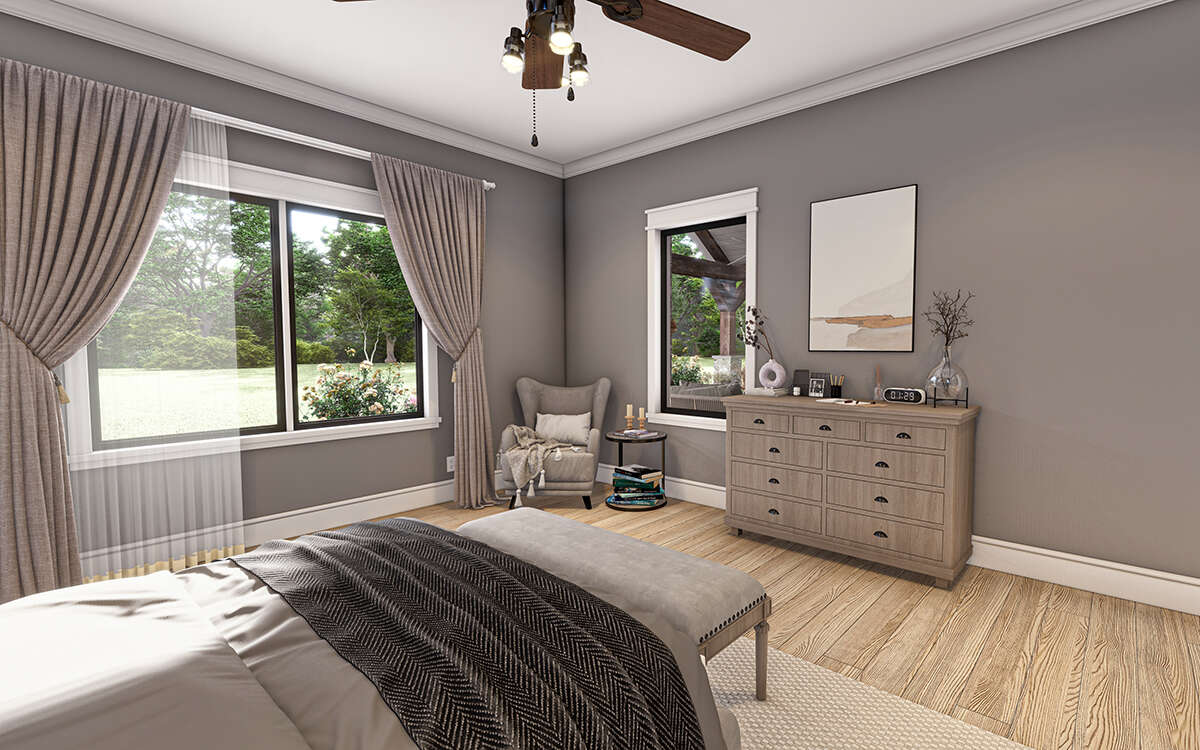

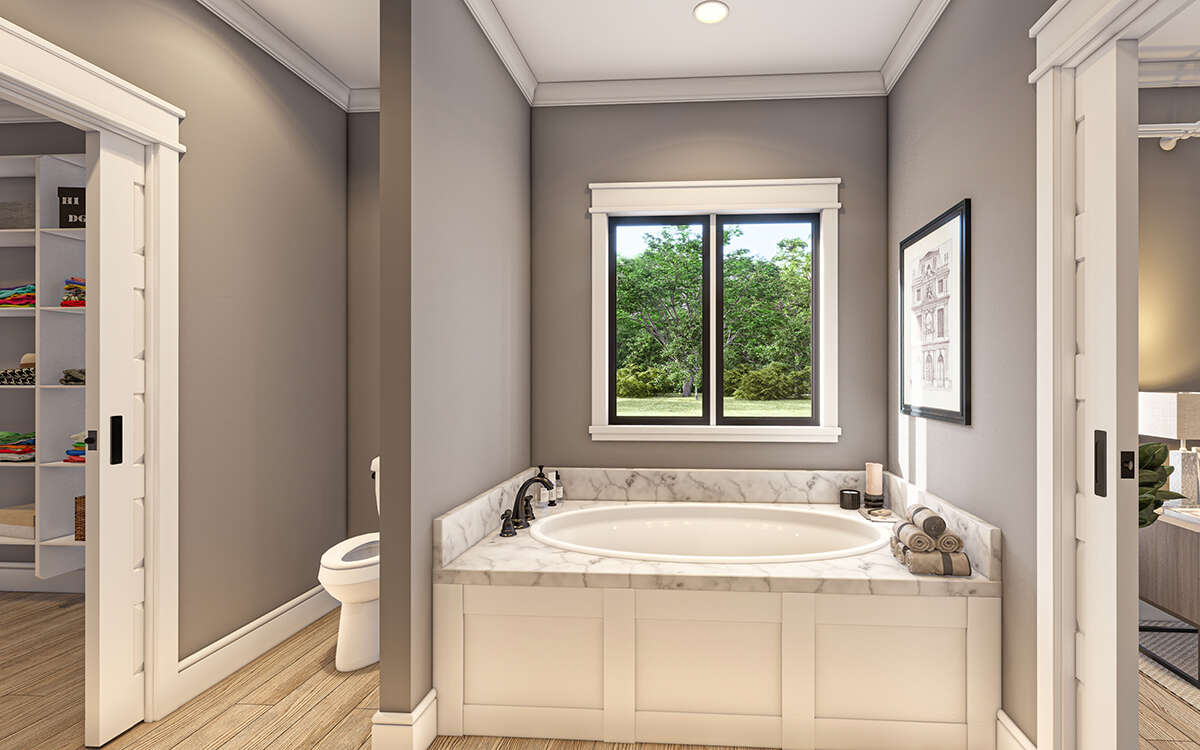

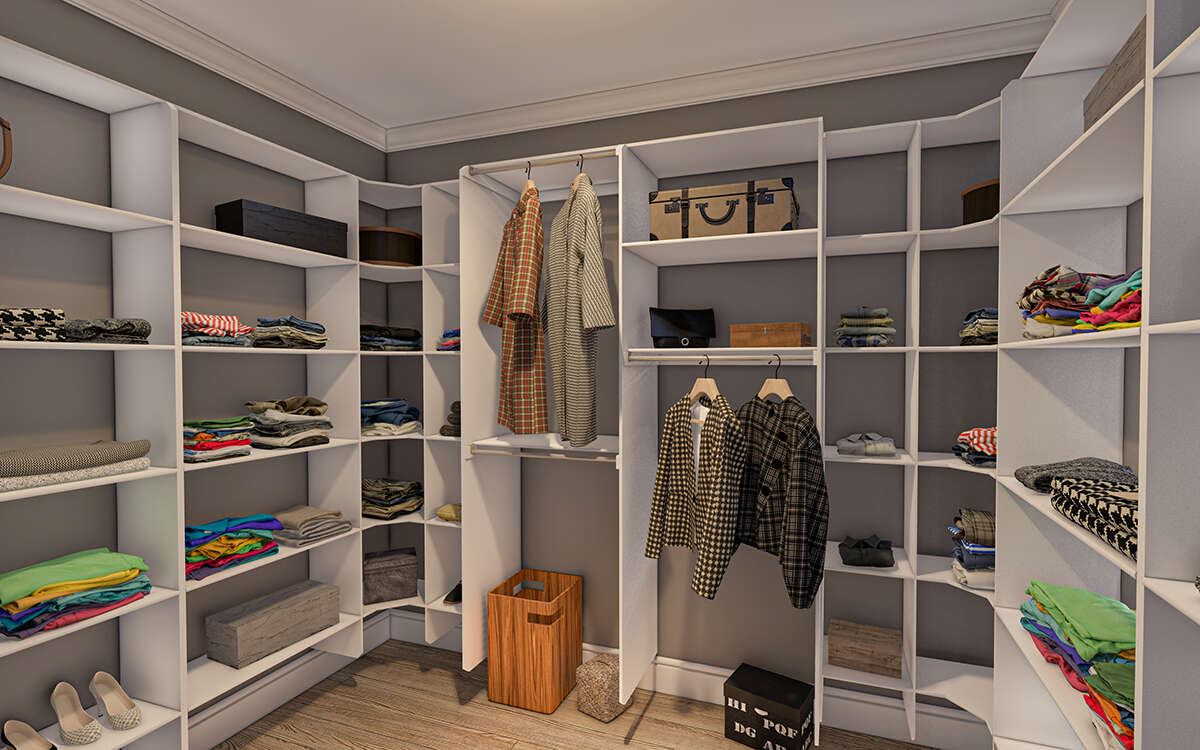

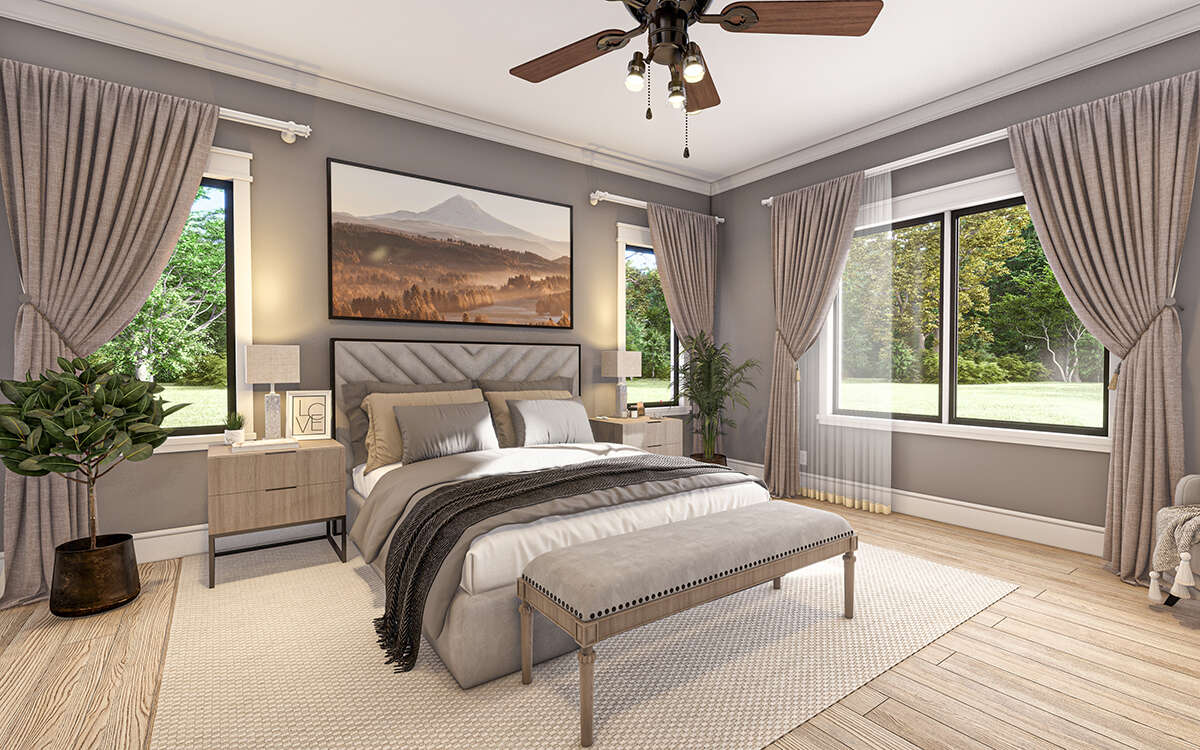

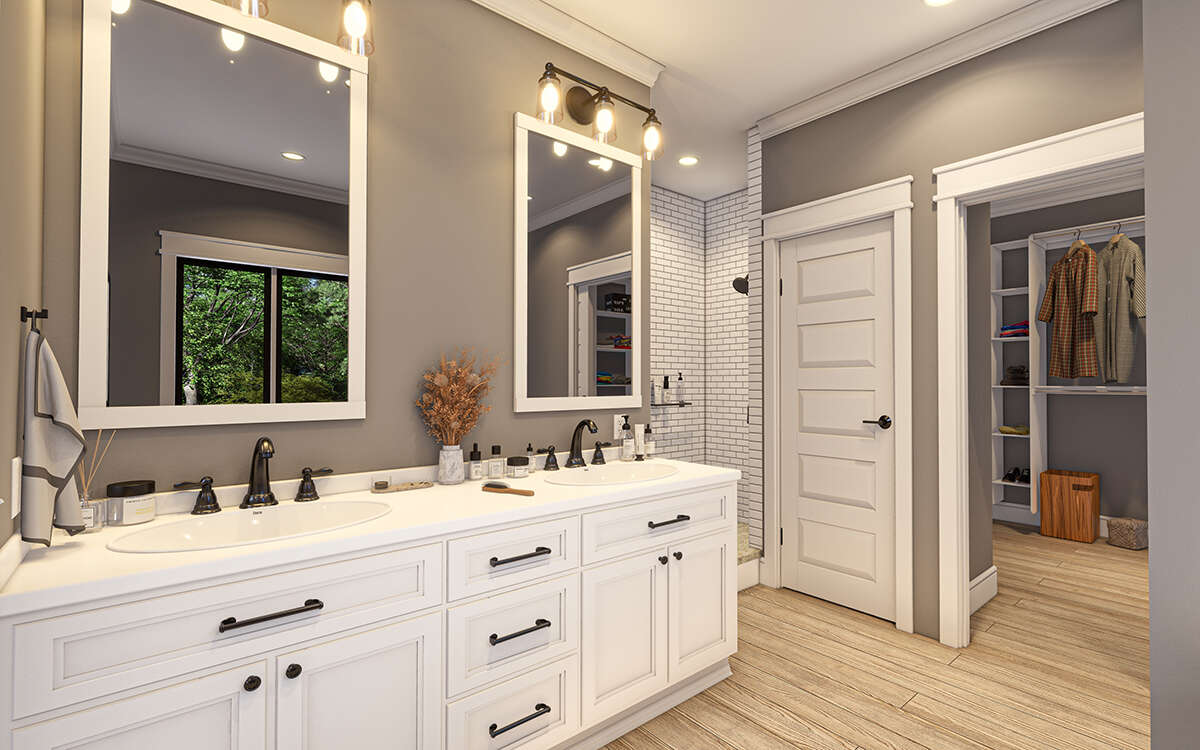

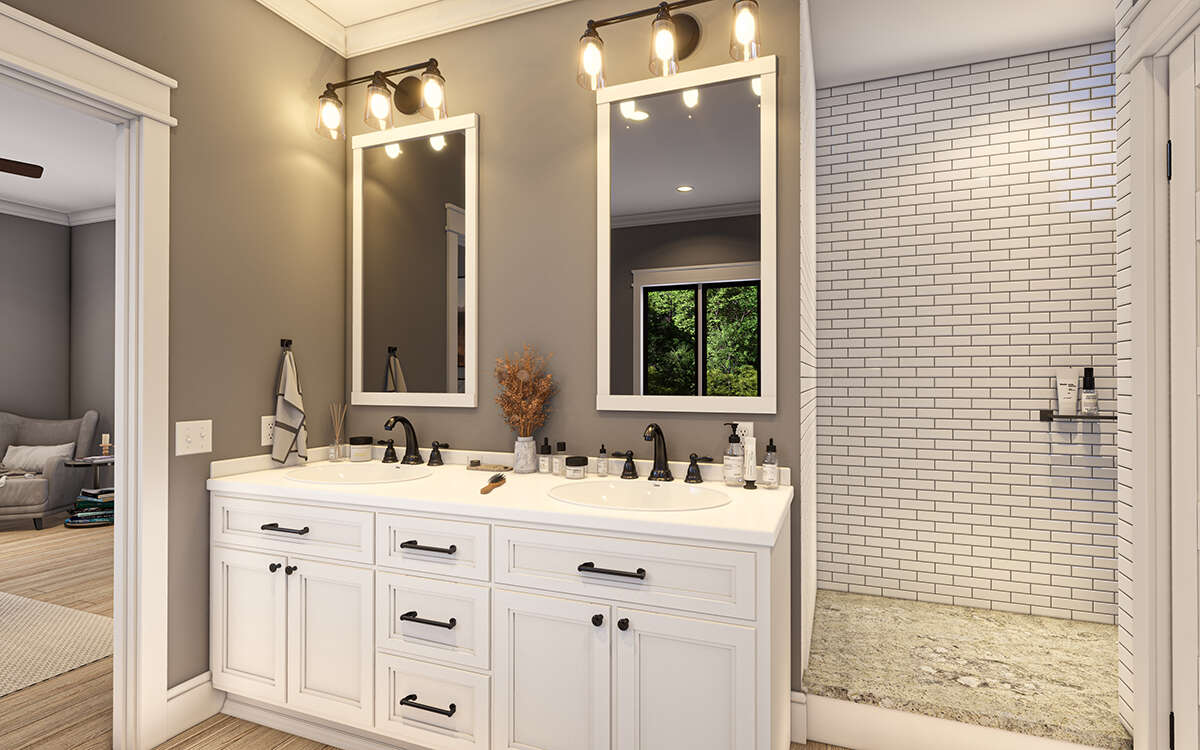

The second bedroom is situated on the opposite side of the home and also includes front window views onto the porch. The primary suite offers a spacious bedroom with window views, a huge walk-in closet for clothing and accessories and an ensuite bathroom. The bathroom houses dual vanities, a freestanding tub, a linen closet, and a tile shower. This house plan is a perfect example of a practical and efficient layout along with great outdoor space for today’s family.
